Product Details
⭐
Overview

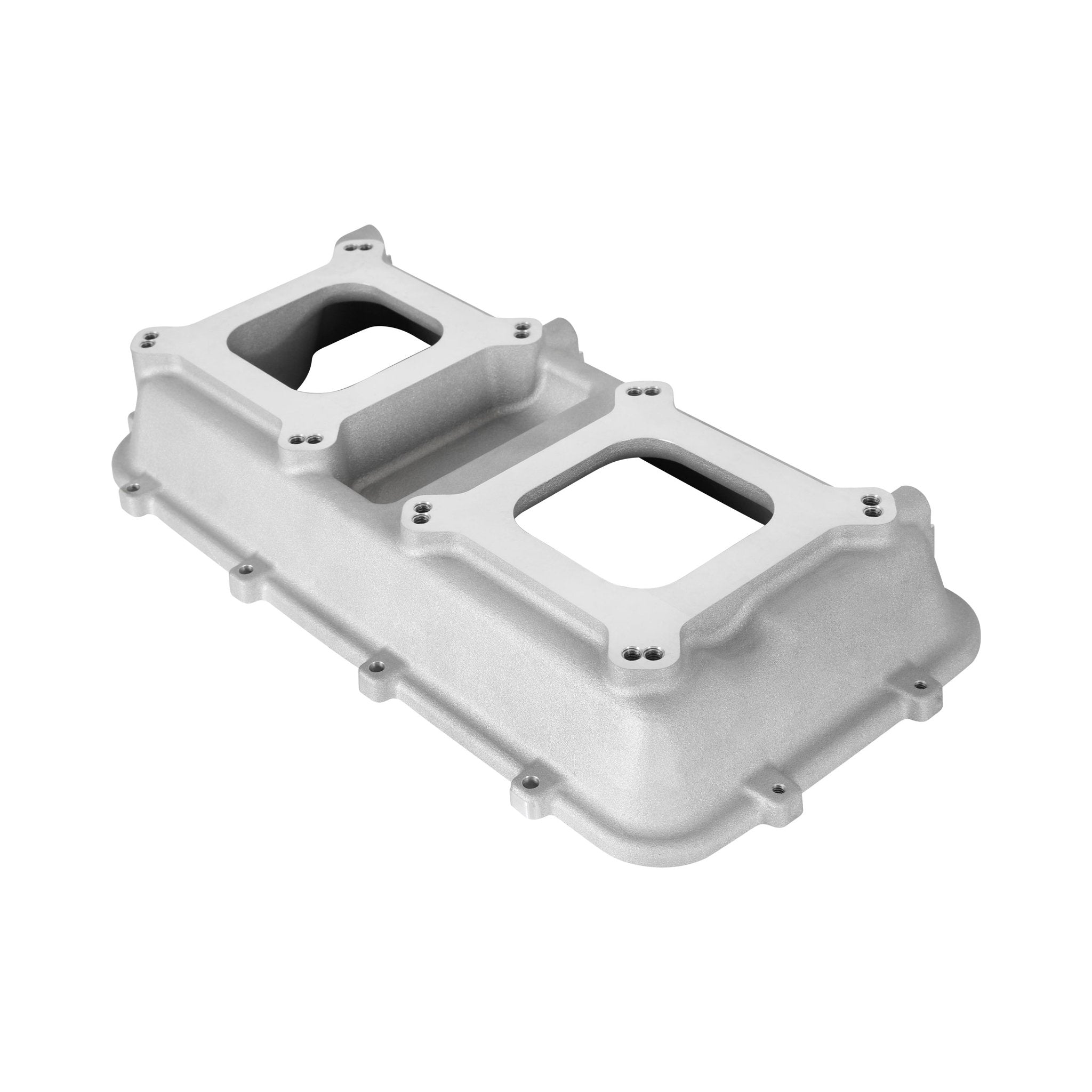

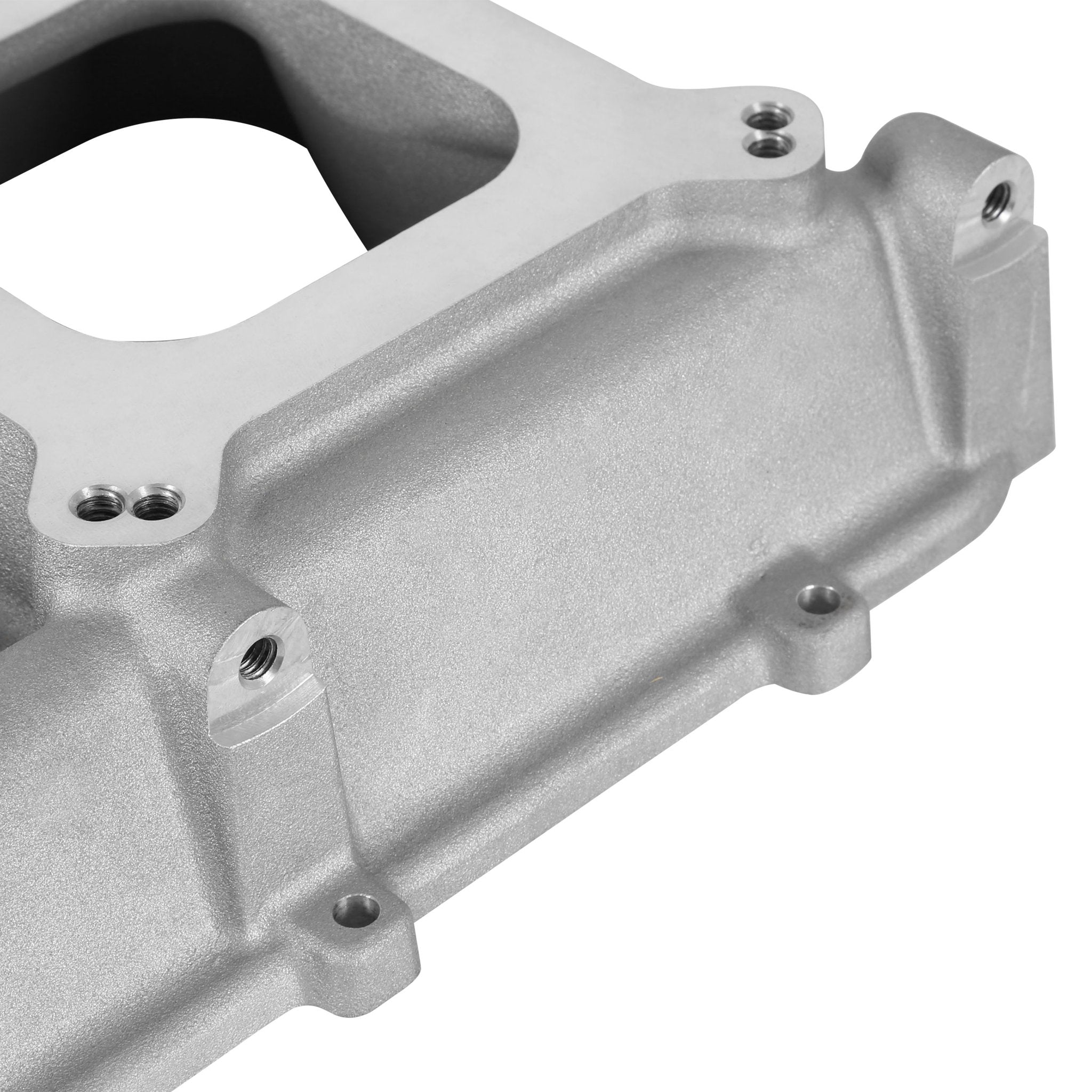

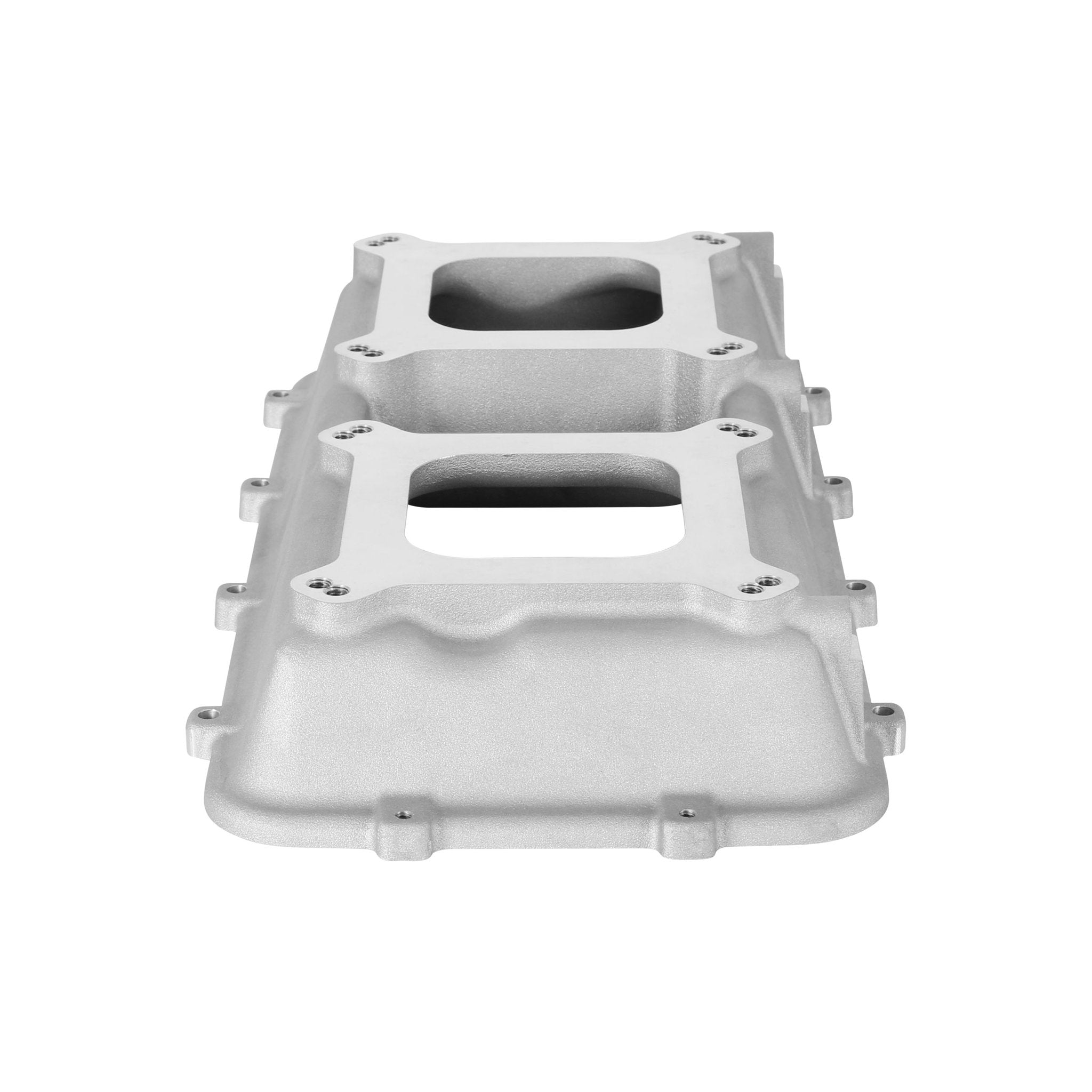

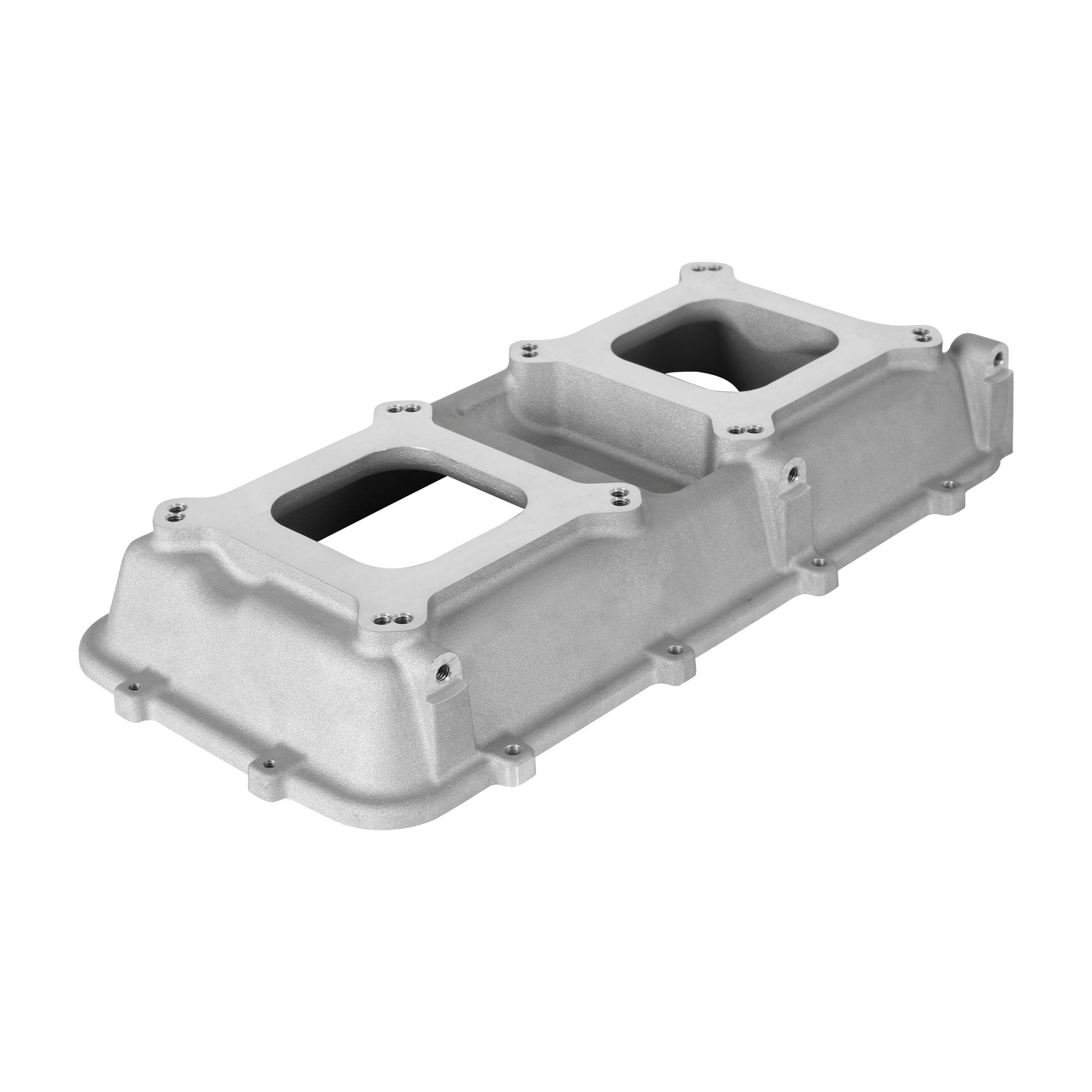

Fits Holley Hi-Ram Manifolds for Small Block Chevy and Big Block Chevy.
- The Big Block Chevy Hi-Ram manifold is available in either a traditional Hi-Ram 105mm plenum top or with a 2 x 4150 4-barrel throttle body plenum top options
- Hi-Ram intake manifolds are a cost-effective alternative to fabricated sheet-metal or billet manifolds for high-performance applications where induction system height is not limited
- Cast 356-T6 Aluminum Construction, Natural, Satin As-Cast Aluminum Finish
- Requires the use of early type GM or small cap MSD or Holley Distributors. Not compatible with HEI distributors
📋
Product Specifications
Basic Operating RPM Range
1500-8000
Brand
Holley
Carburetor Flange
Square/4150
Carburetor Studs Included
No
CNC Ported
No
Construction
Cast Aluminum
Cylinder Head Port Shape
Rectangle
EGR Port
No
Flange Style
4150
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Fuel System Type
EFI
Gasket Or Seal Included
No
Grade Type
Performance
Intake Port Gasket(s) Included
No
Manifold Type
Hi-Ram
Nitrous Bung(s) Included
No
Product Type
Intake Manifold Top
Removable Runners
No
Removable Top/Lid
Yes
Single Or Dual Plane Type
Single Plane
Throttle Body Included
No
Warranty
Manufacturer's Limited 90 Day Warranty
