Holley
Product Details
🔧
Vehicle Compatibility
Fits Holley Hi-Ram Front-Feed EFI Intake Manifold Kit - Small Block Chevy.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

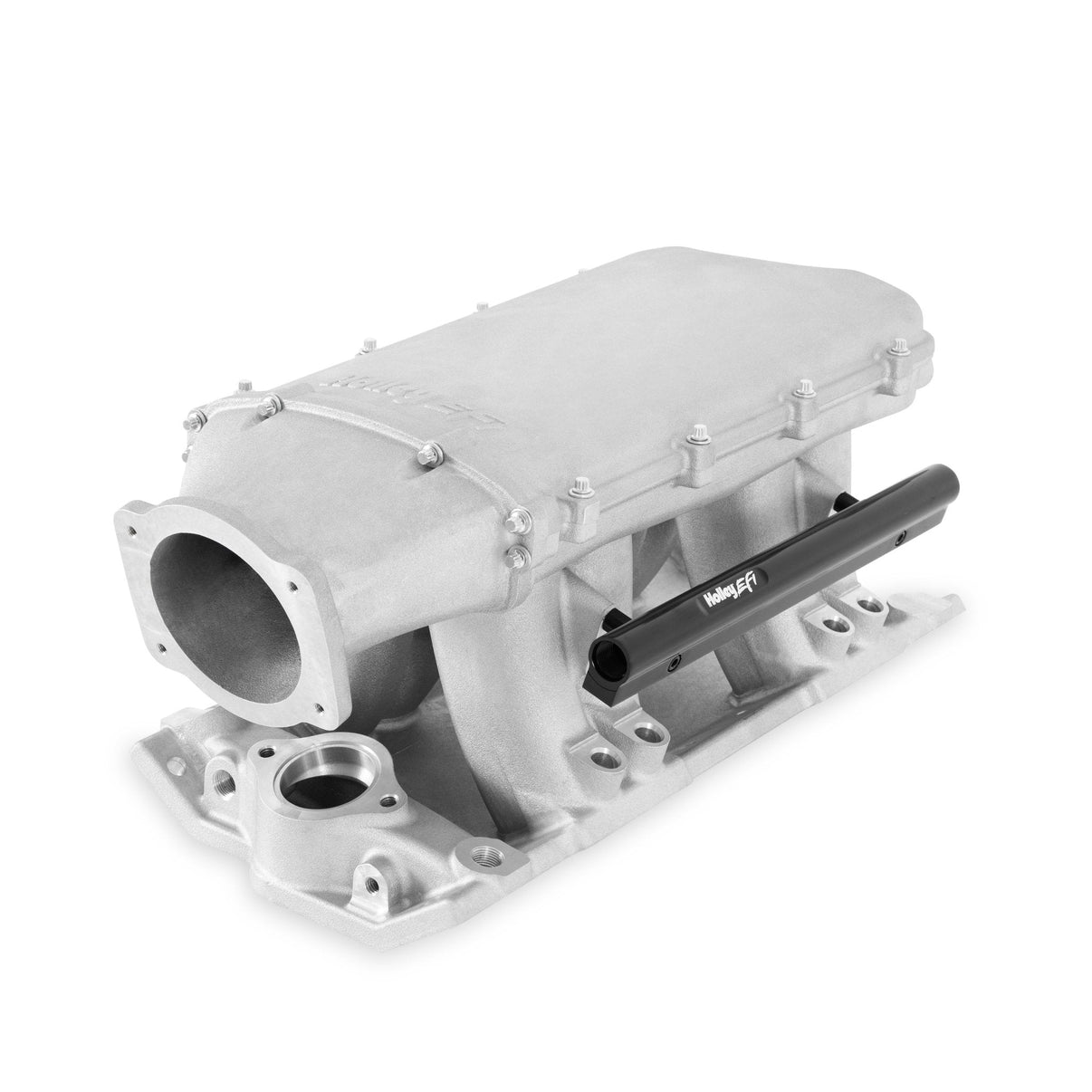

Small block Chevy Hi-Ram intake manifold, front-feed with 95mm LS throttle body flange
- The Small Block Chevy Hi-Ram manifold is available in either a traditional Hi-Ram 105mm plenum layout or with a hood-height friendly 95mm front-feed plenum layout
- Is a hood-height friendly Hi-Ram variation and compatible with OE hoods for Gen 1, 2, & 3 Camaros and Firebirds. Should be compatible with most applications with a mild cowl induction hood
- Designed for 1955-86 265-400 Gen 1 Chevy engines fitted with cylinder heads having a standard intake manifold flange configuration. Not designed for raised intake port, 18 degree, or L31 Vortec type cylinder heads.
- Uses drive by wire or cable actuated GM Gen IV LS 4-bolt throttle bodies
- MAP sensor port is for a GM Gen IV LS MAP sensor, manifold also has provisions for (1) 1/8 NPT, (1) 1/4 NPT, (1) 3/8 NPT fittings to the plenum
- The coolant outlet is a standard Small Block Chevy thermostat housing flange and (1) 1/2 NPT and (2) 3/8 NPT coolant ports are provided.
- Power Band: 1500-8000 RPM
- Black anodized EFI fuel rails are machined for -8AN O-ring fittings and come included with these EFI Hi-Ram kits.
- Plenum Top Gasket Type 3/32� Round O-ring Cord
- Cast 356-T6 Aluminum Construction, Natural, Satin As-Cast Aluminum Finish
- Requires the use of early type GM or small cap MSD or Holley Distributors. Not compatible with HEI distributors
- 1.95� tall x 1.25� wide port flange openings, uses Mr. Gasket intake manifold gasket #5281
- Throttle Cable Bracket is supplied in the kit
📋
Product Specifications
Basic Operating RPM Range
1500-8000
Brand
Holley
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Injection (EFI)
Construction
Cast
EGR Port
No
Engine
Chevrolet Small Block Gen I
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Grade Type
Performance
Manifold Type
Hi-Ram
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Volume
364
Port Size
1.95 x 1.25
Product Type
Intake Manifold
Removable Runners
No
Removable Top/Lid
Yes
RPM Power Band
1500-8000
Single Or Dual Plane Type
Single Plane
Throttle Body Included
No
Throttle Bore
95 MM
Vehicle
Chevrolet CAMARO 19
Warranty
Manufacturer's Limited 90 Day Warranty
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
