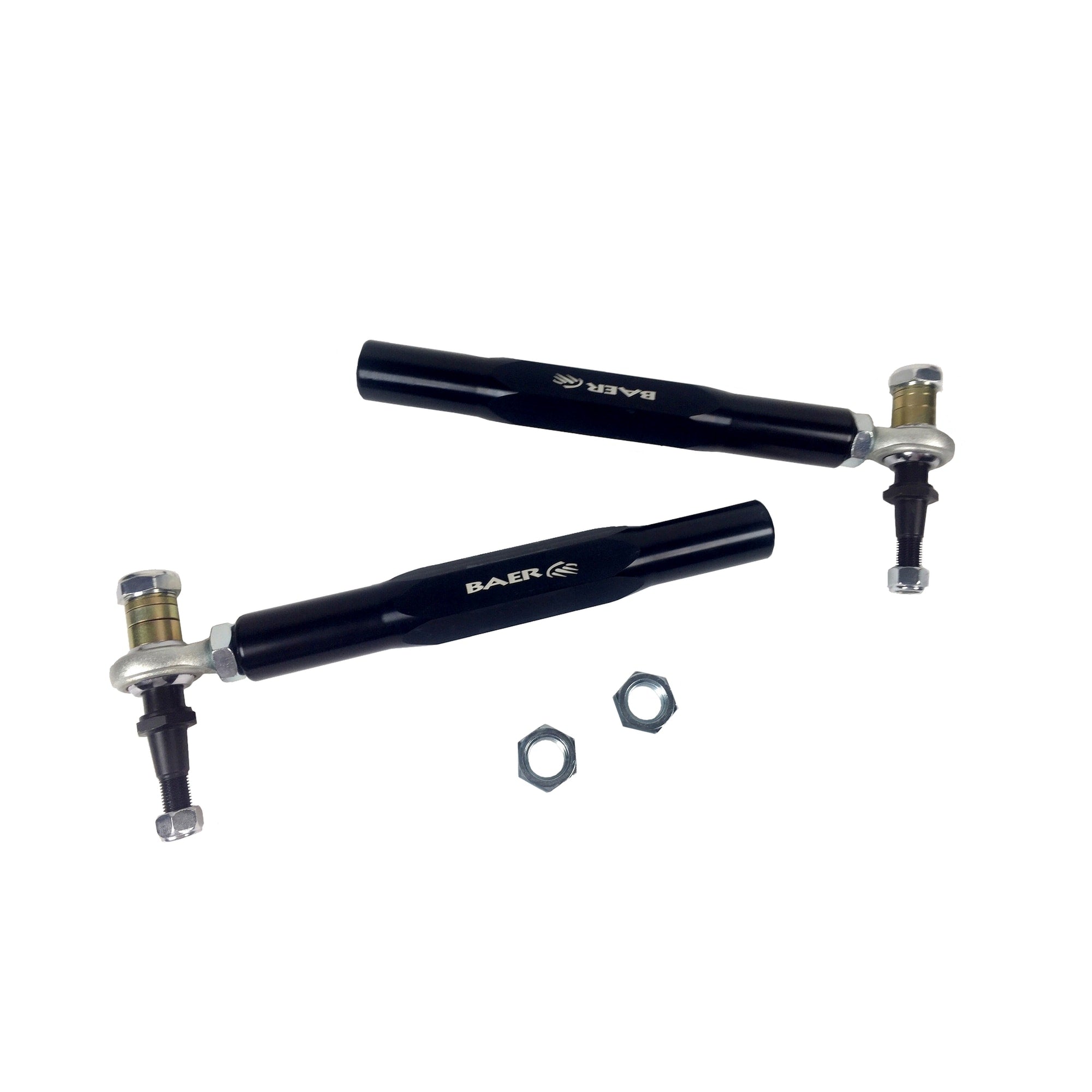

Baer Brake SystemsPart 3301013✓ Fits 14 vehiclesMade in US
Product Details
⚙️
Vehicle Fitment & Compatibility
14 applicationsView all 14 vehicle applications
Years
Make / Model
Submodel
Engine
1973–1977
Buick Century
1973–1977
Buick Regal
1980–1981
Chevrolet Camaro
1973
Chevrolet Chevelle
1973–1977
Chevrolet El Camino
1975
Chevrolet Malibu
1973–1977
Chevrolet Monte Carlo
1973–1977
Oldsmobile Cutlass
1975
Pontiac Firebird
1976–1981
Pontiac Firebird
1973
Pontiac GTO
1973–1975
Pontiac Grand Am
1973–1977
Pontiac Grand Prix
1973–1977
Pontiac LeMans
No applications match your search.
⭐
Key Features
Ships in 1 Box

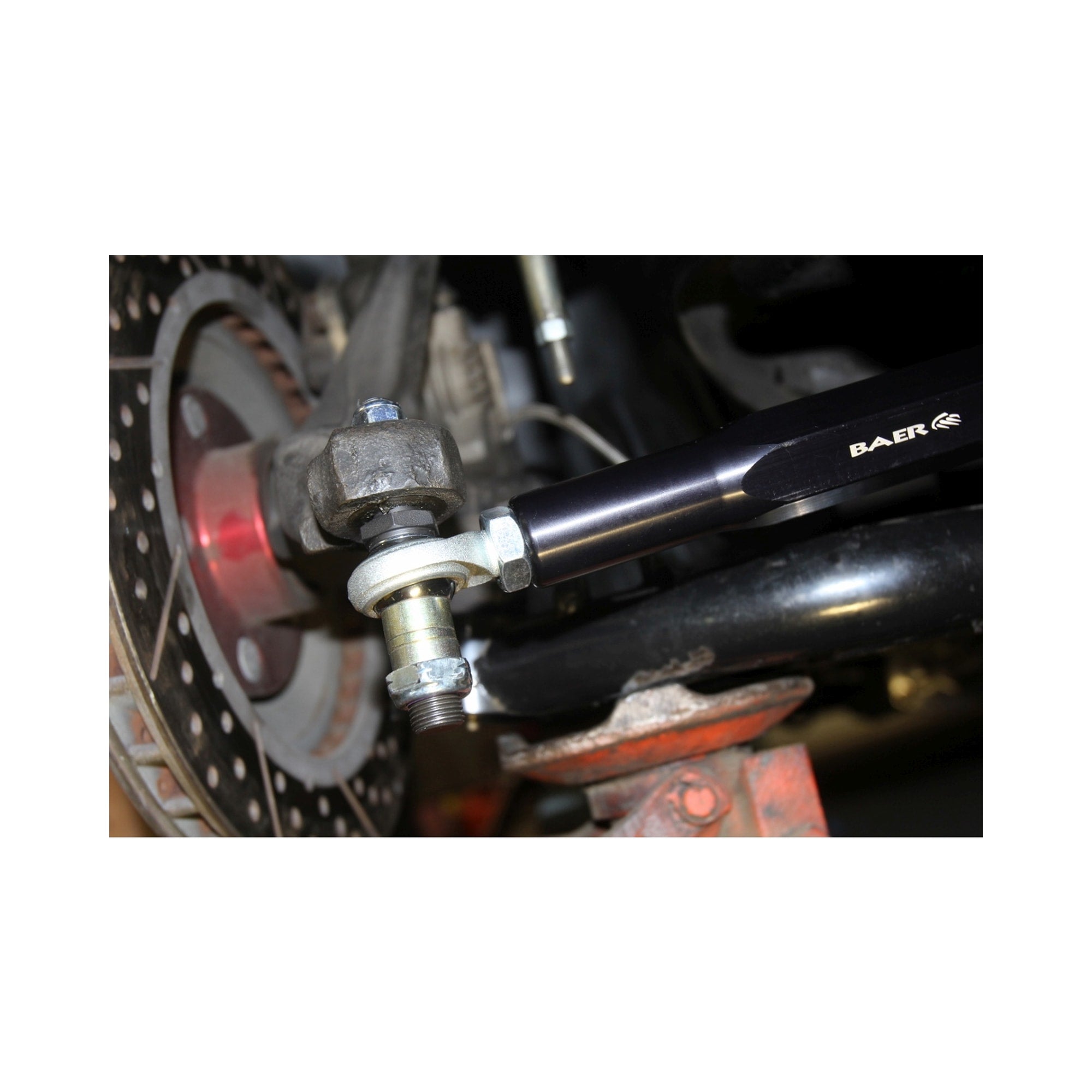

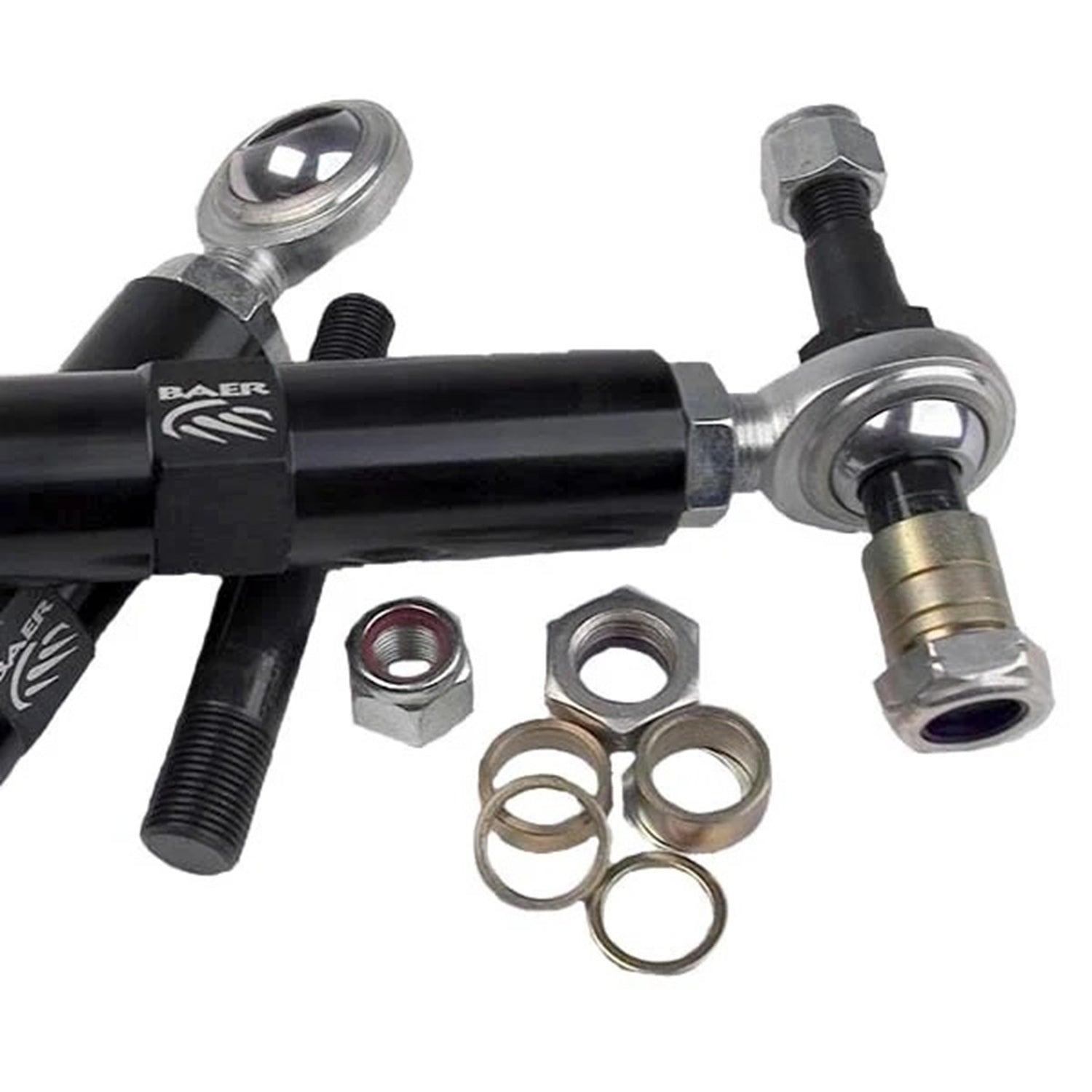

The Baer “Tracker” adjustable tie-rods feature 6061 T-6 aluminum, fully machined sleeve with a black anodized finish, a Teflon lined 5/8” heim joint and 4140 steel pin which. The pin is machined with the correct taper so no modification to the OE spindles is required and then heat treated. The Trackers Tie Rods are vehicle specific, mounting to the OE inner tie rod and offer approximately .875” of adjustment at the spindle to help correct bump steer issues due to modified suspensions and/or poor OE design. Best of all these are made in the USA!
Fits 1973-77 GM A-Body Cars, 1980-81 Chevy Camaro 6cyl & 1975 (2nd Design) 76-81 (All) Pontiac Firebird
- Direct bolt on upgrade
- Black E-Coated for Rust Protection
- Fully adjustable
- Simple installation
- Tapered pin for NO spindle modifications
- Vehicle specific
📖
About this product
Fits 1973-77 GM A-Body Cars, 1980-81 Chevy Camaro 6cyl & 1975 (2nd Design) 76-81 (All) Pontiac Firebird
📋
Product Specifications
Adjustable
Yes
Adjusting Sleeve Included
Yes
Adjustment Range
0.875
Applications
1971-72 GM A-Body cars with GM B-Body spindles
Applications
1973-77 GM A-Body cars with stock spindles
Applications
1975 Pontiac Firebird with stock spindles Note: There are 2 Factory Tie Rods on the 1975 Firebird. This Tracker is for the late design with OE outer end measuring 8.750" from center of bowl to end of tie rod.
Applications
1975 Pontiac Firebird with stock spindles Note: There are 2 Factory Tie Rods on the 1975 Firebird. This Tracker is for the late design with OE outer end measuring 8.750" from center of bowl to end of tie rod.
Applications
1976-81 Pontiac Firebird with stock spindles
Applications
1976-81 Pontiac Firebird with stock spindles
Applications
1980-81 Chevrolet Camaro "6 cylinder only" with stock spindles
Applications
1980-81 Chevrolet Camaro "6 cylinder only"Â with stock spindles
Automotive Item Grade
Premium
Axle
Front
Boot Color
N/A
Box Count
1
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Castle Nut Included
No
Category
Steering
Color
Black
Cotter Pin Included
No
Country
US
Dust Boot Included
No
Emission Code
4
Emission Code
6
End 1 Gender
Female
End 2 Gender
Female
Export Description
Suspension Components
Finish
Black e-coated
Grade Type
Premium
Grease Fitting Included
No
Greaseable
Yes
Head Drive Type
Hex
Heim Joint
Teflon lined 5/8â heim joint
Heim Joint
Teflon lined 5/8” heim joint
Housing Material
6061 T-6 aluminum
HTS Code
8708806590
Includes
2x Tie Rods
Inner Sleeve Thread Size
11/16"x18 LH Thread
Locking Nut Included
Yes
Manufacturer Restriction
None
Mounting Hardware Included
Yes
Outer Sleeve Thread Size
5/8"x18 RH Thread
Part Type
Steering Tie Rod End
Pre-Greased
Yes
Product Line
Steering Tie Rod End
Product Type
Bump Steer Kit
Prop 65 - Short Label
WARNING
Prop 65 Yes/No
Yes
Quantity
1
Reinforced
Yes
Sleeve Length
9.7
Steering Type
Manual
Sub Category
Steering
System Notes
8.75 inch eye of ball to end of sleeve
Thread Direction
Right Hand Thread
Tie Rod Material
6061 T-6 aluminum
Title
Baer Brakes Tracker Adjustable Front Tie Rods Bump Steer Kit for 1973-1977 GM A-Body
Tube Diameter
5/8"
Type
Straight
Universal Or Specific Fit
Specific Fit
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty
Washer(s) Included
Yes
Weight
5
🛡️
Warranty & Compliance
Warranty
1 months · Manufacture Limited 1 Year Warranty Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708806590
📐
Dimensions & Shipping
Product Dimensions
14.25 × 14.0 × 2.25 in
Shipping Dimensions
14.25 × 14.0 × 2.25 in
Weight
2268 g (2.27 kg)
