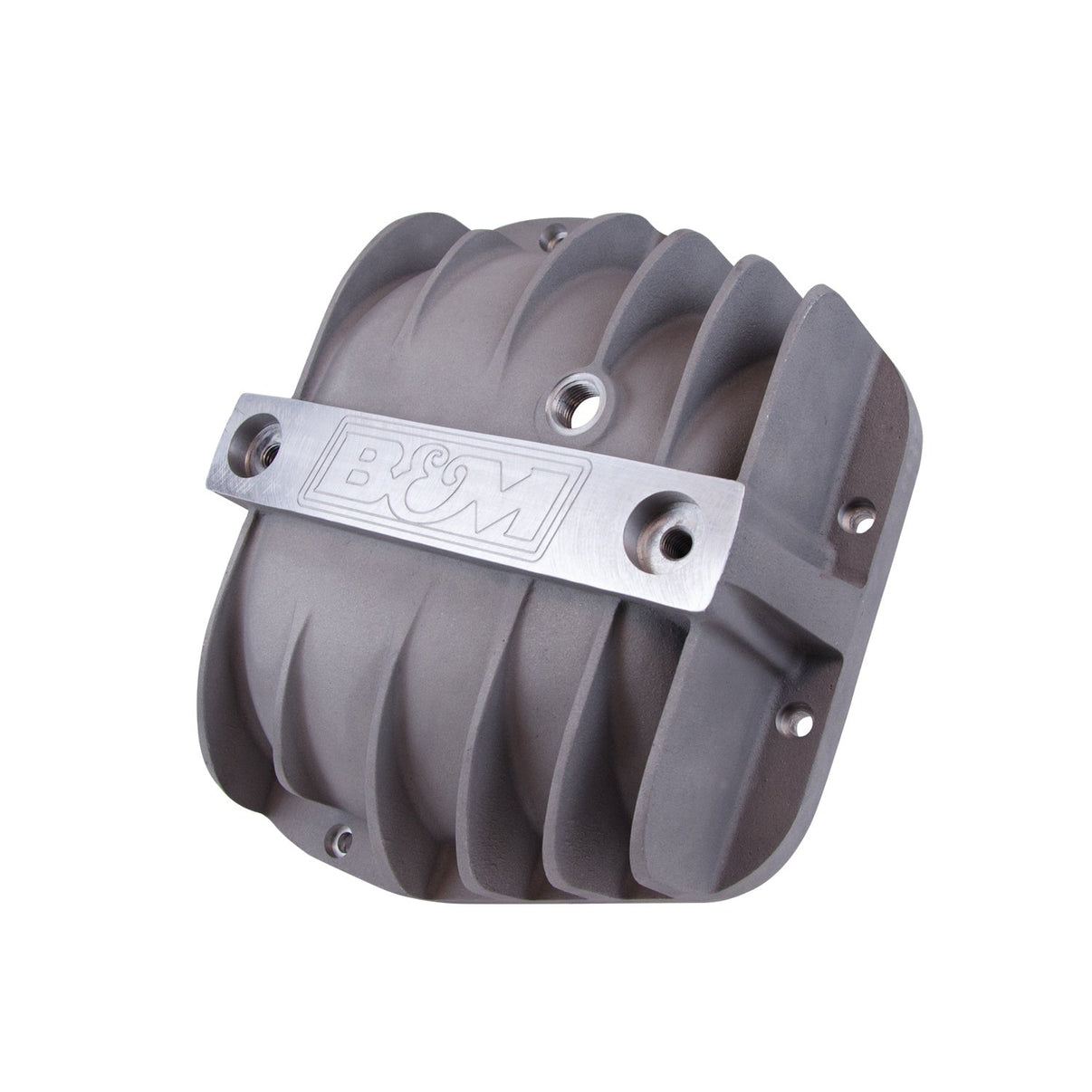

B&M Hi-Tek Aluminum Differential Cover for Ford 9.75-inch
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, a natural finish, a machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included. Refer to the ID guide and measurement diagram for specifications.
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, a natural finish, a machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included. Refer to the ID guide and measurement diagram for specifications.
📋
Product Specifications
Additional Fluid Capacity (qts)
No
Additonal Fluid Capacity (qts)
No
Bolt Count
12
Bolt Pattern
Ford 9.75
Bolt Quantity
12
Bolt/Studs Included
Yes
Brand
B&M
California Proposition 65 Chemical Name
Chromium (hexavalent compounds)
California Proposition 65 Required
Yes
Call Out Size (in)
3.28
Carrier Main Cap Support
Yes
Category
Driveline and Axles
Color/Finish
Raw Aluminum
Drain Plug Included
Yes
Emission Code
5
Filler Plug Included
Yes
Finish
Cast Aluminum
Gasket Included
No
Gasket Or Seal Included
No
Gaskets Included
No
Grade Type
Performance
Material
A356.0-T6 Aluminum
Mounting Bolt Hole Quantity
12
Mounting Bolts Included
Yes
Product Type
Differential Cover
Studs Included
Yes
Sub Category
Differential
Thickness (in)
3.84
Warning
California Proposition 65
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
