Key Features

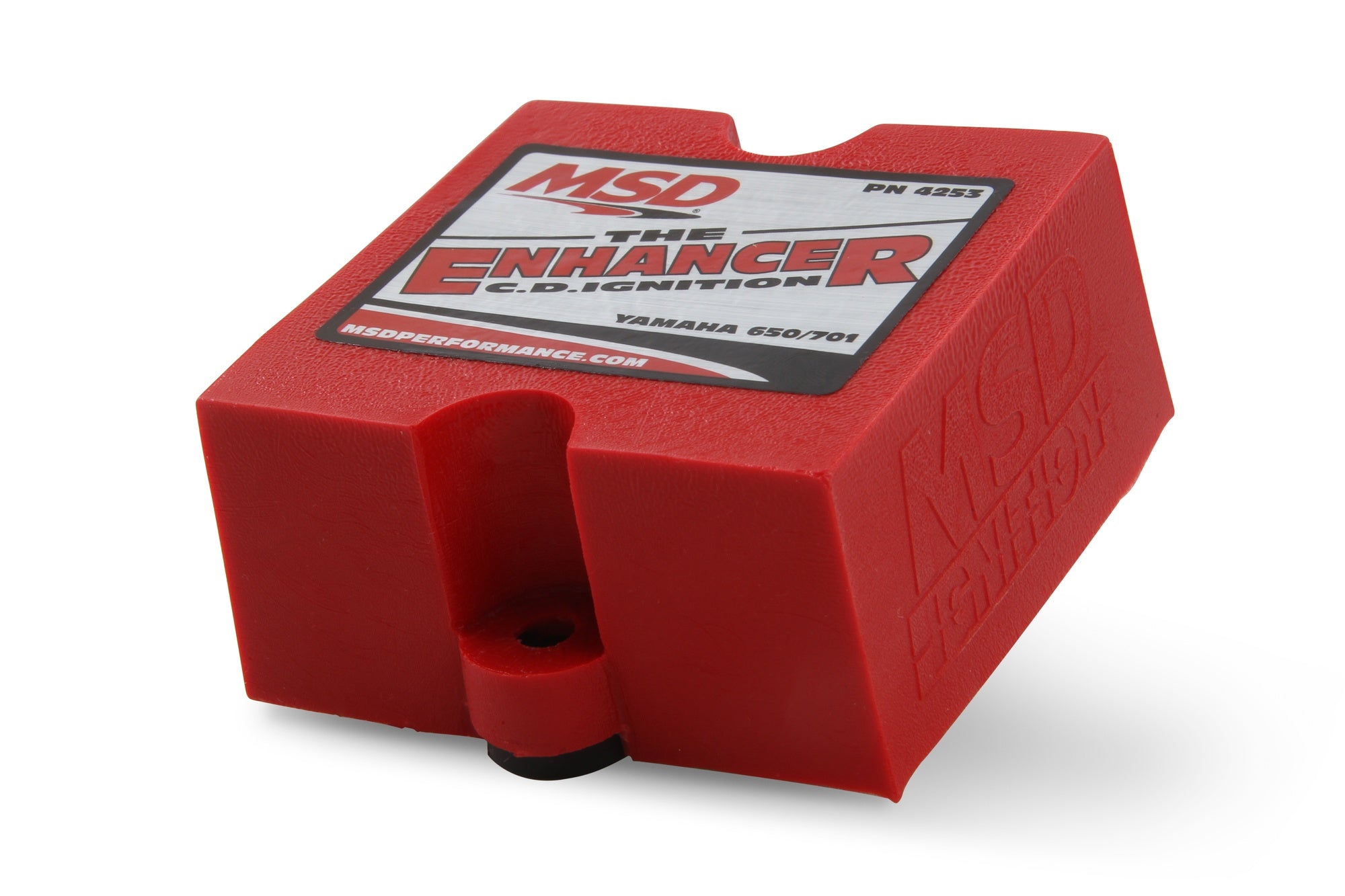

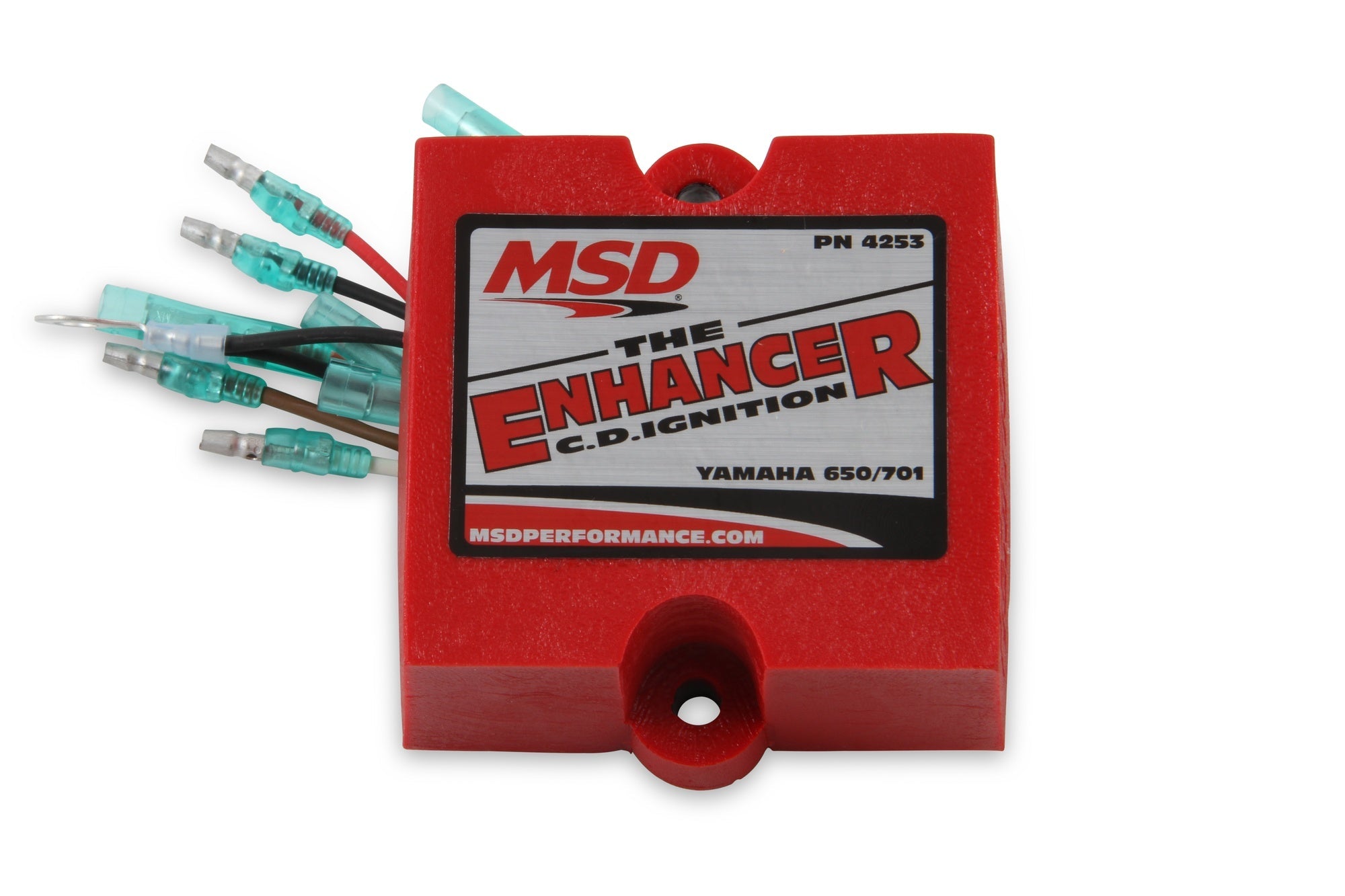

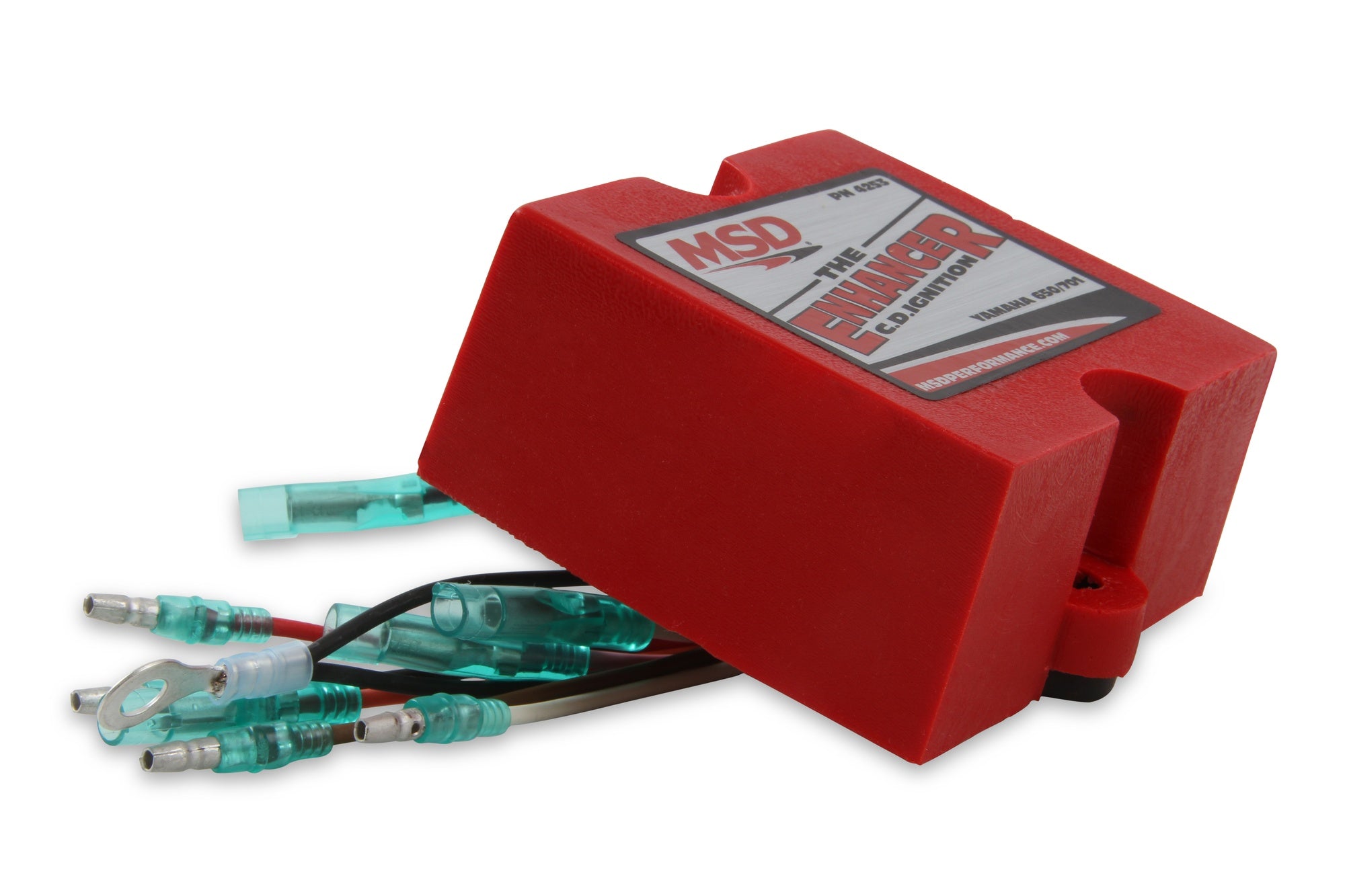

Enhancer Ignition, 650-701 Yamaha
If you own a Yamaha with a 650 or 701 engine, this Enhancer is a necessity! The Enhancer produces a powerful spark with increased spark duration. Not only does the improved spark energy boost power, but this Enhancer features a more aggressive timing curve for even more power to get you going! At lower rpm you'll notice incredible acceleration and throttle response due to advancing the timing. Then as the rpm increases, the timing is retarded to the factory setting to prevent detonation and engine damage. For racers, there is also a lower rpm limit that you can activate for quick and consistent holeshots. By activating a switch mounted on the handlebar the rpm will limit at approximately 3,000 rpm. The instant the button is released, the rpm revs up just as normal and you rocket off. Everything you need to install the Yamaha Enhancer is supplied along with factory connectors for a direct plug-in installation!
If you own a Yamaha with a 650 or 701 engine, this Enhancer is a necessity! The Enhancer produces a powerful spark with increased spark duration. Not only does the improved spark energy boost power, but this Enhancer features a more aggressive timing curve for even more power to get you going! At lower rpm you'll notice incredible acceleration and throttle response due to advancing the timing. Then as the rpm increases, the timing is retarded to the factory setting to prevent detonation and engine damage. For racers, there is also a lower rpm limit that you can activate for quick and consistent holeshots. By activating a switch mounted on the handlebar the rpm will limit at approximately 3,000 rpm. The instant the button is released, the rpm revs up just as normal and you rocket off. Everything you need to install the Yamaha Enhancer is supplied along with factory connectors for a direct plug-in installation!
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Application
Marine Powersports
Brand
MSD
Category
Ignition
Color
Red
Condition
New
Connector Gender
Male Female
Connector Quantity
8
Dimensions
7.5" L x 4.5" W x 2.25" H
Emission Code
4
Grade Type
Performance
Height
3.6
Ignition Type
Performance
Length
7.2
Maximum Voltage
30 KV
Mount Type
Surface Mount
Mounting Hardware Included
Yes
Primary Resistance
0.2 Ohms
Product Type
Ignition Box
RPM Range
5
Secondary Resistance
Less than 2000 OHMS
Sub Category
Control Modules
Terminal Gender
Male Female
Terminal Quantity
8
Turns Ratio
2.917361111111111
Voltage Required
12 Volts
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Width
6.6
📦

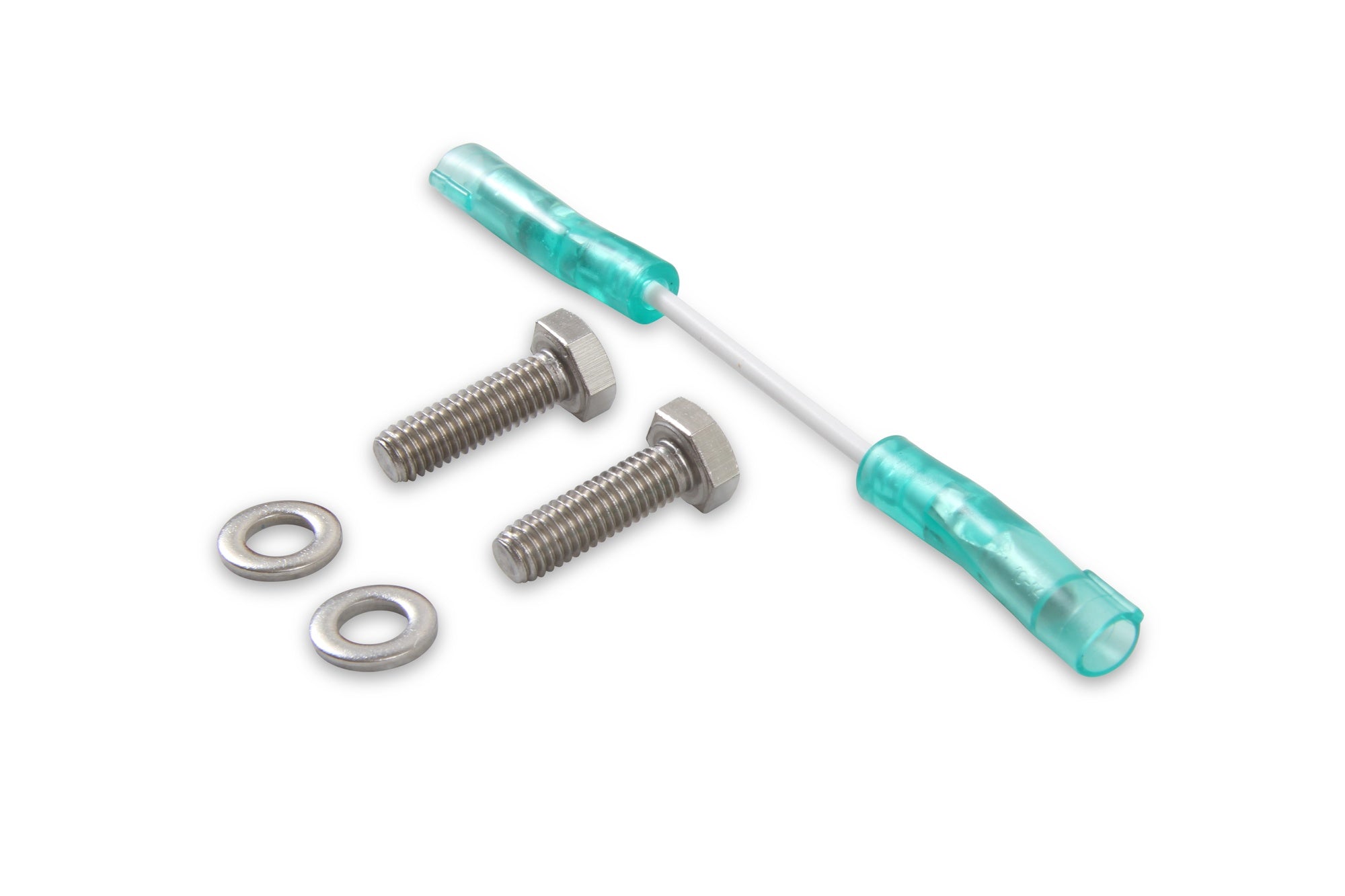

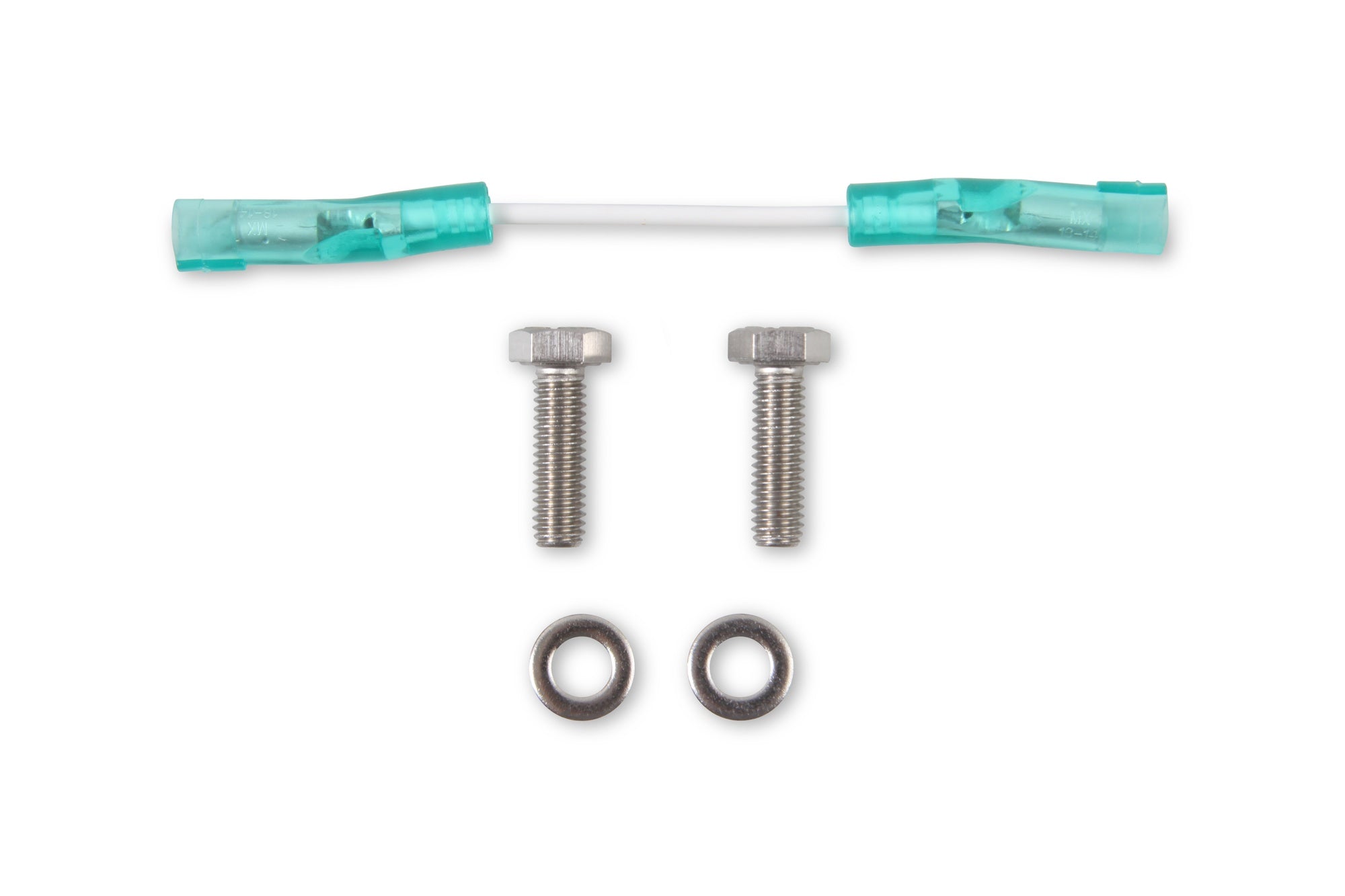

Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
