Baer Brake SystemsPart 4261369FR★ Universal fitMade in US
Product Details
⭐
Key Features
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are

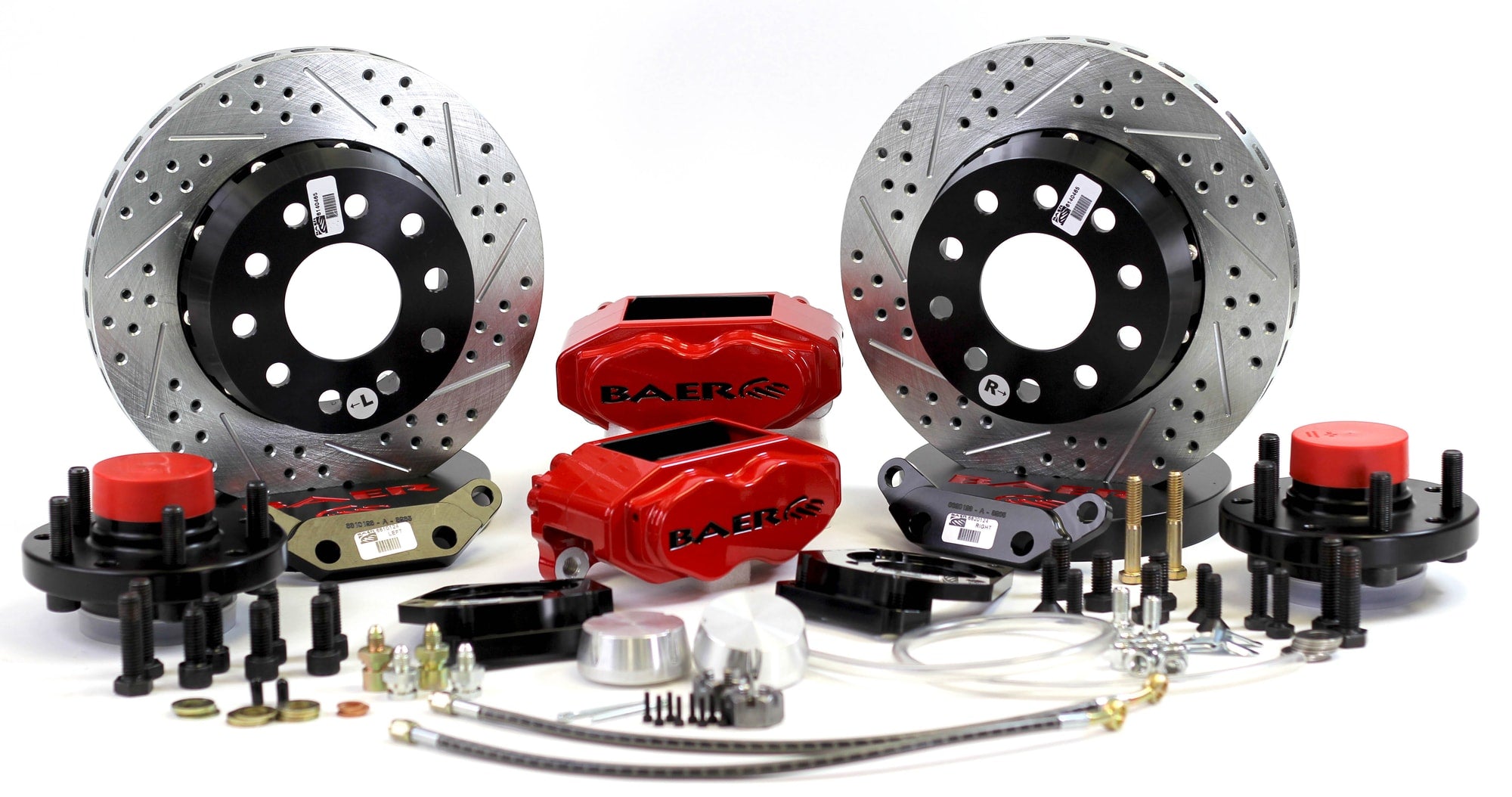

This system features the 4-piston, S4 caliper mounted to a 11", 2 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets and hardware are also included. The 11" SS4+ is designed just like Baer's larger systems, but in a smaller package for 15" wheels.
Fits Wilwood Mustang II Pro Spindles
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor
📖
About this product
Fits Wilwood Mustang II Pro Spindles
📋
Product Specifications
Automotive Item Grade
Performance
Axle
Front
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes

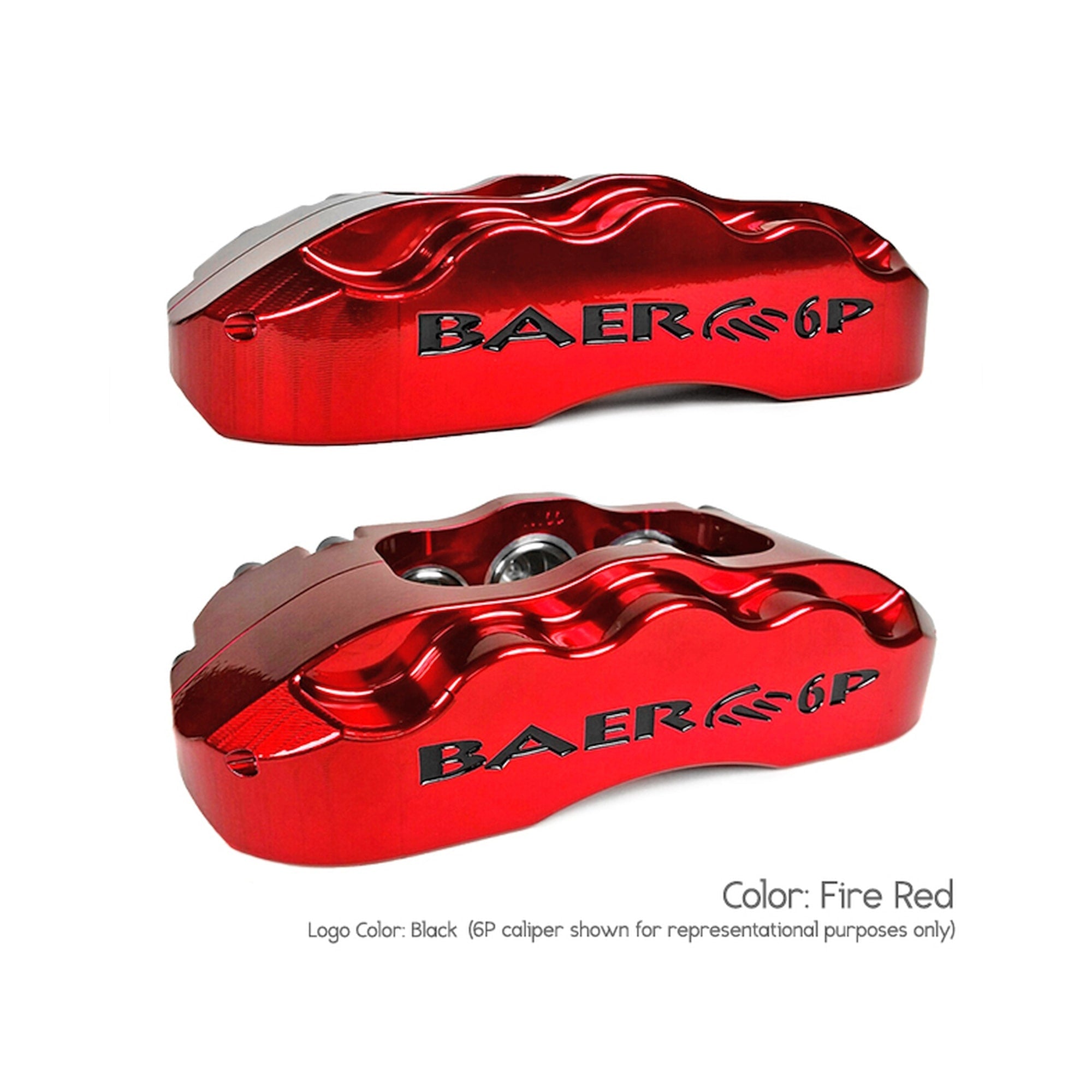

Caliper Color
Fire Red
Caliper
S4
Category
Brake
Country
US
Disc Brake Caliper (Front) Piston Quantity
4
Disc Brake Caliper (Front) Type
Fixed
Disc Brake Pad FMSI Number
DR1
Disc Brake Rotor (Front) Construction
Vented
Disc Brake Rotor (Front) Outside Diameter
11.000
Emission Code
4
Emission Code
6
Export Description
Brake Components
Grade Type
Performance
Hose Material
Hoses Not Included
HTS Code
8708305090
Lug Count
5 Lug
Min Wheel Dia (verify Using Template)
15
Part Type
Disc Brake Upgrade Kit
Product Line
11 Inch SS4+
Product Type
11 Inch SS4+ Front Brake Kit
Prop 65 - Long Label
WARNING
Prop 65 Yes/No
Yes
R Or Cr)
CR
Rotor Thickness
1.020
Rotor Type
2-Piece
Spindle Type
Wilwood Mustang II Pro
Spindles Included
No
Sub Category
Service Kits
Surface Type
Slotted
System Notes
Designed to be used with Wilwood Mustang II Pro Spindles (Stock & Drop Height)
Template
S125A
Title
S4 Brake System Front
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty
Wheel Lug/Bolt Pattern
5x4.50/5x4.75
Wheel Stud Size
1/2-20 x 2.25 inch
🛡️
Warranty & Compliance
Warranty
1 months · Manufacture Limited 1 Year Warranty Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708305090
📐
Dimensions & Shipping
Product Dimensions
15.5 × 15.5 × 12.25 in
Shipping Dimensions
15.5 × 15.5 × 12.25 in
Weight
23587 g (23.59 kg)
