Baer Brake SystemsPart 4301083GB✓ Fits 17 vehiclesMade in US
Product Details
⚙️
Vehicle Fitment & Compatibility
17 applicationsView all 17 vehicle applications
Years
Make / Model
Submodel
Engine
1964–1972
Buick Skylark
1964–1969
Buick Special
1964–1972
Buick Sportwagon
1967–1969
Chevrolet Camaro
1964–1972
Chevrolet Chevelle
1964–1968
Chevrolet Chevy II
1964–1972
Chevrolet El Camino
1970–1972
Chevrolet Monte Carlo
1969–1974
Chevrolet Nova
1964–1971
Oldsmobile 442
1964–1972
Oldsmobile Cutlass
1964–1972
Oldsmobile F85
1967–1969
Pontiac Firebird
1964–1972
Pontiac GTO
1964–1972
Pontiac LeMans
1964–1970
Pontiac Tempest
1971–1974
Pontiac Ventura
No applications match your search.
⭐
Key Features
Increases track width .200" Per Side on OE drum spindles ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we re

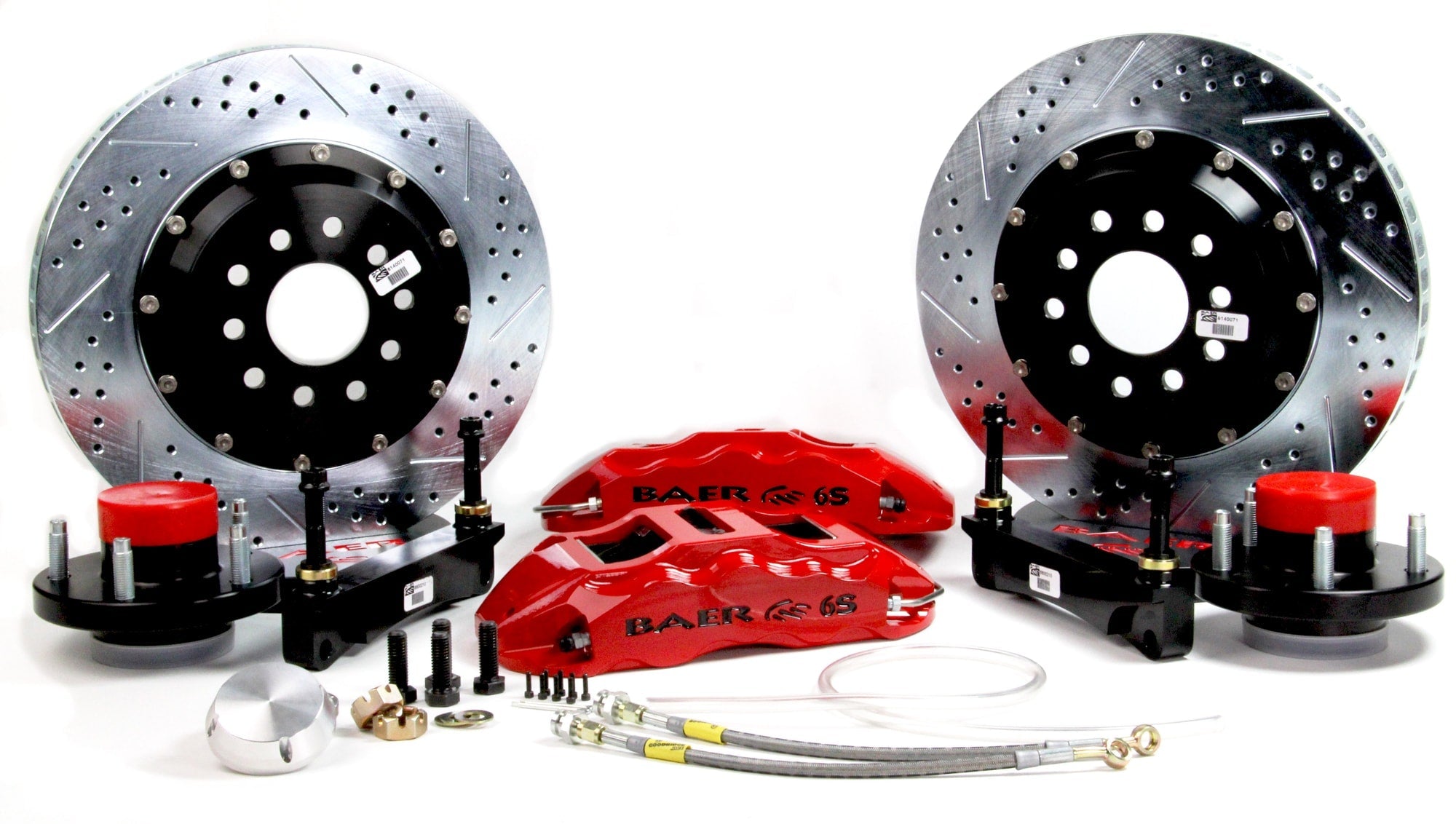

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels.
Fits 1964-72 GM A-Body, 67-69 F-Body & 64-74 X-Body Cars w/OE Spindles (Also fits DSE, Heidt's, Fatman, Ridetech & L&H Drop Spindles)
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
📖
About this product
Fits 1964-72 GM A-Body, 67-69 F-Body & 64-74 X-Body Cars w/OE Spindles (Also fits DSE, Heidt's, Fatman, Ridetech & L&H Drop Spindles)
📋
Product Specifications
Applications
GM A-Body 64-72
Applications
GM F-Body 67-69
Applications
GM X-Body 64-74
Automotive Item Grade
Performance
Axle
Front
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes

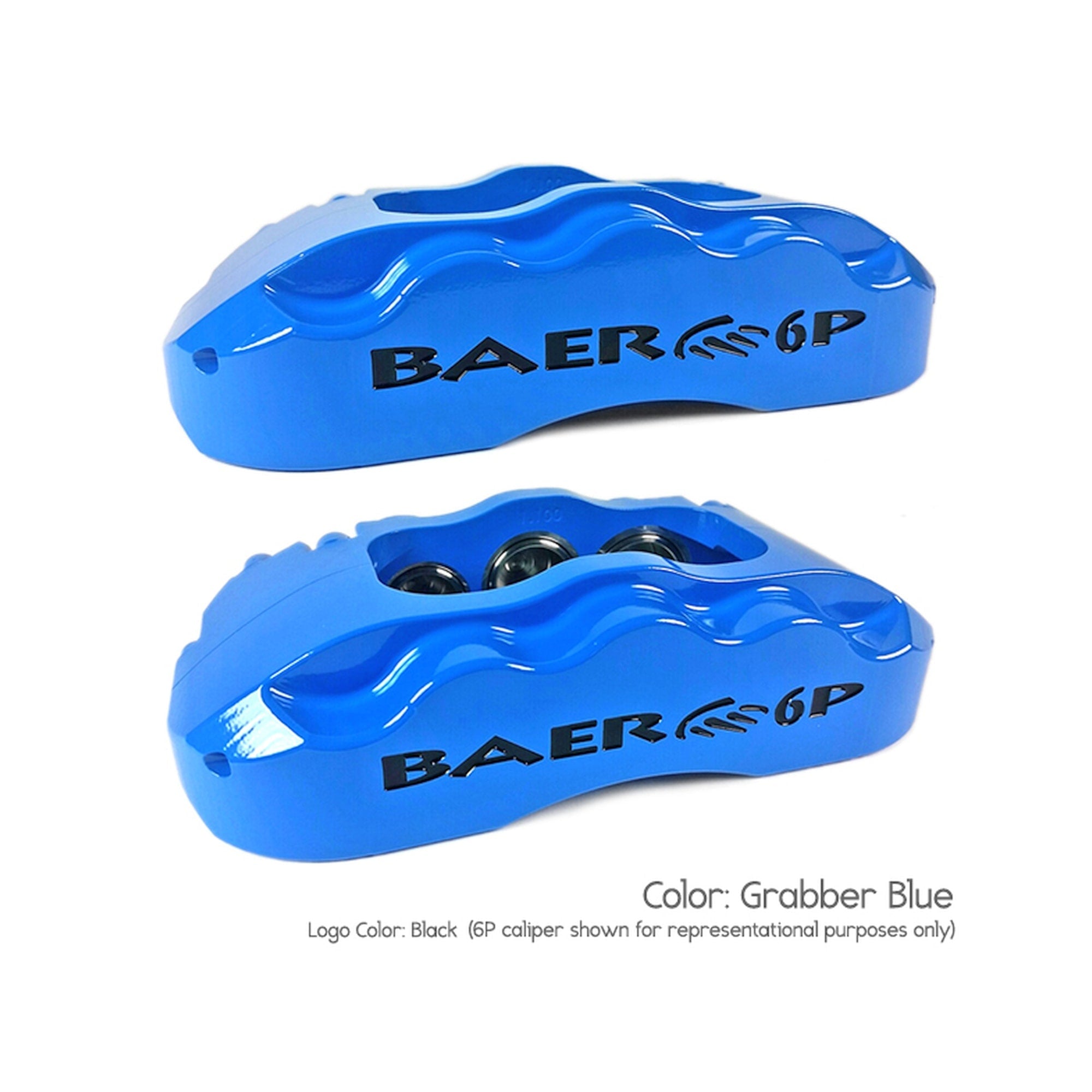

Caliper Color
Grabber Blue
Caliper
6S
Category
Brake
Country
US
Disc Brake Caliper (Front) Piston Quantity
6
Disc Brake Caliper (Front) Type
Fixed
Disc Brake Pad FMSI Number
D1247
Disc Brake Rotor (Front) Construction
Vented
Disc Brake Rotor (Front) Outside Diameter
14.000
Emission Code
4
Emission Code
6
Export Description
Brake Components
Fitment Notes
w/OE
Grade Type
Performance
Hose Material
Stainless Steel
HTS Code
8708395030
Lug Count
5 Lug
Min Wheel Dia (verify Using Template)
18
Part Type
Disc Brake Upgrade Kit
Product Line
14 Inch Extreme+
Product Type
Front Brakes
Prop 65 - Long Label
WARNING
Prop 65 Yes/No
Yes
R Or Cr)
CR
Rotor Thickness
1.250
Rotor Type
2-Piece
Spindle Type
GM AFX (also fits DSE
Spindles Included
No
Sub Category
Service Kits
Surface Type
Slotted
System Notes
Widens track .200" a side on stock front drum brake cars
Template
N085P
Title
Extreme+ Brake System Front
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty
Wheel Lug/Bolt Pattern
5x4.75
Wheel Stud Size
1/2-20 x 2.25 inch
🛡️
Warranty & Compliance
Warranty
1 months · Manufacture Limited 1 Year Warranty Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708395030
📐
Dimensions & Shipping
Product Dimensions
15.0 × 15.0 × 15.0 in
Shipping Dimensions
15.0 × 15.0 × 15.0 in
Weight
32659 g (32.66 kg)
