Baer Brake SystemsPart 4301571B✓ Fits 9 vehiclesMade in US
Product Details
⚙️
Vehicle Fitment & Compatibility
9 applicationsView all 9 vehicle applications
Years
Make / Model
Submodel
Engine
1975–1986
Chevrolet C10
1960–1974
Chevrolet C10 Pickup
1967–1986
Chevrolet C10 Suburban
1960–1966
Chevrolet Suburban
1987–1989
Chevrolet Suburban
1960–1966
GMC 3000
1975–1978
GMC C15
1967–1974
GMC C15/C1500 Pickup
1979–1986
GMC C1500
No applications match your search.
⭐
Key Features
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are

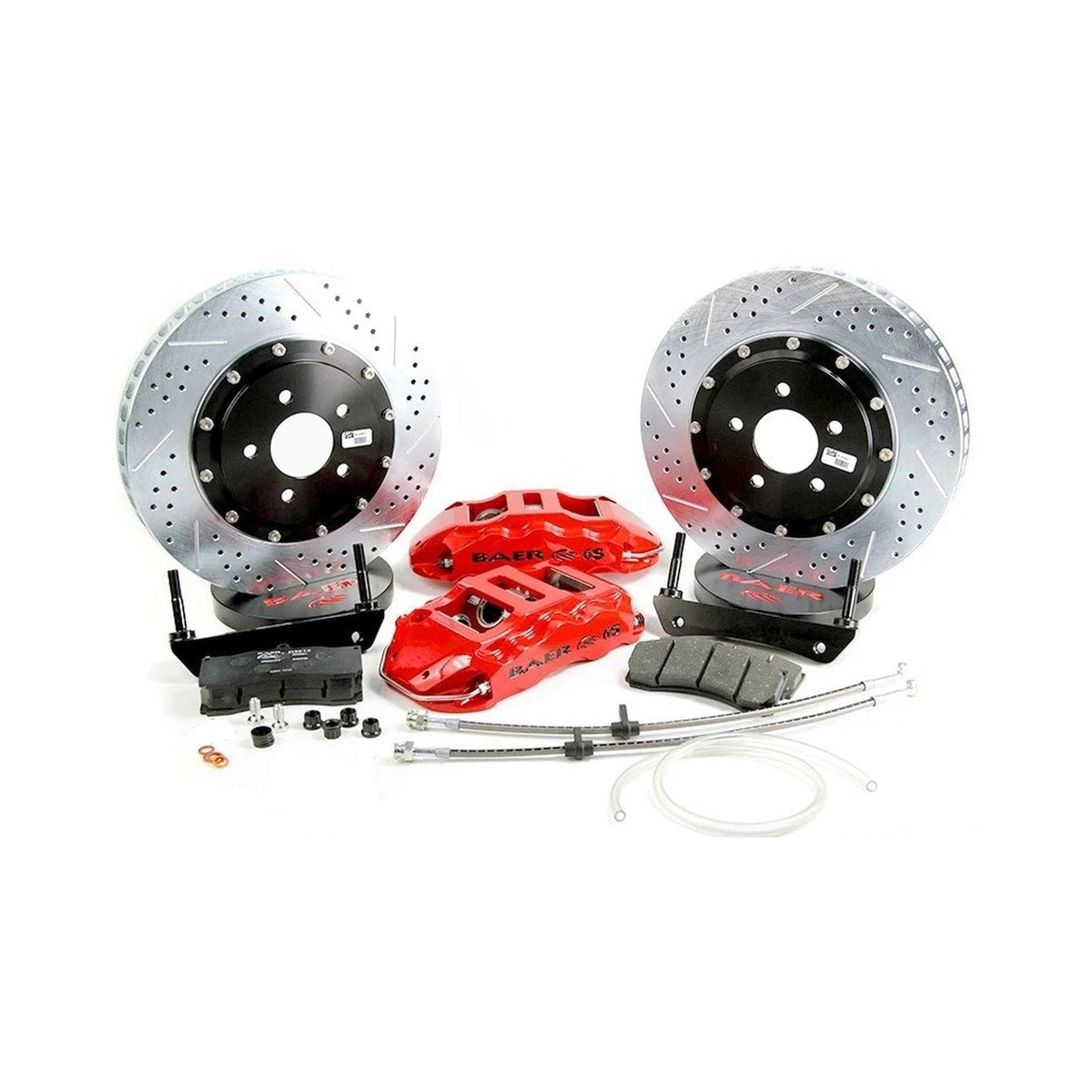

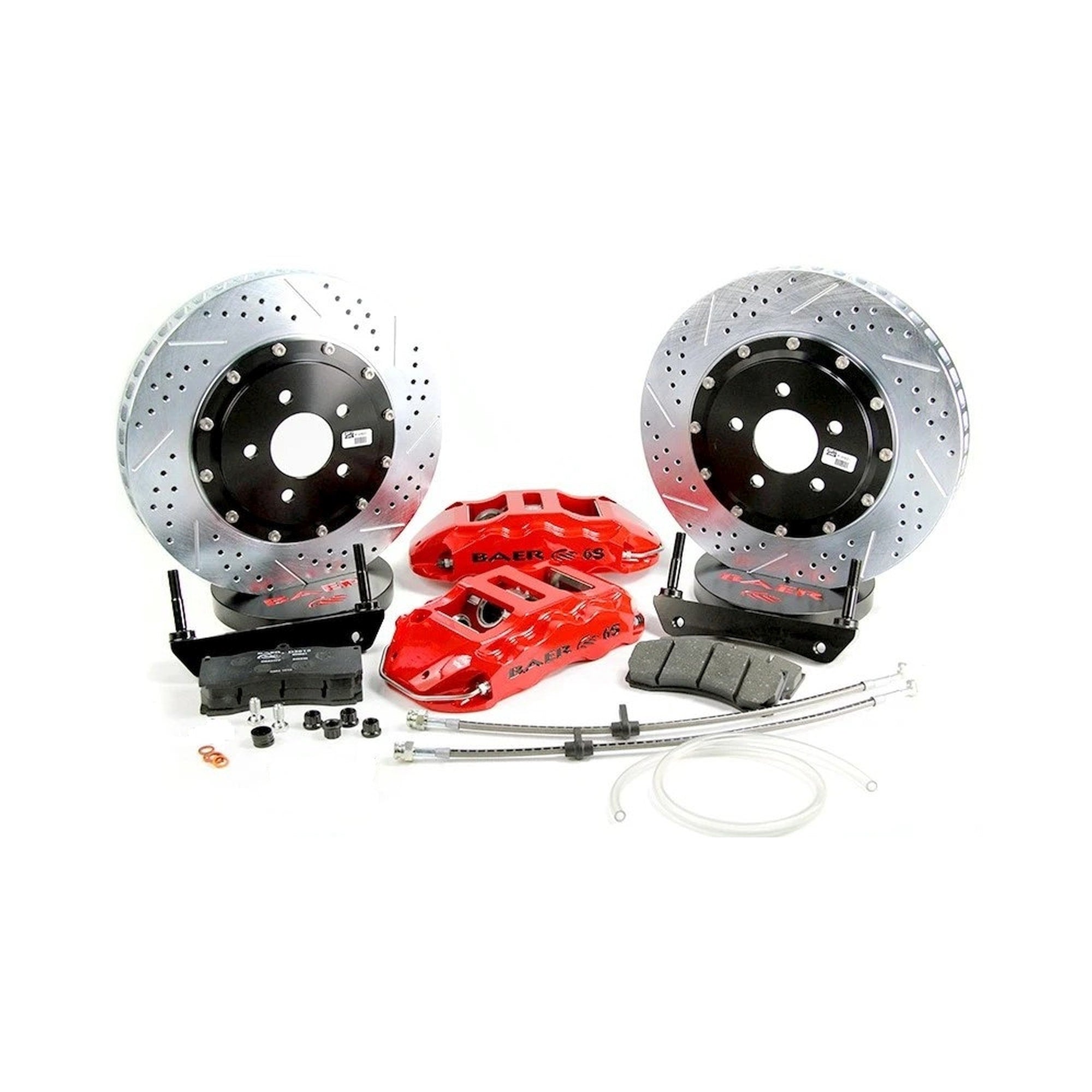

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels.
Fits 1960-87 Chevy/GMC 2WD 1/2 Ton Trucks w/Wilwood C10 Aluminum Modular Pro Spindles (Also fits CPP X10 Spindles)
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
📖
About this product
Fits 1960-87 Chevy/GMC 2WD 1/2 Ton Trucks w/Wilwood C10 Aluminum Modular Pro Spindles (Also fits CPP X10 Spindles)
📋
Product Specifications
Applications
GM C10 Trucks 60-87
Automotive Item Grade
Performance
Axle
Front
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes

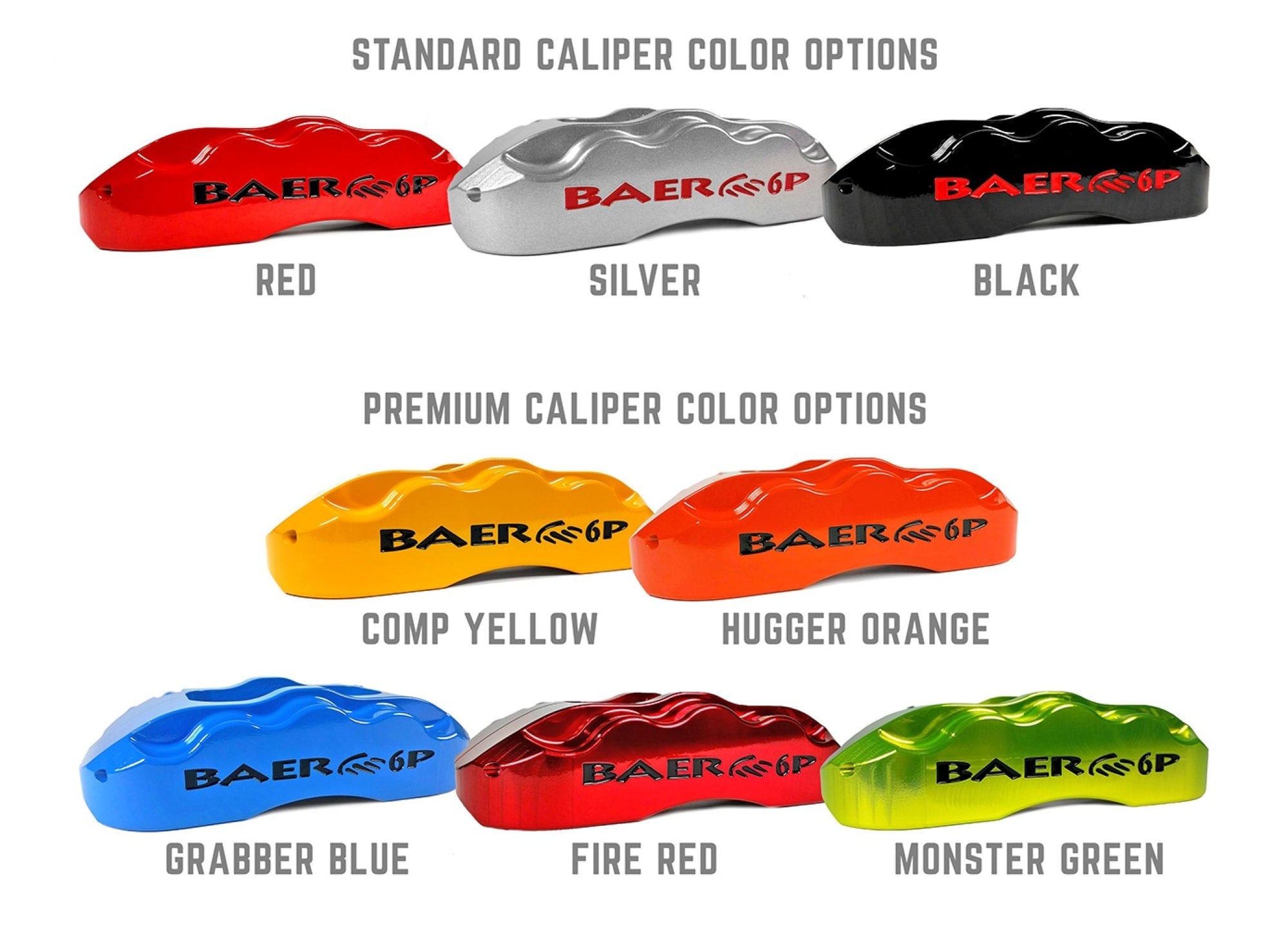

Caliper Color
Black
Caliper
6S
Category
Brake
Country
US
Disc Brake Caliper (Front) Piston Quantity
6
Disc Brake Caliper (Front) Type
Fixed
Disc Brake Pad FMSI Number
D1247
Disc Brake Rotor (Front) Construction
Vented
Disc Brake Rotor (Front) Outside Diameter
14.000
Emission Code
4
Emission Code
6
Export Description
Brake Components
Fitment Notes
w/CPP X10 Spindles
Fitment Notes
w/Wilwood C10 Aluminum Modular Pro Spindles
Grade Type
Performance
Hose Material
Stainless Steel
HTS Code
8708305090
Lug Count
5 Lug
Min Wheel Dia (verify Using Template)
18
Part Type
Disc Brake Upgrade Kit
Product Line
14 Inch Extreme+
Product Type
14 Inch Extreme+ Front Brake Kit
Prop 65 - Long Label
WARNING
Prop 65 - Short Label
WARNING
Prop 65 Yes/No
Yes
R Or Cr)
CR
Rotor Thickness
1.250
Rotor Type
2-Piece
Spindle Type
Wilwood C10 Alum Modular Pro
Spindles Included
No
Sub Category
Service Kits
Surface Type
Slotted
System Notes
Fits Wilwood C10 Aluminum Modular Pro or CPP X10 hub pack spindles. Bolt on hub packs not included
Template
N117P
Title
Extreme+ Brake System Front
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty
Wheel Lug/Bolt Pattern
5x5.00
🛡️
Warranty & Compliance
Warranty
1 months · Manufacture Limited 1 Year Warranty Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708305090
📐
Dimensions & Shipping
Product Dimensions
16.25 × 15.5 × 15.5 in
Shipping Dimensions
16.25 × 15.5 × 15.5 in
Weight
34019 g (34.02 kg)
