Baer Brake SystemsPart 4301681R✓ Fits 6 vehiclesMade in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
6 applicationsView all 6 vehicle applications
Years
Make / Model
Submodel
Engine
1988–1998
Chevrolet C1500
1992–1999
Chevrolet C1500 Suburban
1995–1999
Chevrolet Tahoe
1988–1999
GMC C1500
1992–1999
GMC C1500 Suburban
1992–1999
GMC Yukon
No applications match your search.
⭐
Key Features
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are

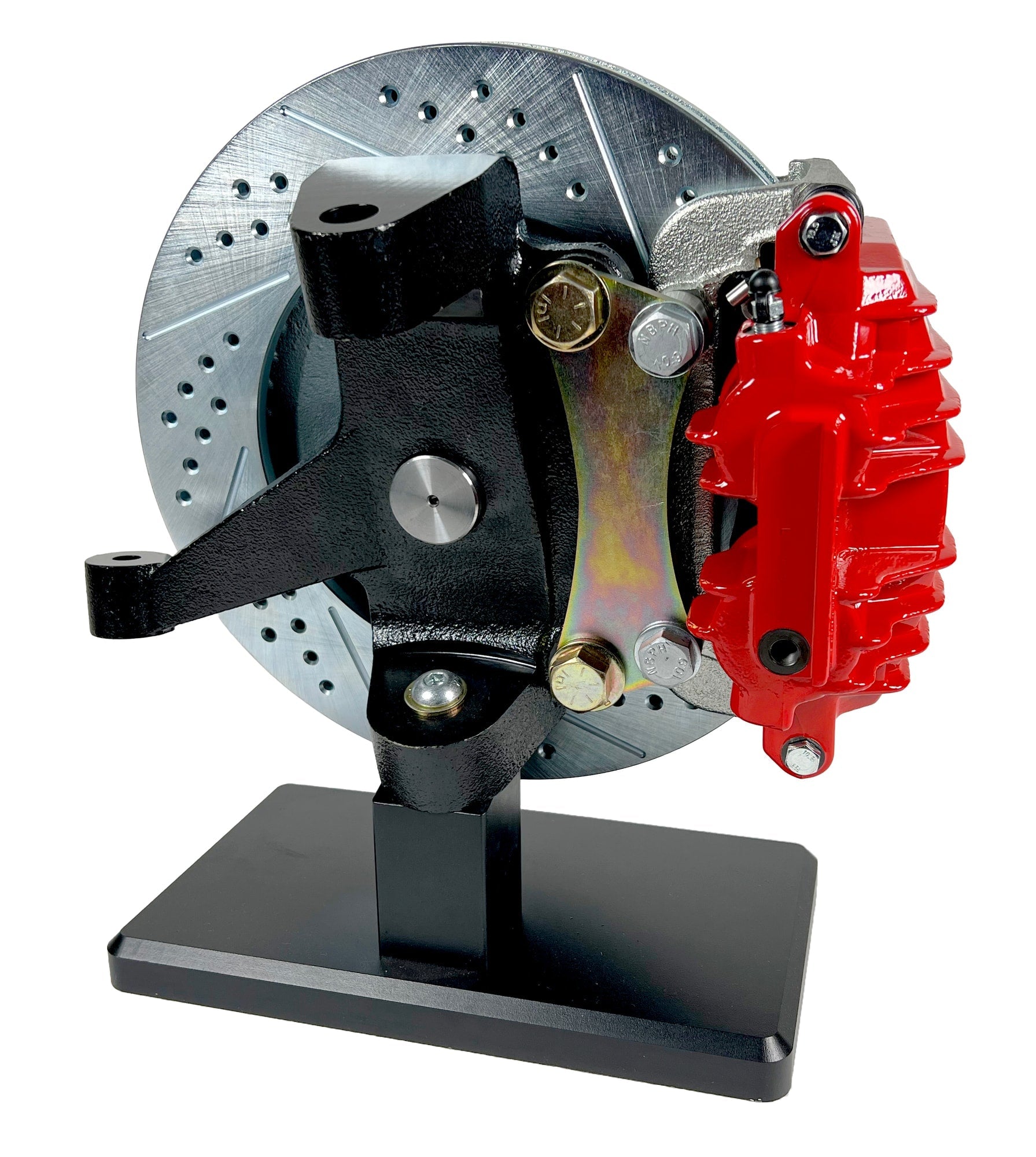

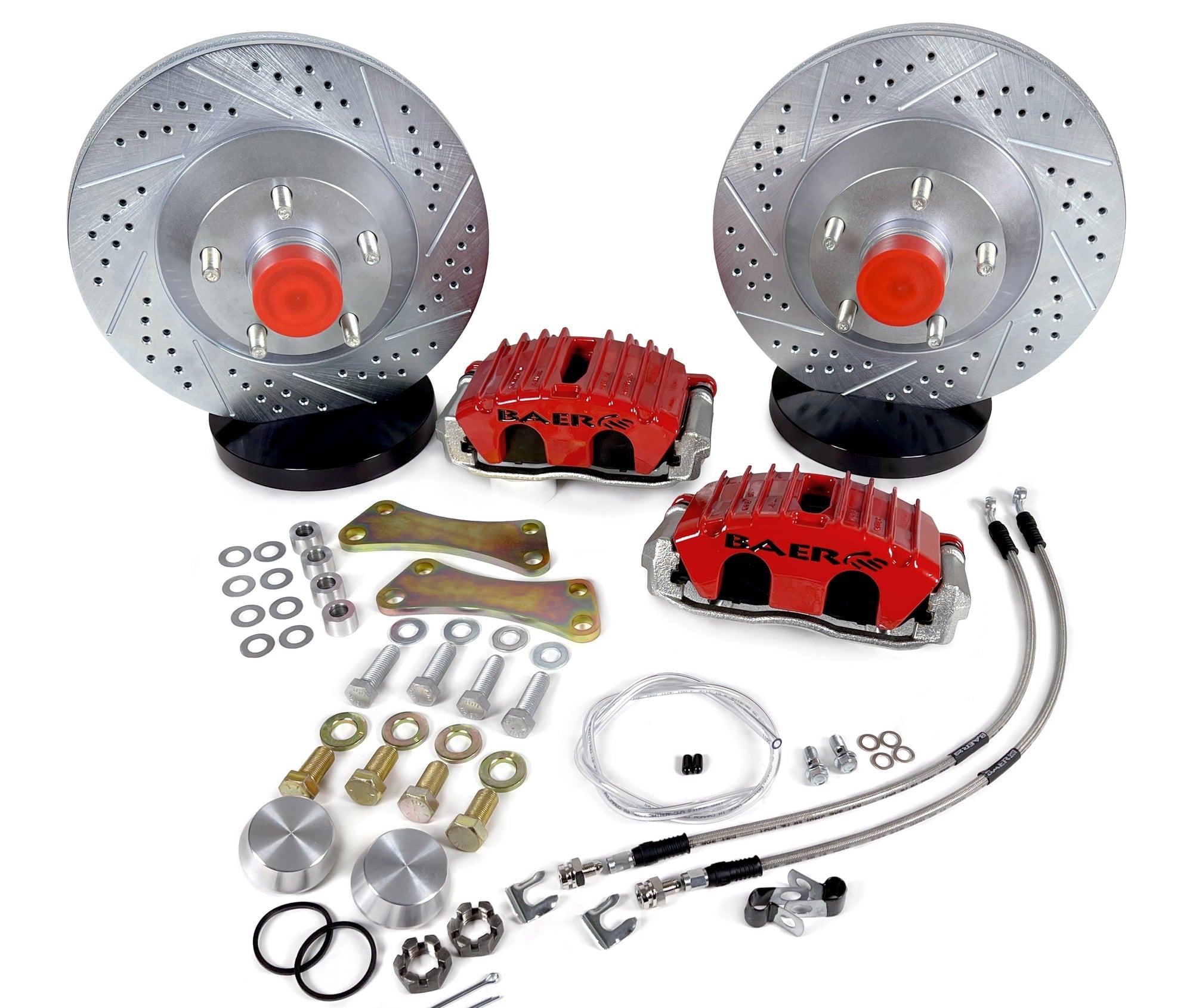

This Classic Series brake kit features an aluminum. 2-piston, pin drive caliper (PDC) mounted to a 13.150", 1-piece slot, drill, zinc plated integral hub rotor and is designed to fit vehicles using the AZ Pro Performance REACT 2" drop spindles (Baer p/n 6800258). The caliper comes in a red powder coated finish with the Baer logo painted black, includes dust & weather seal's and uses the popular D0731 pad type. Rotors are ready to install with races installed and bearings packed with Redline synthetic grease. Dust caps, mounting brackets, stainless braided hoses and all necessary hardware are also included. This 13" Classic Series system fits most 17" or larger wheels and with or without ABS.
Fits 1988-98 Chevrolet/GMC 2WD Trucks & 92-99 Chevrolet/GMC 2WD SUV's w/REACT 2" Drop Spindles (with or without ABS) (5 Lug, 5x5BC)
- Aluminum, 2-Piston, Pin Drive Caliper
- Red Powder Coated Caliper w/Black Baer Logo
- Slot, Drill, Zinc Plated Rotor Finish
- Works With ABS and Non-ABS Applications
- Stainless Braided Brake Hoses
- Uses Common FMSI D0731 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price

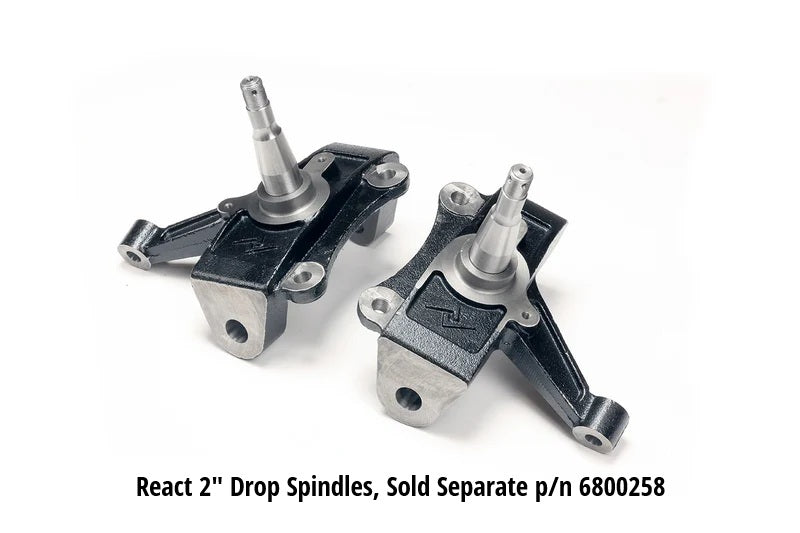

- Designed to Fit AZ Pro Performance REACT Drop Spindles (Baer p/n 6800258)
📖
About this product
Fits 1988-98 Chevrolet/GMC 2WD Trucks & 92-99 Chevrolet/GMC 2WD SUV's w/REACT 2" Drop Spindles (with or without ABS) (5 Lug, 5x5BC)
📋
Product Specifications
ABS Tone Ring Included
Yes
Applications
GM C1500 SUV's 92-99
Applications
GM C1500 Trucks 88-98
Automotive Item Grade
Performance
Axle
Front
Brake Hose DOT Approved
Yes
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Caliper Color
Red
Caliper
2 PDC
Category
Brakes
Country
CN
Disc Brake Caliper (Front) Piston Quantity
2
Disc Brake Caliper (Front) Type
Floating
Disc Brake Pad FMSI Number
D0731
Disc Brake Rotor (Front) Construction
Vented
Disc Brake Rotor (Front) Outside Diameter
13.150
Emission Code
4
Emission Code
6
Export Description
Brake Components
Fitment Notes
w/React 2 inch Drop Spindles
Friction Material Composition
Ceramic
Grade Type
Performance
Hose Material
Stainless Steel
Hose Material
Steel Braided
HTS Code
8708305090
Lug Count
5 Lug
Min Wheel Dia (verify Using Template)
17
Part Type
Disc Brake Upgrade Kit
Product Line
Classic
Product Type
13 Inch Classic Front Brake Kit
Prop 65 - Long Label
WARNING
Prop 65 - Short Label
WARNING
Prop 65 Yes/No
Yes
R Or Cr)
C
Rotor Diameter
13.150
Rotor Thickness
1.150
Rotor Type
1-Piece Integral Hub
Solid Or Vented Type Rotor
Vented
Sub Category
Service Kits
Surface Type
Slotted
System Notes
Designed to be used with React 2" drop spindles Baer p/n 6800258 sold separately
Title
Classic Series Front Brake Kit
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty
Wheel Lug/Bolt Pattern
5x5.00
Wheel Stud Size
M14-1.50 x 47.5mm
🛡️
Warranty & Compliance
Warranty
1 months · Manufacture Limited 1 Year Warranty Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708305090
📐
Dimensions & Shipping
Product Dimensions
15.5 × 15.5 × 13.25 in
Shipping Dimensions
15.5 × 15.5 × 13.25 in
Weight
40370 g (40.37 kg)
