Baer Brake SystemsPart 4302252R★ Universal fitMade in US
Product Details
⭐
Key Features
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are

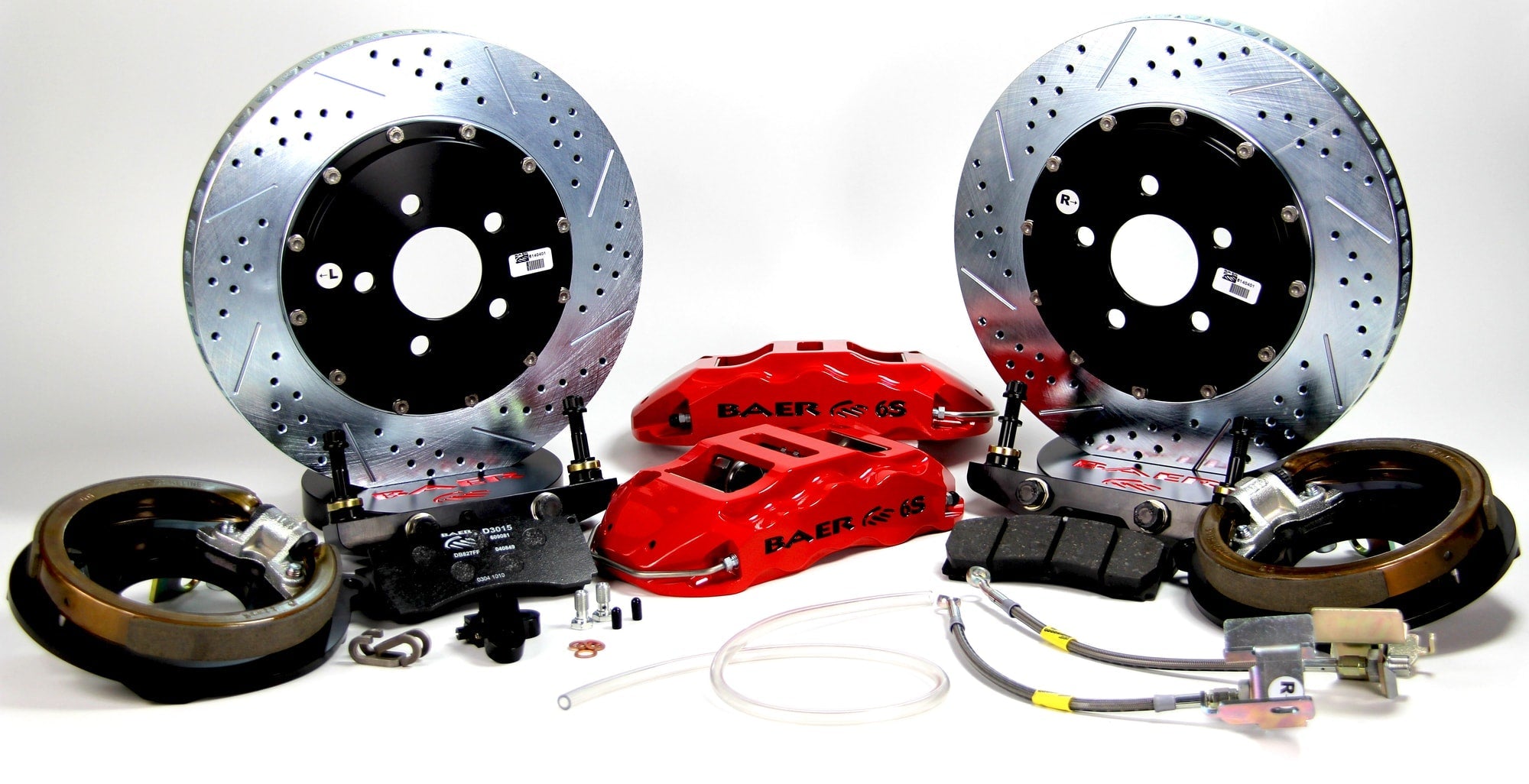

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels.

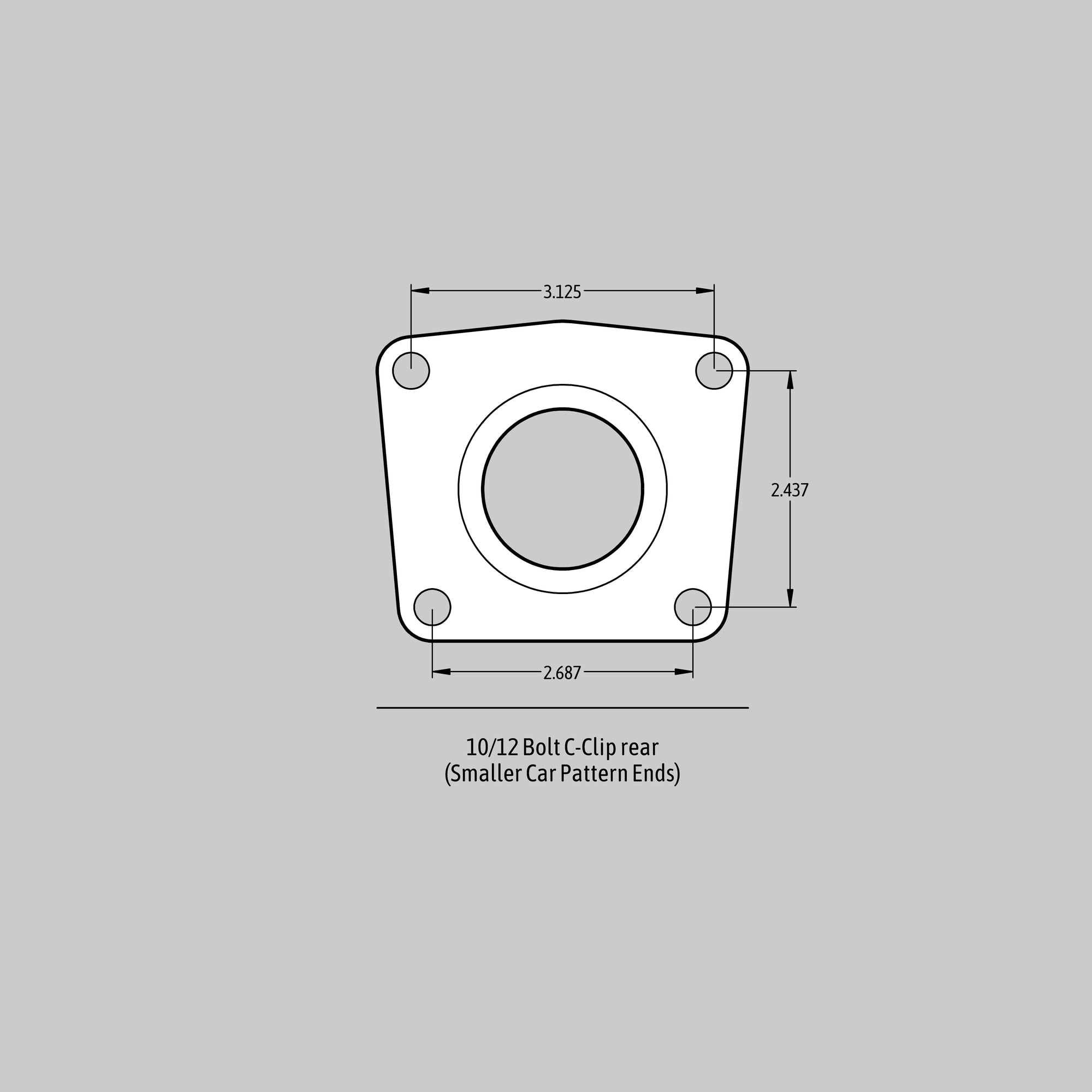

Fits Rear Ends w/GM Small Pattern 10/12 bolt C-clip (BIH) Housing Ends, (5x4.75", 5x5"BC)
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
📖
About this product
Fits Rear Ends w/GM Small Pattern 10/12 bolt C-clip (BIH) Housing Ends, (5x4.75", 5x5"BC)
📋
Product Specifications
Automotive Item Grade
Performance
Axle Flange
GM 10/12 Bolt C-Clip (Small Car Pattern)
Axle
Rear
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes

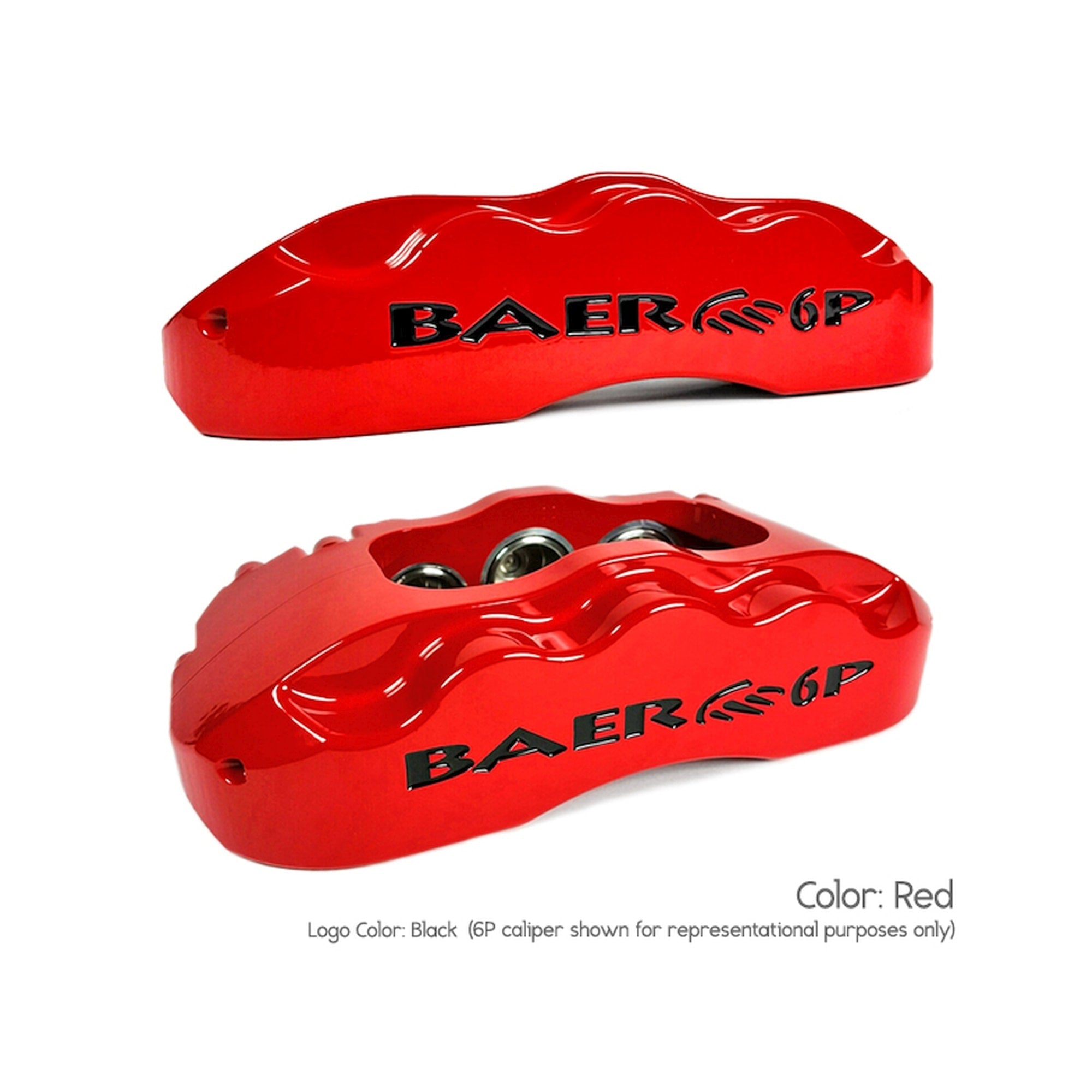

Caliper Color
Red
Caliper
6S
Category
Brake
Country
US
Disc Brake Caliper (Rear) Piston Quantity
6
Disc Brake Caliper (Rear) Type
Floating
Disc Brake Pad FMSI Number
D1247
Disc Brake Rotor (Rear) Construction
Vented
Disc Brake Rotor (Rear) Outside Diameter
14.000
Emission Code
4
Emission Code
6
Export Description
Brake Components
Grade Type
Performance
Hose Material
Stainless Steel
HTS Code
8708300050
Includes Park Brake Cables
No
Includes Park Brake
Yes
Lug Count
5 Lug
Min Wheel Dia (verify Using Template)
18
Part Type
Disc Brake Upgrade Kit
Product Line
14 Inch Extreme+
Product Type
14 Inch Extreme+ Rear Brake Kit
Prop 65 - Long Label
WARNING
Prop 65 - Short Label
WARNING
Prop 65 Yes/No
Yes
R Or Cr)
CR
Rotor Thickness
1.250
Rotor Type
2-Piece
Sub Category
Service Kits
Surface Type
Slotted
System Notes
Fits GM small pattern 10/12 bolt housing ends & C-Clip axles
Template
N110P
Title
Extreme+ Brake System Rear
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty

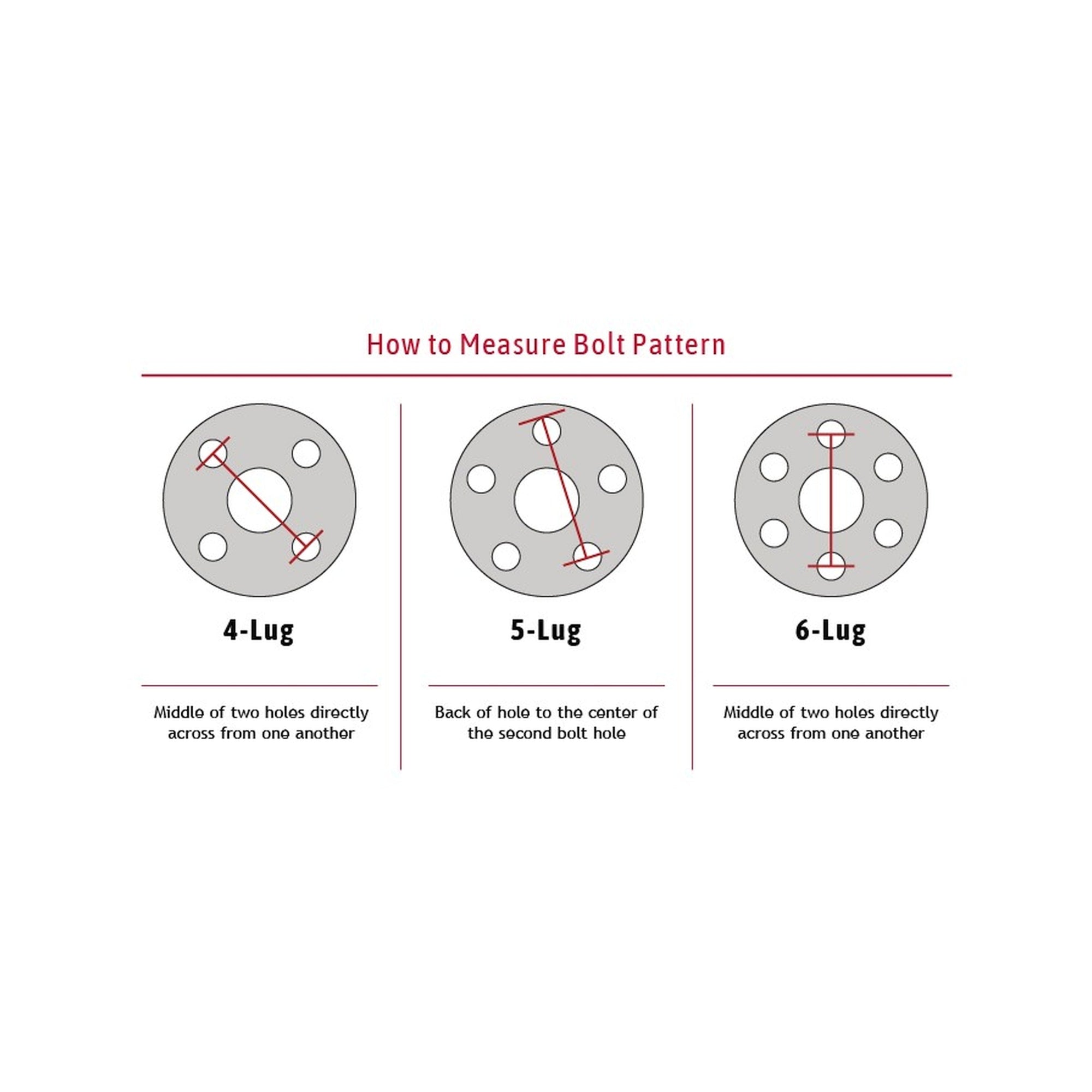

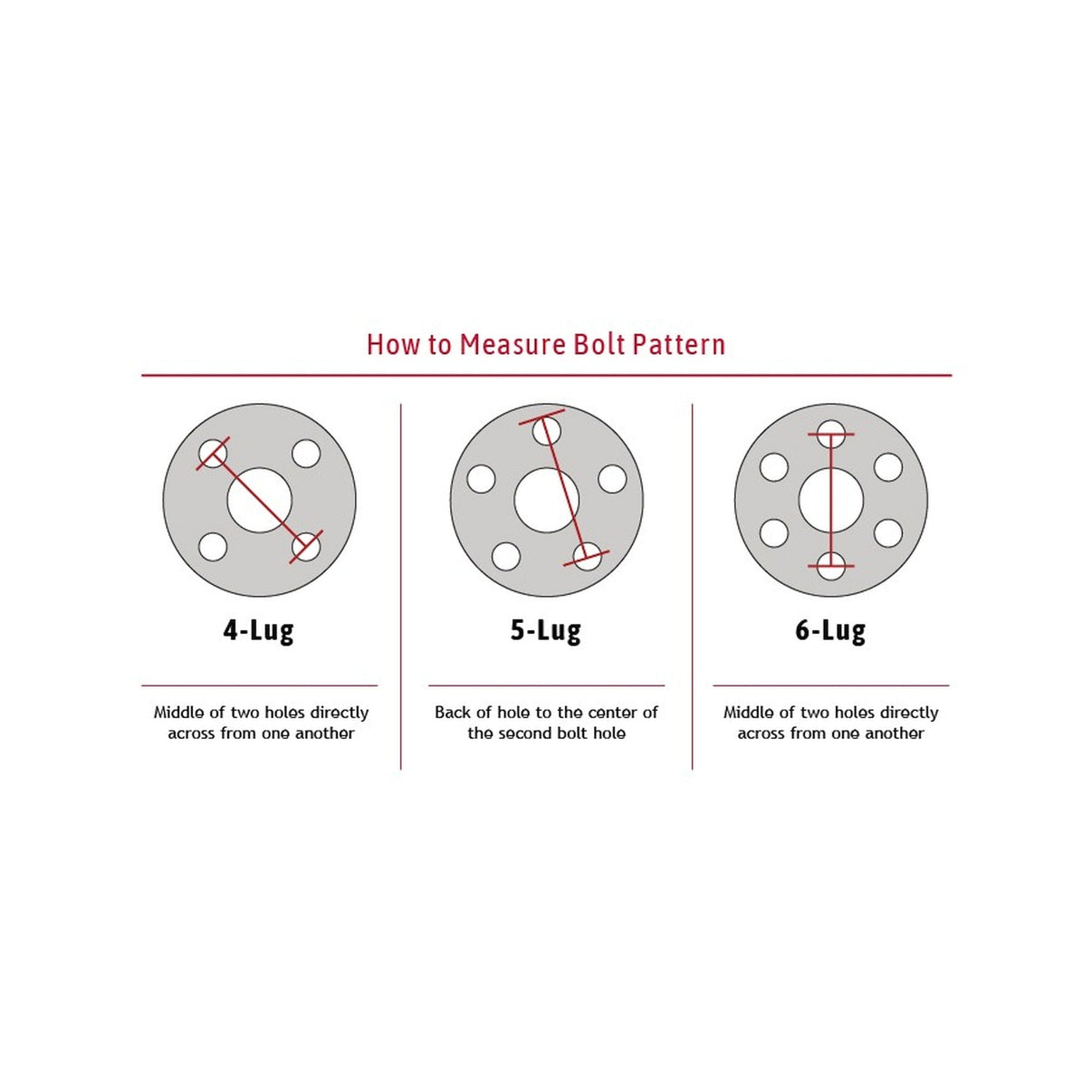

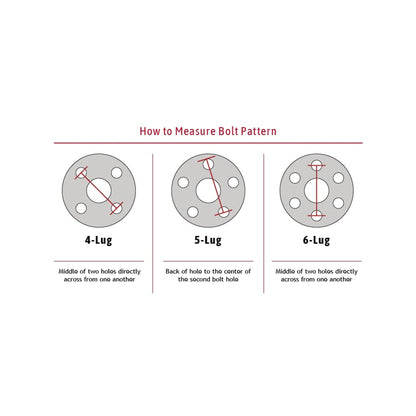

Wheel Lug/Bolt Pattern
5x4.75/5x5.00
🛡️
Warranty & Compliance
Warranty
1 months · Manufacture Limited 1 Year Warranty Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708300050
📐
Dimensions & Shipping
Product Dimensions
15.0 × 15.0 × 15.0 in
Shipping Dimensions
15.0 × 15.0 × 15.0 in
Weight
32659 g (32.66 kg)
