Brothers TrucksPart 5-6066-9-1Made in US
Product Details
⭐
Key Features

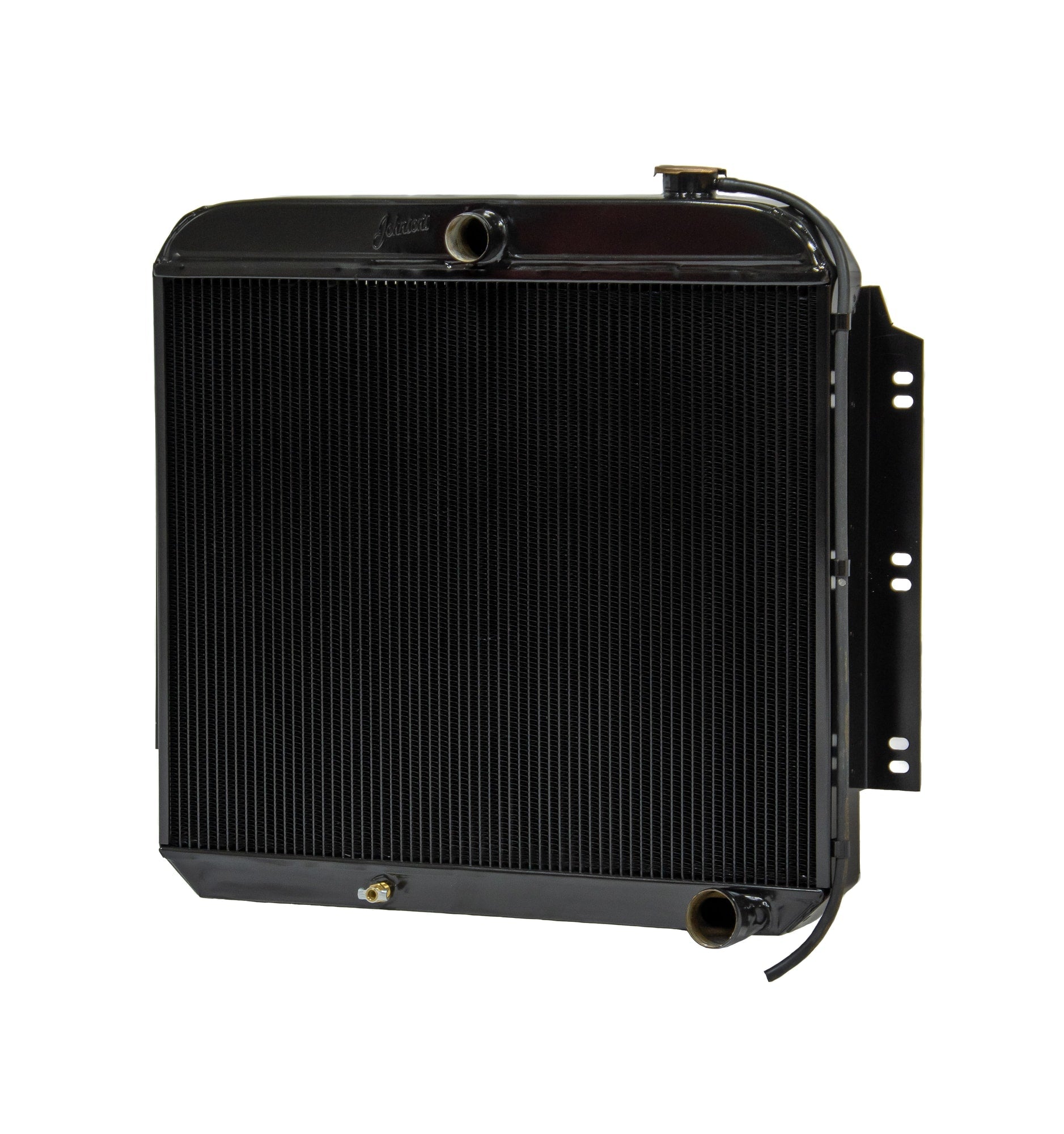

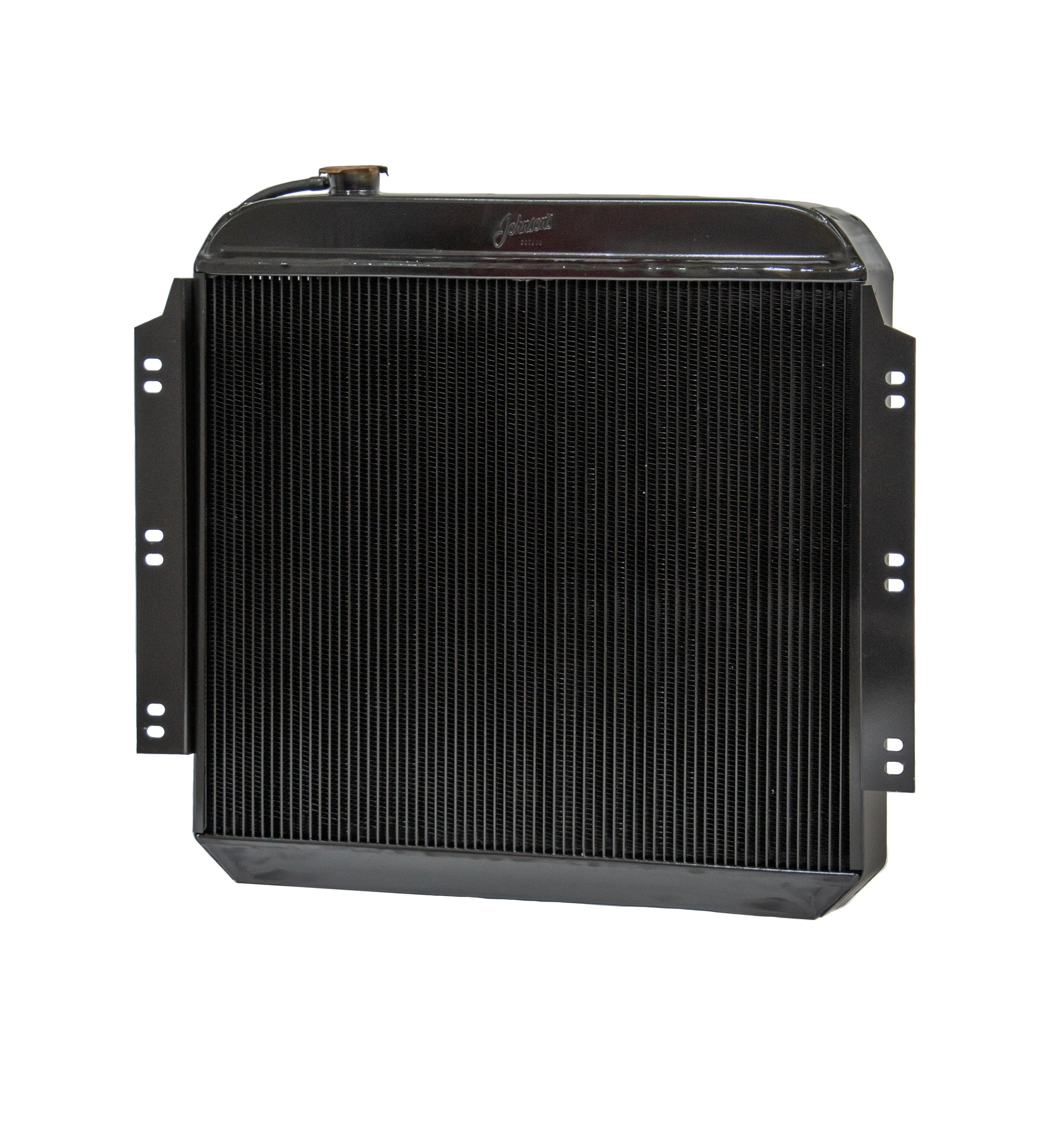

1960-66 CHEVY / GMC TRUCK RADIATOR
Johnson’s Radiator Works radiators feature a 1.500" top outlet and 1.750" bottom outlet - high-flow copper core, ideal for the best cooling efficiency possible. Built as a direct fit for a stock replacement complete with the appropriate connections. Made with heavy gauge steel side brackets and mounting holes pre-stamped. Includes an optional built-in oil cooler for automatic transmissions. Johnsons has a 5 year full replacement warranty covering labor as well.
1960-66 CHEVY / GMC TRUCK RADIATOR
- Engine - SB/BB Chevy
- A/C - Non
- Trans Cooler - No
- Top Outlet Size - 1.500"
- Top Outlet Location - Center
- Bottom Outlet Size - 1.750"
- Bottom Outlet Location - Right
📖
About this product
1960-66 CHEVY / GMC TRUCK RADIATOR
📋
Product Specifications
Automotive Item Grade
Regular
Brand
Brothers Trucks
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
California Proposition 65
chrominum
Category
Belts and Cooling
Category
Cooling
Category
Exterior
Category
Restoration
Coolant Hose Inlet Connection Type
1.500
Coolant Level Indicator Port
No
Core Color
Black
Core Construction
Copper
Core Construction
Tube-and-Fin
Core Dimension
18.50 x 22.88
Core Finish
Powder Coated
Core Height
18.50
Core Length
22.88
Core Material
Brass
Core Material
Copper
Core Row Quantity
4
Core Thickness
0.78
Core Width
3.00
Down Flow Or Cross Flow Type
Down Flow
Drain Plug Included
Yes
Emission Code
6
End Tank Construction
Fabricated
End Tank Finish
Powder Coated
End Tank Material
Aluminum
Engine Oil Cooler Included
No
Fan Shroud Mount Hole Shape
Round
Frame Included
Yes
Hose Location Inlet
Center
Hose Location Outlet
Passenger
Inlet Connector Type
Hose
Inlet Diameter
1.50
Inlet Location
Top Center
Internal Engine Oil Cooler
No
Internal Transmission Oil Cooler
No
Mounting Hardware Included
No
Mounting Type
Bolt On
Mounting Type
Bolted
Mounting Type
Bracket Mount
Outlet Connector Type
Hose
Outlet Diameter
1.75
Outlet Location
Bottom Right
Overall Height
23.63
Overall Length
26.63
Overall Width
3.00
Part Type
Radiator
Pass Quantity
Single Pass
Product Type
Radiator
Prop 65 Yes/No
Yes
Radiator Cap Included
Yes
Sub Category
Radiators
Tank Material
Brass
Tank Material
Copper
Thermostat Included
No
Transmission Oil Cooler Included
No
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
5 months
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708915000
📐
Dimensions & Shipping
Product Dimensions
36.0 × 33.0 × 11.0 in
Shipping Dimensions
36.0 × 33.0 × 11.0 in
Weight
19958 g (19.96 kg)
