Racepak
Product Details
🔧
Vehicle Compatibility
Fits Street Smartwire Power Control Module.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

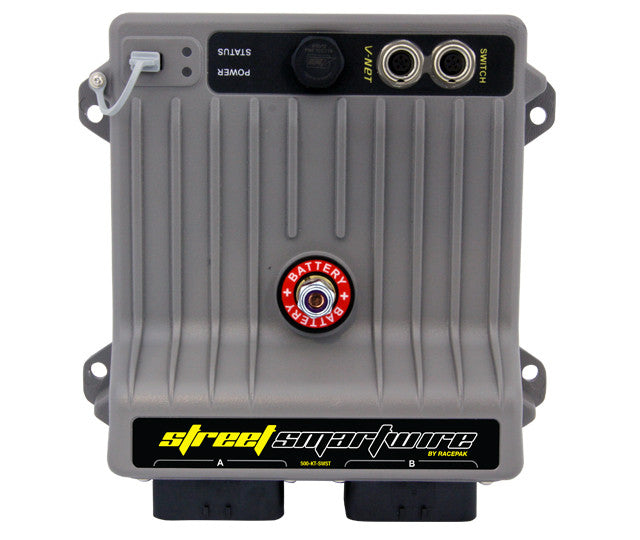

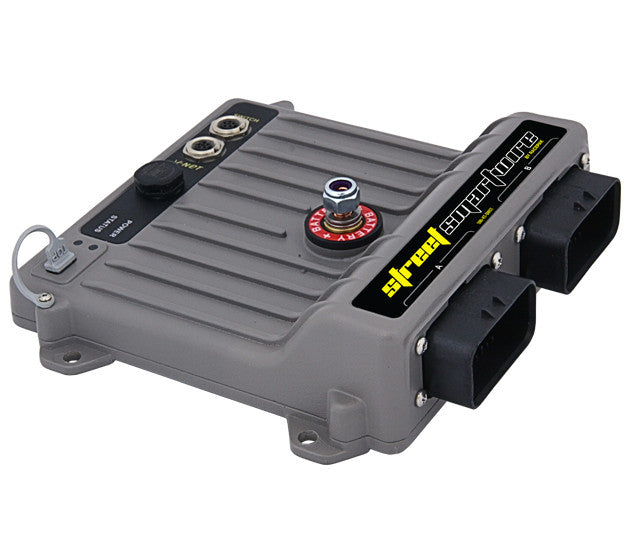

SmartWire PDM Includes Switch Module (16 Channel)
- 125 Total Amp Capacity
- Min/Max Power Supply: 8-20 Volts
- Operating Power Supply: 12-16 volt automotive applications
- 30 Total Output Channels
- Output Protection: User definable over current limits. Internal short circuit and/or thermal overload (non definable)
- 8 Channels @ 20 Amps Maximum for high amperage applications such as electric fuel pumps or starter solenoids.
- 22 Channels @ 10 Amps Maximum for low amperage applications such as head lights, turn signals, or small cooling fans.
- 12 Hardwired Switched Inputs - Voltage triggered >2.7V or Ground Triggered <2.5V
- Data Output: Volts, Amps, Status (On/Off).
- Test Mode: This software integrated feature allows you to quickly determine if an input or output is working as intended.
- Response Time: 3.0 Milliseconds
- Programming: USB Cable w/ Free Datalink II Software
- Dimensions: 6" (L) x 5.5" (W) x 1.5" (H)

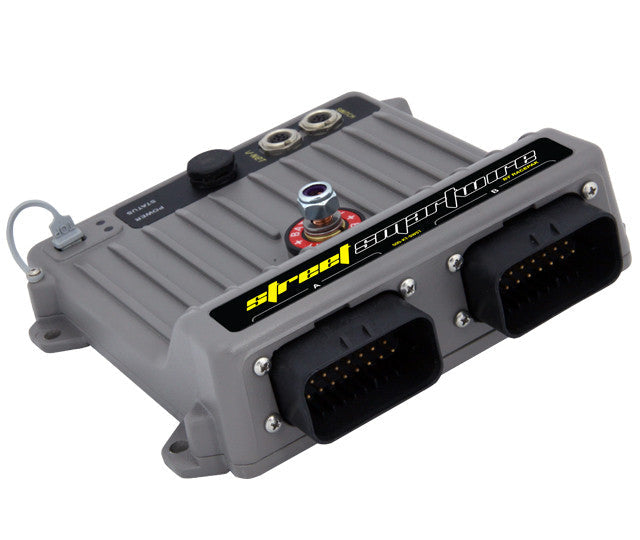

- Connectors: Two - 23 pin Ampseal, One 1/4" x 20 Main Power Stud, One mini USB (for programming), One Switch CAN bus (for optional switch panel or module), One V-Net CAN bus for optional V-net accessories, such as sensors)
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Application
Street
Brand
Racepak
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Injection (EFI)
Operating Voltage
12-18 volts
Product Type
SmartWire PDM
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
