Holley EFIPart 522-221xMade in CN
Product Details
⭐
Key Features
Designed for use in setups with a 38mm distance between the o-ring seats on the fuel rail and intake manifold (commonly referred to as an "LS3-Style" injector), this injector features a USCAR connector and 14mm o-rings on both ends. It is an ideal fit for
Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
PICO/EV6 - 220 lb/hr - High Impedance
- PICO/EV6 style performance injectors – sold individually or set of 8
- High impedance for use with saturated drivers
- Rated injector flow 220 lb./hr. at 43 PSI of base fuel pressure

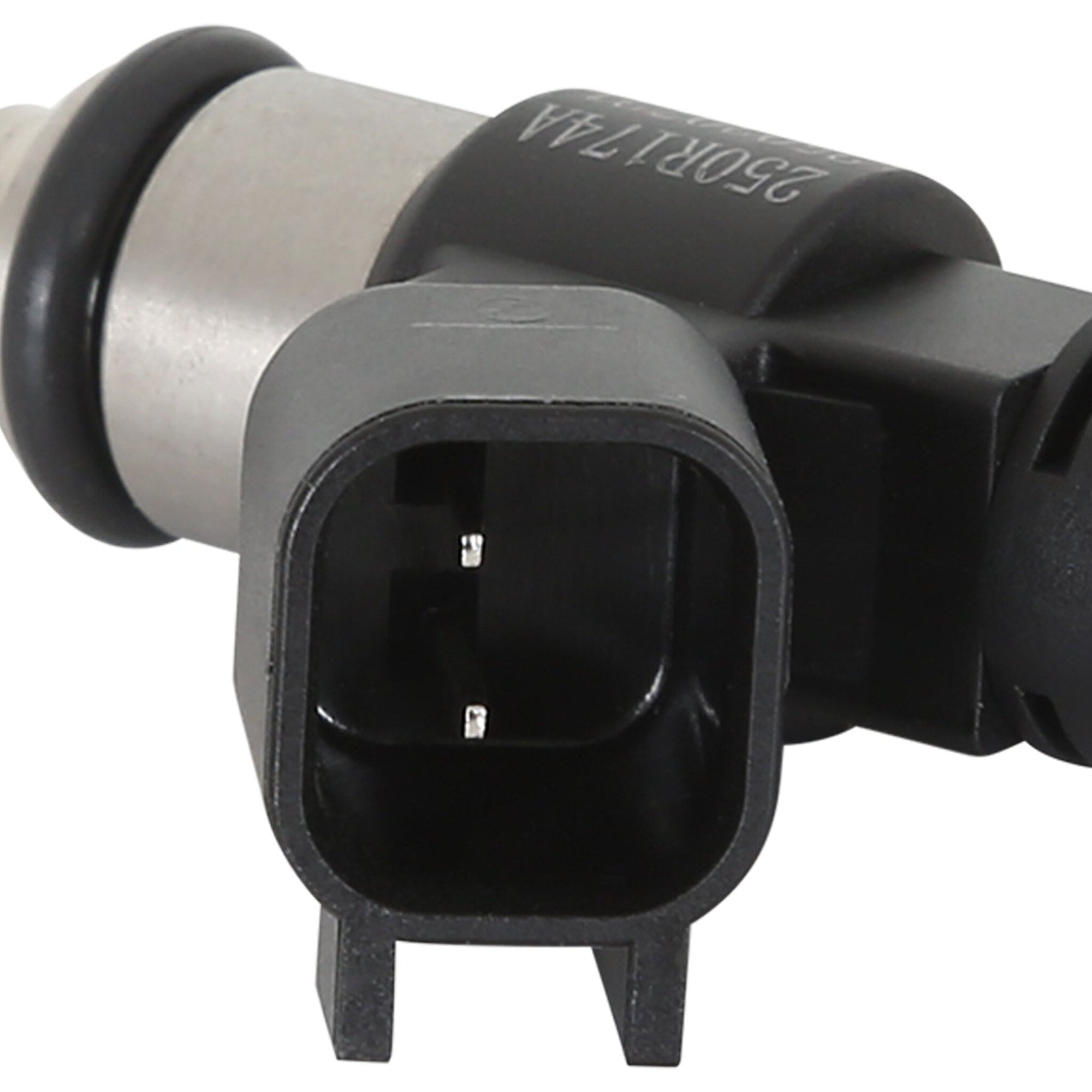

- USCAR injector connector
- 40mm o-ring to o-ring length
- Methanol compatible – for use in extreme horsepower applications
📖
About this product

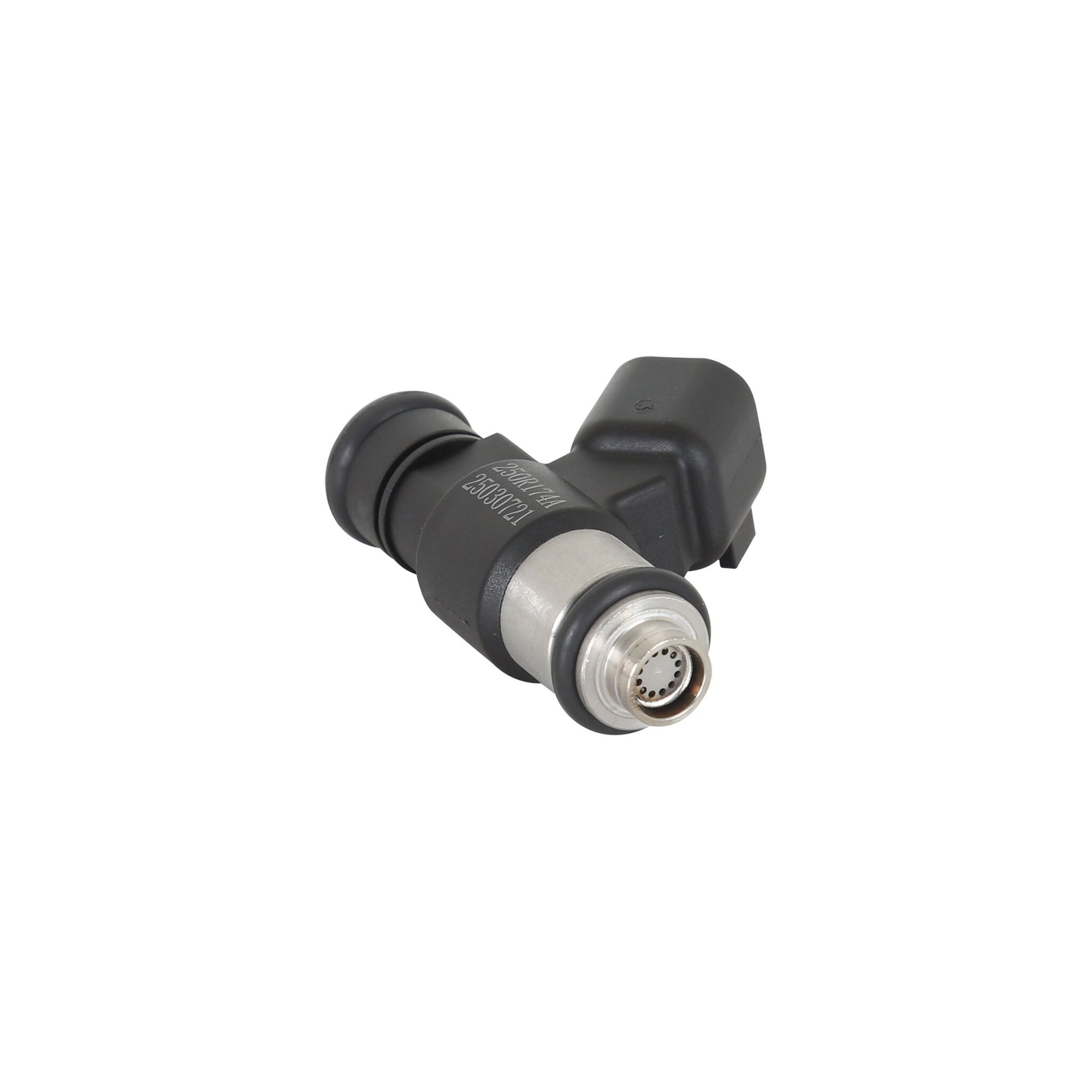

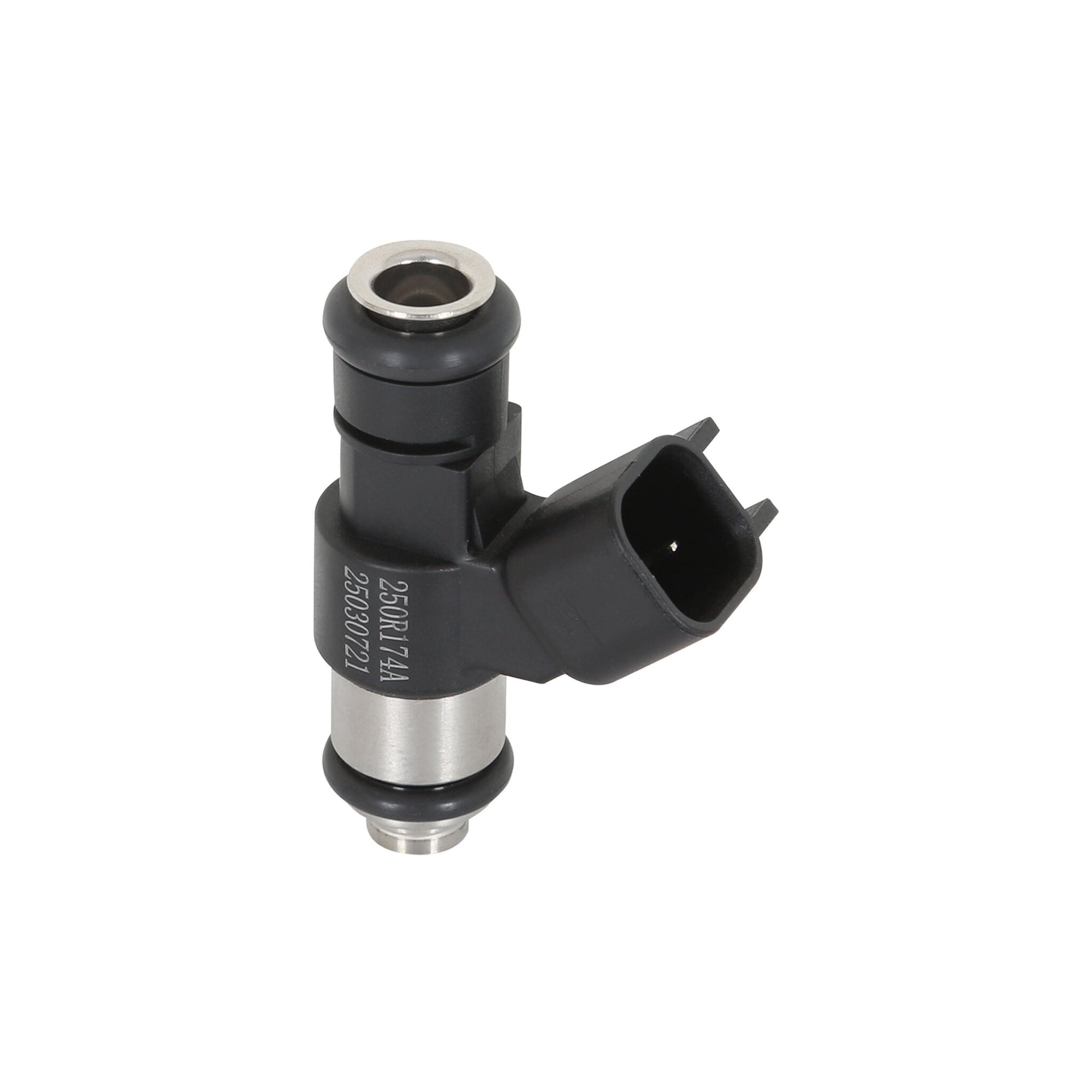

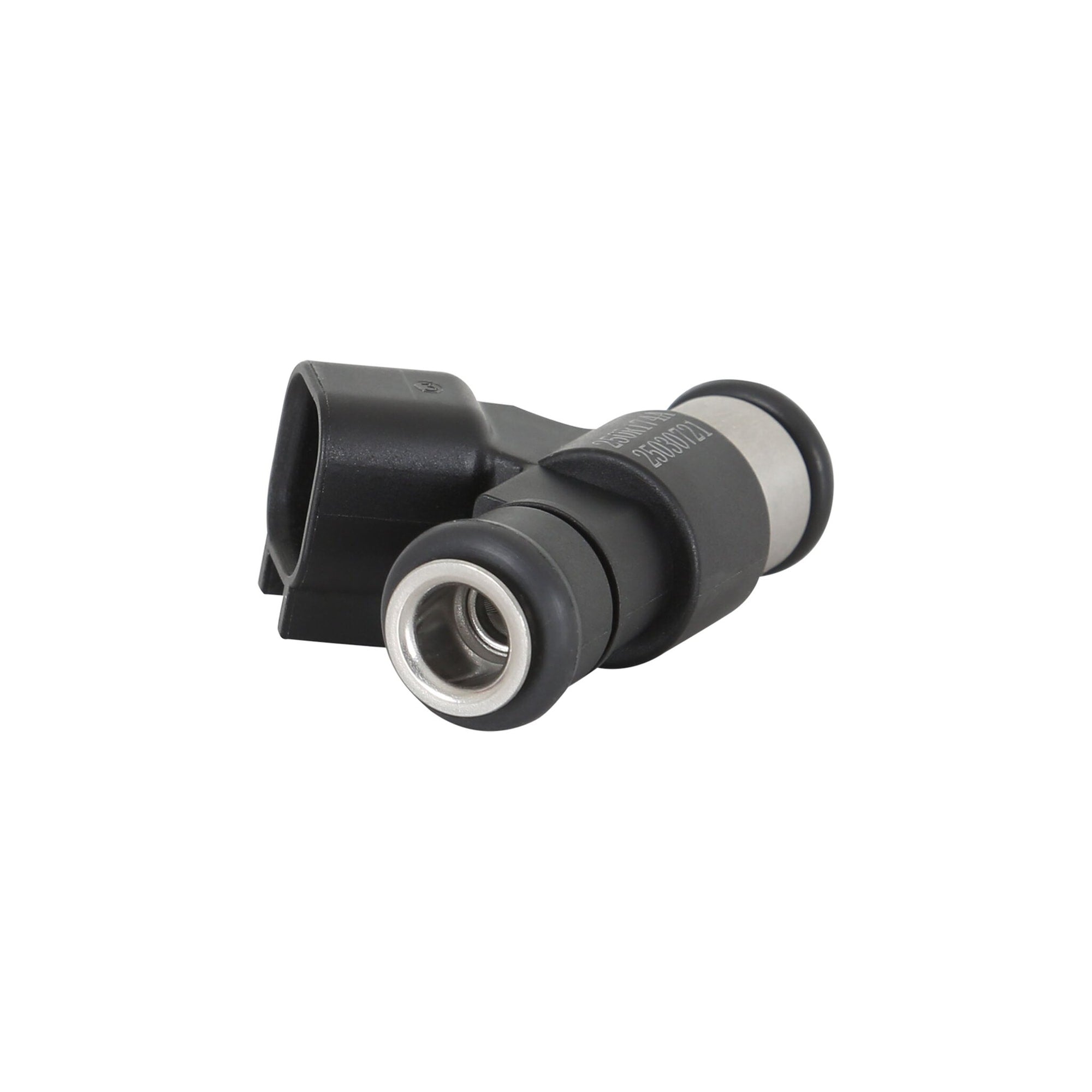

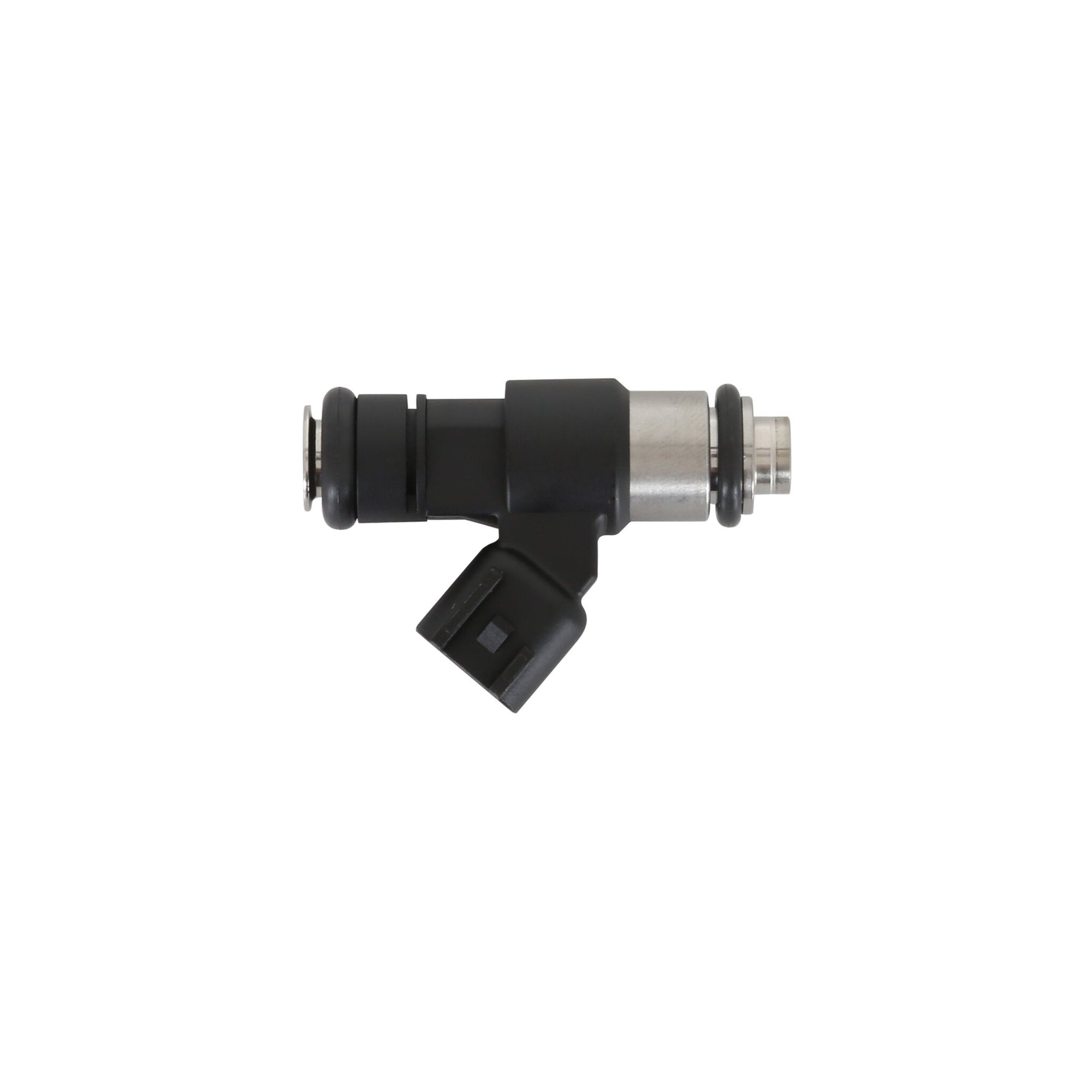

PICO/EV6 - 220 lb/hr - High Impedance
📋
Product Specifications
Automotive Item Grade
Performance
Body Diameter
0.97
Body Length
2.85"
Body Style
EV6
Brand
Holley EFI
California Proposition 65 Chemical Name
4
Category
Air and Fuel Delivery
Color
Black
Connector Series
USCAR - EV6
Connector Shape
USCAR - EV6
Country
CN
Emission Code
3
Emission Code
4
Flow Matched
No
Flow Rate
220 4U
Fuel Injection Type
Port
Fuel Type
E-85
Gasket Or Seal Included
Yes
Grade Type
Performance
HTS Code
8409915085
Impedance
High
Mounting Hardware Included
No
O-Ring Quantity
2 per injector
O-Ring To O-Ring
2.415"
Part Type
Fuel Injector
Product Type
Fuel Injector
Prop 65 Yes/No
No
Qty
1
Rated Injector Flow
220 lb/hr
Retainer Clips Included
No
Sub Category
Fuel Injection System and Related Components
Terminal Gender
Female
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
6.7 × 3.4 × 3.2 in
Shipping Dimensions
6.7 × 3.4 × 3.2 in
Weight
91 g (0.09 kg)
