Holley EFIPart 550-605nMade in US
Product Details
⭐
Key Features

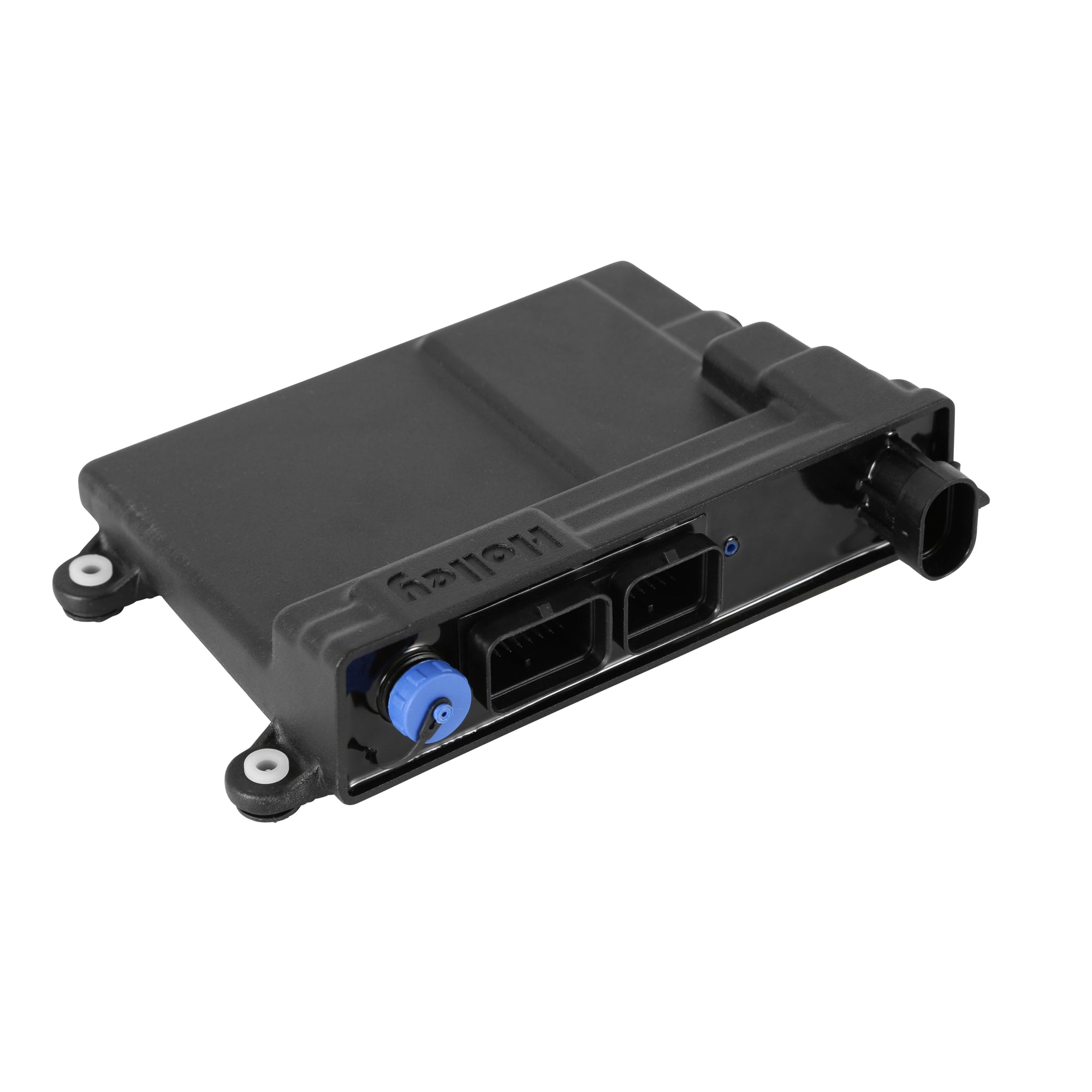

ECU is certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance. Holley HP EFI systems are equipped with 4 programmable inputs and 4 programmable outputs that are ideal for most vehicles w
Looking for a alternative for your stock or built late model factory FORD EFI engine? How about a replacement ECU for your older Holley C950? Holley has you covered. HP EFI ECU and harness kits are designed to be used with popular factory EFI engines as an alternative to the factory ECU and harness or as a replacement for your C950 ECU. The HP allows you to accurately control the fuel and ignition of your engine along with additional controls for nitrous, boost or water meth.

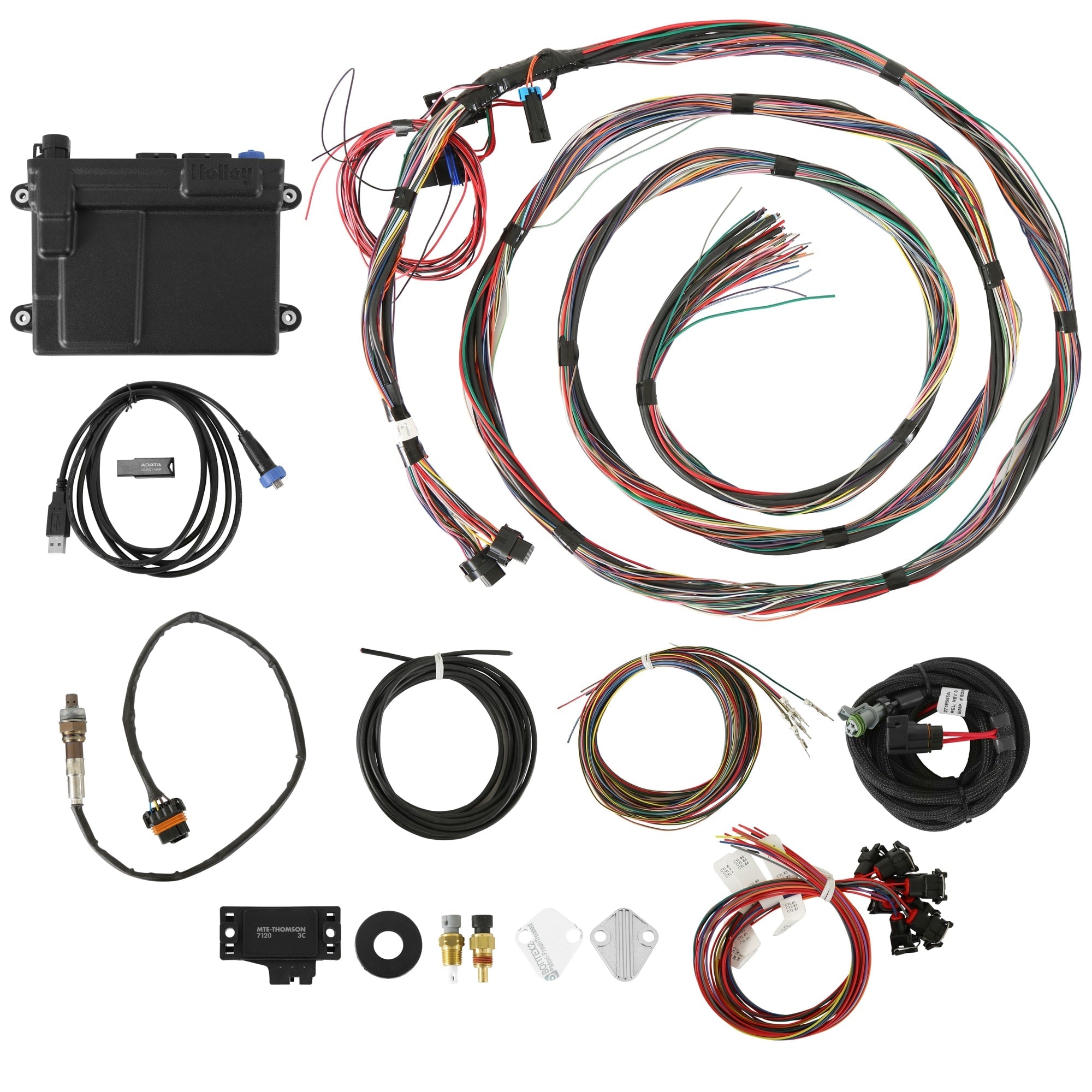

Unterminated Universal Harness, Includes NTK Oxygen Sensor
- Optional 5.7” full-color touchscreen LCD allows easy on-the-fly tuning,data-logging or can be used as an easy to see graphical gauge panel
- Individual cylinder fuel and spark control allows you to unlock your engine’s potential
- Uses Holley Water/Meth solenoids specially designed and calibrated for use with this EFI system to allow the user to enter Water/Meth flow as a percentage of fuel injector flow
- ECU is fully potted and can be mounted in the engine compartment or interior
- Sealed automotive and marine grade connectors

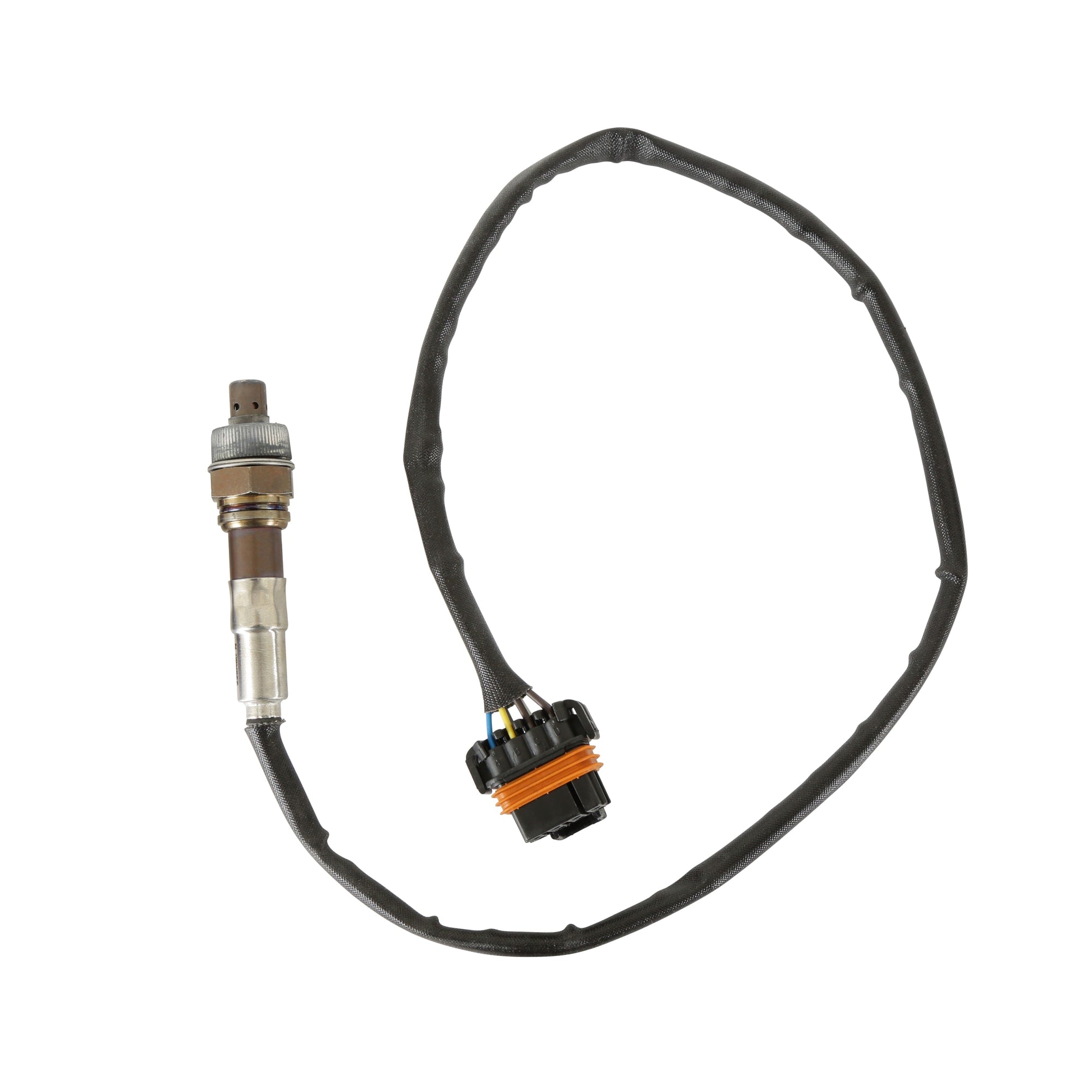

- Includes NTK Wideband Oxygen Sensor
- Unique lb/hr based fueling strategy greatly simplifies and commonizes tuning
- Two channel knock control sensor Inputs for both one or two wire knock sensors
- Full timing retard/control configurability per stage based on RPM or time
- Internal data-logging standard with a huge 2GB of memory
- Speed density, Alpha-N, or combination fueling strategies
- Dedicated fuel and oil pressure inputs
- Progressive control based on time, RPM, or boost, requires part # 554-111
- Can be configured “Wet” or “Dry” with closed loop feedback
- 4 Programmable high or low Pulse Width Modulated (PWM) outputs and 4 fully configurable inputs can be configured for use

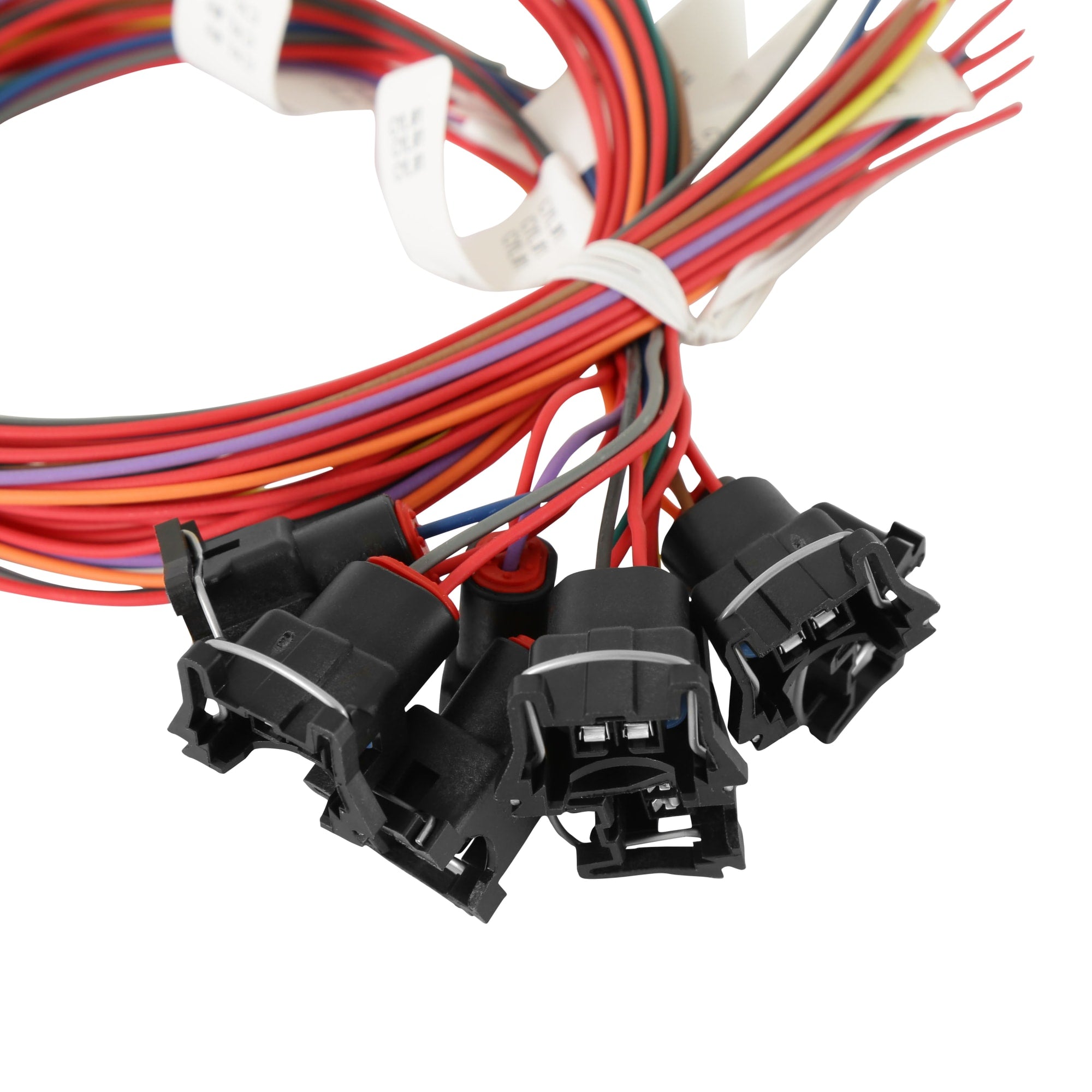

- Eight sequentially driven 8:2 peak and hold injector drivers, capable of driving up to 16 low or high impedance injectors as a standard feature. Multiple staged injector strategies
- Eight channel Distributorless Ignition (DIS)outputs capable of directly driving “Smart” ignition coils or Holley DIS coils. Will drive 2 wire coils with the addition of PN 554-112 high current coil driver module
- Self-tuning fuel table strategy greatly simplifies tuning process
- Fully featured nitrous control eliminates the need for a separate nitrous controller device
- 1-5 Bar MAP sensor capability
- Turbo boost control
- Advanced idle, closed loop, and enrichment strategies allow for very stable operation
- Ignition Plug and Play with GM 24x and 58x LSx engines, GM HEI, Ford TFI, magnetic and hall effect trigger, and other ignition systems. New Plug and Play applications in process.
- Allows for use of common OEM sensors as well as customer sensor calibration input
- 4 Stage progressive nitrous control
- 4 Stage nitrous oxide control
- Integrated water/methanol injection control
- Works with 4, 6, 8 cylinder engines
- Custom settings can be configured to allow many other applications
- Integrated single channel wide band oxygen sensor control. Works with NTK sensors
- Controls both stepper and PWM Idle Air Control (IAC) motors
- Lean or rich safety cutoff
- Plug and Play control of factory GM 24x and 58x LSx engines
📖
About this product
Unterminated Universal Harness, Includes NTK Oxygen Sensor
📋
Product Specifications
Accelerometer Support
Yes
Automotive Item Grade
Performance
Boost Control
Yes
Brand
Holley EFI
California Proposition 65 Chemical Name
20
CAN-BUS Support
Yes
Category
Air and Fuel Delivery
Coil Per Cylinder Ignition Support
Yes
Country
US
Datalogging Support
Yes
Dry Nitrous Control
Yes
E85 Support
Yes
EGT Support
Yes
Emission Code
3
Forced Induction Support
Yes
Fuel Filter Included
No
Fuel Hose Included
No
Fuel Injectors Included
No
Fuel Pressure Regulator Included
No
Fuel Pump Included
No
Grade Type
Performance
HTS Code
8409915085
Ignition Timing Control
Yes
Ignition Type
Coil - (No Timing Control)
Individual Cylinder Fuel Corrections
Yes
Injector Connector
Jetronic / Minitimer (Bosch)
Intake Manifold Included
No
Knock Retard Support
Yes
Multi-Stage Nitrous Control
Yes
Part Type
Fuel Injection Conversion Kit
Product Type
EFI System
Progressive Nitrous Control
Yes
Prop 65 Yes/No
No
Self-Tuning
Yes
Sub Category
Service Kits
Throttle Position Sensor Included
No
Traction Control Support
Yes
User-Tuneable
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wet Nitrous Control
Yes
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
25.1 × 12.2 × 7.1 in
Shipping Dimensions
25.1 × 12.2 × 7.1 in
Weight
5829 g (5.83 kg)
