Holley Sniper EFIPart 550-872kMade in US
Product Details
⭐
Key Features
Part # 534-247 is required to complete installation.

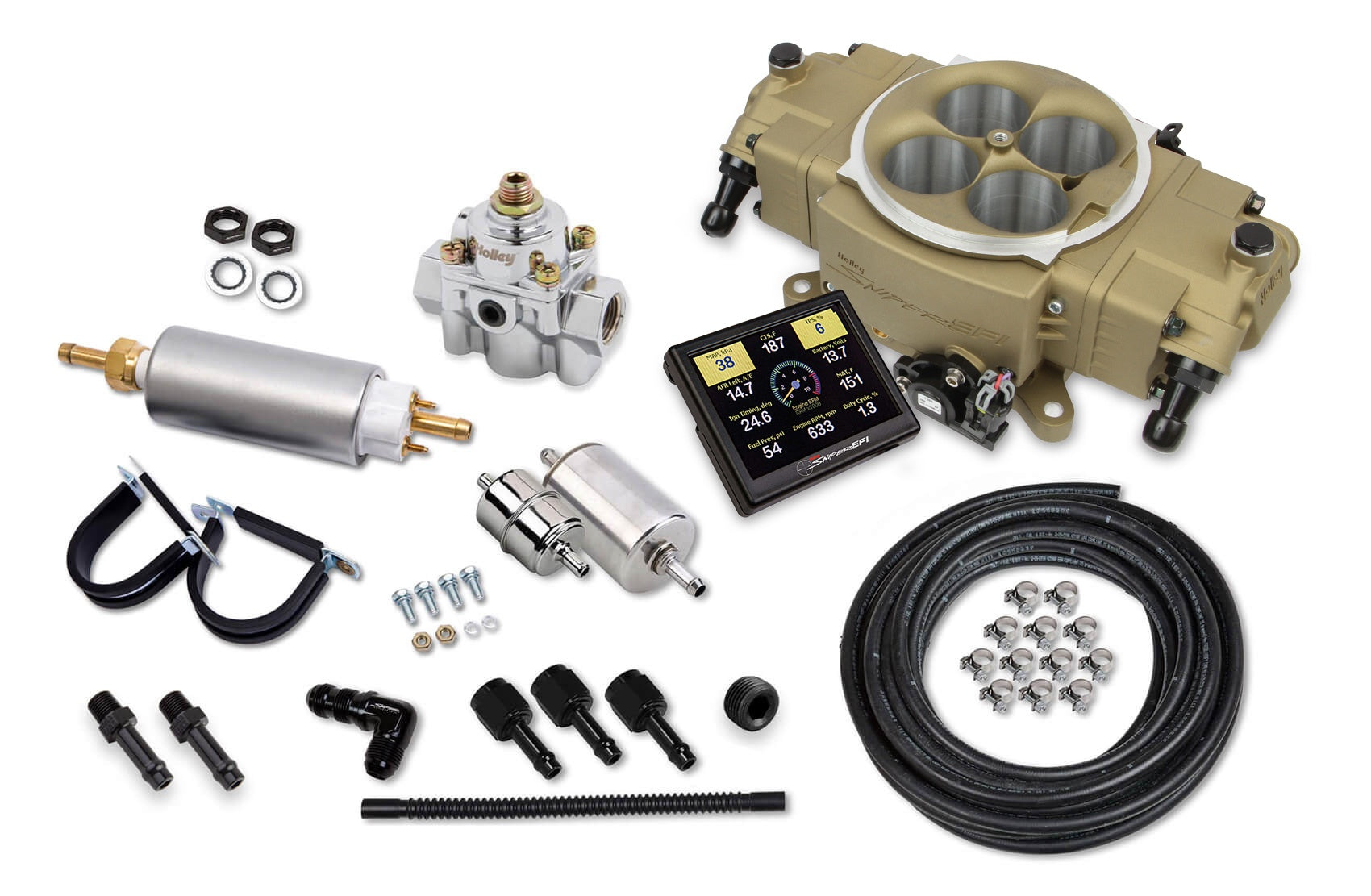

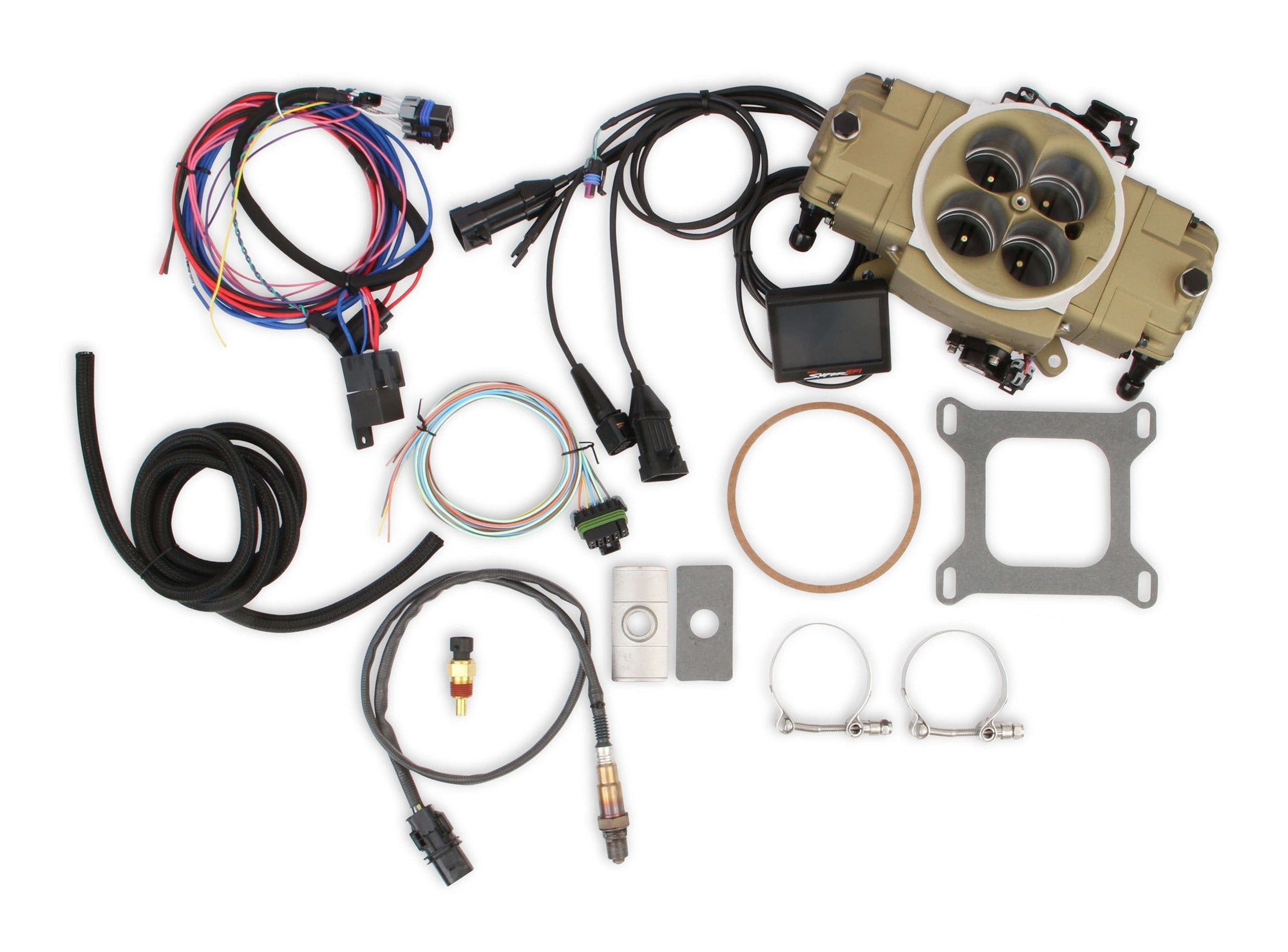

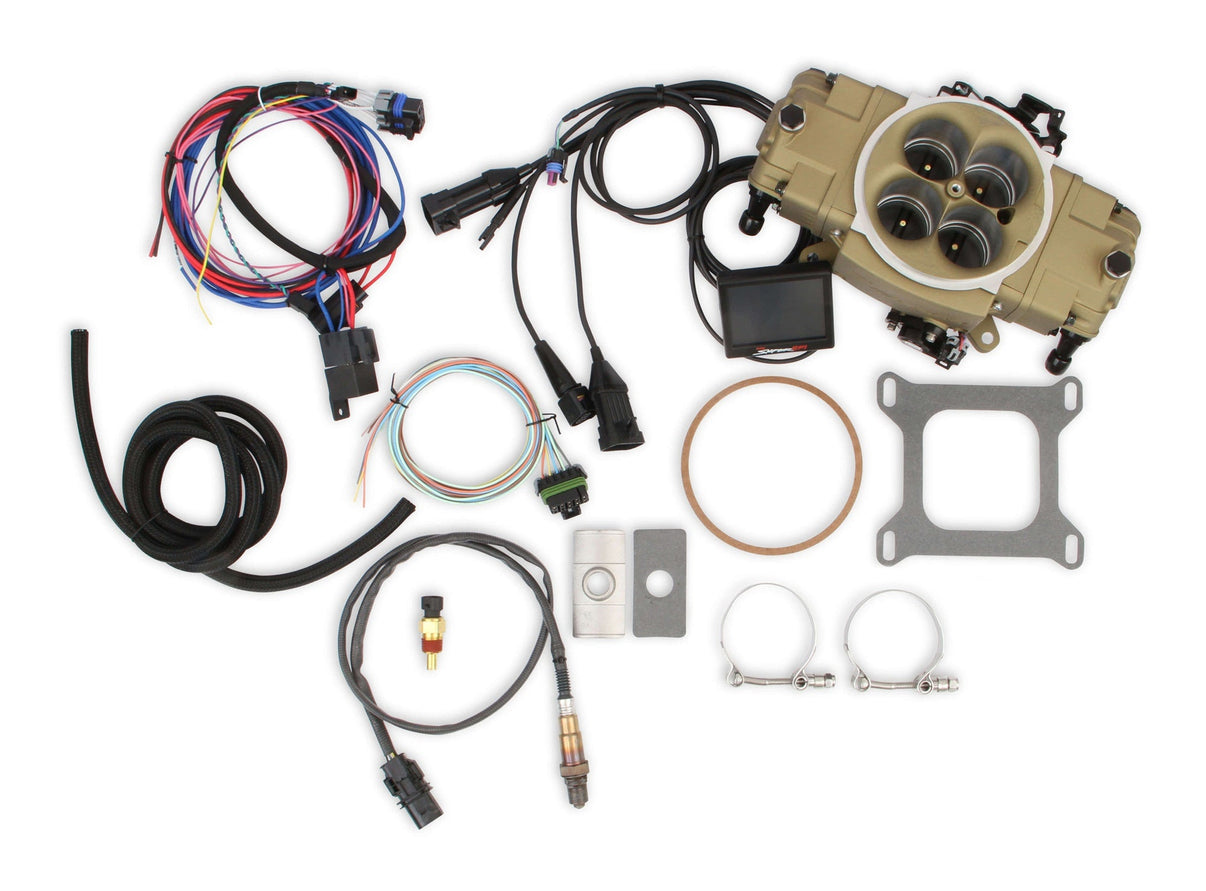

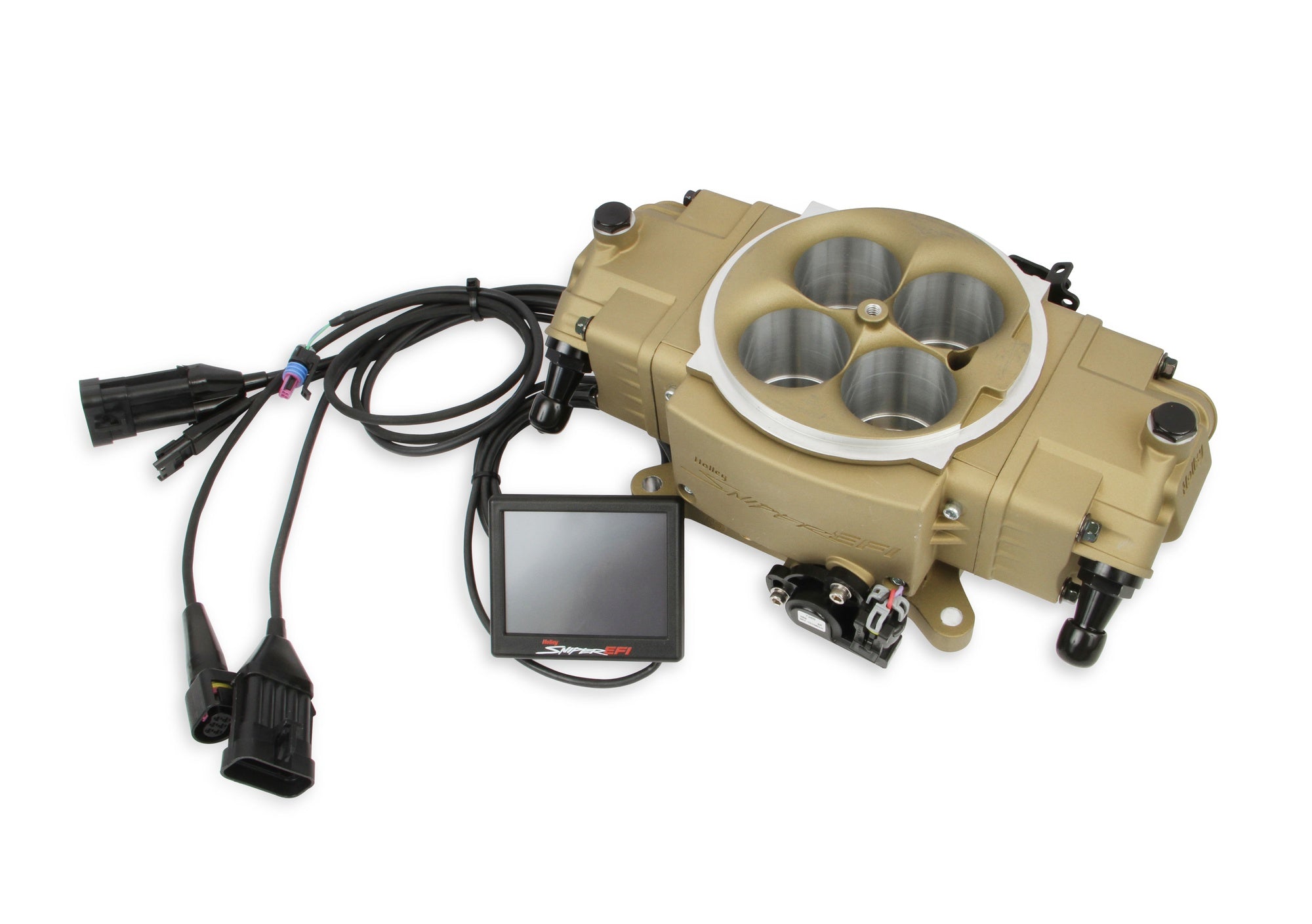

Holley's Sniper Stealth 4150 Master Kit gives you carburetor styling but functions just like the Sniper! A 4150 stealth is a great way to upgrade your ride to fuel injection in a cost-efficient way with just 4 simple connections required. Take your build to the next level and take advantage of improved engine performance, better MPG's and easier starting. This kit supports up to 650hp naturally aspirated and 600hp boosted with Four 100 Lb/Hr injectors! | You don't have to be a computer wiz or tuning professional to run a sniper kit on your build. Simplicity is what we strive for! Our calibration wizard allows you to just answer a few questions about your engine and the system will begin self-tuning with no laptop required. Use the high resolution 3.5" full color touchscreen for tuning and gauge displays. The stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications. | Once you made your conversion to EFI, don't stop there! Sniper is an Ecosystem! This kit pair's seamlessly together with Holley's Sniper Hyperspark Ignition, Fuel System's, Air Cleaners, Throttle Body & Digital Dash to unlock the full potential of your build. | Part # 34-42 is required for a bolt-in installation. | The 4150 includes a complete fuel system consisting of all necessary hardware to return fuel into your tank. Additionally, you're getting a 4.9 wideband oxygen sensor with a leak free oxygen sensor, oem style TPS/IAC, fuel pressure regulator, all Stainless Steel T-Bolt clamps and a Stainless Steel weldable flange.
Supports Up To 650HP - 3.5 in. Handheld Monitor - Carburetor Styling - Return Fuel System
- Integrated ignition timing control improves idle stability, drive-ability, and wide open throttle response

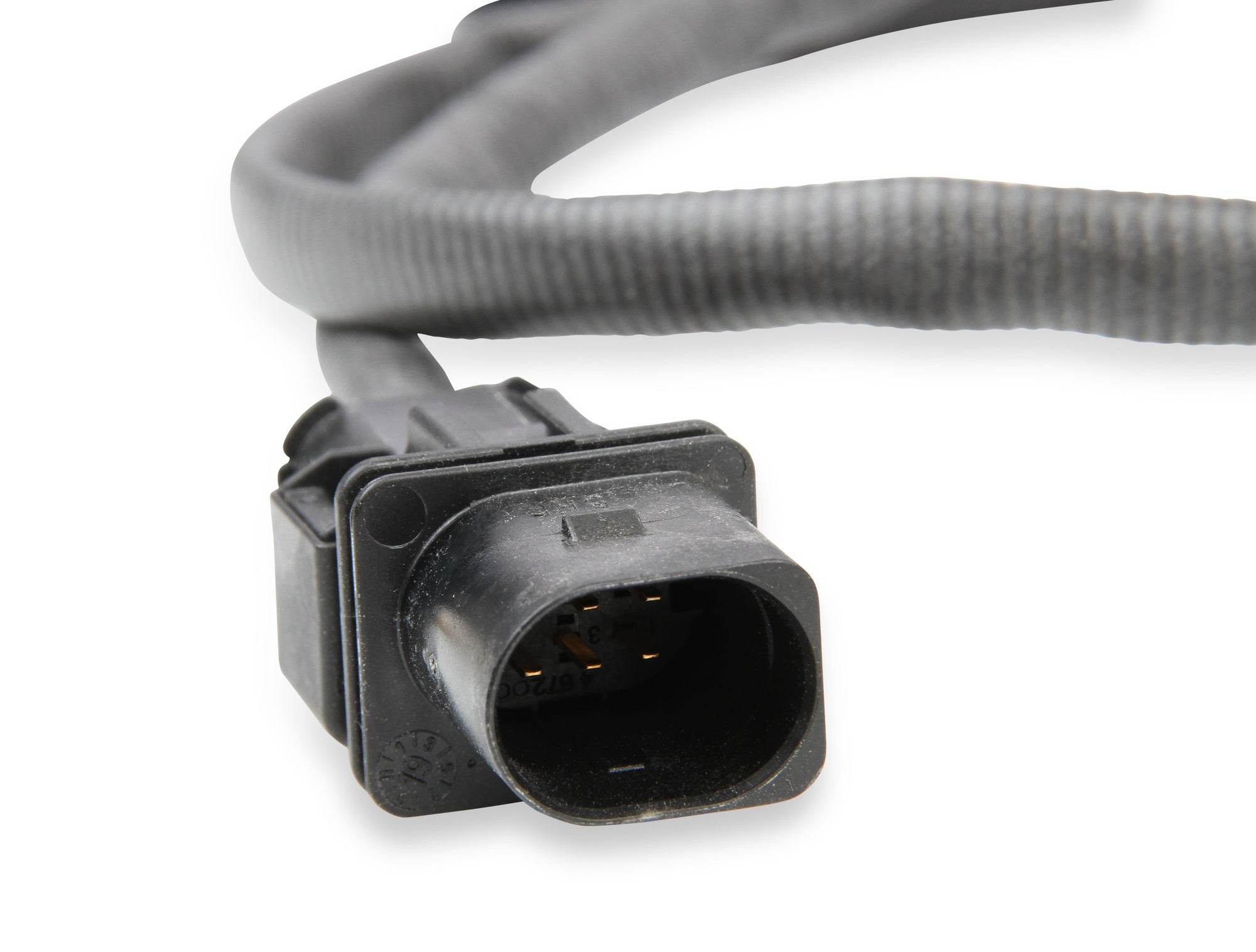

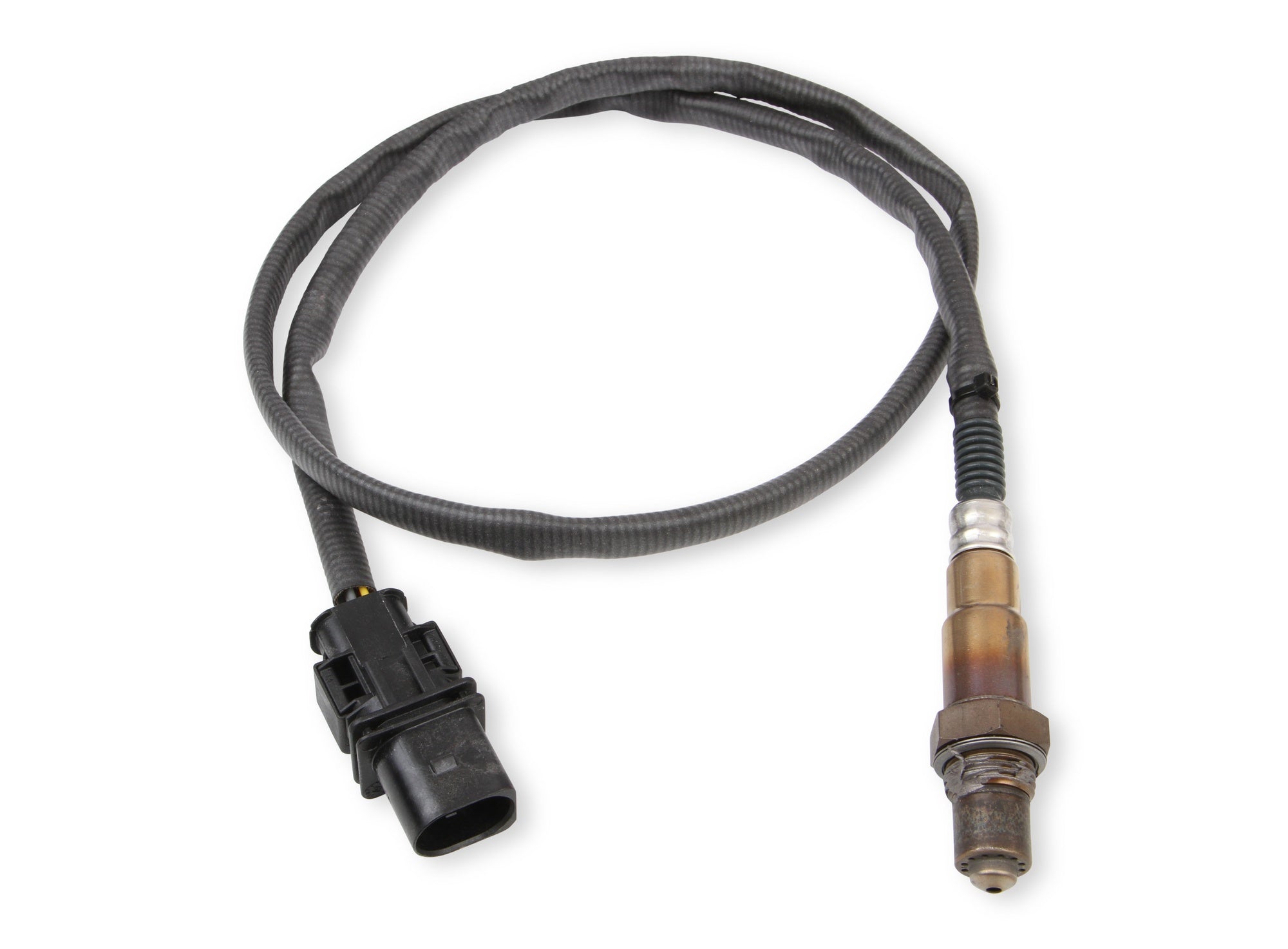

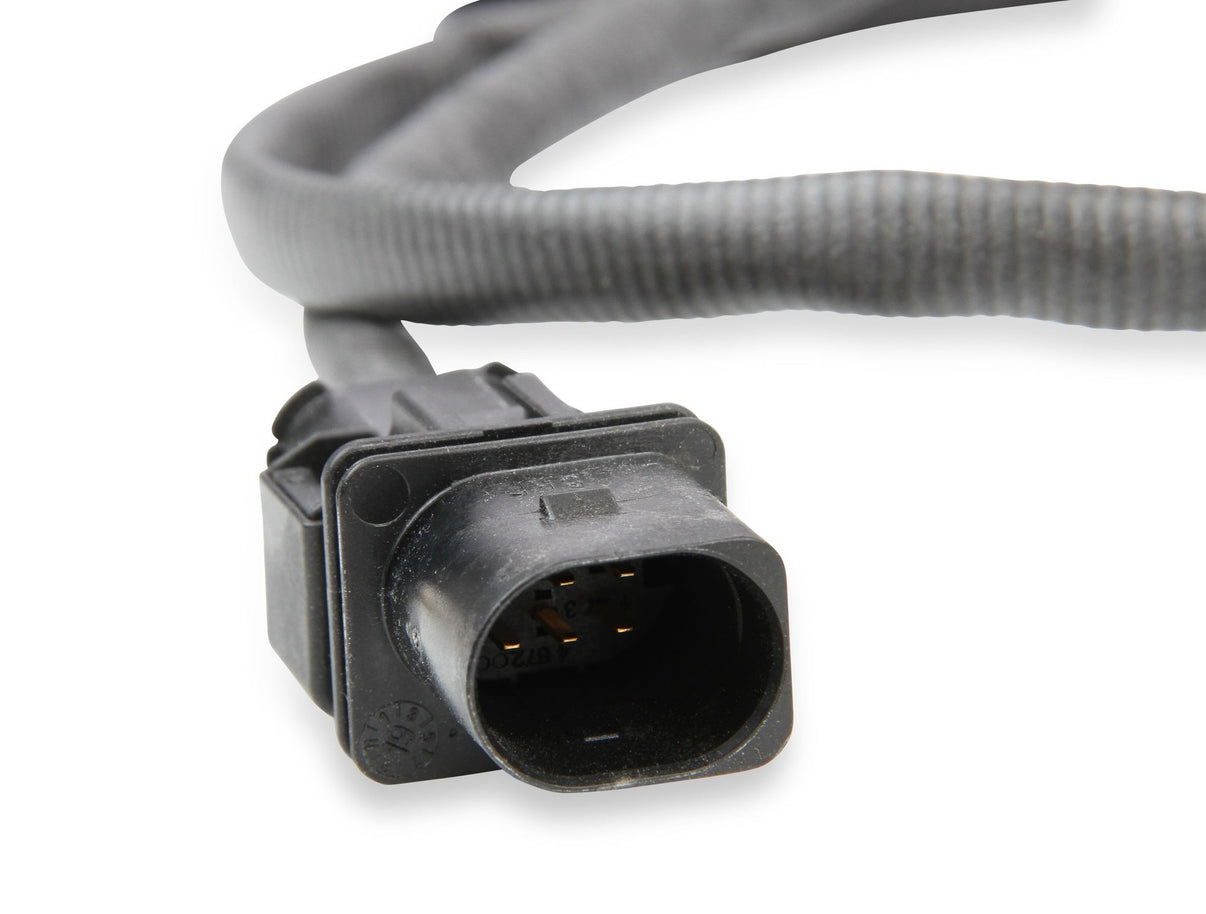

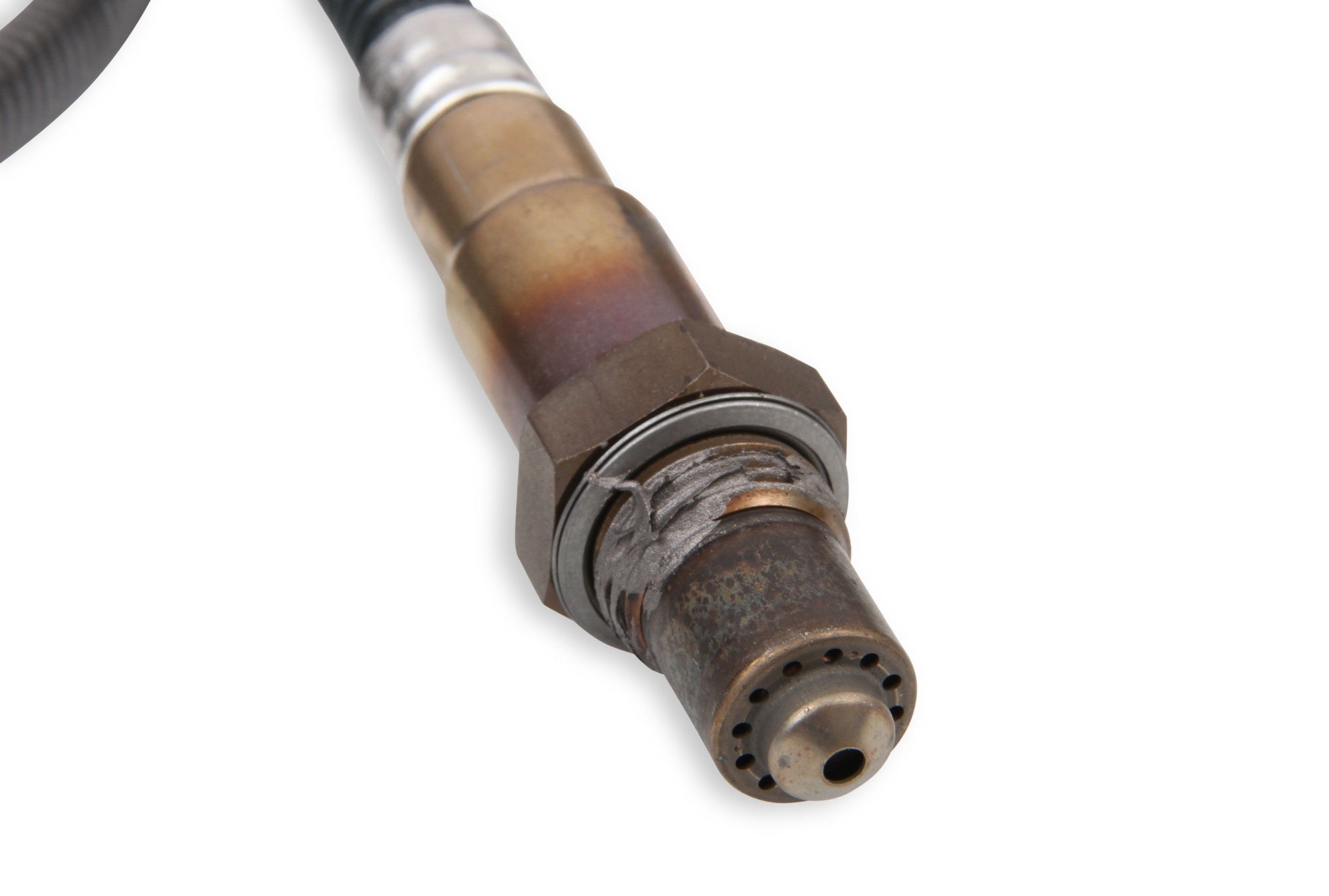

- The included Genuine Bosch LSU 4.9 wideband oxygen sensor provides realtime fuel map learn!
- Requires use of external fuel pressure regulator, Holley PN# 12-886 or equivalent, set to a base pressure of 58.5 PSI
- All of the wiring exits below the rear fuel injector cover, for a completely stealth installation.
- Bolt on 4150 flange carburetor replacement fit’s a wide range of factory intake manifolds

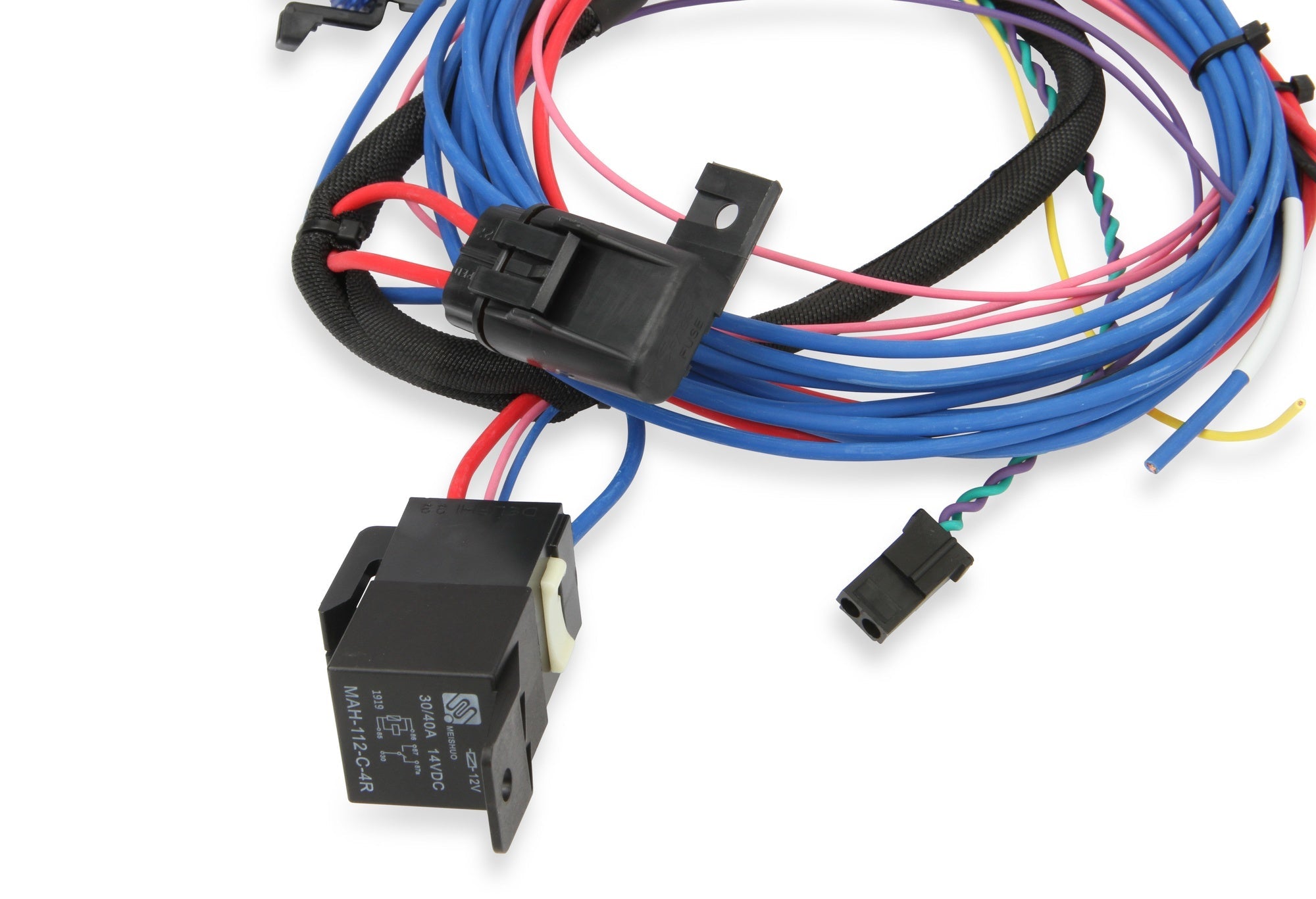

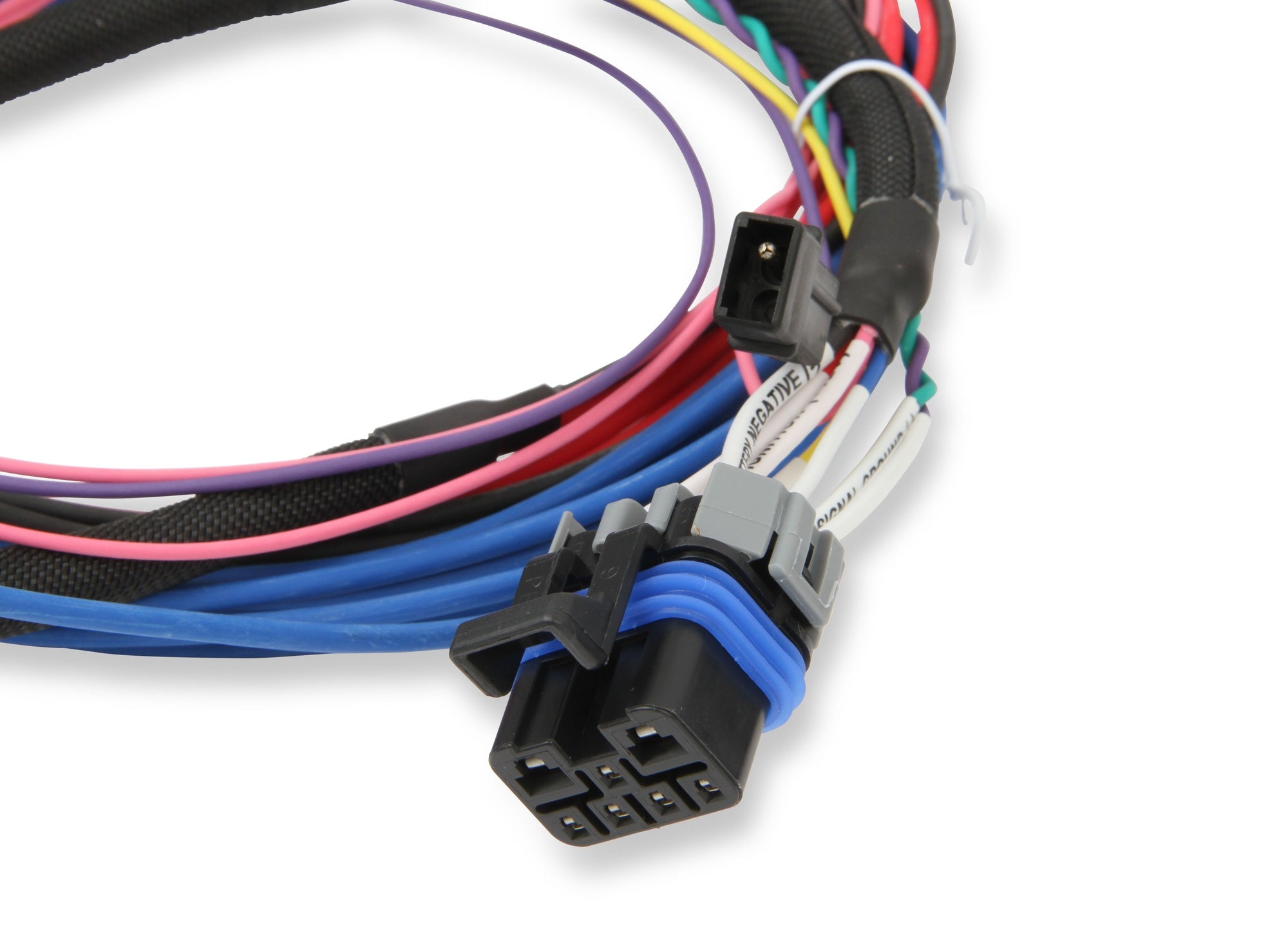

- Only 4 wiring connections required! (Battery +, battery - , switched ignition & RPM)

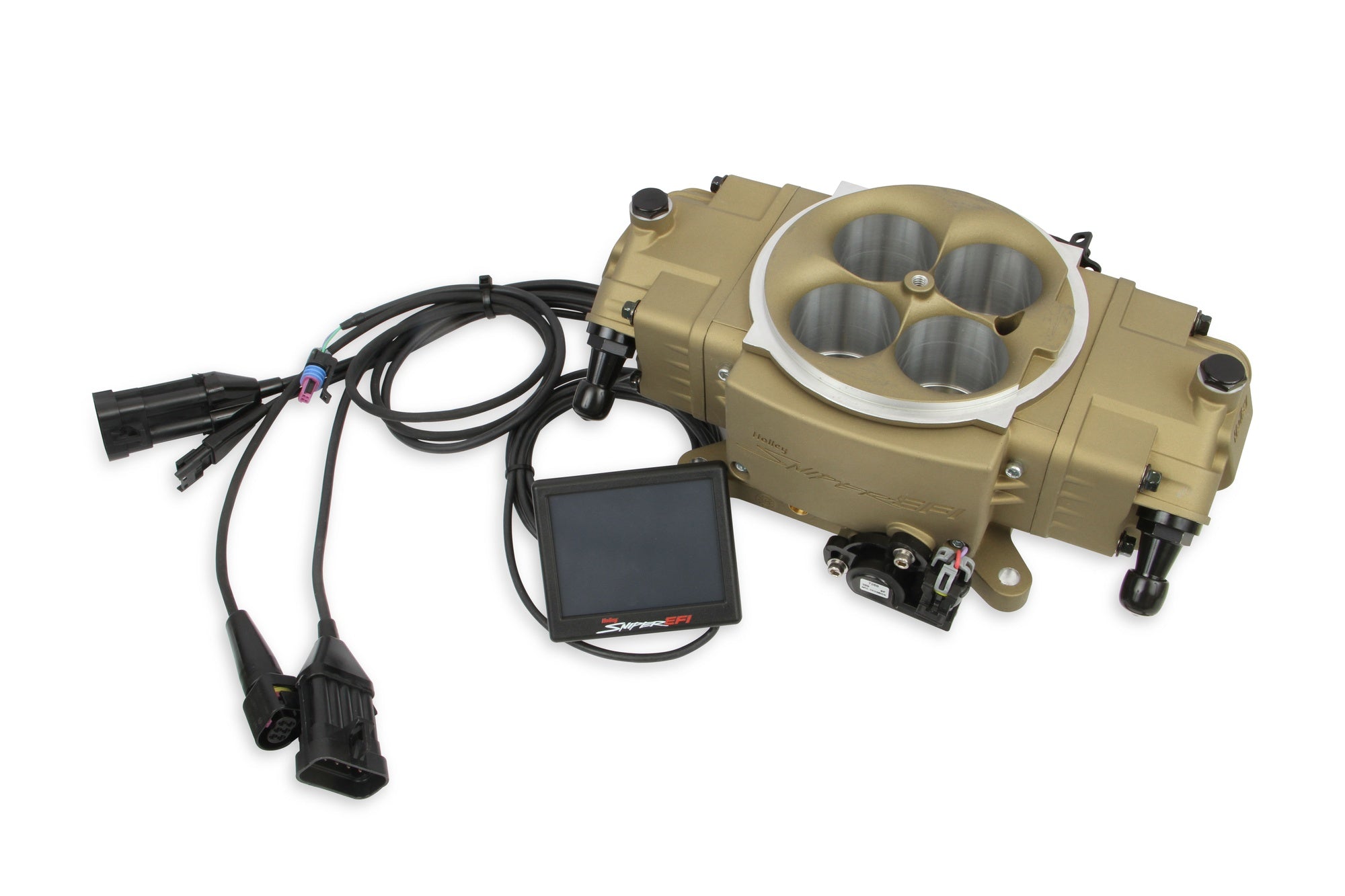

- High resolution full color touchscreen for initial setup, tuning, and gauge displays
- Timed spark part for vacuum advanced distributors located under the front fuel bowl, for easy access to the distributor.
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- Simple calibration wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Also available in Black, PN# 550-871 and Shiny, PN# 550-870 finishes

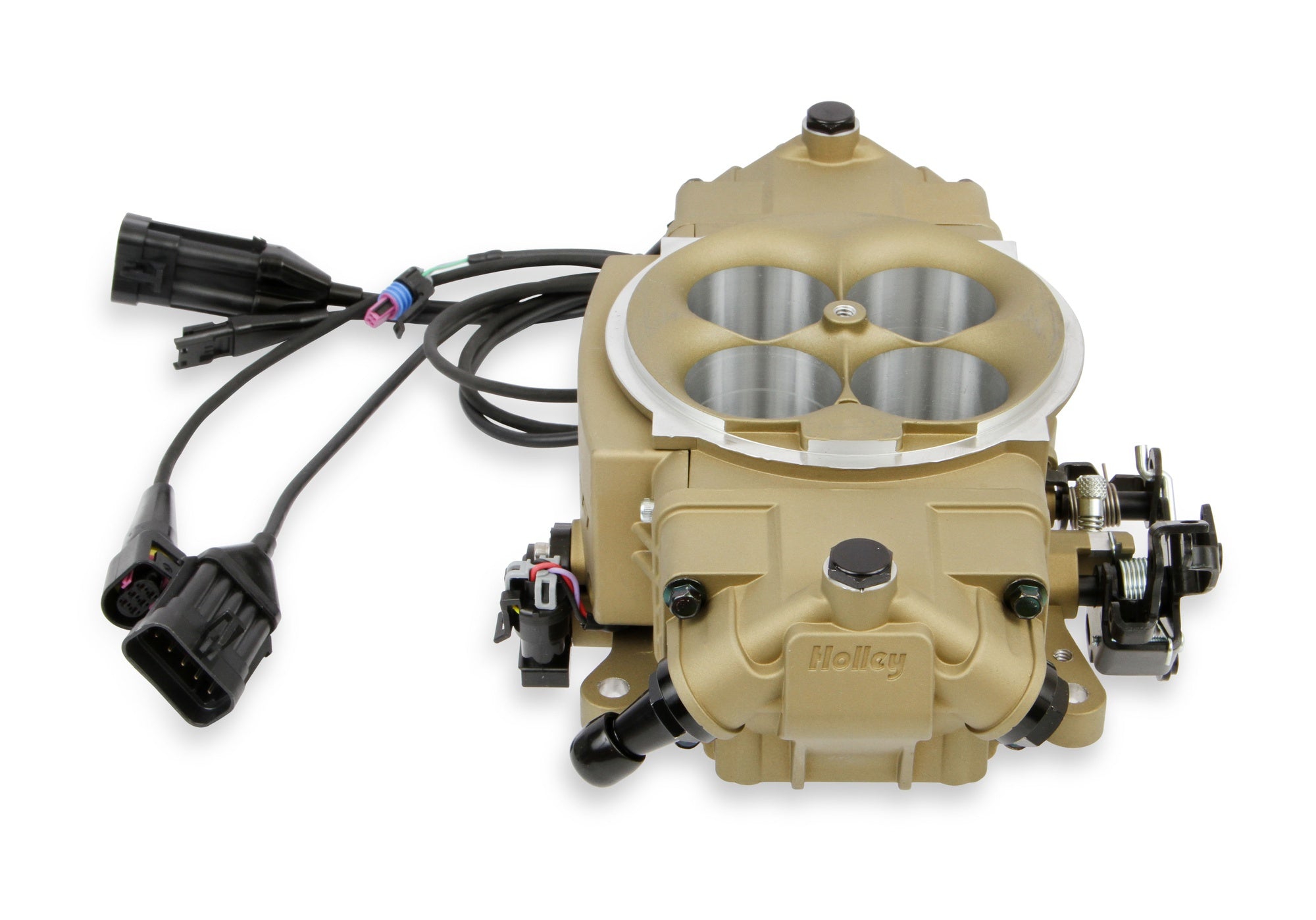

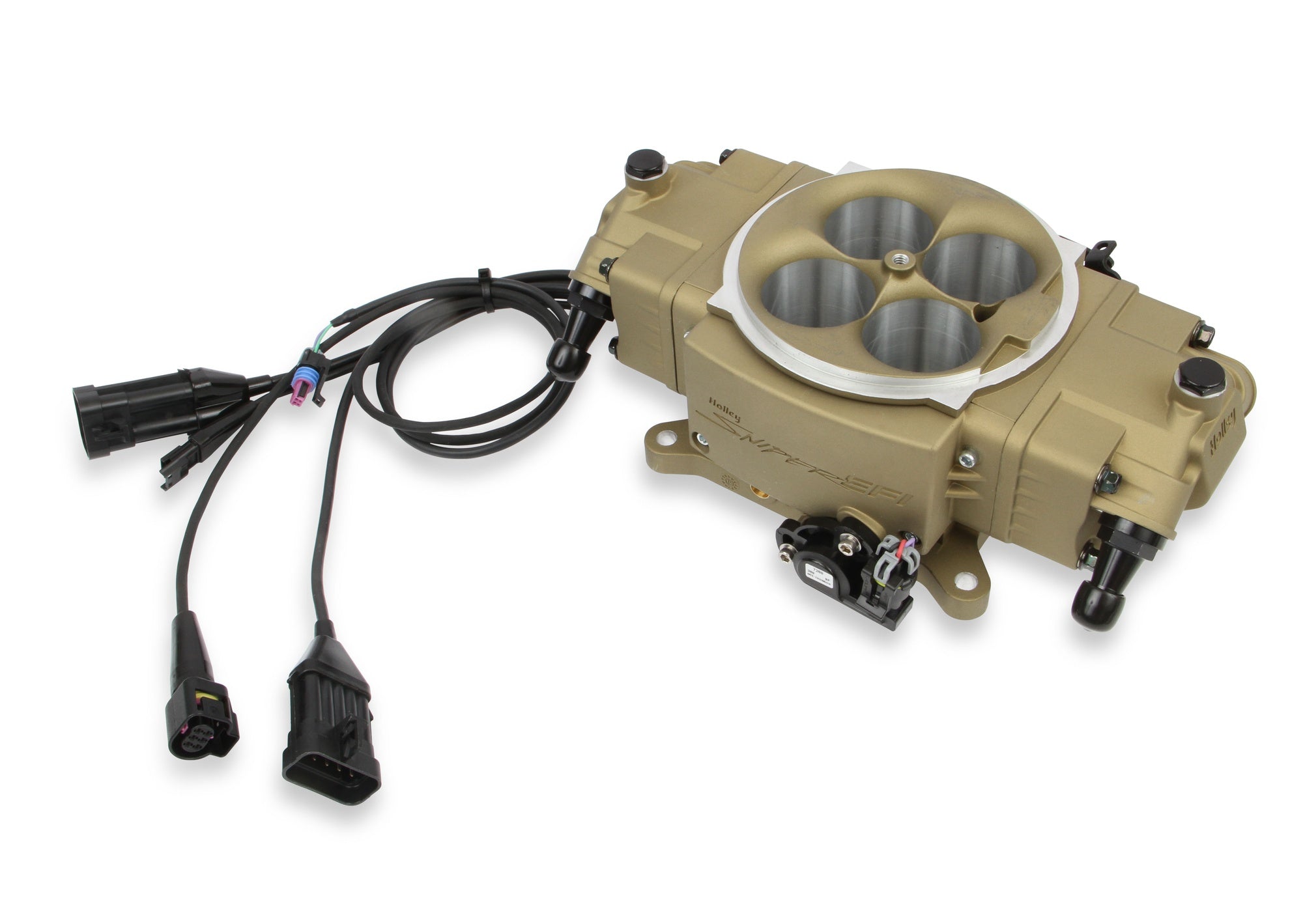

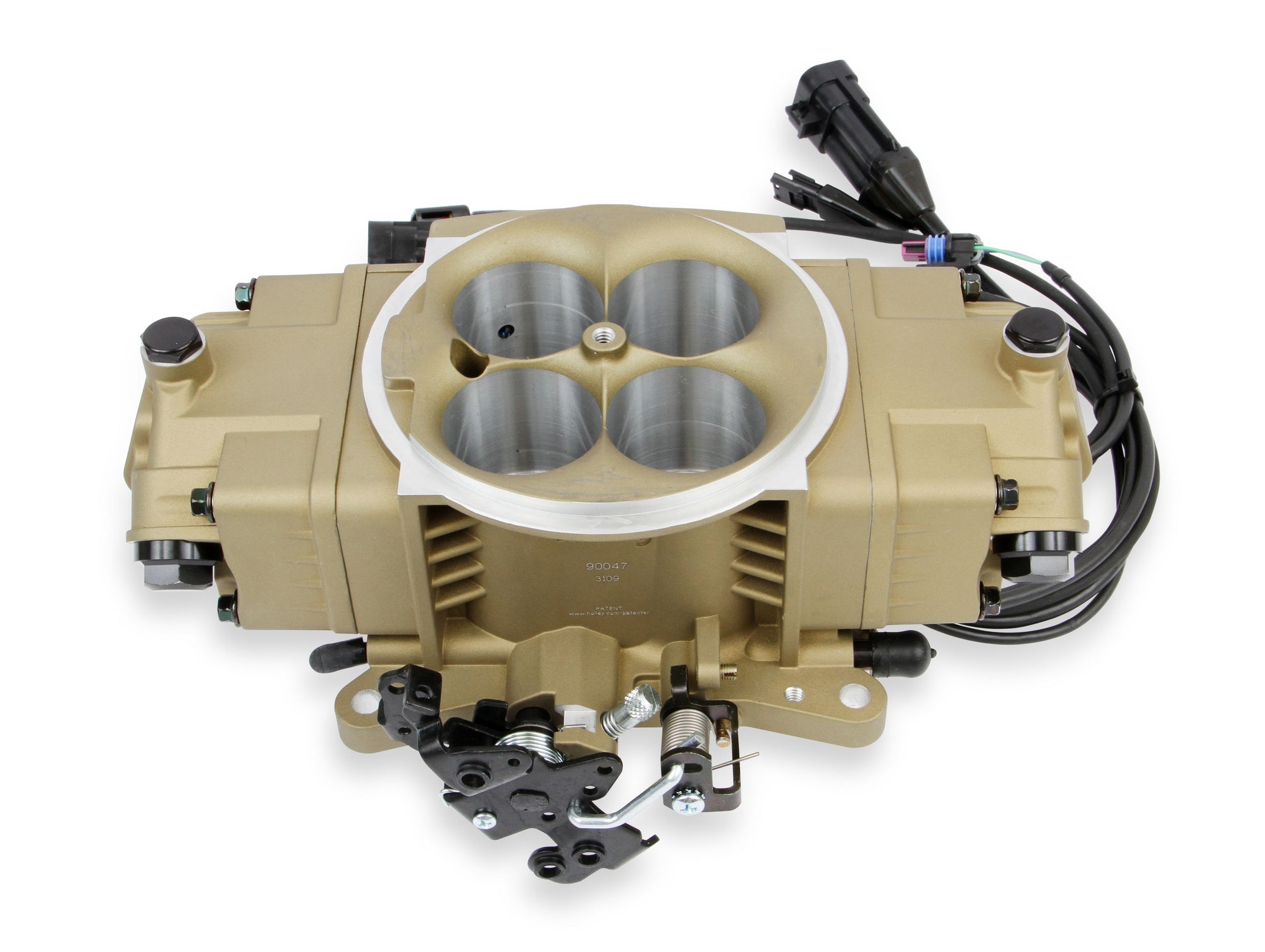

- Bolt on 4150 Flange Carburetor Replacement
- OEM style TPS/IAC and fuel pressure regulator, for years of dependable service
- Air entry is machined to fit most stock style air cleaners with air cleaner locator provisions

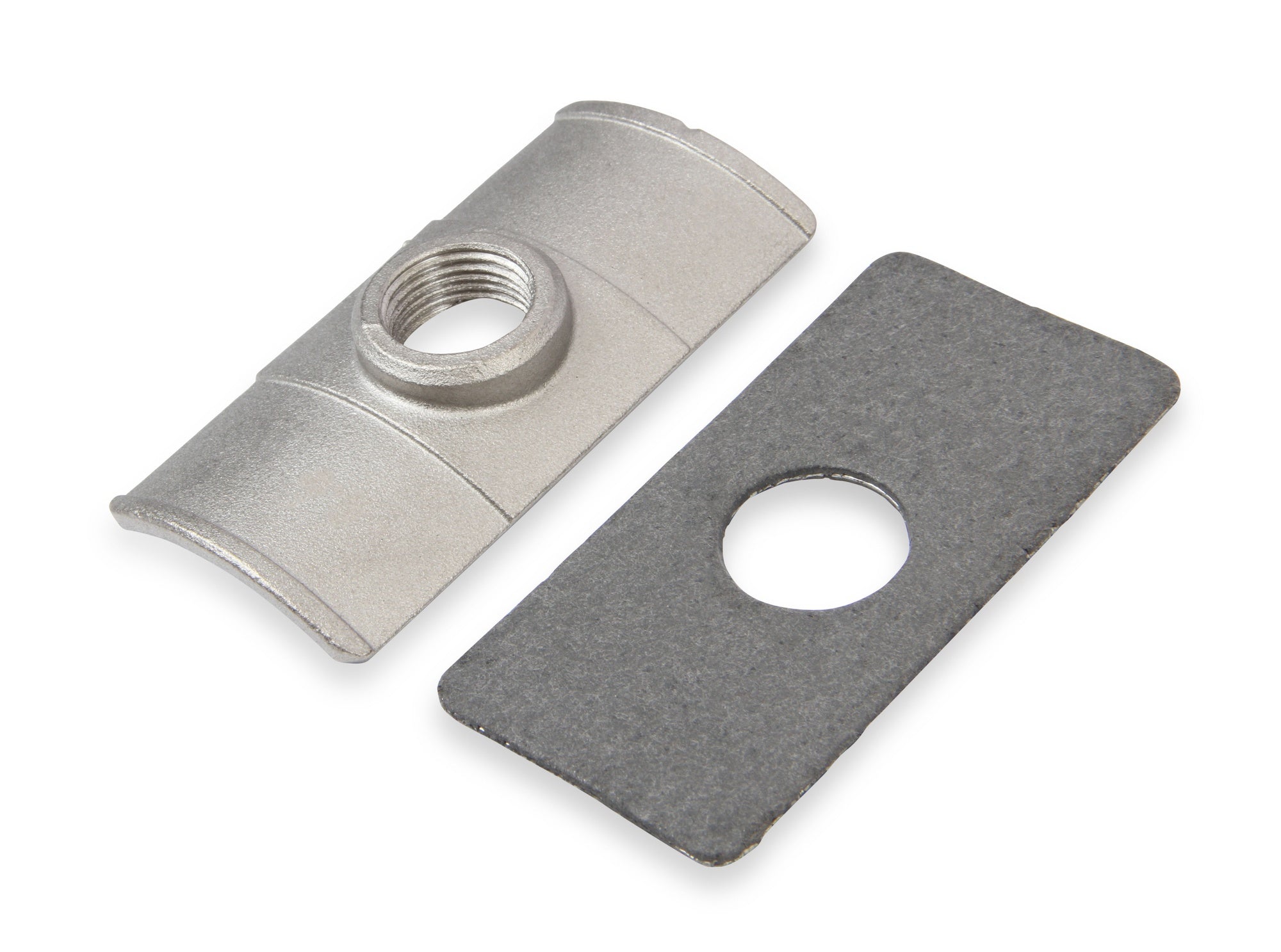

- Included clamp-on oxygen sensor kit for 2.25" exhaust ensures a leak free oxygen sensor installation, with stainless steel T-bolt clamps and a stainless steel (weldable) oxygen sensor flange
- Throttle body mounted ECU – no extra boxes to mount
📖
About this product
Supports Up To 650HP - 3.5 in. Handheld Monitor - Carburetor Styling - Return Fuel System
📋
Product Specifications
Accelerometer Support
No
Automotive Item Grade
Performance
Boost Control
No
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
4
CAN-BUS Support
No
Category
Air and Fuel Delivery
Cfm
870
Coil Per Cylinder Ignition Support
No
Datalogging Support
Yes
Distributor Included
No
Dry Nitrous Control
Yes
E85 Support
No
EGT Support
No
Emission Code
3
Finish
Classic Gold
Flange Style
4150
Forced Induction Support
Yes
Fuel Filter Included
Yes
Fuel Hose Included
Yes
Fuel Injectors Included
Yes
Fuel Pressure Regulator Included
Yes
Fuel Pressure
58.5 PSI
Fuel Pump Flow Rating
240 LPH
Fuel Pump Included
Yes
Fuel Pump Type
Inline
Grade Type
Performance
Height
3.28"
Ignition Timing Control
Yes
Individual Cylinder Fuel Corrections
No
Injector Size
100 lb/hr @ 58.5 PSI
Inlet / Outlet Size
3/4-16 Female O-Ring (AN 8)
Intake Manifold Included
No
Knock Retard Support
No
MAP Sensor
2 Bar
Max Horsepower Rating
650 Naturally Aspirated
Multi-Stage Nitrous Control
Yes
Part Type
Fuel Injection Conversion Kit
Product Type
Sniper Stealth EFI 4150 Master Kit
Progressive Nitrous Control
Yes
Self-Tuning
Yes
Sub Category
Service Kits
Throttle Position Sensor Included
Yes
Traction Control Support
No
User-Tuneable
Yes
Warning
California Proposition 65
Wet Nitrous Control
Yes
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
26.5 × 14.8 × 9.8 in
Shipping Dimensions
26.5 × 14.8 × 9.8 in
Weight
9986 g (9.99 kg)
