Holley EFIPart 553-128wMade in US
Product Details
⭐
Key Features
Easy to install - One plug and play gauge module (P/N 554-130) is required per set of CAN gauges. User can daisy chain as many gauges as they choose; all gauge data supplied through a one-wire ECU connection.

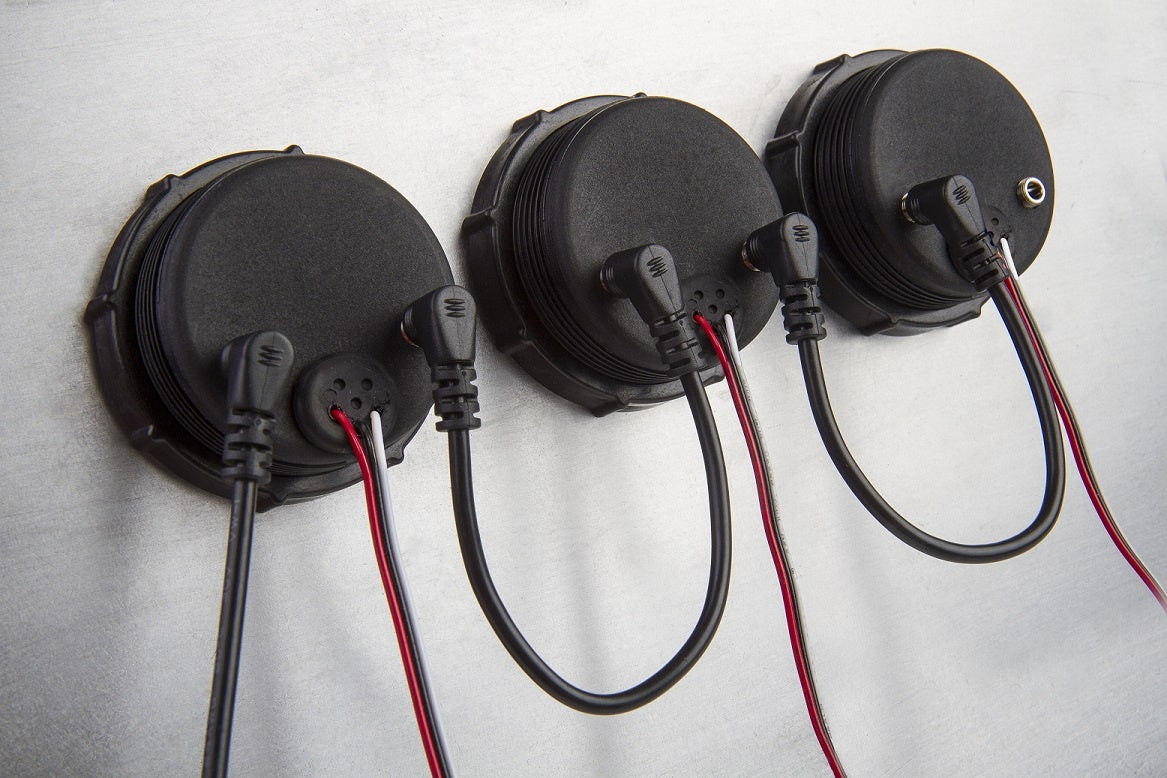

Holley is pleased to announce the continuation of their popular analog-style gauges with the release of a new white face 2-1/16" version, designed specifically for use with Holley EFI systems. These gauges are compatible with all Terminator, HP, Dominator, and Sniper ECU's, allowing them to be installed in a variety of Holley EFI equipped vehicles. CAN communication allows the gauges to daisy chain using the included stereo cables, making installation quick and clean. The required gauge module allows plug and play communication between the ECU and gauges, through a one-wire ECU connection*.

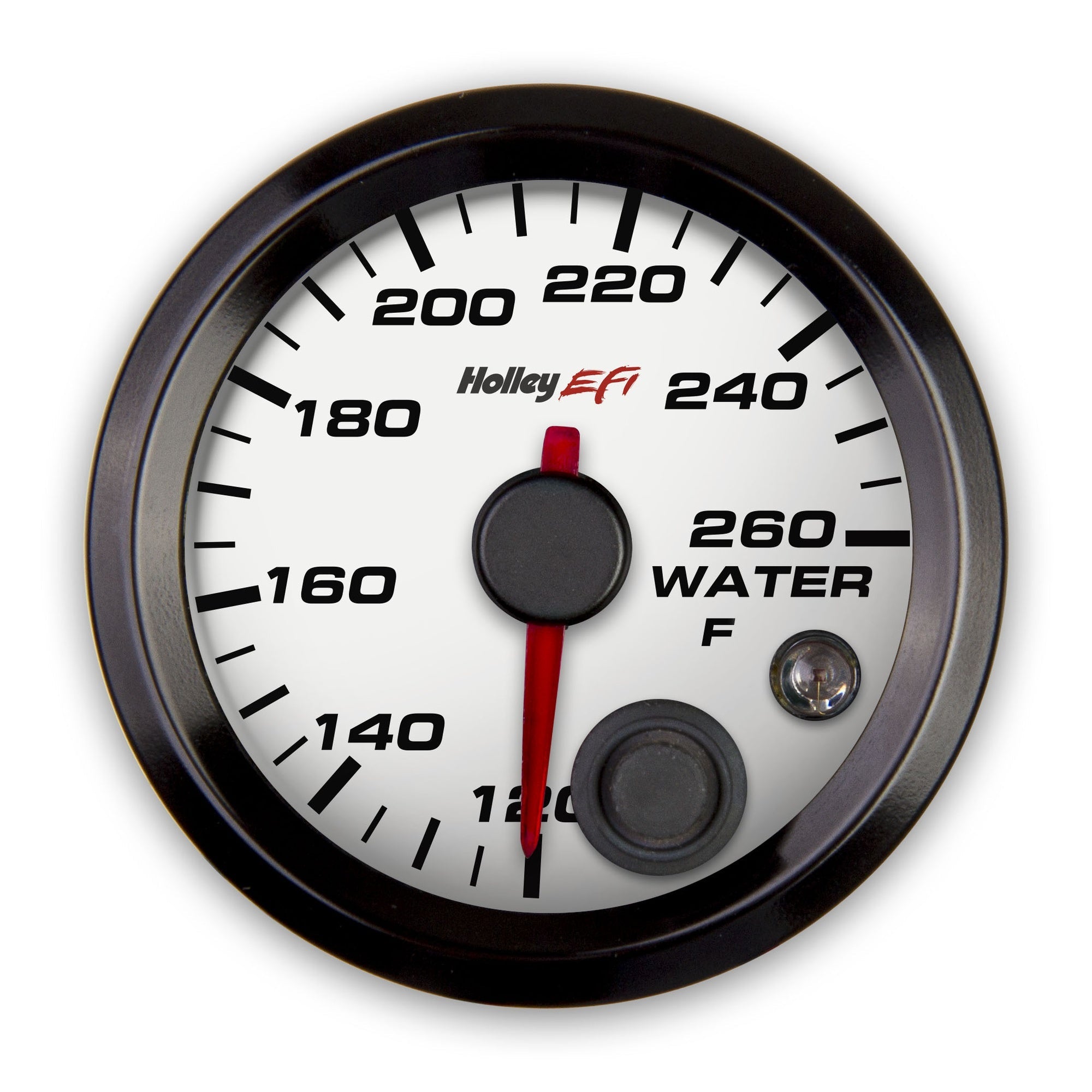

Standard 2-1/16" size - 120°-260° - White Face - Black Bezel
- Plug and play compatibility with all Terminator, HP, and Dominator ECU’s (w/ module P/N 554-130)
- No programming necessary; eliminates the need to install duplicate sending units
- Compatible with all Holley EFI touch screens, dashes, handheld tuners, and other CAN devices
- 270° sweep pointer from 6 to 3 o’clock makes gauges easy to read at a glance
- Pointer is driven by a high-torque internal stepper motor to ensure accurate movement in racing conditions
- Adjustable LED warning light allows user to set both low and high trigger points
- LED warning light brightness can be configured for both day and night
- Peak recall lets user view the min/max gauge readings with the push of a button
- Spin lock ring threads to back of gauge case for simple and secure gauge mounting
- CNC machined billet aluminum bezels with anodized finish – Bezels are threaded for easy replacement
- Multiple bezel options available separately – User can customize the gauges to their preference

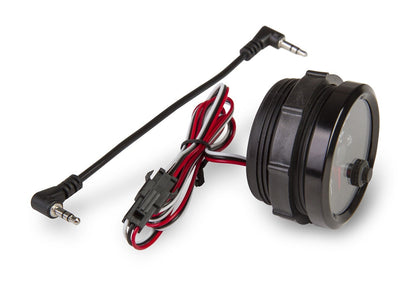

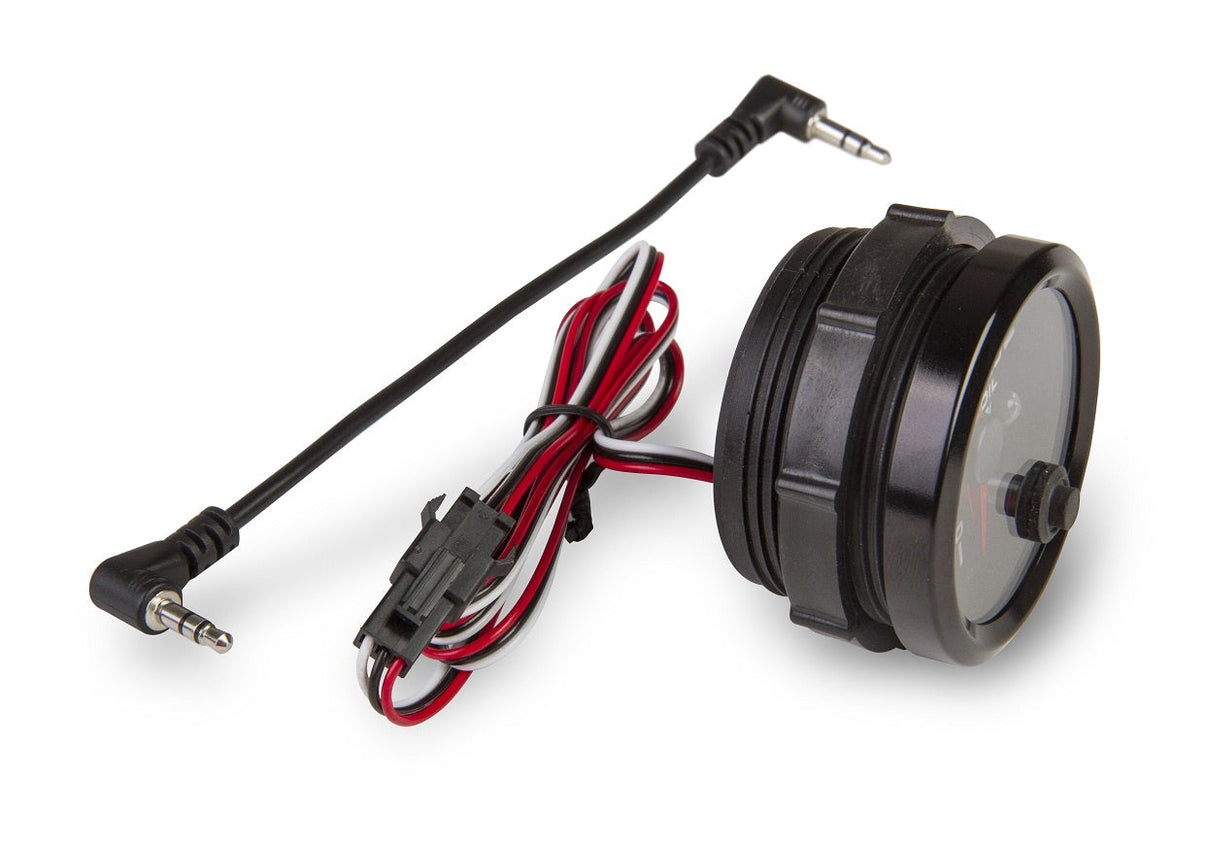

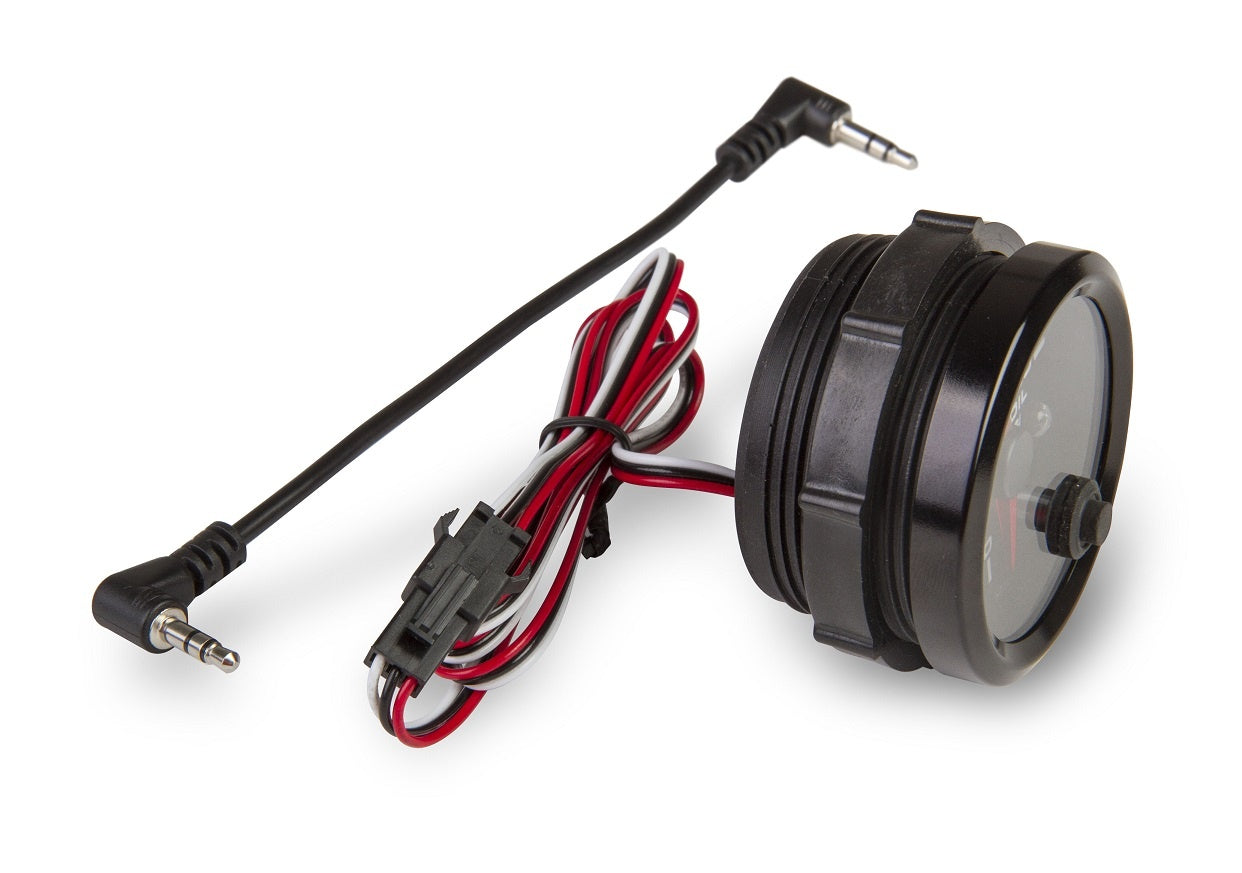

- Gauges include 6 in. daisy chain cable and 3 ft. power harness
- Additional length cables and multi-connection power distribution harness available separately
📖
About this product
Standard 2-1/16" size - 120°-260° - White Face - Black Bezel
📋
Product Specifications
Automotive Item Grade
Performance
Bezel Color
Black
Bezel Material
Aluminum
Body Color
Black
Brand
Holley EFI
California Proposition 65 Chemical Name
20
Category
Body
Color Change Button
No
Country
US
Dimmable
No
Display Type
Analog
Emission Code
4
Emission Code
5
Face Color
White
Face Diameter
2-1/16 IN
Face Shape
Round
Gauge Background Color
White
Gauge Type
Coolant Temperature
Grade Type
Performance
HTS Code
8409915085
Illuminated
Yes
Indicator Markings Color
Multiple Colors
Lens Color
Clear
Liquid Filled
No
Maximum Temperature Reading
260 FA
Minimum Temperature Reading
120 FA
Mounting Hardware Included
Yes
Mounting Pod Included
No
Part Type
Engine Coolant Temperature Gauge
Pointer Color
Red
Product Type
Gauge
Prop 65 Yes/No
No
Sensor Included
No
Sensor Type
Electrical
Size
2-1/16"
Sub Category
Instrument Panel
Type
Electrical
Universal Or Specific Fit
Universal
Warning Light
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
5.7 × 5.7 × 5.5 in
Shipping Dimensions
5.7 × 5.7 × 5.5 in
Weight
177 g (0.18 kg)
