Holley EFIPart 554-165Made in CA
Product Details
⭐
Key Features
Dominator and HP requires V6 software version Build 200 and higher. Terminator X requires V2 software Build 51 and higher.

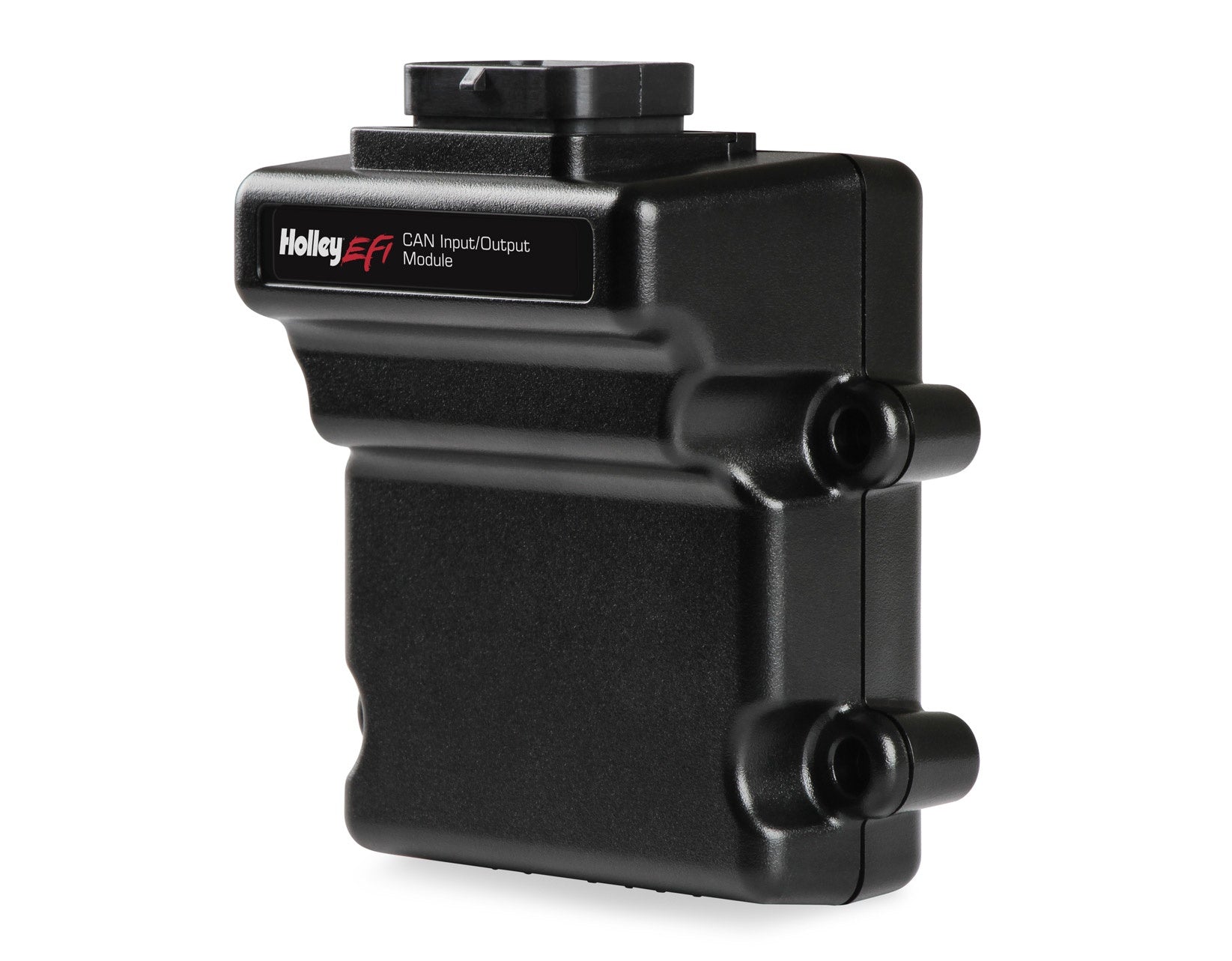

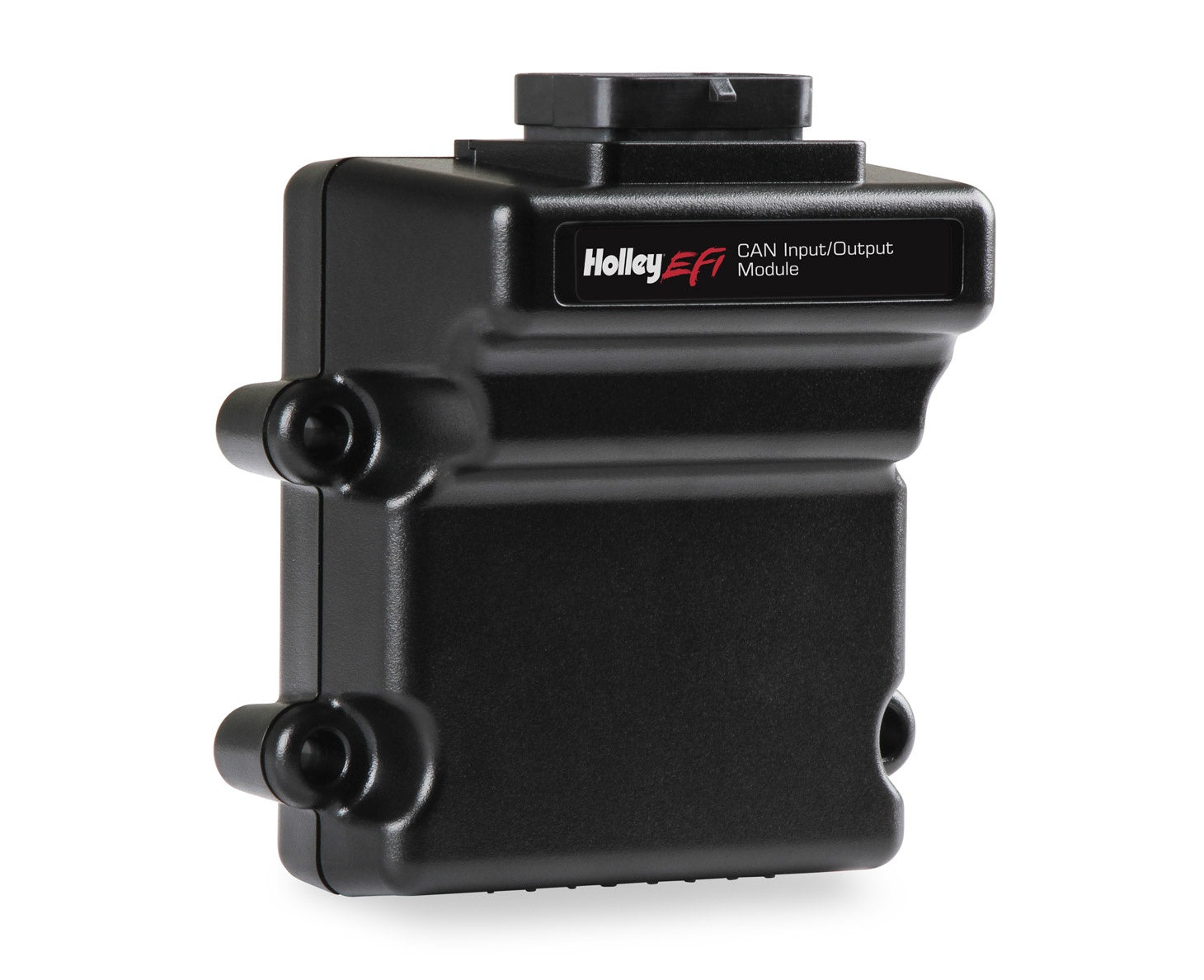

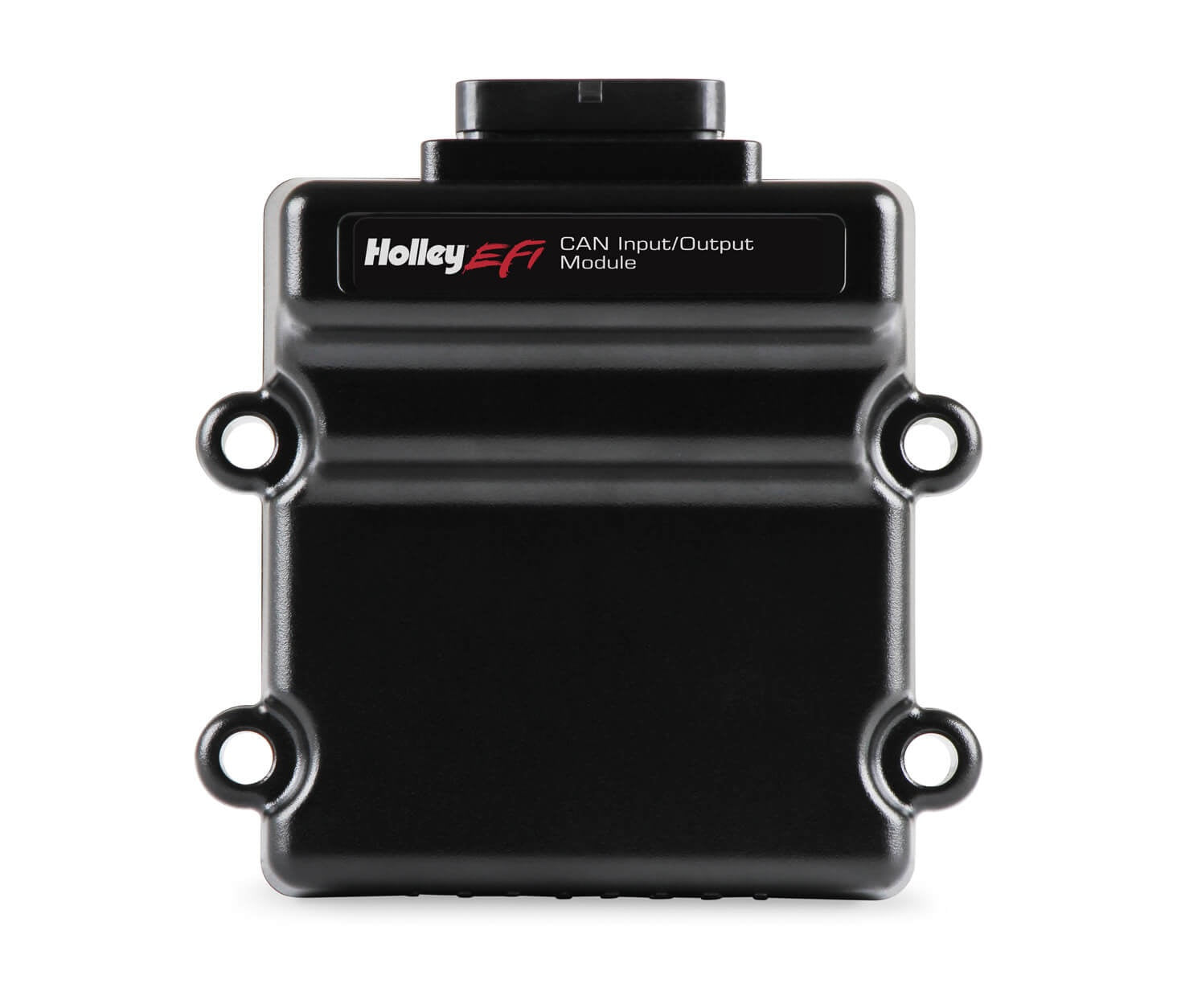

The Holley EFI CAN Input/Output Module can be added to Holley EFI HP, Dominator, Terminator X and Terminator X Max EFI installations. This CAN module will add (8) inputs and (8) outputs to the system which can be used to control additional accessories or provide critical sensor inputs. This module is perfect for anyone wanting to enhance the capabilities of their current ECU and have already tapped out their ECU's Input/Output channels.
Adds Up To (8) Inputs and Outputs
- Perfect for anyone wanting their Holley EFI ECU to control more functions or monitor more data channels
- HP and Terminator X EFI installations with only (4) inputs and (4) outputs can now add more functionality to their EFI system
- Expand Dominator ECU’s Input / Output control with (8) additional inputs and outputs
- Inputs can be used for things such as:
- -Switch 12V Toggle Switches - can be configured for external mechanical relays or setup as digital switches via a Holley EFI dash
- -Ground input for brake pedal switch
- -5V analog inputs for sensors like fuel pressure, oil pressure, or nitrous bottle pressure
- -Thermistor inputs for coolant temperature sensors
- Outputs can be used for things such as:
- -Switch Low (Ground) - for relay control or activation
- -Switch Low PWM (Ground) - PWM Fan Control – PWM Fuel Pump Control - or other PWM- controlled devices
- Adjustable broadcast rate for each channel from 0-100 Hz

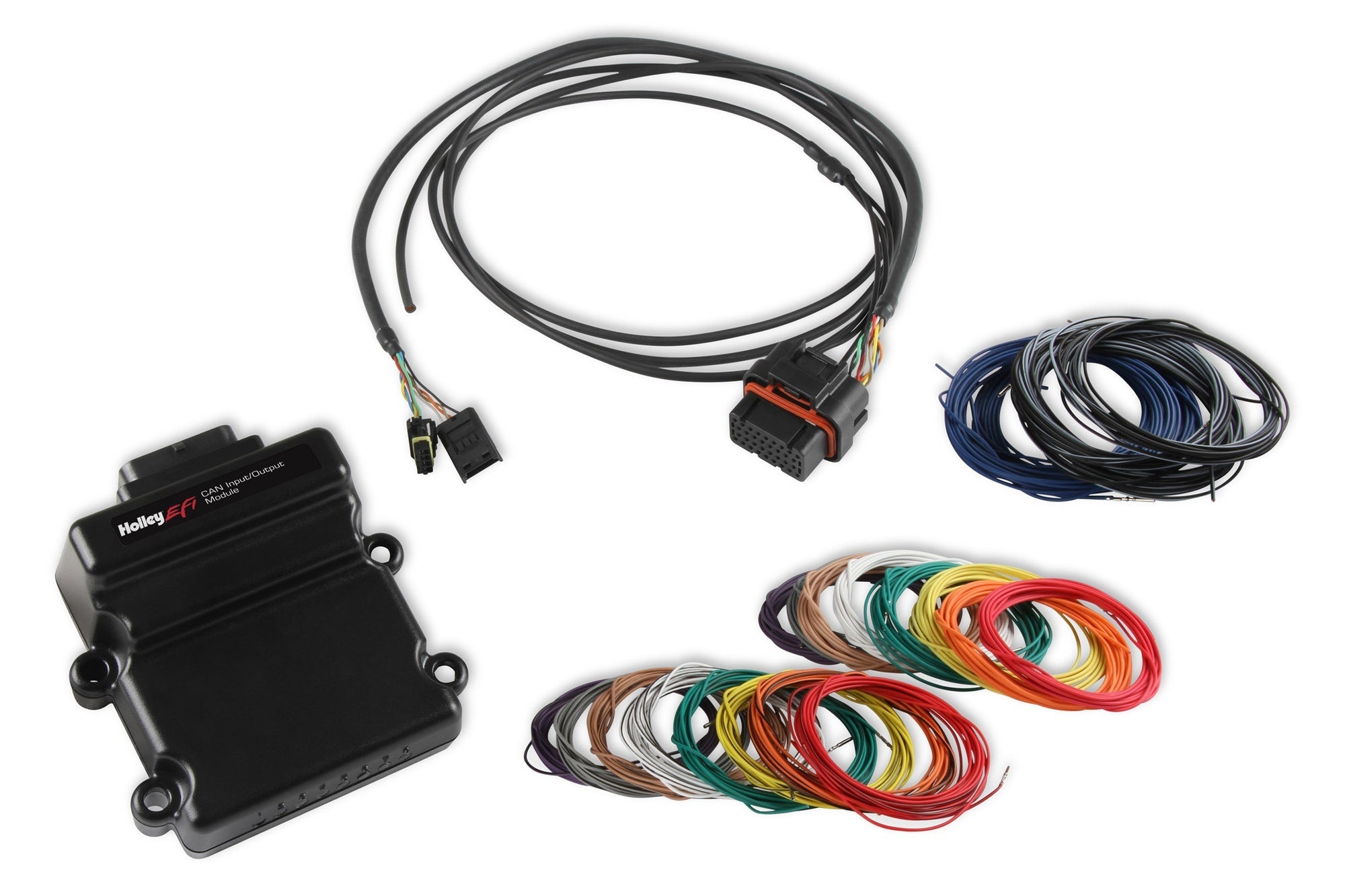

- Includes a pre-terminated CAN Harness allowing you to quickly install the Holley EFI CAN module to any existing Holley EFI installation
📖
About this product
Adds Up To (8) Inputs and Outputs
📋
Product Specifications
Automotive Item Grade
Performance
Brand
Holley EFI
California Proposition 65 Chemical Name
4
CAN-BUS Support
Yes
Category
Engine
Coast Guard Approved
No
Connector Gender
Male
Country
CA
Emission Code
4
Emission Code
5
Grade Type
Performance
Height
1.94"
HTS Code
8409915085
Length
4.12"
Mounting Hardware Included
No
Mounting Hole Quantity
4
Part Type
Engine Control Module (ECM)
Product Type
CAN Input Output Module
Prop 65 Yes/No
No
Sub Category
Control Modules
Terminal Gender
Female
Terminal Quantity
34
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Weight
2.54
Width
4"
Wiring Harness Length
12'
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CA
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
9.7 × 8.05 × 4.25 in
Shipping Dimensions
9.7 × 8.05 × 4.25 in
Weight
1152 g (1.15 kg)
