Holley EFIPart 558-329Made in US
Product Details
⭐
Key Features

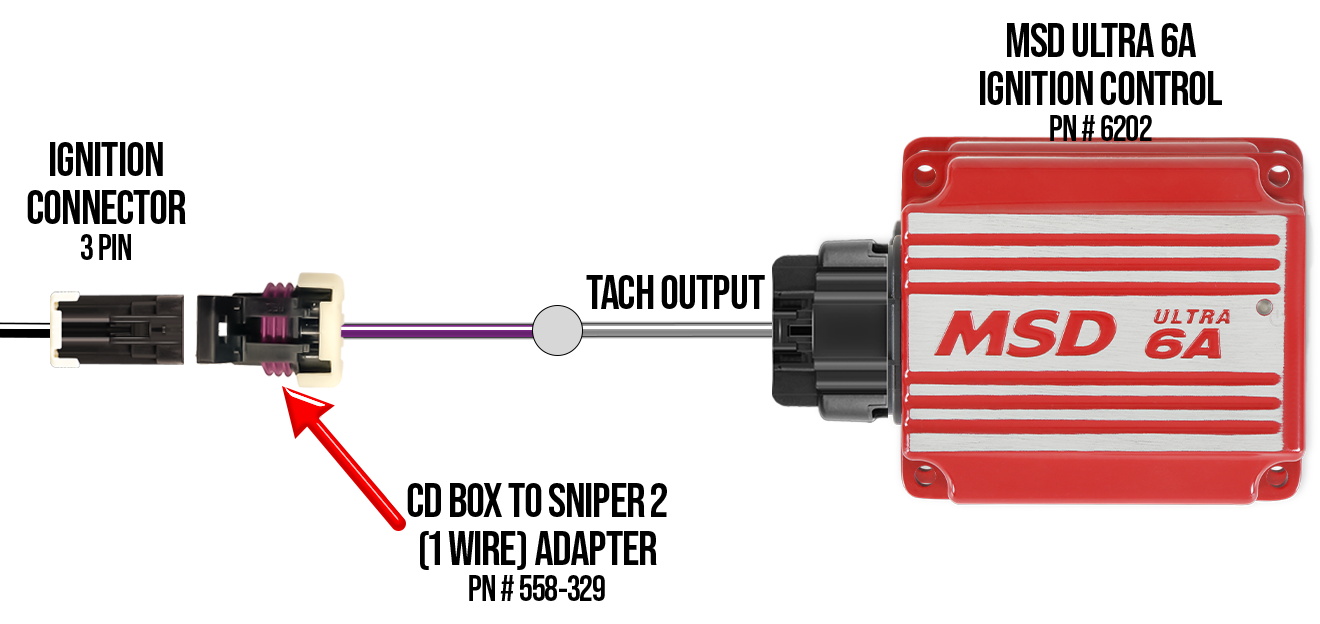

Plugs into the connector labeled "IGNITION" on the main harness. The yellow/black lead connects to the "Tach Out" terminal of the ignition box, do not connect directly to the ignition coil. Plese refer to the installation instructions for more information
Provide RPM signal to the ECU for your Sniper 2 while not using timing control. With one wire, it's quick and easy to install in your vehicle.
For CD Box to Sniper 2
- Add RPM signal
- One wire installation
- Used on a CD box to Sniper 2

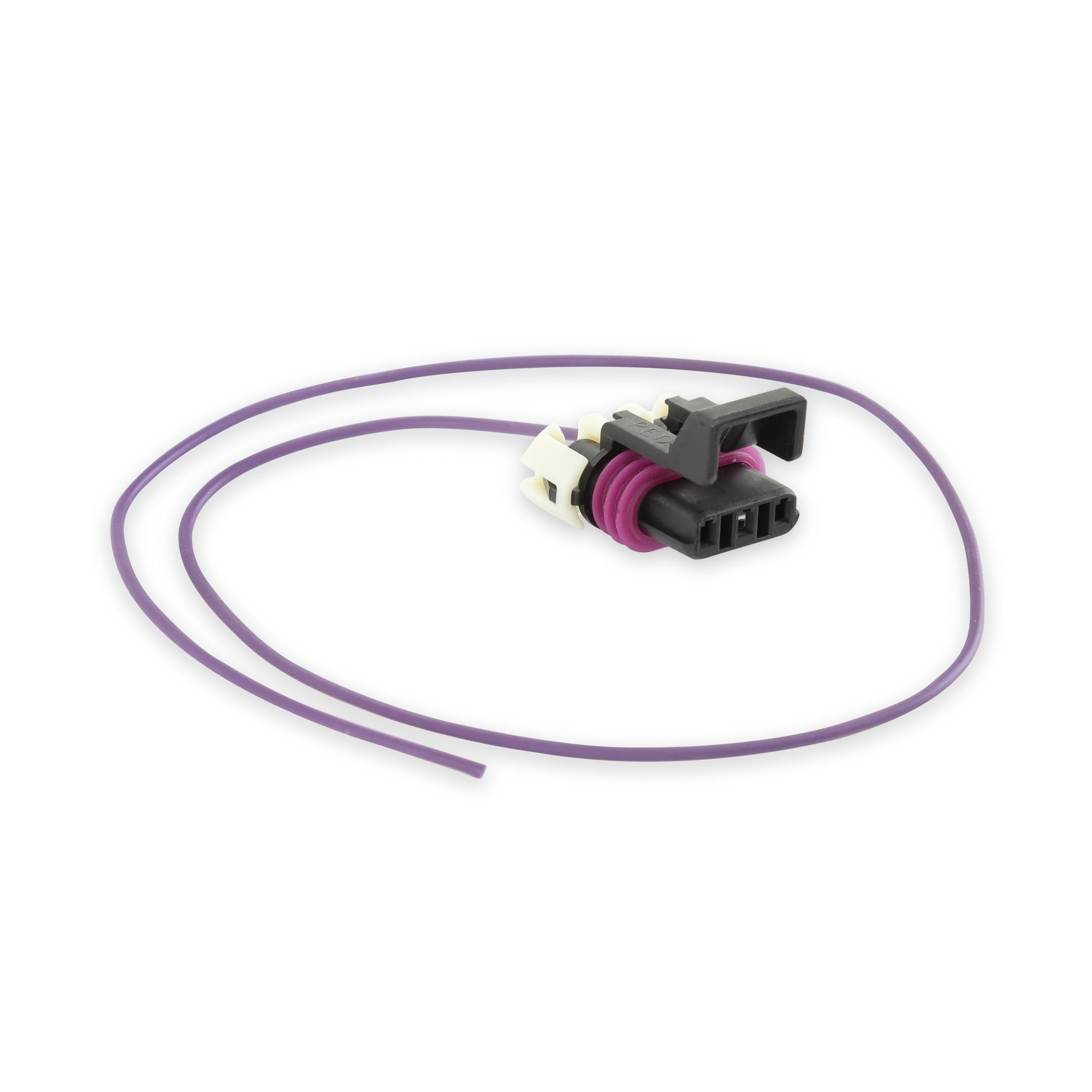

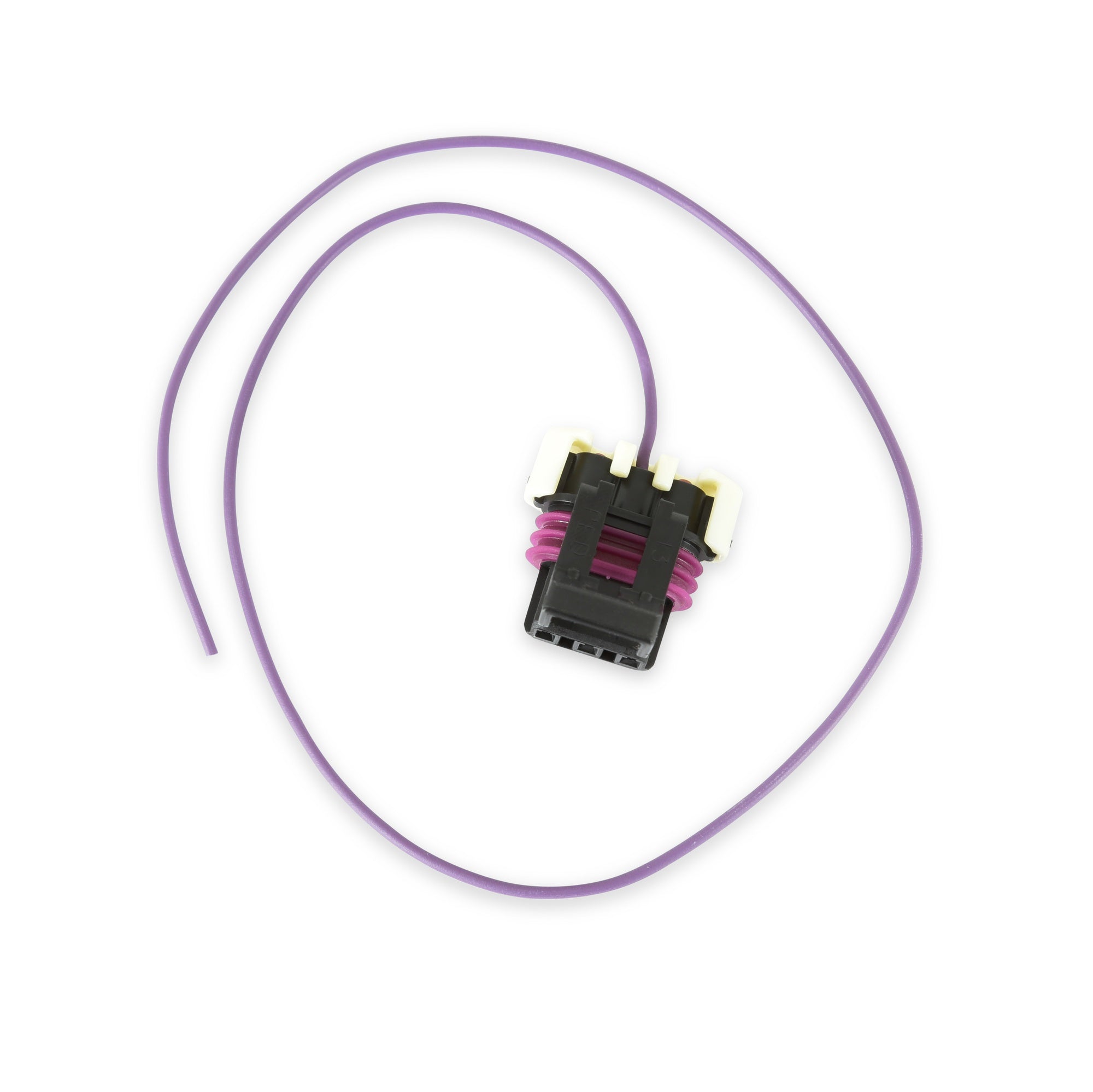

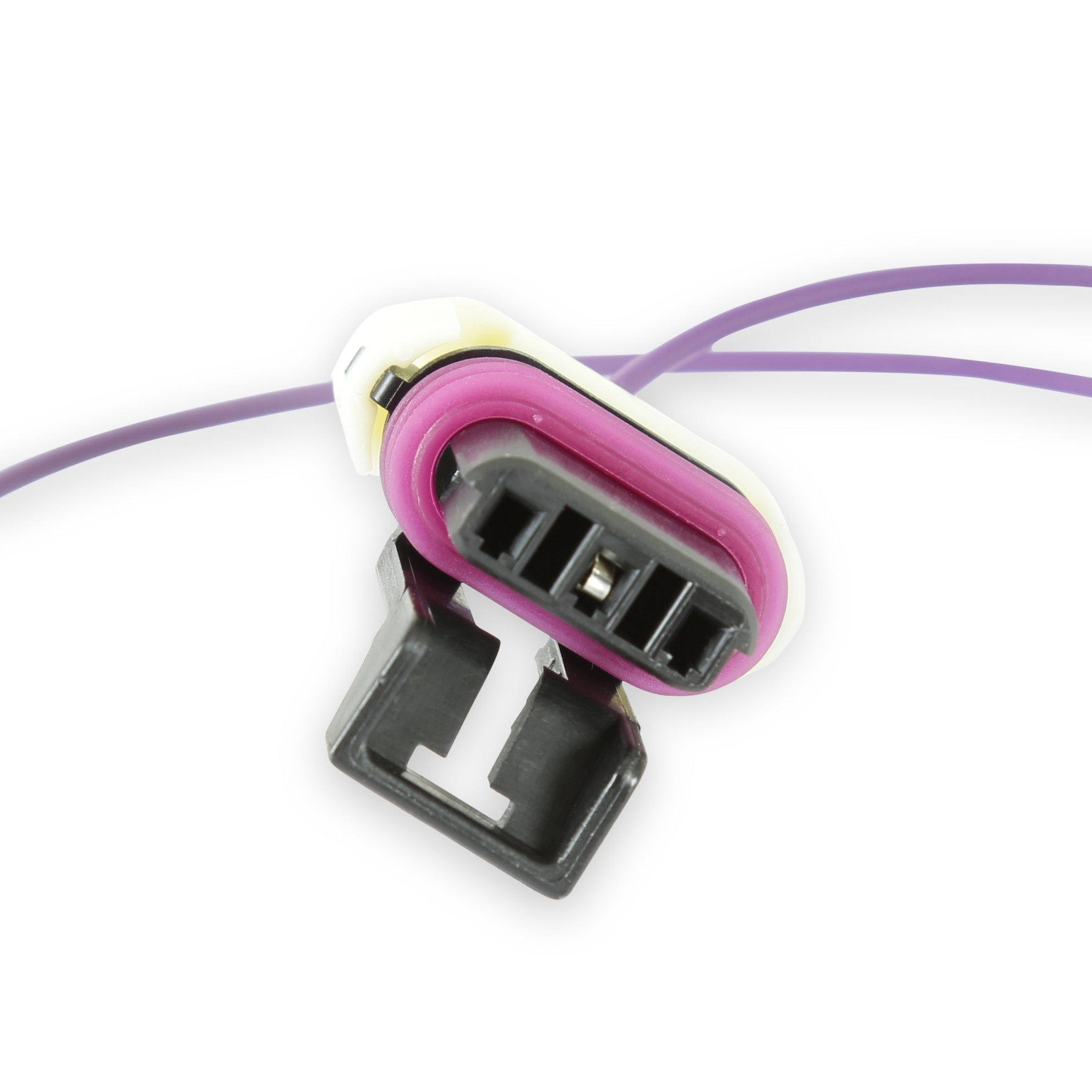

- Black connector with purple wire
📖
About this product
For CD Box to Sniper 2
📋
Product Specifications
Brand
Holley EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Gauges and Gauge Accessories
Connector Quantity
1
Country
US
Emission Code
3
End 1 Terminal Gender
Female
Harness Type
Ignition
HTS Code
8409915085
Ignition Adapter
Tach Input Only
Ignition Type
CD Ignition (No Timing Control)
Part Type
Tachometer Adapter
Product Type
Ignition Harnesses
Prop 65 Yes/No
Yes
Universal Or Specific Fit
Universal
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
11.4 × 3.8 × 3.4 in
Shipping Dimensions
11.4 × 3.8 × 3.4 in
Weight
45 g (0.05 kg)
