Brothers TrucksPart 58-4755-9-3-AMade in US
Product Details
⭐
Key Features
1947-1955 GMC Truck

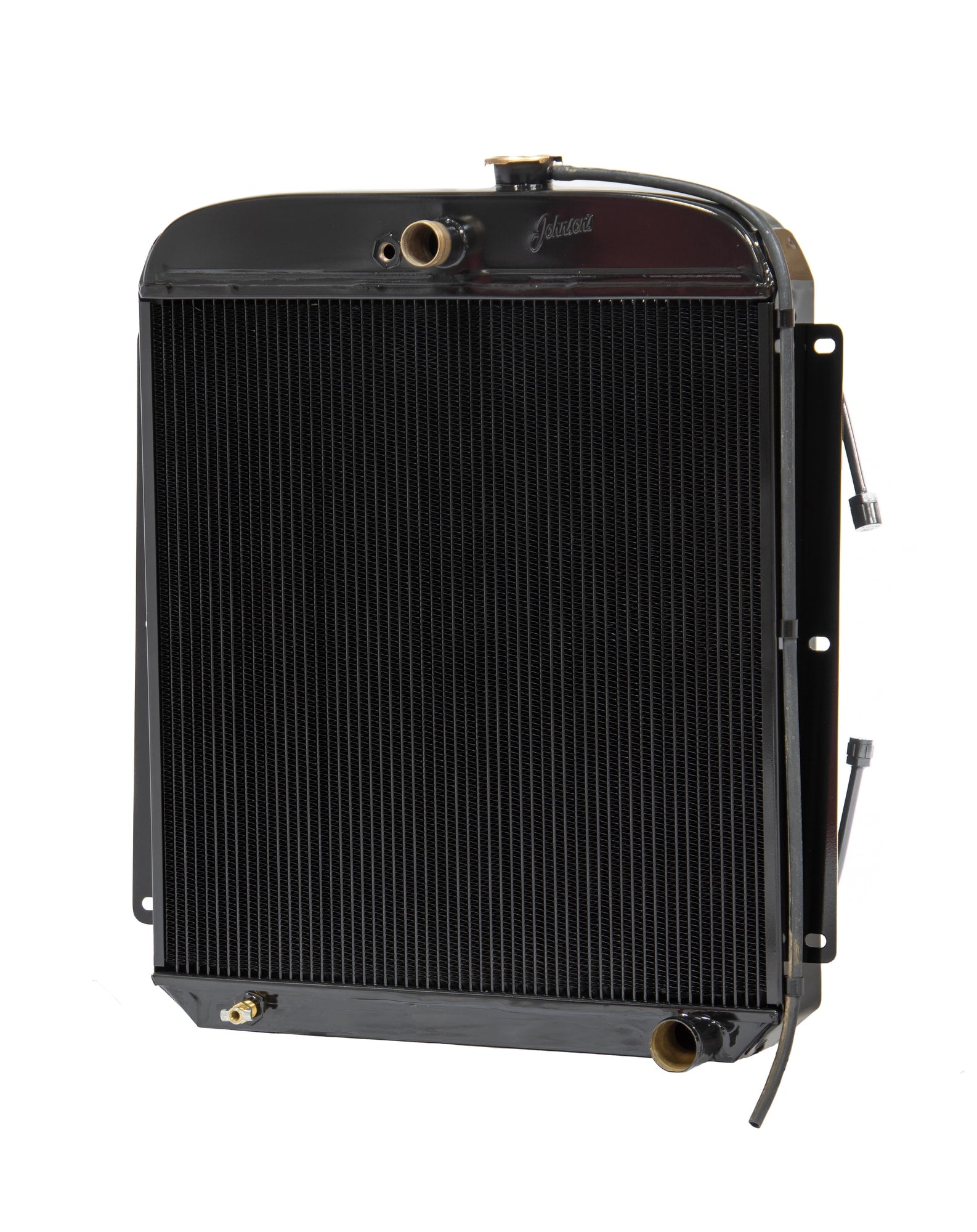

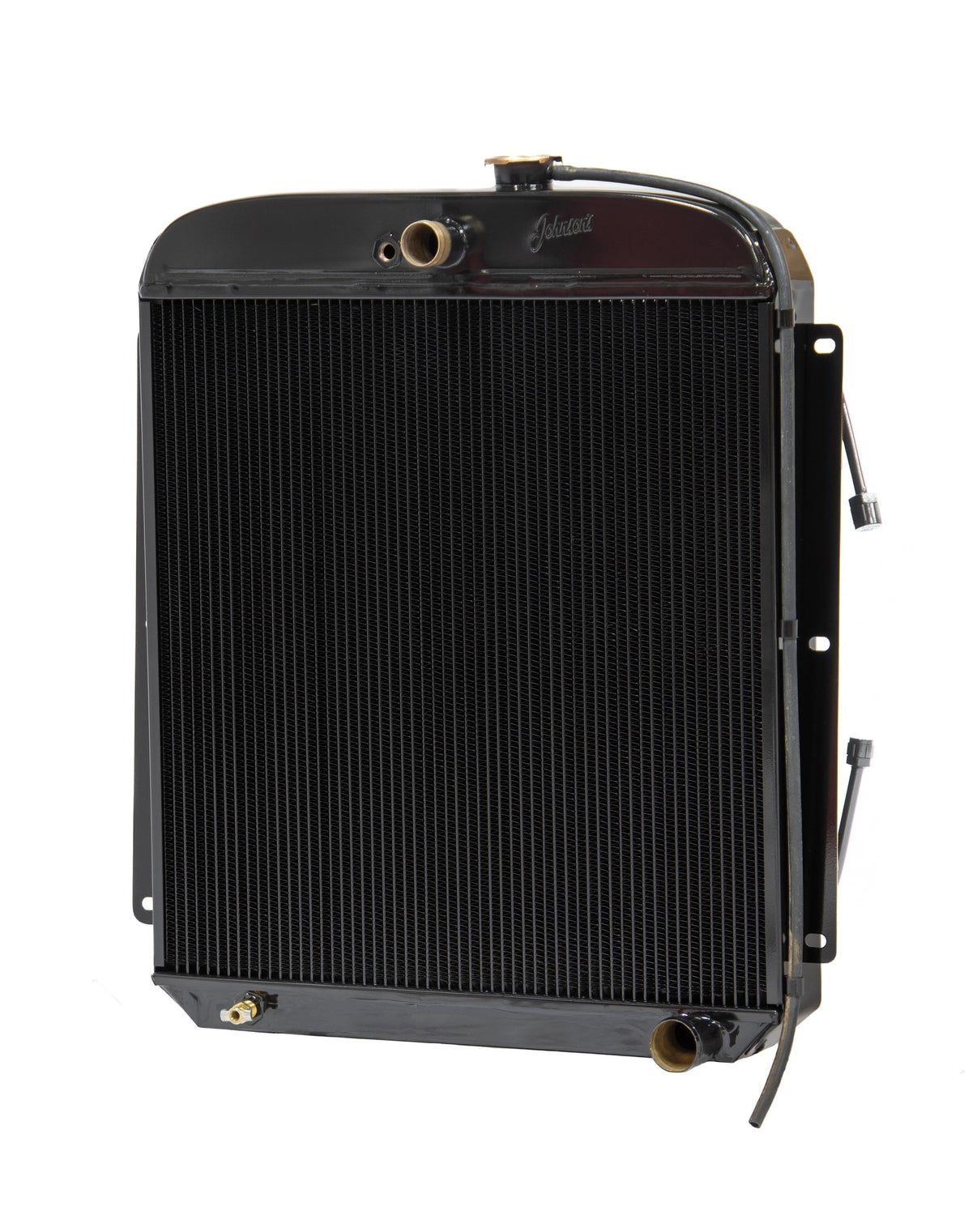

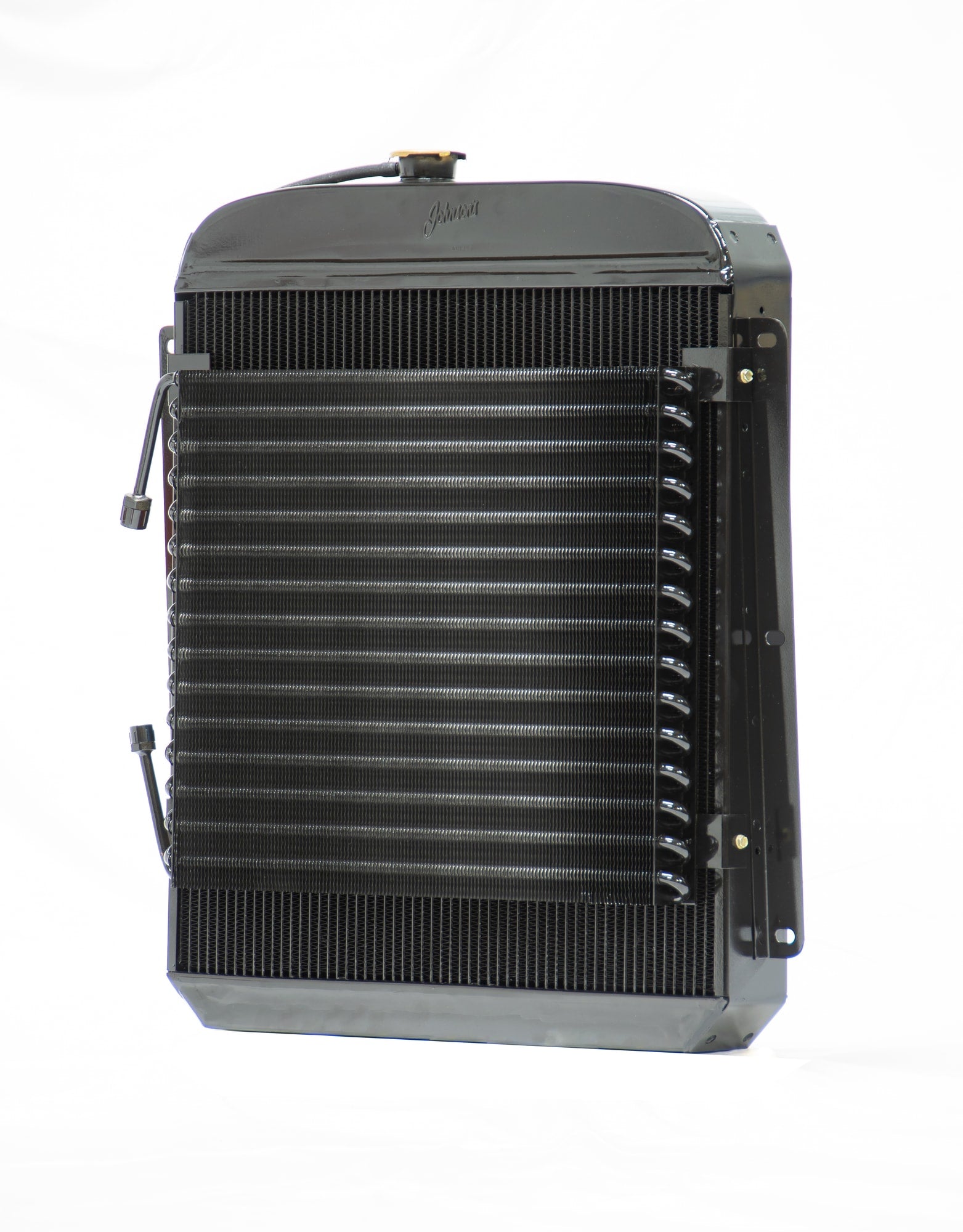

Johnson’s Radiator Works radiators feature a 1.250" top outlet, and 1.500" bottom outlet size with 1/4" steam port ideal for the best cooling efficiency possible. Built as a direct fit for a stock replacement complete with the appropriate connections. Made with heavy gauge steel side brackets and mounting holes pre-stamped. Johnsons has a 5 year full replacement warranty covering labor as well.
- Engine - LS
- A/C - Yes
- Trans Cooler - No
- Top Outlet Size - 1.250"
- Top Outlet Location - Center
- Bottom Outlet Size - 1.500"
- Bottom Outlet Location - Right
📋
Product Specifications
Automotive Item Grade
Regular
Brand
Brothers Trucks
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
California Proposition 65
chrominum
Category
Belts and Cooling
Category
Cooling
Category
Exterior
Category
Restoration
Coolant Hose Inlet Connection Type
1.250"
Coolant Level Indicator Port
No
Core Color
Black
Core Construction
Copper
Core Construction
Tube-and-Fin
Core Dimension
22.865 x 25.063
Core Finish
Powder Coated
Core Height
25.063
Core Length
20.500
Core Material
Brass
Core Material
Copper
Core Row Quantity
4
Core Thickness
2.975
Core Width
2.975
Down Flow Or Cross Flow Type
Down Flow
Drain Plug Included
Yes
Emission Code
6
End Tank Construction
Fabricated
End Tank Finish
Powder Coated
End Tank Material
Aluminum
Engine Oil Cooler Included
No
Fan Shroud Mount Hole Shape
Round
Frame Included
Yes
Hose Location Inlet
Center
Hose Location Outlet
Passenger
Inlet Connector Type
Hose
Inlet Diameter
1.250
Inlet Location
Top Center
Internal Engine Oil Cooler
No
Internal Transmission Oil Cooler
No
Mounting Hardware Included
No
Mounting Type
Bolt On
Mounting Type
Bolted
Mounting Type
Bracket Mount
Mounting Type
Flanged
Mounting Type
OEM
Outlet Connector Type
Hose
Outlet Diameter
1.500
Outlet Location
Bottom Right
Overall Height
25.063
Overall Length
22.865
Overall Width
2.975
Part Type
Radiator
Pass Quantity
Single Pass
Product Type
Radiator
Prop 65 Yes/No
Yes
Radiator Cap Included
Yes
Steam Port
1/4
Sub Category
Radiators
Tank Material
Brass
Tank Material
Copper
Thermostat Included
No
Transmission Oil Cooler Included
No
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
5 months
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708915000
📐
Dimensions & Shipping
Product Dimensions
36.0 × 33.0 × 11.0 in
Shipping Dimensions
36.0 × 33.0 × 11.0 in
Weight
19504 g (19.5 kg)
