Mr. GasketPart 5966✓ Fits 12 vehiclesMade in US
Product Details
⚙️
Vehicle Fitment & Compatibility
12 applicationsCompatible Engines
6.0L V8 364ci6.2L V8 376ci7.0L V8 427ci
Application Notes

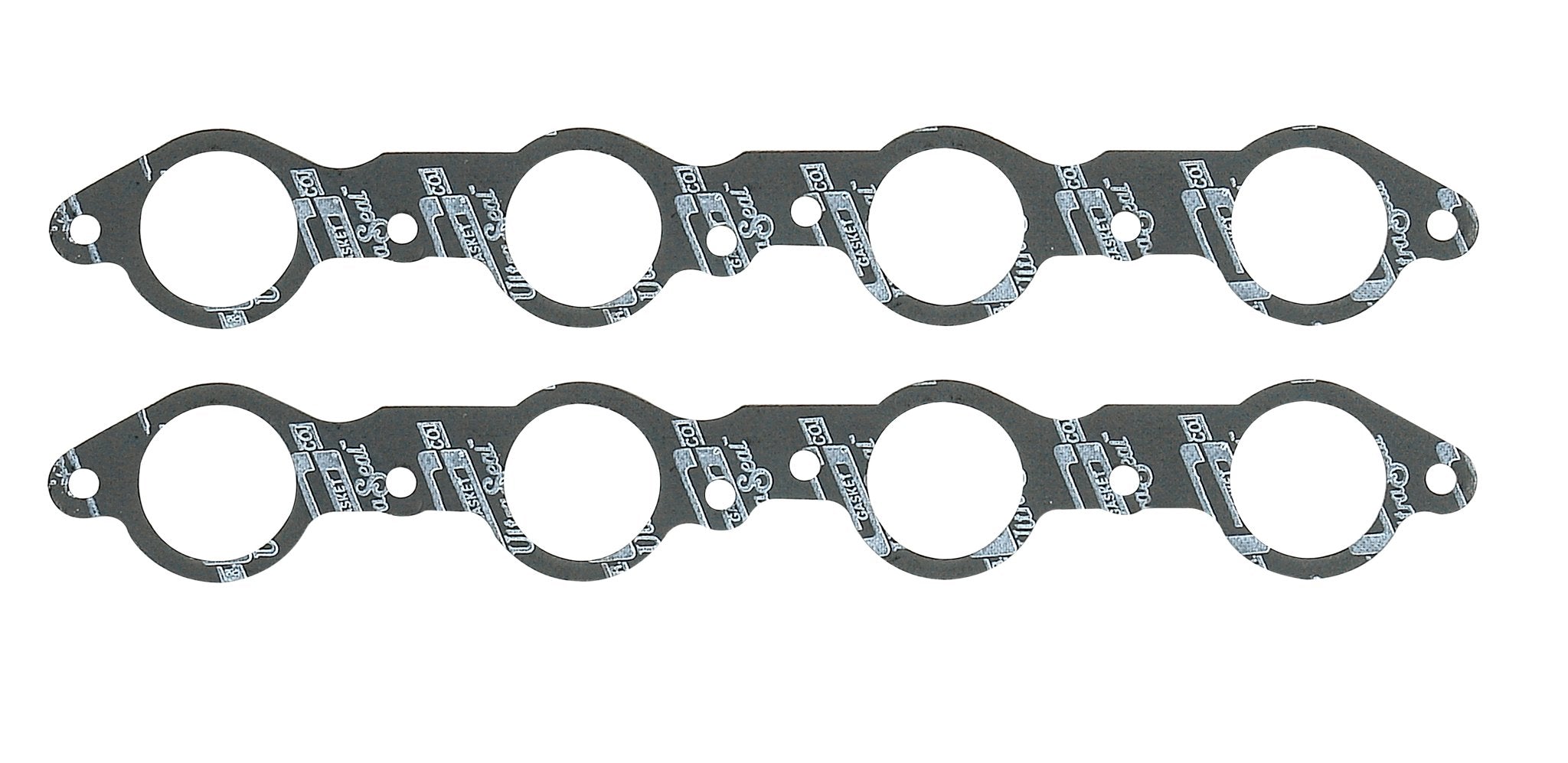

ULTRA SEALEXHAUST GASKET SET
View all 12 vehicle applications
Years
Make / Model
Submodel
Engine
2006–2007
Cadillac CTS
6.0L V8 364ci
2010
Chevrolet Camaro
6.2L V8 376ci
2005–2007
Chevrolet Corvette
6.0L V8 364ci
2006–2010
Chevrolet Corvette
7.0L V8 427ci
2008–2010
Chevrolet Corvette
6.2L V8 376ci
2008
Chevrolet Corvette
7.0L V8 427ci
2009–2010
Chevrolet Corvette
6.2L V8 376ci
2010
Chevrolet Corvette
6.2L V8 376ci
2006–2009
Chevrolet Trailblazer
6.0L V8 364ci
2009
Pontiac G8
6.2L V8 376ci
2005–2006
Pontiac GTO
6.0L V8 364ci
2008–2009
Saab 9-7x
6.0L V8 364ci
No applications match your search.
⭐
Key Features
Fits 2005-2017 GM 6.0L/6.2L/7.0L Small Block Gen III/IV (LS Based). Round Ports, 1.92 Inch
Manufactured from high-temperature steel core/graphite faced exhaust material. Expanded steel core provides stability and maximum torque retention to eliminate gasket failure. Graphite facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head. Conforms to and seals minor surface irregularities. High recovery material allows header or manifold flange to stay sealed if flange loses clamp-load. Can be trimmed if necessary for modified port applications. For original equipment replacement, high performance street, drag race and oval track use.
Fits 2005-2017 GM 6.0L/6.2L/7.0L Small Block Gen III/IV (LS Based). Round Ports, 1.92 Inch
- Manufactured from high-temperature steel core/graphite faced exhaust material
- Expanded steel core provides stability and maximum torque retention to eliminate gasket failure
- Graphite impregnated facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head
- Conforms to and seals minor surface irregularities
- Can be trimmed if necessary for modified port applications
- For OE replacement, high performance street, drag race and oval track use
📖
About this product
Fits 2005-2017 GM 6.0L/6.2L/7.0L Small Block Gen III/IV (LS Based). Round Ports, 1.92 Inch
📋
Product Specifications
Brand
Mr. Gasket
California Proposition 65 Chemical Name
20
Category
Gaskets
Collector Gaskets Included
No
Emission Code
5
Gasket Line
Ultra-Seal
Material
Ultra-seal
Part Type
Exhaust Manifold Gasket Set
Port Shape
Round
Port Size
1.92
Port Size
1.92 IN
Product Type
Header Gaskets
Thickness
.062
Thickness
.062 IN
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Weight
0.38
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
22.8 × 3.75 × 0.4 in
Shipping Dimensions
22.8 × 3.75 × 0.4 in
Weight
102 g (0.1 kg)
