Earl's PerformancePart 63010240erlMade in US
Product Details
⭐
Key Features
We have independent test lab reports on file showing that prototype assemblies exceeded D.O.T. recommendations in all categories. The only continuing test program however, is a 4000 P.S.I. hydrostatic pressure test of every hose assembly that we make. W
Our factory assembled hoses are made from the same SPEED-FLEX stainless steel braid protected hose of extruded PTFE that is the world standard of the racing industry for flexible brake, clutch and instrument hoses. Hoses are assembled with Earl''s SPEED-FLEX crimp or swaged permanently installed hose ends. Each hose is pressure tested to 4,000 psi.

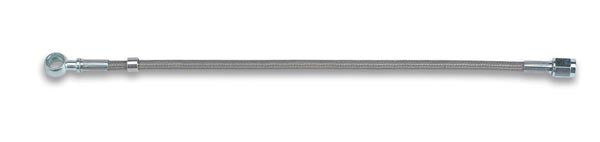

CLEARANCE ITEM / ALL SALES FINAL - Speed-Flex Line 3 AN Female Swivel To 10mm/.375 Banjo Hose Size 3 Length 40.
- Pressure Tested To 4000 PSI
📖
About this product
CLEARANCE ITEM / ALL SALES FINAL - Speed-Flex Line 3 AN Female Swivel To 10mm/.375 Banjo Hose Size 3 Length 40.
📋
Product Specifications
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Brakes
Collection
Brakes
Collection
Brakes - Hardware & Service Supplies
Emission Code
5
Fluid Type Rating - Automatic Transmission Fluid
5 out of 5 Rating
Fluid Type Rating - Bio-Fuels
5 out of 5 Rating
Fluid Type Rating - Brake Fluid
5 out of 5 Rating
Fluid Type Rating - Coolant
5 out of 5 Rating
Fluid Type Rating - Diesel
5 out of 5 Rating
Fluid Type Rating - E85
5 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol
5 out of 5 Rating
Fluid Type Rating - Oil
5 out of 5 Rating
Fluid Type Rating - Power Steering Fluid
5 out of 5 Rating
Fluid Type Rating - Pump Gas
5 out of 5 Rating
Fluid Type Rating - Race Gas
5 out of 5 Rating
Fluid Type Rating - Vacuum
1 out of 5 Rating
Fluid Type
Automatic Transmission Fluid
Fluid Type
Bio-Fuels
Fluid Type
Brake Fluid
Fluid Type
Coolant
Fluid Type
Diesel
Fluid Type
E85
Fluid Type
Methanol/Alcohol
Fluid Type
Oil
Fluid Type
Pump Gas
Fluid Type
Race Gas
Hose End #1
3 AN FEMALE
Hose End #2
10 MM / 3/8" BANJO
Hose End Finish
Electroless Nickel Plated
Hose End Material
Steel
Hose Outer Material
Stainless Steel
Hose Size
3 AN
Inside Diameter
.120"-.143"
Length
40 In.
Max Working PSI
2000 PSI
Min. Bend Radius
1.5"
Outside Diameter
.214"-.258"
Part Type
Fuel Hose
Product Type
Hose Assembly
Prop 65 Yes/No
Yes
PTFE Wall Thickness
.040"
Submersible In Fuel
Yes
Temperature Range
-65�° to 450�° F
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8307103000
📐
Dimensions & Shipping
Product Dimensions
3.45 × 3.35 × 2.05 in
Shipping Dimensions
3.45 × 3.35 × 2.05 in
Weight
109 g (0.11 kg)
