Fits MSD-6AL, Digital Ignition w/rev Control - MSD Digital 6AL Ignition Control - Red.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

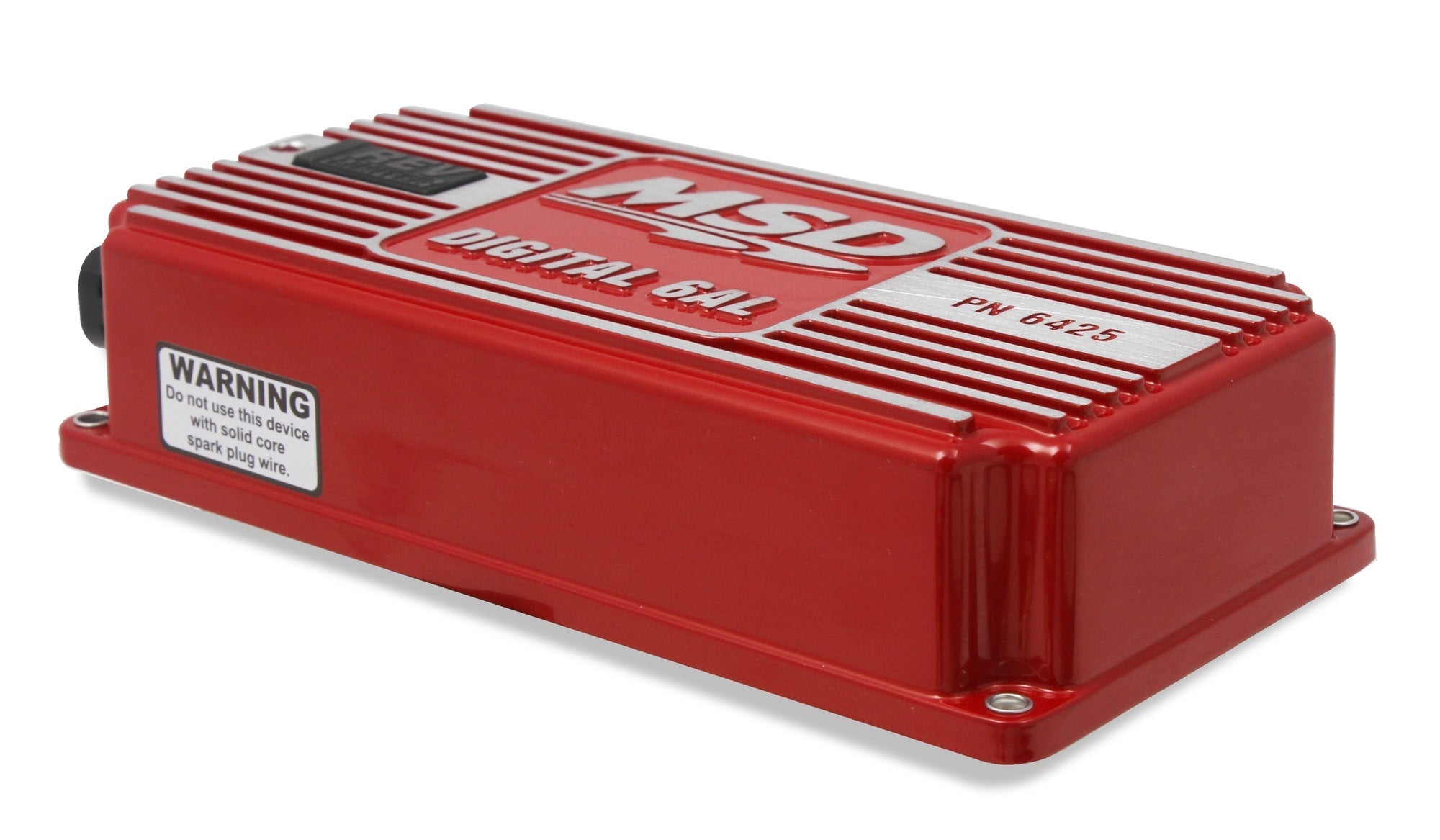

MSD Digital 6AL Ignition Control - Red
The MSD 6AL Ignition Control set the standards that other ignitions strive to reach. In fact, you'll find ignitions from other companies that carry the 6AL name (and in some cases, the same part number). MSD raised the bar even higher with the revised Digital 6AL Ignition Control.

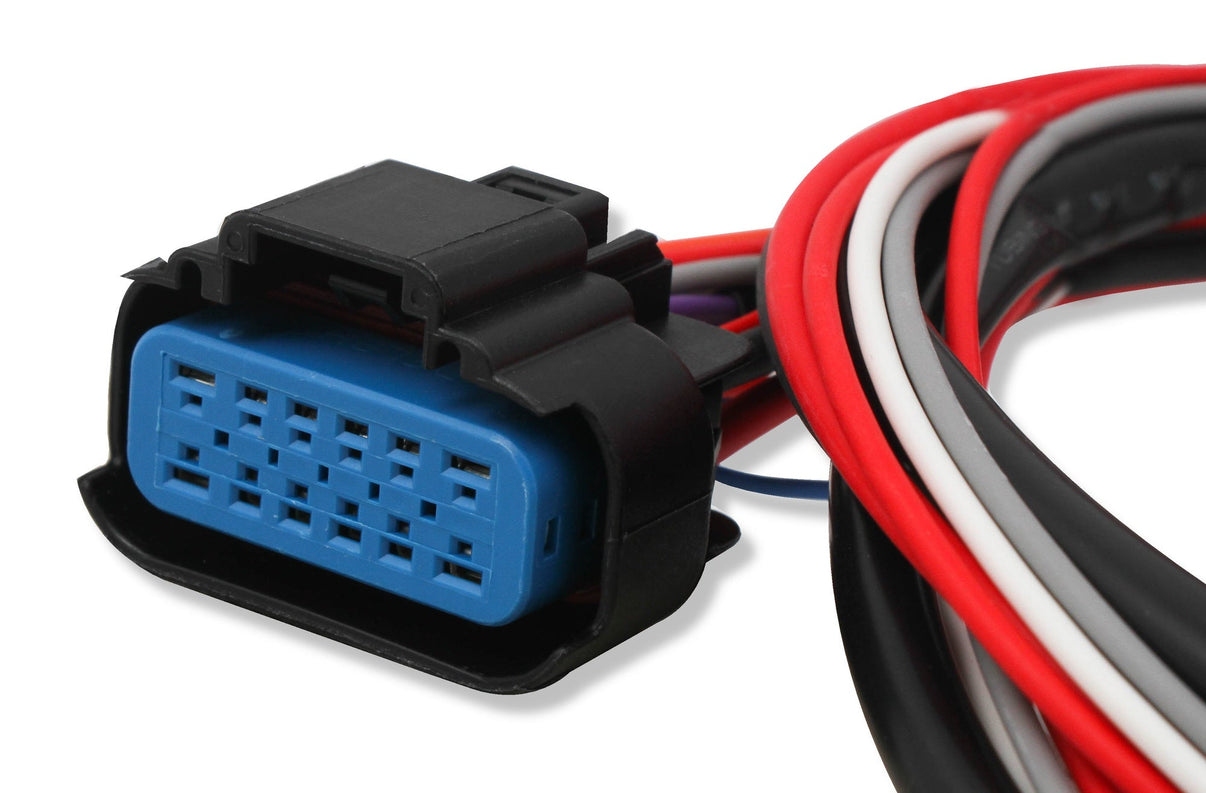

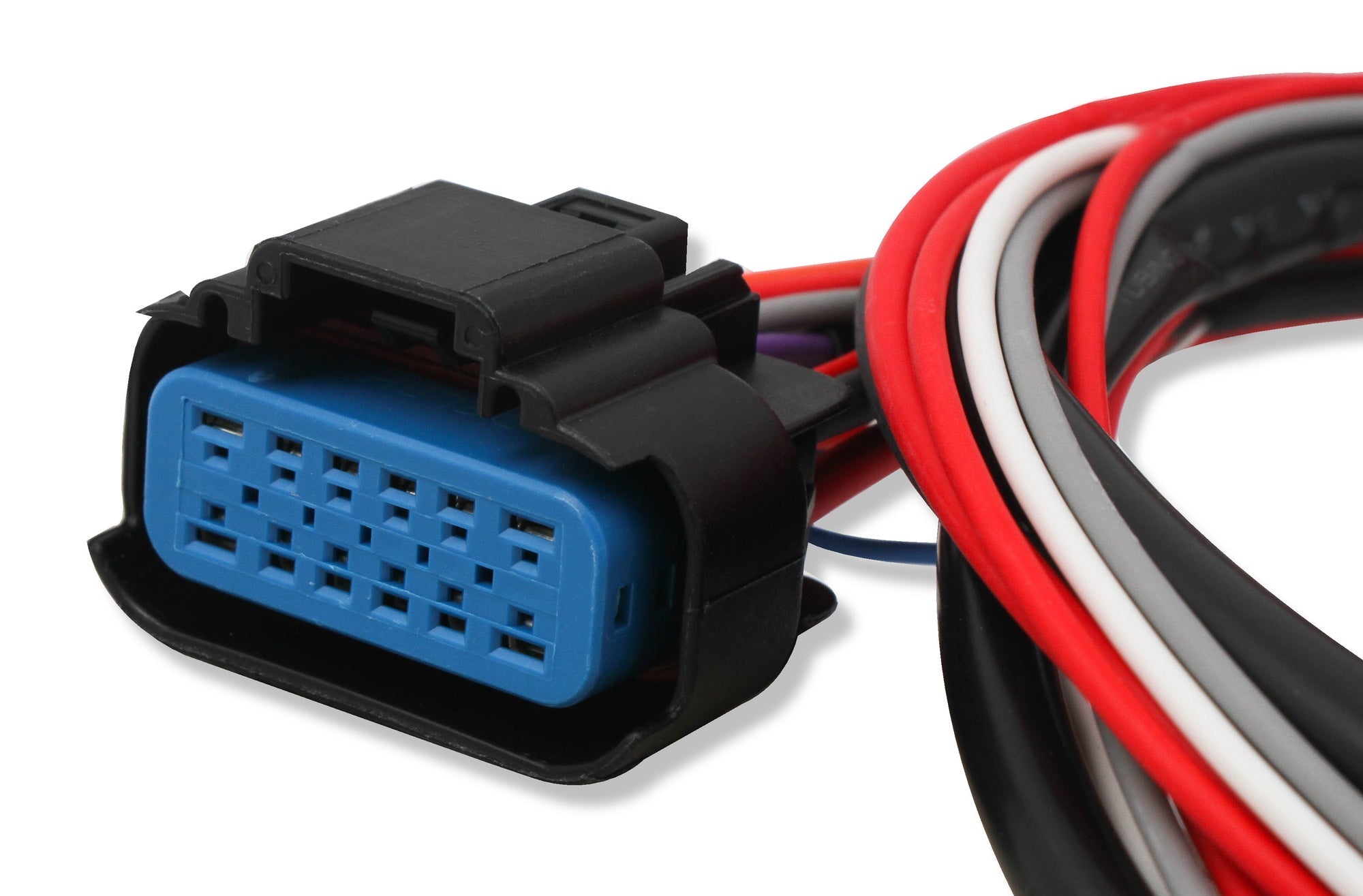

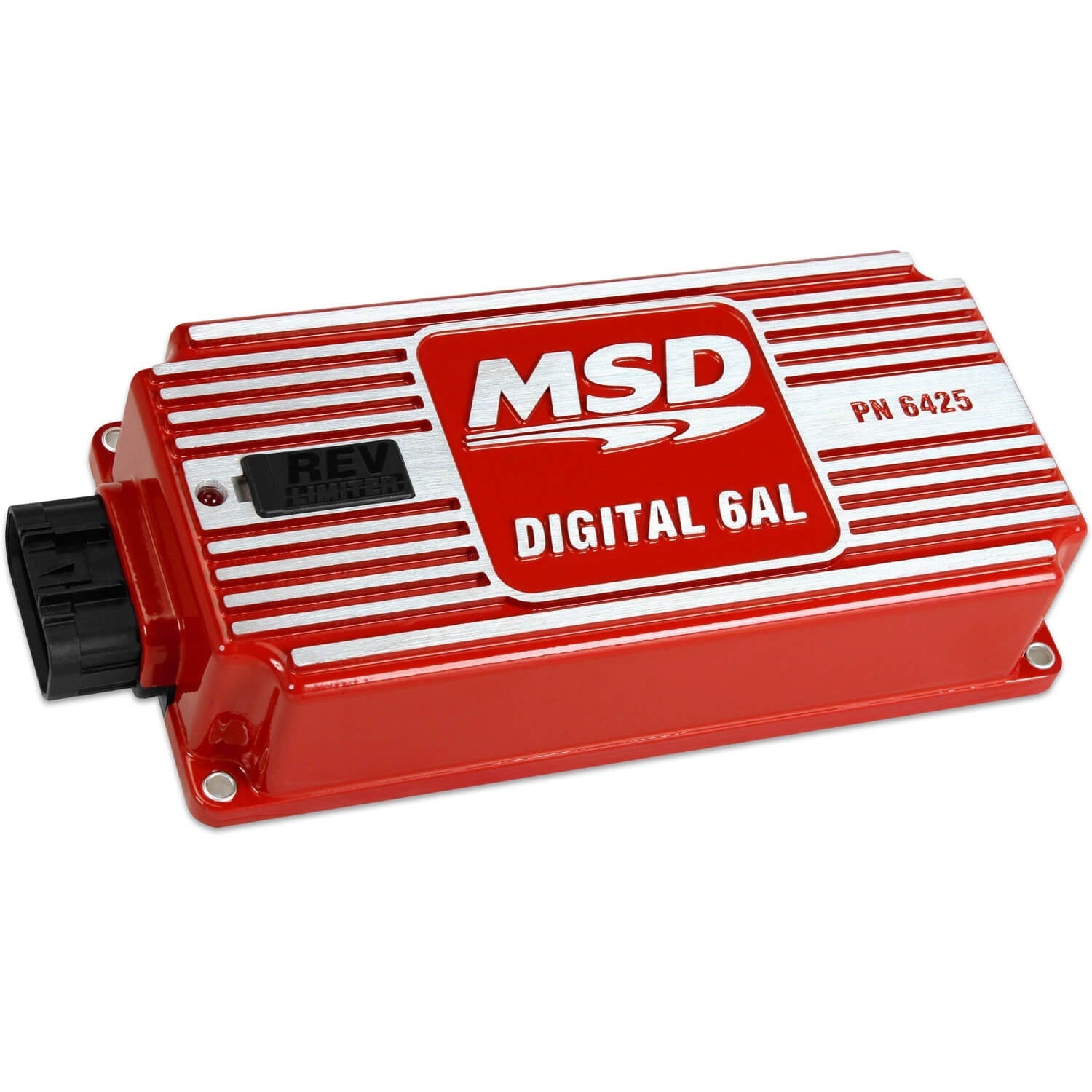

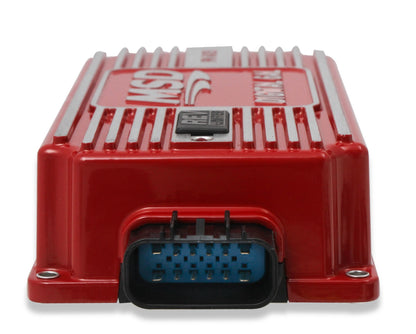

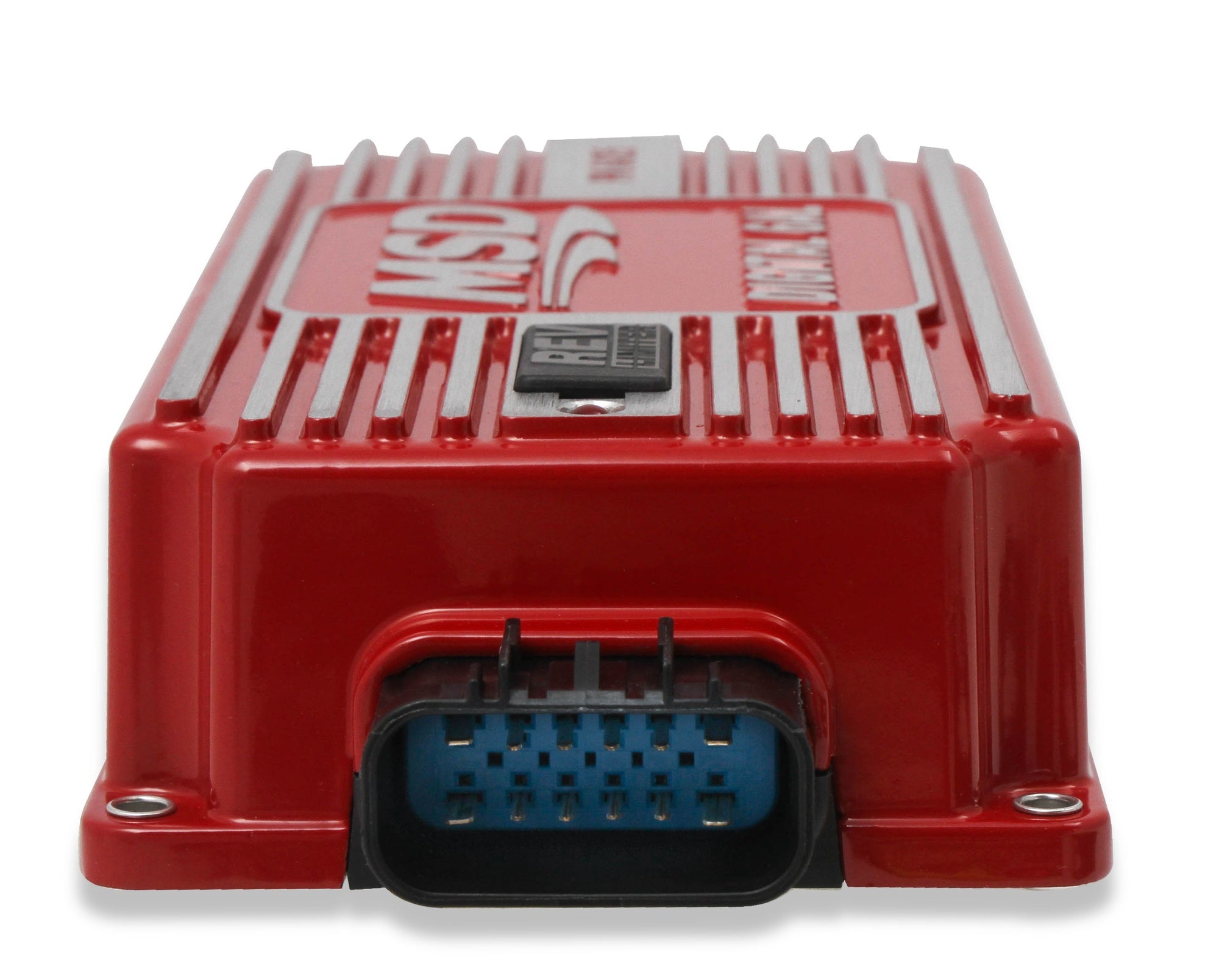

The wiring of the Digital 6AL is routed out one end of the unit through a sealed and locking connector. This eases installation and keeps your wiring looking neat and clean. The rev-limiter of the 6AL is located right on top of the housing for easy access to the two rotary dials to set the limit in 100 rpm increments.
Inside the Digital 6AL, you'll find a microprocessor that monitors and controls every firing and rev limit. The circuits are updated with efficient components that help the ignition produce more power while drawing less current. The Digital 6AL delivers over 530 volts to the coil with up to 135mJ of spark energy for every firing. This increased output combined with MSD's proven multiple spark series is a win-win situation.

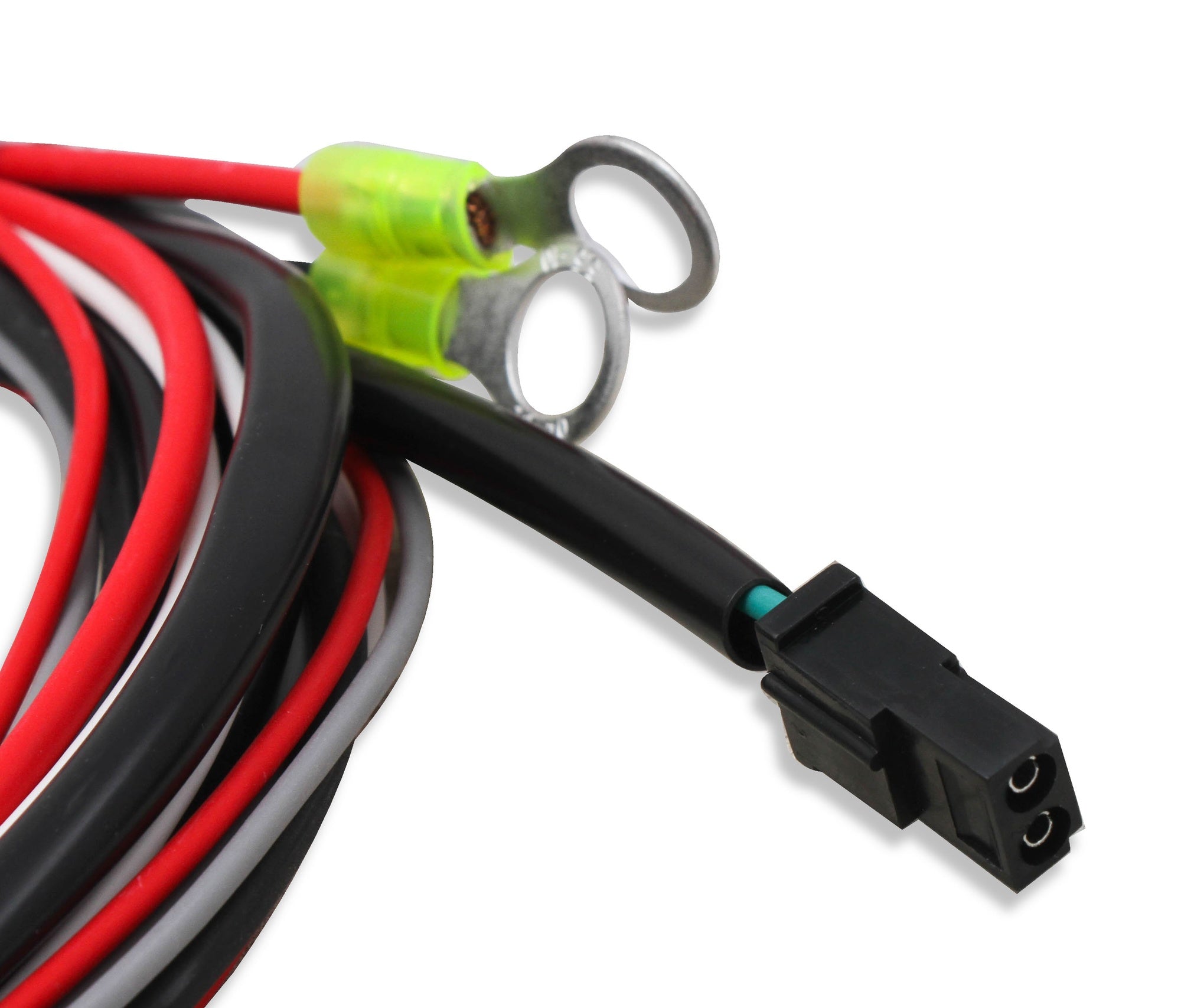

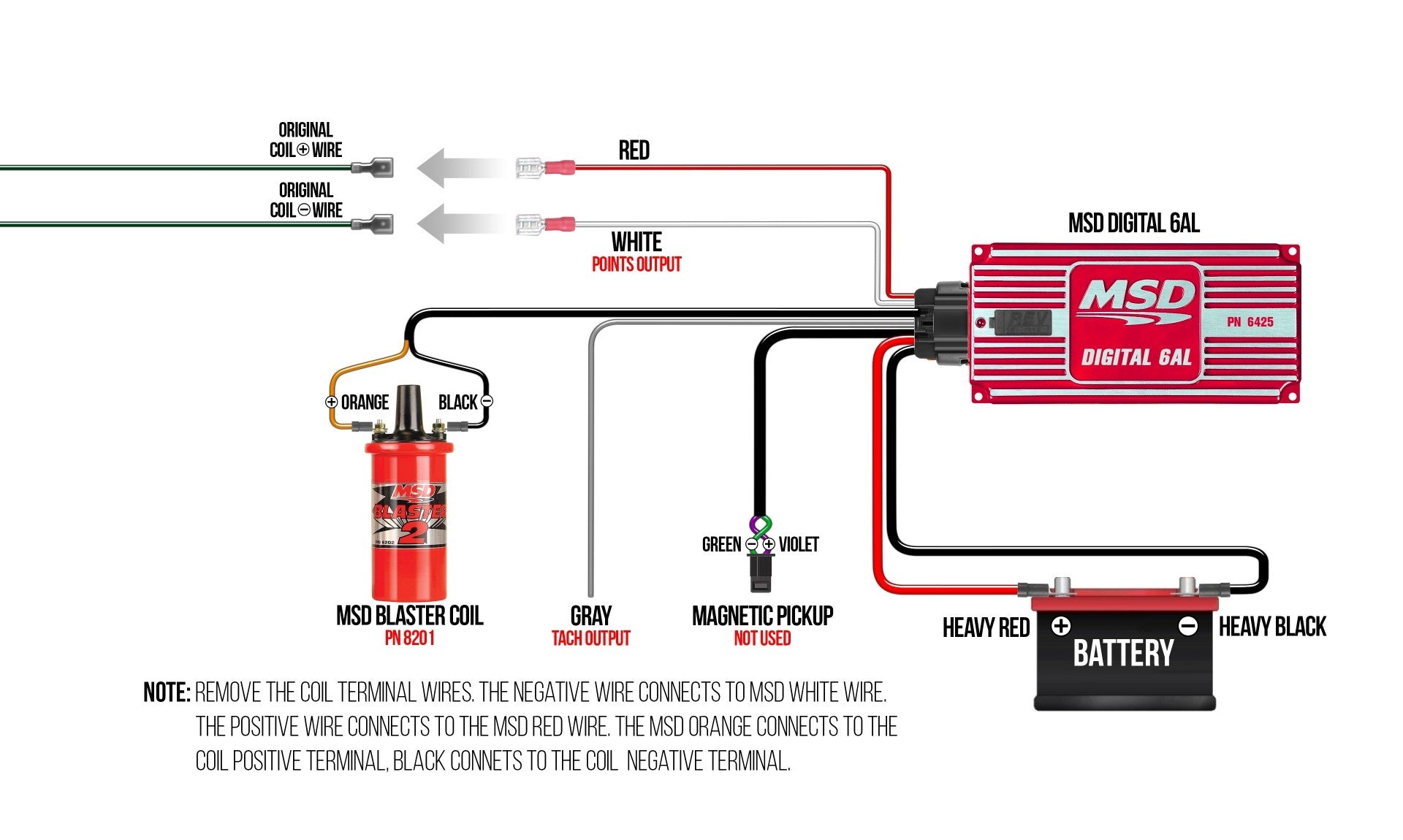

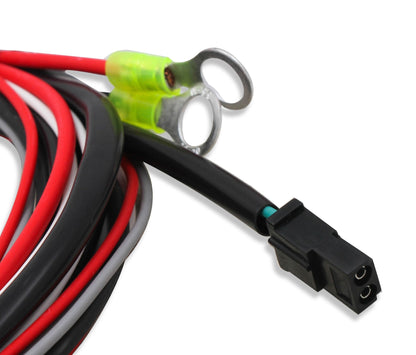

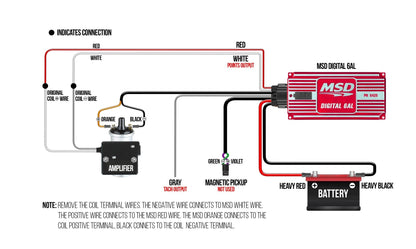

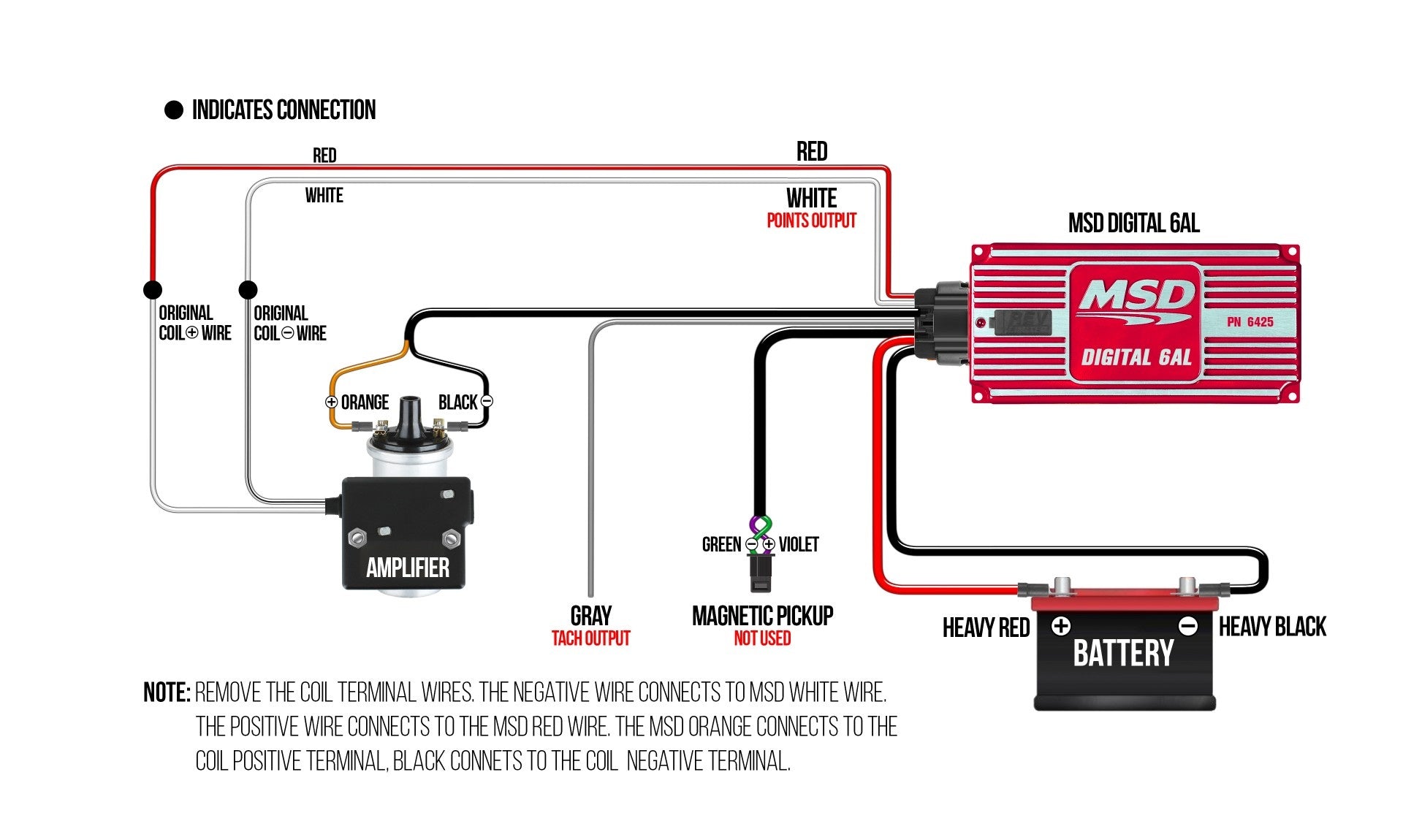

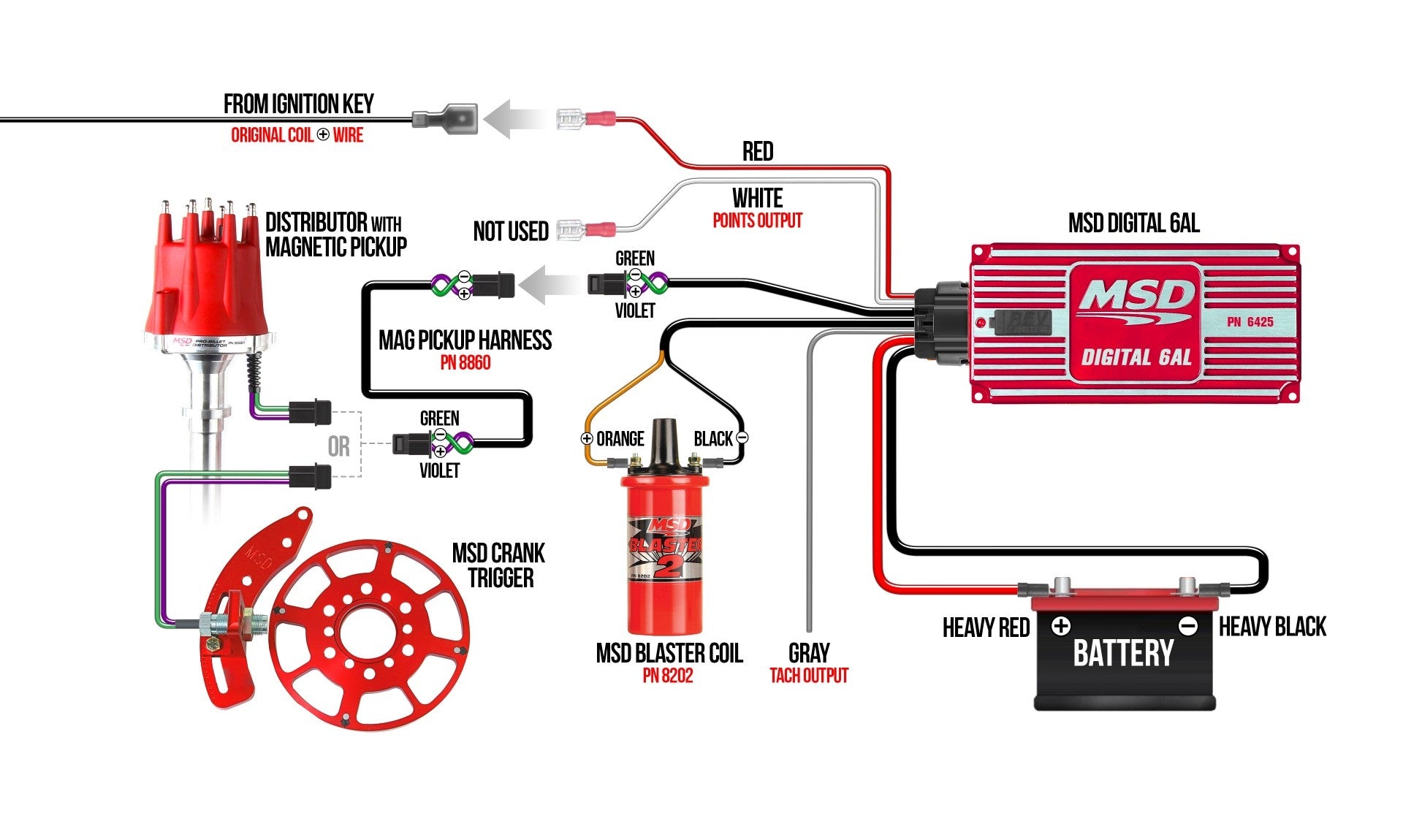

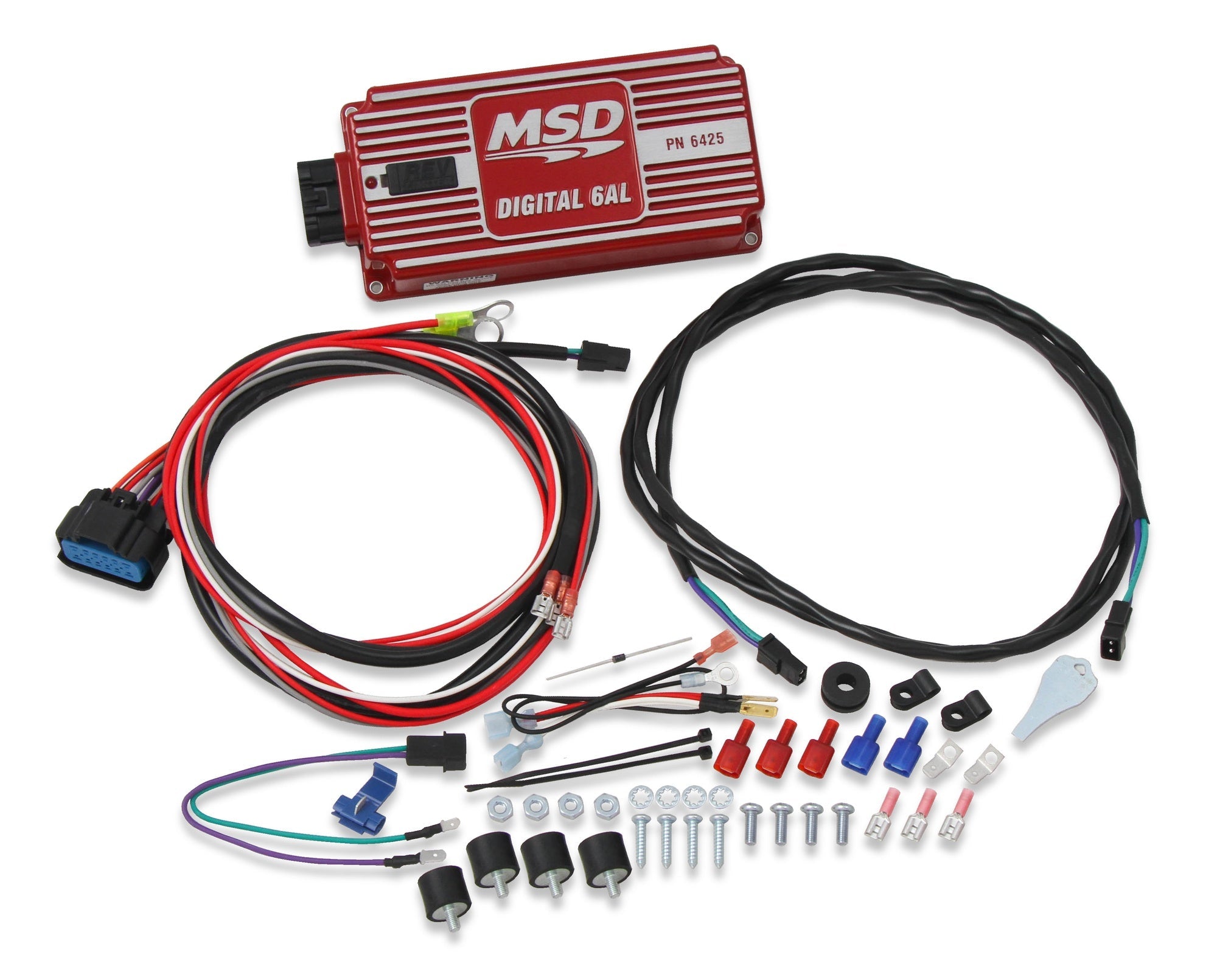

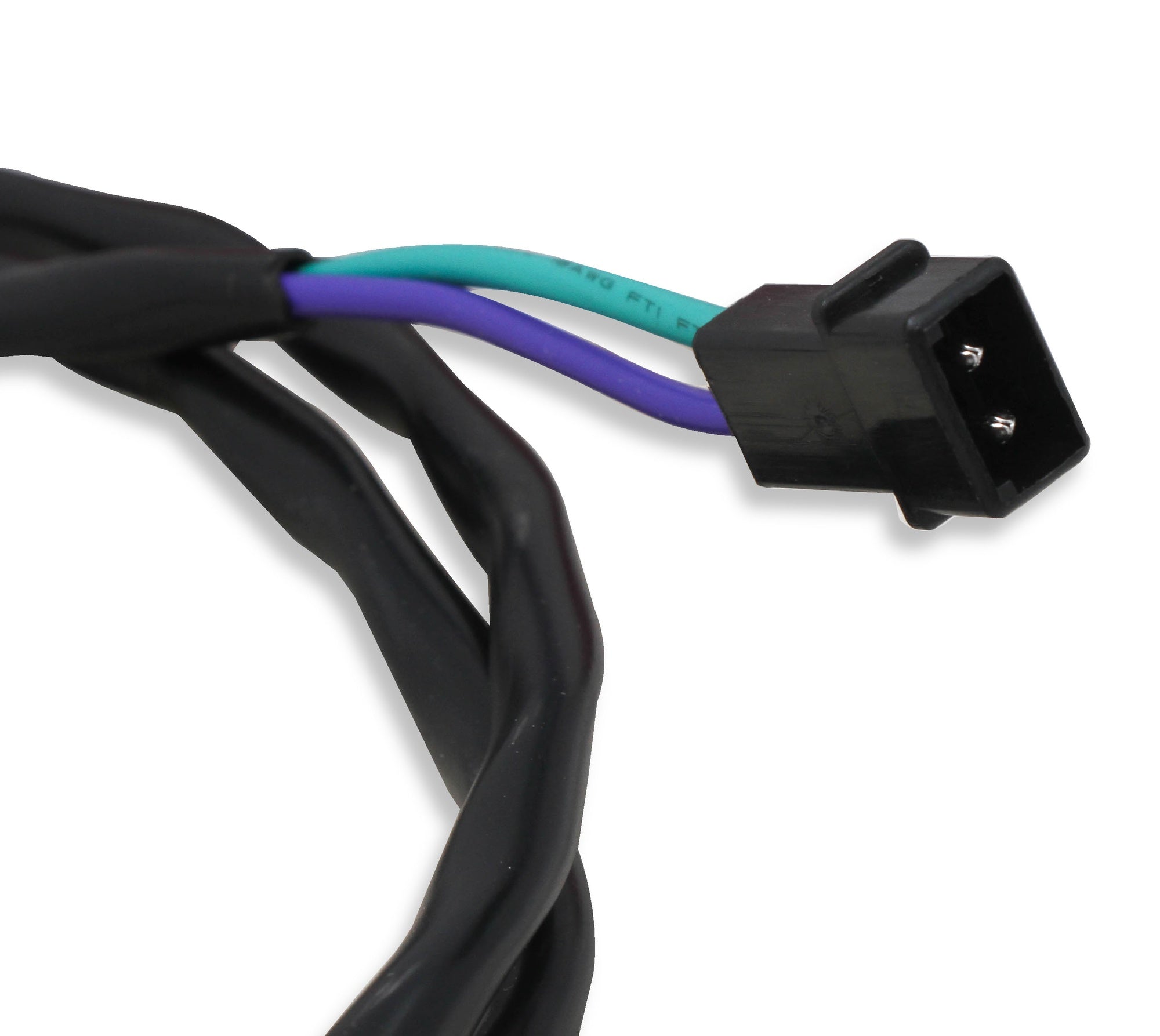

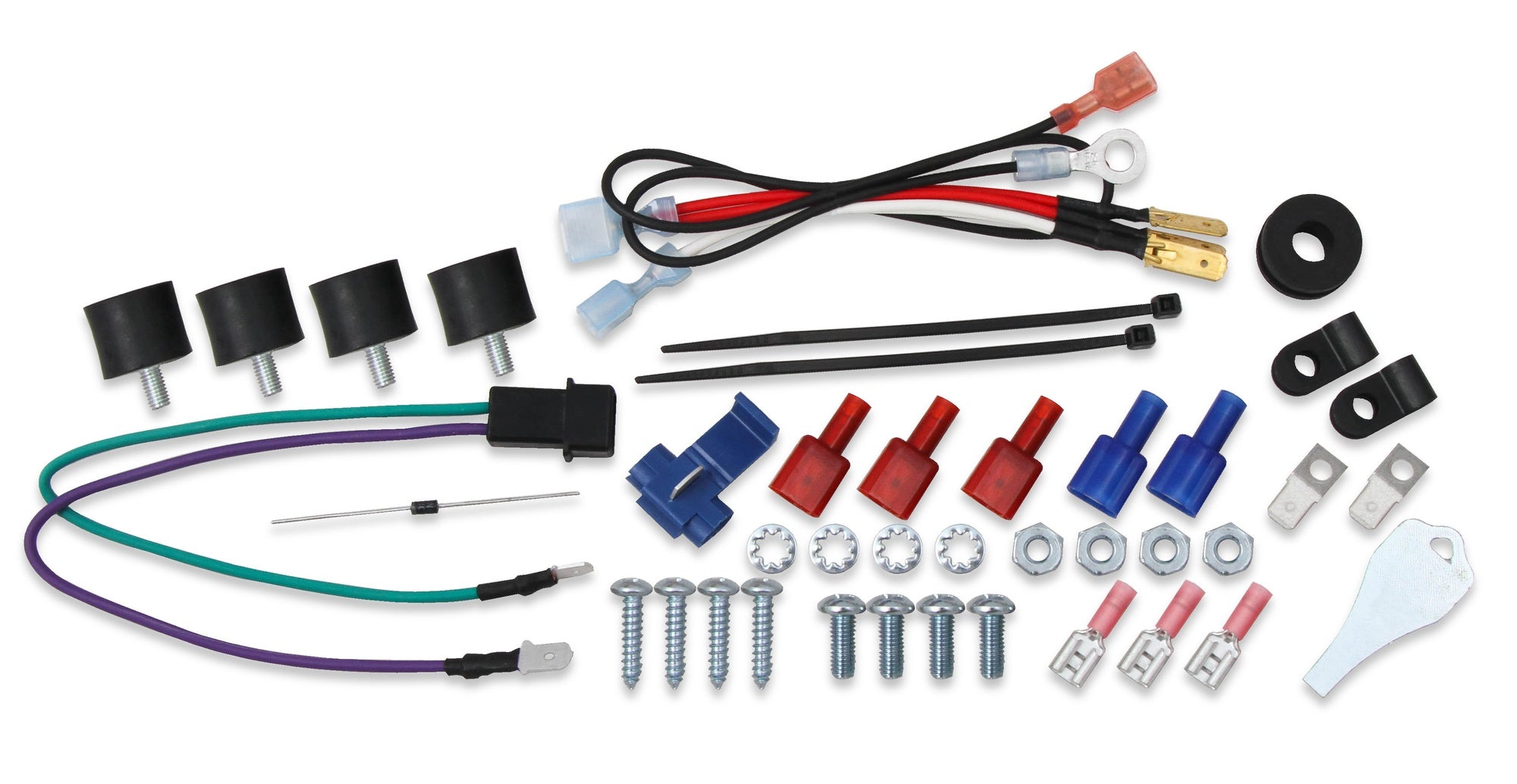

The Digital 6AL is supplied with the wiring harness and the components you'll need for installation. The 6AL is also supplied with vibration mounts. Both ignitions are compatible on 4, 6, or 8-cylinder engines with 12-volt, negative ground electrical systems. They'll accept trigger inputs from breaker points, amplifiers, and magnetic pickups.
The MSD 6AL Ignition Control set the standards that other ignitions strive to reach. In fact, you'll find ignitions from other companies that carry the 6AL name (and in some cases, the same part number). MSD raised the bar even higher with the revised Digital 6AL Ignition Control.
The wiring of the Digital 6AL is routed out one end of the unit through a sealed and locking connector. This eases installation and keeps your wiring looking neat and clean. The rev-limiter of the 6AL is located right on top of the housing for easy access to the two rotary dials to set the limit in 100 rpm increments.
Inside the Digital 6AL, you'll find a microprocessor that monitors and controls every firing and rev limit. The circuits are updated with efficient components that help the ignition produce more power while drawing less current. The Digital 6AL delivers over 530 volts to the coil with up to 135mJ of spark energy for every firing. This increased output combined with MSD's proven multiple spark series is a win-win situation.
The Digital 6AL is supplied with the wiring harness and the components you'll need for installation. The 6AL is also supplied with vibration mounts. Both ignitions are compatible on 4, 6, or 8-cylinder engines with 12-volt, negative ground electrical systems. They'll accept trigger inputs from breaker points, amplifiers, and magnetic pickups.
📋
Product Specifications
Brand
MSD
Category
Ignition
Color
Red
Connector Gender
Female
Connector Quantity
1
Current Draw
.7 Amp per 1
Emission Code
1
Features
Rev Limiter
Grade Type
Performance
Height
1.825
Ignition Type
Performance
Length
8
Mount Type
Surface Mount
Mounting Hardware Included
Yes
Primary Voltage
520-540 Volts
Product Type
Digital 6AL Ignition Control Box
RPM Range
11
Secondary Voltage
45
Spark Energy
135-145 mJ per spark
Sub Category
Control Modules
Terminal Gender
Male
Terminal Quantity
12
Voltage Required
12-15 Volts
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight and Size
1.7 lbs.
Width
4
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
