Product Details
🔧
Vehicle Compatibility
Fits MSD 6ALN,Ignition Control, Severe Duty - MSD 6ALN Ignition Control.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

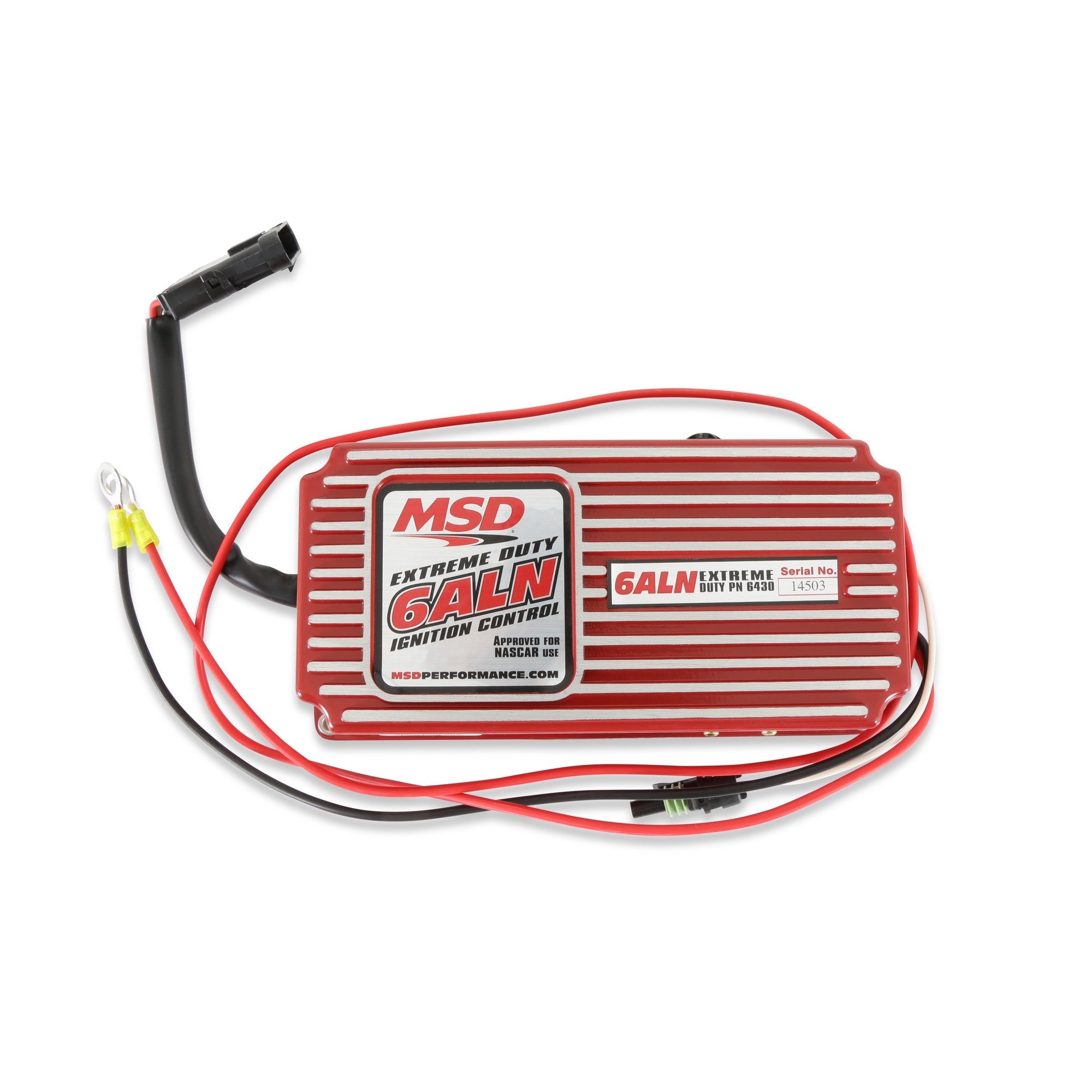

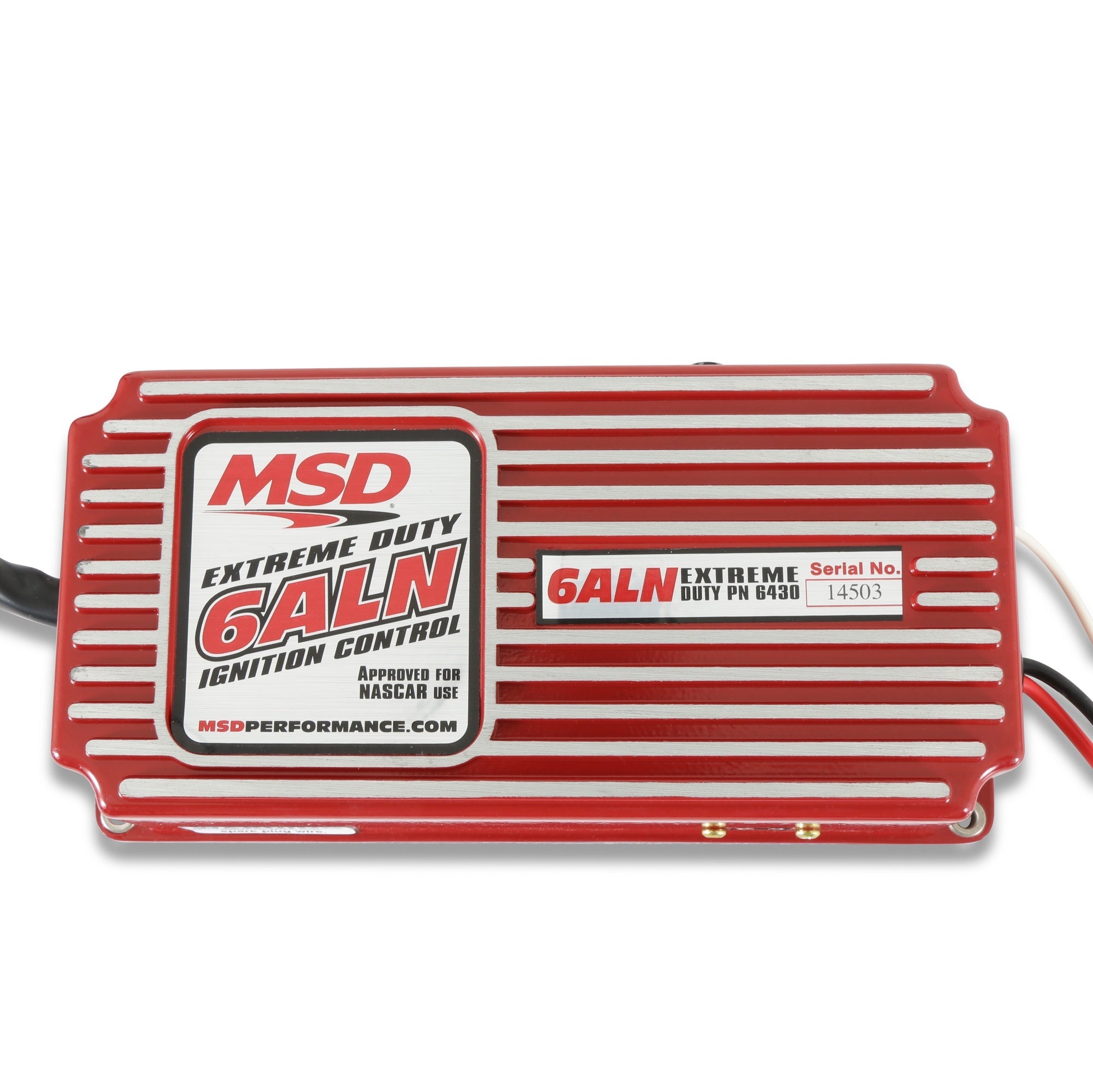

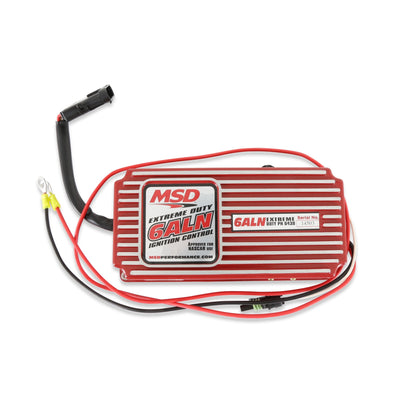

MSD 6ALN Ignition Control

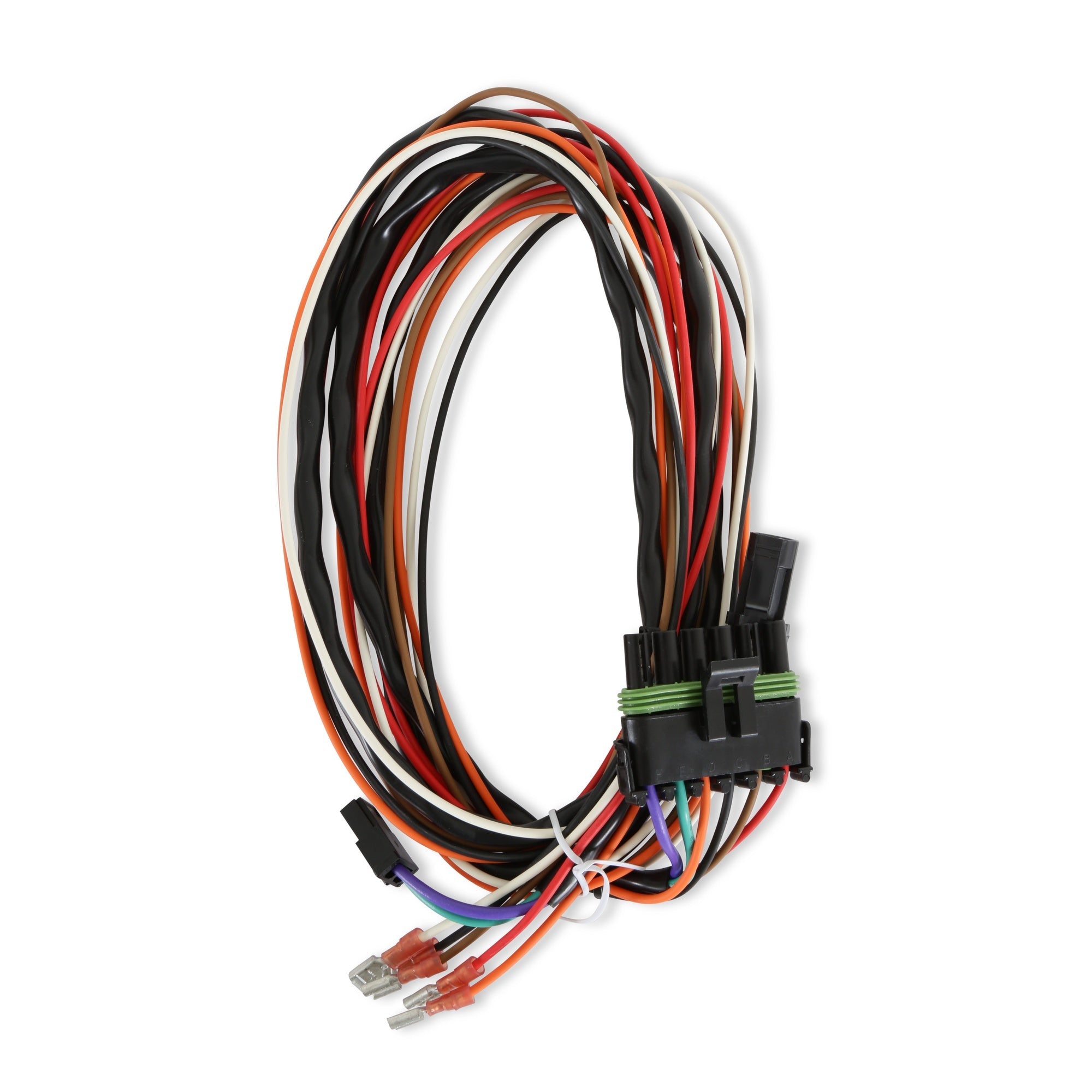

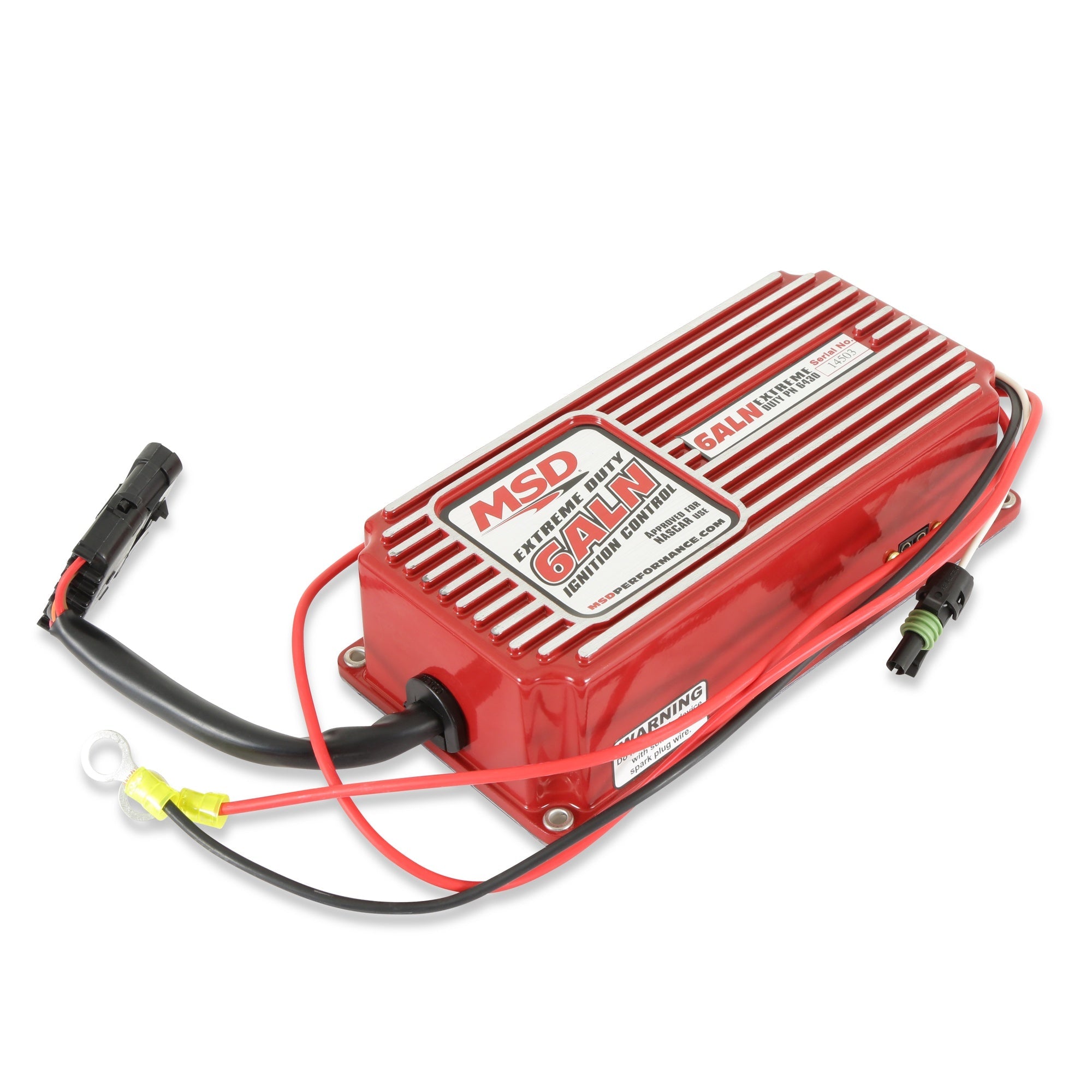

Originally designed with NASCAR in mind, the 6ALN is equipped with the mandatory 6-Pin Weathertight connector to meet NASCAR's ignition wiring rule, 20-6.1. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection.

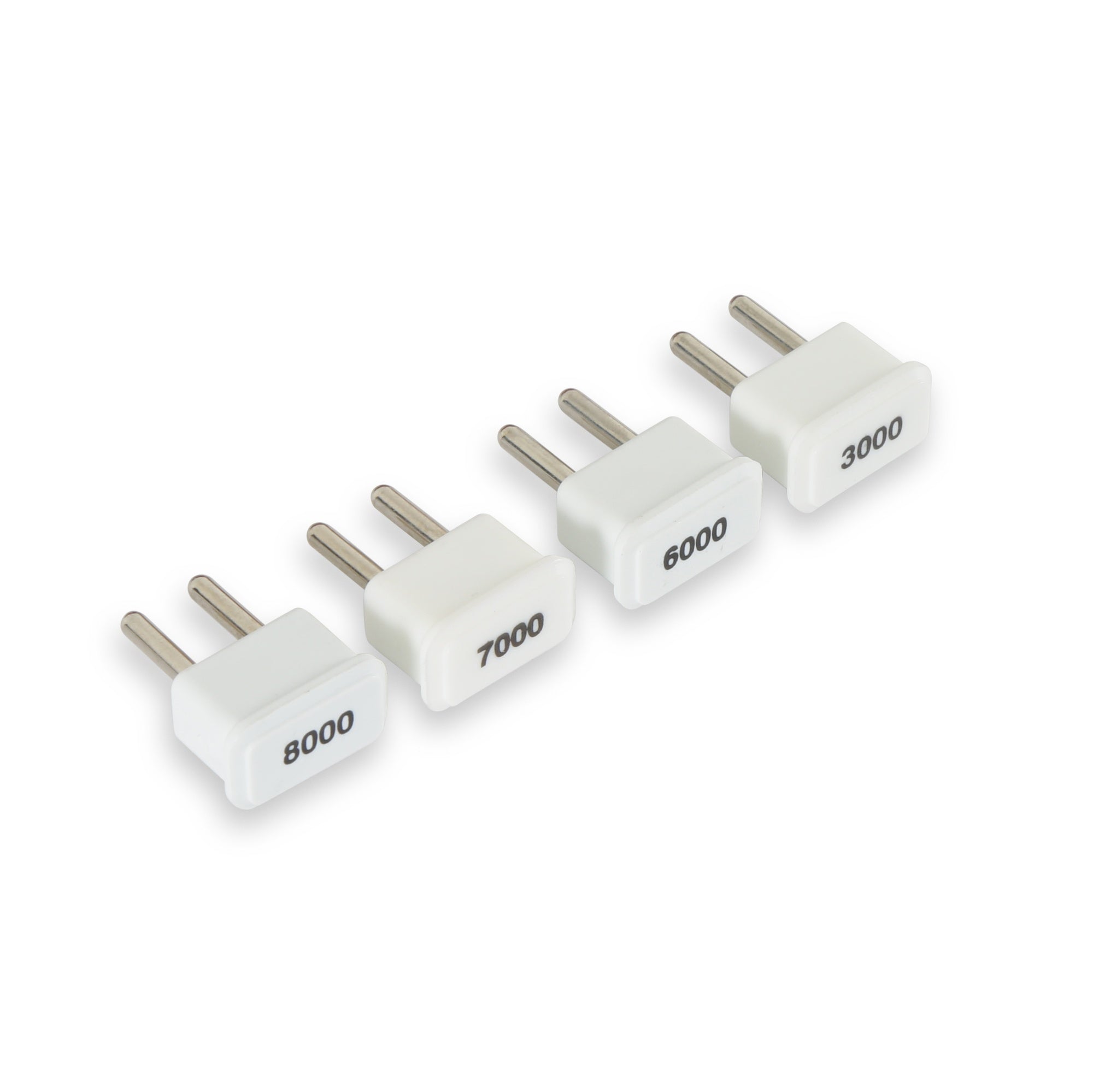

The 6ALN has a built-in Rev Control. These rev controls are adjustable with plug-in modules and will save your engine from over-rev damage caused by
missed shifts or driveline failure.
Originally designed with NASCAR in mind, the 6ALN is equipped with the mandatory 6-Pin Weathertight connector to meet NASCAR's ignition wiring rule, 20-6.1. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection.
The 6ALN has a built-in Rev Control. These rev controls are adjustable with plug-in modules and will save your engine from over-rev damage caused by
missed shifts or driveline failure.
📋
Product Specifications
Brand
MSD
Category
Ignition
Color
Red
Connector Gender
Male Female
Connector Quantity
2
Emission Code
4
Grade Type
Performance
Height
2.9
Ignition Type
Performance
Length
10.8
Mount Type
Surface Mount

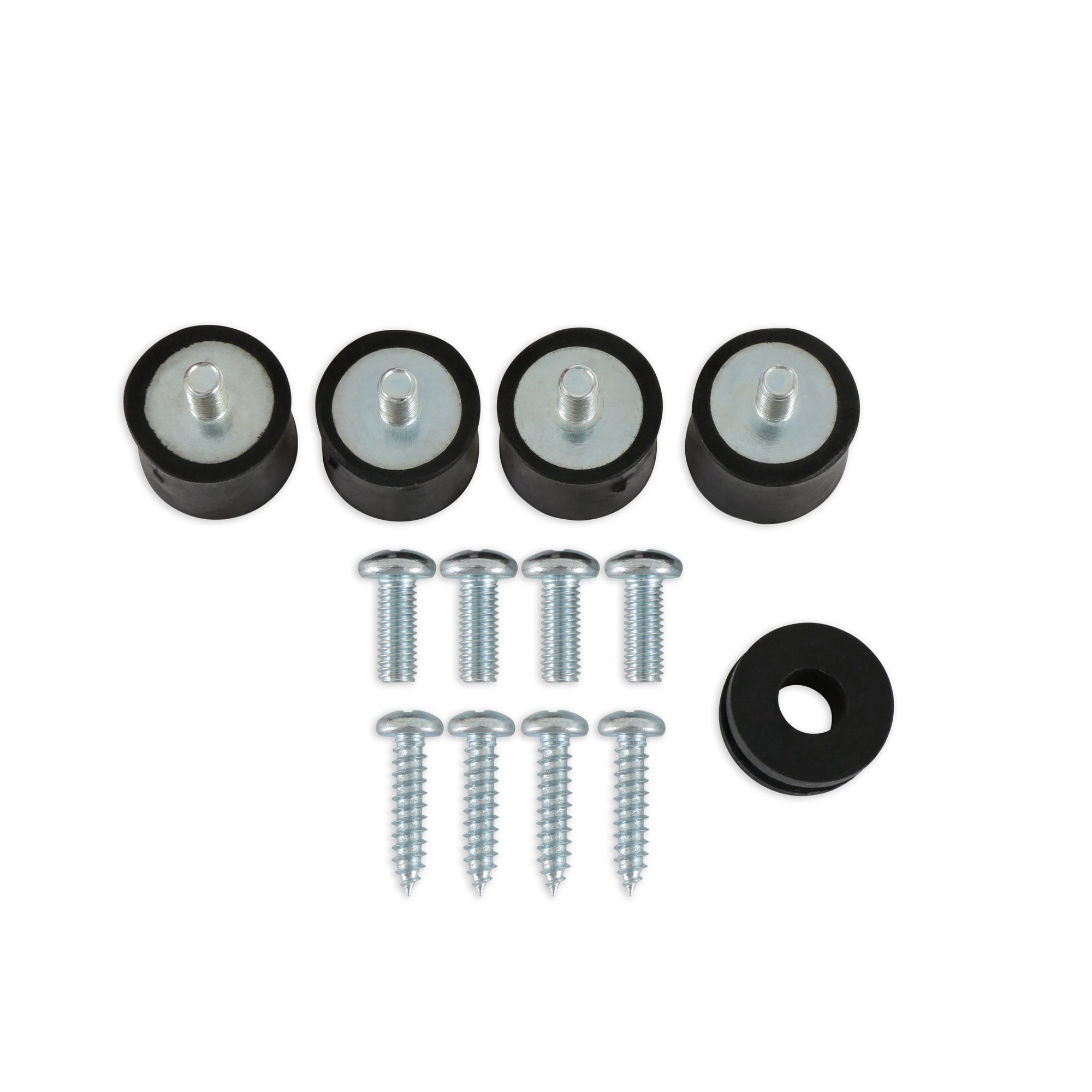

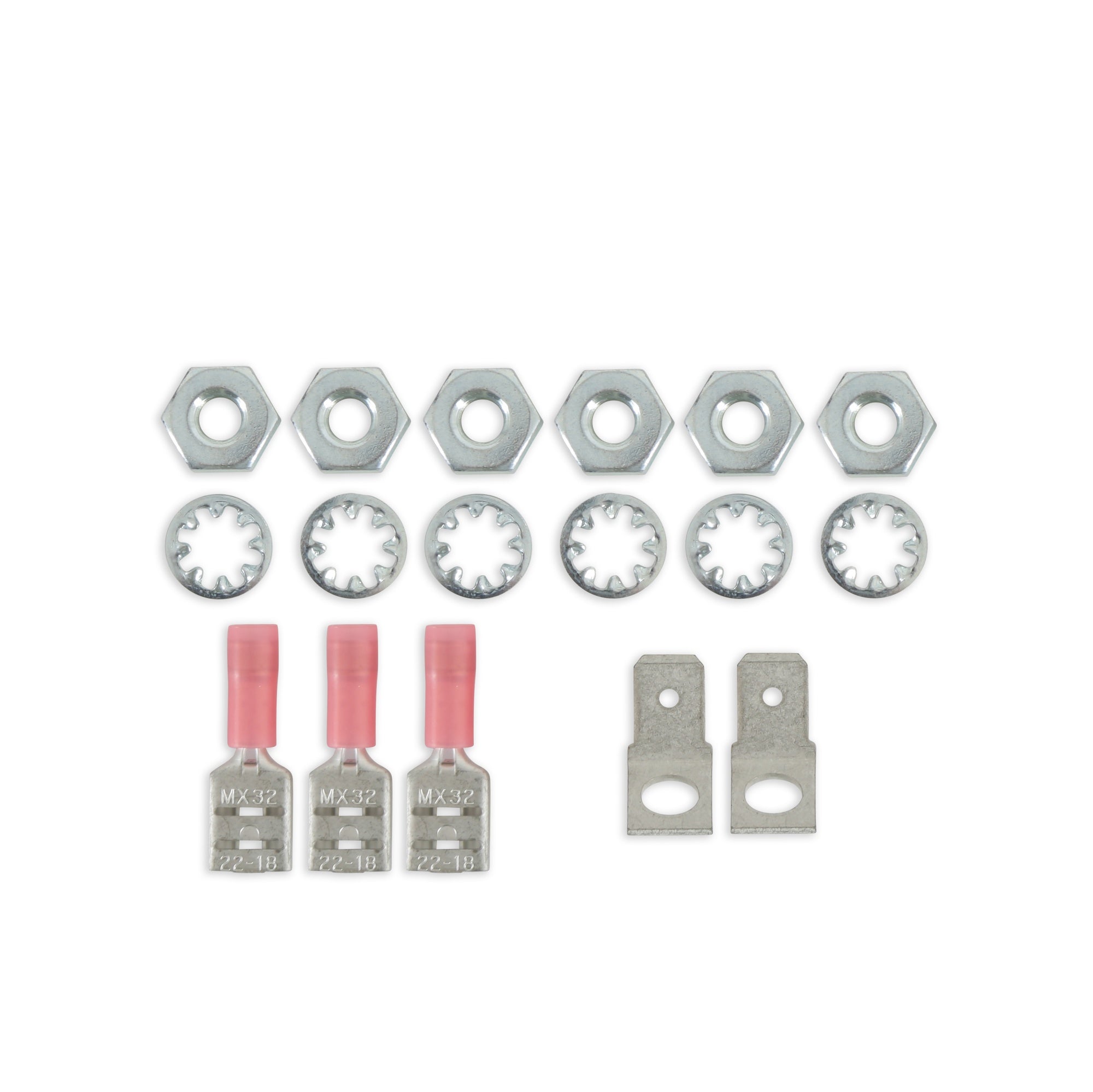

Mounting Hardware Included
Yes
Primary Voltage
470 Volts
Product Type
Ignition Box
RPM Range
15
Spark Energy
110mJ/spark
Sub Category
Control Modules
Terminal Gender
Male Female
Terminal Quantity
9
Voltage Required
12 to 18 Volts
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Width
9.8
📦
Package Contents

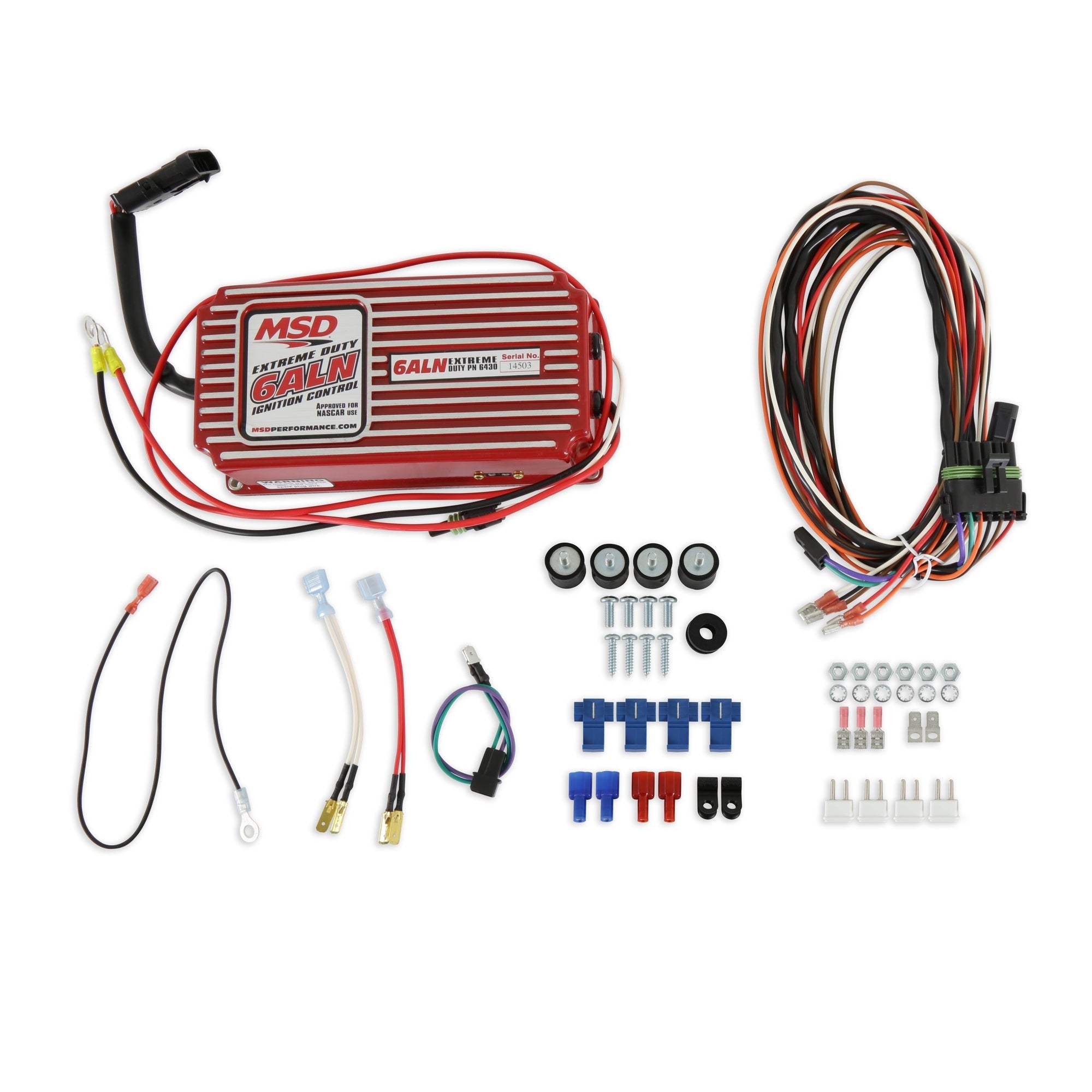

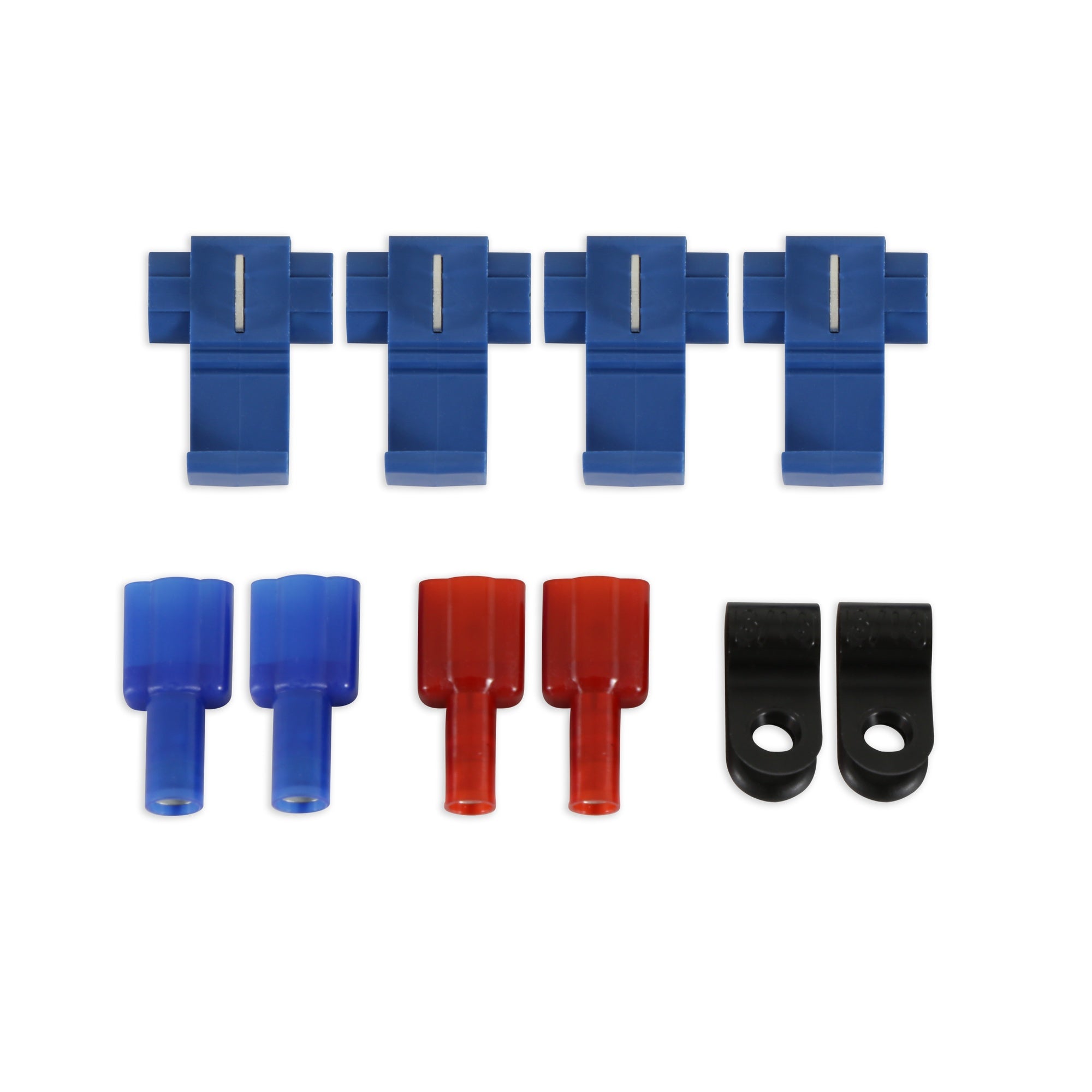

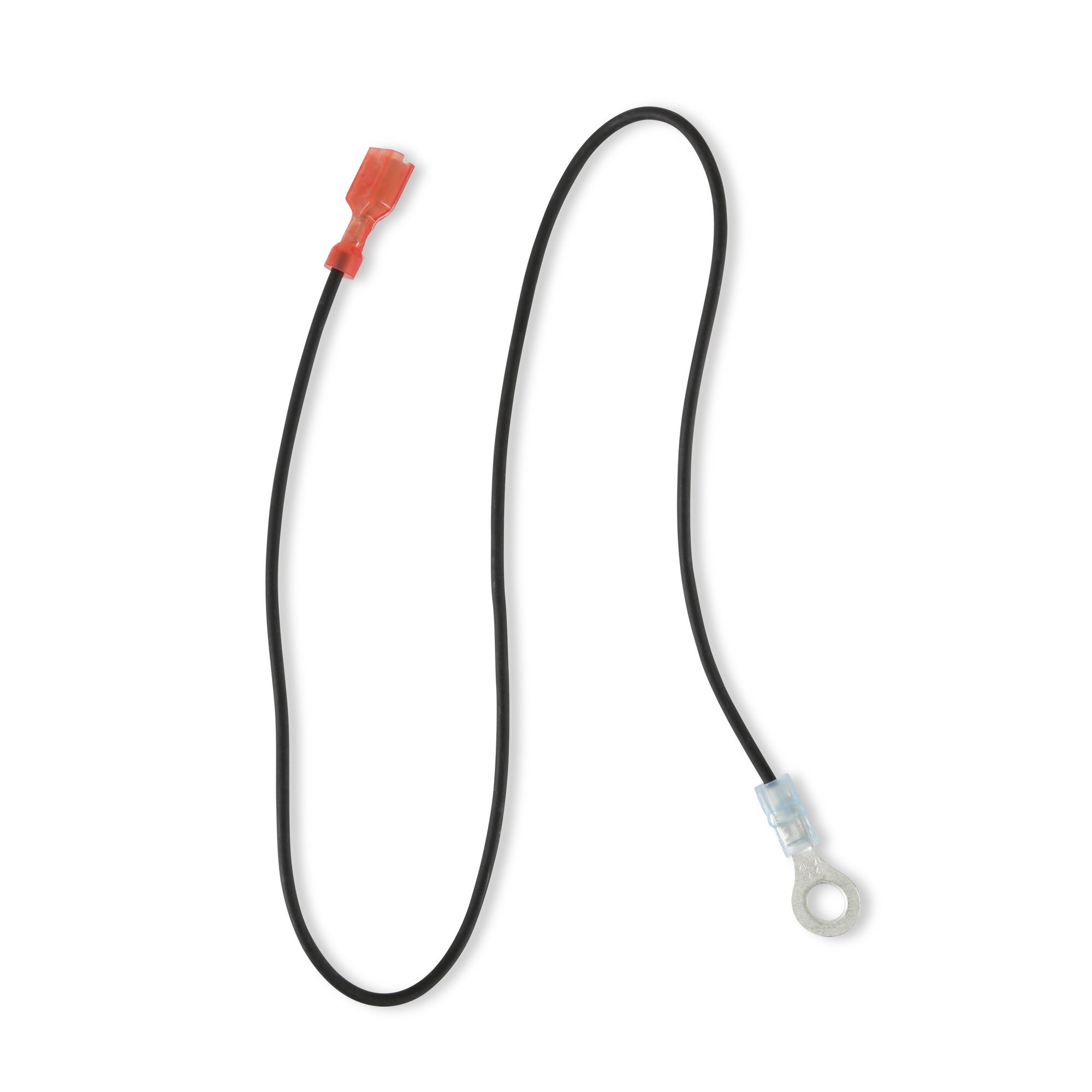

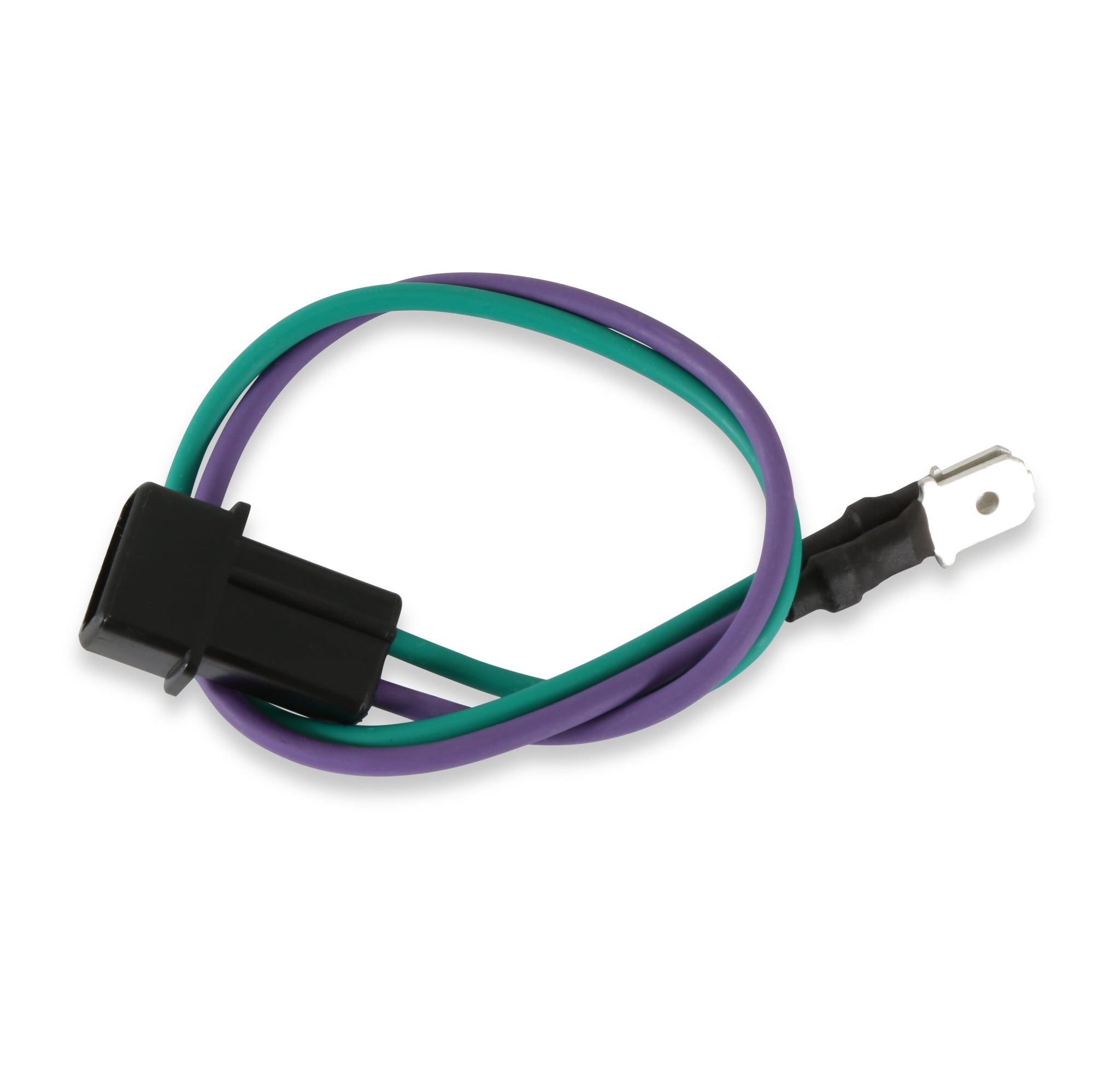

Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
