Fits MSD Digital 6 Off Road Ignition - MSD Digital 6 Offroad Ignition.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

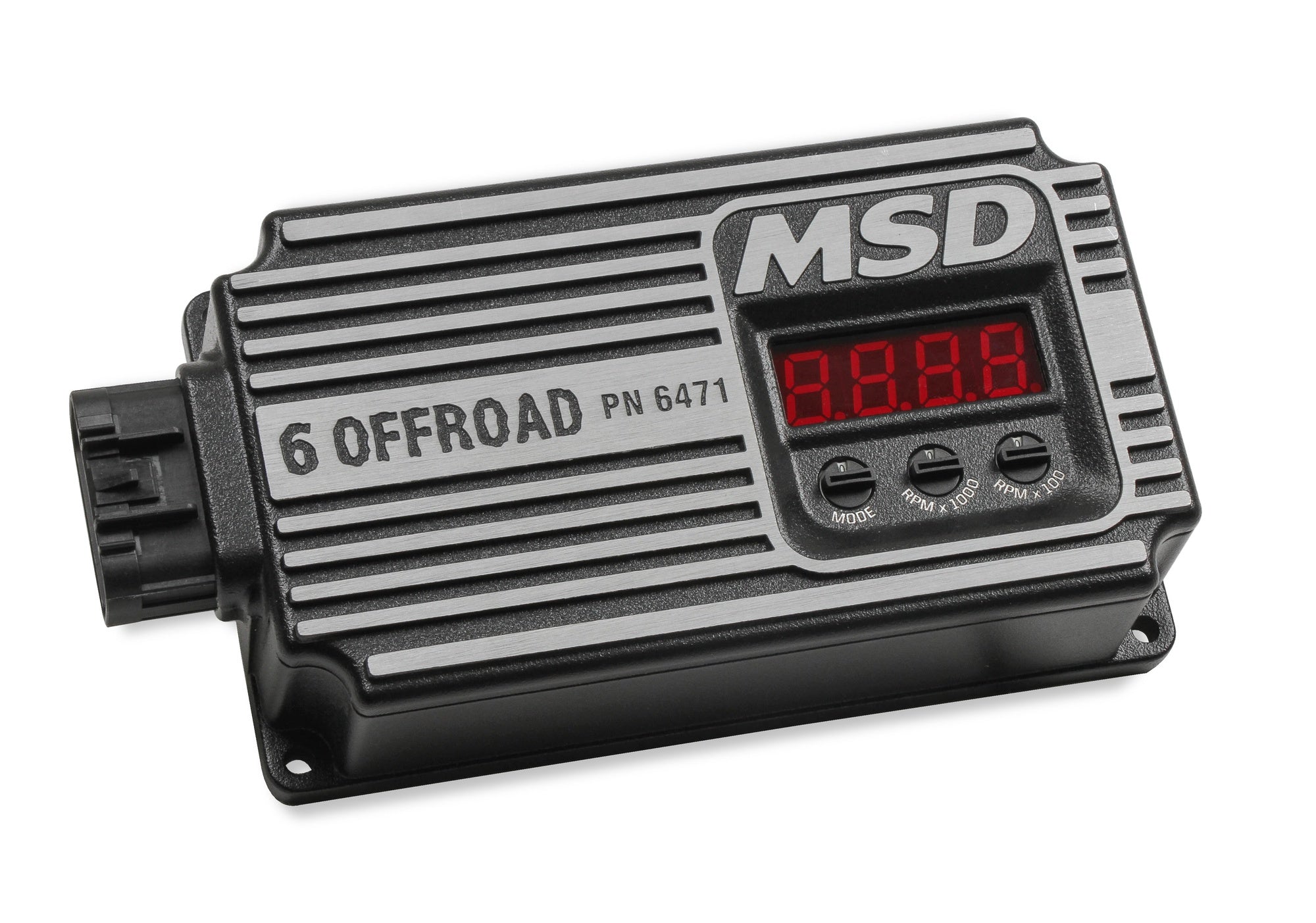

MSD Digital 6 Offroad Ignition
If you're crawling rocks, high speed desert racing, or playing in any kind of harsh terrain in your offroad rig, the MSD 6 Offorad ignition is a must. Its fully potted design provides the ruggedness and reliability needed to get your 4WD to any destination.
The 6 Offroad multi-sparks below 3,000 RPM on V8's ensuring clean, crisp throttle response and complete fuel burn when crawling at low speeds. Above 3,000 RPM a powerful capacitive discharge spark keeps the fire lit until you let off the skinny pedal. A smooth, accurate rev-limiter will protect your engine from over-rev damage due to drivetrain failure or a slick spot on the trail.

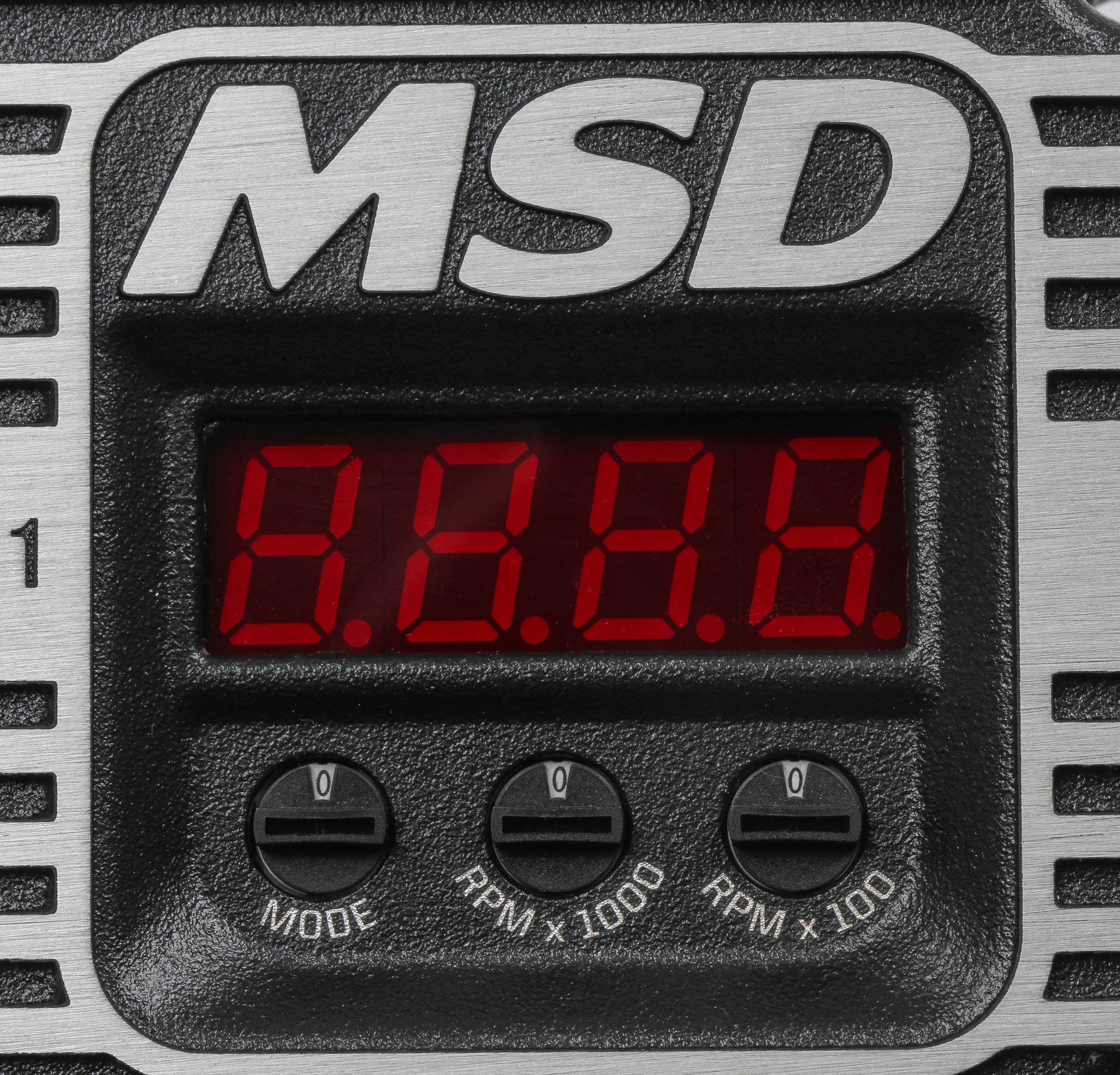

An easy to read LED display on the face of the unit clearly displays the rev-limit RPM. The display, in conjunction with rotary dials, is used to set the rev-limit, cylinder select, and even a timing start retard for race engines. The handy display can also show a live tach reading and even battery voltage with the quick turn of a knob.
If you're crawling rocks, high speed desert racing, or playing in any kind of harsh terrain in your offroad rig, the MSD 6 Offorad ignition is a must. Its fully potted design provides the ruggedness and reliability needed to get your 4WD to any destination.
The 6 Offroad multi-sparks below 3,000 RPM on V8's ensuring clean, crisp throttle response and complete fuel burn when crawling at low speeds. Above 3,000 RPM a powerful capacitive discharge spark keeps the fire lit until you let off the skinny pedal. A smooth, accurate rev-limiter will protect your engine from over-rev damage due to drivetrain failure or a slick spot on the trail.
An easy to read LED display on the face of the unit clearly displays the rev-limit RPM. The display, in conjunction with rotary dials, is used to set the rev-limit, cylinder select, and even a timing start retard for race engines. The handy display can also show a live tach reading and even battery voltage with the quick turn of a knob.
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Brand
MSD
Category
Ignition
Color
Black
Connector Gender
Female
Connector Quantity
1
Current Draw
0.8 Amps per 1
Emission Code
3
Features
Start Retard
Grade Type
Performance
Height
1.87
Ignition Type
Performance
Length
7.89
Mount Type
Surface Mount
Mounting Hardware Included
Yes
Primary Voltage
535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
Product Type
Digital 6 Offroad Ignition Box
RPM Range
12
Secondary Voltage
45
Spark Energy
135mJ w/ Blaster Coil / 150mJ w/ HVC Coil PN 8250
Spark Series Duration
20° Crankshaft Rotation
Sub Category
Control Modules
Terminal Gender
Male
Terminal Quantity
12
Voltage Required
6 to 18 Volts
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight and Size
2.5 lbs.
Width
4
📦

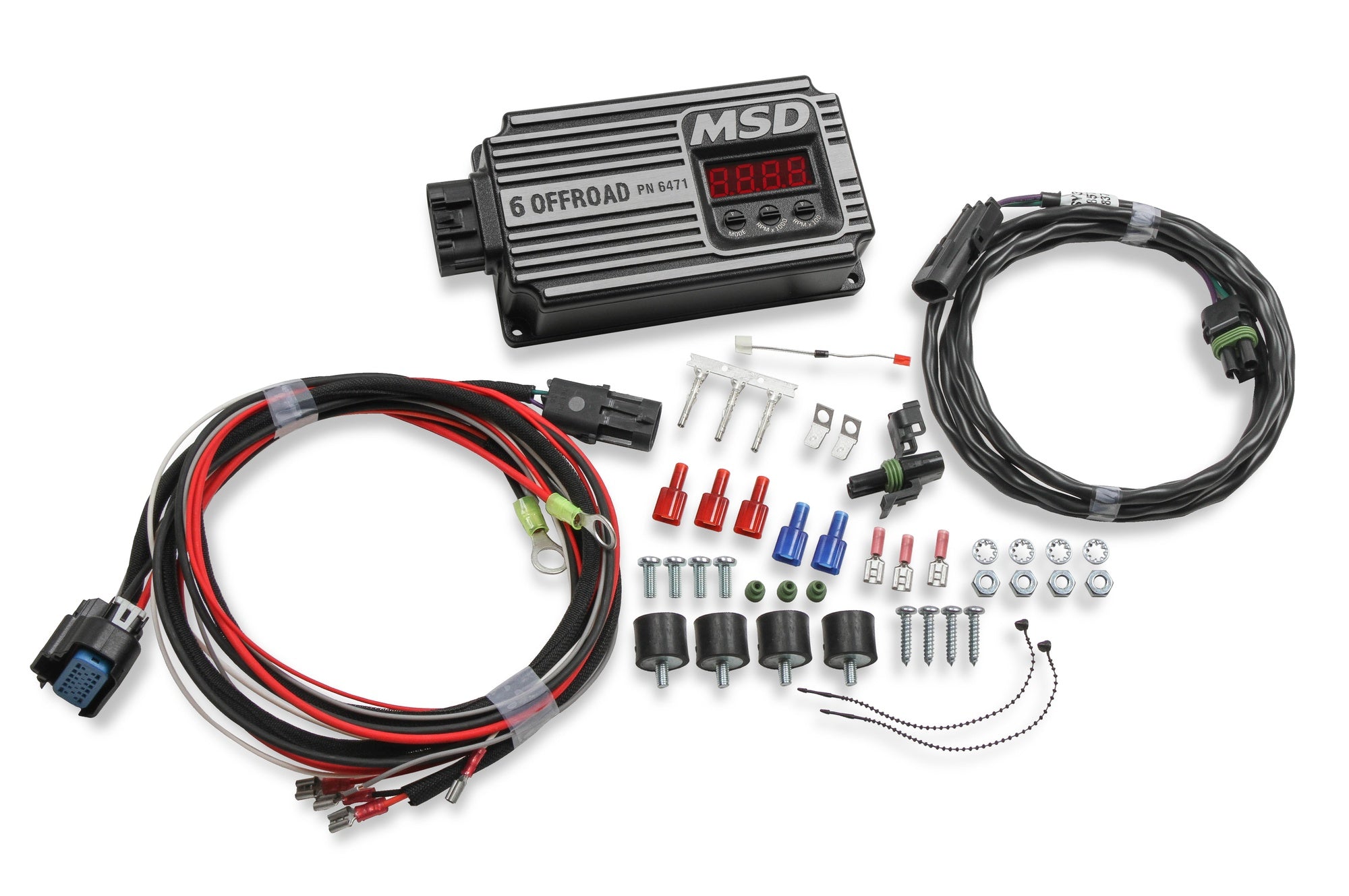

Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
