MSD
Product Details
🔧
Vehicle Compatibility
Fits Digital 6-Plus Ign.Control,Microprocesso - MSD Digital 6-Plus Ignition Control.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

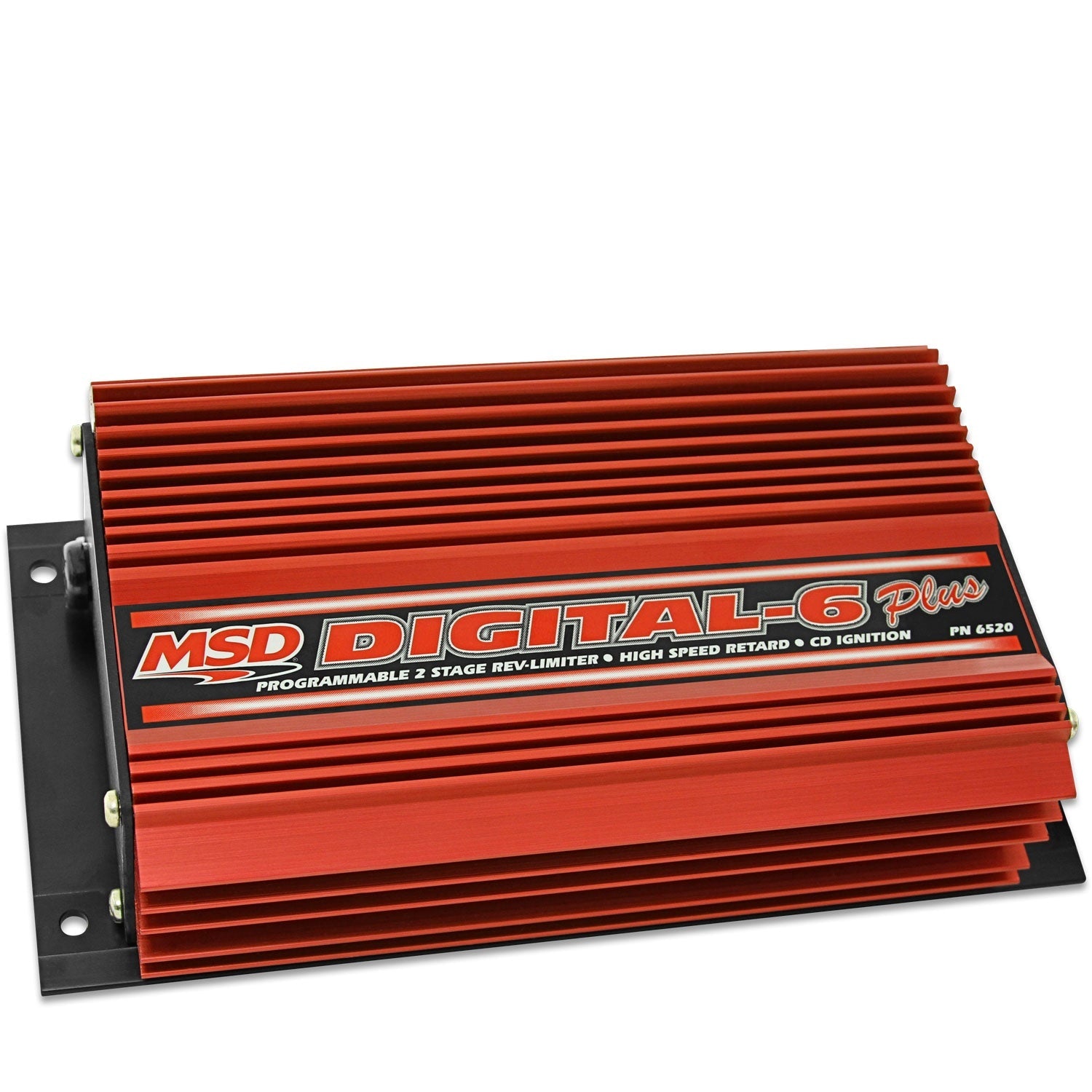

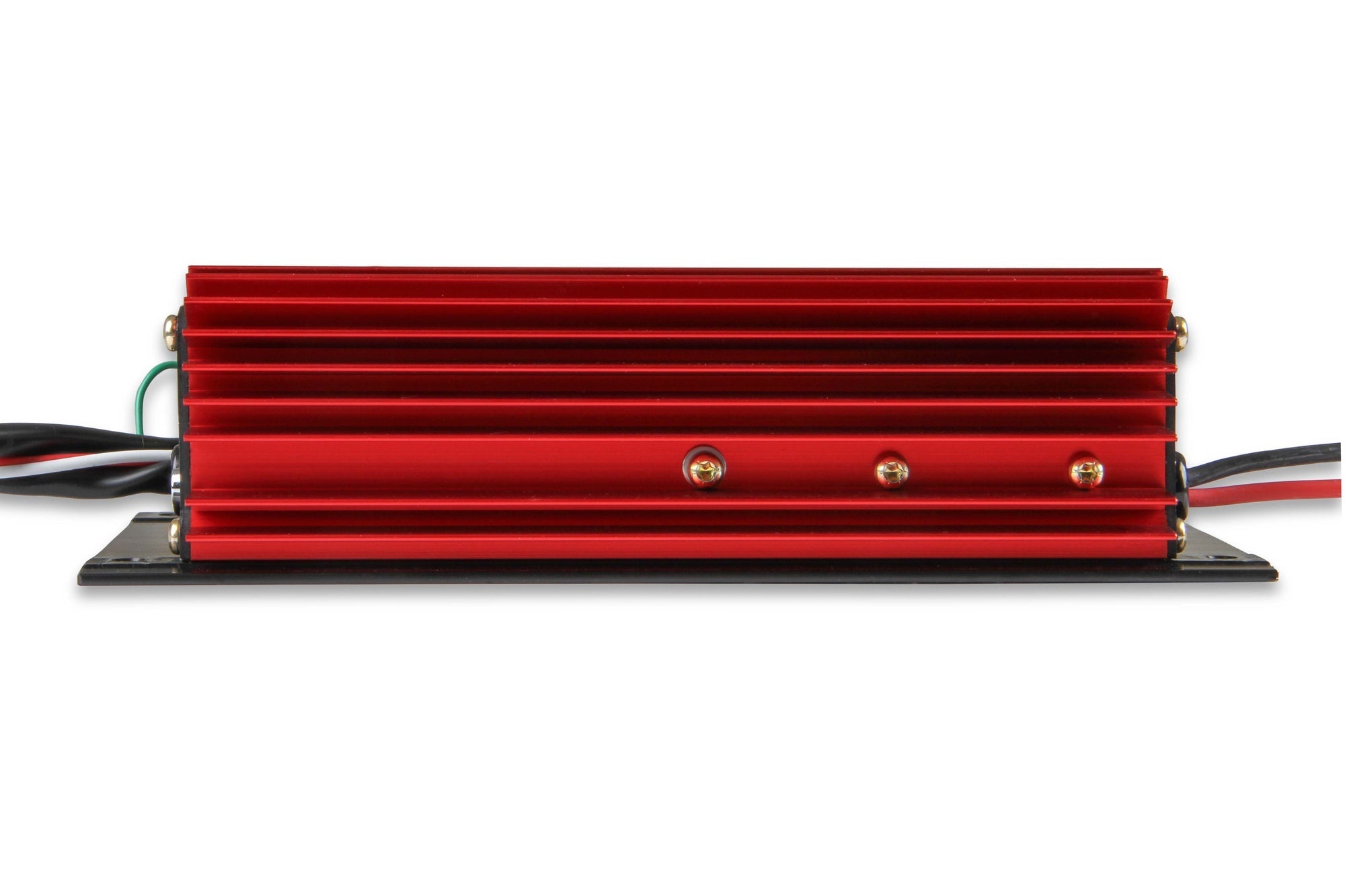

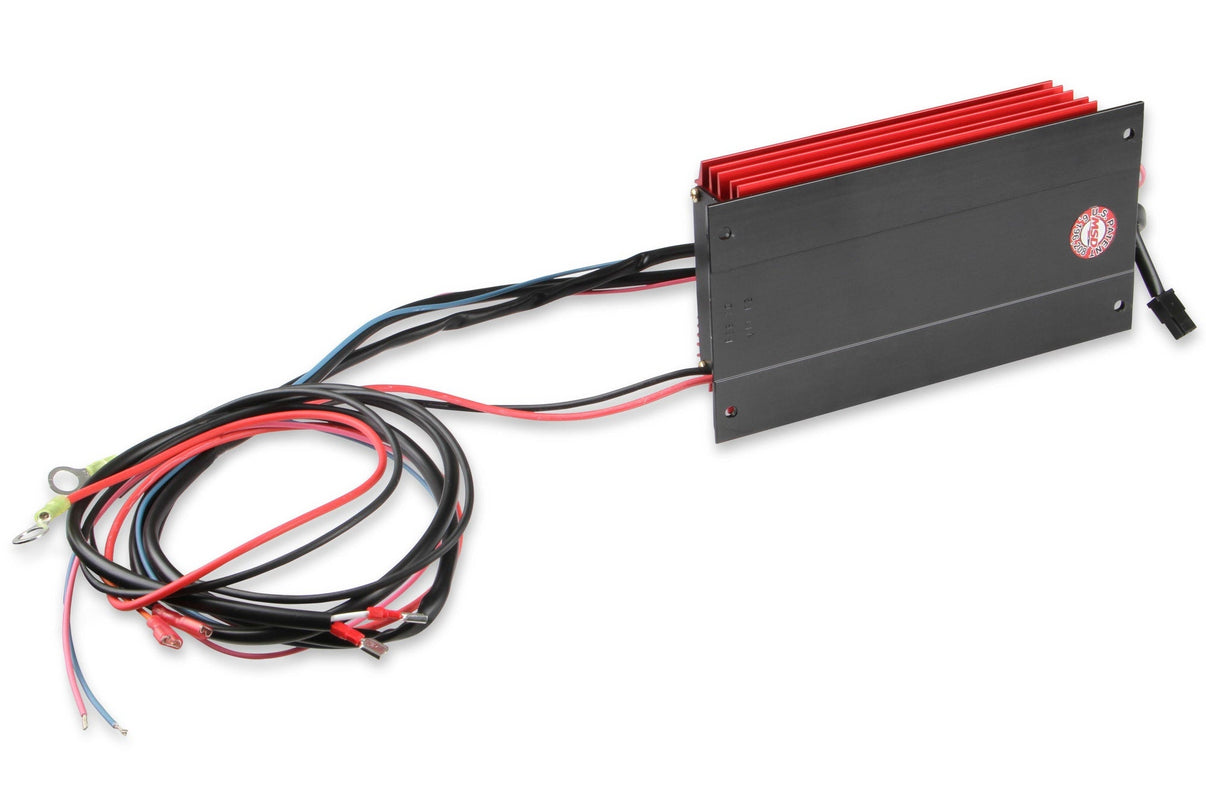

MSD Digital 6-Plus Ignition Control
The MSD Digital-6 Plus Ignition Control combines terrific power, digital accuracy, and great accessories making it ideal for street/strip applications.
Every spark of the Digital-6 Plus Ignition is packed with 135 millijoules of spark energy and 535 primary volts.
For nitrous-equipped cars, the Digital-6 Plus offers a step retard that will retard the timing when the nitrous is activated. There is also a 2-step rev limiter for holeshot consistency and overrev protection.
The Digital-6 Plus accepts points, amplifier, and mag pickup inputs and will run on 4, 6, or 8 cylinder engines.
The MSD Digital 6 Plus uses a high-speed RISC microcontroller to control the ignition's output while constantly analyzing the various inputs such as supply voltage, trigger signals, and rpm. The high-speed controller can make extremely quick compensations to the output voltage, multiple spark series, timing, and rpm limits while maintaining accurate timing signals to within 1° and 1% of the rpm limits. The circuits and controller of the Digital 6 Plus have been thoroughly debounced and isolated to create protection against Electro-Magnetic Interference (EMI).
The MSD Digital-6 Plus Ignition Control combines terrific power, digital accuracy, and great accessories making it ideal for street/strip applications.
Every spark of the Digital-6 Plus Ignition is packed with 135 millijoules of spark energy and 535 primary volts.
For nitrous-equipped cars, the Digital-6 Plus offers a step retard that will retard the timing when the nitrous is activated. There is also a 2-step rev limiter for holeshot consistency and overrev protection.
The Digital-6 Plus accepts points, amplifier, and mag pickup inputs and will run on 4, 6, or 8 cylinder engines.
The MSD Digital 6 Plus uses a high-speed RISC microcontroller to control the ignition's output while constantly analyzing the various inputs such as supply voltage, trigger signals, and rpm. The high-speed controller can make extremely quick compensations to the output voltage, multiple spark series, timing, and rpm limits while maintaining accurate timing signals to within 1° and 1% of the rpm limits. The circuits and controller of the Digital 6 Plus have been thoroughly debounced and isolated to create protection against Electro-Magnetic Interference (EMI).
📋
Product Specifications
Brand
MSD
Category
Ignition
Color
Red
Connector Gender
Male Female
Connector Quantity
1
Current Draw
.7 Amp per 1
Emission Code
1
Grade Type
Performance
Height
2.2
Ignition Type
Performance
Length
8.5
Mount Type
Surface Mount
Mounting Hardware Included
Yes
Primary Voltage
535 Volts
Product Type
Digital 6-Plus Ignition Control Box
RPM Range
12
Secondary Voltage
45
Spark Energy
135 mJ per spark
Spark Series Duration
20° Crankshaft Rotation
Sub Category
Control Modules
Terminal Gender
Male Female
Terminal Quantity
10
Voltage Required
12-18 Volts
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight and Size
3.7 lbs.
Width
4.5
📦

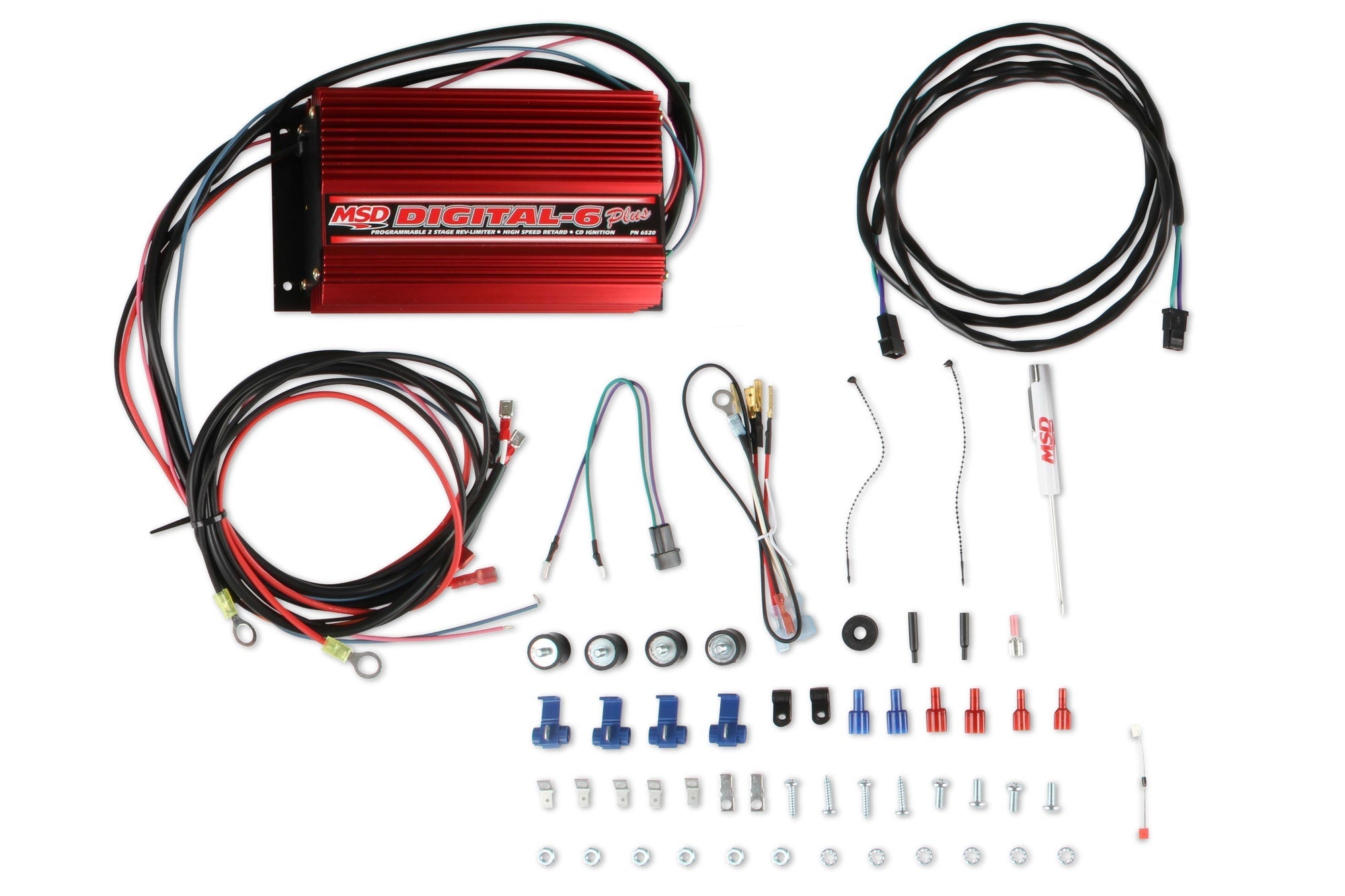

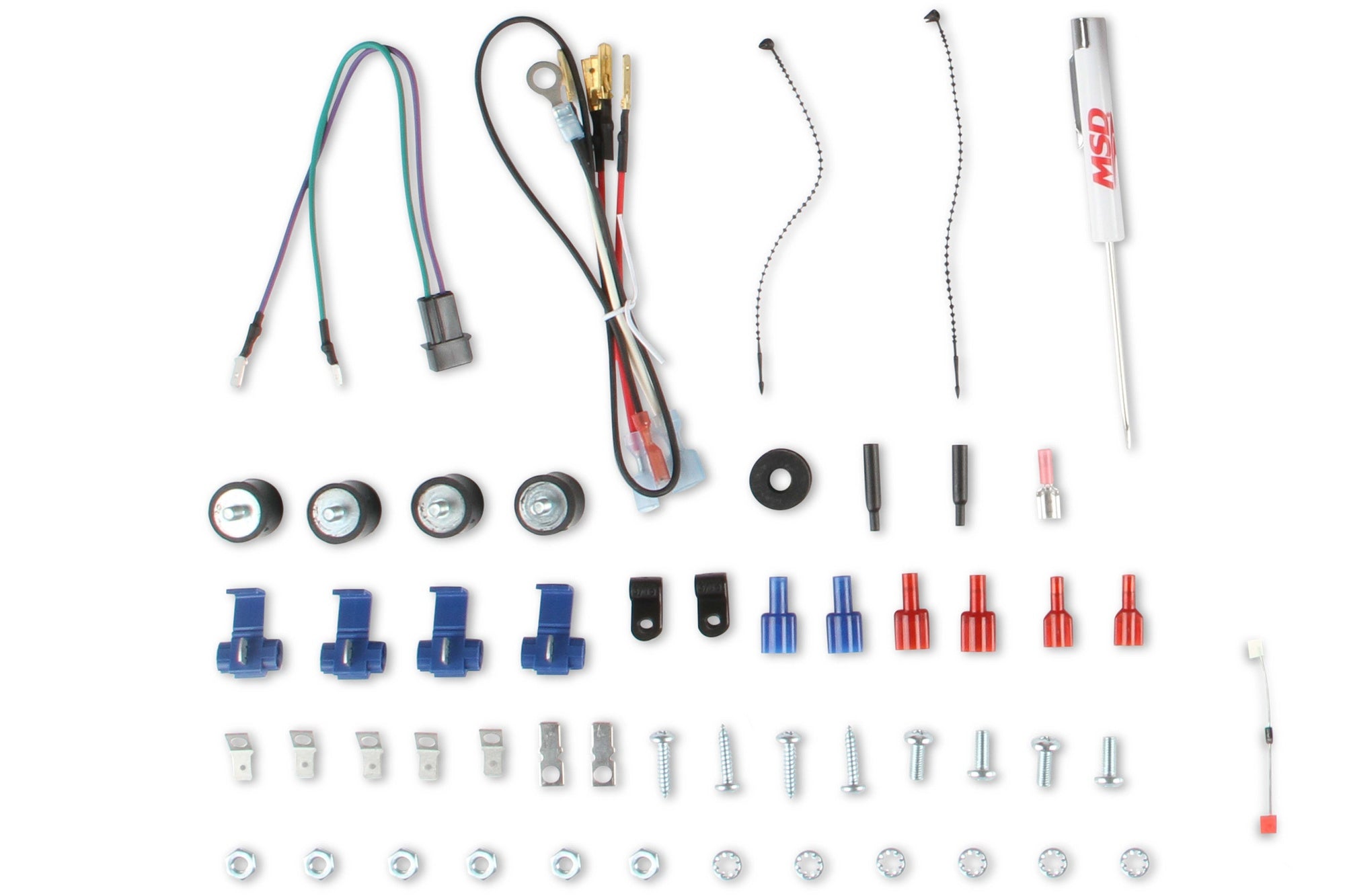

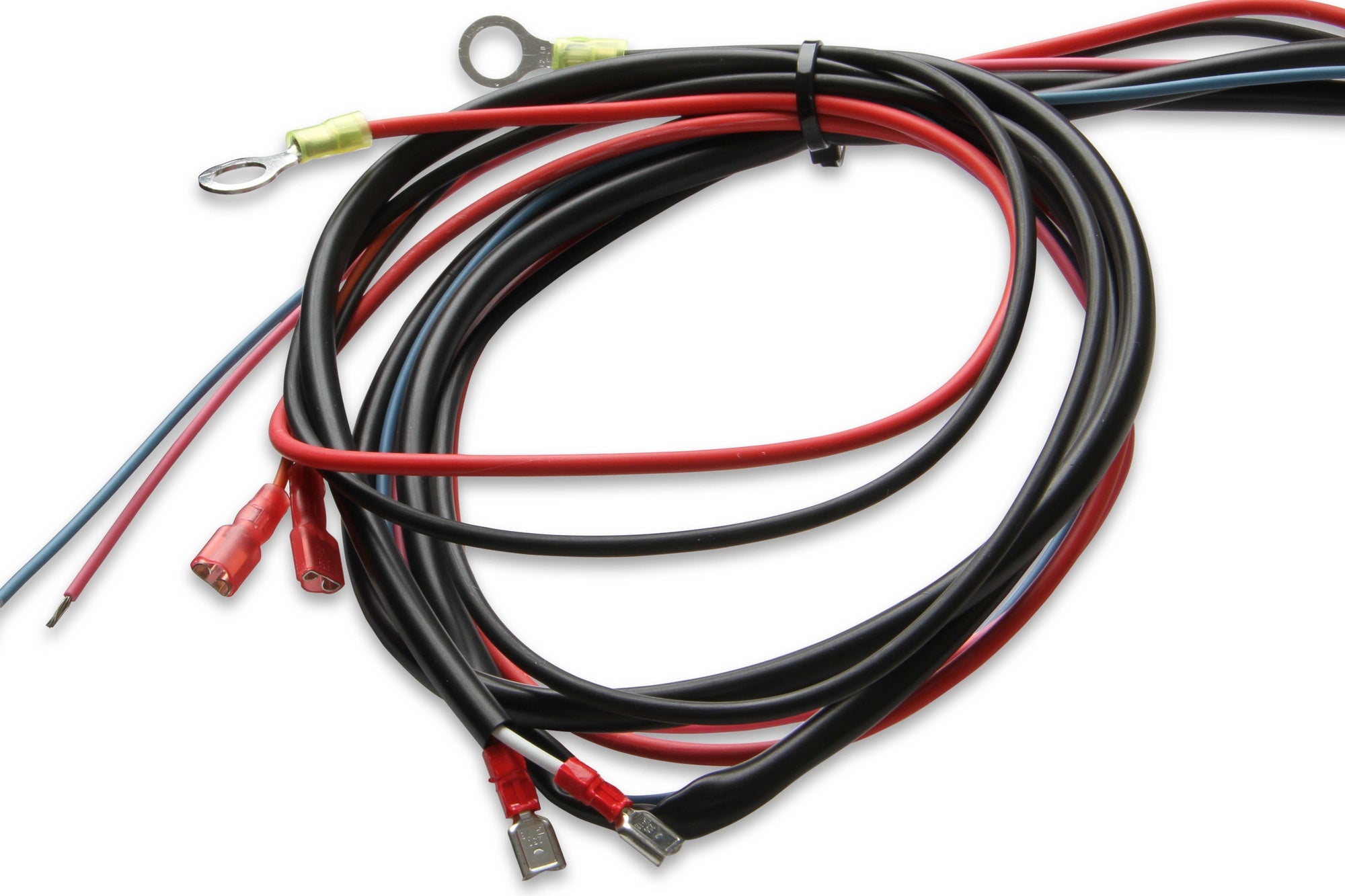

Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
