MSD 6M-2L Marine Ign w/Rev ...
Get notified when this item is back in stock
Press & drag to view
MSD
Product Details
🔧
Vehicle Compatibility
Fits MSD 6M-2L Marine Ign w/Rev Limit Certif - MSD 6M-2L Marine Certified Ignition with Rev Limit.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

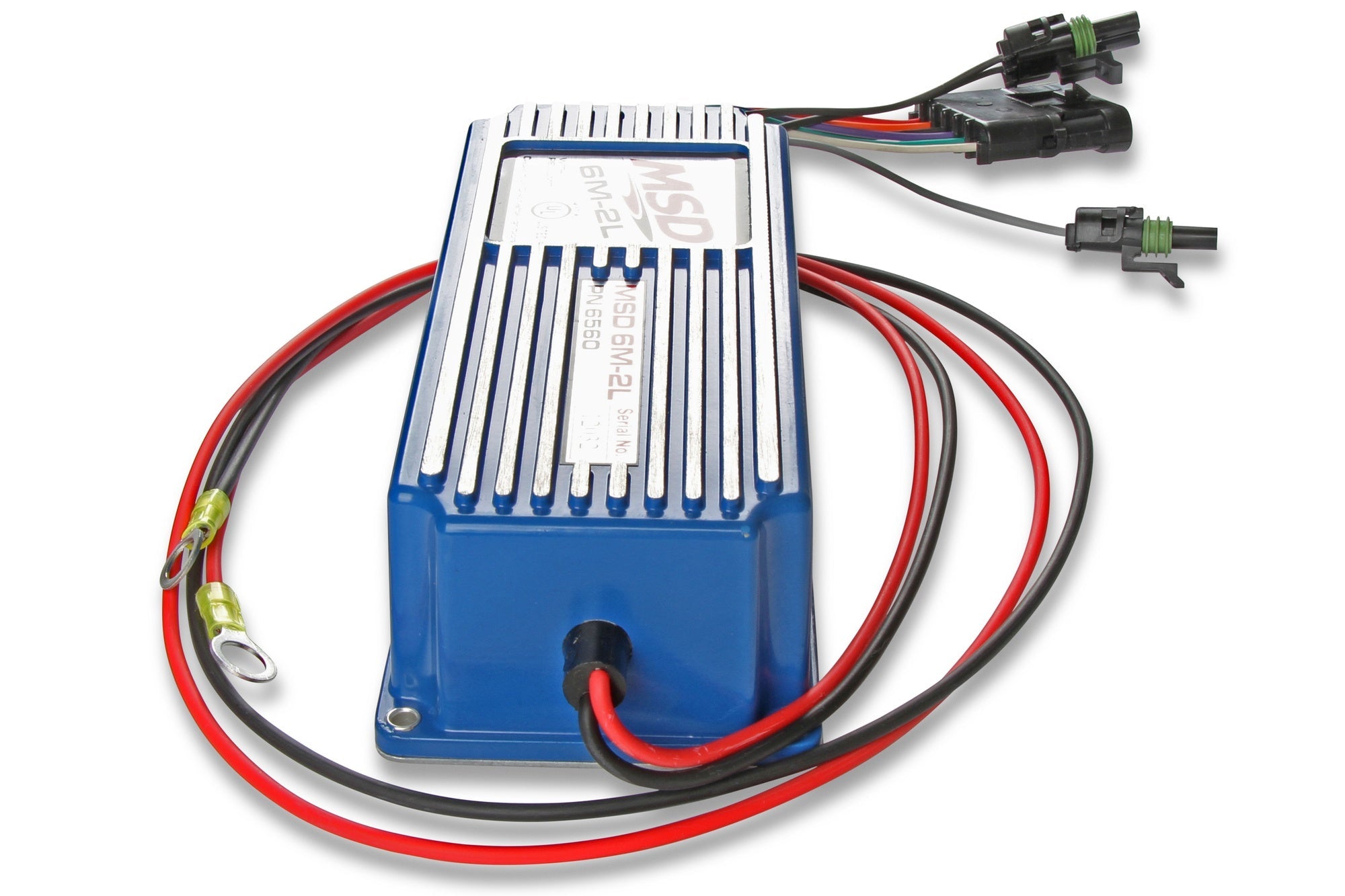

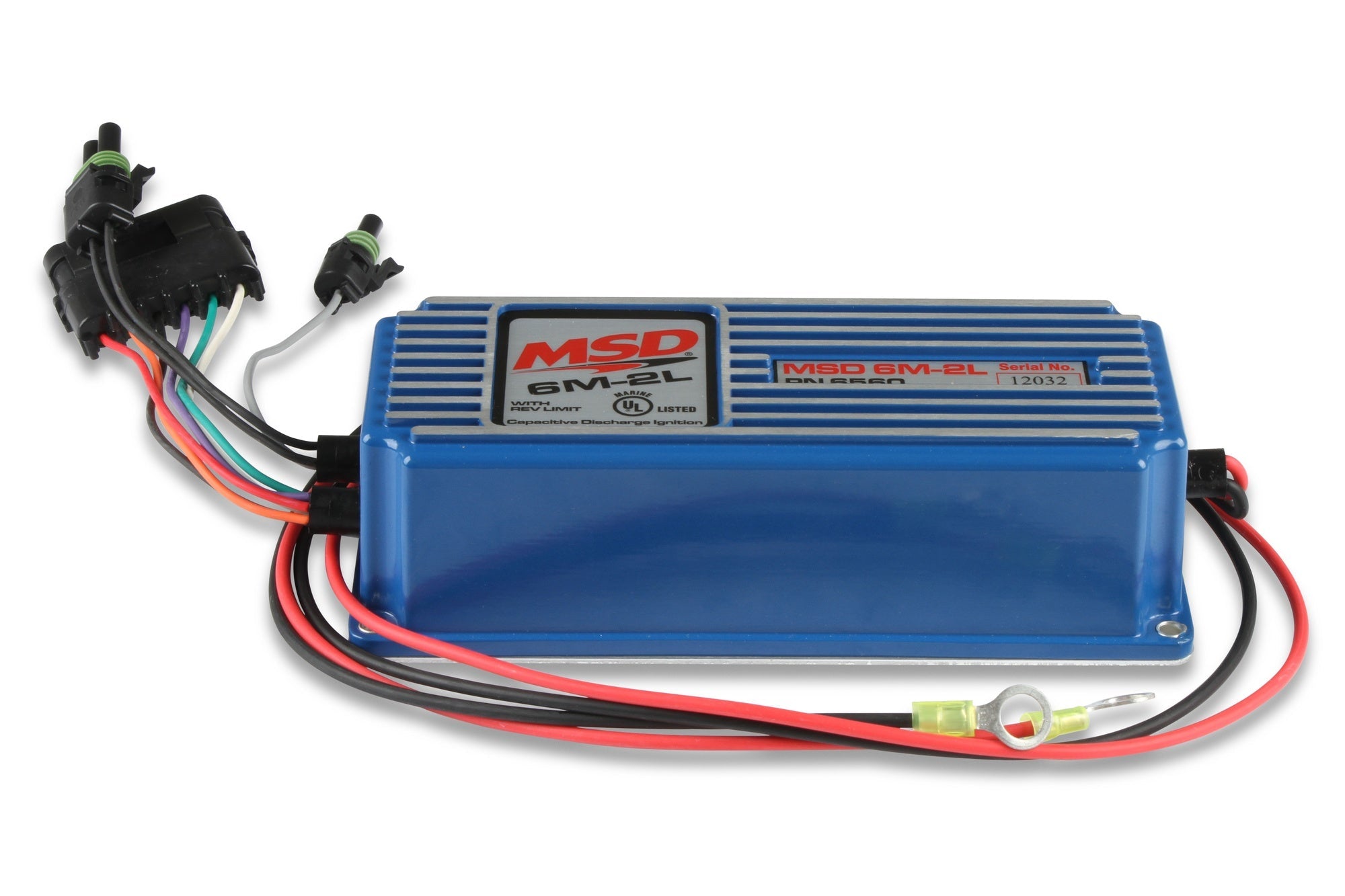

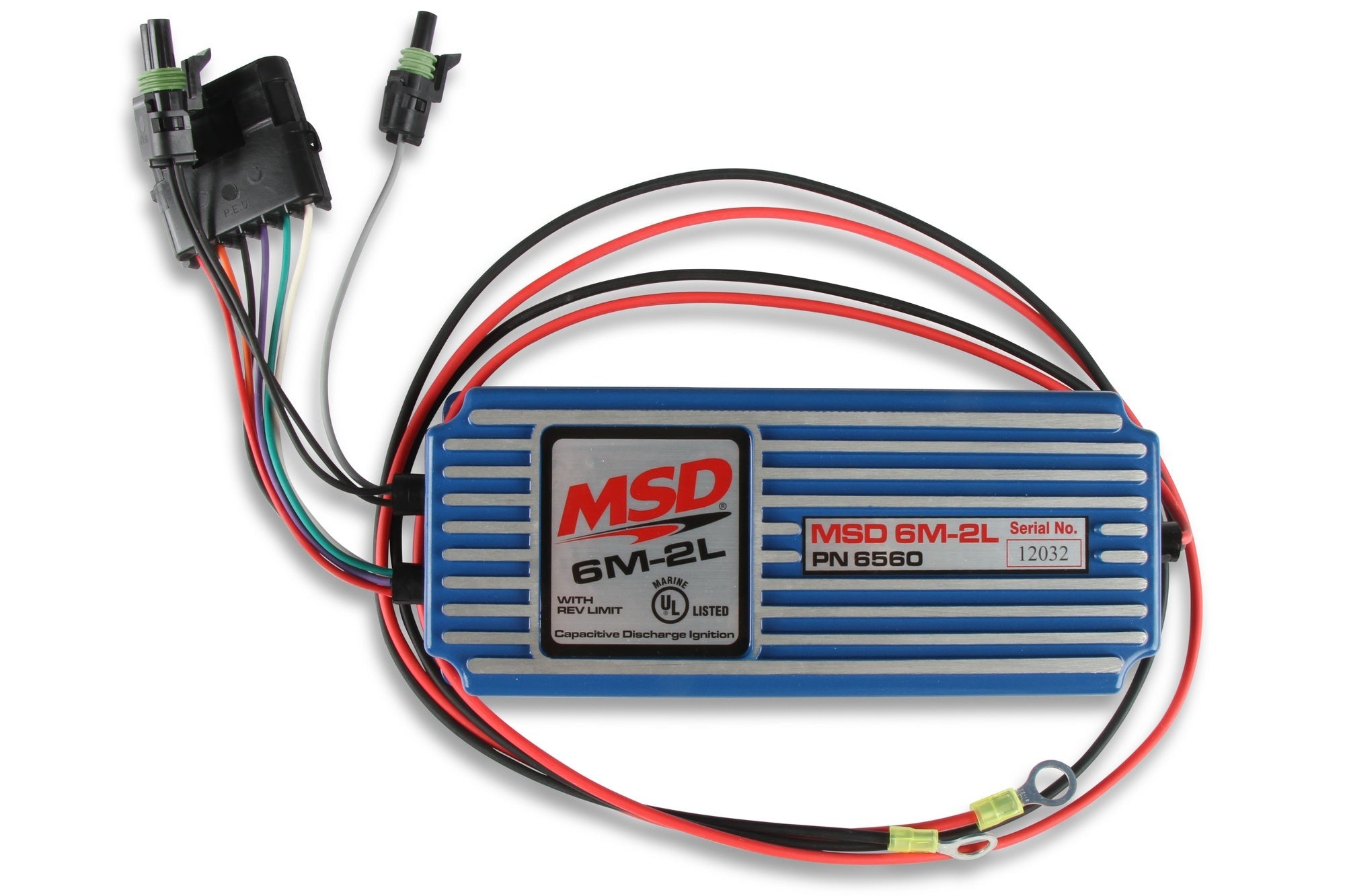

MSD 6M-2L Marine Certified Ignition with Rev Limit
The MSD 6M-2L Ignition Control is designed for performance marine applications where a high energy and reliable ignition is a necessity. The capacitive discharge (CD) design of the MSD produces full power sparks throughout your boat's entire rpm range. Below 3,000 rpm, a series of multiple sparks burn in the cylinder for 20° of crankshaft rotation ensuring complete combustion. Together, these sparks produce easier starting, great throttle response, more power and reduced plug fouling during idling. Weathertight connectors securely lock together to provide reliable connections that are unaffected by water, oil, gasoline and most other chemicals associated with boats. The 6M-2L's electrical circuitry from marine conditions, the entire unit is potted with a polyurethane compound. This material prevents the electrical components from coming into contact with water or other chemicals. The 6M-2L also features a built-in Soft Touch Rev Control that will save your engine from overrev damage. The rpm limit is set with sealed rpm modules (see below). The 6M-2L can be triggered by either a magnetic pickup (distributor or crank trigger), amplifier or by a breaker point distributor. The cable harness has the proper connector so you can plug the 6M-2L into one of the Pro-Billet MSD Marine distributors.
The MSD 6M-2L Ignition Control is designed for performance marine applications where a high energy and reliable ignition is a necessity. The capacitive discharge (CD) design of the MSD produces full power sparks throughout your boat's entire rpm range. Below 3,000 rpm, a series of multiple sparks burn in the cylinder for 20° of crankshaft rotation ensuring complete combustion. Together, these sparks produce easier starting, great throttle response, more power and reduced plug fouling during idling. Weathertight connectors securely lock together to provide reliable connections that are unaffected by water, oil, gasoline and most other chemicals associated with boats. The 6M-2L's electrical circuitry from marine conditions, the entire unit is potted with a polyurethane compound. This material prevents the electrical components from coming into contact with water or other chemicals. The 6M-2L also features a built-in Soft Touch Rev Control that will save your engine from overrev damage. The rpm limit is set with sealed rpm modules (see below). The 6M-2L can be triggered by either a magnetic pickup (distributor or crank trigger), amplifier or by a breaker point distributor. The cable harness has the proper connector so you can plug the 6M-2L into one of the Pro-Billet MSD Marine distributors.
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Brand
MSD
Category
Ignition
Color
Blue
Connector Gender
Male Female
Connector Quantity
3
Current Draw
1 Amp Per 1
Emission Code
3
Grade Type
Performance
Height
2.25
Ignition Type
Performance
Length
8
Mount Type
Surface Mount
Mounting Hardware Included
Yes
Primary Voltage
460-480 Volts
Product Type
Ignition Box
RPM Range
15
Secondary Voltage
45
Spark Energy
105-115 mJ/spark
Spark Series Duration
20 Degree Crankshaft Rotation
Sub Category
Control Modules
Terminal Gender
Male Female
Terminal Quantity
11
Voltage Required
12-18 Volts
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight and Size
3.5 lbs.
Width
3.5
📦

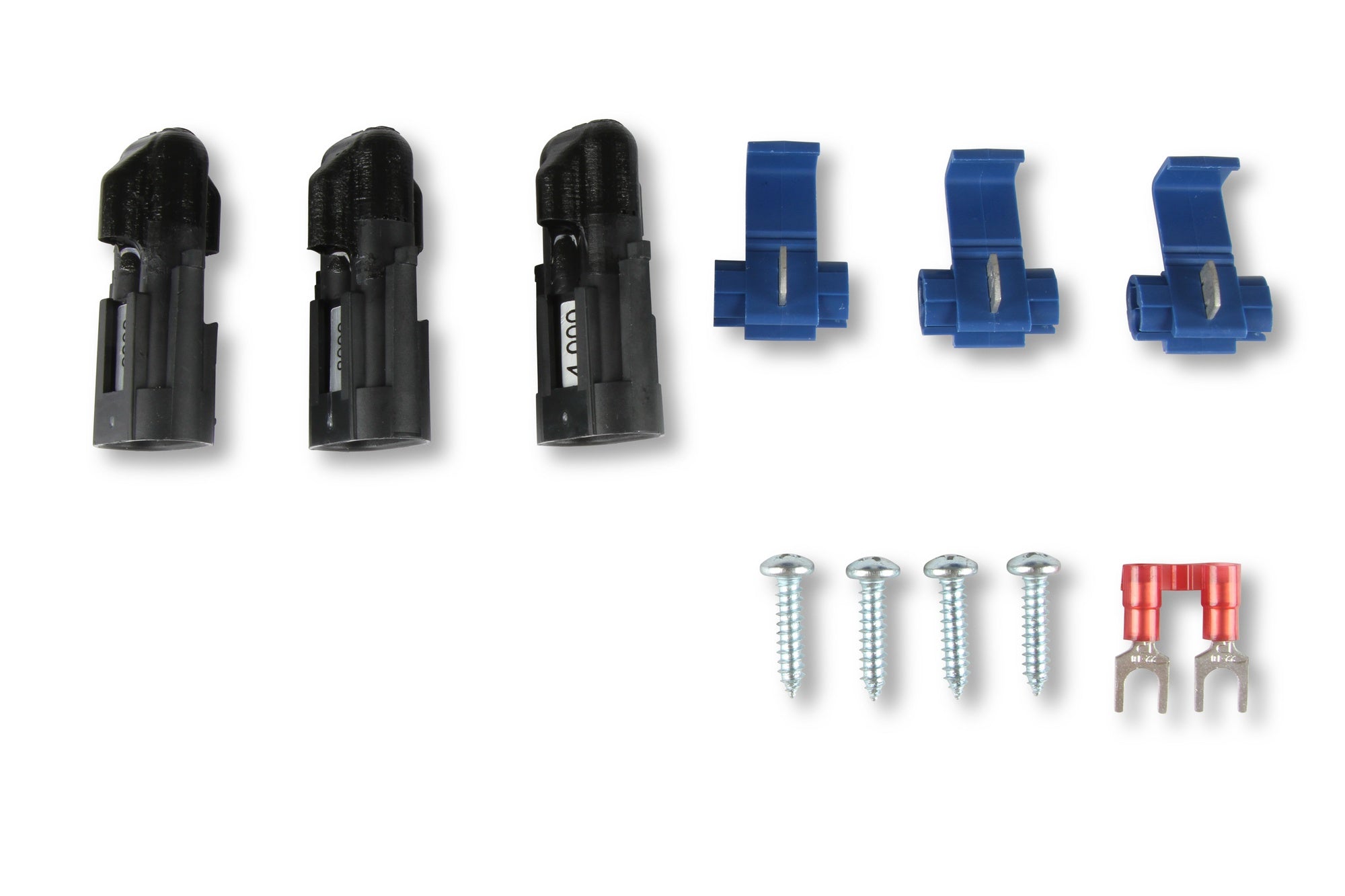

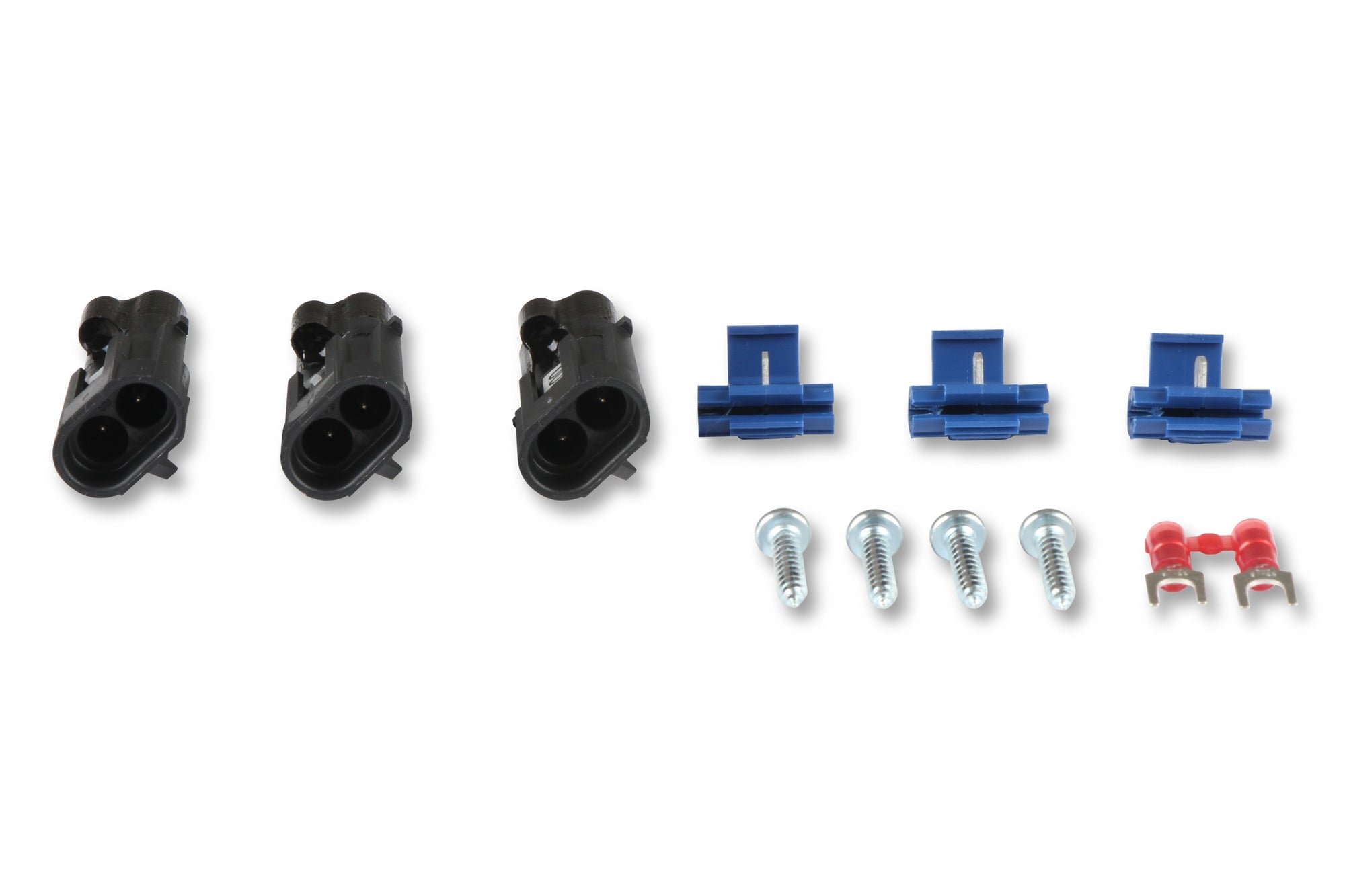

Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
