Product Details
🔧
Vehicle Compatibility
Fits Digital 6M-3L Marine Ignition - MSD Digital 6M-3L Marine Ignition.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

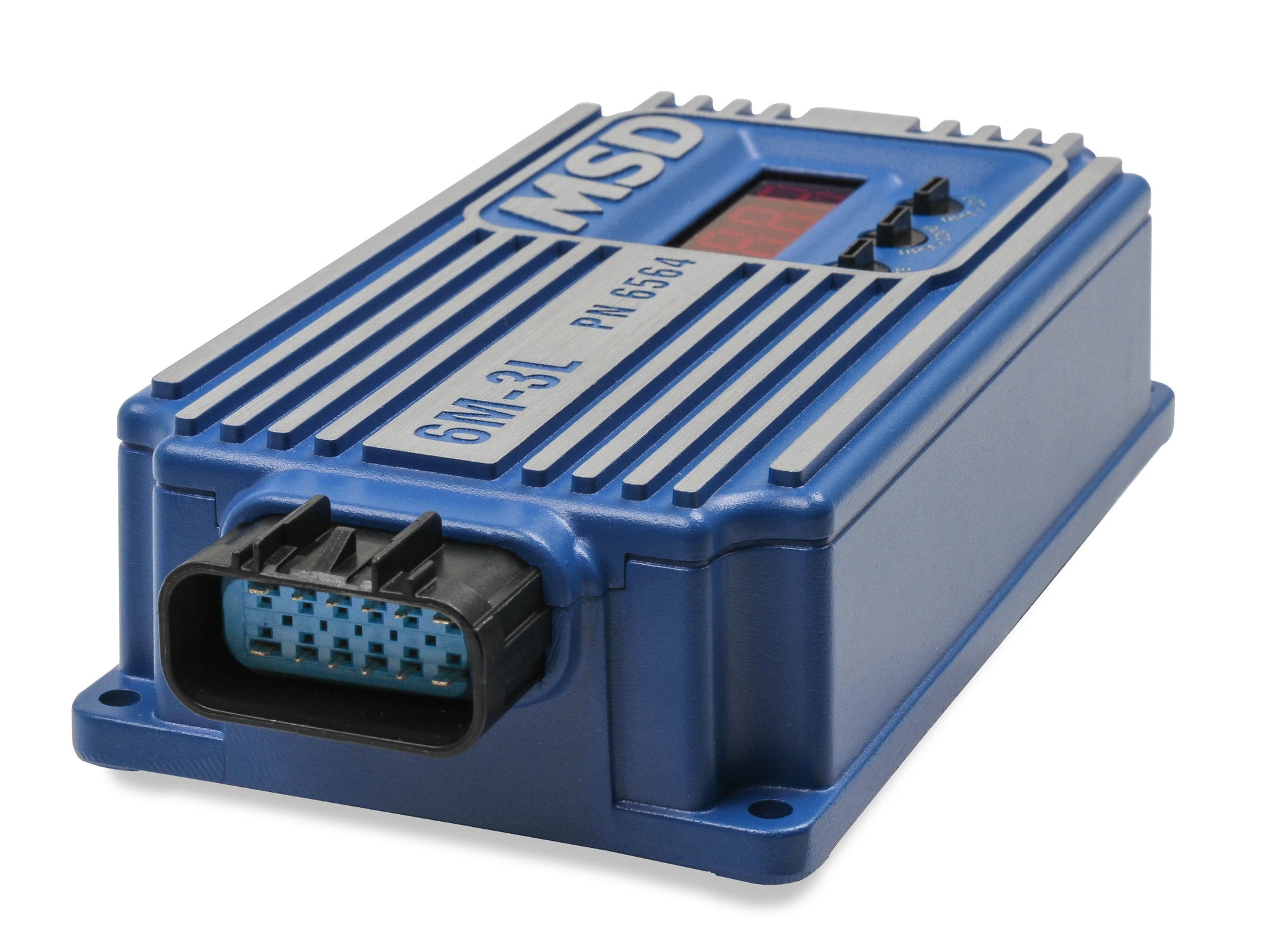

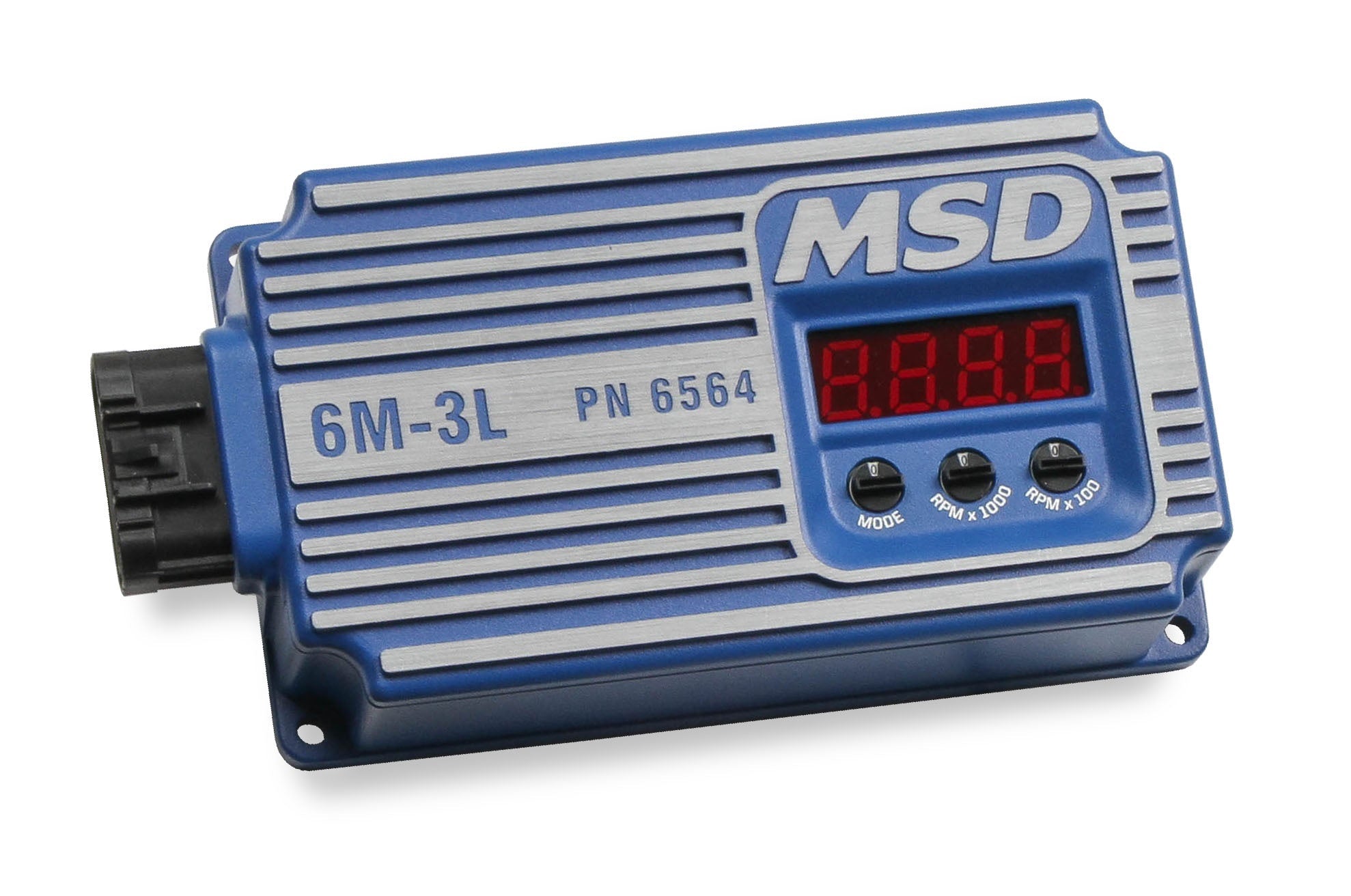

MSD Digital 6M-3L Marine Ignition
We've raised the bar and added an all-new UL listed marine ignition box to our lineup. The 6M-3L is a fully sealed unit with a single wiring connector makeing installation neat and easy.

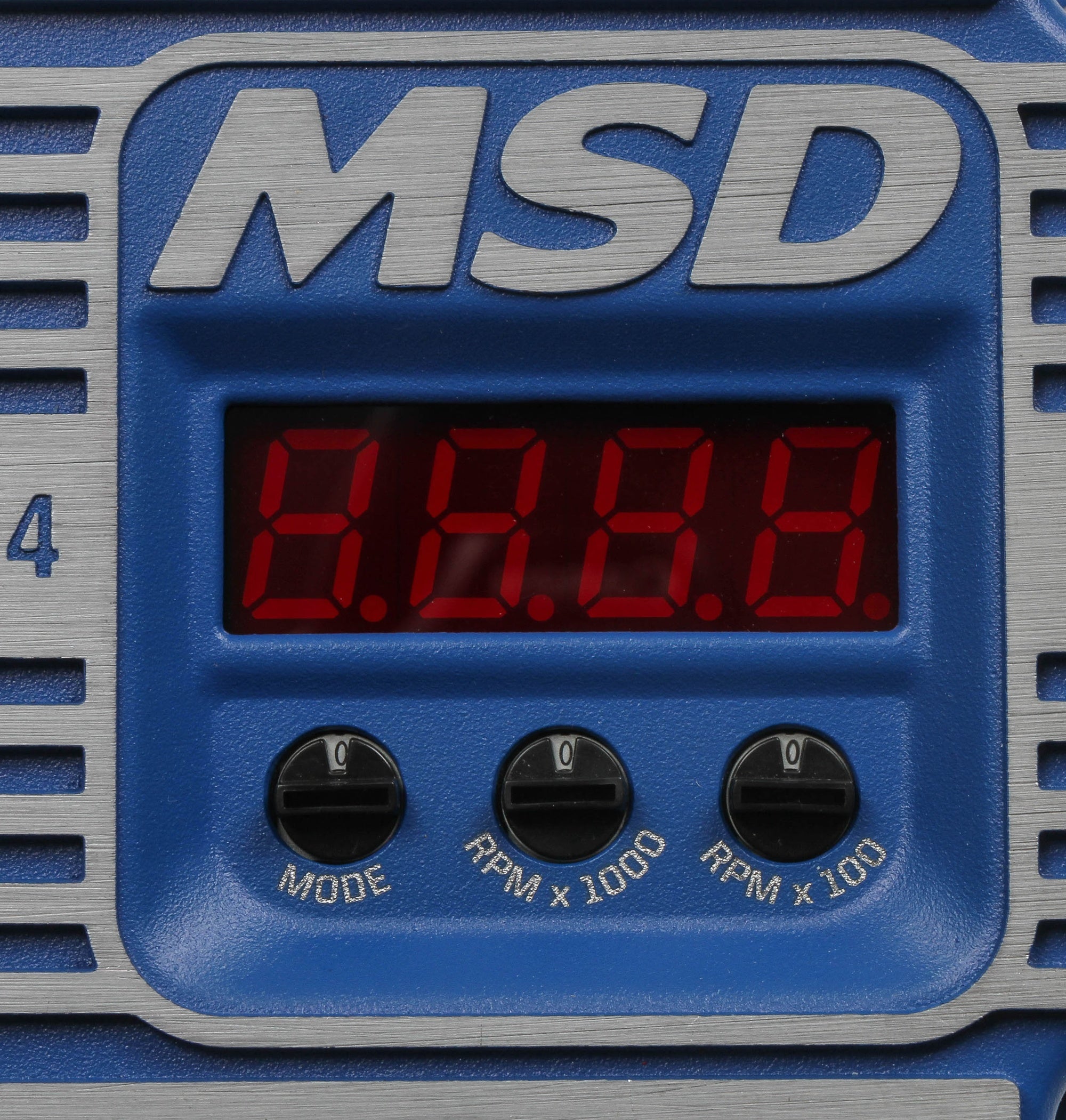

Three rotary dials and an LED display simplfy setting the cylinder select, start retard and rev limiter. Plug-in rev limiter chips and hard to read dials are a thing of the past. For diagnostic purposes, the LED display can also be set to a live tach mode on V8's and even display battery voltage with the turn of a knob.
The 6M-3L is a capacitive discharge ignition that multi-sparks from idle to 3,000 RPM providing a clean idle and quick throttle response. Above 3,000, capacitive discharge sparks will run clean through 12,000 RPM . Boasting more features and higher spark energy than its predecessor, the 6M-3L is the performance upgrade your boat needs!
We've raised the bar and added an all-new UL listed marine ignition box to our lineup. The 6M-3L is a fully sealed unit with a single wiring connector makeing installation neat and easy.
Three rotary dials and an LED display simplfy setting the cylinder select, start retard and rev limiter. Plug-in rev limiter chips and hard to read dials are a thing of the past. For diagnostic purposes, the LED display can also be set to a live tach mode on V8's and even display battery voltage with the turn of a knob.
The 6M-3L is a capacitive discharge ignition that multi-sparks from idle to 3,000 RPM providing a clean idle and quick throttle response. Above 3,000, capacitive discharge sparks will run clean through 12,000 RPM . Boasting more features and higher spark energy than its predecessor, the 6M-3L is the performance upgrade your boat needs!
📋
Product Specifications
Brand
MSD
Category
Ignition
Color
Blue
Connector Gender
Male Female
Connector Quantity
1
Current Draw
0.8 Amps per 1
Emission Code
3
Features
Start Retard
Grade Type
Marine
Height
1.87
Ignition Type
Performance
Length
7.89
Mount Type
Surface Mount
Mounting Hardware Included
Yes
Primary Voltage
535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
Product Type
Ignition
RPM Range
12
Secondary Voltage
45
Spark Energy
135mJ w/ Blaster Coil / 150mJ w/ HVC Coil PN 8250
Spark Series Duration
20° Crankshaft Rotation
Sub Category
Control Modules
Terminal Gender
Male
Terminal Quantity
12
Voltage Required
6 to 18 Volts
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight and Size
2.5 lbs.
Width
4
📦

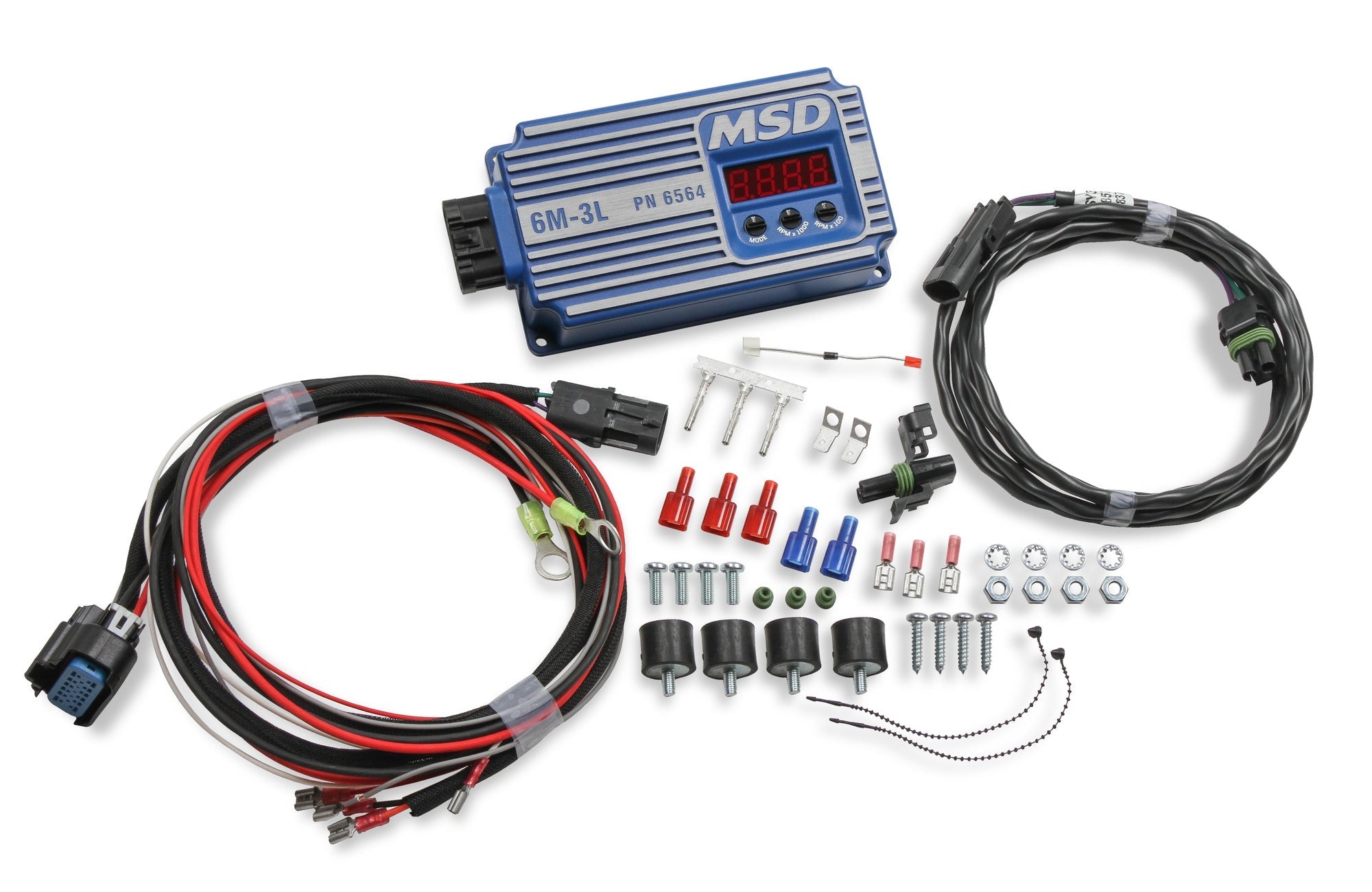

Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
