Product Details
⭐
Overview

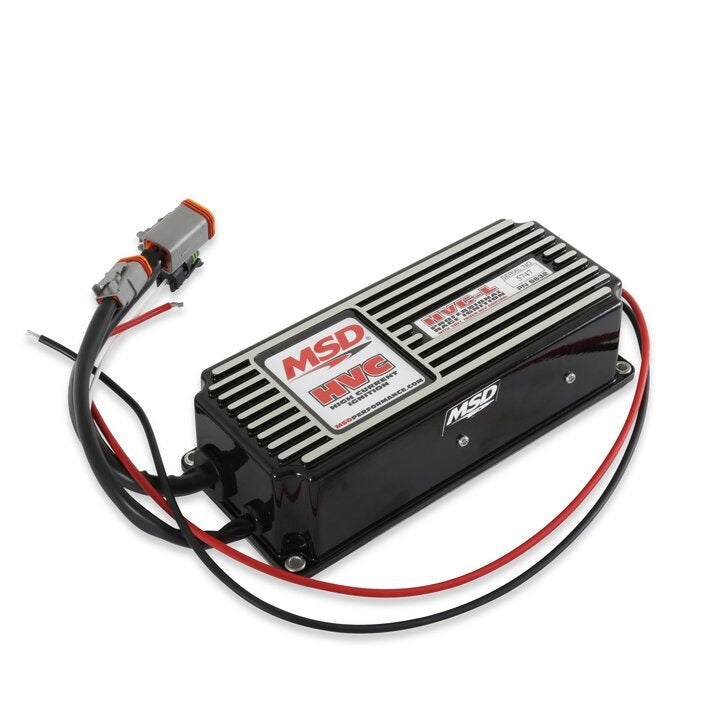

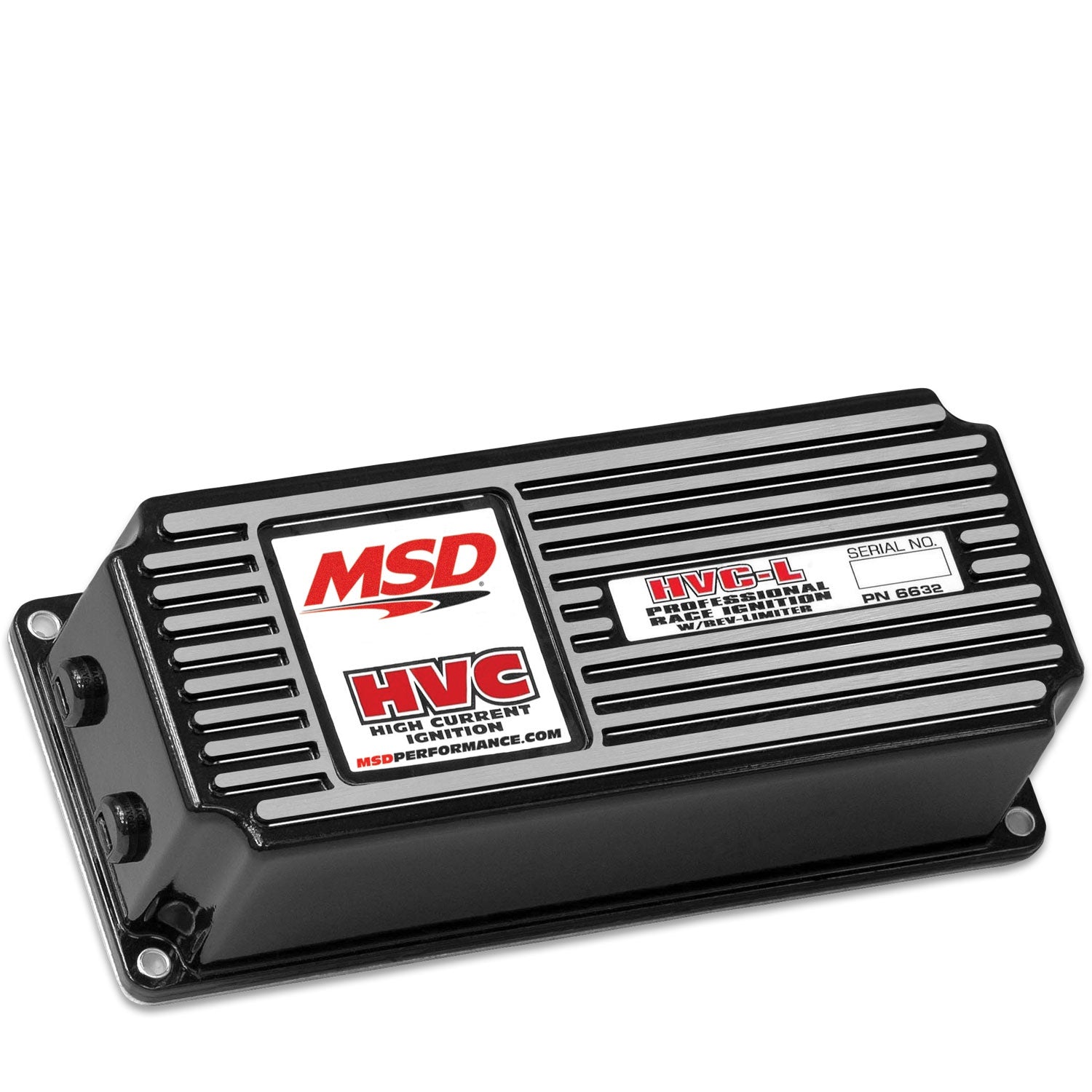

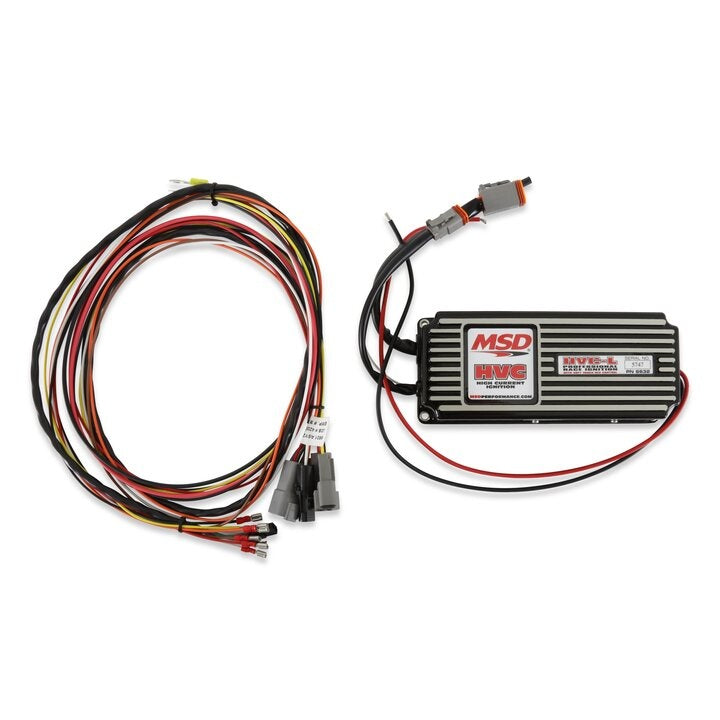

MSD 6 HVC-L with Soft Touch Rev Limiter
The 6 HVC-L Ignition has a built-in rev limiter that will save the engine from overrev damaged caused by spins, missed shifts or driver misfortune. This means there is no need to mount an external rev control (i.e., less wiring and reduced weight)!

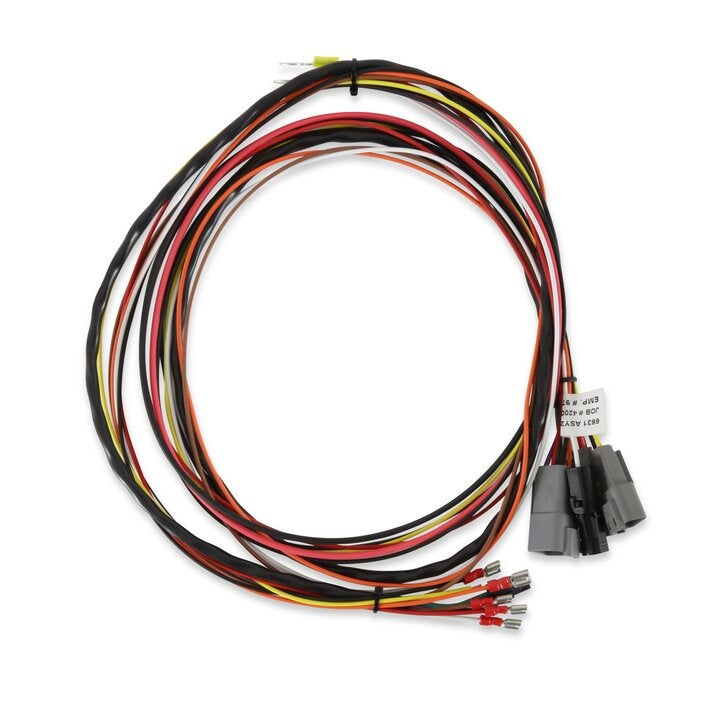

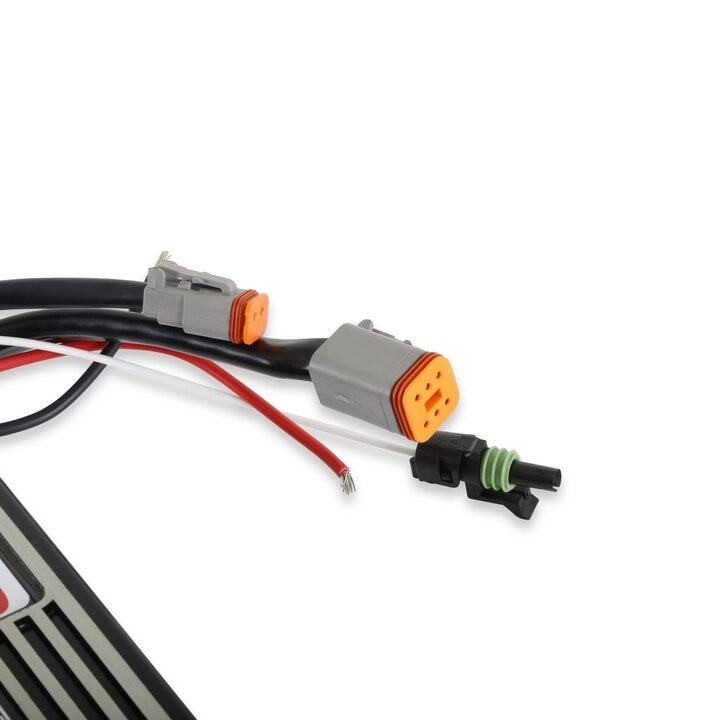

The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.
The 6 HVC-L Ignition has a built-in rev limiter that will save the engine from overrev damaged caused by spins, missed shifts or driver misfortune. This means there is no need to mount an external rev control (i.e., less wiring and reduced weight)!
The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.
📋
Product Specifications
Brand
MSD
Category
Ignition
Color
Black
Connector Gender
Male Female
Connector Quantity
3
Emission Code
4
Grade Type
Performance
Height
2.25
Ignition Type
Performance
Length
8
Mount Type
Surface Mount
Mounting Hardware Included
Yes
Primary Voltage
550 Volts
Product Type
Ignition Box
RPM Range
15
Secondary Voltage
40
Spark Energy
150 mJ/spark
Spark Series Duration
20 Degree Crankshaft Rotation
Sub Category
Control Modules
Terminal Gender
Male Female
Terminal Quantity
11
Voltage Required
12-18 Volts
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight and Size
5.1 lbs.
Width
4
📐
Dimensions & Shipping
Product Dimensions
11.1 × 11.05 × — in
Weight
2.218 kg
