Product Details
🔧
Vehicle Compatibility
Fits Residual Pressure Valve 10lb -3AN Male - Pressure Residual Valve - 10LB, -3AN Fittings.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

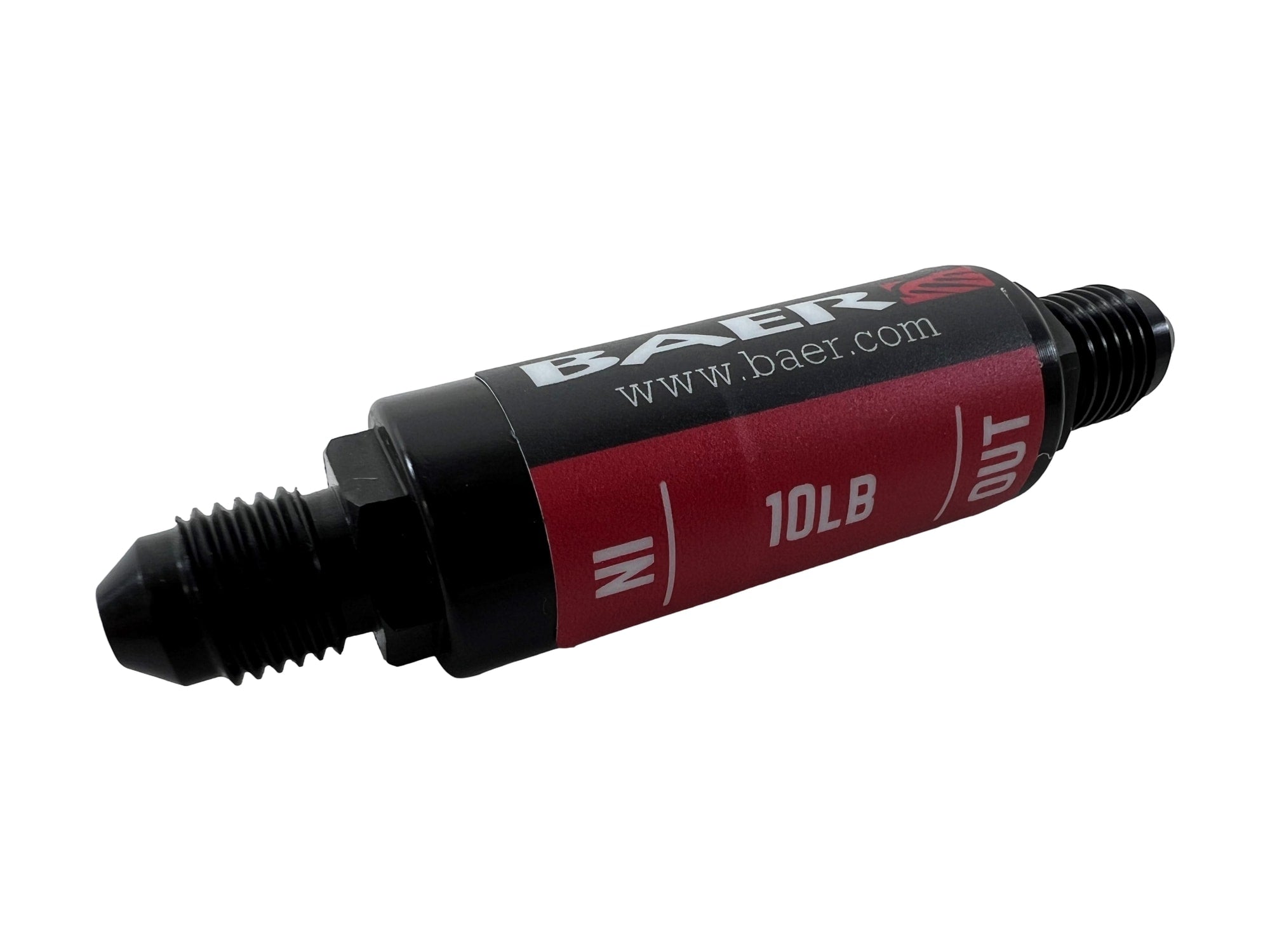

Pressure Residual Valve - 10LB, -3AN Fittings
Pressure residual valves are designed to maintain a small amount of line pressure needed in certain situations. The 2lb valve would be used with disc brakes whenever the master cylinder is mounted below or level with the calipers to prevent possible fluid drain back which can result in excessive pedal travel (4 wheel disc brake vehicle would use 2 valves, one in the front and on in the rear circuit). A 10lb valve would be used in any drum brake circuit no matter of the master cylinder location. Pressure residual valves are machined out of billet aluminum, are available with 3/8-24 inverted flare female or -3AN male threads and have a black anodized finished.. Billet aluminum frame mounts are available separately.
Pressure residual valves are designed to maintain a small amount of line pressure needed in certain situations. The 2lb valve would be used with disc brakes whenever the master cylinder is mounted below or level with the calipers to prevent possible fluid drain back which can result in excessive pedal travel (4 wheel disc brake vehicle would use 2 valves, one in the front and on in the rear circuit). A 10lb valve would be used in any drum brake circuit no matter of the master cylinder location. Pressure residual valves are machined out of billet aluminum, are available with 3/8-24 inverted flare female or -3AN male threads and have a black anodized finished.. Billet aluminum frame mounts are available separately.
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Box Count
1
Brand
Baer Brakes
Category
Vehicles
Emission Code
6
Export Description
Brake Components
Finish
Black Anodized
Grade Type
Premium
Includes
1x Residual Valve
Inlet Diameter
-3AN Male
Material
Billet aluminum
Mounts Included
No
Outlet Diameter
-3AN Male
part type
Brake Hydraulic System Pressure Bleeder Master Cylinder Adapter
Pressure
10 Pounds
Product Line
Residual Valve
Product Type
Residual Valve
Prop 65 - Short Label
WARNING
Quantity
1
Sub Category
Hardware
Title
Baer Brakes Pressure Residual Valve – Billet Aluminum
Universal Or Specific Fit
Universal
Warning
California Proposition 65
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
