Earl's PerformancePart 692016erlMade in US
Product Details
⭐
Key Features
Note: All UltraPro Hose Ends must be crimped using the Earl's D105M1101ERL Crimping Machine and D10029BERL Crimp Die. All UltraPro hose assemblies must be pressure tested prior to use.
Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, flow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro!

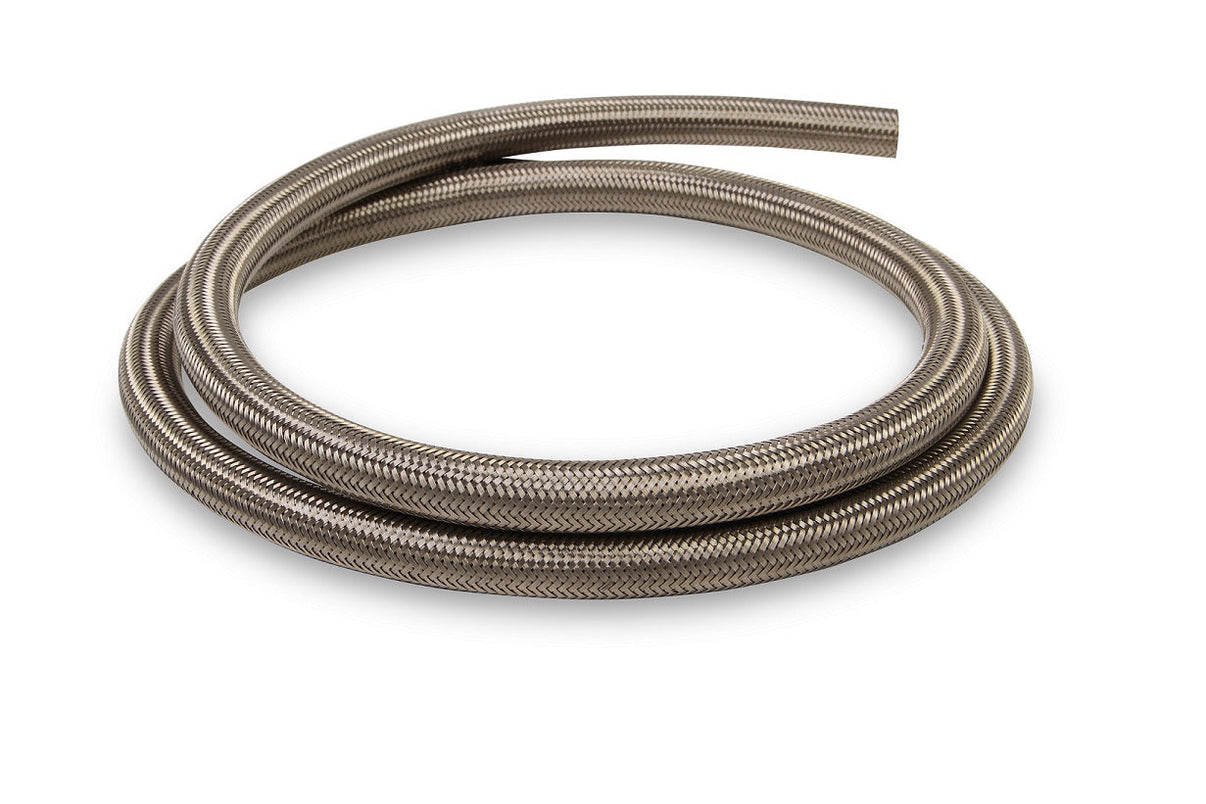

-16 Double-Helix Ribbed PTFE Hose, Stainless Steel Braided, 500 PSI, 20FT
- UltraPro Stainless Steel Braid is up to 37% lighter than traditional rubber hose with stainless steel braid
📖
About this product
-16 Double-Helix Ribbed PTFE Hose, Stainless Steel Braided, 500 PSI, 20FT
📋
Product Specifications
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Carbon Lined
Yes
Category
Air and Fuel Delivery
Collection
Air & Fuel Delivery - Carburetors & Components
Compatible Hose Ends
UltraPro - Crimp On
Compatible Hose Ends
UltraPro - Twist On
Crimping Die
29MM - D10029BERL
Emission Code
5
Final Crimp O.d. Range
1.179"-1.183"
Fluid Type Rating - Automatic Transmission Fluid
5 out of 5 Rating
Fluid Type Rating - Bio-Fuels
5 out of 5 Rating
Fluid Type Rating - Coolant
5 out of 5 Rating
Fluid Type Rating - Diesel
5 out of 5 Rating
Fluid Type Rating - E85
5 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol
5 out of 5 Rating
Fluid Type Rating - Oil
5 out of 5 Rating
Fluid Type Rating - Pump Gas
5 out of 5 Rating
Fluid Type Rating - Race Gas
5 out of 5 Rating
Fluid Type Rating - Vacuum
3 out of 5 Rating
Fluid Type
Automatic Transmission Fluid
Fluid Type
Bio-Fuels
Fluid Type
Coolant
Fluid Type
Diesel
Fluid Type
E85
Fluid Type
Methanol/Alcohol
Fluid Type
Oil
Fluid Type
Pump Gas
Fluid Type
Race Gas
Hose Family
UltraPro
Hose Length
20 Feet
Hose Outer Material
Stainless Steel Braided
Hose Size
16 AN
Inside Diameter
.855"
Max Vacuum
28 in Hg
Max Working PSI
500 PSI
Min. Bend Radius
3.5"
Outside Diameter
1.092"
Part Type
Fuel Hose
Product Type
UltraPro Stainless Steel Braided
Prop 65 Yes/No
Yes
Sub Category
Fuel Storage
Submersible In Fuel
Yes
Temperature Range
-67° F to 400° F
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
17.5 × 16.3 × 6.6 in
Shipping Dimensions
17.5 × 16.3 × 6.6 in
Weight
2896 g (2.9 kg)
