Baer Brake SystemsPart 6929235Made in US
Product Details
⭐
Key Features

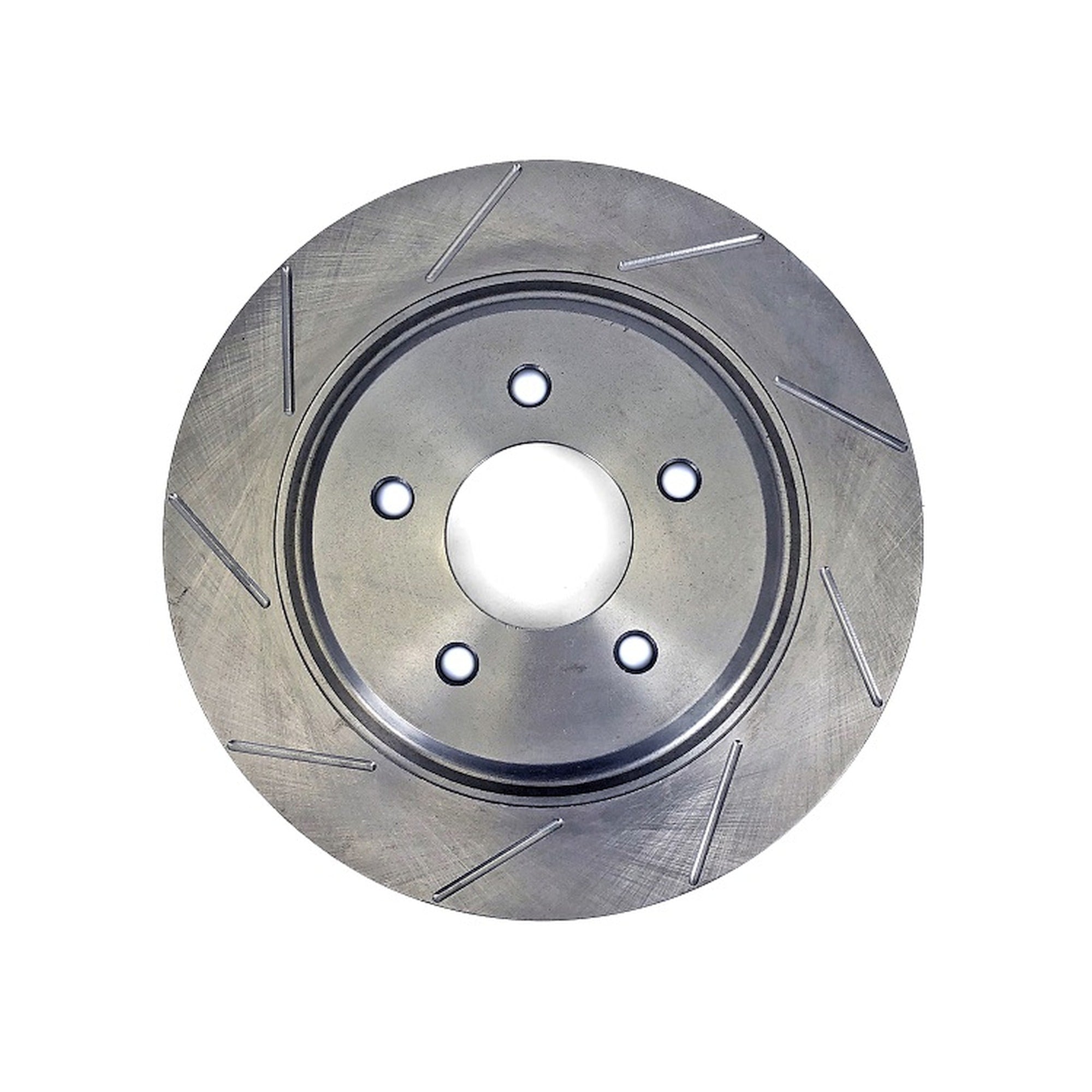

12.000" X 1.020", 5 x 5.00"BC, 2.780" Register, 1-Piece, Right, Slotted Finish (Modified Drum Lip for Early Big Bearing Systems)
1-piece, slotted finish replacement rotor used in select Baer Brake systems. Note: These rotors are directional and specific to the left or right side of the vehicle. If you are unsure on what rotor you need, please contact our sales department for assistance. Rotors sold individually.
12.000" X 1.020", 5 x 5.00"BC, 2.780" Register, 1-Piece, Right, Slotted Finish (Modified Drum Lip for Early Big Bearing Systems)
- Purpose built castings manufactured from premium materials
- Curved vane design for optimum cooling
- Designed using the latest technology for optimum rotor stability and resistance against distortion
- Dynamic balanced for vibration free performance
📖
About this product
12.000" X 1.020", 5 x 5.00"BC, 2.780" Register, 1-Piece, Right, Slotted Finish (Modified Drum Lip for Early Big Bearing Systems)
📋
Product Specifications
ABS Tone Ring Included
No
Automotive Item Grade
Performance
Axle
Right
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Brake
Center Hole Diameter
2.780
Construction
Full Cast
Construction
One Piece
Country
US
Directional Or Non-Directional Brake Surface
Directional
Drum In Hat
Yes
Emission Code
4
Emission Code
6
Export Description
Brake Components
Grade Type
Performance
HTS Code
8708300050
Material
Cast Iron
Nominal Thickness
1.020
Notes
Machined Specific for Big Bearing Systems
Outside Diameter
12.000
Overall Height
2.406
Part Type
Disc Brake Rotor
Product Type
12 Inch 1pc Replacement Rotor
Prop 65 - Long Label
WARNING
Prop 65 Yes/No
Yes
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Circle Diameter
5.00
Stud/Lug Hole Quantity
5
Sub Category
Drums and Rotors
Surface Type
Slotted
Title
Service Parts Replacement Rotors
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty
🛡️
Warranty & Compliance
Warranty
1 months · Manufacture Limited 1 Year Warranty Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708300050
📐
Dimensions & Shipping
Product Dimensions
15.5 × 15.5 × 9.0 in
Shipping Dimensions
15.5 × 15.5 × 9.0 in
Weight
7711 g (7.71 kg)
