2009-2021 FORD F150 CAST TR...
Get notified when this item is back in stock
Press & drag to view
B&M
Product Details
🔧
Vehicle Compatibility
Select your vehicle to verify compatibility:
⭐
Key Features

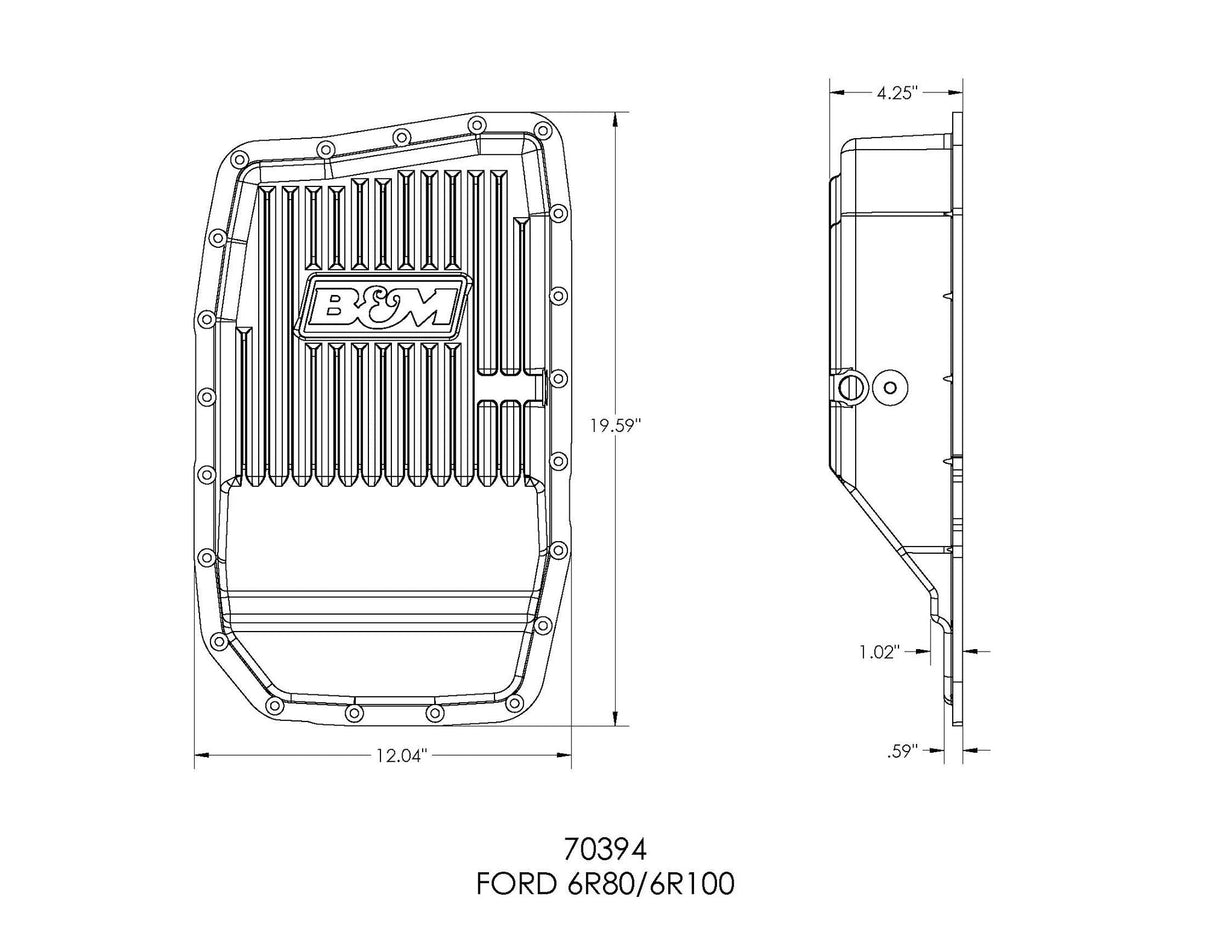

B&M Hi-Tek Deep Transmission Pan - Black Aluminum
Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.25-quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port with magnetic drain plug for clean and easy servicing. Also includes 1/8-inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: 6R80 transmissions do not come with a dip stick from the factory to check fluid level. As a solution, B&M offers an optional 6R80 locking dipstick part #22200 to measure transmission fluid level. Note: Does Not Fit Mustangs.
Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.25-quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port with magnetic drain plug for clean and easy servicing. Also includes 1/8-inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: 6R80 transmissions do not come with a dip stick from the factory to check fluid level. As a solution, B&M offers an optional 6R80 locking dipstick part #22200 to measure transmission fluid level. Note: Does Not Fit Mustangs.
📋
Product Specifications
Additional Fluid Capacity (qts)
3.25
Bolt Count
21
Bolt/Studs Included
Yes
Brand
B&M
California Proposition 65 Chemical Name
Chromium (hexavalent compounds)
California Proposition 65 Required
Yes
Capacity
16
Category
Transmission
Color/Finish
Black Anodized
Color
Black
Drain Plug Included
Yes
Drain Plug Type
Magnetic
Emission Code
5
Filler Plug Included
No
Gasket Included
No
Gasket Or Seal Included
No
Grade Type
Performance
Material
A356.0-T6 Aluminum
Mounting Hardware Included
Yes
Oil Pan Gaskets Included
No
Product Type
Automatic Transmission Pans
Sub Category
Transmission Hard Parts
Temp Sensor Port
Yes
Transmission Filter Included
No
Transmission Type
Automatic
Transmission
6R100
Transmission
6R80
Warning
California Proposition 65
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
