Product Details
🔧
Vehicle Compatibility
Fits CAST TRANS PAN, GM 8L90 - B&M Hi-Tek Deep Transmission Pan - Aluminum.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

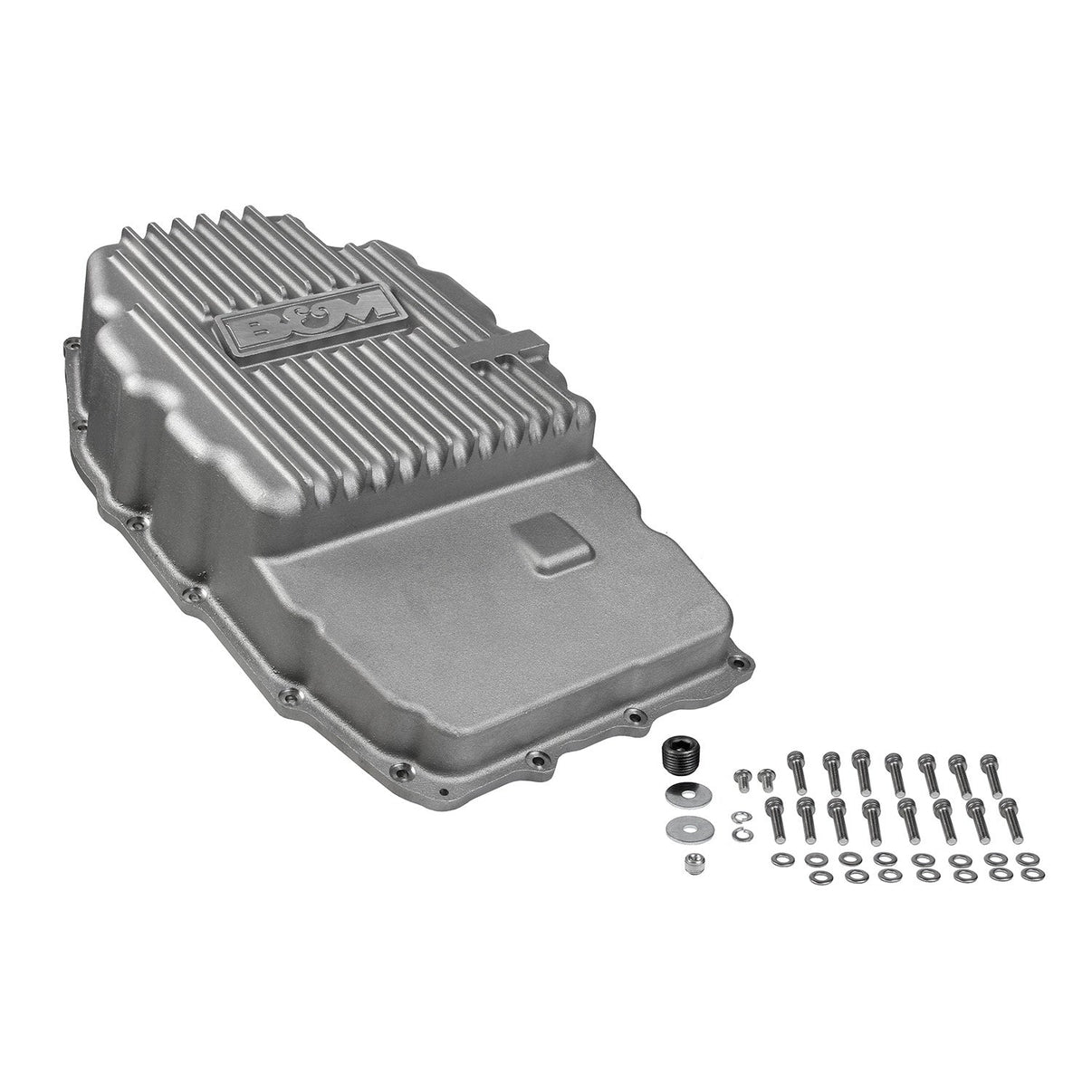

B&M Hi-Tek Deep Transmission Pan - Aluminum
Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.4 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port and the pan accepts the two factory magnets to capture wear materials protecting the transmission and for clean and easy servicing. Also includes 1/8 inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: Does Not fit 2010-2015 Camaro 8L90E transmissions. See Part# 70391 for 2010-2015 Camaro 8L90E transmission pan.
Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.4 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port and the pan accepts the two factory magnets to capture wear materials protecting the transmission and for clean and easy servicing. Also includes 1/8 inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: Does Not fit 2010-2015 Camaro 8L90E transmissions. See Part# 70391 for 2010-2015 Camaro 8L90E transmission pan.
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Additional Fluid Capacity (qts)
3.4
Bolt Count
15
Bolt/Studs Included
Yes
Brand
B&M
California Proposition 65 Chemical Name
Chromium (hexavalent compounds)
California Proposition 65 Required
Yes
Capacity
14.5
Category
Transmission
Color/Finish
Natural
Color
Aluminum
Drain Plug Included
Yes
Emission Code
5
Filler Plug Included
No
Finish
Zinc
Gasket Included
No
Gasket Or Seal Included
No
Grade Type
Performance
Material
A356.0-T6 Aluminum
Mounting Hardware Included
Yes
Oil Pan Gaskets Included
No
Product Type
Automatic Transmission Pans
Sub Category
Transmission Hard Parts
Transmission Filter Included
No
Transmission Type
Automatic
Transmission
8L90E
Warning
California Proposition 65
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
