Fits MSD 7AL-3, Pro Drag Race Ignition - MSD 7AL-3 Ignition Control.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

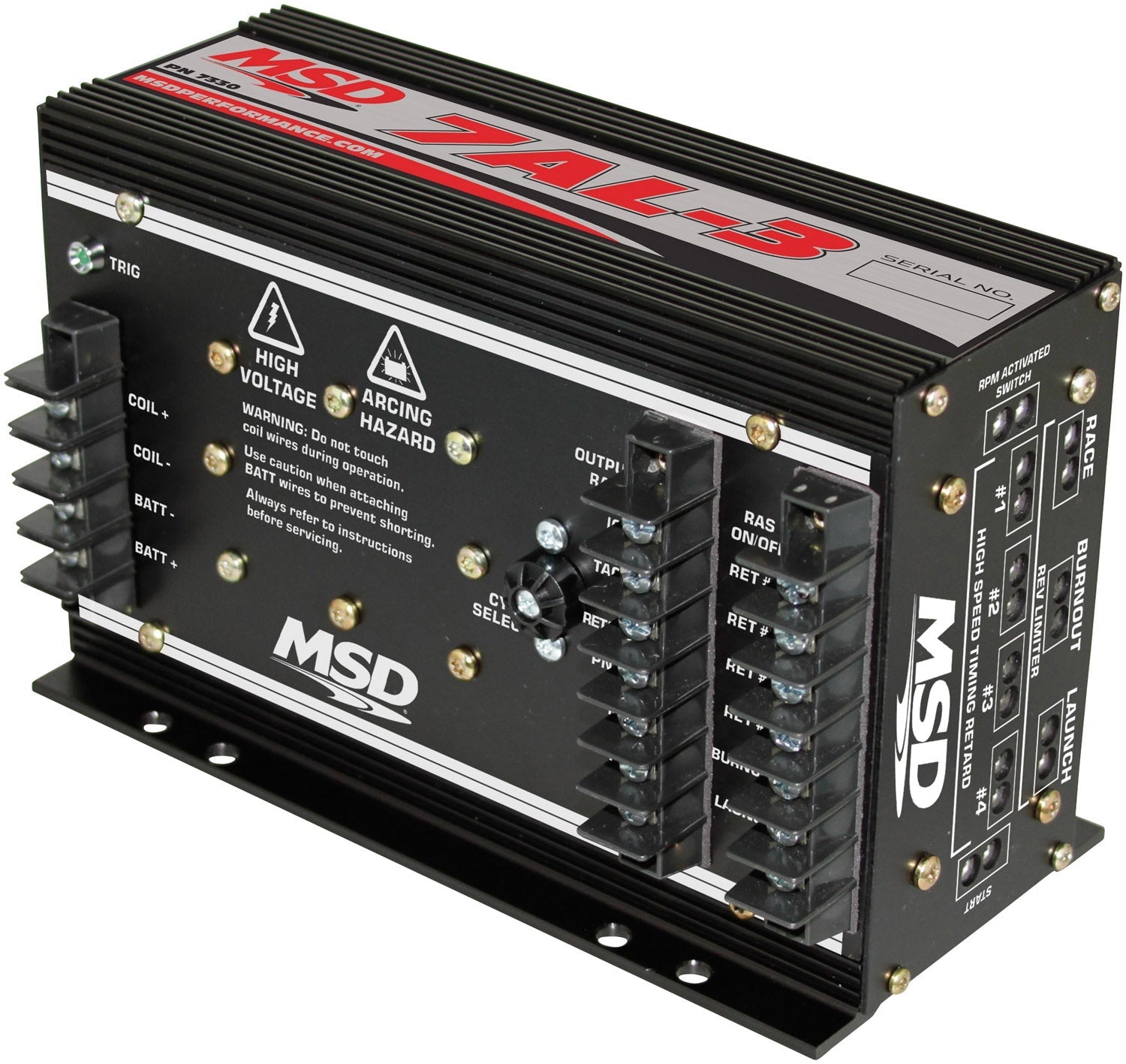

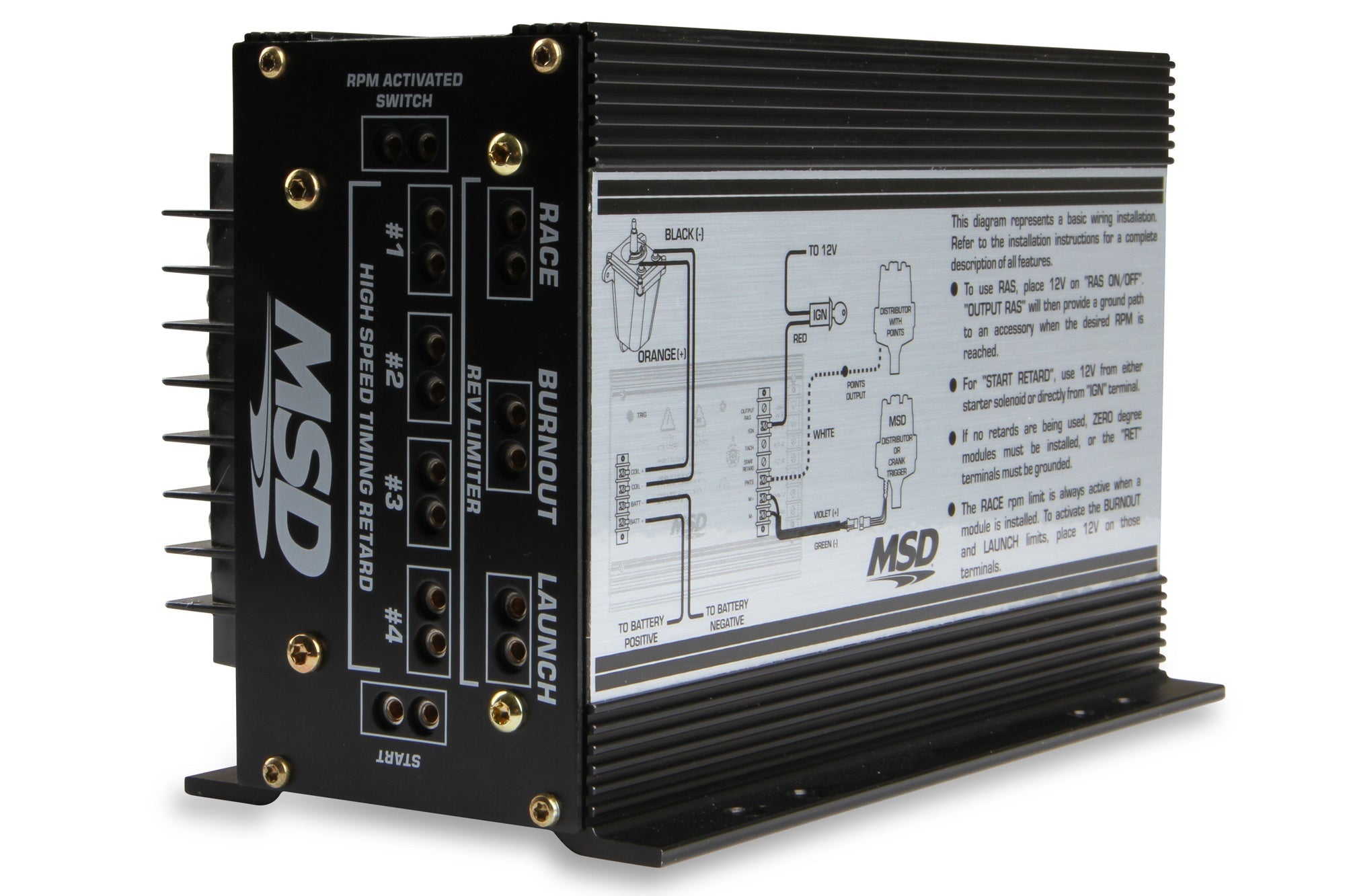

MSD 7AL-3 Ignition Control
For racers that want adjustments at their fingertips, the 7AL-3 is the right choice. The 7AL-3 packs high voltage with four step retards, three rev limits and an rpm switch.

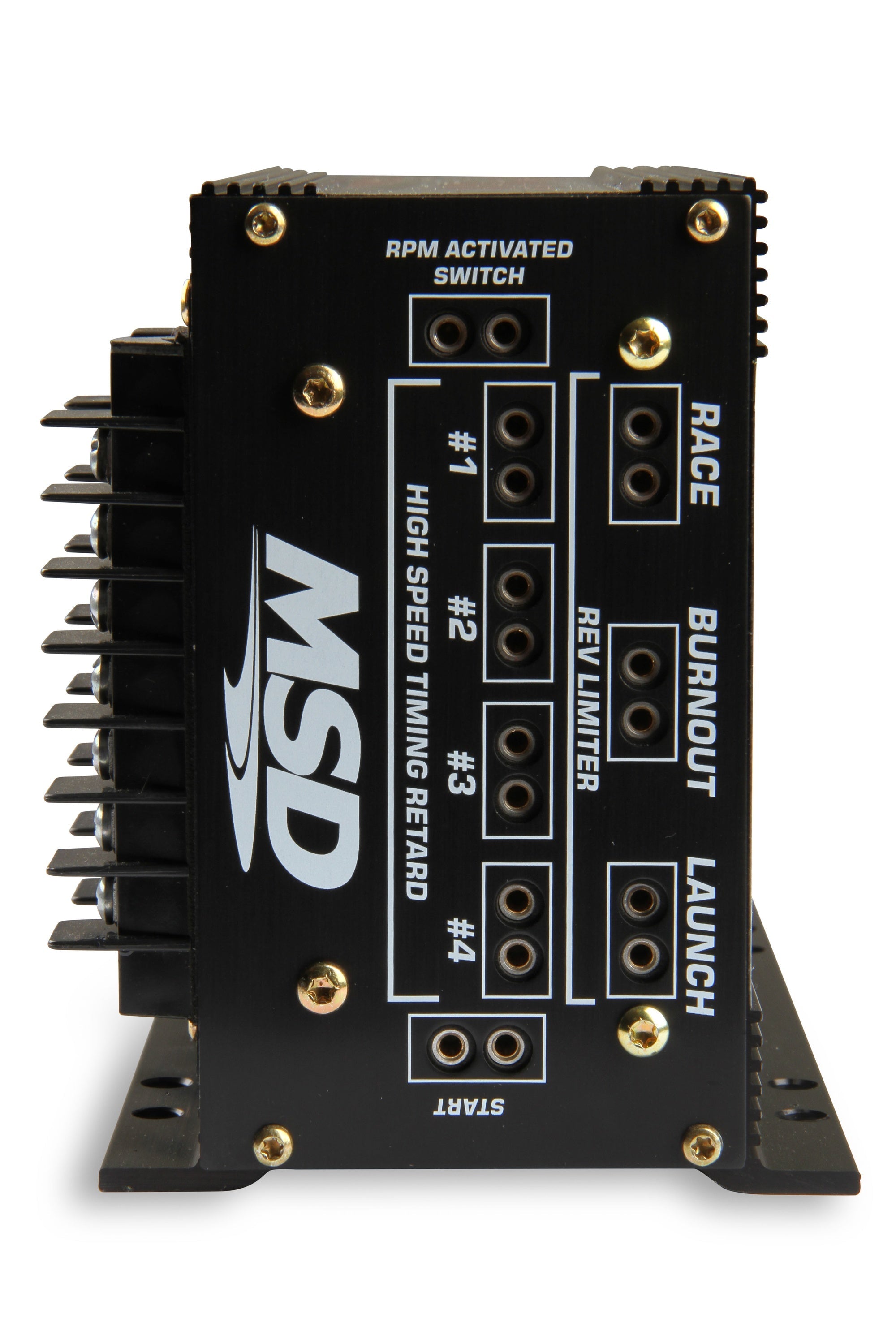

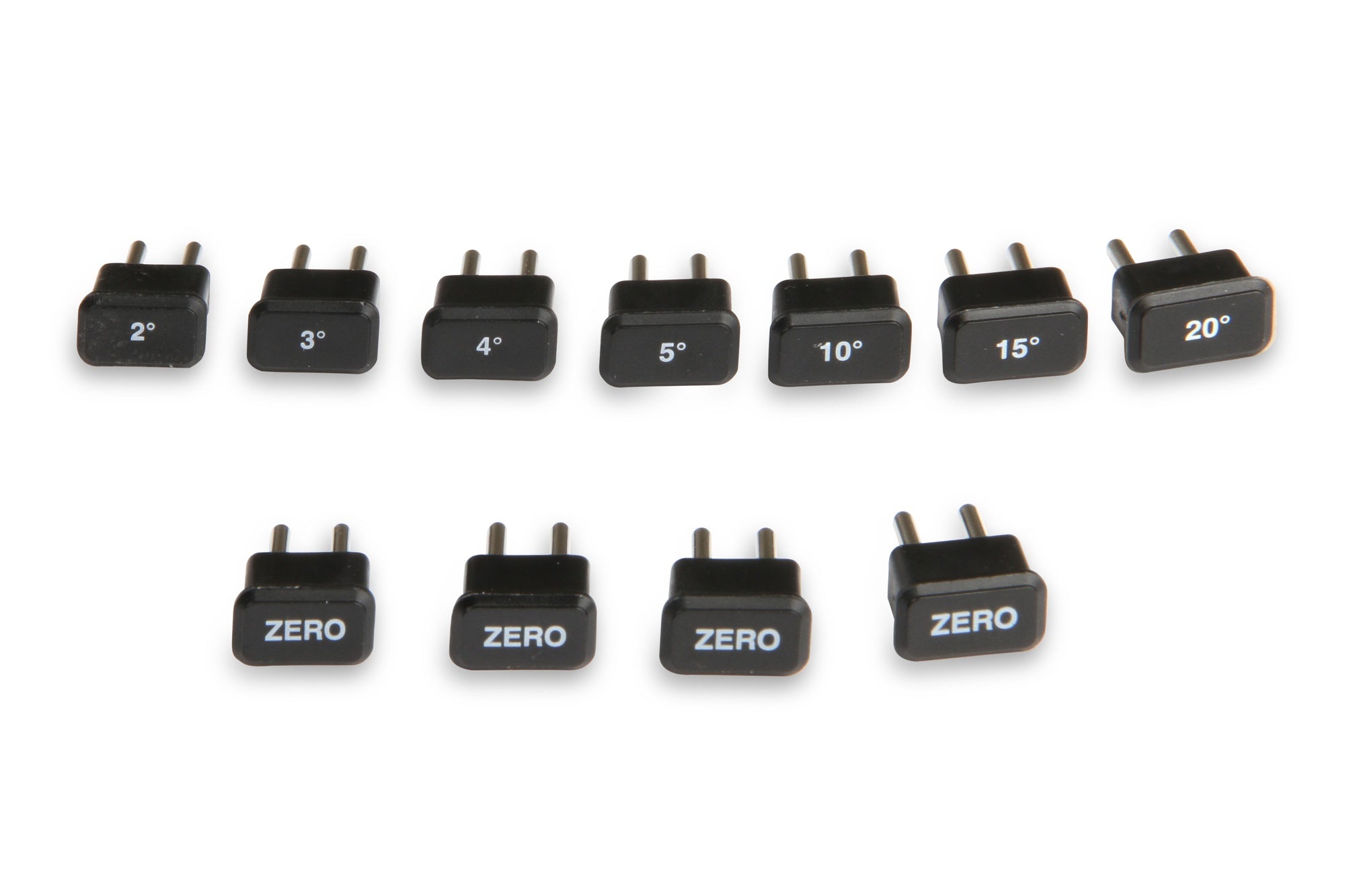

All of the features are adjusted using plug-in modules including the 3-Step Rev Control and Multi-Step Retard. The Rev Control gives you the ability to set one rev limit for the burnout, another for the staging rpm limit and a third for use top end engine protection in the event of driveline failure. For nitrous fans, there are four separate stages that can be activated independently yet add up together. Plus there's an RPM Activated Switch for precise control over a circuit.

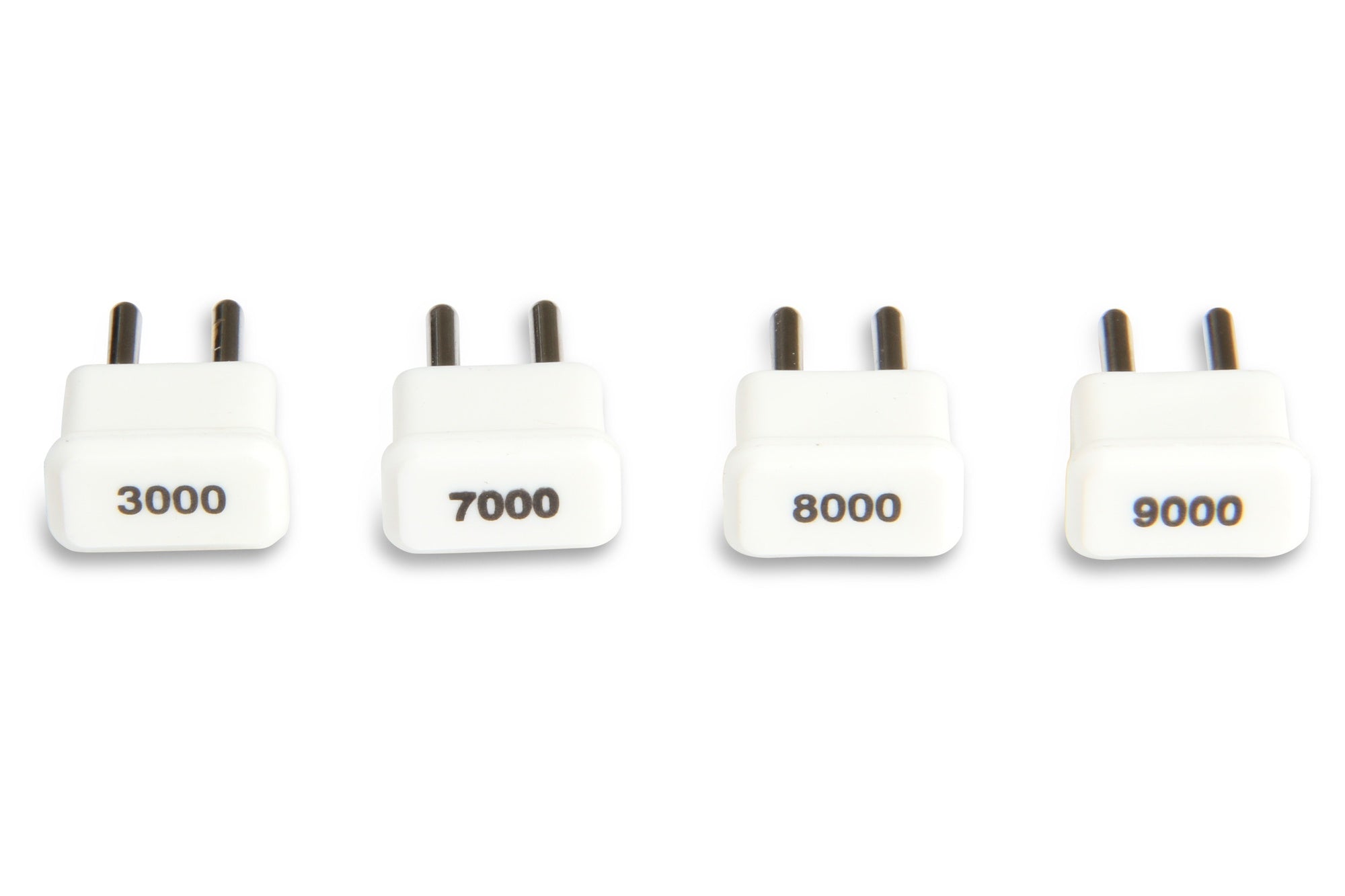

Something new is that the start retard is now adjustable with plug-in modules giving you better control over the amount of retard pulled out during cranking. The unit is supplied with a variety of rpm and timing modules. It is has a foot print that fits into the red 7AL-3's mount.
For racers that want adjustments at their fingertips, the 7AL-3 is the right choice. The 7AL-3 packs high voltage with four step retards, three rev limits and an rpm switch.
All of the features are adjusted using plug-in modules including the 3-Step Rev Control and Multi-Step Retard. The Rev Control gives you the ability to set one rev limit for the burnout, another for the staging rpm limit and a third for use top end engine protection in the event of driveline failure. For nitrous fans, there are four separate stages that can be activated independently yet add up together. Plus there's an RPM Activated Switch for precise control over a circuit.
Something new is that the start retard is now adjustable with plug-in modules giving you better control over the amount of retard pulled out during cranking. The unit is supplied with a variety of rpm and timing modules. It is has a foot print that fits into the red 7AL-3's mount.
📋
Product Specifications
Brand
MSD
Category
Ignition
Color
Black
Connector Gender
Terminal Strip
Connector Quantity
3
Current Draw
6 Amps Per 6
Emission Code
4
Grade Type
Race
Height
5.75
Ignition Type
Performance
Length
8.25
Mount Type
Surface Mount
Mounting Hardware Included
Yes
Primary Voltage
570 Volts
Product Type
Ignition Box
RPM Range
14
Secondary Voltage
50
Spark Duration
20 Deg Crankshaft Rotation
Spark Energy
160 mJ/spark
Sub Category
Control Modules
Terminal Gender
Terminal Strip
Terminal Quantity
18
Voltage Required
12-18 Volts
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight and Size
4.85 lbs.
Width
3.75
📦

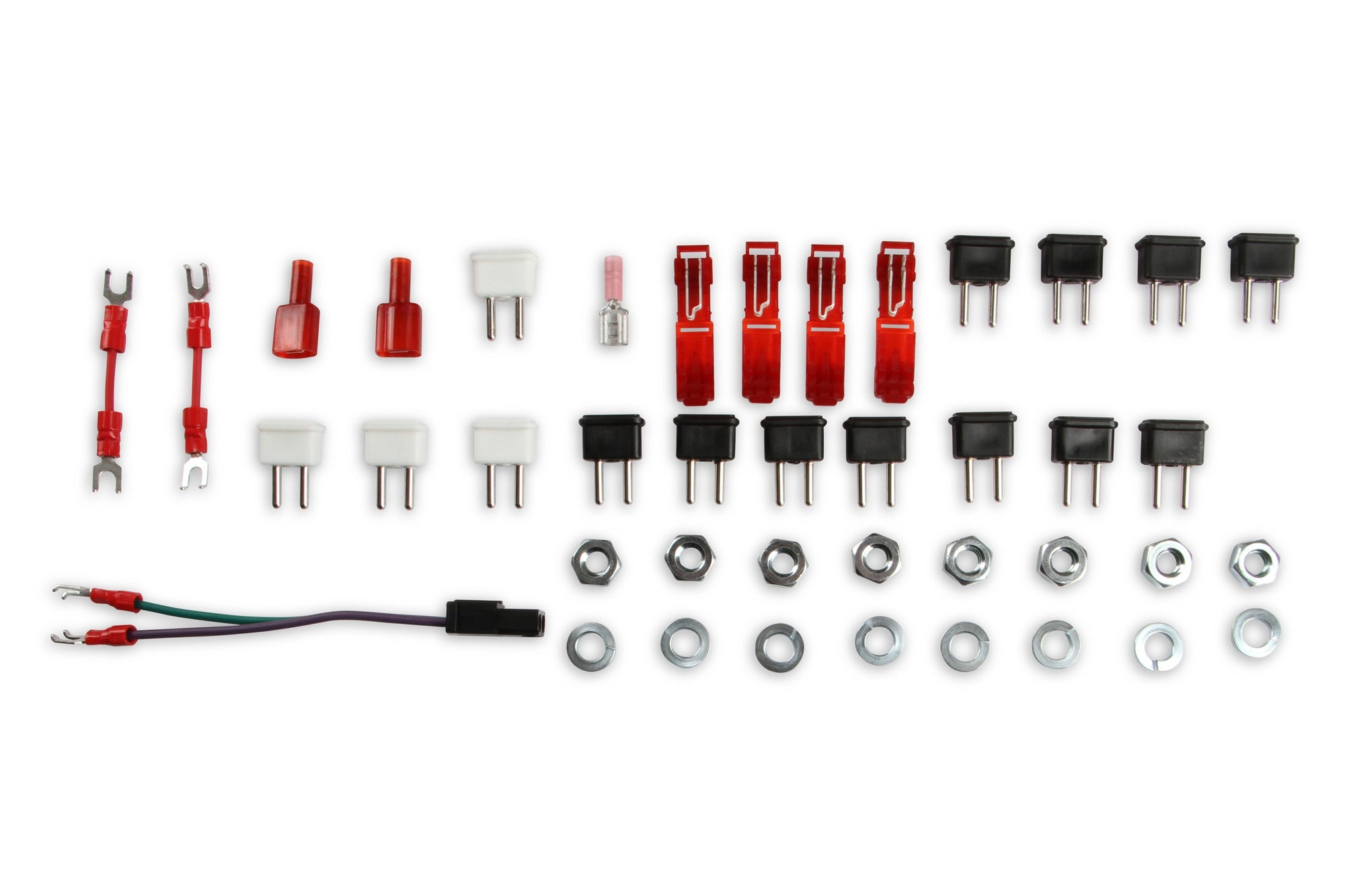

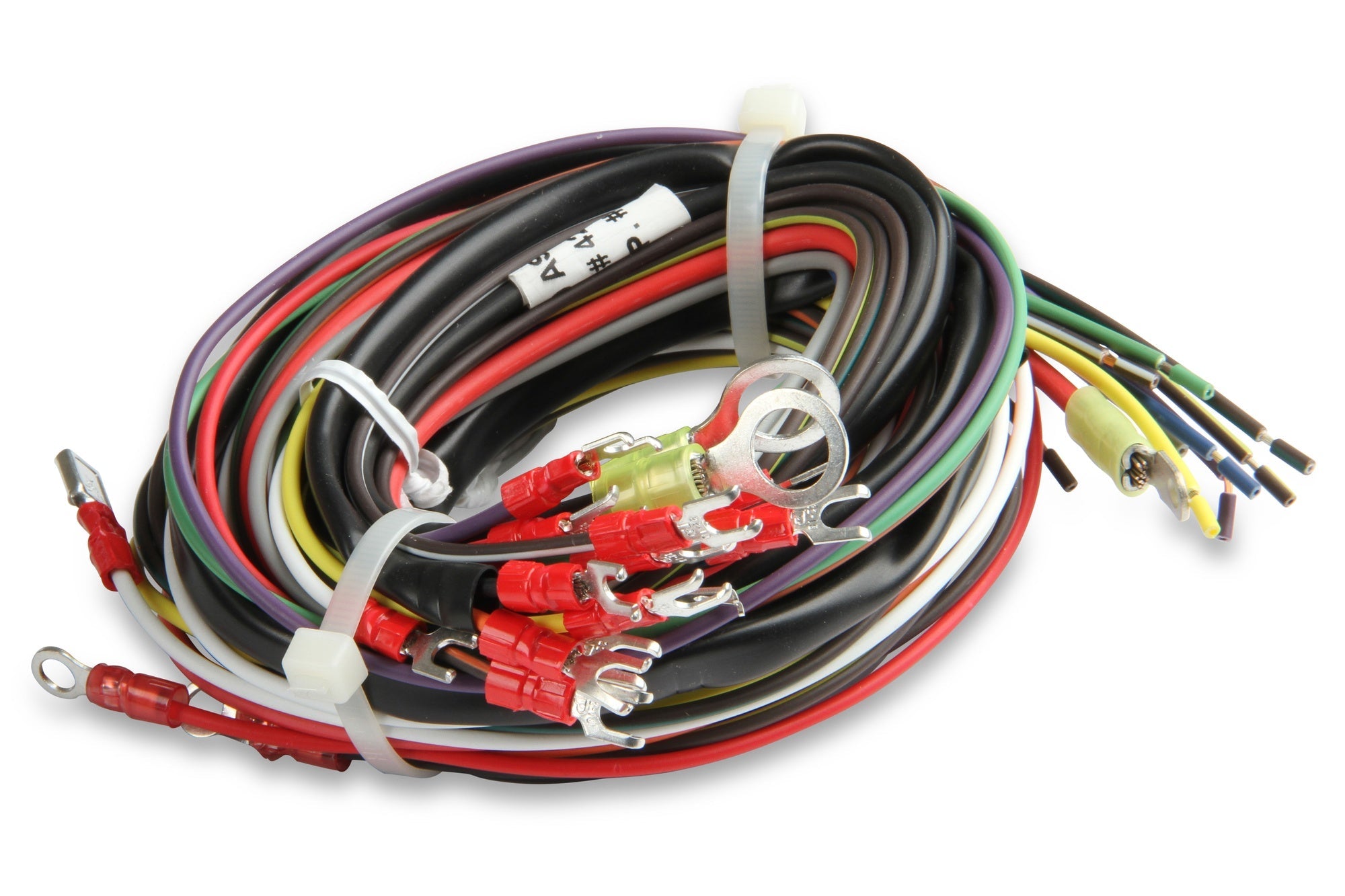

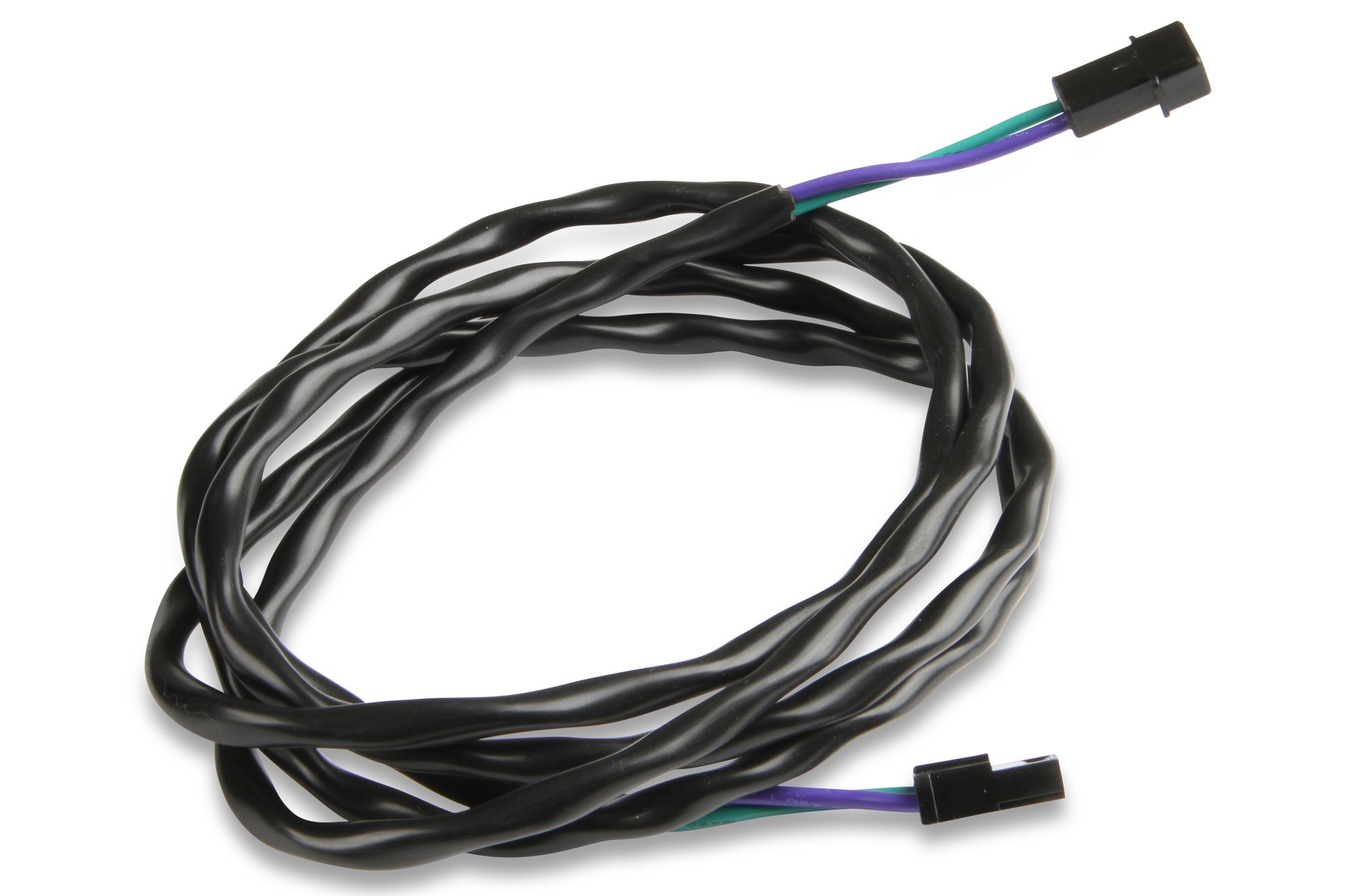

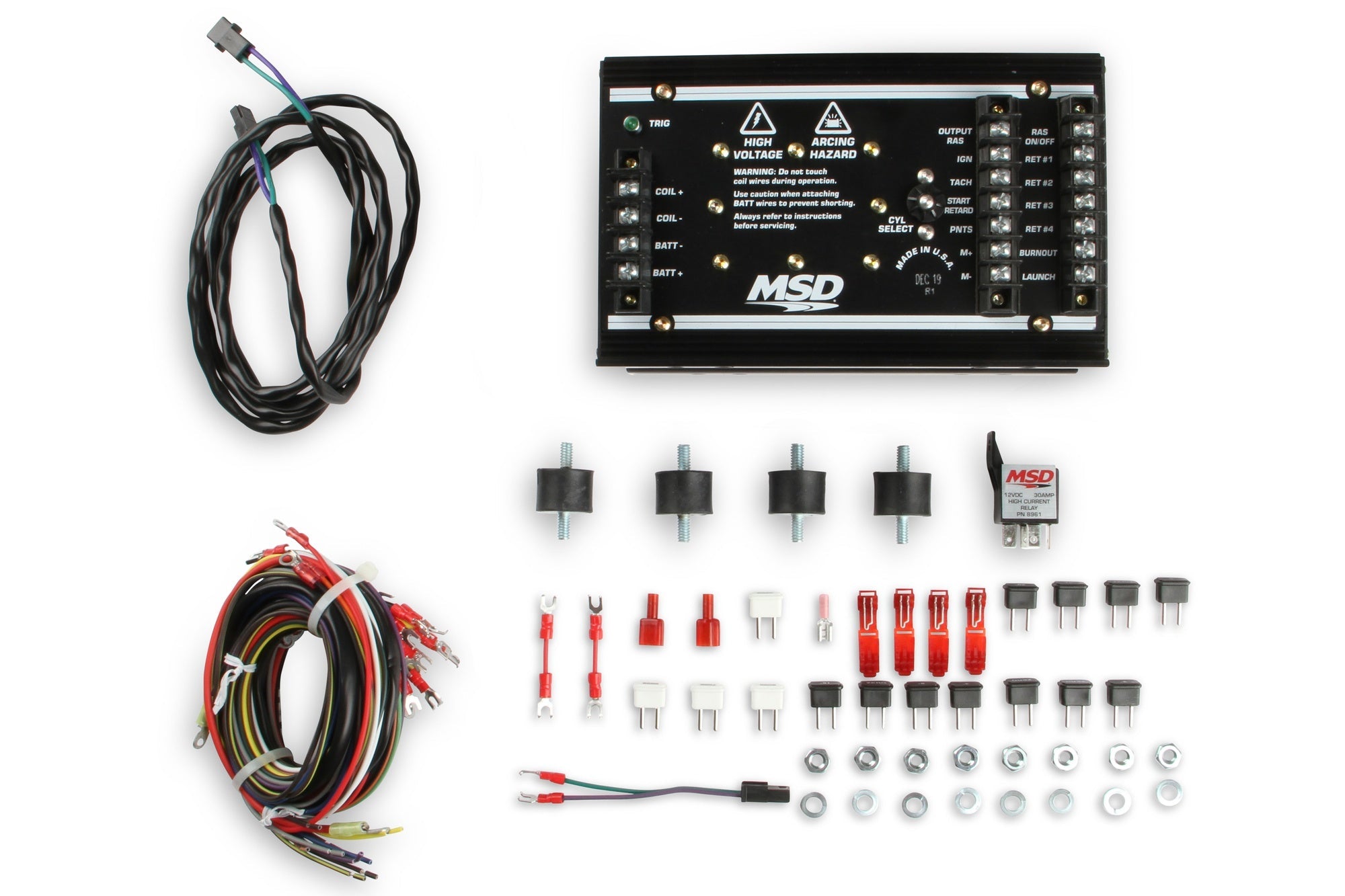

Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
