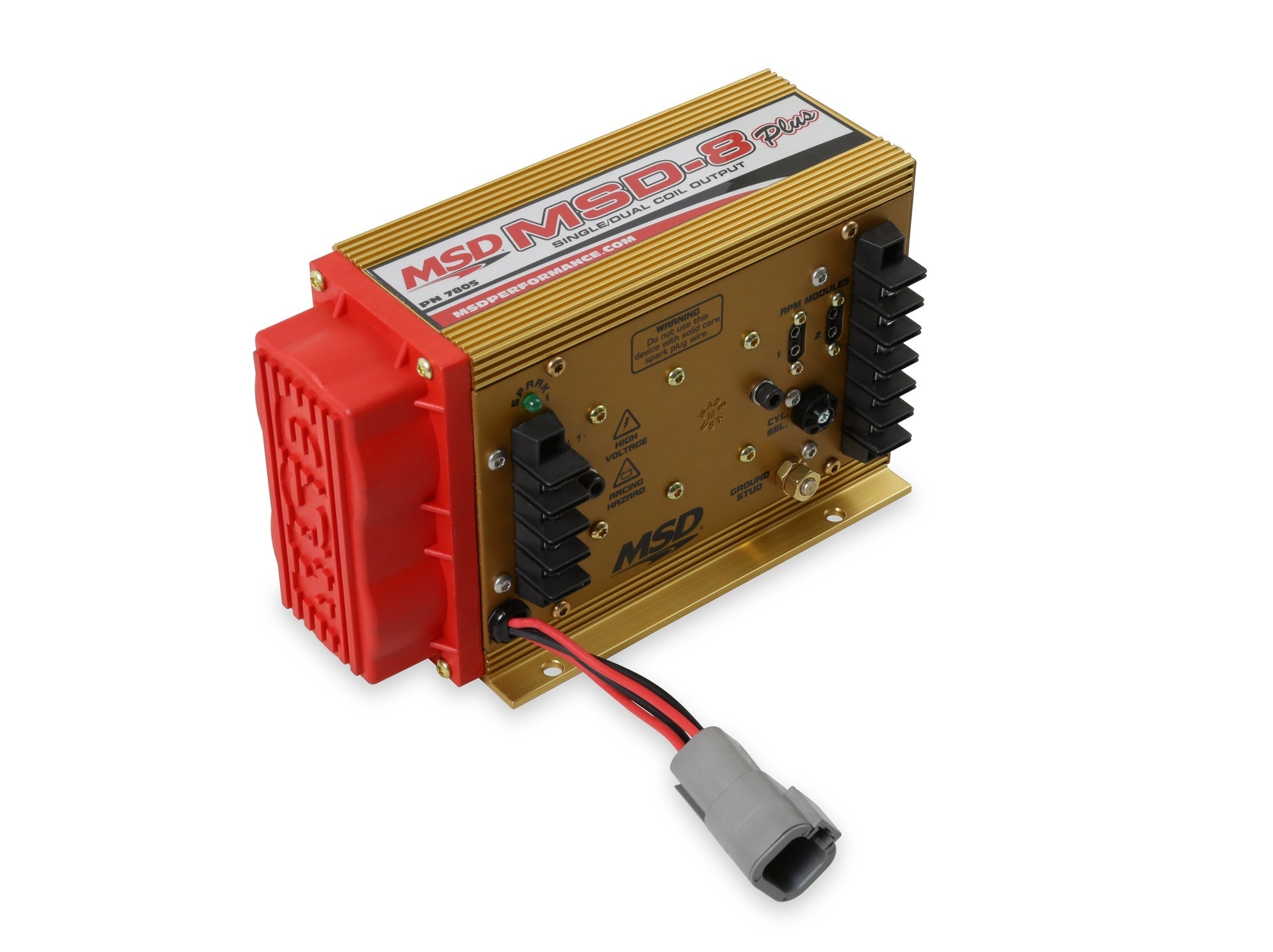

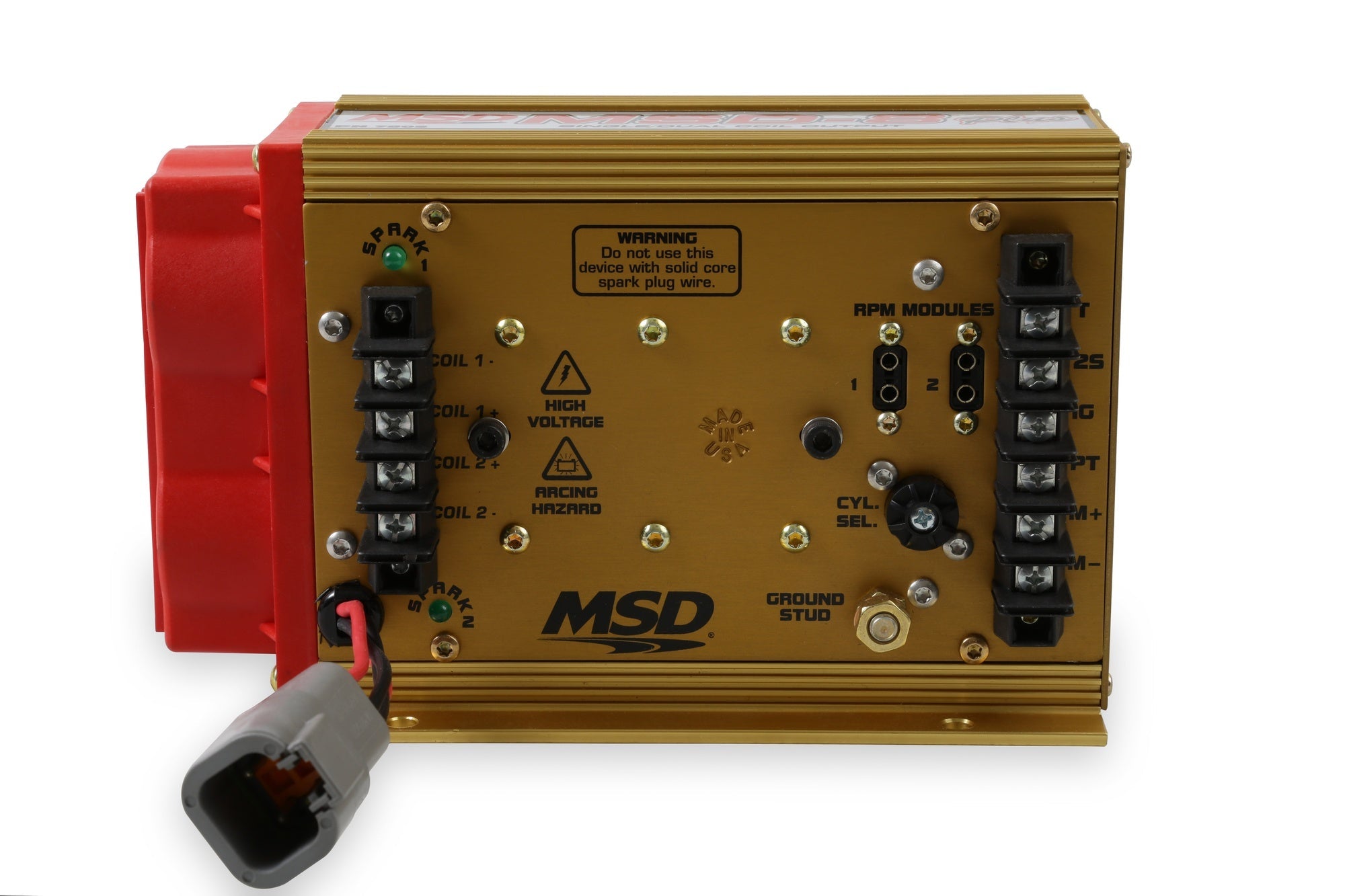

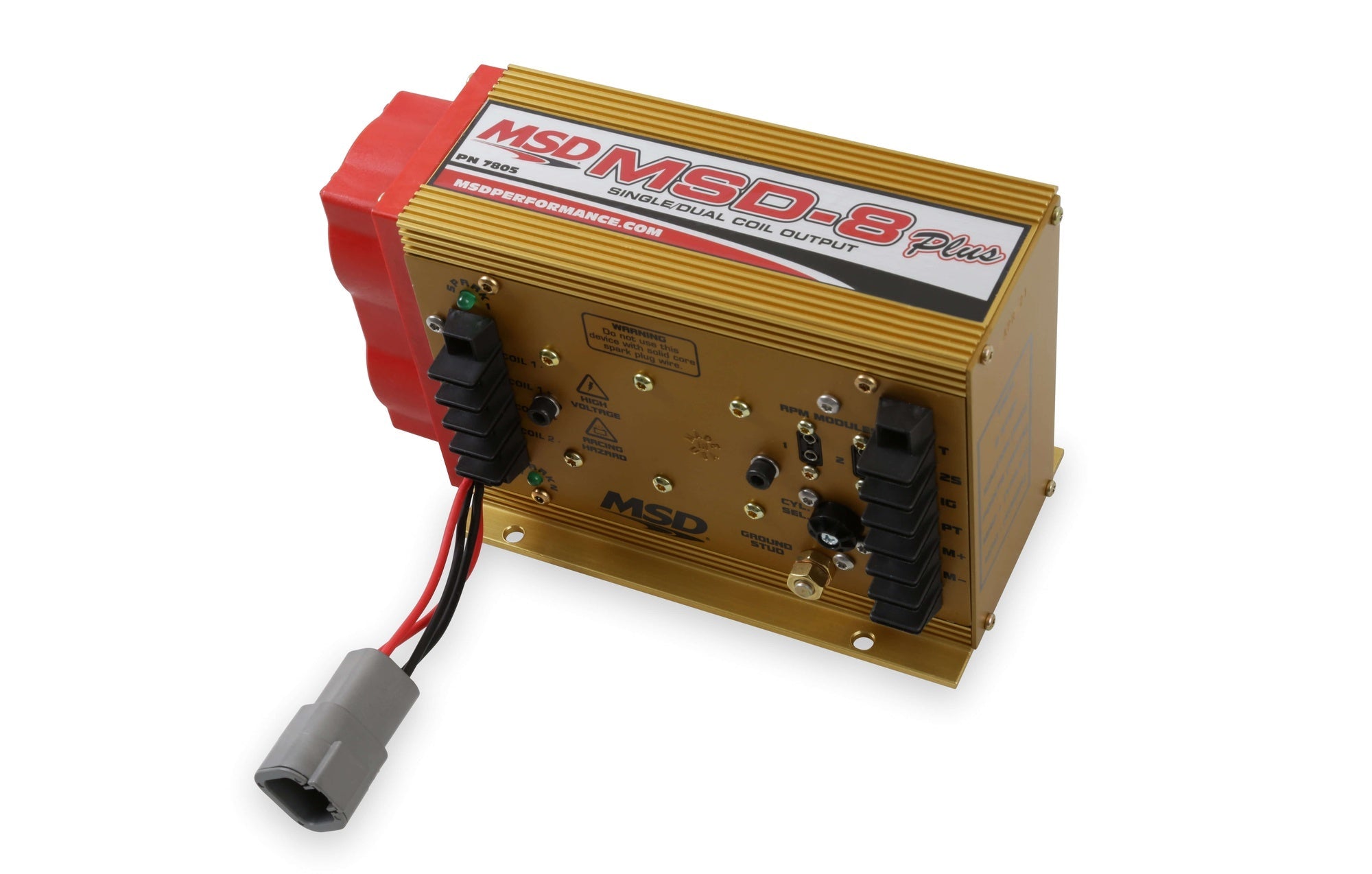

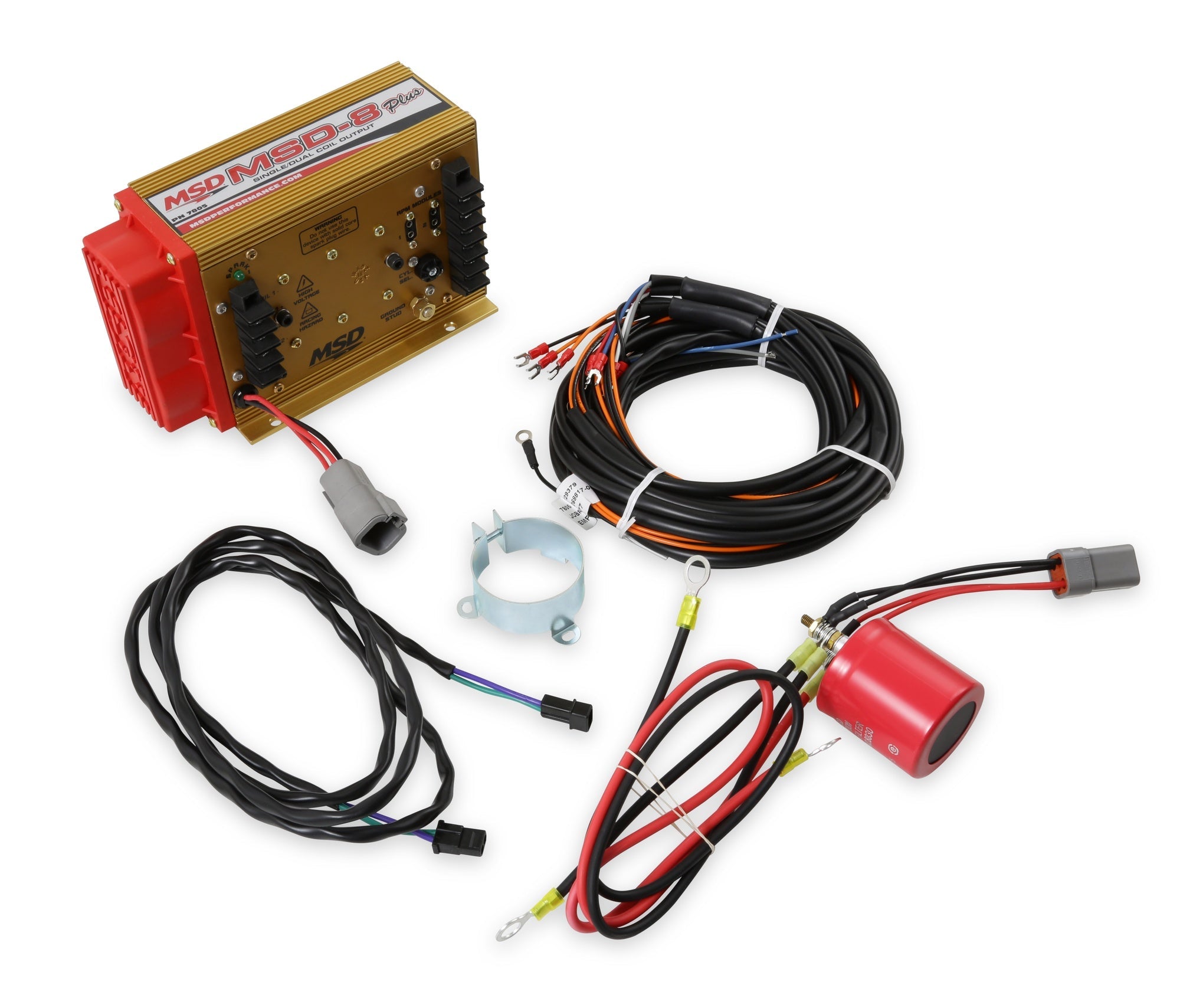

MSD 8-Plus Ignition Control
There has always been a niche group of hardcore racers and pullers that run nothing but the MSD 8 Ignition Series. If you liked it then, you're going to like it even better now!
The MSD 8-Plus Ignition produces the same extreme output of the original 8-Series, yet is now in a smaller housing with improved efficiency and internal components. One distinct change is now a built-in 2-Step Rev Control. Now you can switch between two rev limits without extra wiring or housings.
For those that are looking for a dual fire MSD 8, the new 8-Plus is all you need. Our engineers were able to deliver an ignition that is capable of firing two coils at once for those extreme racers using dual plug race setups.
There has always been a niche group of hardcore racers and pullers that run nothing but the MSD 8 Ignition Series. If you liked it then, you're going to like it even better now!
The MSD 8-Plus Ignition produces the same extreme output of the original 8-Series, yet is now in a smaller housing with improved efficiency and internal components. One distinct change is now a built-in 2-Step Rev Control. Now you can switch between two rev limits without extra wiring or housings.
For those that are looking for a dual fire MSD 8, the new 8-Plus is all you need. Our engineers were able to deliver an ignition that is capable of firing two coils at once for those extreme racers using dual plug race setups.
📋
Product Specifications
Brand
MSD
Category
Ignition
Color
Gold
Connector Gender
Terminal Strip
Connector Quantity
1
Current Draw
36 Amps at 12
Emission Code
4
Features
Extreme Cylinder Pressure
Grade Type
Race
Height
5.75
Ignition Type
Performance
Length
8.25
Mount Type
Surface Mount
Mounting Hardware Included
Yes
Primary Voltage
480 Volts
Product Type
Ignition Box
RPM Range
15
Secondary Voltage
50
Spark Energy
315-345 mJ per spark
Spark Series Duration
20 Degree Crankshaft Rotation
Sub Category
Control Modules
Terminal Gender
Terminal Strip
Terminal Quantity
14
Voltage Required
12-18 Volts
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight and Size
4.85 lbs.
Width
3.75
📐
Dimensions & Shipping
Product Dimensions
10.2 × 7.4 × — in
Weight
3.311 kg
