PRO 600 CDI, 8-CHANNEL - MS...
Get notified when this item is back in stock
Press & drag to view
MSD
Product Details
🔧
Vehicle Compatibility
Fits PRO 600 CDI, 8-CHANNEL - MSD Ignition Box - Race - PRO 600 CDI.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

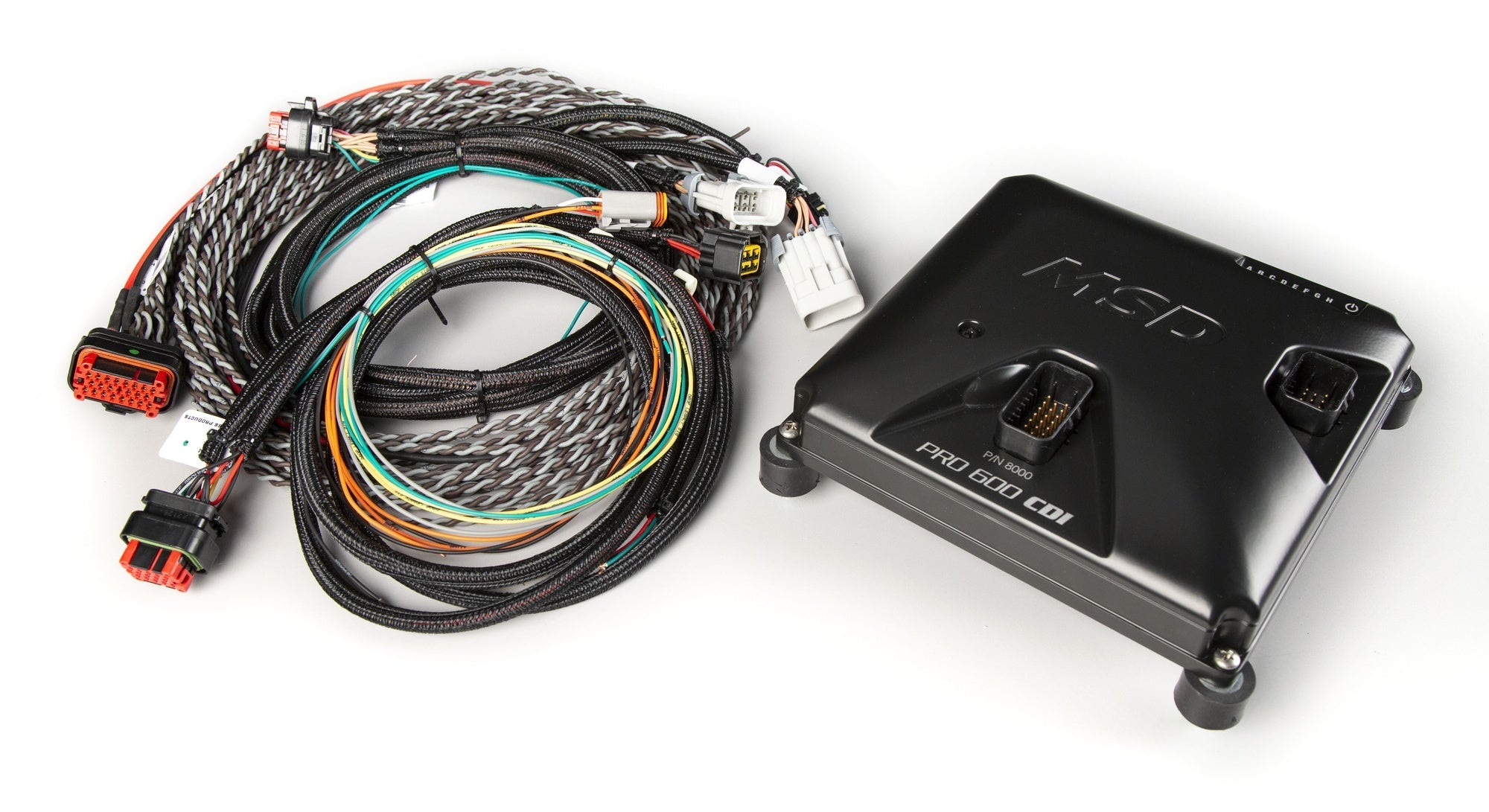

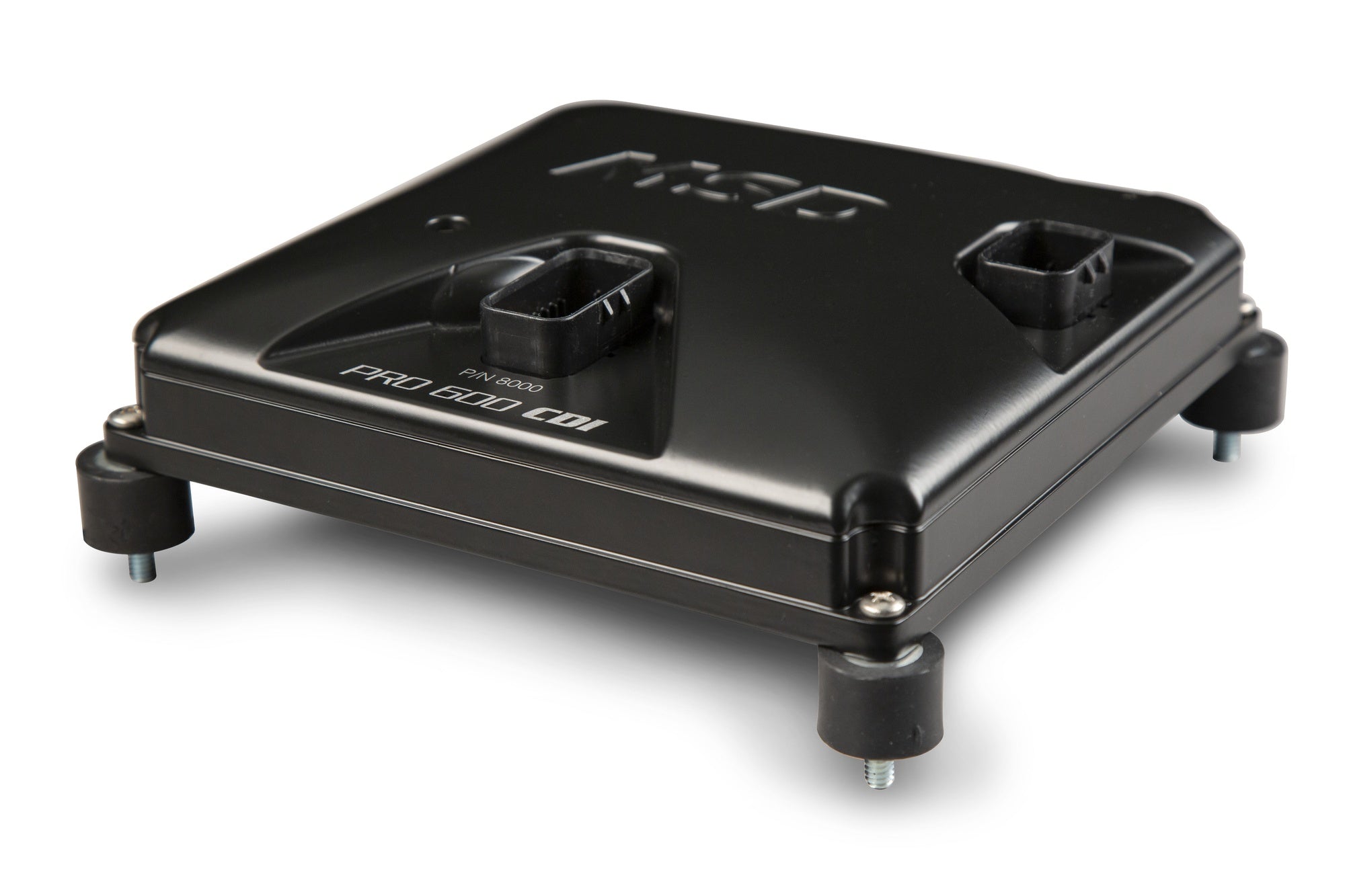

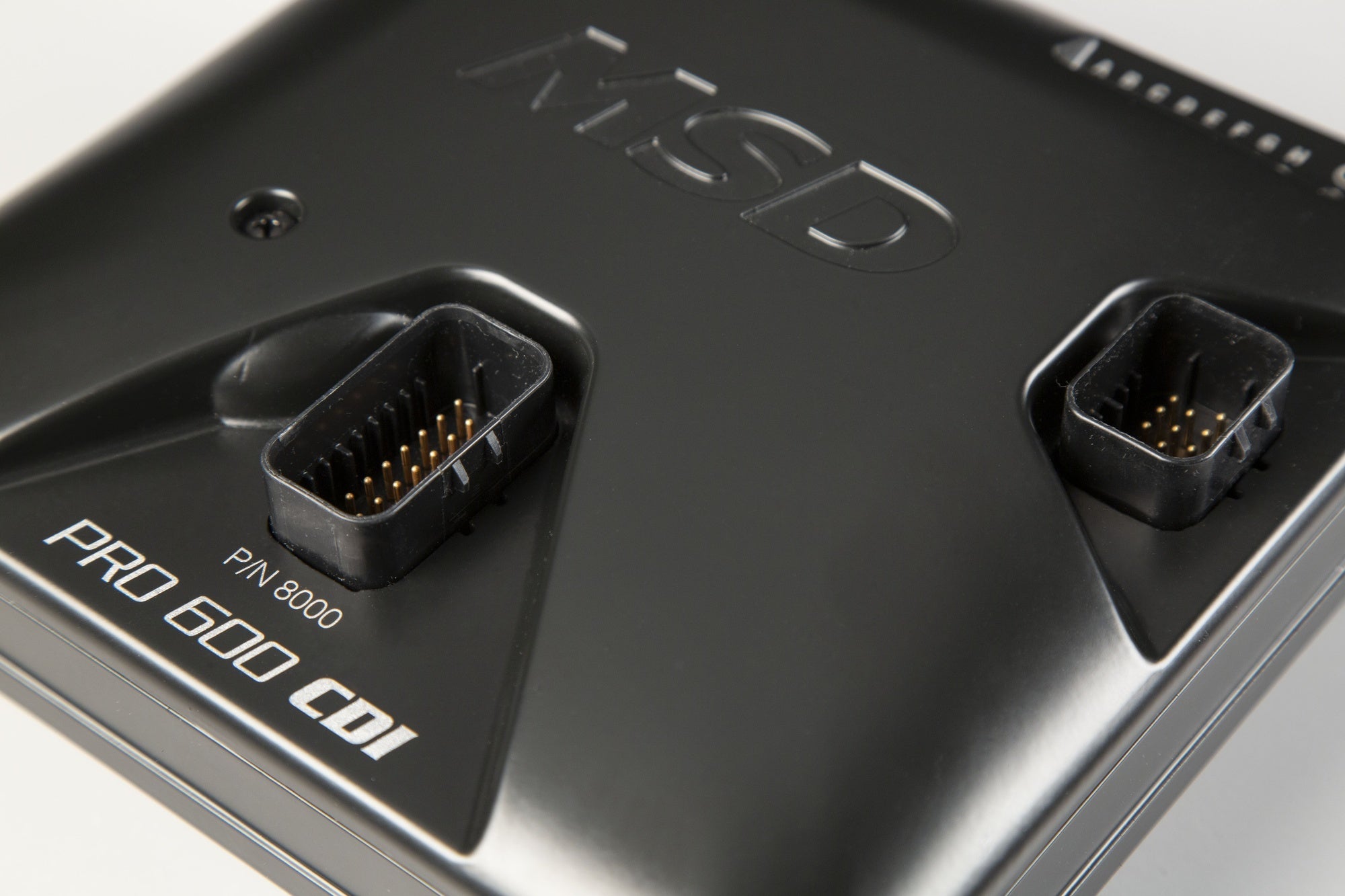

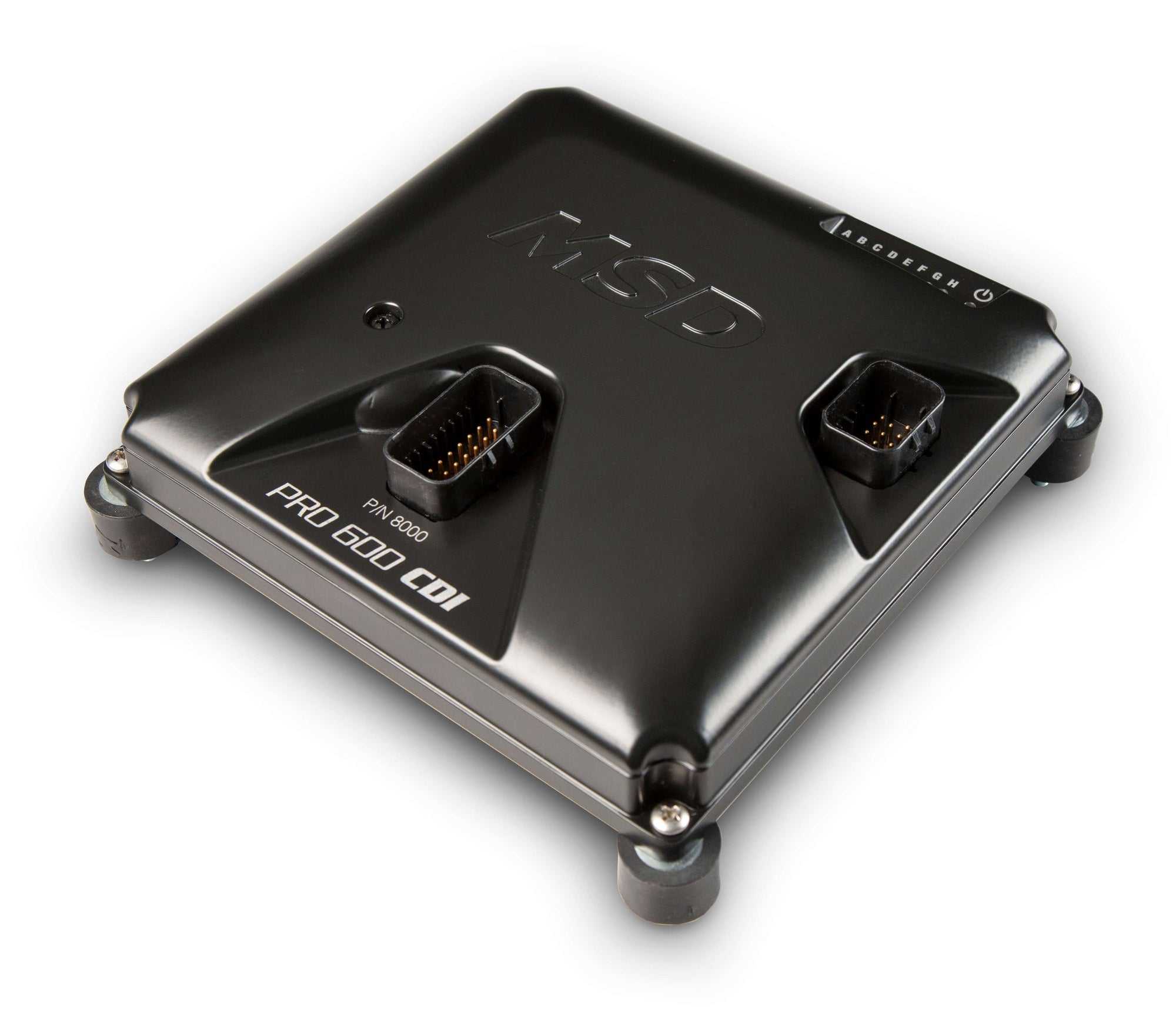

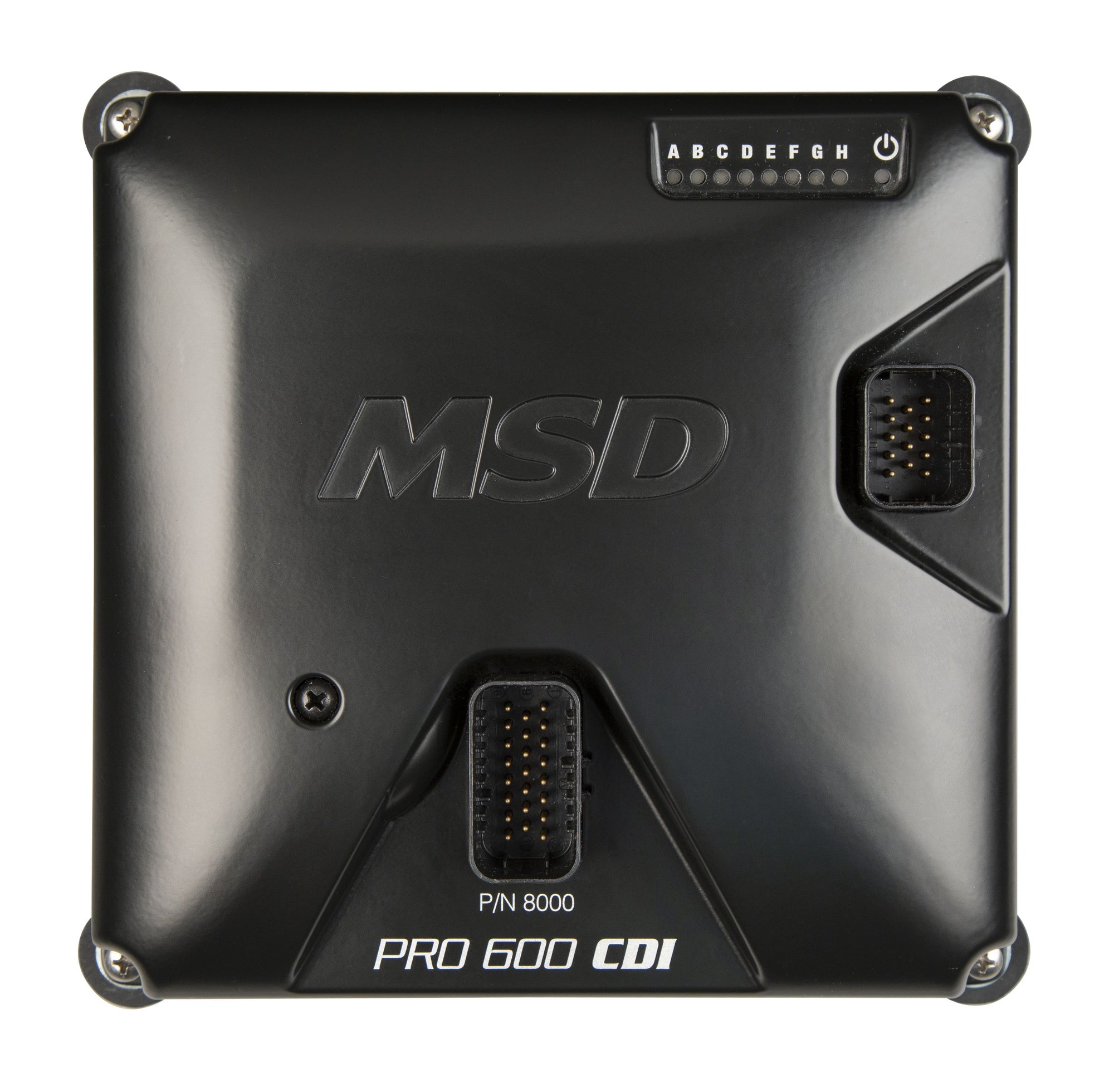

MSD Ignition Box - Race - PRO 600 CDI
Introducing MSD's PRO 600 CDI 8-channel capacitive discharge ignition. Designed for coil-near-plug engine management systems such as Holley EFI, GM LS platforms, and most other EFI systems, the PRO 600 is also capable of easily converting any distributor type ignition into a coil-near-plug system.
When you're making extreme cylinder pressure with boost or nitrous on an inductive coil-per-plug ignition, lack of spark energy means you're leaving horsepower on the table. To answer this need, the ignition experts at MSD developed the PRO 600 CDI to provide unrivaled spark energy and dependability.

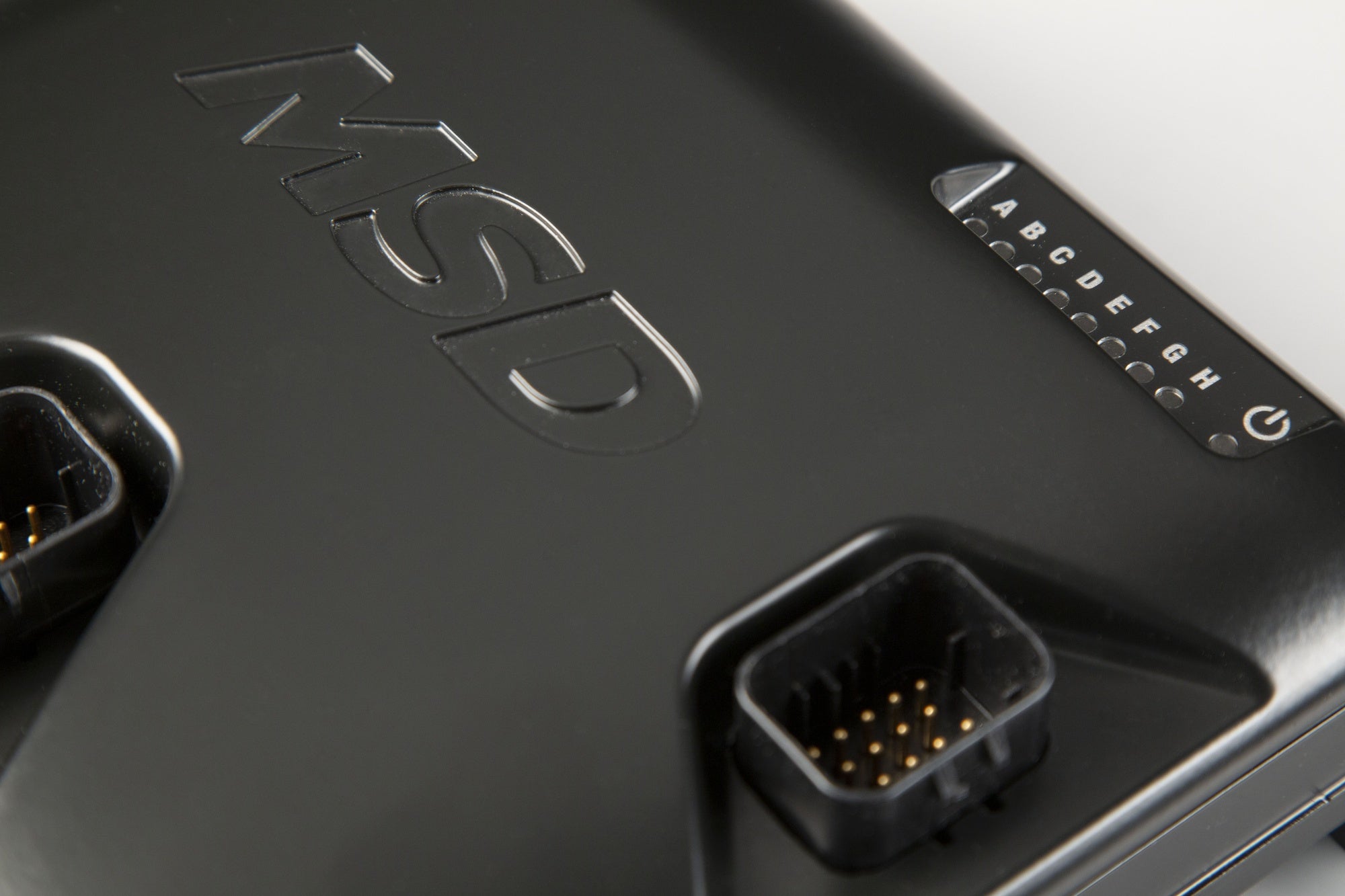

The PRO 600 has built-in protection for accidental reverse battery connection, over temperature protection, and LED diagnostics that can identify an issue with individual coils should a problem arise. A programmable power setting allows racers to switch between a user adjustable 250 to 400 millijoule output, or the industry-leading output of 680 millijoules via an activation wire or software - making the PRO 600 ideal for Drag Week style cars. Turn it down for the long haul, and then set it to kill mode at the strip.
Pro Mod to Pro Street, or yanking a sled in the dirt with a pulling truck, if you need to light 8 coils without fail - the PRO 600 is the answer.
Introducing MSD's PRO 600 CDI 8-channel capacitive discharge ignition. Designed for coil-near-plug engine management systems such as Holley EFI, GM LS platforms, and most other EFI systems, the PRO 600 is also capable of easily converting any distributor type ignition into a coil-near-plug system.
When you're making extreme cylinder pressure with boost or nitrous on an inductive coil-per-plug ignition, lack of spark energy means you're leaving horsepower on the table. To answer this need, the ignition experts at MSD developed the PRO 600 CDI to provide unrivaled spark energy and dependability.
The PRO 600 has built-in protection for accidental reverse battery connection, over temperature protection, and LED diagnostics that can identify an issue with individual coils should a problem arise. A programmable power setting allows racers to switch between a user adjustable 250 to 400 millijoule output, or the industry-leading output of 680 millijoules via an activation wire or software - making the PRO 600 ideal for Drag Week style cars. Turn it down for the long haul, and then set it to kill mode at the strip.
Pro Mod to Pro Street, or yanking a sled in the dirt with a pulling truck, if you need to light 8 coils without fail - the PRO 600 is the answer.
📋
Product Specifications
Brand
MSD
Category
Electrical
Color
Black
Connector Gender
Female
Connector Quantity
2
Current Draw
3 Amps per 1
Emission Code
4
Grade Type
Race
Height
4.4
Ignition Type
Performance
Length
13.0
Mount Type
Surface Mount
Mounting Hardware Included
Yes
Primary Voltage
515-520 Volts
Product Type
Ignition Box
RPM Range
15
Secondary Voltage
50
Spark Energy
680 mJ Max
Terminal Gender
Male
Terminal Quantity
37
Voltage Required
6 to 22 Volts
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Width
9.6
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
