Holley Sniper EFIPart 820032-1Made in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
Holley is now offering cost effective fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions.

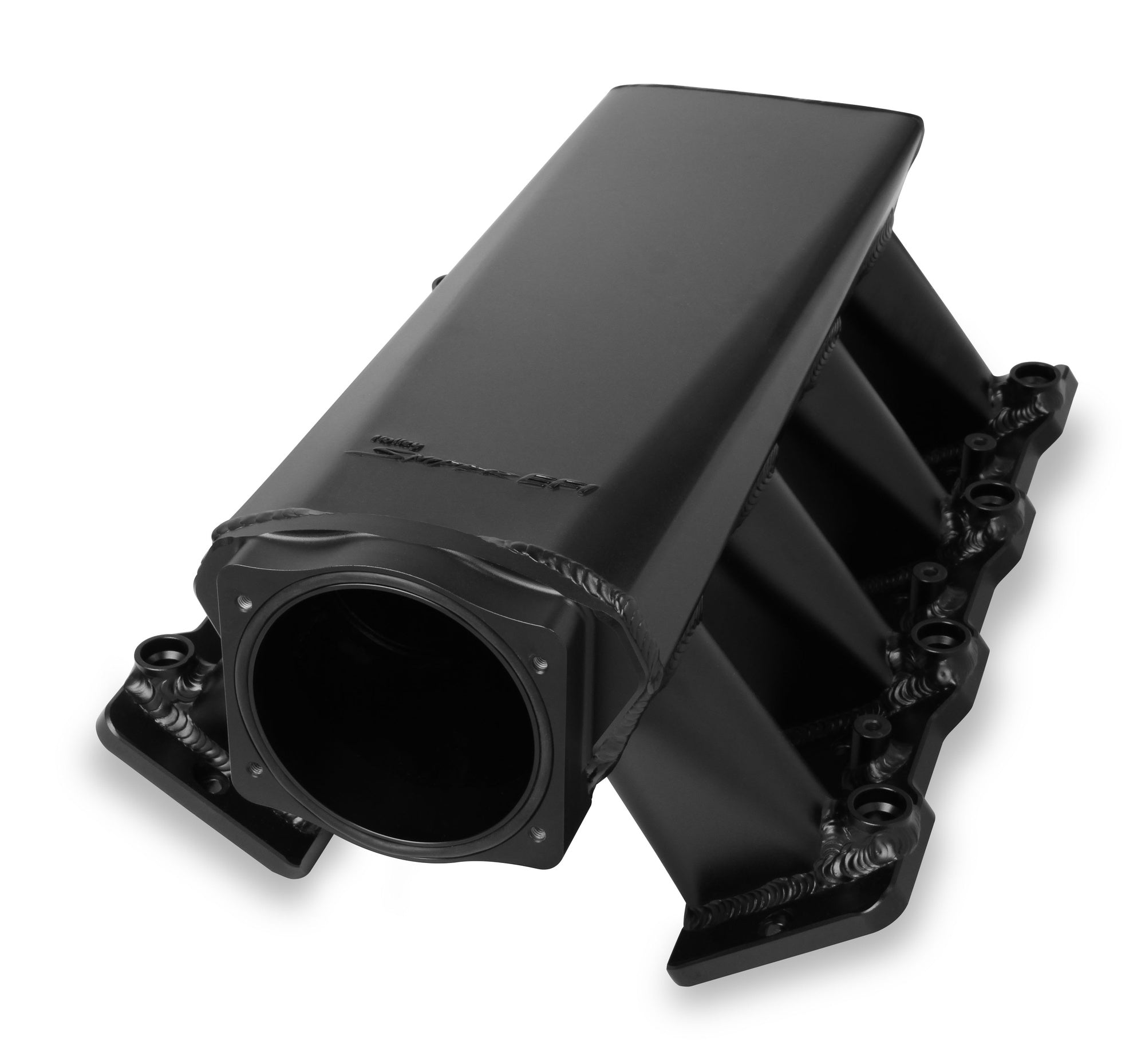

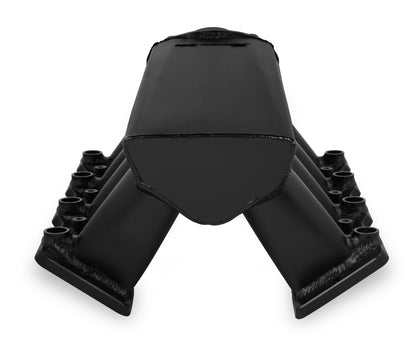

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 92mm Throttle Body opening + Fuel Rail Kit Black with Sniper EFI Logo - Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent.

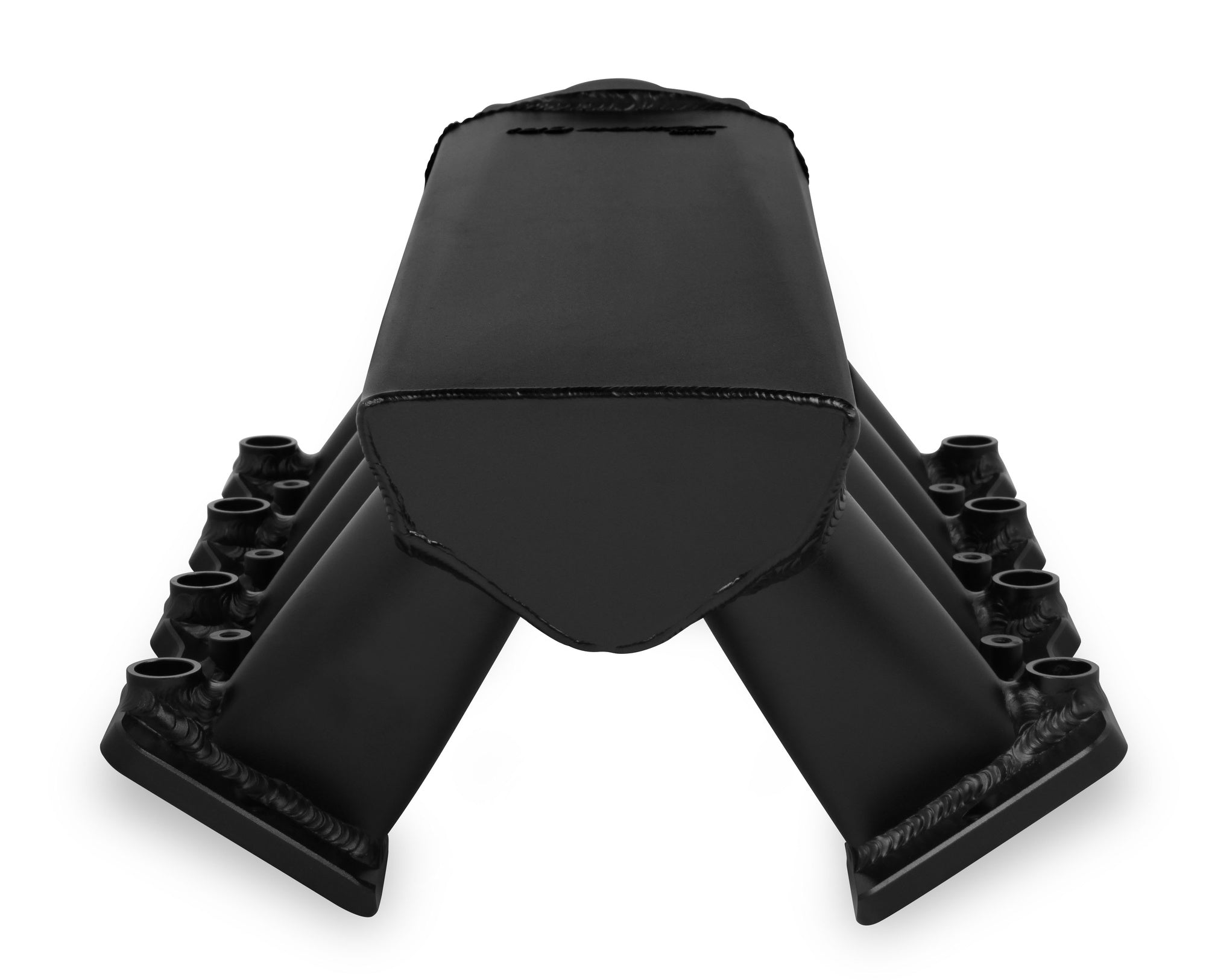

- Provision for MAP sensor located on rear of plenum

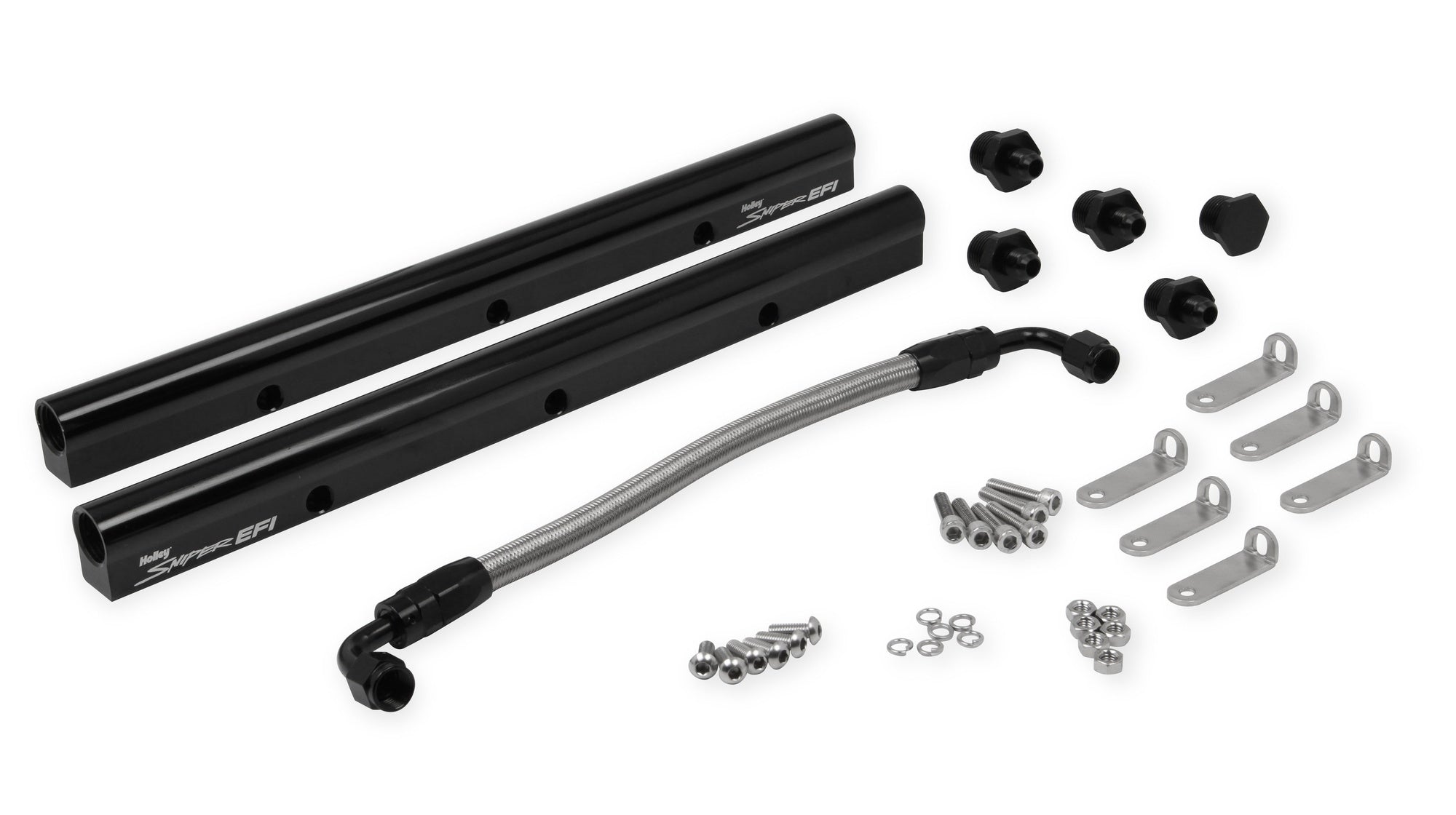

- Includes 3/8" fuel rail kits (Sniper logo laser engraved)
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

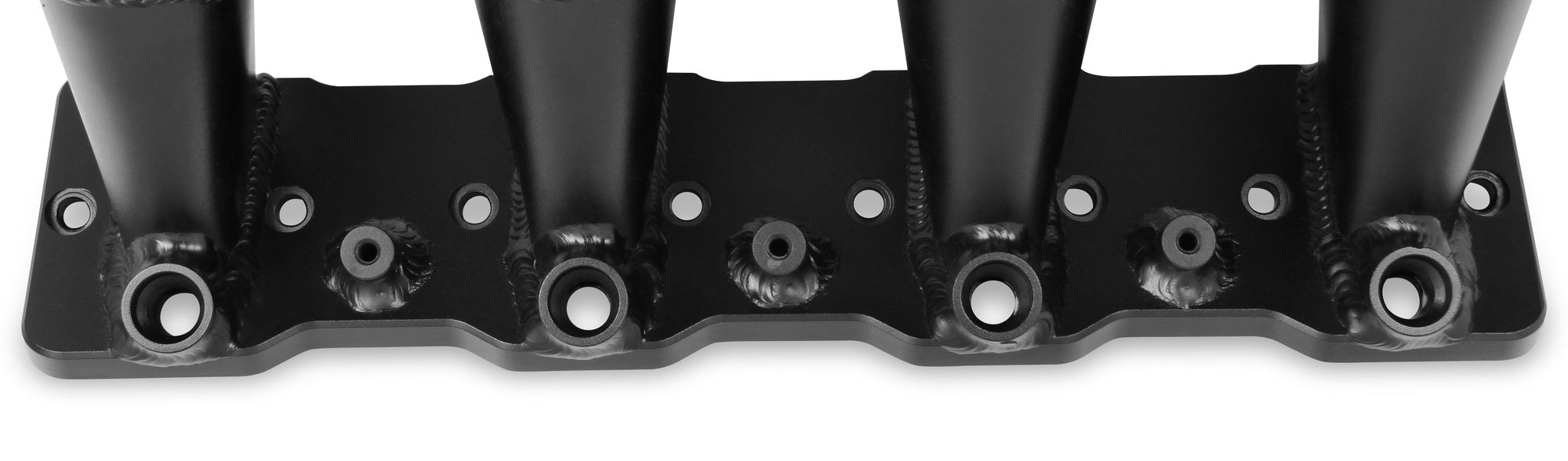

- Sniper intake will only accept EV1 style injectors

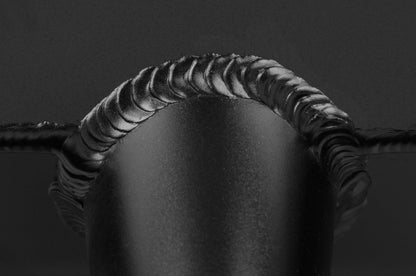

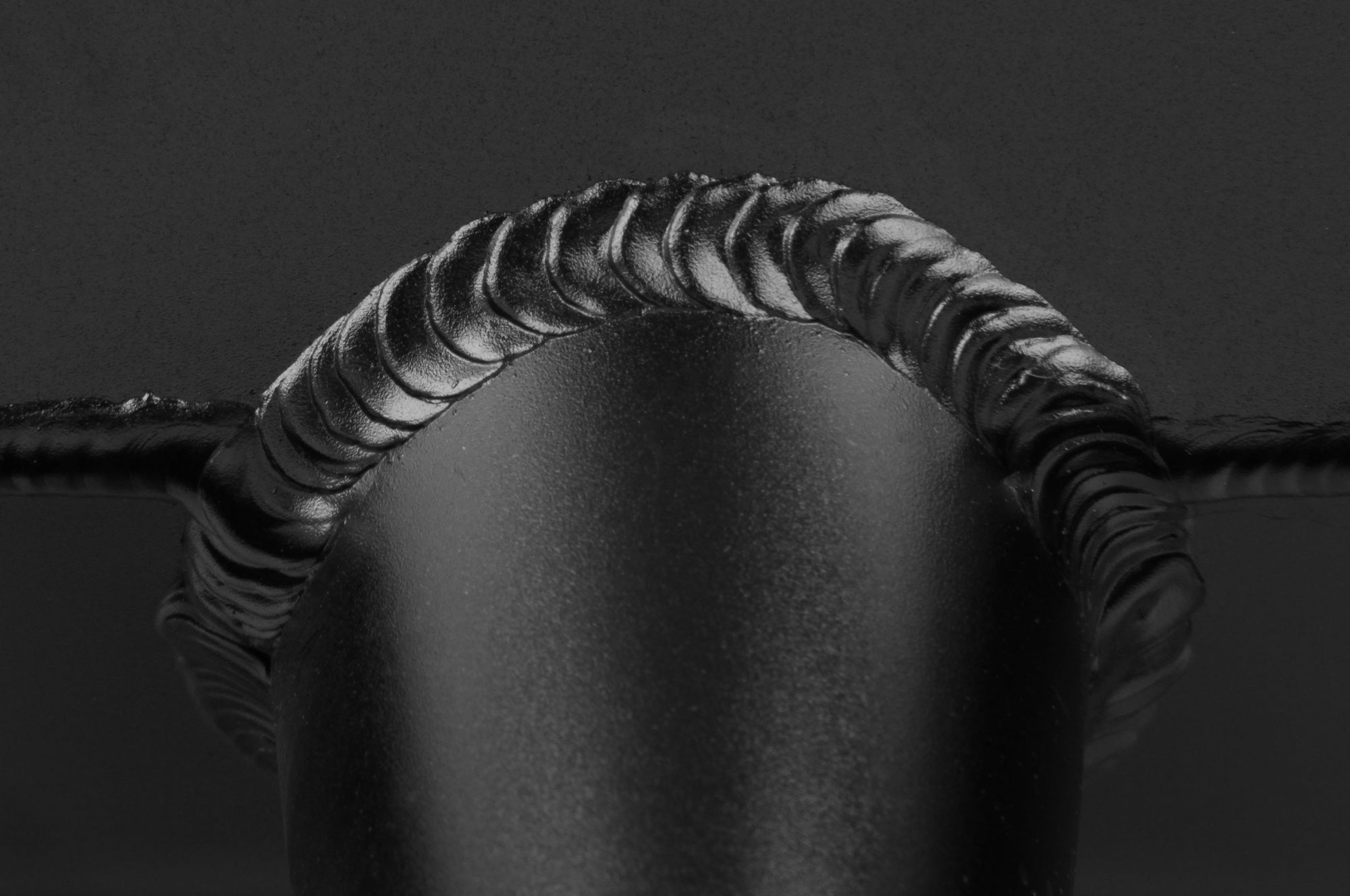

- 100% TIG welded for strength and durability

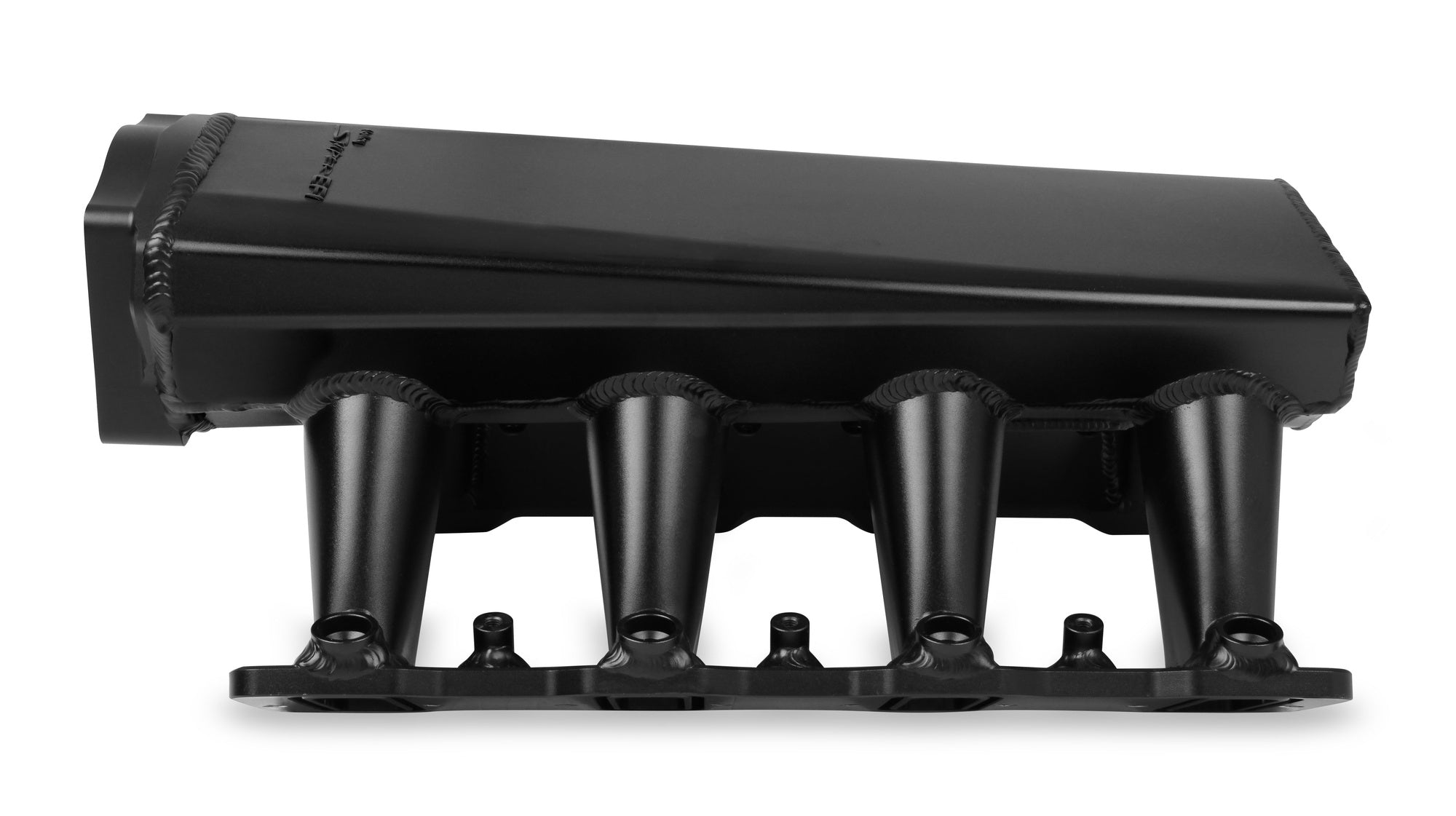

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

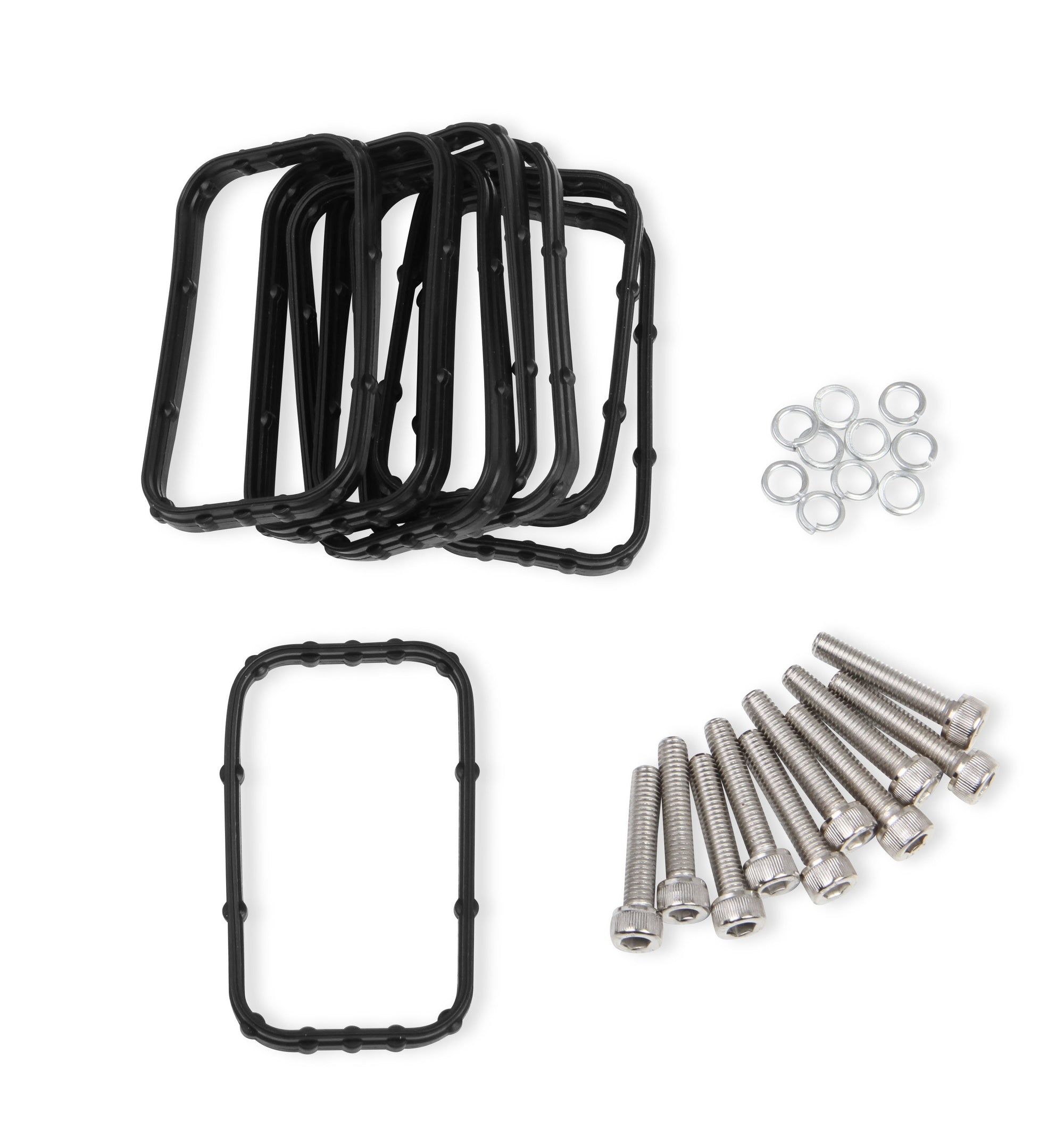

- Product includes all gaskets and hardware for a hassle-free installation

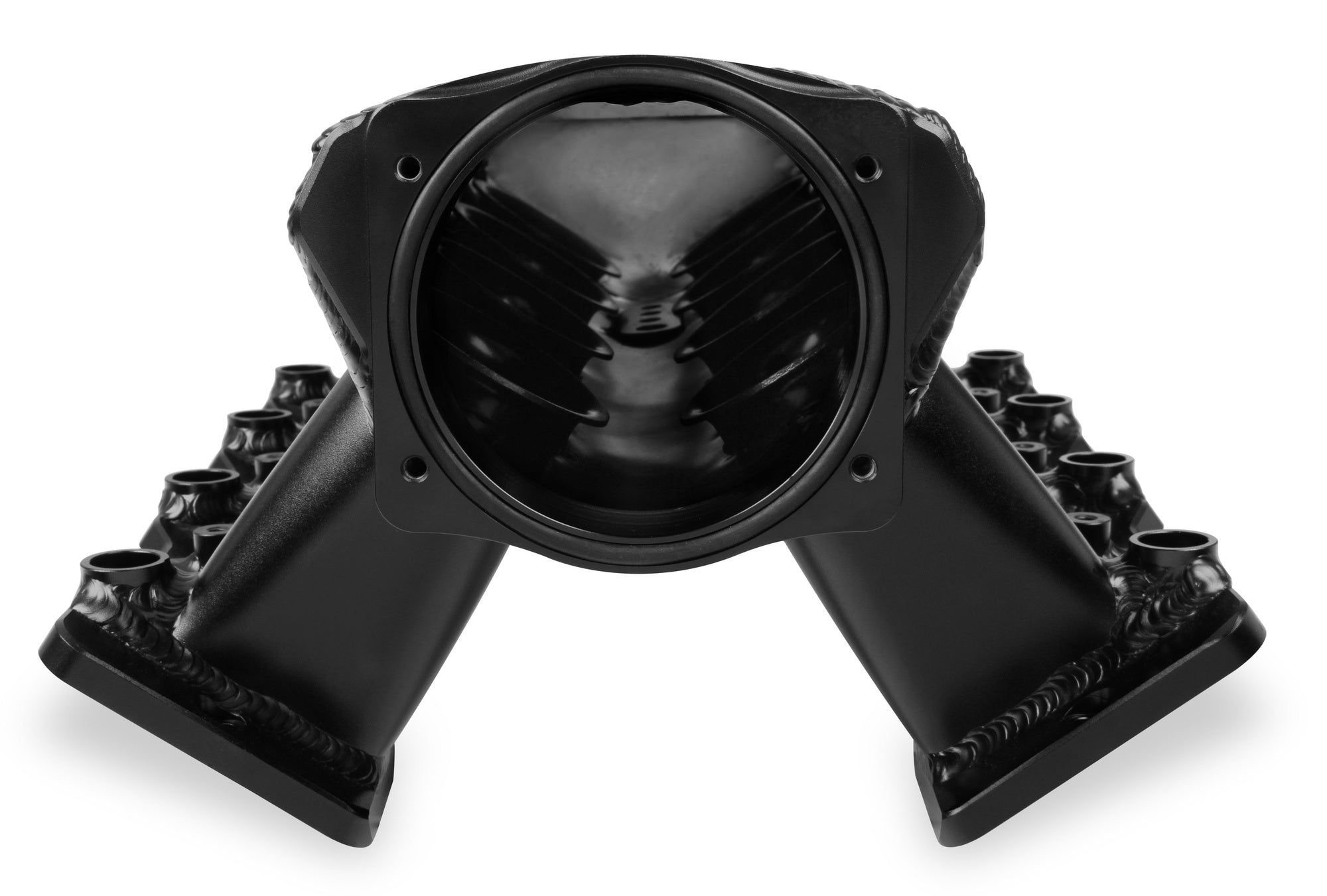

- 92mm throttle bore opening for increased air flow
- Black finish creates stealthy under-hood styling
📖
About this product
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 92mm Throttle Body opening + Fuel Rail Kit Black with Sniper EFI Logo - Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent.
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
2500-7000
Basic Operating RPM Range
4500-7500
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
No
Category
Engine
CNC Ported
No
Color
Black
Construction
Fabricated
Cylinder Head Port Shape
Cathedral
Deck Height
9.24
EGR Port
No
Emission Code
4
Flange Style
N/A
Front Maximum Height
8.267
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Grade Type
Performance
Injector Style Provision
LS1/LS6 EV1 Jetronic
Intake Port Gasket(s) Included
Yes
Manifold Type
Fabricated
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Black
Product Type
Intake Manifold
Prop 65 Yes/No
Yes
Rear Maximum Height
7.559
Recommended Use
Forced Induction
Removable Runners
No
Removable Top/Lid
No
Runner Length
4.921" (125mm)
Single Or Dual Plane Type
Single
Style
EFI
Sub Category
Cylinder Block Components
Throttle Body Bore Diameter
92
Throttle Body Gasket Included
Yes
Throttle Body Included
No
Throttle Bore
92mm

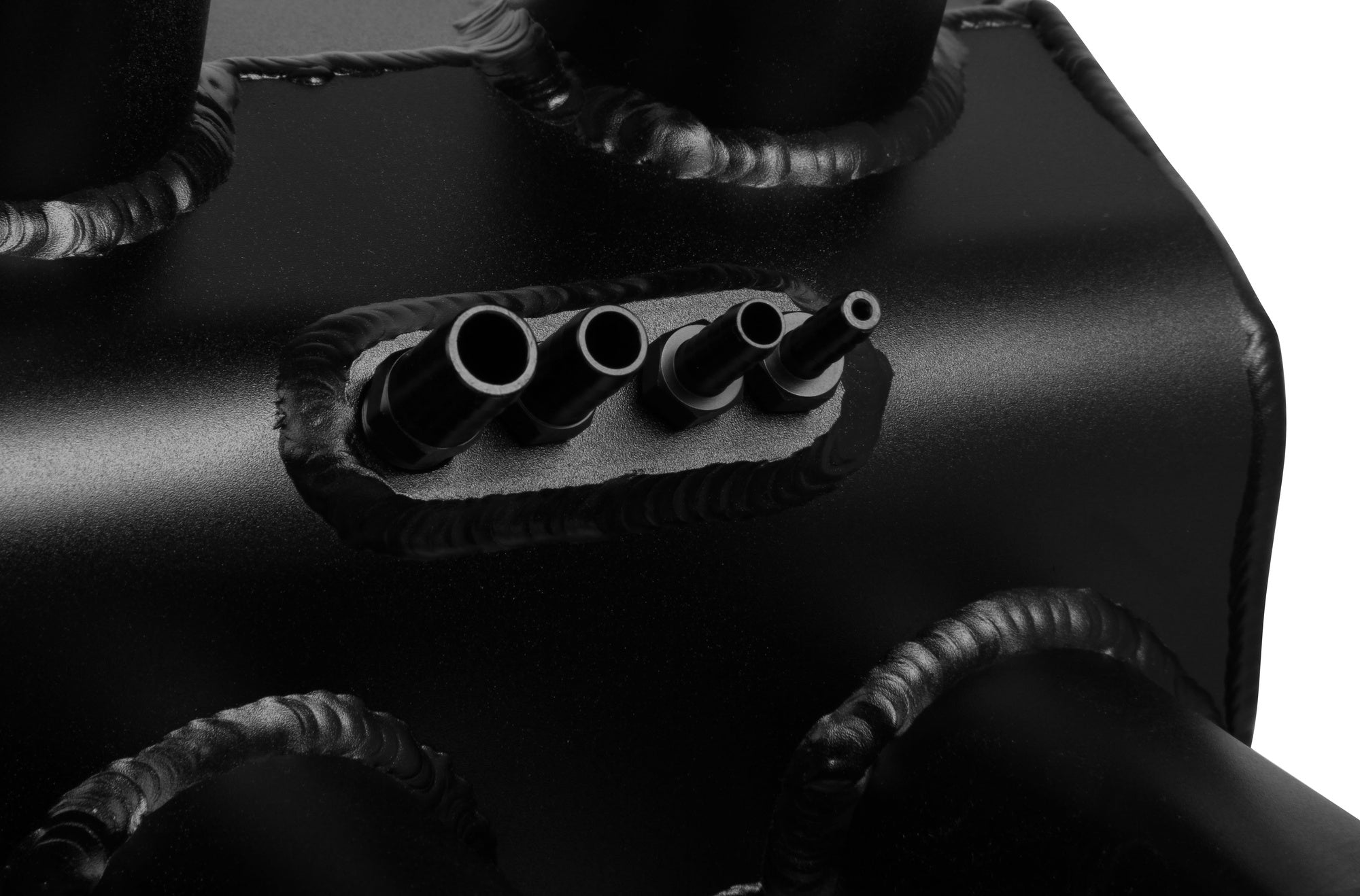

Vacuum Ports
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
21.2 × 15.2 × 11.7 in
Shipping Dimensions
21.2 × 15.2 × 11.7 in
Weight
6827 g (6.83 kg)
