Holley Sniper EFIPart 820051Made in US
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features

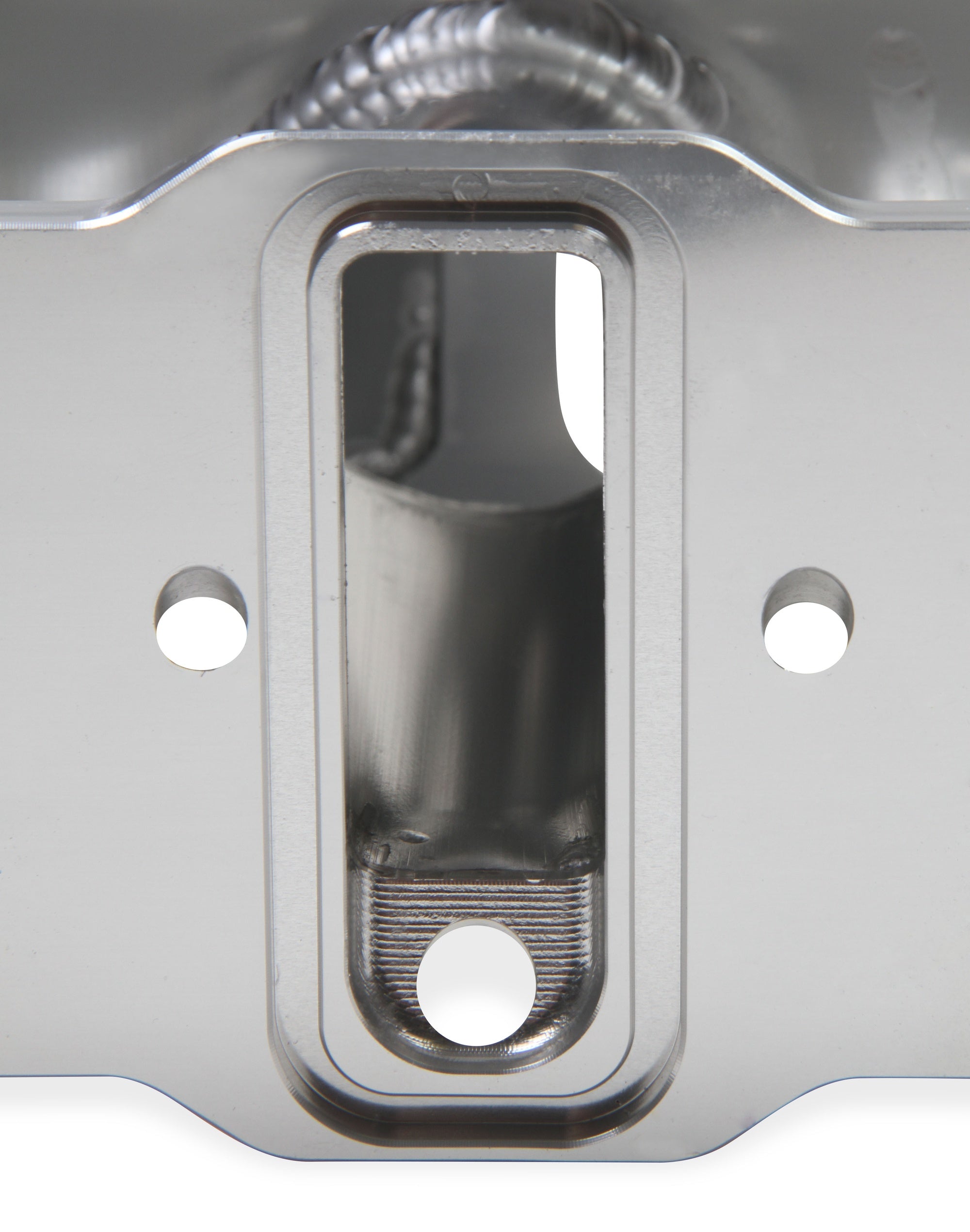

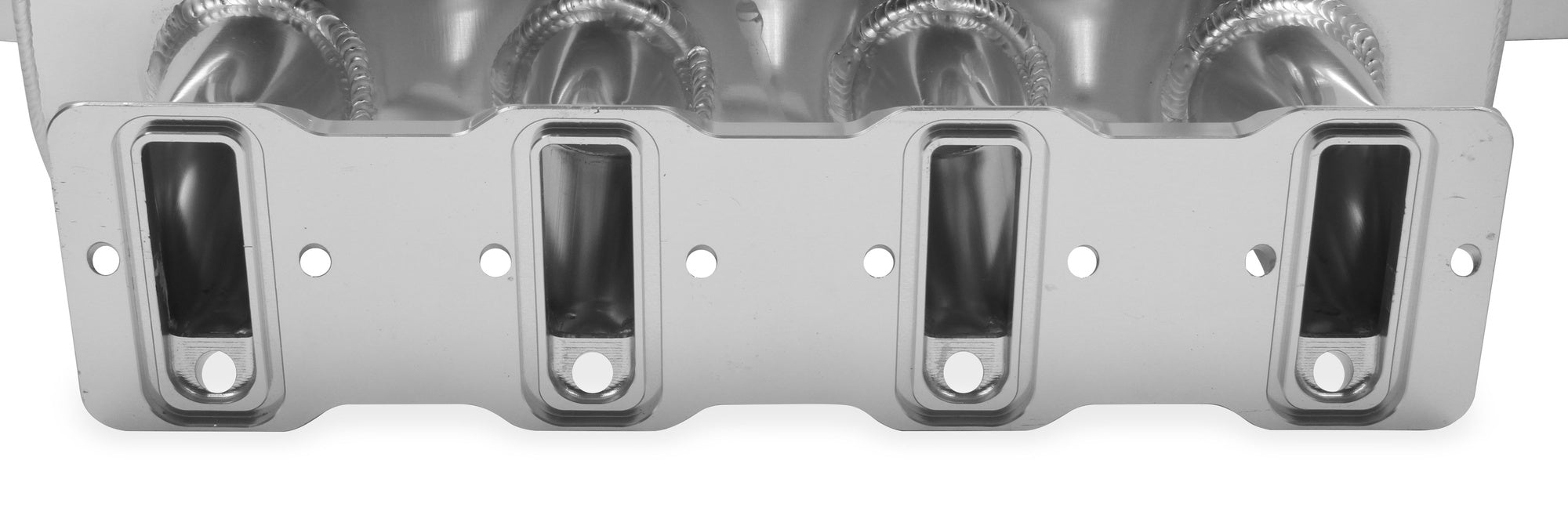

*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!

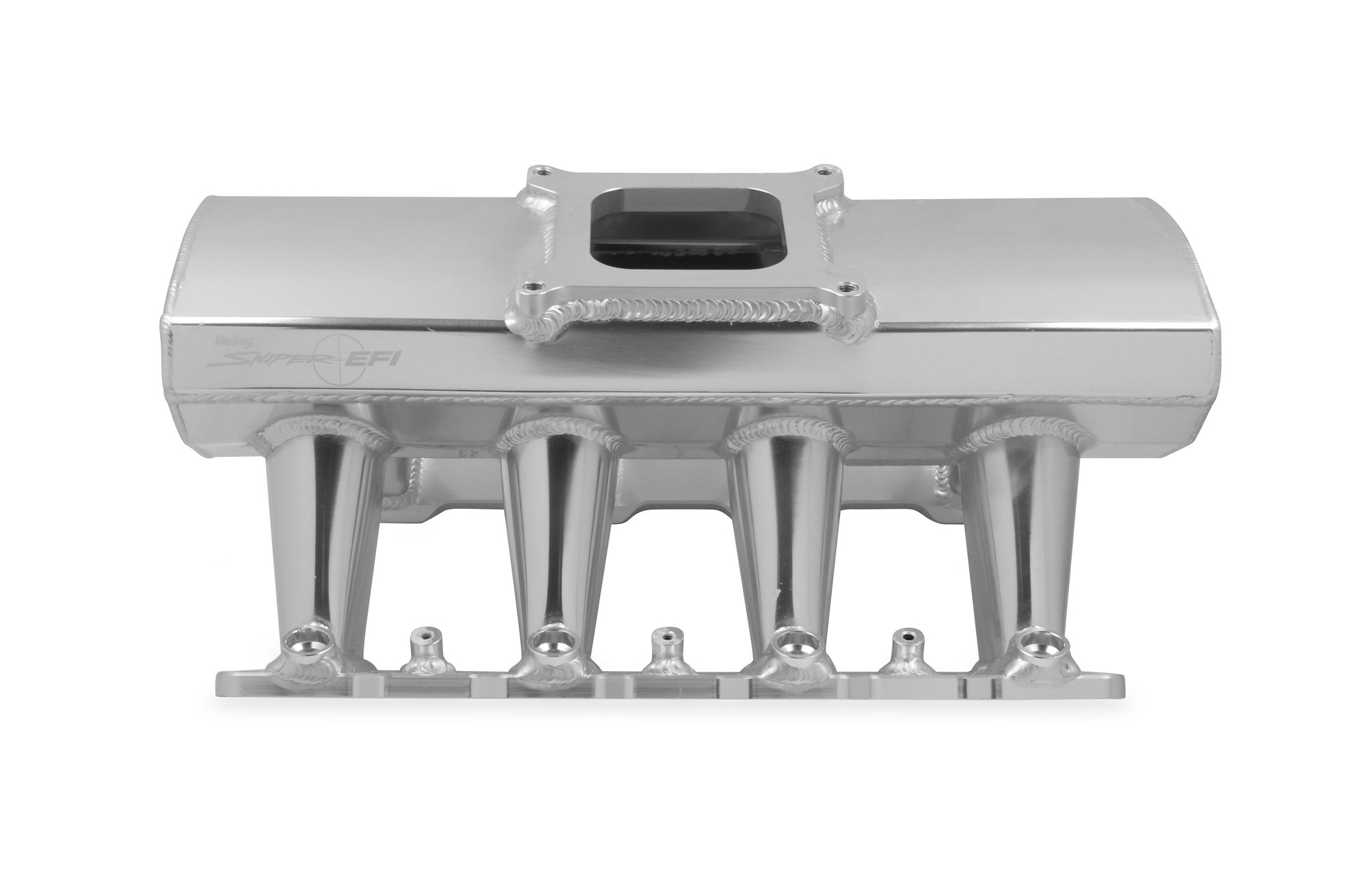

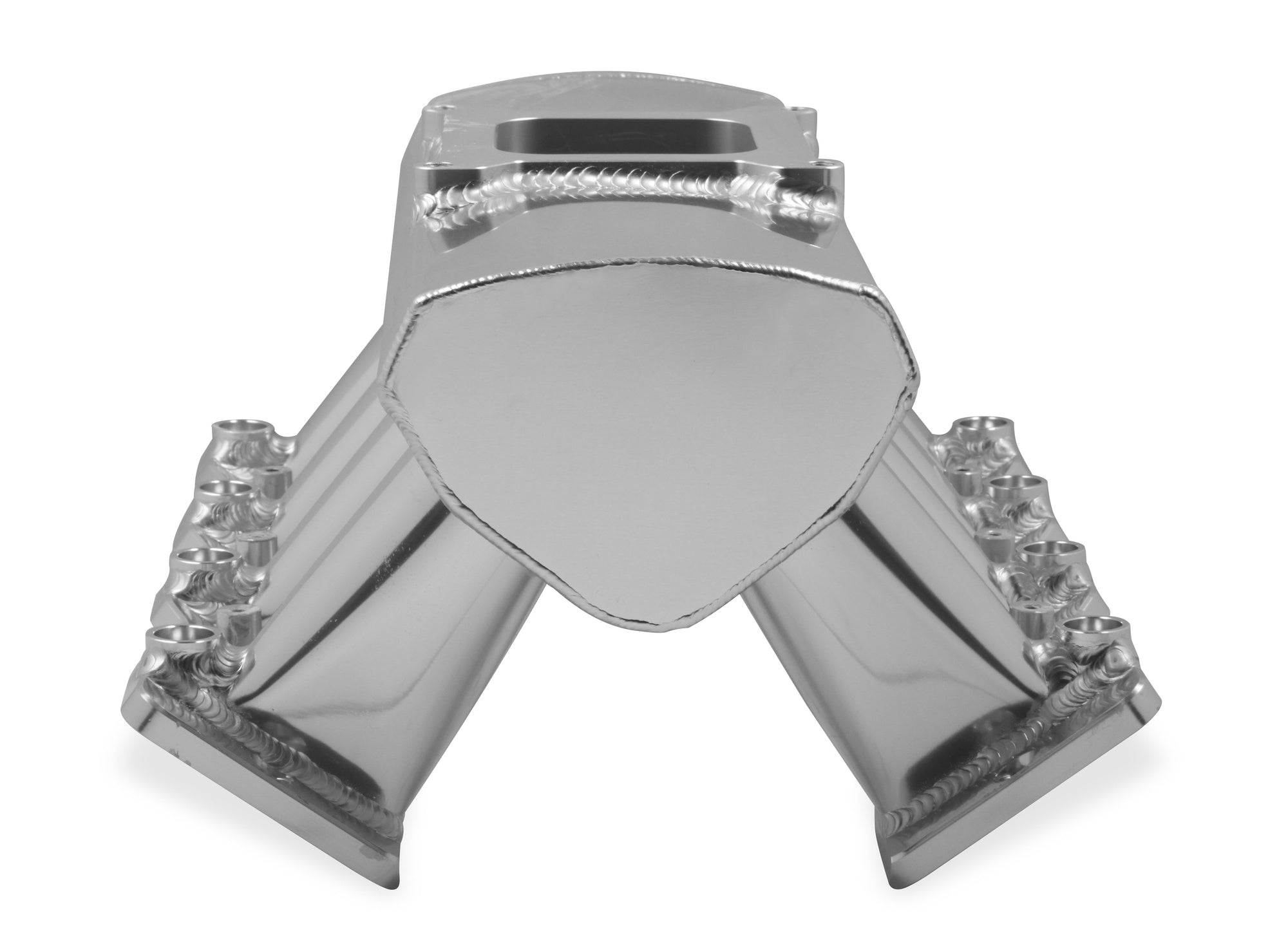

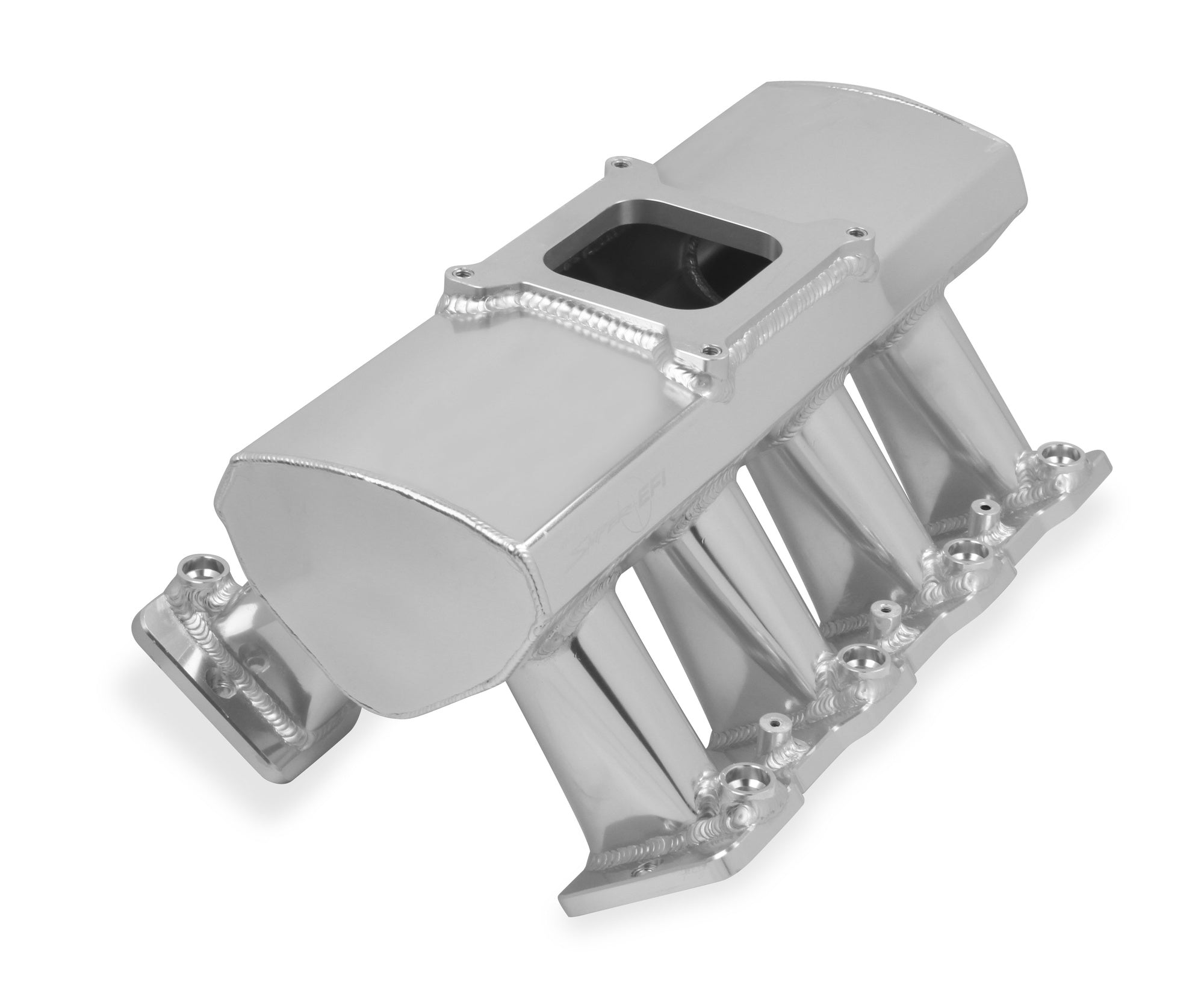

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 Single Plane EFI + Fuel Rail Kit Silver with Sniper EFI logo

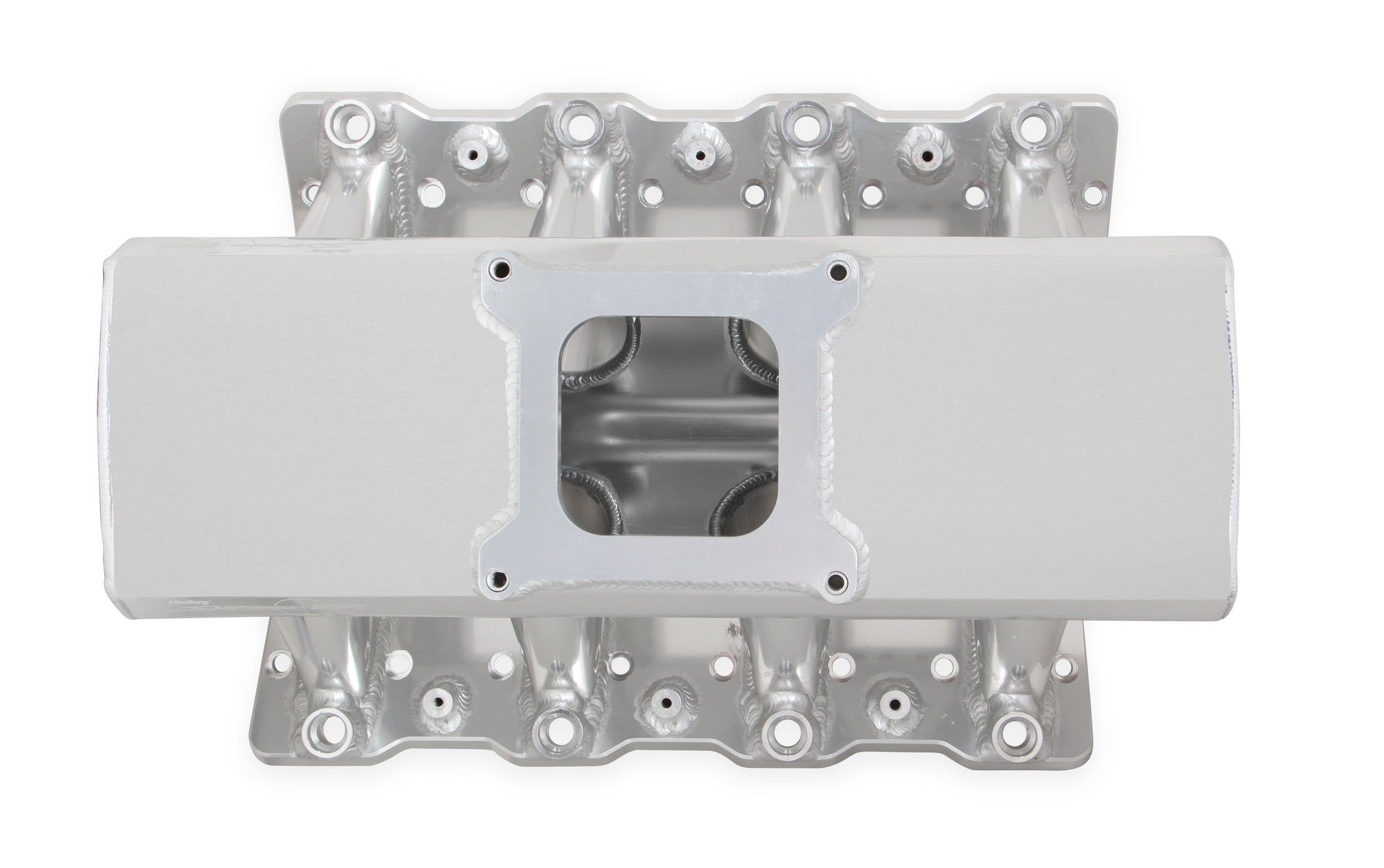

- 1 x 4150 flange option for increased air flow
- Product includes all gaskets and hardware for a hassle-free installation

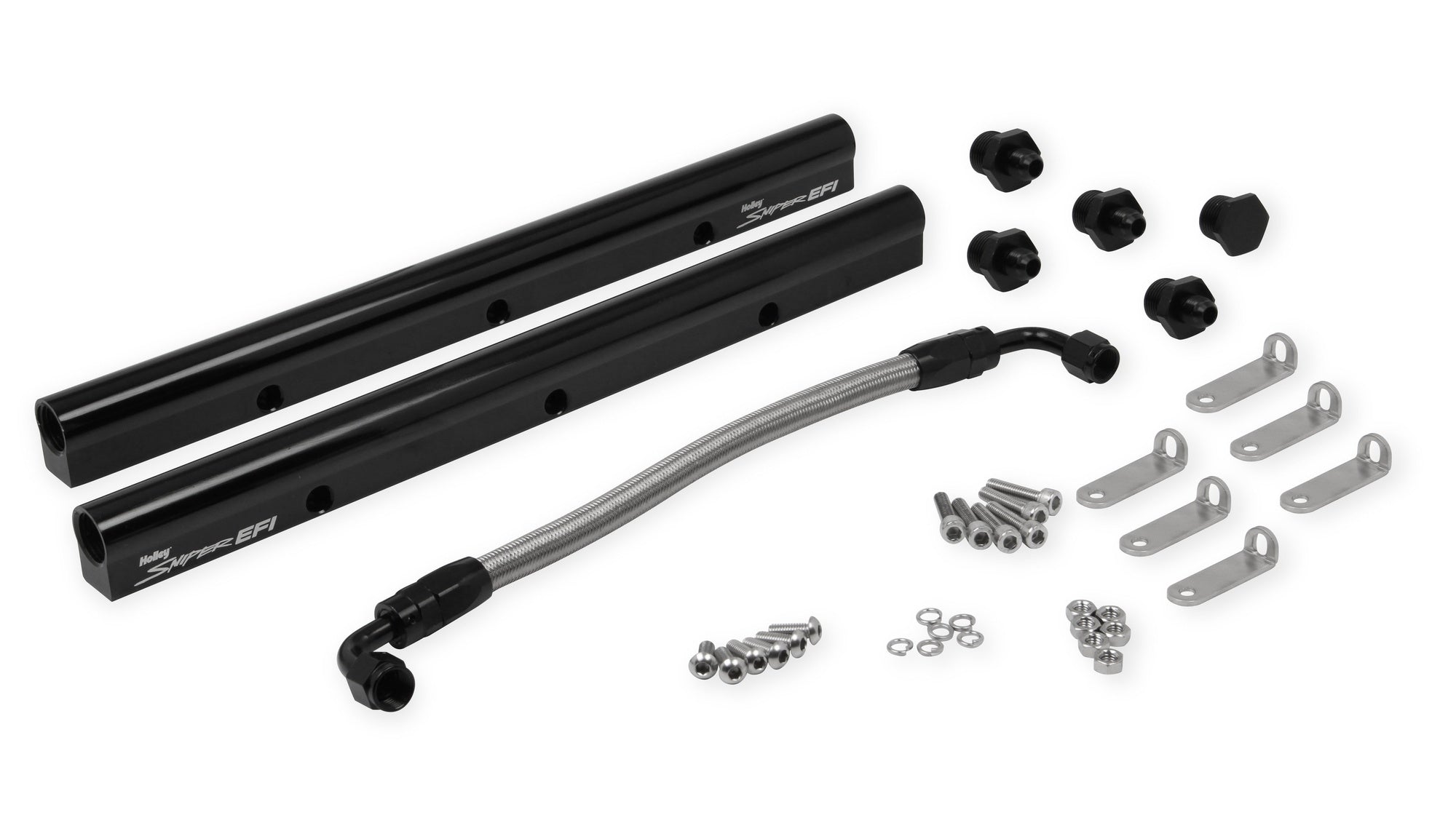

- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

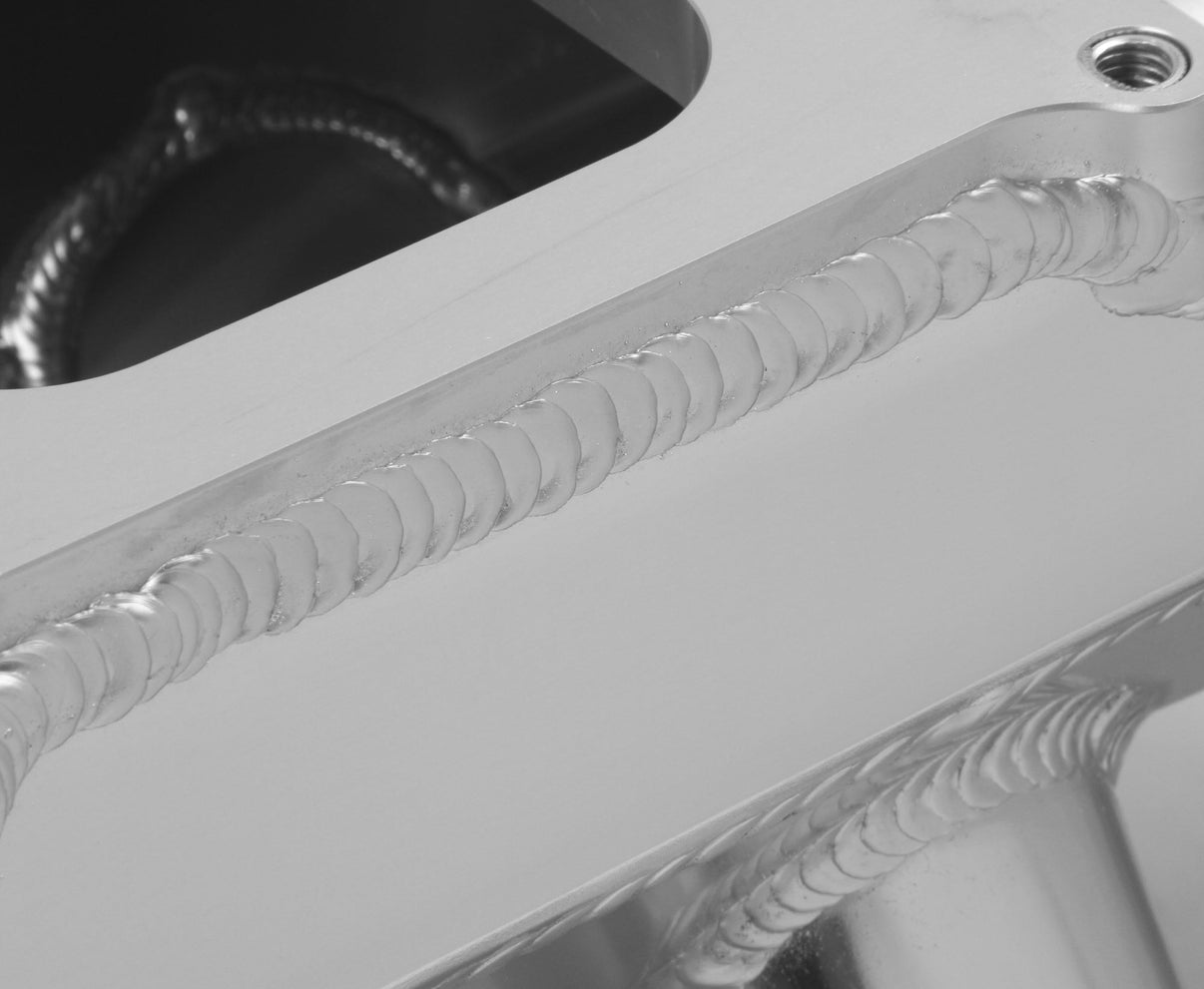

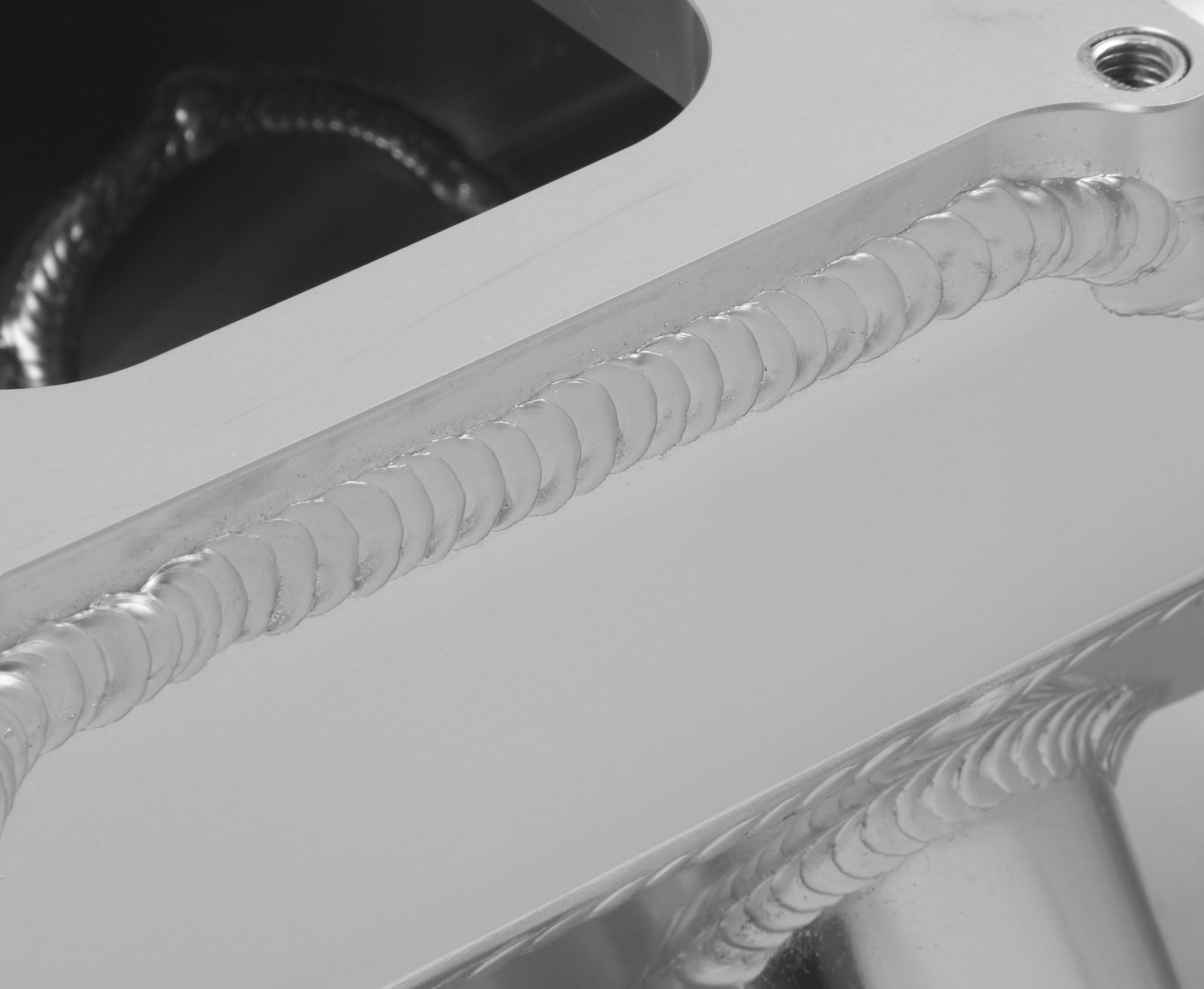

- 100% TIG welded for strength and durability
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

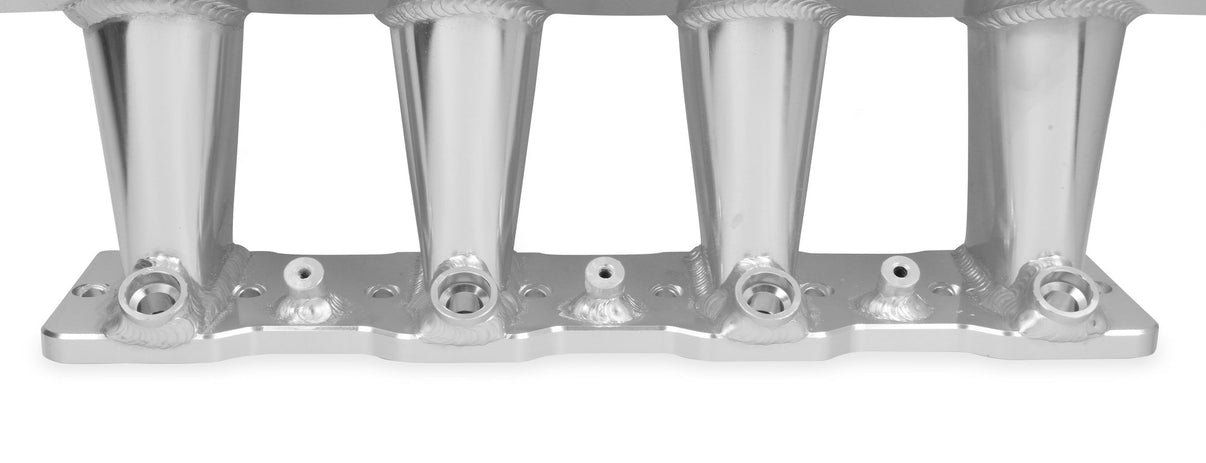

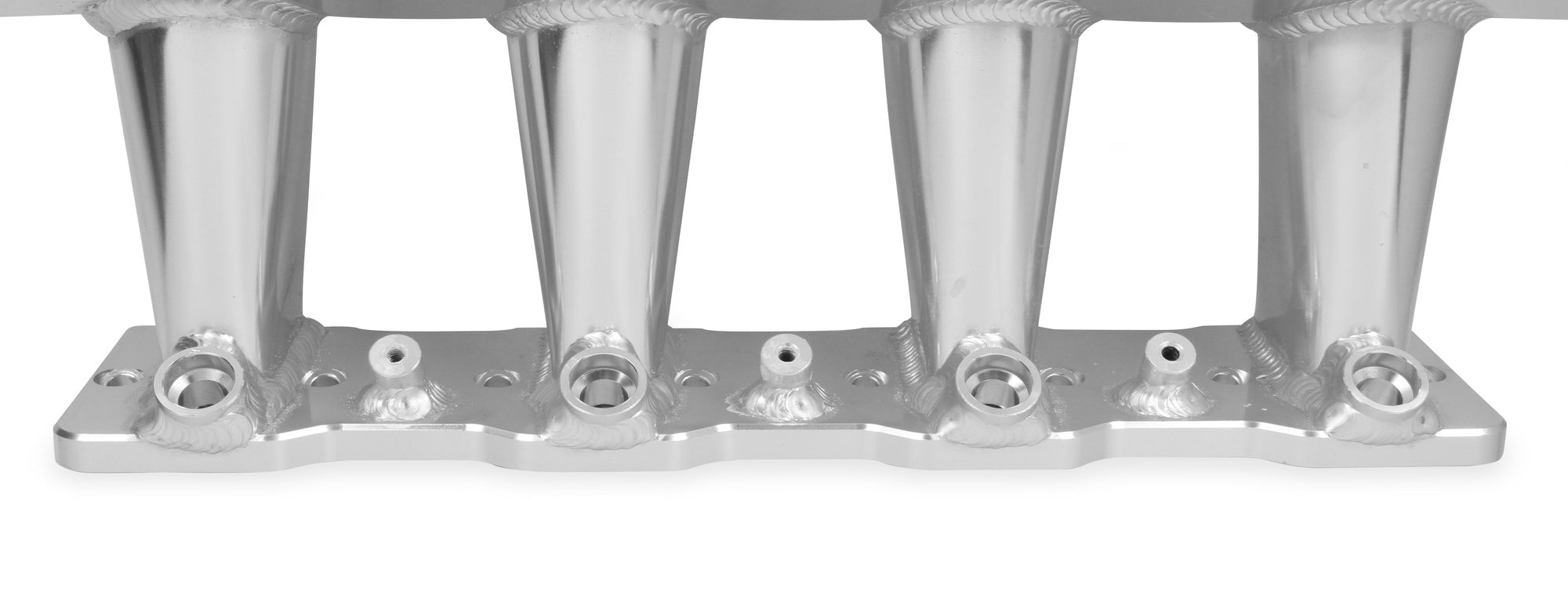

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Silver finish creates high impact under-hood styling
- The Sniper intake will only accept EV1 style injectors.
📖
About this product
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 Single Plane EFI + Fuel Rail Kit Silver with Sniper EFI logo
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
2500-7000
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Carburetor Flange
Square/4150
Carburetor Quantity
1
Carburetor Studs Included
No
Category
Sniper Intake Manifolds SP
CNC Ported
No
Color
Silver
Construction
Fabricated
Cylinder Head Port Shape
Cathedral
Deck Height
9.24
EGR Port
No
Emission Code
4
Flange Size
4150
Flange Style
4150 Square Bore
Front Maximum Height
8.858
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Grade Type
Performance
Injector Style Provision
EV1
Intake Port Gasket(s) Included
Yes
Manifold Type
Fabricated
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Polished
Product Type
Intake Manifold
Prop 65 Yes/No
Yes
Rear Maximum Height
8.858
Recommended Use
Forced Induction
Removable Runners
No
Removable Top/Lid
No
Runner Length
4.921" (125mm)
Single Or Dual Plane Type
Single Plane
Style
EFI
Throttle Body Bore Diameter
3.6
Throttle Body Gasket Included
No
Throttle Body Included
No
Throttle Bore
4150 flange
Vacuum Ports
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
21.2 × 15.2 × 12.9 in
Shipping Dimensions
21.2 × 15.2 × 12.9 in
Weight
7598 g (7.6 kg)
