Holley Sniper EFIPart 822111-1Made in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available | Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent | Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family. | Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood.

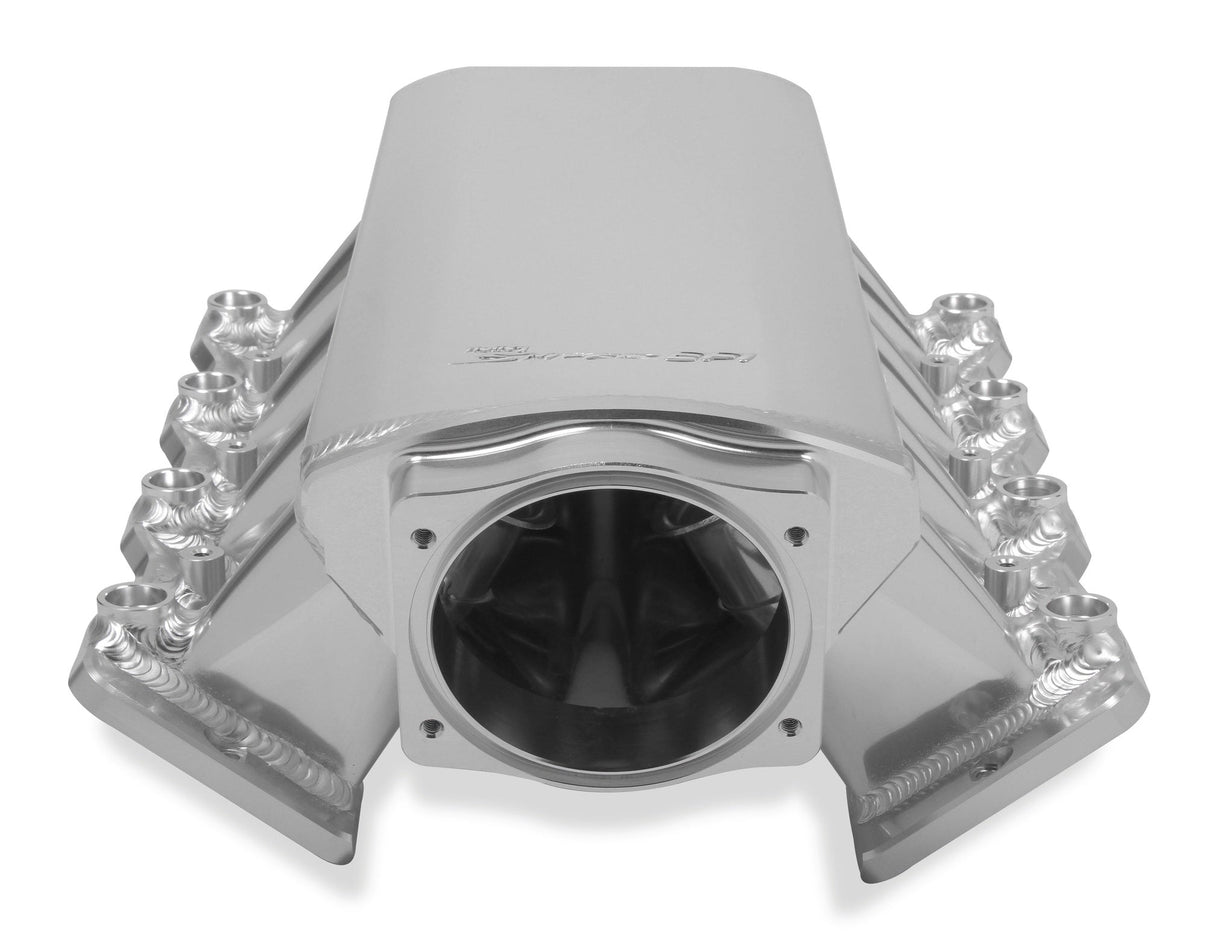

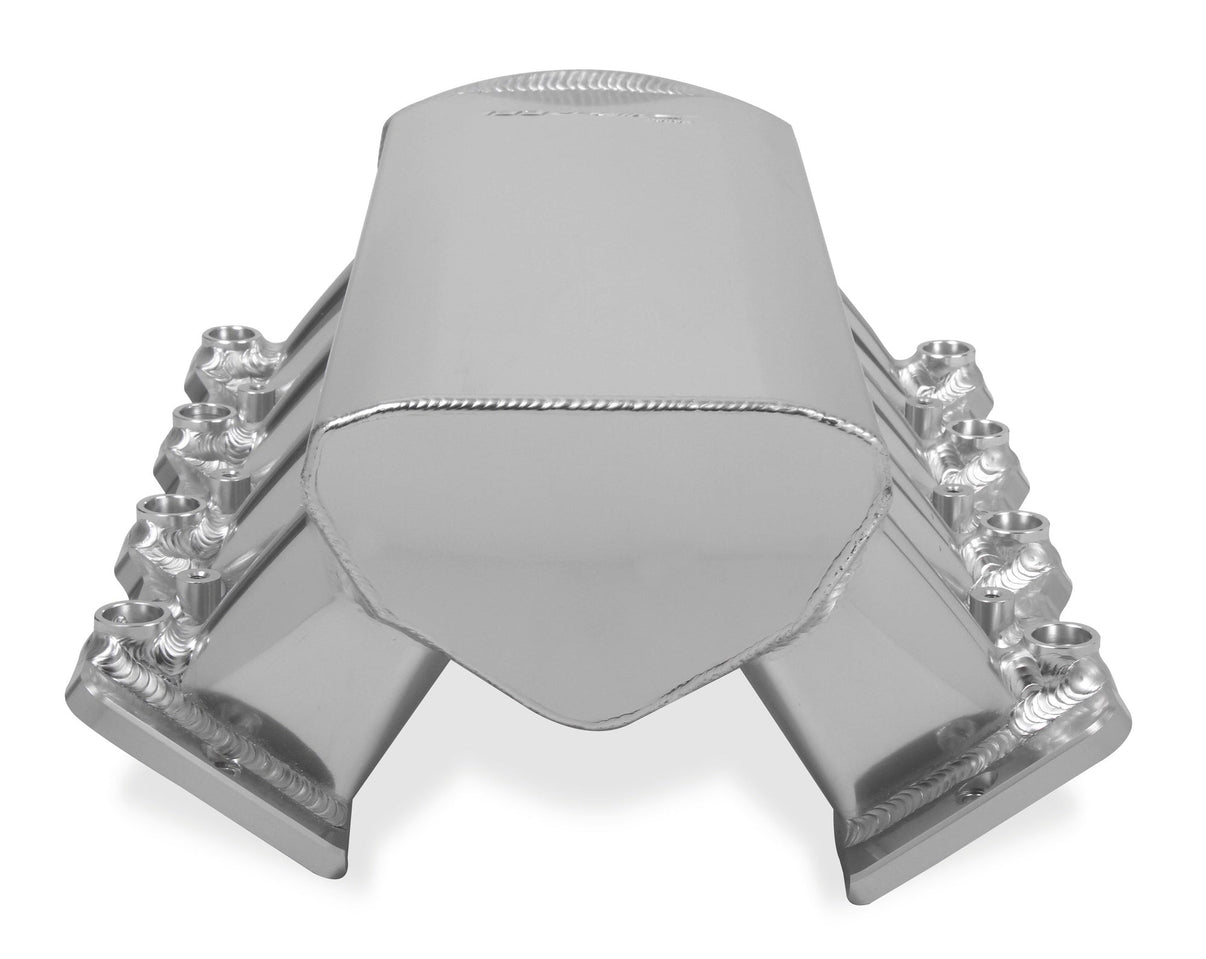

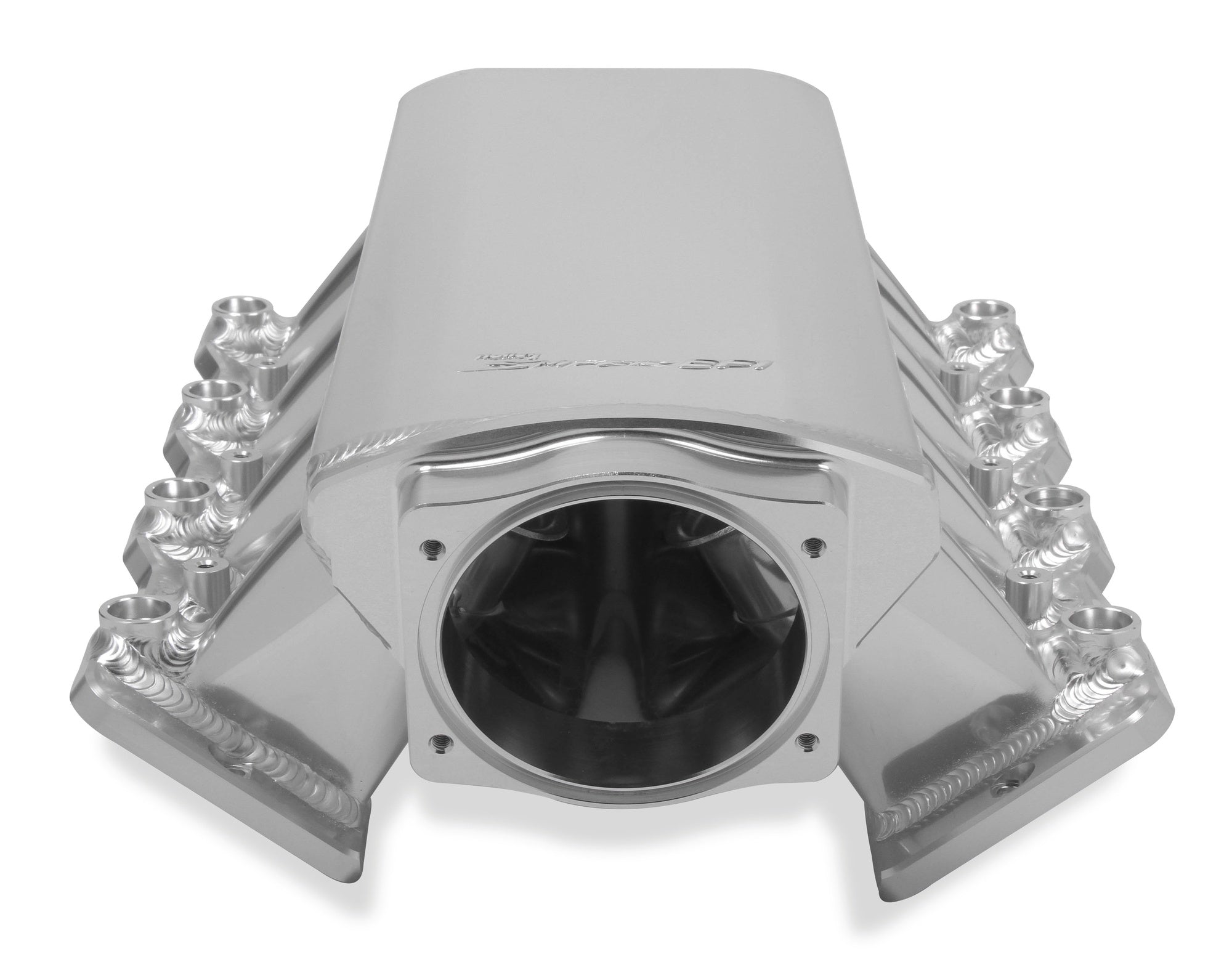

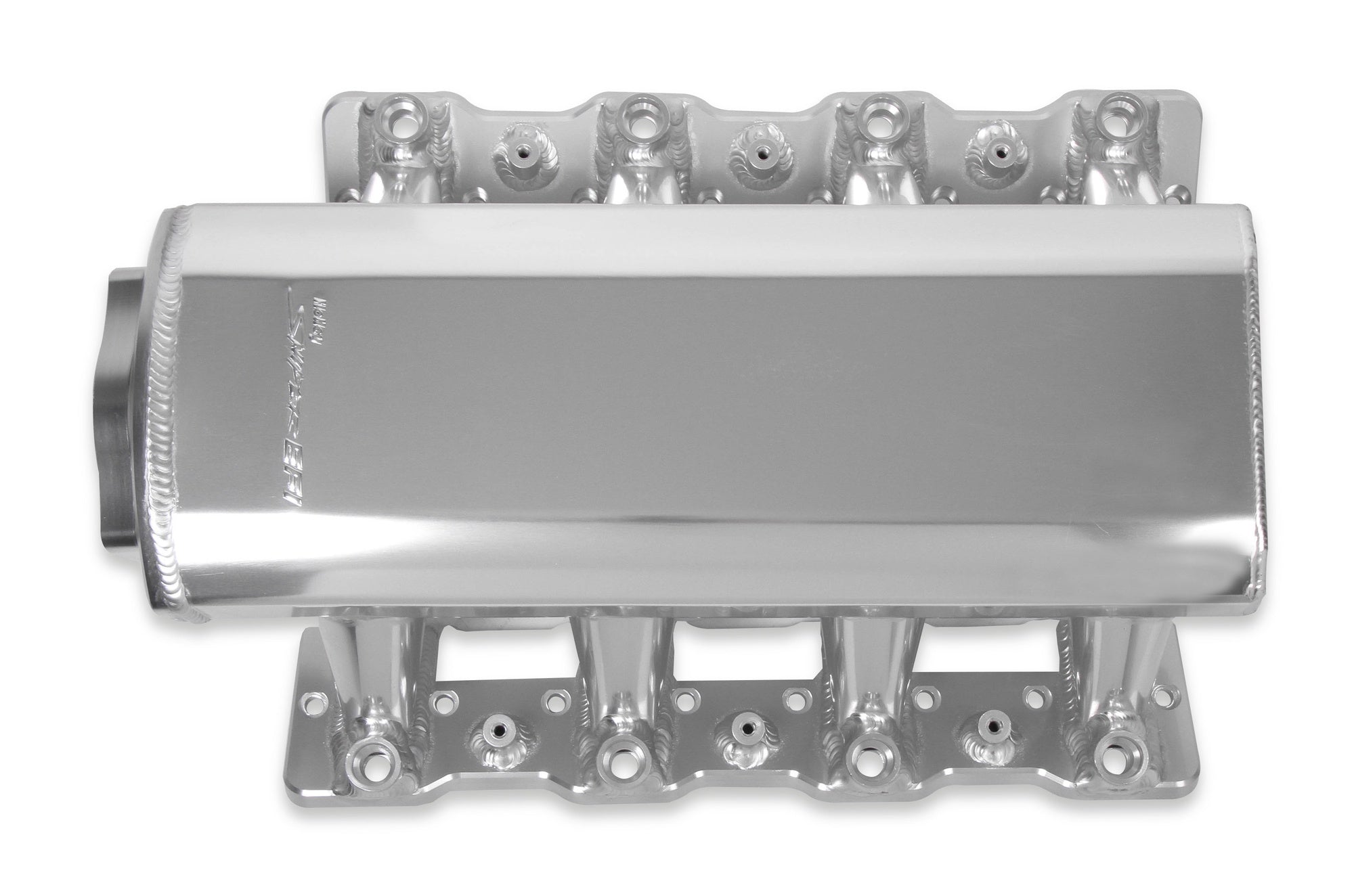

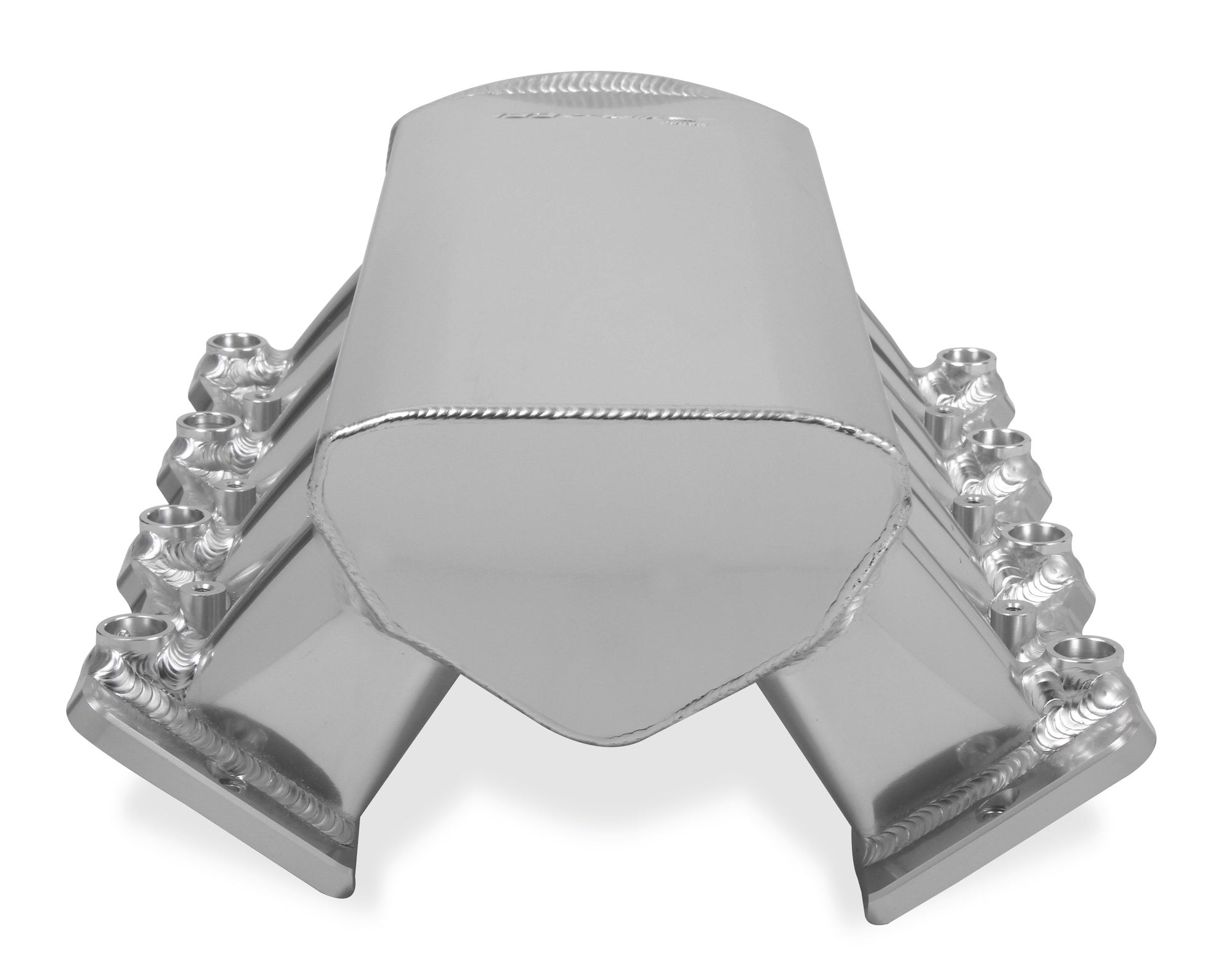

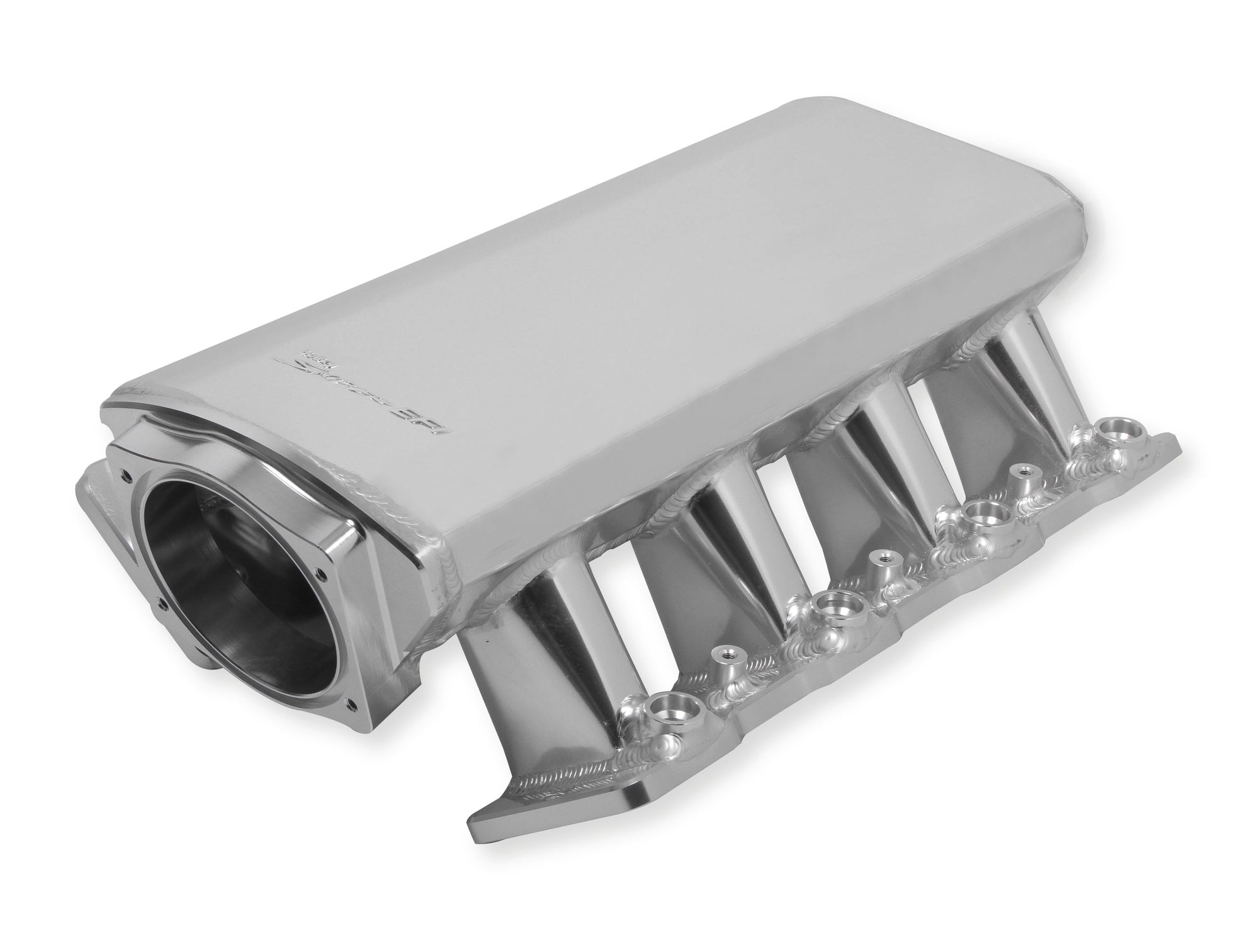

Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper logo -Low Profile
- Silver finish creates high impact under-hood styling
- 102mm throttle bore opening for increased air flow

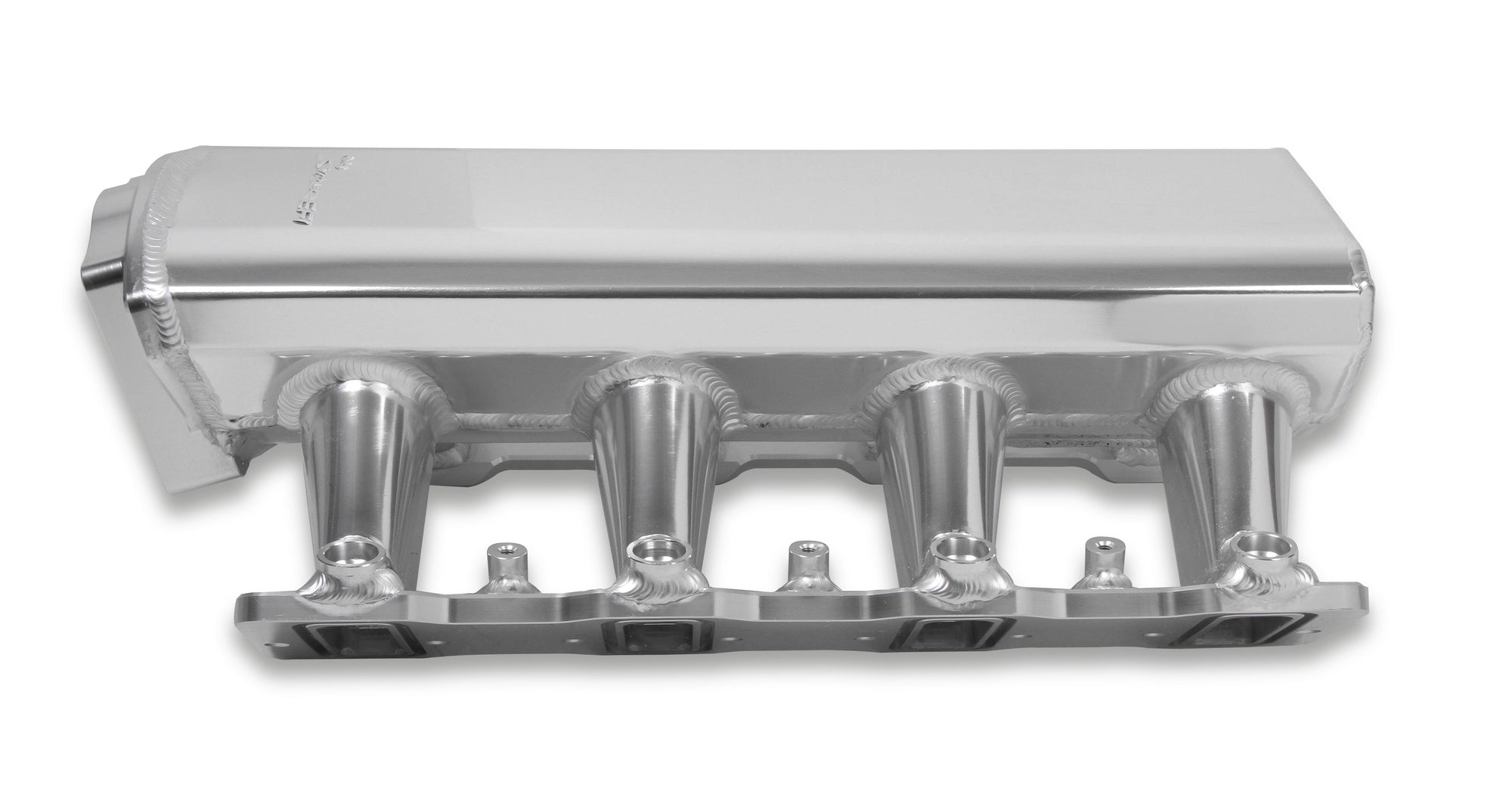

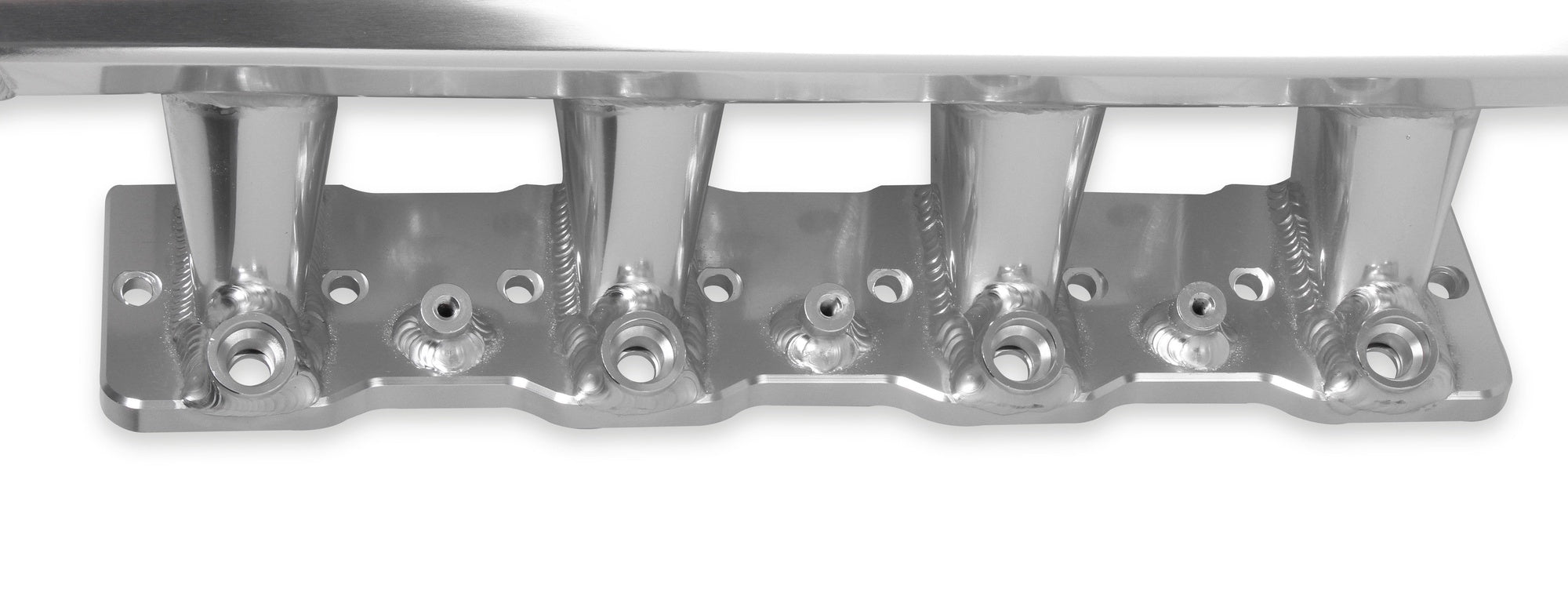

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- The Sniper intake will only accept EV1 style injectors.
- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

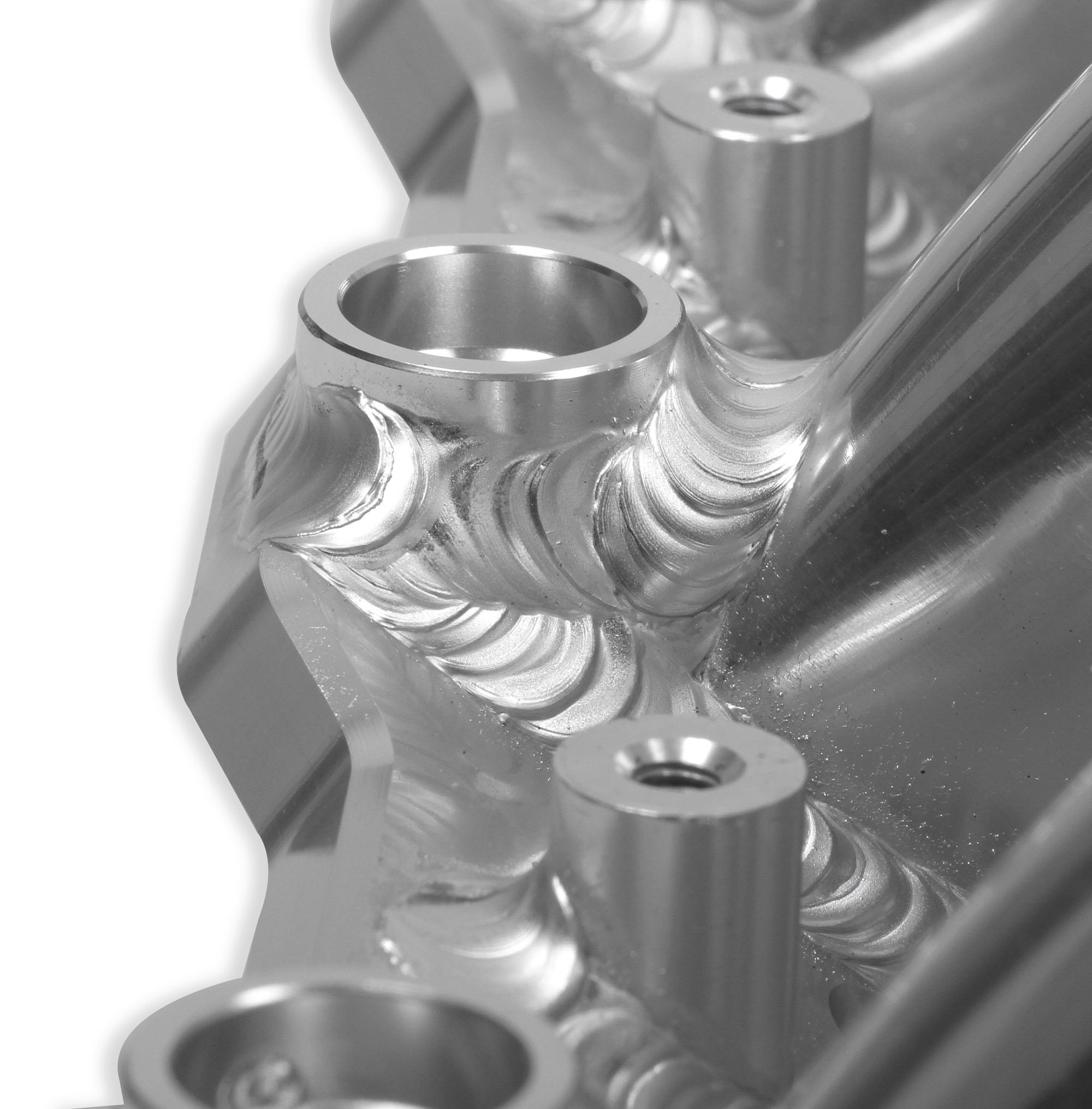

- 100% TIG welded for strength and durability
- Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum

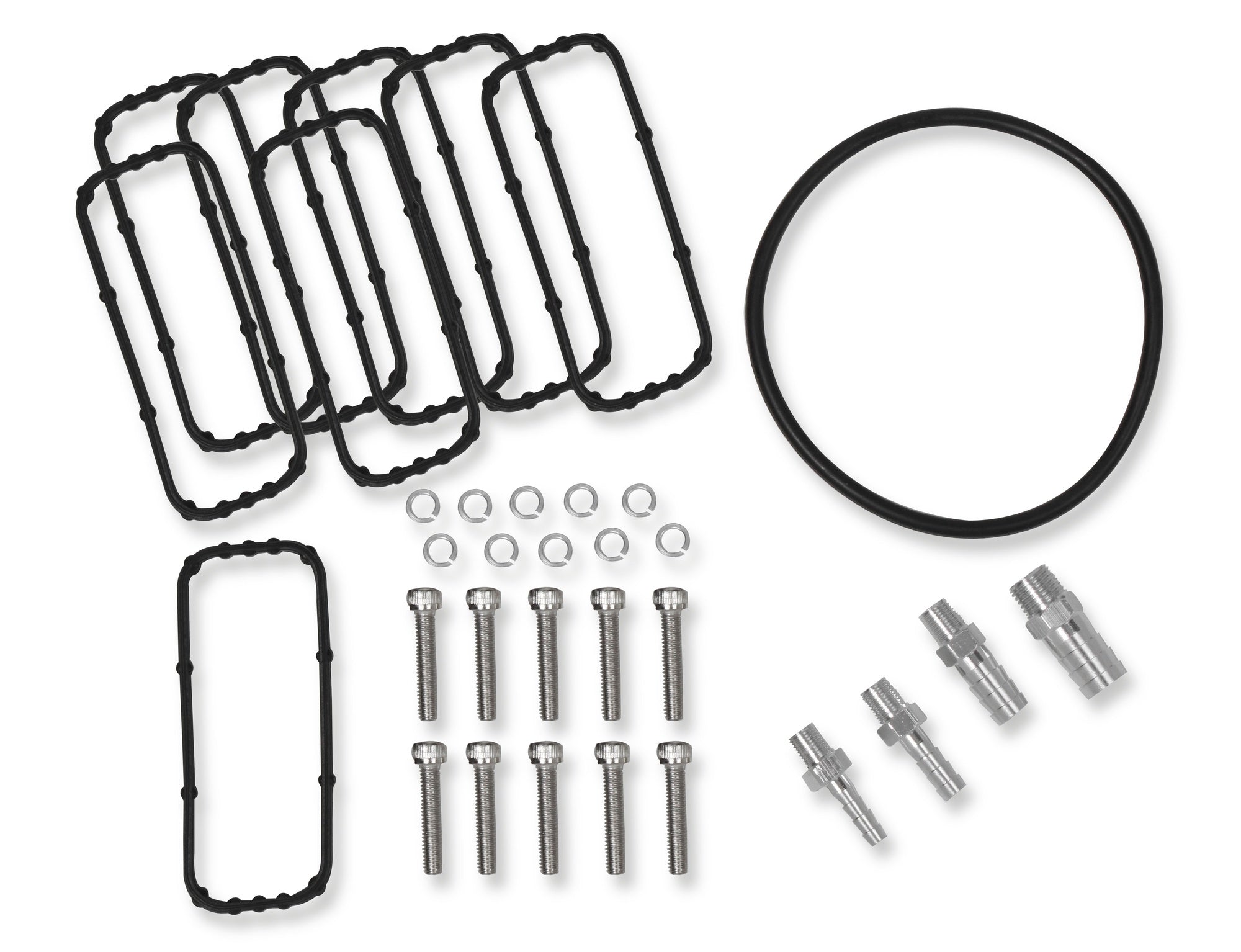

- Product includes all gaskets and hardware for a hassle-free installation
📖
About this product
Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper logo -Low Profile
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
1800-6400
Basic Operating RPM Range
4500-7500
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
No
Category
Engine
CNC Ported
No
Color
Silver
Construction
Fabricated
Cylinder Head Port Shape
Rectangle
Deck Height
9.24
EGR Port
No
Emission Code
4
Flange Style
N/A
Front Maximum Height
6.077
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Gasket Or Seal Included
Yes
Grade Type
Performance
Injector Style Provision
EV1
Intake Port Gasket(s) Included
Yes
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Polished
Plenum Finish
Silver
Product Type
Intake Manifold
Prop 65 Yes/No
Yes
Rear Maximum Height
5.29
Removable Runners
No
Removable Top/Lid
No
Runner Length
4.252" (108mm)
Single Or Dual Plane Type
Single
Style
EFI
Sub Category
Cylinder Block Components
Throttle Body Bore Diameter
102
Throttle Body Gasket Included
Yes
Throttle Body Included
No
Throttle Bore
102mm

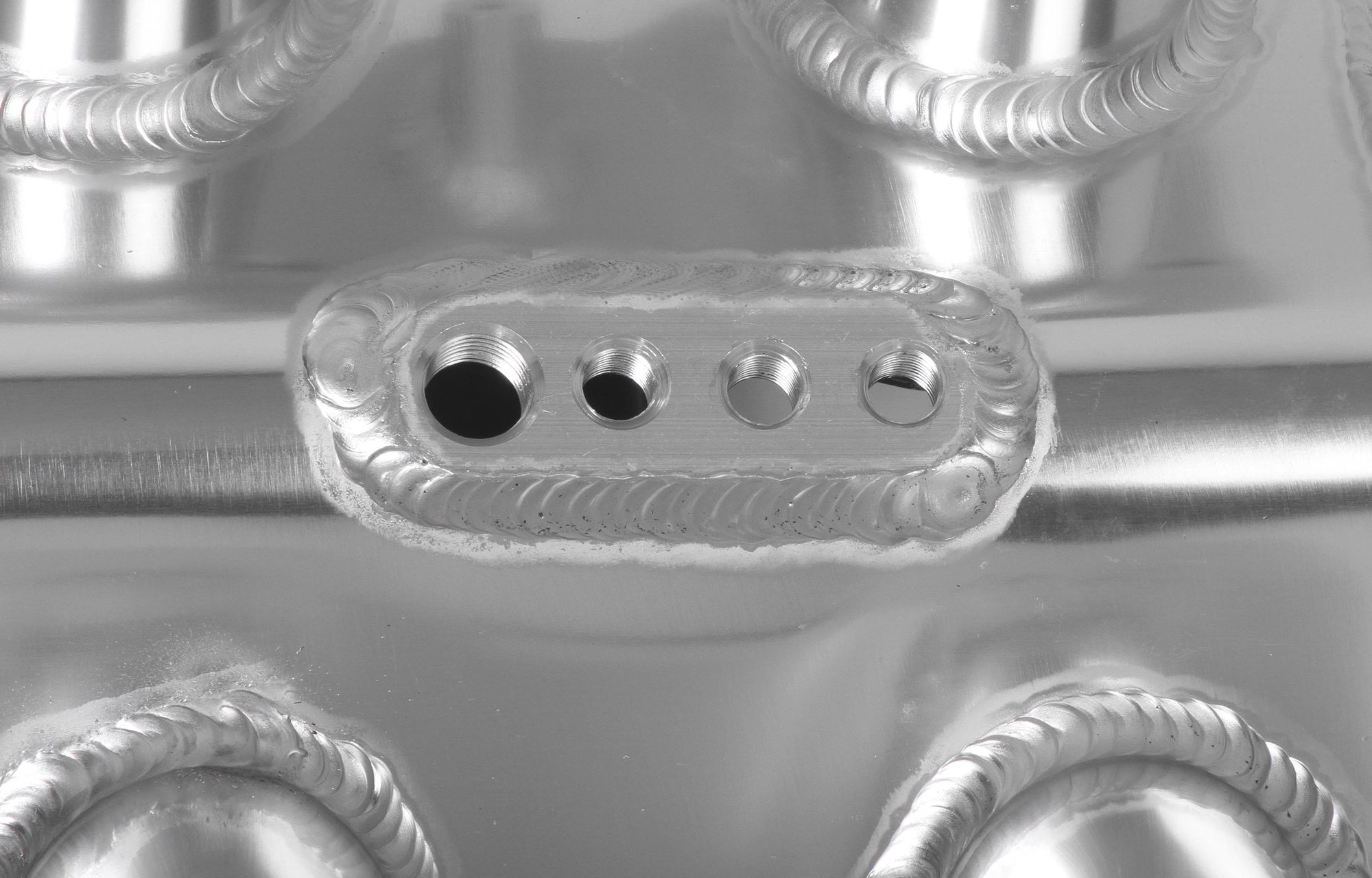

Vacuum Ports
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
21.1 × 15.1 × 10.5 in
Shipping Dimensions
21.1 × 15.1 × 10.5 in
Weight
8151 g (8.15 kg)
