Holley Sniper EFIPart 825011Made in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
Not Compatible with Large Cap HEI Distributors
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!

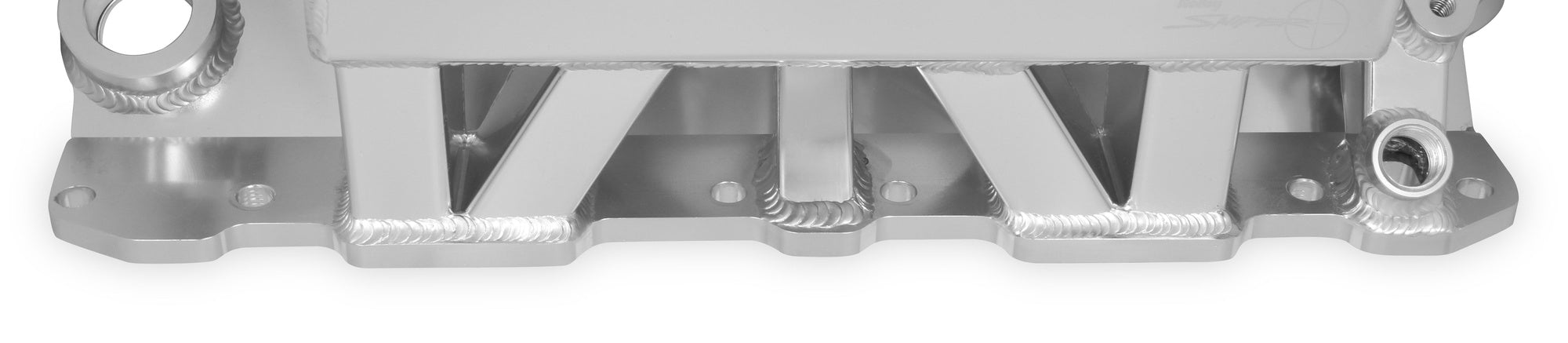

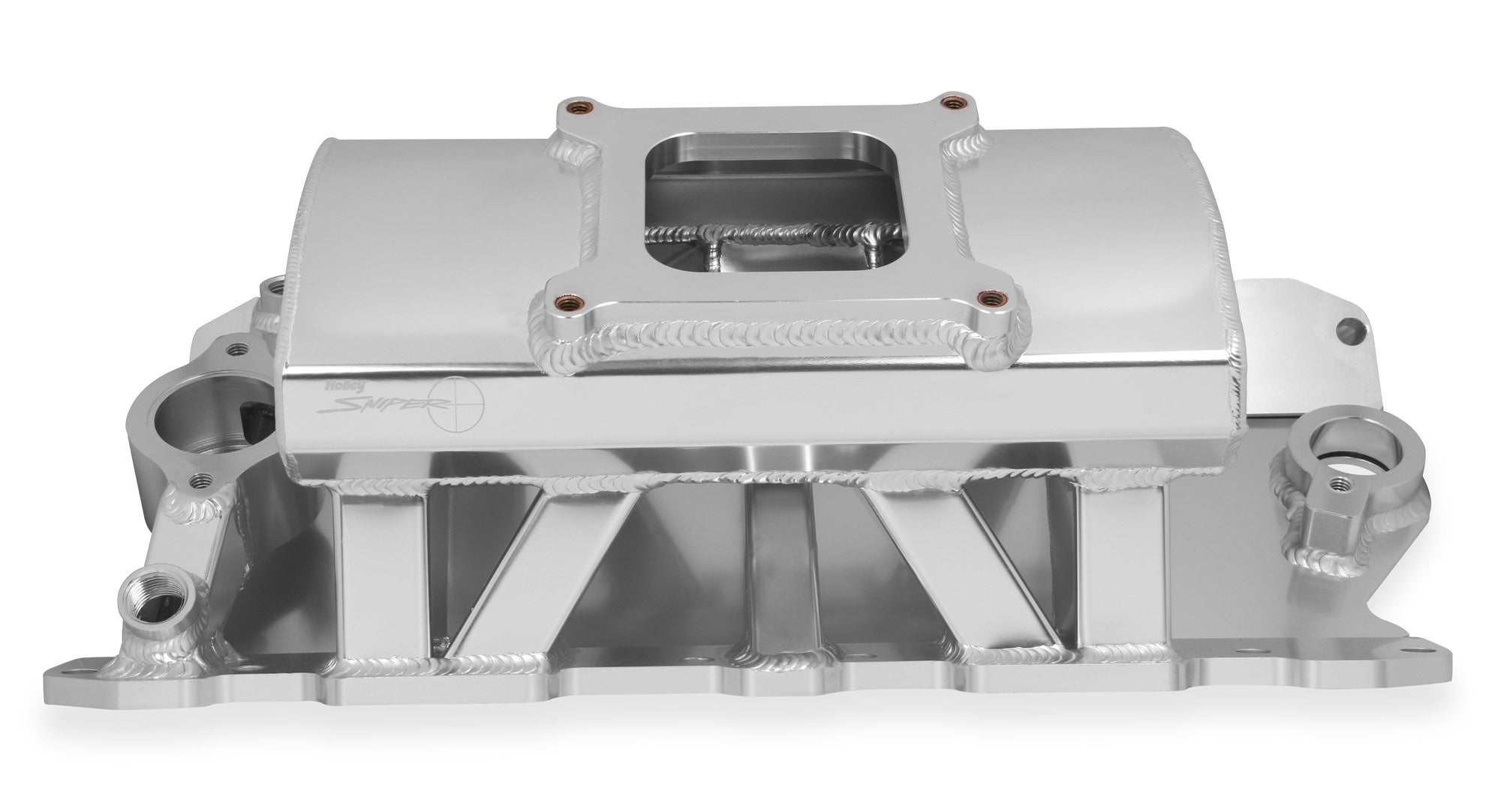

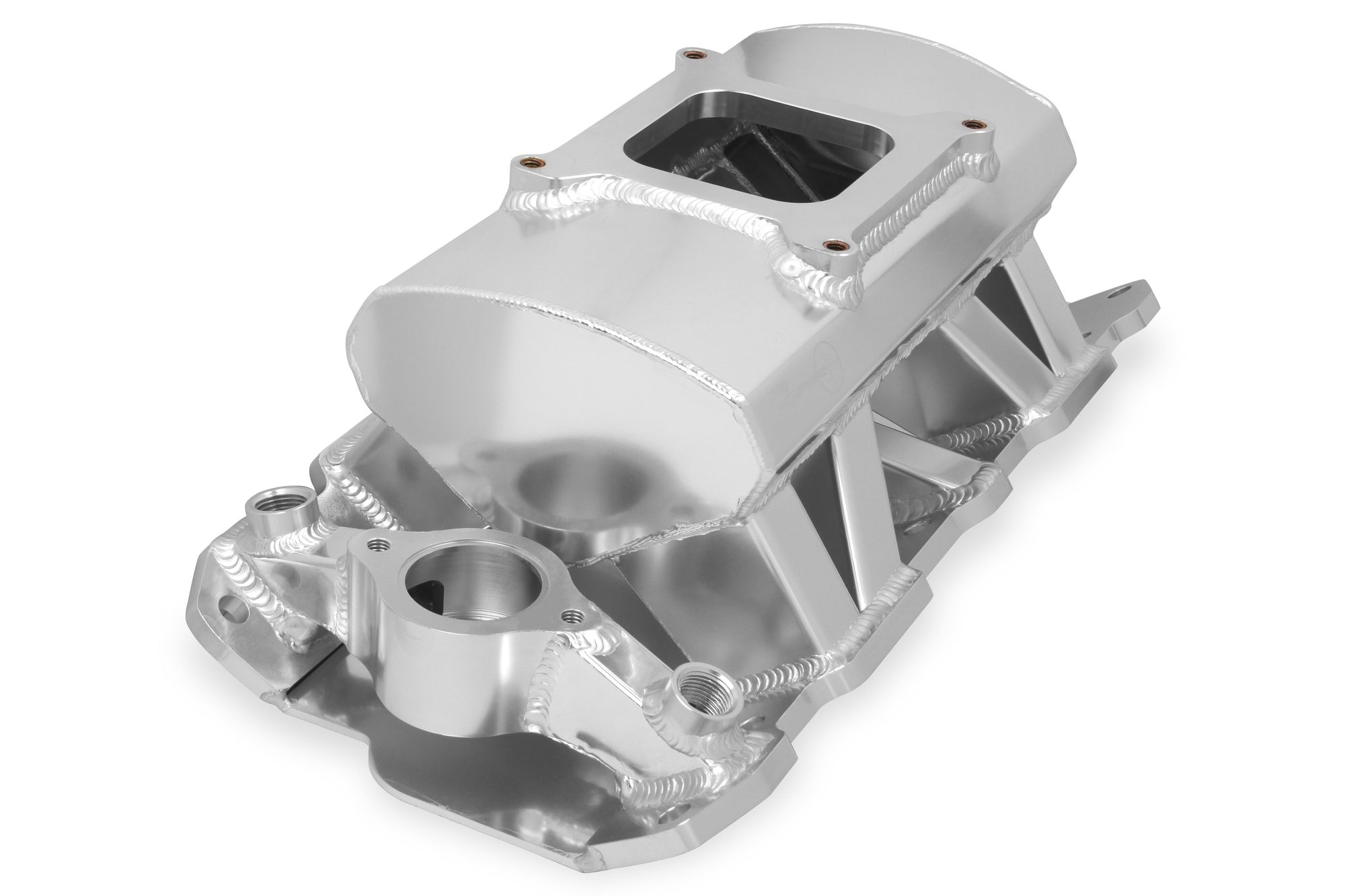

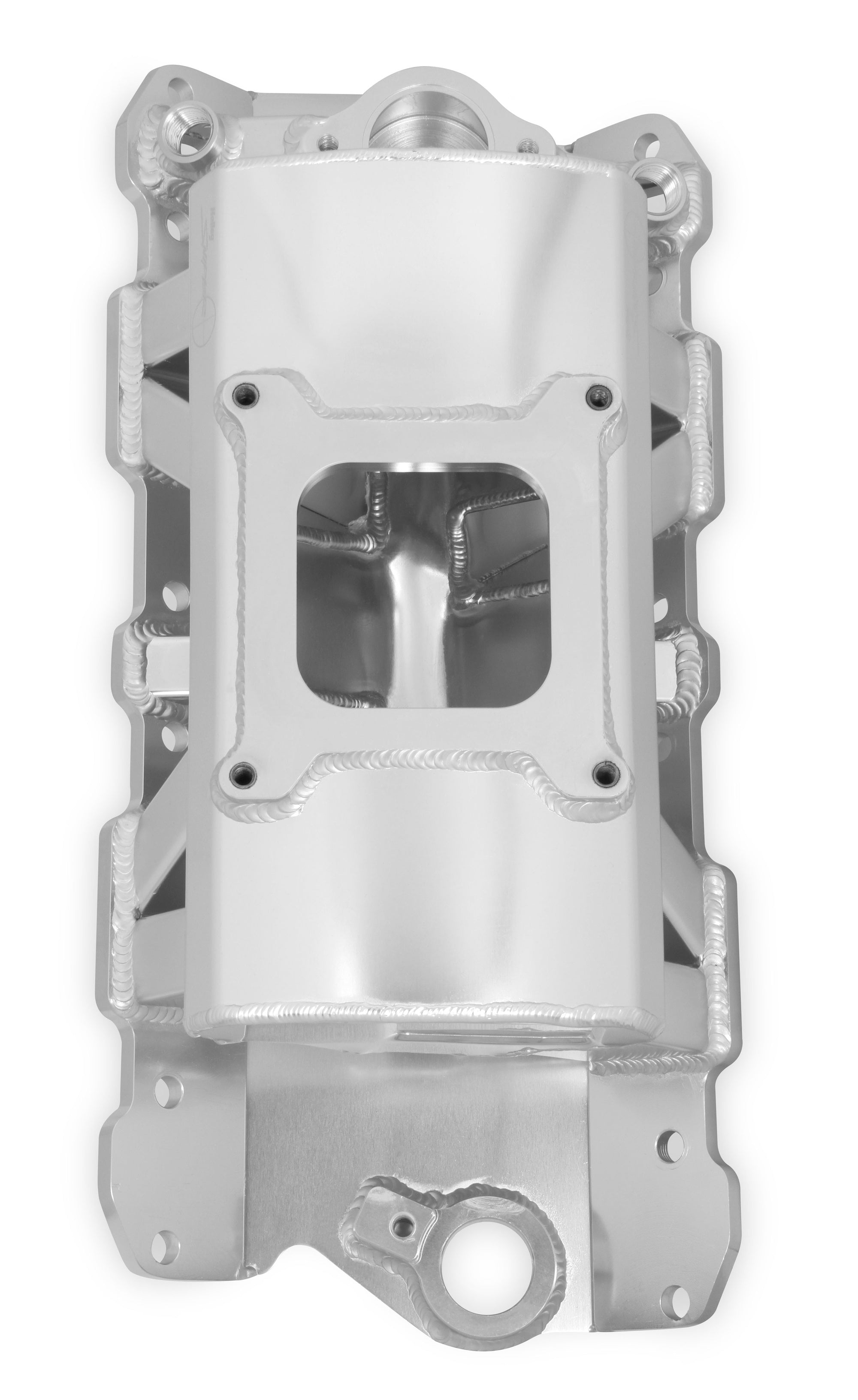

Sheet Metal Fabricated Intake Manifold SBC Single Plane Carbureted Silver with Sniper Logo
- Overall Height of Intake is 6.259" inches
- Available for EFI and Carbureted applications with custom Holley Sniper logo

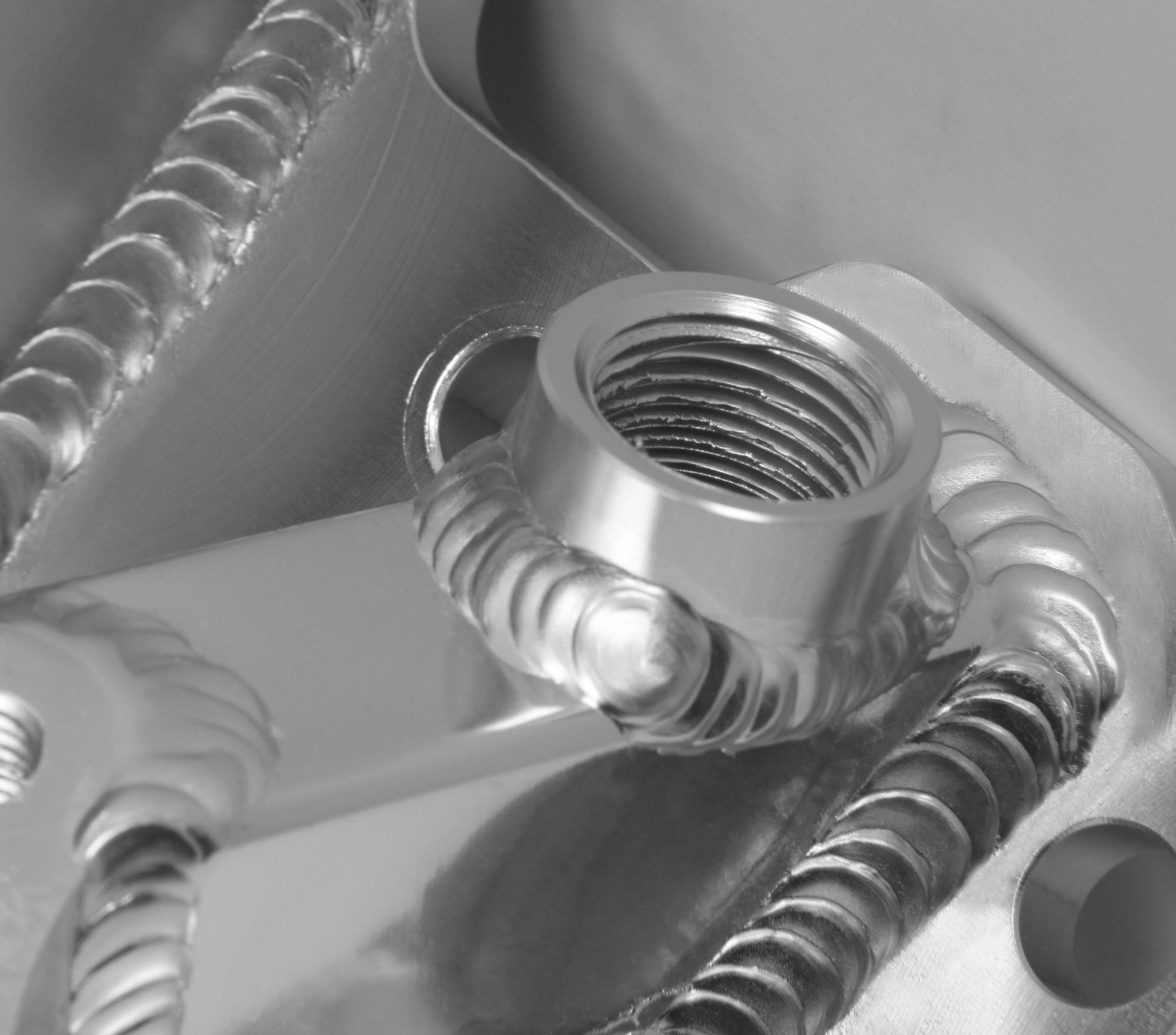

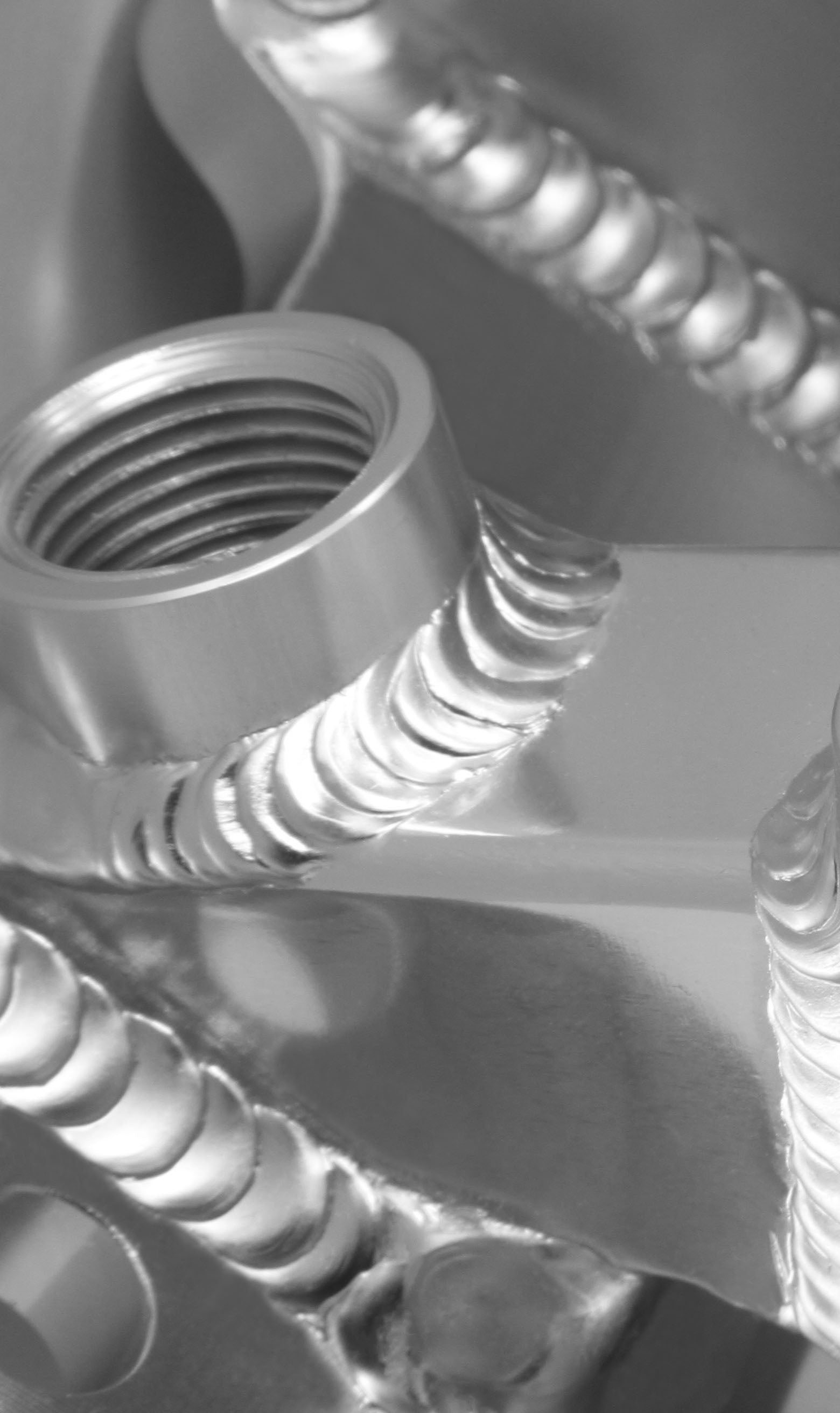

- 100% TIG welded
- 3mm (1/8") thick T6061 Sheet Aluminum construction, more durable than competitive intakes
📖
About this product
Sheet Metal Fabricated Intake Manifold SBC Single Plane Carbureted Silver with Sniper Logo
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
1800-7000
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Carburetor Flange
Square/4150
Carburetor Quantity
1
Carburetor Studs Included
No
Category
Sniper Intake Manifolds SP
CNC Ported
No
Color
Polished
Construction
Fabricated
Cylinder Head Port Shape
Rectangle
Deck Height
9.025
EGR Port
No
Emission Code
4
Flange Size
4150
Flange Style
4150 Square Bore
Front Maximum Height
6.259
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Gasket Or Seal Included
No
Grade Type
Performance
Intake Port Gasket(s) Included
No
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Polished

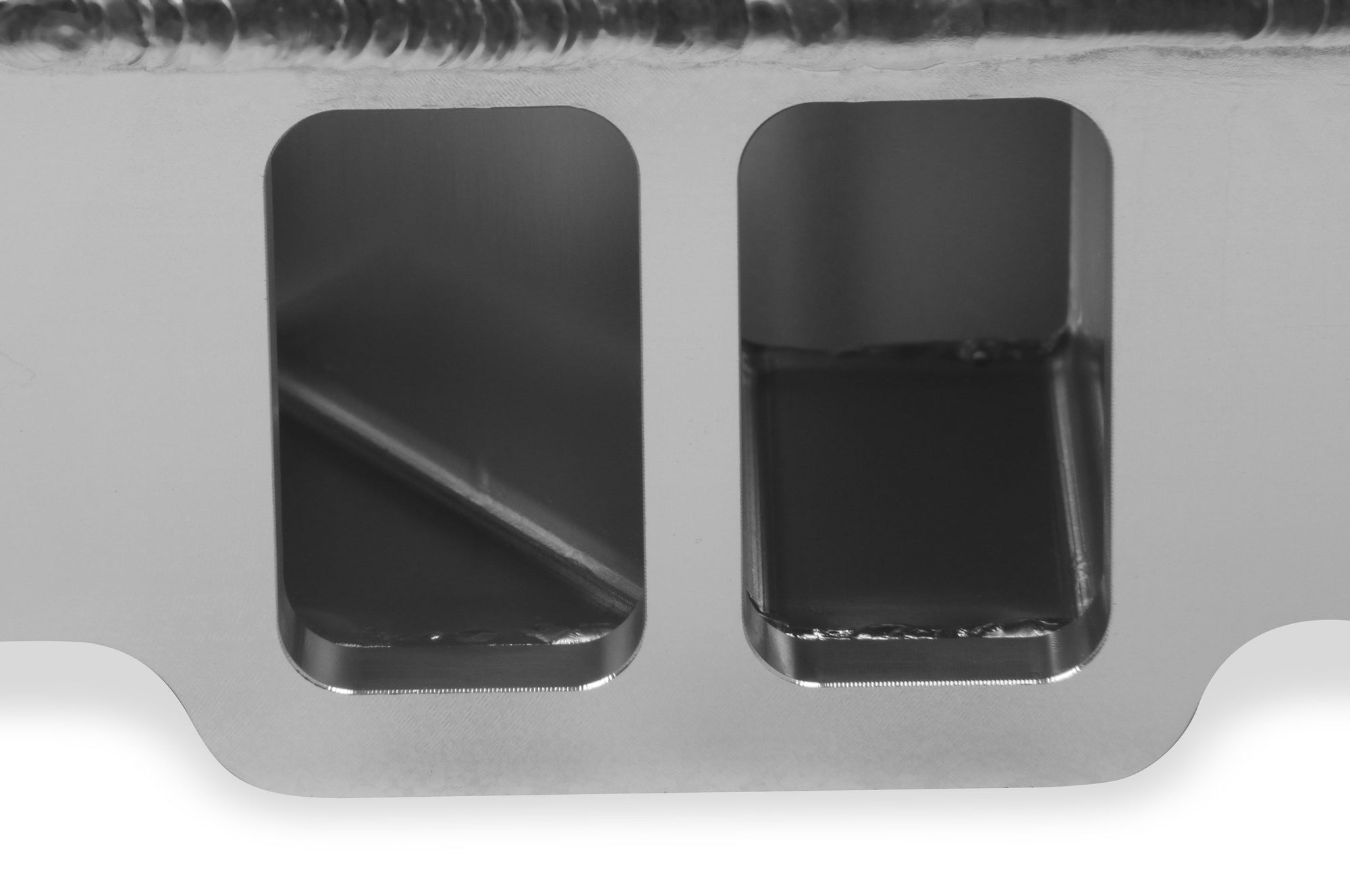

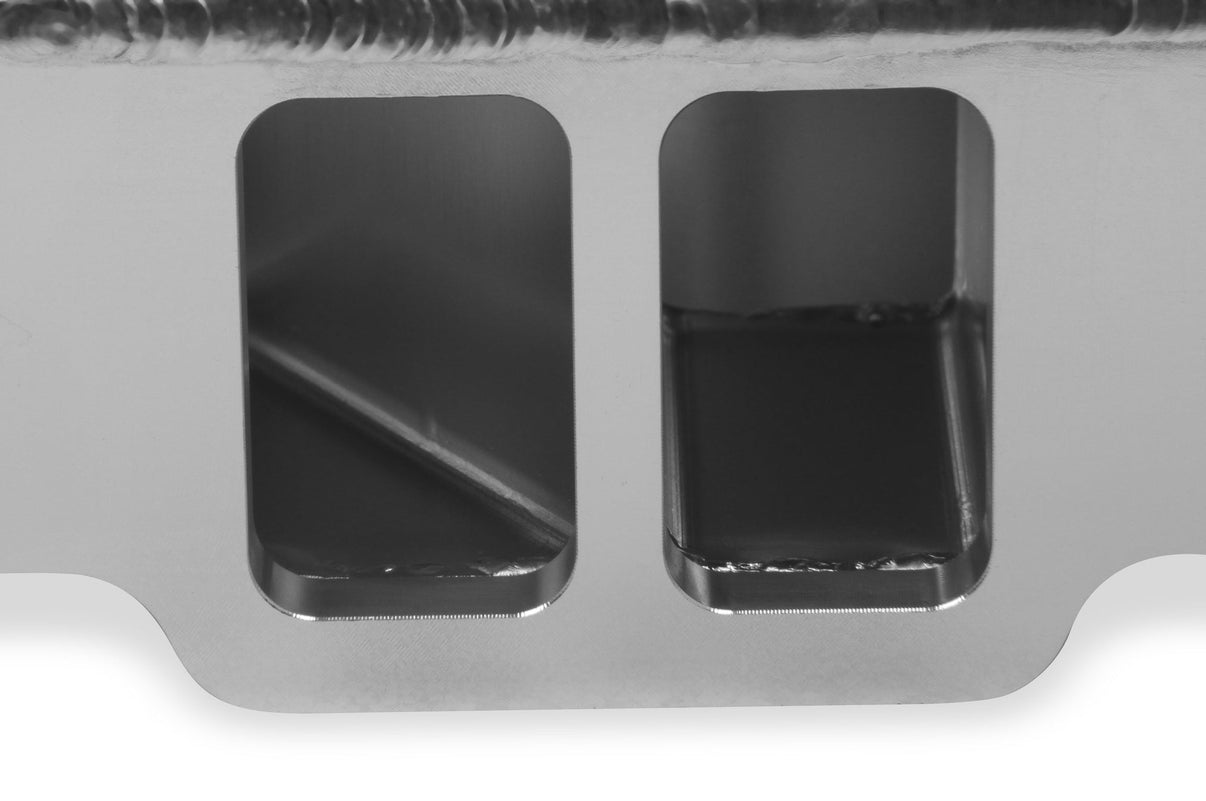

Port Size
1.90" x 1.15"
Product Type
Intake Manifold
Prop 65 Yes/No
Yes
Rear Maximum Height
6.259
Removable Runners
No
Removable Top/Lid
No
Single Or Dual Plane Type
Single Plane
Style
Carbureted
Throttle Body Bore Diameter
3.6
Throttle Body Gasket Included
No
Throttle Body Included
No
Vacuum Ports
None
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
21.1 × 15.2 × 9.0 in
Shipping Dimensions
21.1 × 15.2 × 9.0 in
Weight
4990 g (4.99 kg)
