Distributor,Chevy V8, Dual ...
Get notified when this item is back in stock
Press & drag to view
MSD
Product Details
🔧
Vehicle Compatibility
Select your vehicle to verify compatibility:
⭐
Key Features

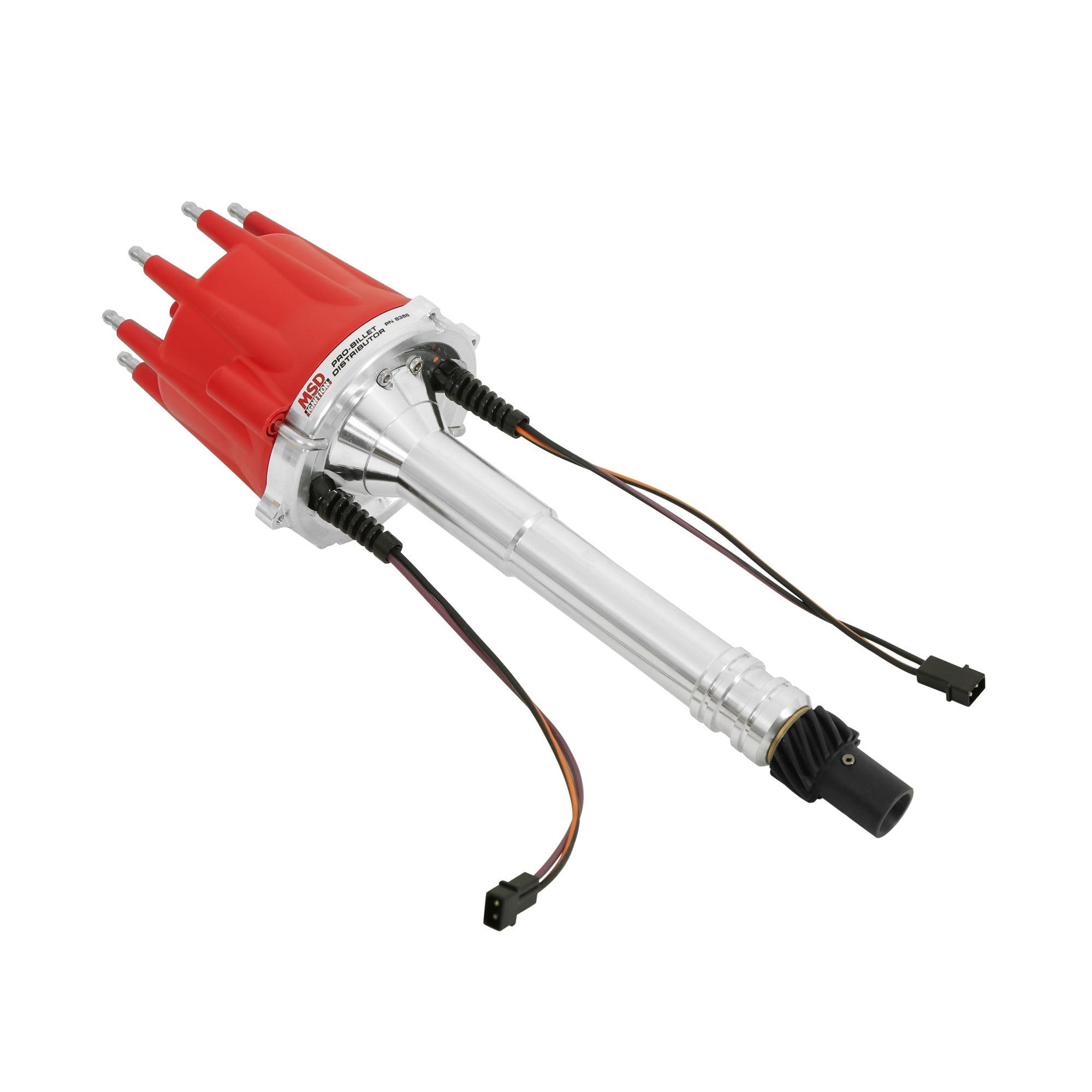

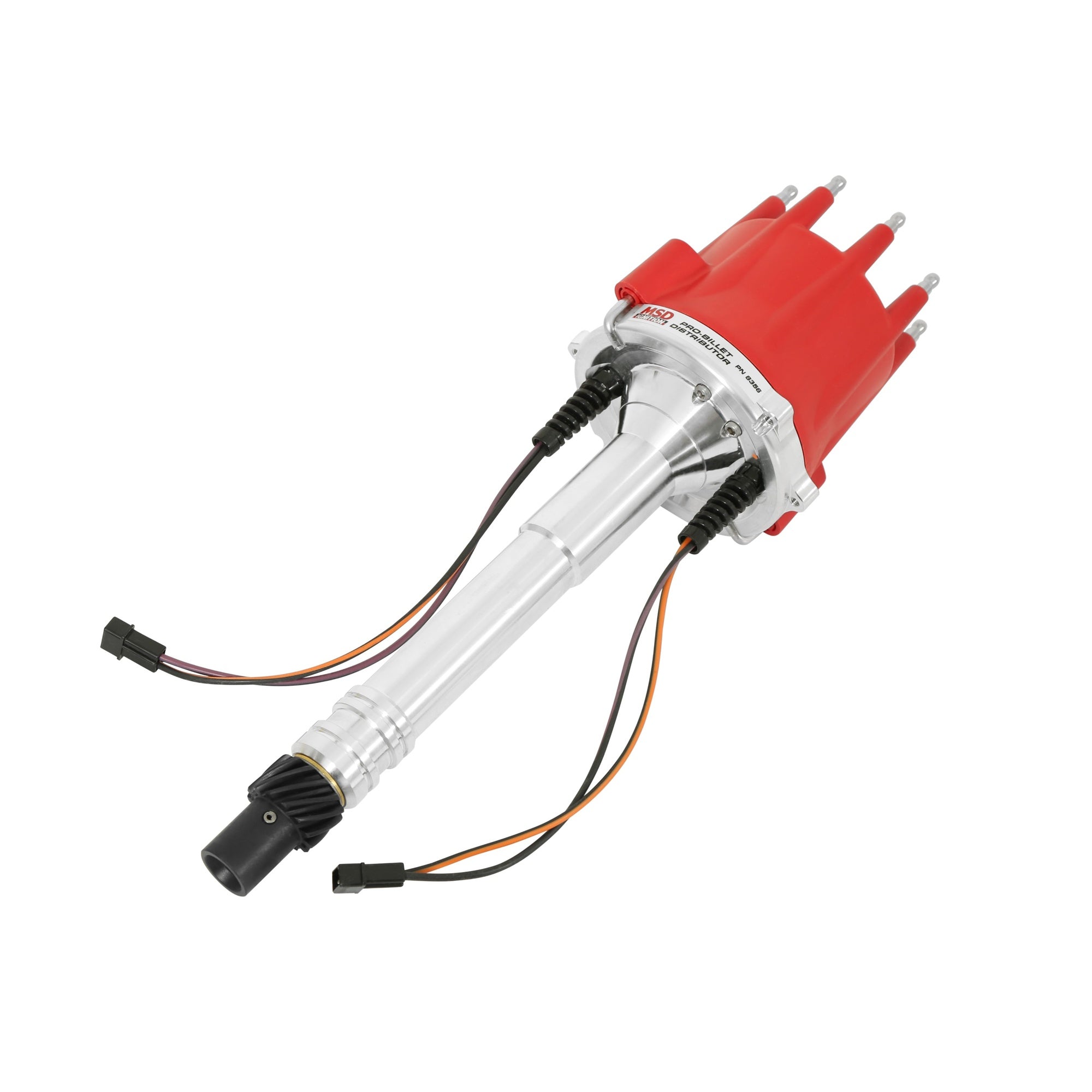

Dual Pickup Chevy V8 Distributor
The Chevrolet housing has several racing features that racers will appreciate. At the base of the CNC machined housing there are two O-ring grooves. These seals prevent oil in the lifter gallery from leaking through the oil passage. If the engine deck, heads or intake have been modified, there is an adjustable slip collar which allows you to set the correct installation depth.

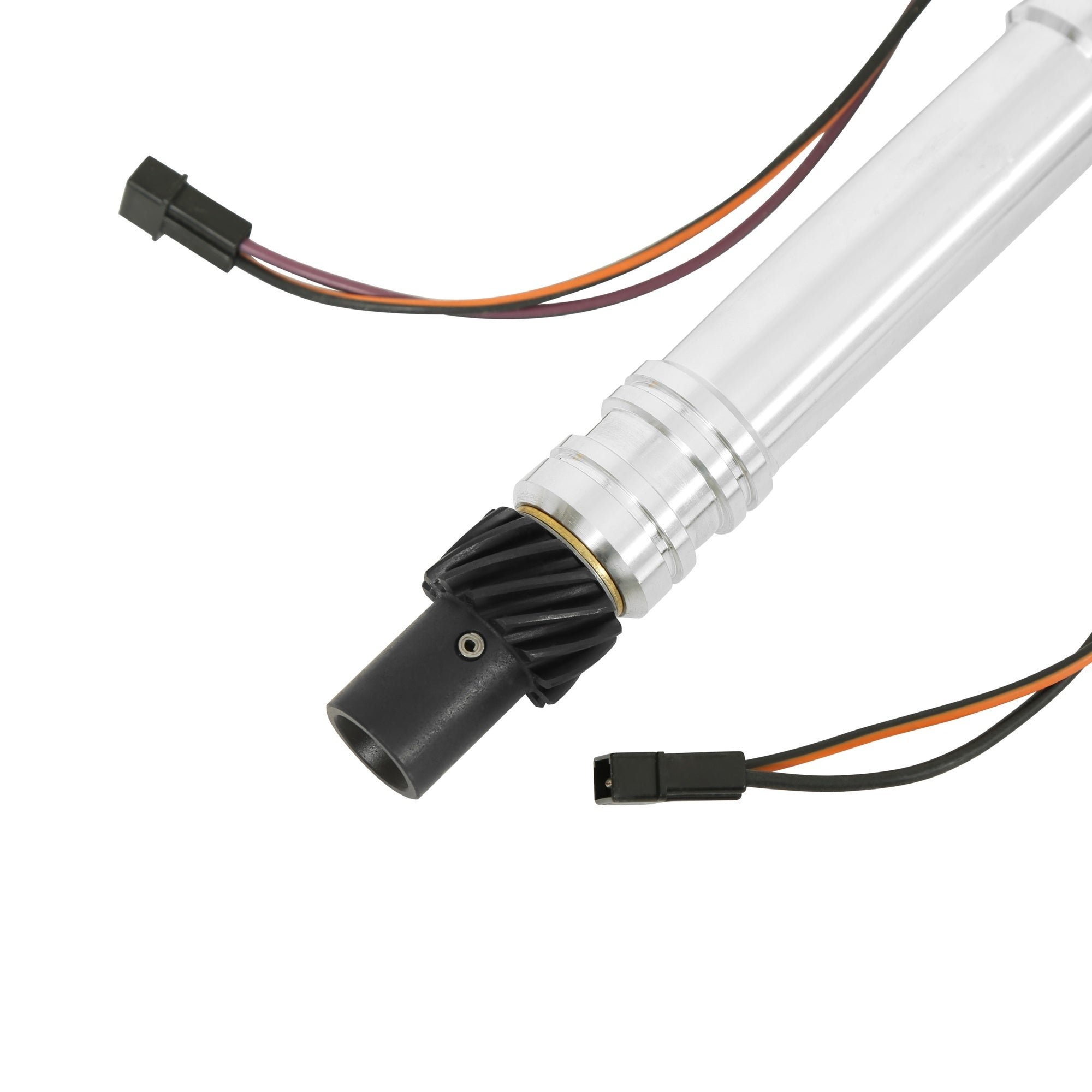

A fine-blanked advance cam is TIG-welded on top of the 0.500" QPQ-coated shaft. Added to the advance plate are chro-moly weight pins which are staked and TIGwelded in place. The advance weights are specially coated to reduce friction and nylon pads are mounted on the advance plate to allow the weights to react quickly to rpm changes. This style advance assembly is fully adjustable or can easily be locked out. With two mag pick-ups, racers can have a complete redundant ignition system which can be activated at the flip of a switch. The pickups are placed precisely 180° apart so when you switch to the secondary ignition, the timing remains constant!
The Chevrolet housing has several racing features that racers will appreciate. At the base of the CNC machined housing there are two O-ring grooves. These seals prevent oil in the lifter gallery from leaking through the oil passage. If the engine deck, heads or intake have been modified, there is an adjustable slip collar which allows you to set the correct installation depth.
A fine-blanked advance cam is TIG-welded on top of the 0.500" QPQ-coated shaft. Added to the advance plate are chro-moly weight pins which are staked and TIGwelded in place. The advance weights are specially coated to reduce friction and nylon pads are mounted on the advance plate to allow the weights to react quickly to rpm changes. This style advance assembly is fully adjustable or can easily be locked out. With two mag pick-ups, racers can have a complete redundant ignition system which can be activated at the flip of a switch. The pickups are placed precisely 180° apart so when you switch to the secondary ignition, the timing remains constant!
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Brand
MSD
Category
Ignition
Color
Red
Distributor Cap Included
Yes
Distributor Type
Magnetic Pickup
Emission Code
4
Gear Material
Cast Iron Melonized QPQ Coated
Grade Type
Performance
Ignition Box Required
Yes
Ignition Coil Included
No
Ignition Rotor Included
Yes
part type
Distributor
Product Type
Distributor
Sub Category
Distributor and Magneto
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
📦

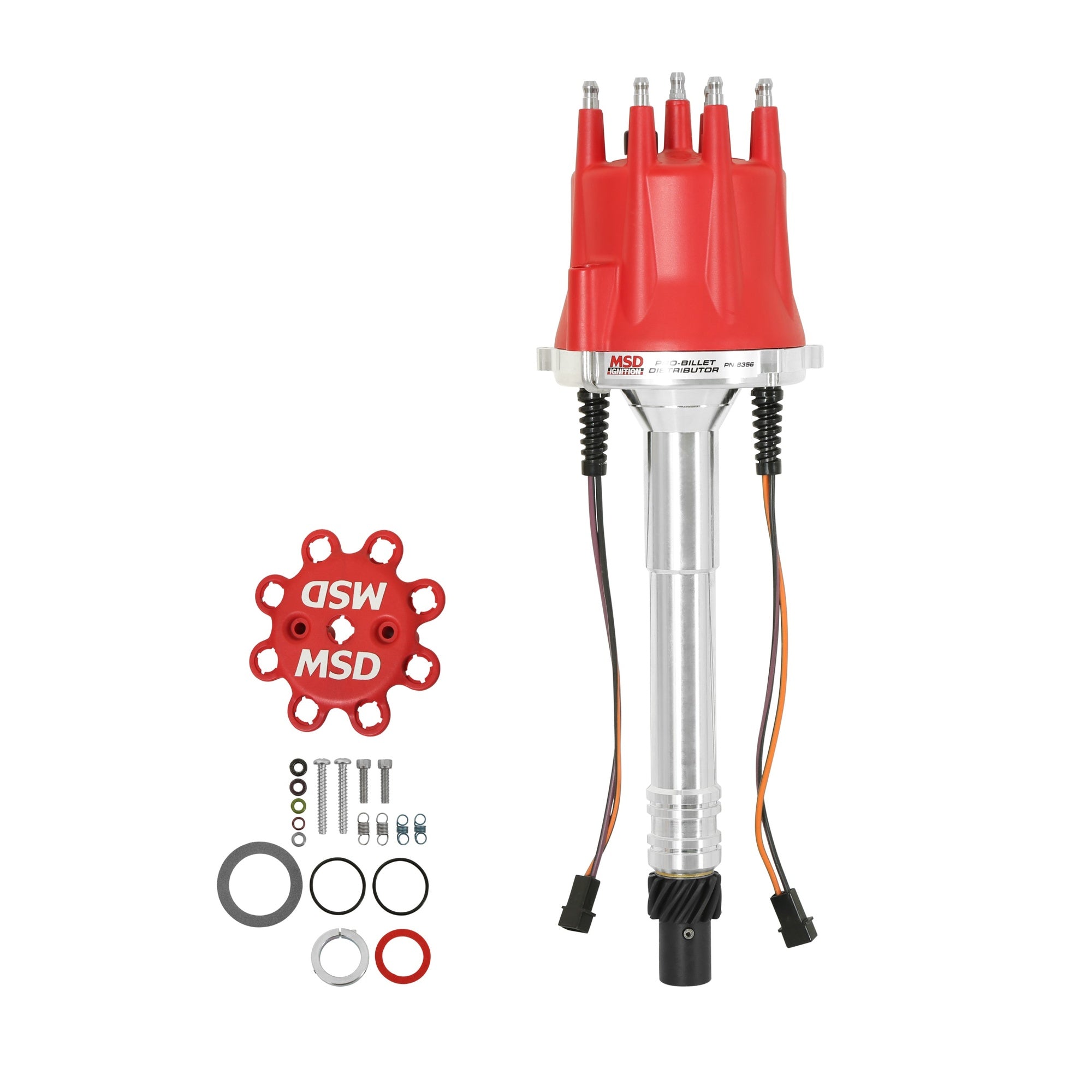

Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
