Key Features
Super Tall Block Crab Cap Distributor, Chevy V8
The super tall crab cap is taller to fit special racing blocks such as the Allen Root or Rocket blocks.
The MSD Crab Cap Distributors are built specifically for racing engines with almost no room for a distributor due to tunnel rams or blowers. The distributor is equipped with a special low-profile crab style distributor cap to allow it to fit in extremely tight areas.

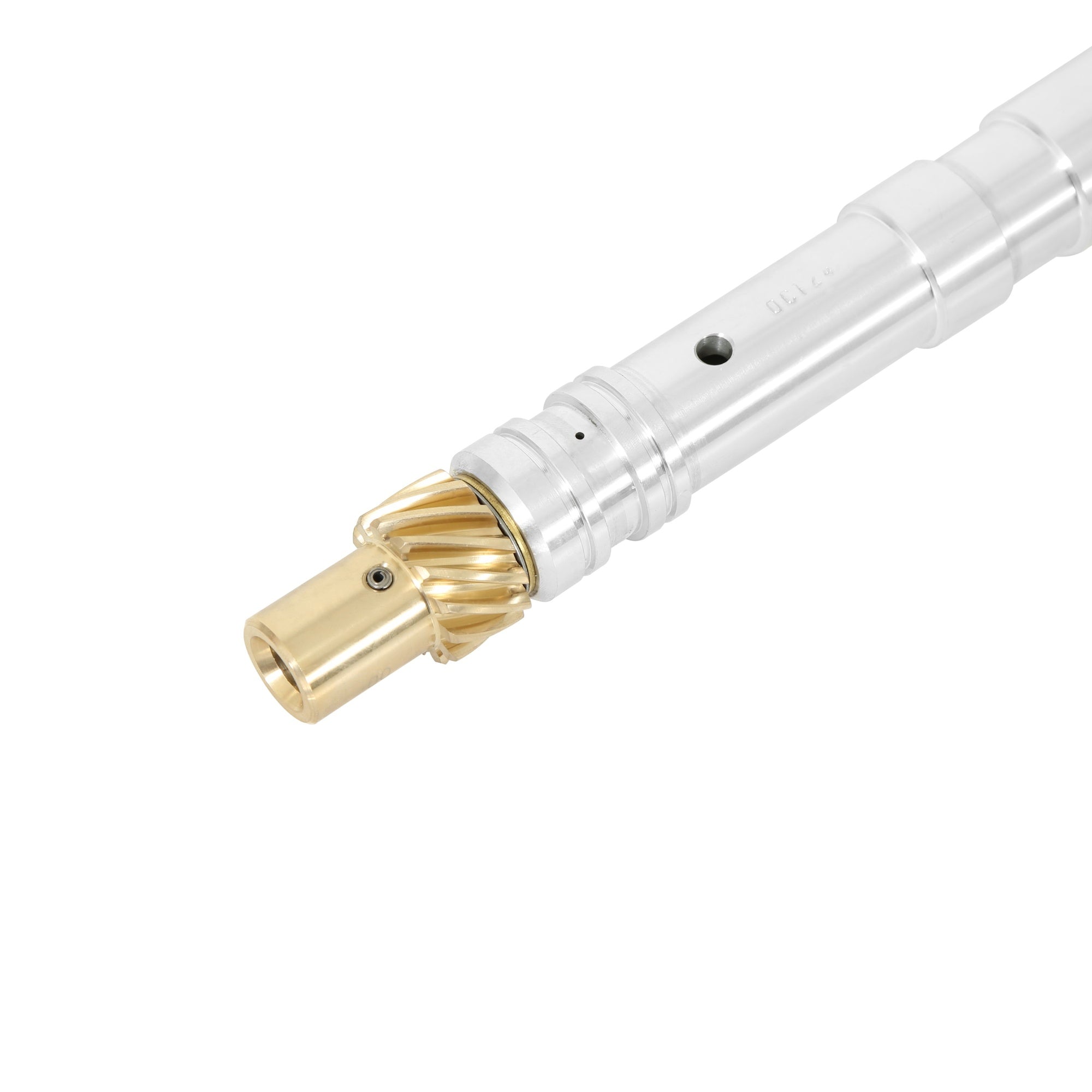

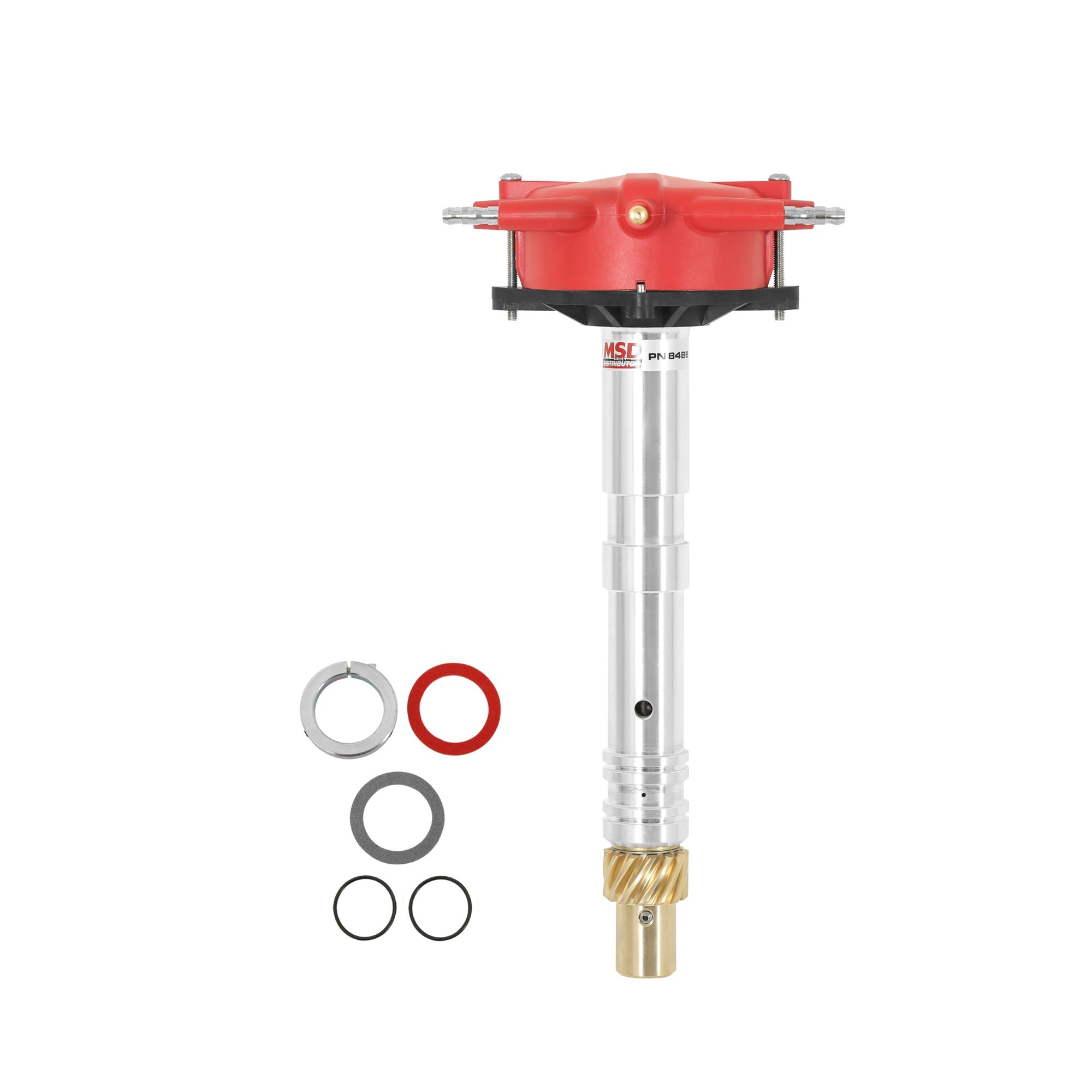

The housing features two optional O-rings at the bottom that improve oil control by preventing oil pressure loss. Also, a small oil bleed hole located in the base sprays oil on the distributor and camshaft gears to prevent excessive wear. Since this is a racing distributor, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified.

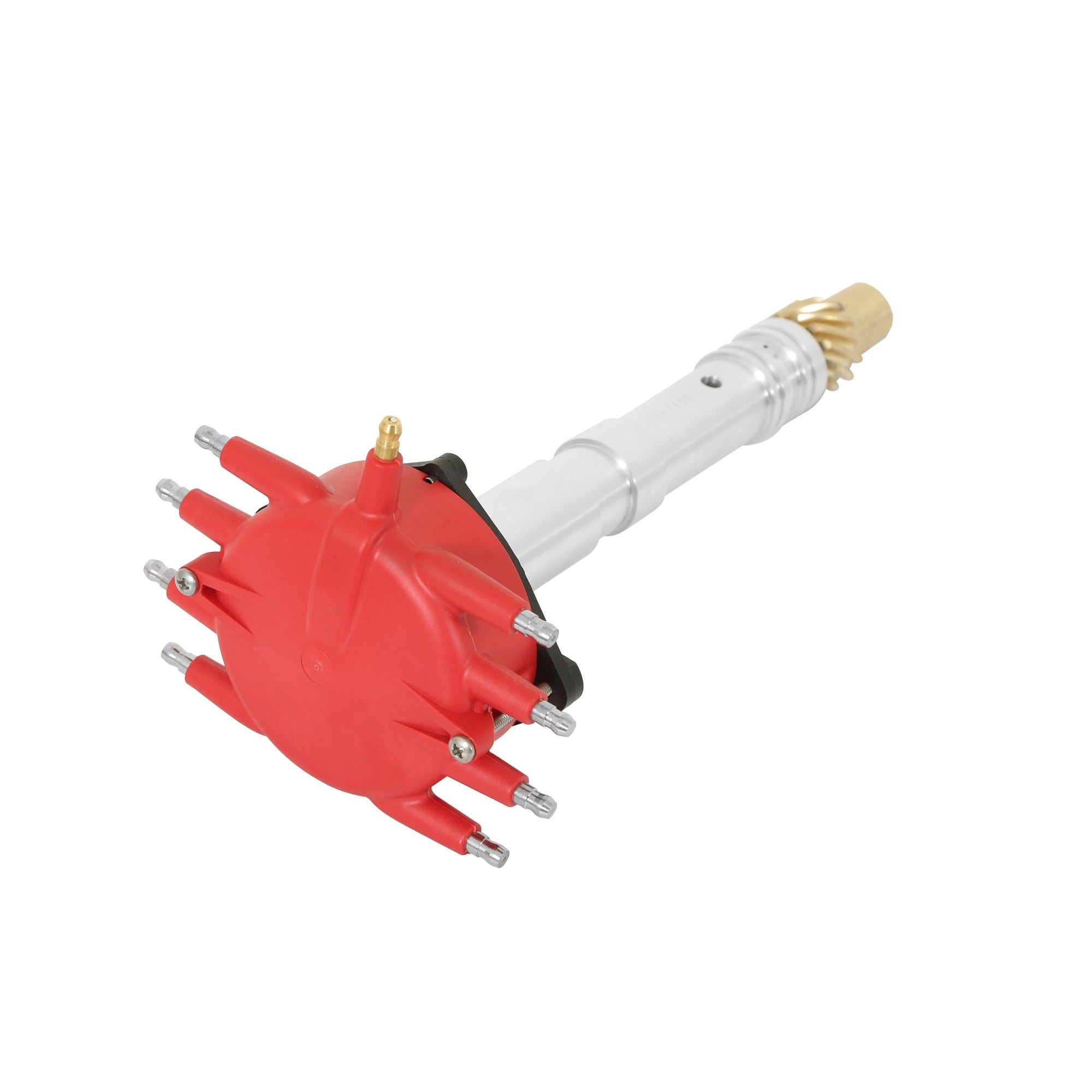

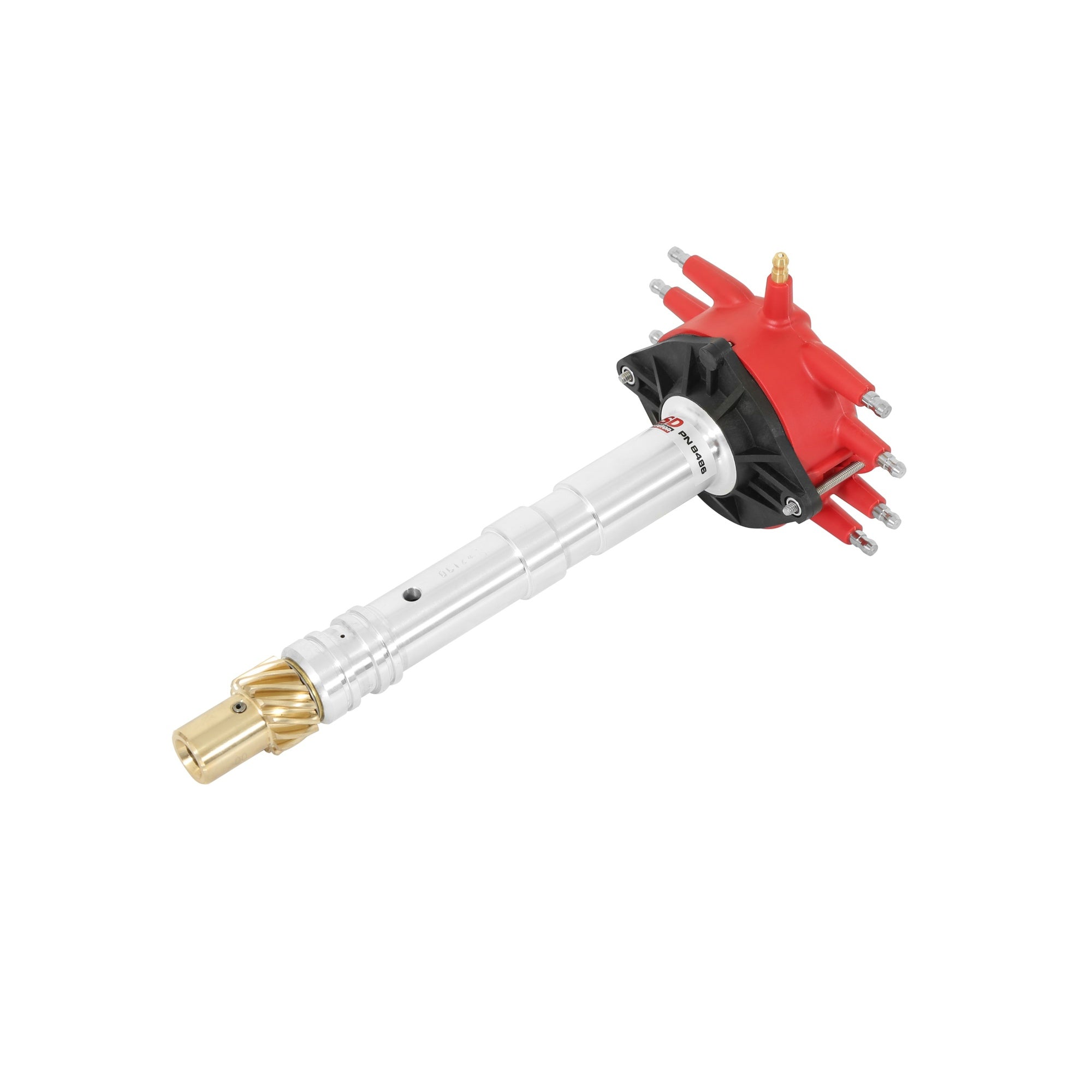

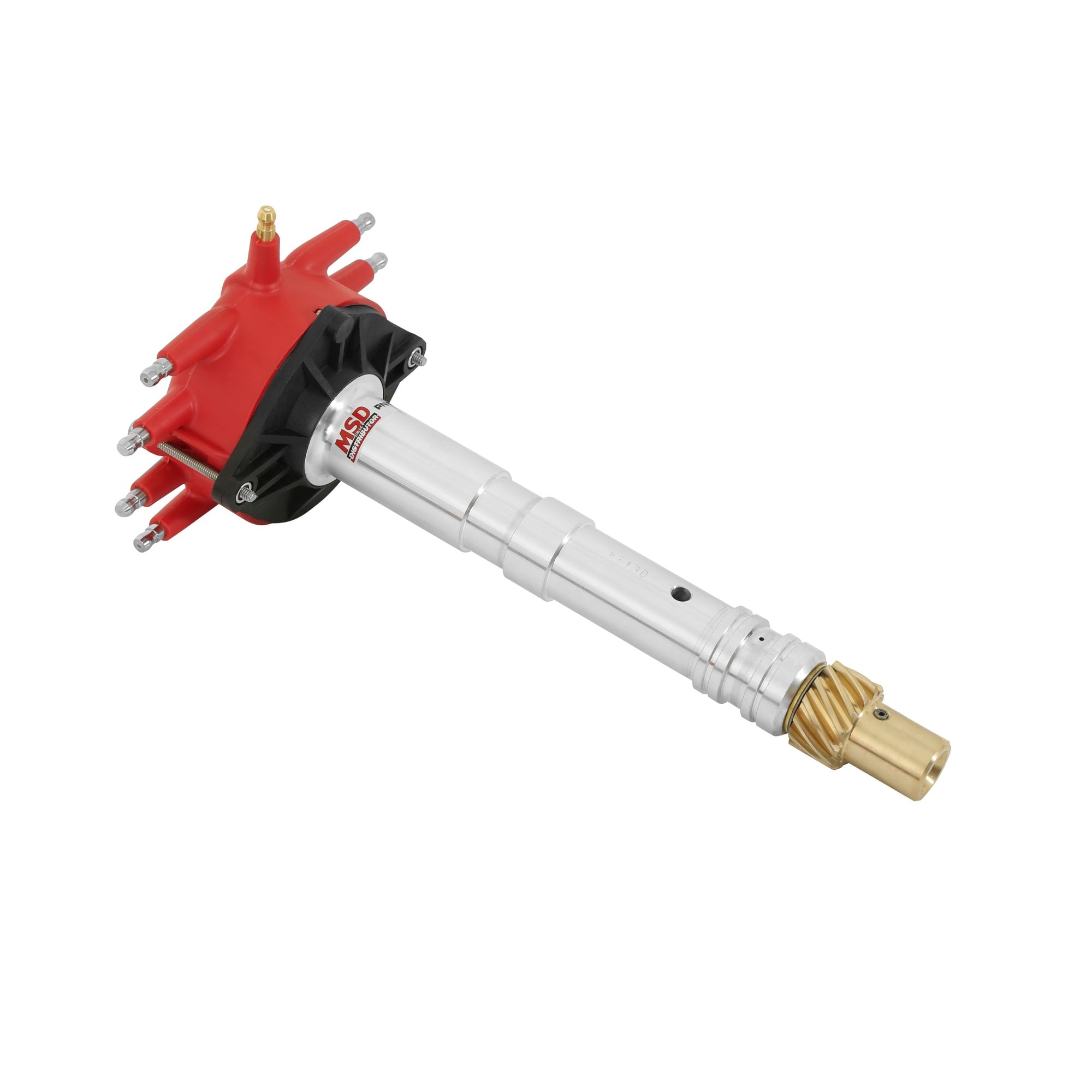

Crowning this distributor is MSD's own Crab Cap! This cap incorporates spark plug style terminals for a better connection and grip to the plug wires.
The super tall crab cap is taller to fit special racing blocks such as the Allen Root or Rocket blocks.
The MSD Crab Cap Distributors are built specifically for racing engines with almost no room for a distributor due to tunnel rams or blowers. The distributor is equipped with a special low-profile crab style distributor cap to allow it to fit in extremely tight areas.
The housing features two optional O-rings at the bottom that improve oil control by preventing oil pressure loss. Also, a small oil bleed hole located in the base sprays oil on the distributor and camshaft gears to prevent excessive wear. Since this is a racing distributor, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified.
Crowning this distributor is MSD's own Crab Cap! This cap incorporates spark plug style terminals for a better connection and grip to the plug wires.
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Brand
MSD
Category
Ignition
Color
Red
Distributor Cap Included
Yes
Distributor Type
Crank Trigger
Emission Code
5
Gear Material
Bronze
Gear
Bronze
Grade Type
Performance
Ignition Box Required
Yes
Ignition Coil Included
No
Ignition Rotor Included
Yes
part type
Distributor
Product Type
Distributor
Sub Category
Distributor and Magneto
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
