Key Features

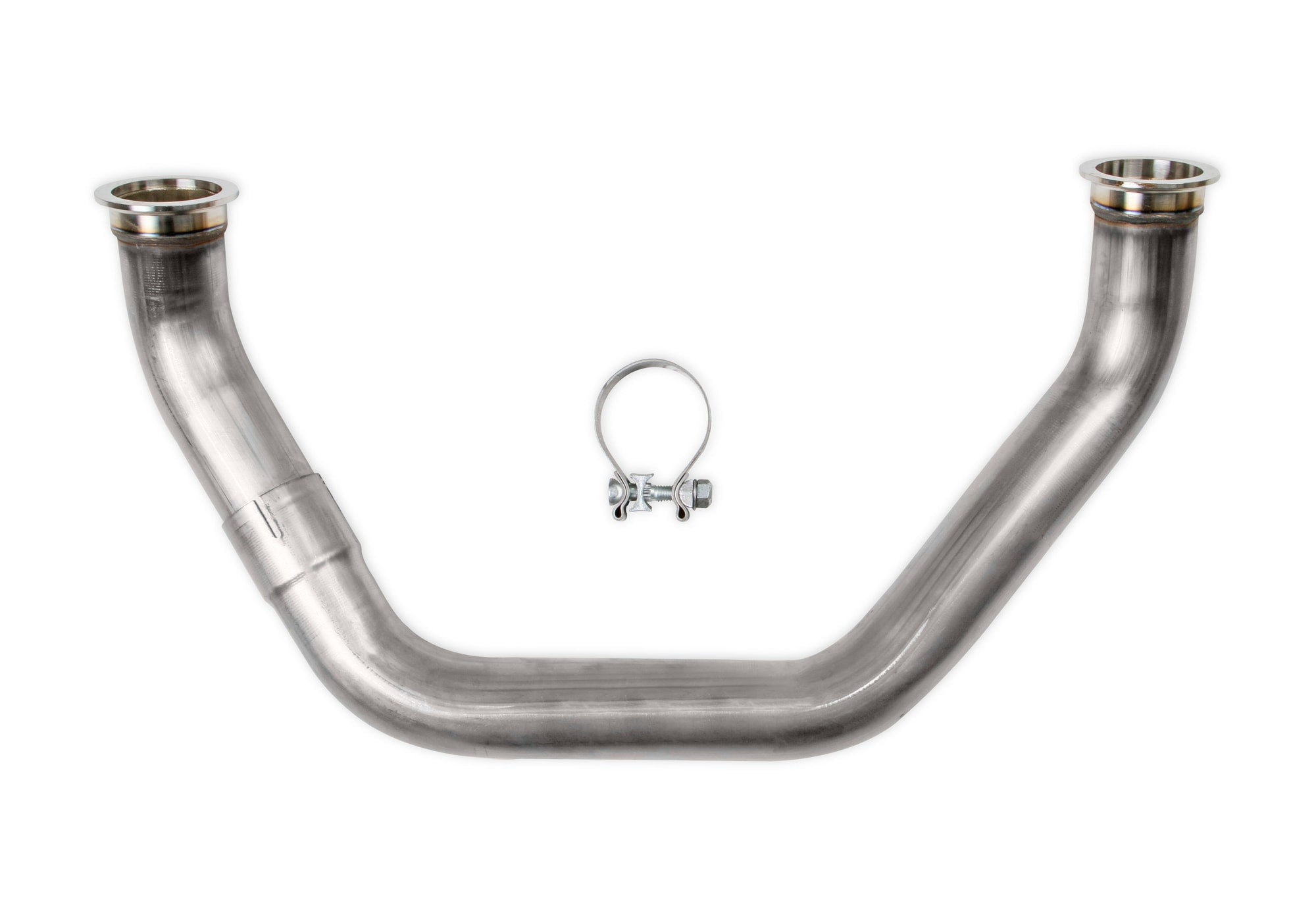

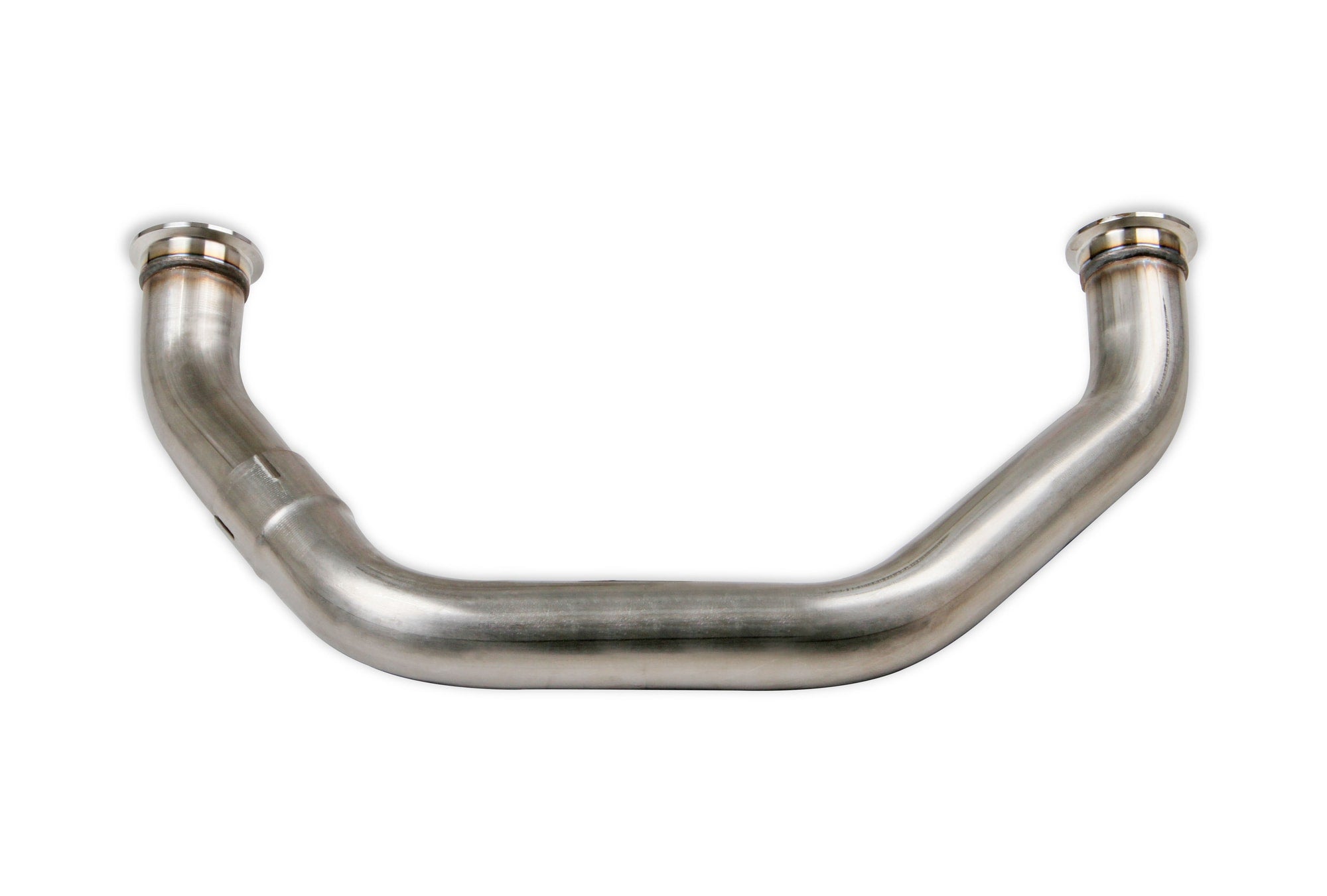

LS Turbo Cross-Over Tube - Fits GM T56 w/ QuickTime Bell-Housing
This turbo cross-over tube is used to connect the two manifolds (sold separately). Choose the cross-over tube based on the transmission (and bell-housing) for optimal fit and ground clearance. The cross-over tubes are made from 16-gauge, mandrel bent 304 stainless steel and include v-band flanges welded on for an easy bolt-on fit. A universal cross-over component kit is also available for custom applications that need something a little different (requires fabrication & welding). These parts work with most common LS swap parts (i.e. motor mounts, swap oil pan, and accessory drive systems) & provide the basic building blocks needed to complete a custom turbo system for your GM LS engine
LS Turbo Cross-Over Tube - Fits GM T56 w/ QuickTime Bell-Housing
- Choose Cross-Over Tube Based on Type of Transmission & Bell-Housing

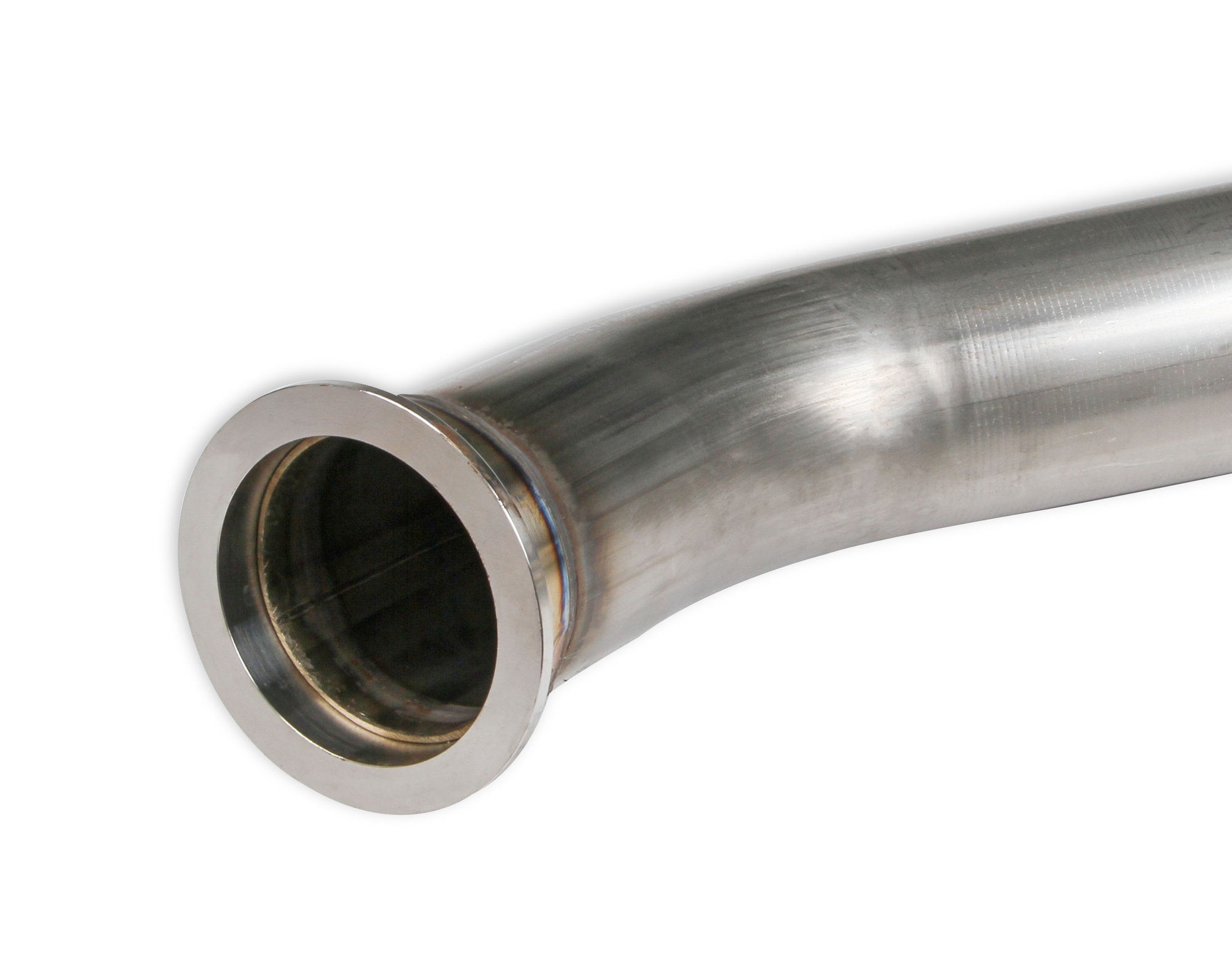

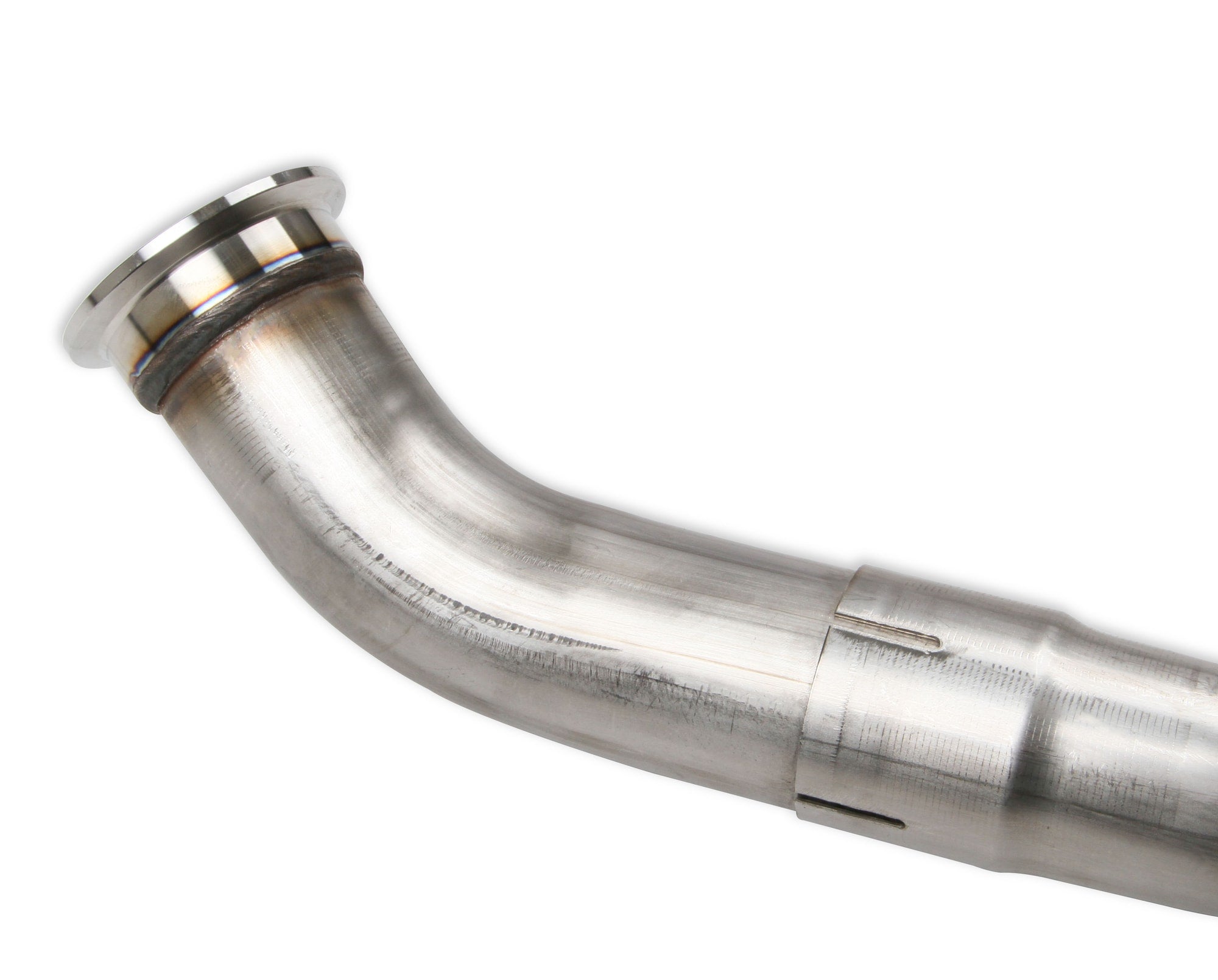

- Cross-Over Tubes Are 16 Gauge, Mandrel Bent 304 Stainless Steel & Include V-Band Flanges
- Pre-Made Cross-Over Tube Provide Optimal Fit & Ground Clearance
- Mandrel-Bent Tubing
- Two Piece Design
📖
About this product
LS Turbo Cross-Over Tube - Fits GM T56 w/ QuickTime Bell-Housing
📋
Product Specifications
Bolt Size
M8 x 1.25 x 25mm
Brand
Hooker BlackHeart
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
CARB (California) Compliant
No
Category
Exhaust
Collector Diameter
2.25 inch
Emission Code
4
Exhaust Manifold Style
Turbo
Header Finish
Natural
Header Style
Turbo manifold
Part Type
Exhaust Crossover Pipe
Product Type
Manifold
Prop 65 Yes/No
Yes
Sub Category
Exhaust and Tail Pipes
System Type
Cross-over
Tube Diameter
2.25 inch
Tube Material
304 Stainless Steel
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited Lifetime Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8708925000
📐
Dimensions & Shipping
Product Dimensions
22.9 × 15.4 × 10.5 in
Shipping Dimensions
22.9 × 15.4 × 10.5 in
Weight
4241 g (4.24 kg)
