Key Features

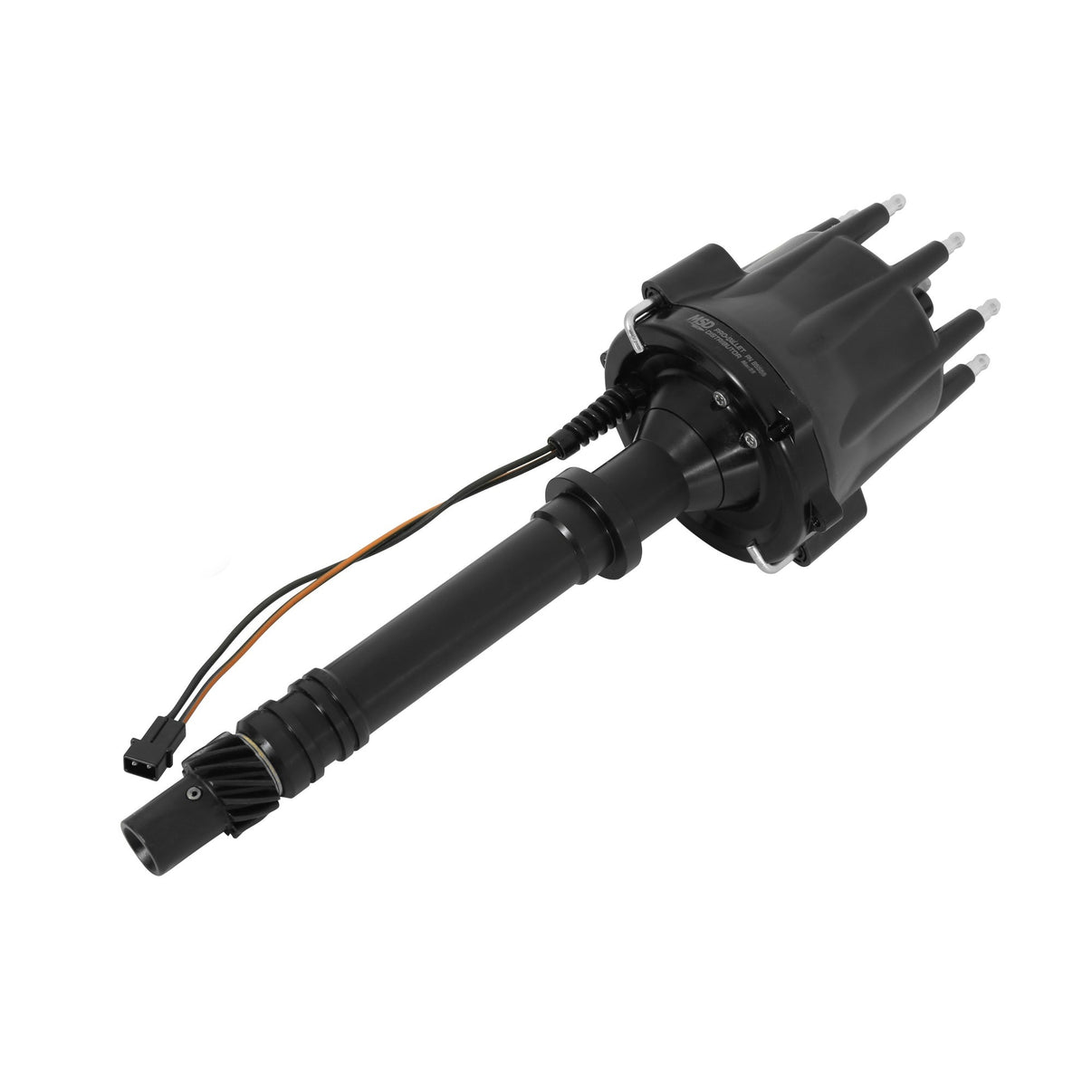

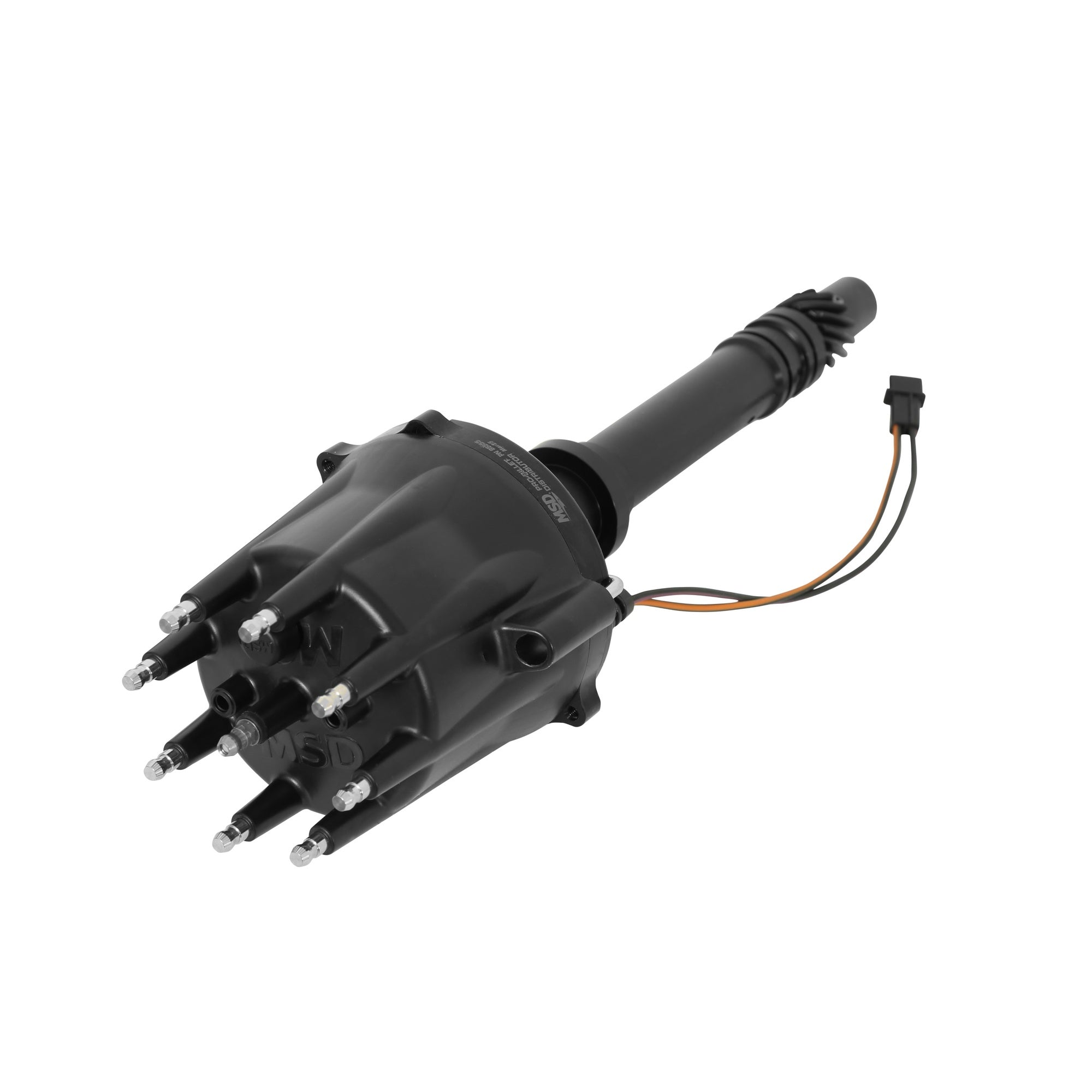

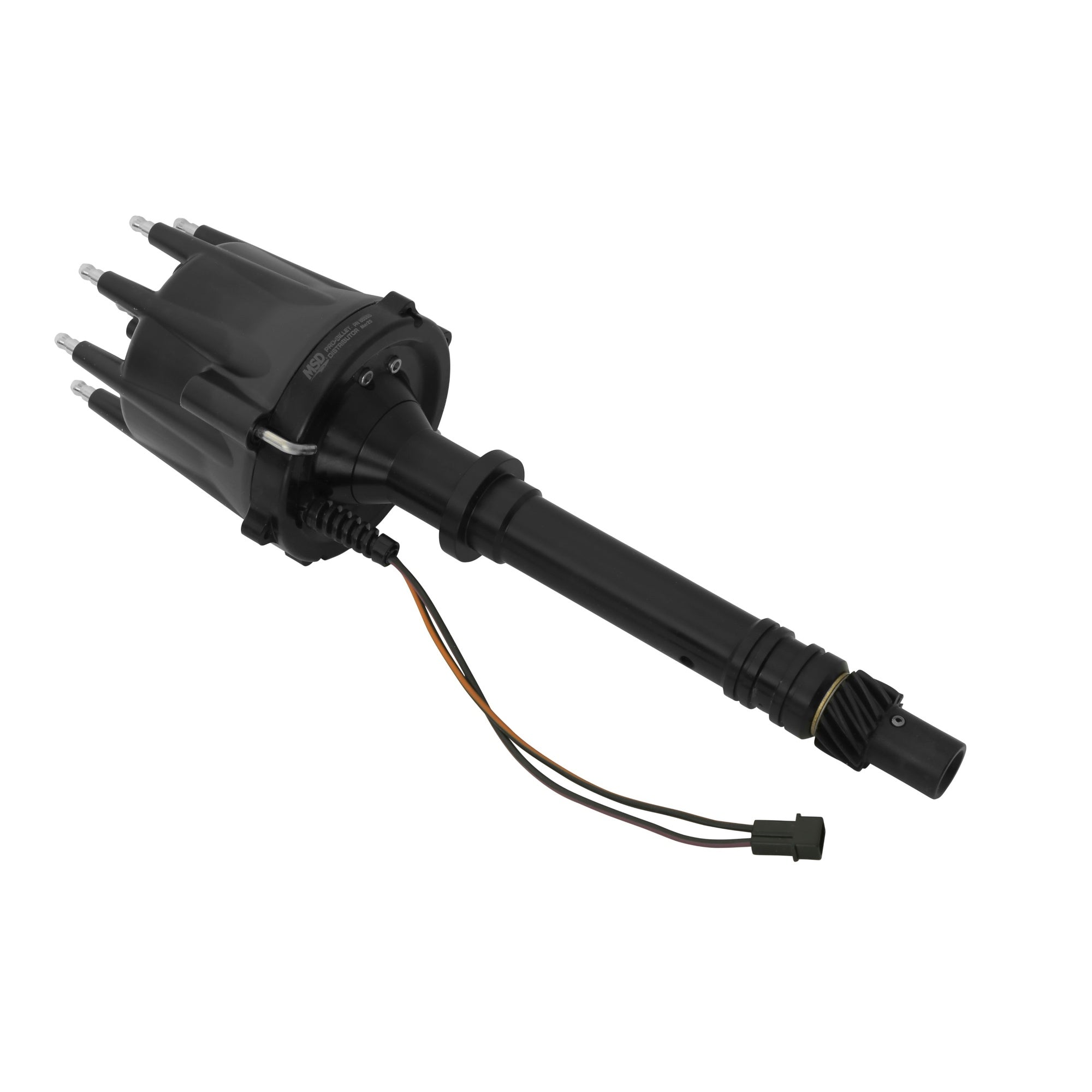

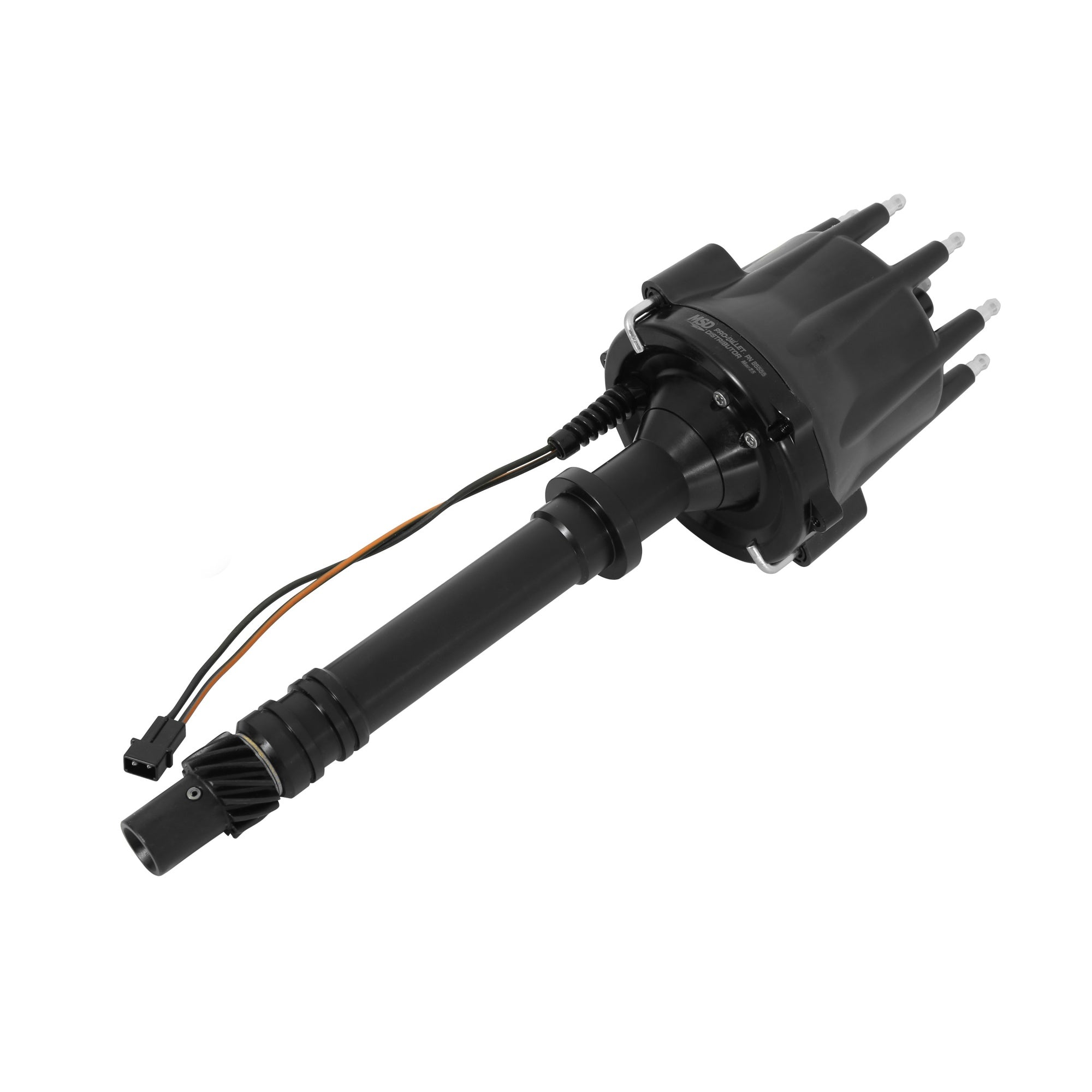

Chevy Black V8 Pro-Billet Distributor

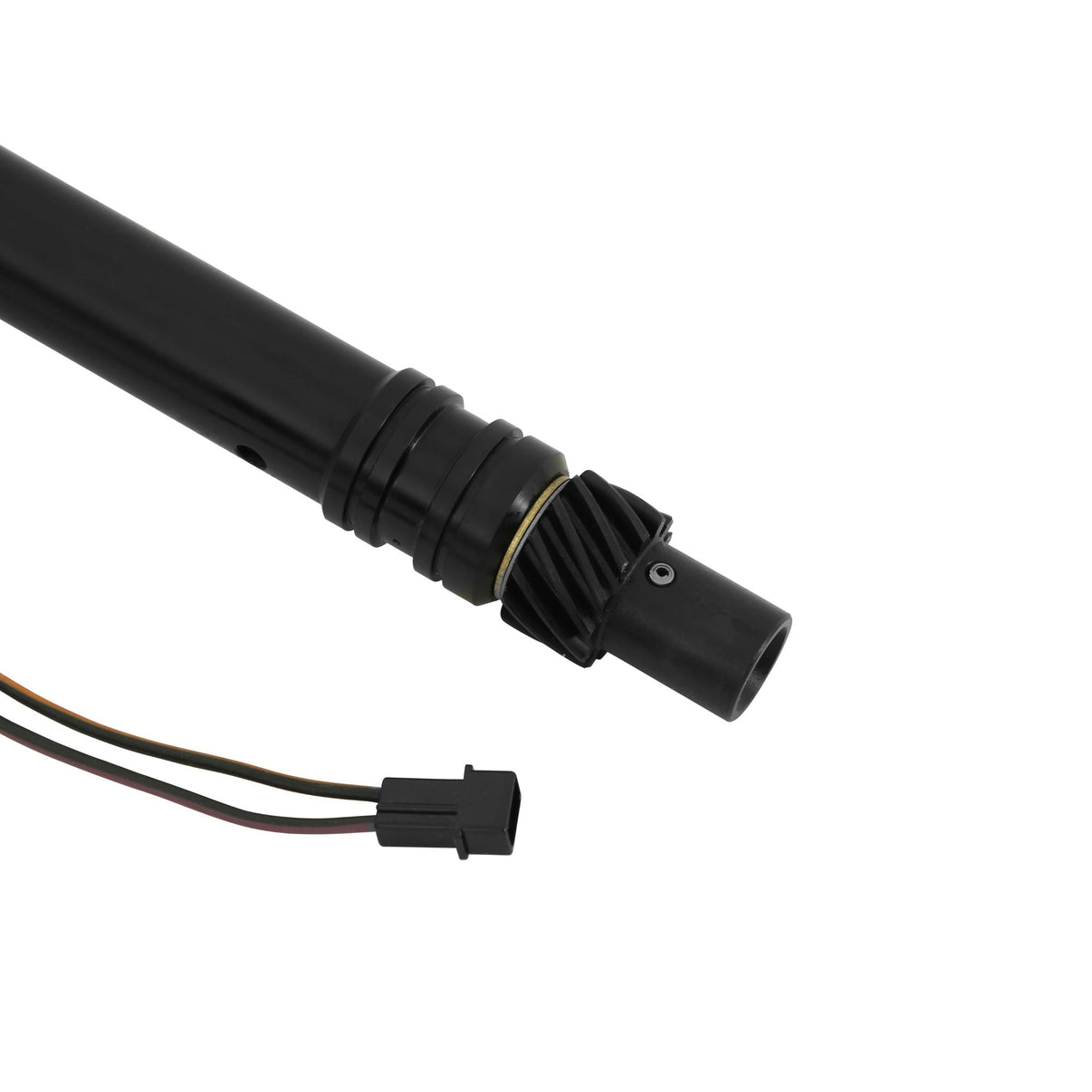

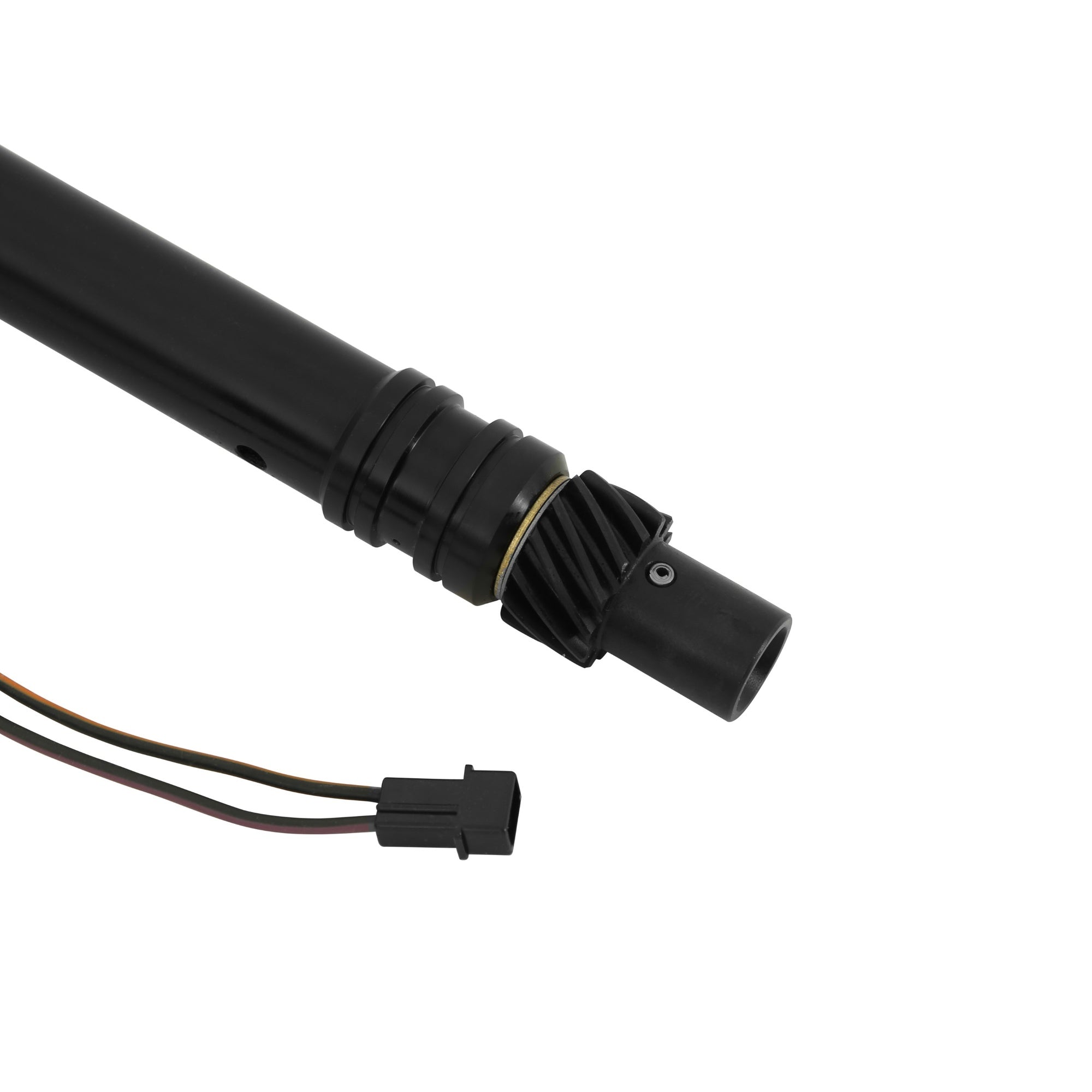

The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly.
Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition.
The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly.
Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition.
📋
Product Specifications
Advance Type
Mechanical
Brand
MSD
C.A.R.B. EO #
D-40-39
Cap Color
Black
Category
Ignition
Coil Wire Included
No
Color
Black
Distributor Cap Included
Yes
Distributor Gear Included
Yes
Distributor Type
Magnetic Pickup
Emission Code
1
Gear Material
Cast Iron Melonized QPQ Coated
Gear Material
Melonized QPQ Coated
Grade Type
Performance
Housing Color
Black
Housing Finish
Anodized
Housing Material
6061-T6 Billet Aluminum
Ignition Box Required
Yes
Ignition Coil Included
No
Ignition Rotor Included
Yes

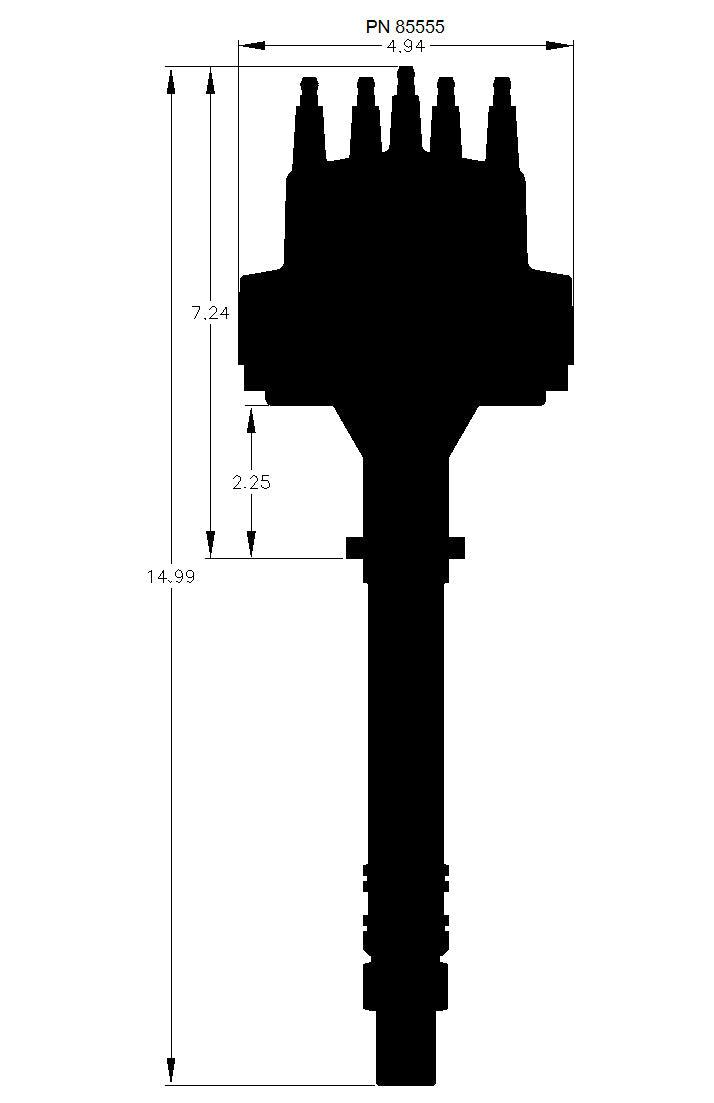

Length
Standard
Product Type
Distributor
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
📦

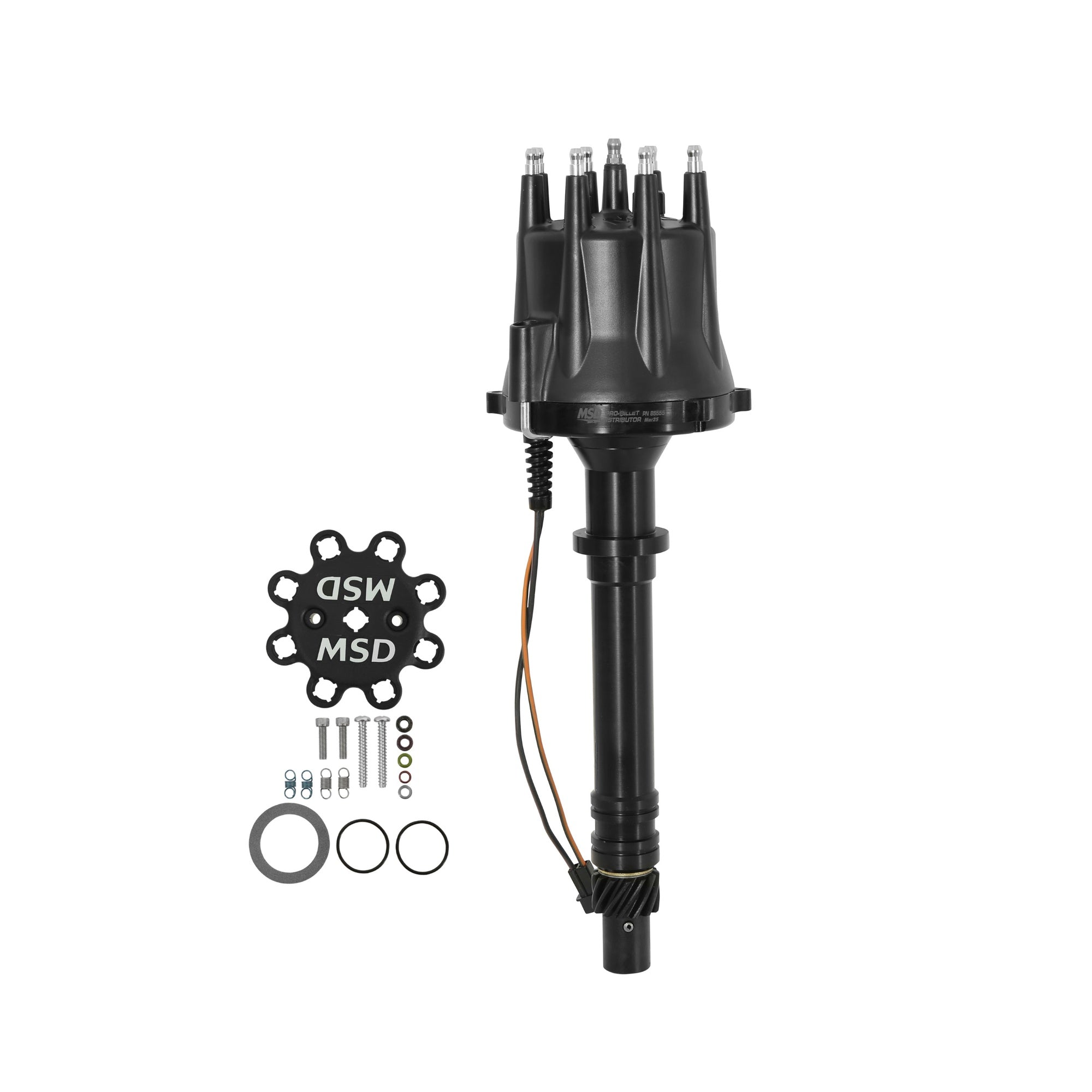

Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
