Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1962
Chevrolet Corvette
Base
1963–1968
Chevrolet Corvette
Base
1966–1969
Chevrolet Corvette
Base
1968
Chevrolet Corvette
Base
1969–1974
Chevrolet Corvette
Base
1970–1974
Chevrolet Corvette
Base
1900
No applications match your search.
⭐
Overview

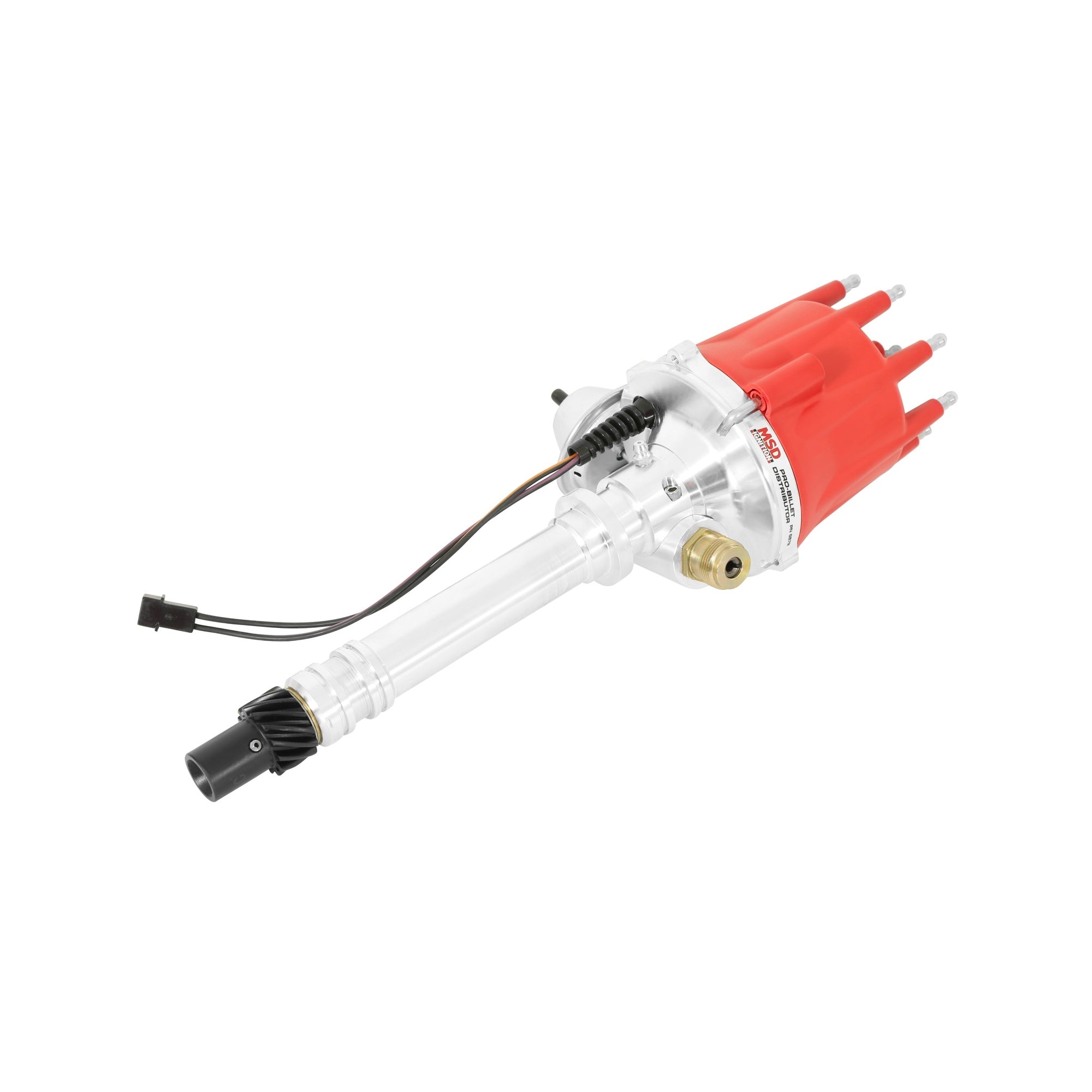

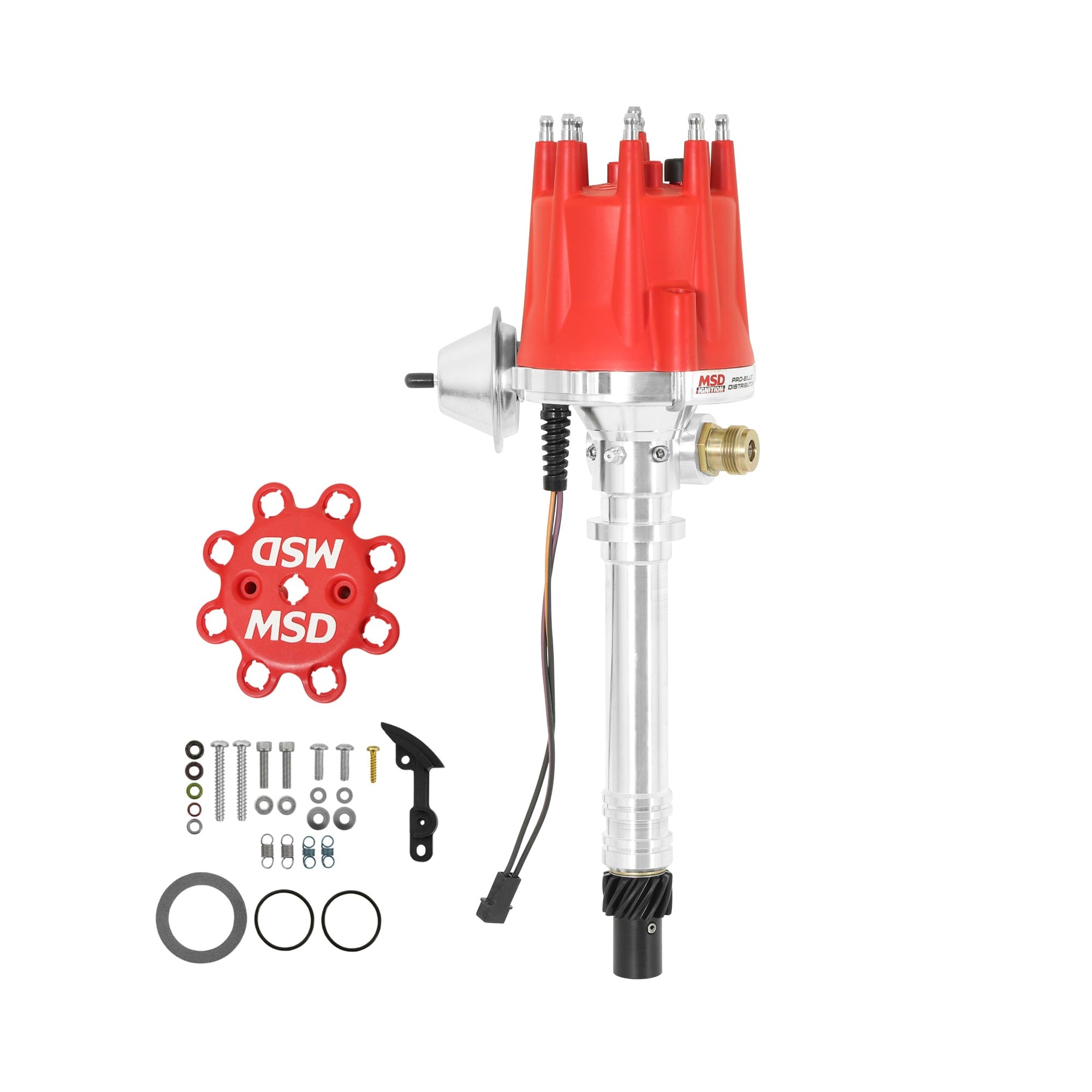

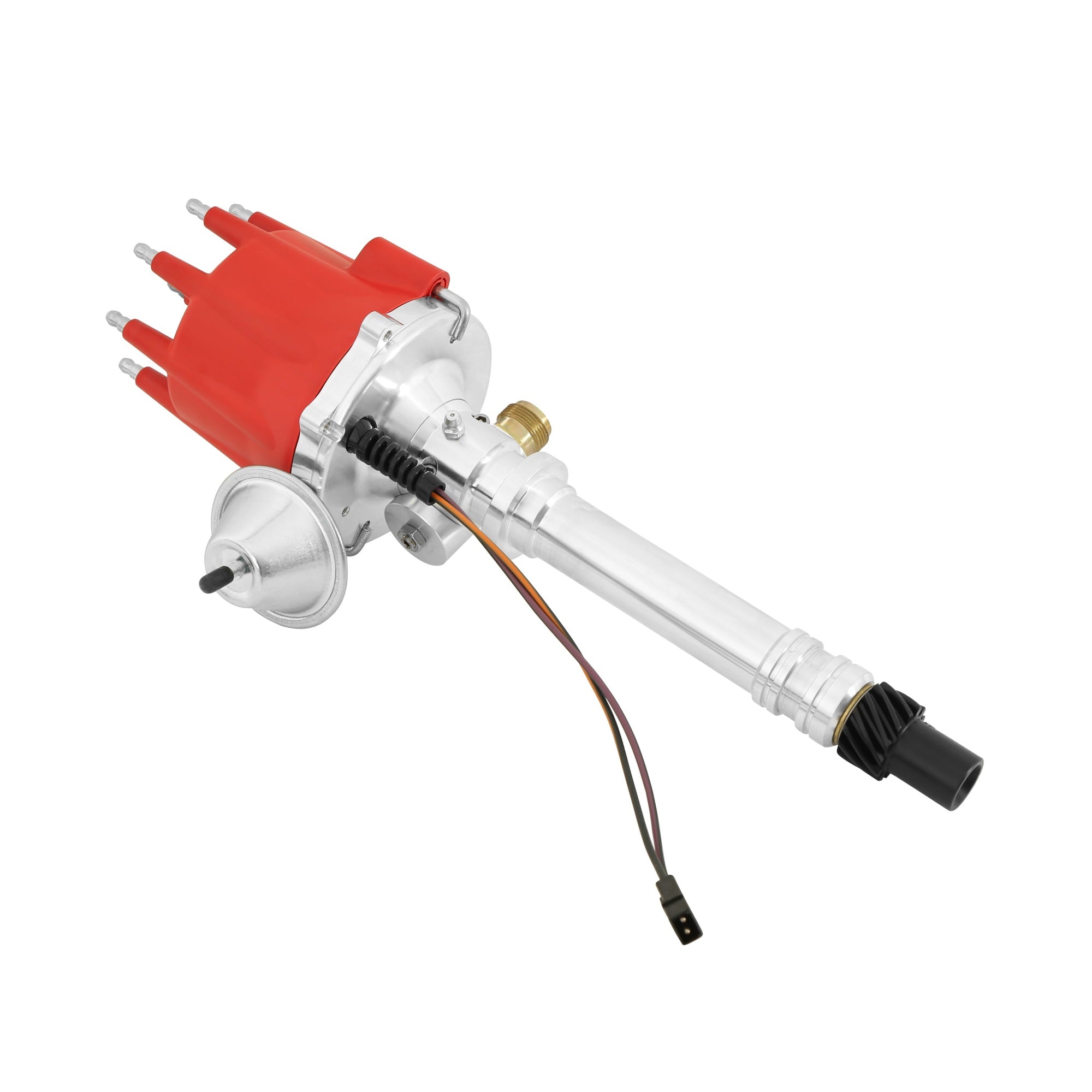

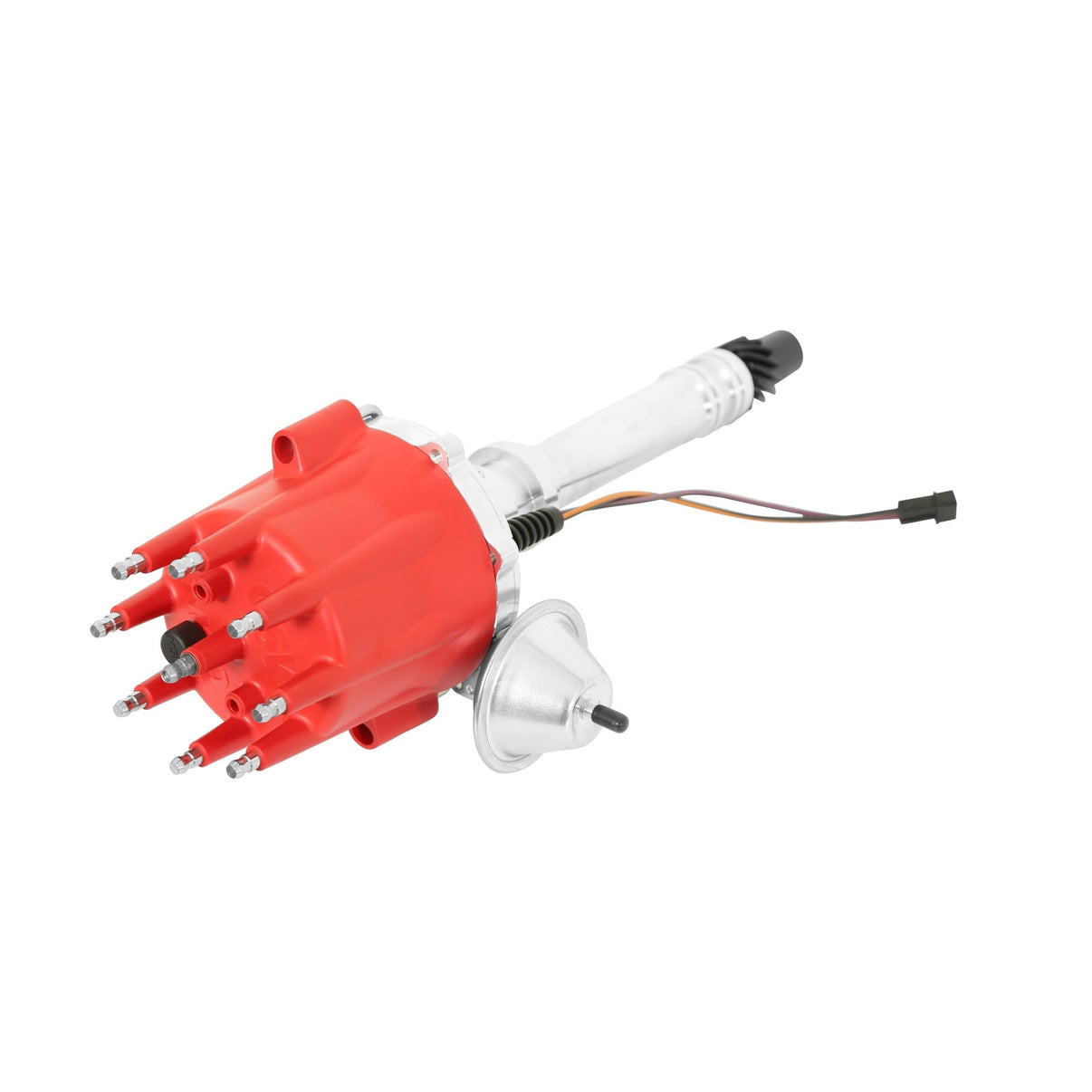

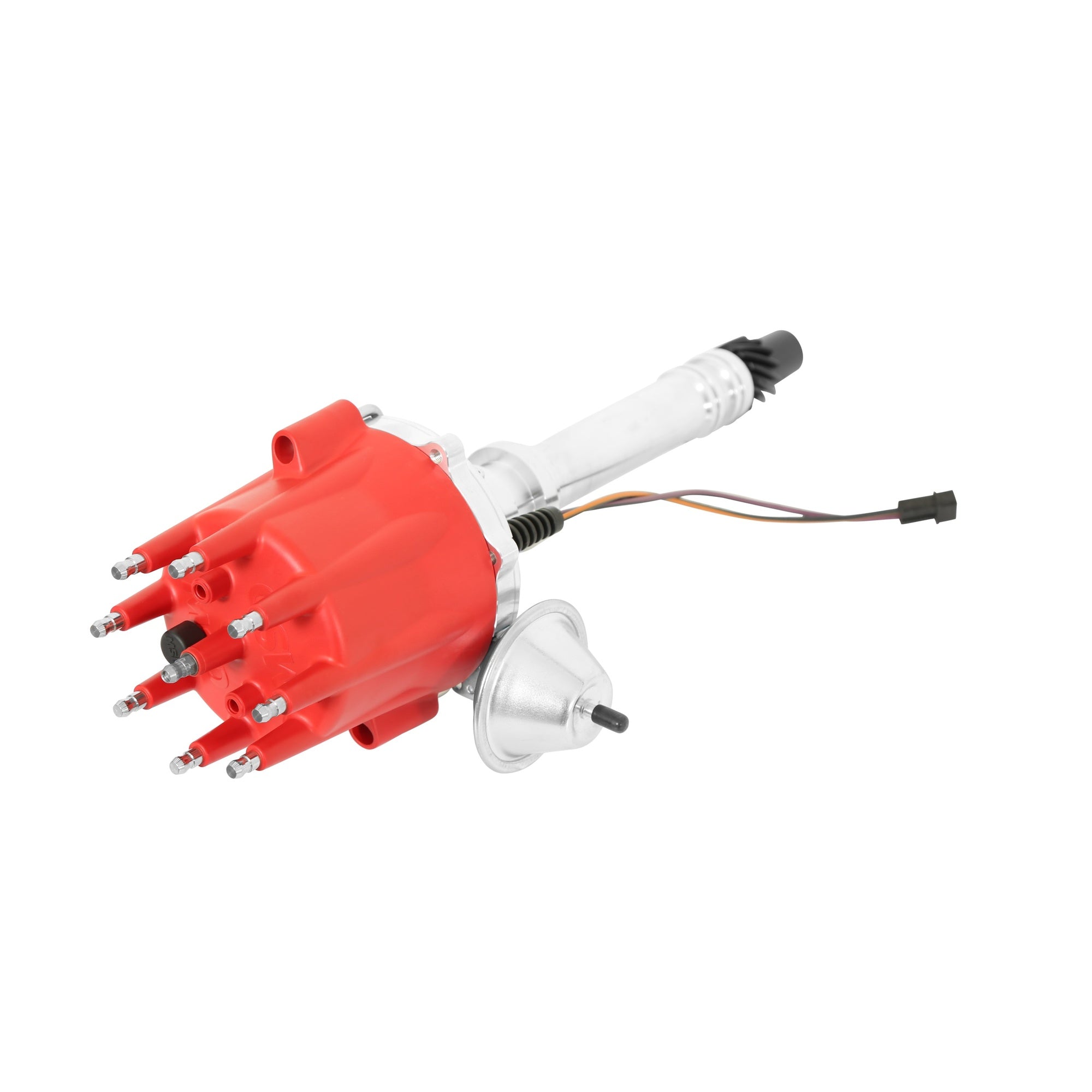

Corvette V8 Tach Drive Distributor w/Vacuum Advance
Corvette owners can now replace their worn out Magna-Pulse distributors with this precision Pro-Billet Tach Drive Distributor. Advantages such as an accurate magnetic pick-up, oversized shaft, vacuum advance and a billet aluminum housing are just a few of the MSD advantages.

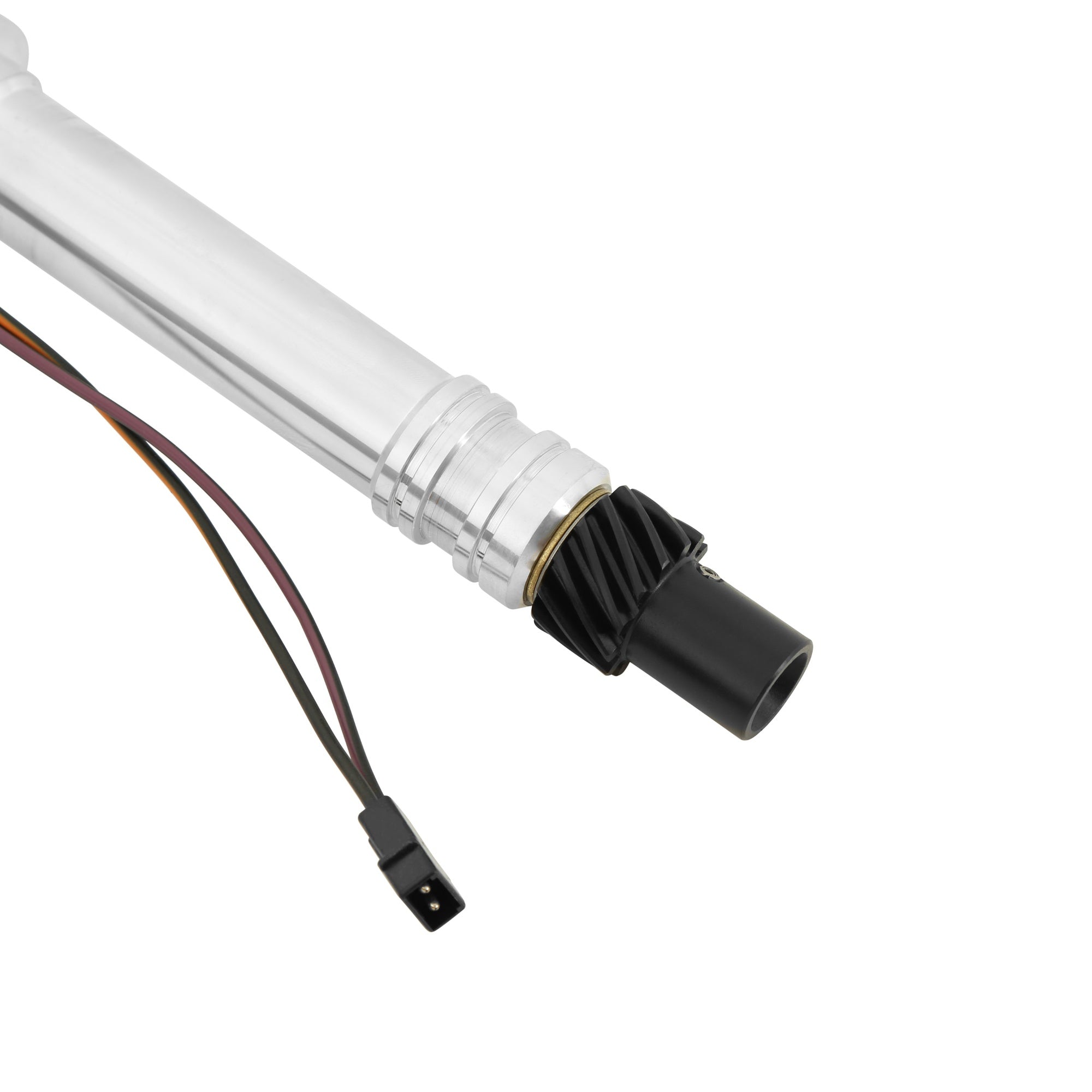

Inside the billet housing, a sealed ball bearing and long sintered bushing guide a 0.500" steel shaft for high rpm accuracy. A special reluctor is mounted to this shaft and is responsible for triggering the magnetic pick-up.
An adjustable mechanical advance assembly allows you to get the most performance out of your Vette's engine by custom tailoring a timing curve to fit your application.
The tach drive assembly is compact to clear the firewall and linkage. It can be repositioned easily to fit different applications plus has a grease fitting for lubrication.
Corvette owners can now replace their worn out Magna-Pulse distributors with this precision Pro-Billet Tach Drive Distributor. Advantages such as an accurate magnetic pick-up, oversized shaft, vacuum advance and a billet aluminum housing are just a few of the MSD advantages.
Inside the billet housing, a sealed ball bearing and long sintered bushing guide a 0.500" steel shaft for high rpm accuracy. A special reluctor is mounted to this shaft and is responsible for triggering the magnetic pick-up.
An adjustable mechanical advance assembly allows you to get the most performance out of your Vette's engine by custom tailoring a timing curve to fit your application.
The tach drive assembly is compact to clear the firewall and linkage. It can be repositioned easily to fit different applications plus has a grease fitting for lubrication.
📋
Product Specifications
Brand
MSD
C.A.R.B. EO #
D-40-39
Category
Ignition
Color
Red
Distributor Cap Included
Yes
Distributor Type
Mechanical Tach Drive
Emission Code
1
Gear Material
Cast Iron Melonized QPQ Coated
Grade Type
Performance
Ignition Box Required
Yes
Ignition Coil Included
No
Ignition Rotor Included
Yes
part type
Distributor
Product Type
Distributor
Sub Category
Distributor and Magneto
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
📐
Dimensions & Shipping

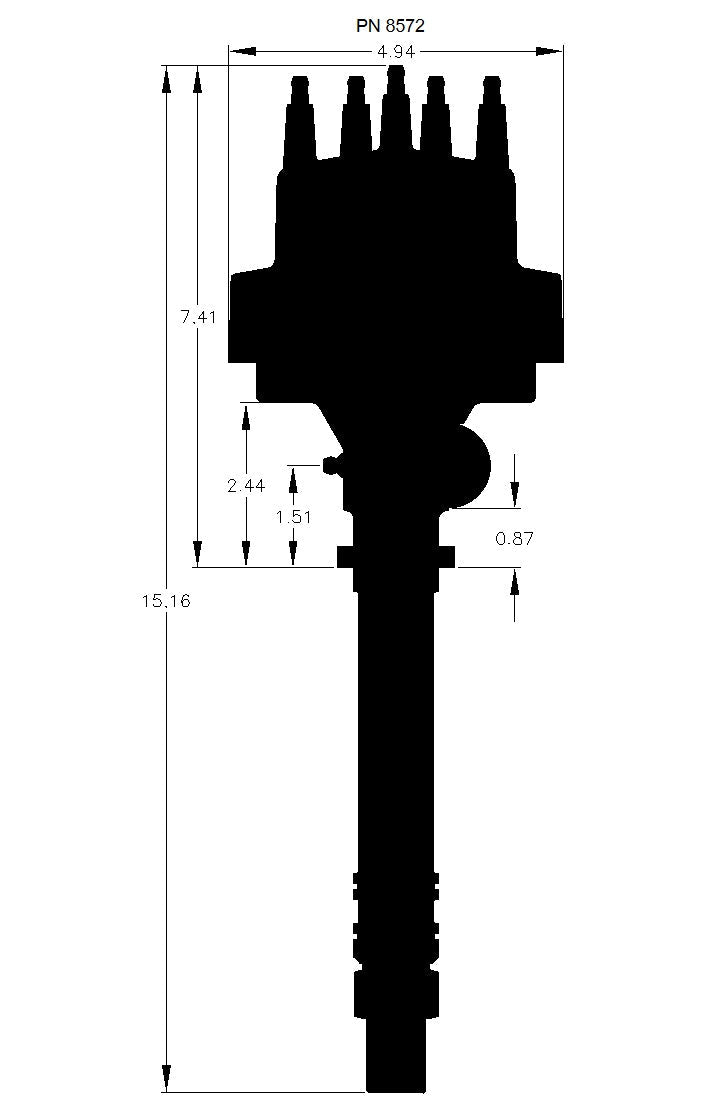

Product Dimensions
18.2 × 7.1 × — in
Weight
2.268 kg
