FlowtechPart 91627-1FLT✓ Fits 30 vehiclesMade in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
30 applicationsCompatible Engines
5.0L V8 302ci
Application Notes
with Silver Ceramic Finish1-1/2 inch Tube Diameter, ShortySmog HeadersCeramic50 States Emissions Legal
View all 30 vehicle applications
Years
Make / Model
Submodel
Engine
1987–1989
Ford Bronco
5.0L V8 302ci
1987–1989
Ford Bronco
5.0L V8 302ci
1987–1989
Ford Bronco
5.0L V8 302ci
1991–1995
Ford Bronco
5.0L V8 302ci
1991–1993
Ford Bronco
5.0L V8 302ci
1991–1992
Ford Bronco
5.0L V8 302ci
1991–1995
Ford Bronco
5.0L V8 302ci
1992
Ford Bronco
5.0L V8 302ci
1993
Ford Bronco
5.0L V8 302ci
1994–1995
Ford Bronco
5.0L V8 302ci
1995
Ford Bronco
5.0L V8 302ci
1987–1989
Ford F-150
5.0L V8 302ci
1987–1989
Ford F-150
5.0L V8 302ci
1987–1989
Ford F-150
5.0L V8 302ci
1991–1995
Ford F-150
5.0L V8 302ci
1991–1992
Ford F-150
5.0L V8 302ci
1991–1992
Ford F-150
5.0L V8 302ci
1993–1995
Ford F-150
5.0L V8 302ci
1995
Ford F-150
5.0L V8 302ci
1995
Ford F-150
5.0L V8 302ci
1987–1989
Ford F-250
5.0L V8 302ci
1987–1989
Ford F-250
5.0L V8 302ci
1987–1989
Ford F-250
5.0L V8 302ci
1991–1995
Ford F-250
5.0L V8 302ci
1991–1994
Ford F-250
5.0L V8 302ci
1991–1992
Ford F-250
5.0L V8 302ci
1993–1995
Ford F-250
5.0L V8 302ci
1995
Ford F-250
5.0L V8 302ci
1995
Ford F-250
5.0L V8 302ci
1995
Ford F-250
5.0L V8 302ci
No applications match your search.
⭐
Key Features
Breaking in an engine with ceramic coated headers WILL result in damage to the coating and will VOID all warranties. Ceramic coated headers require several heat cycles to fully cure before they will withstand extreme heat. Flowtech recommends using cast i
1987-1995 Ford F-150/250/Bronco, 2WD & 4WD: 5.0L, Tube Size 1.5", Silver Ceramic Coated, C.A.R.B. EO #D-115-17
1987-1995 Ford F-150/250/Bronco, 2WD & 4WD: 5.0L, Tube Size 1.5", Silver Ceramic Coated, CARB EO #D-115-17
- This is a 50-State Compliant header C.A.R.B. EO #D-115-17.
- Sturdy 16 gauge tubing
- Extra thick 3/8” flanges for a leak-free seal
- Designed as a direct fit replacement for factory exhaust manifolds
- Will accommodate all emission control devices
- Bolts directly to factory head pipe

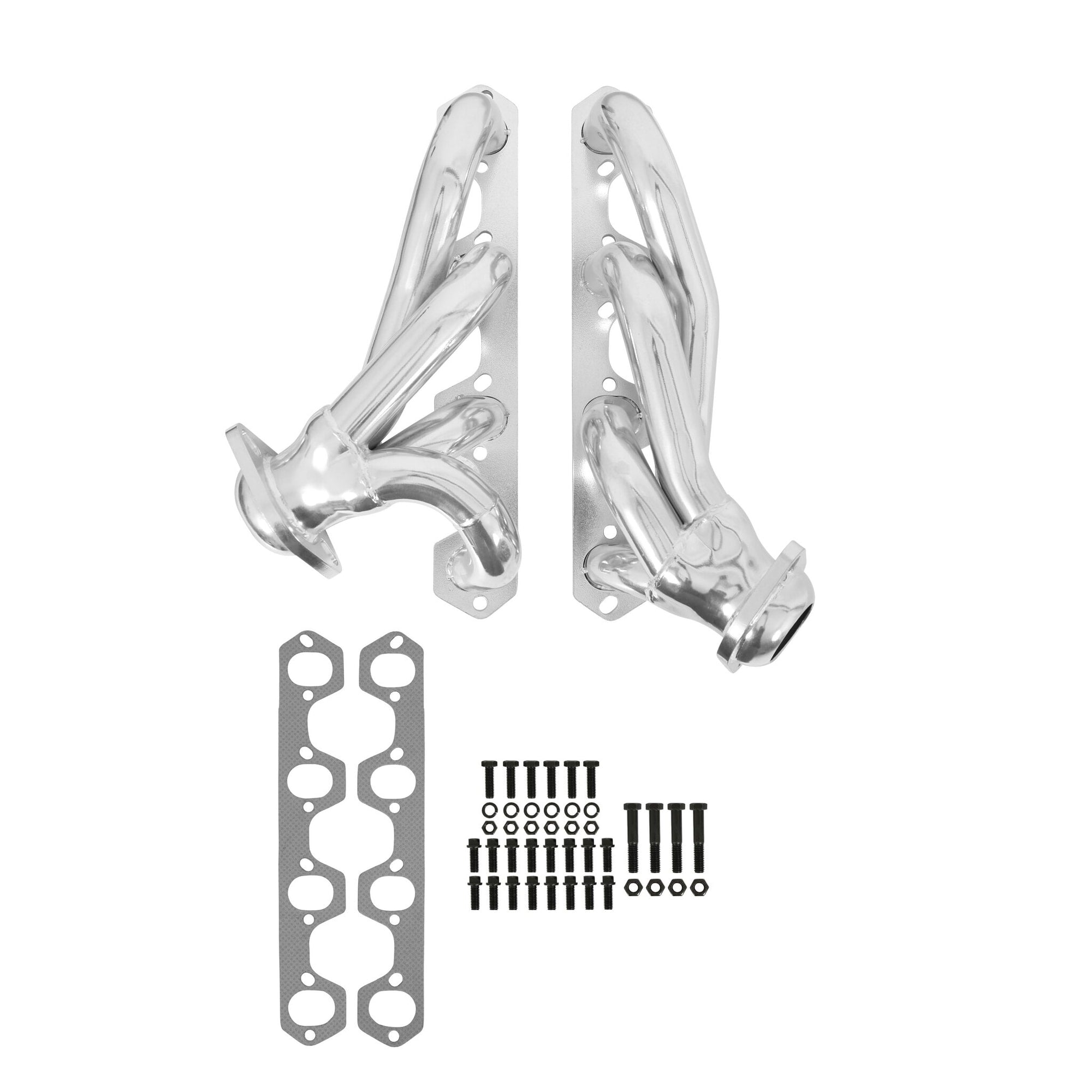

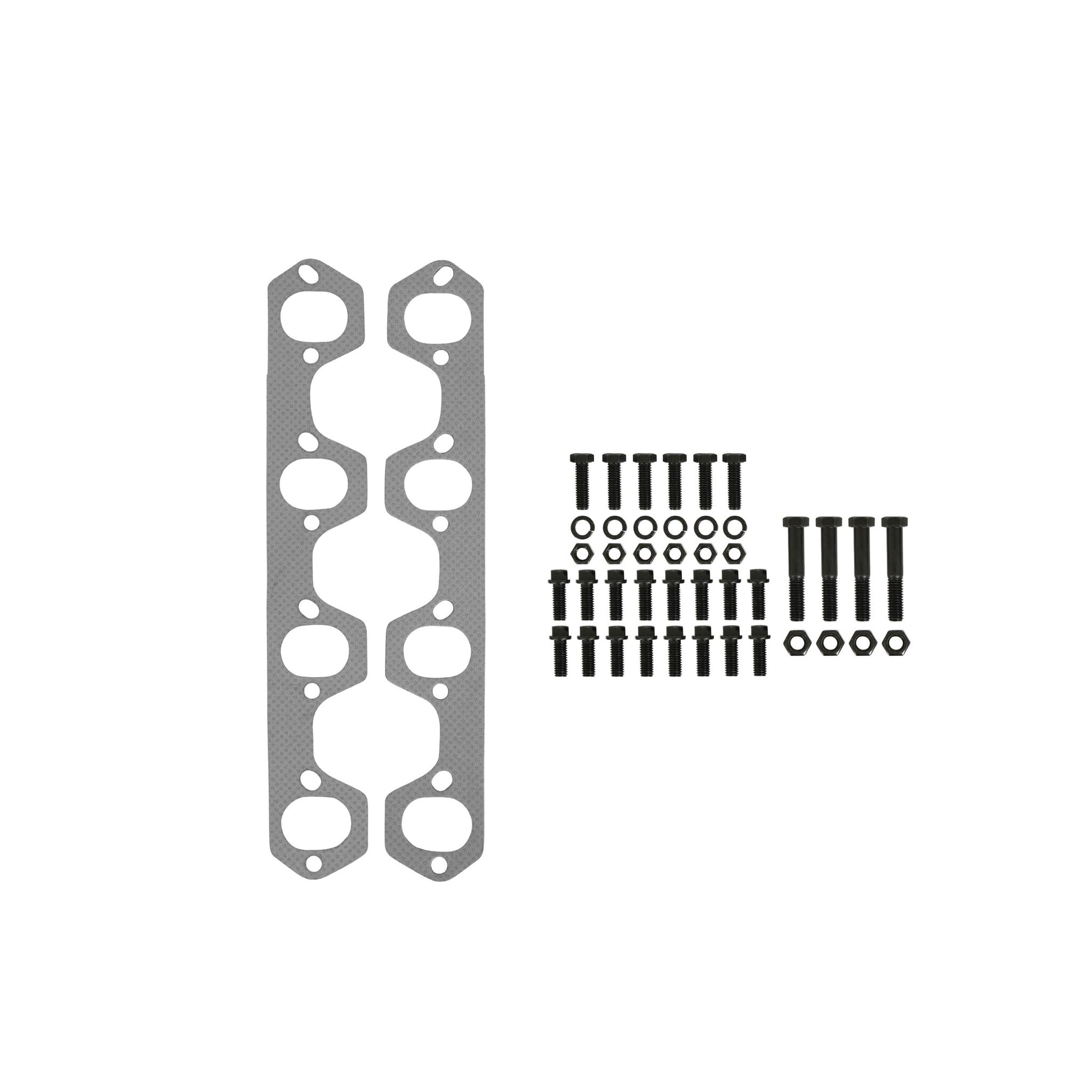

- Complete with premium gaskets and hardware
📖
About this product
1987-1995 Ford F-150/250/Bronco, 2WD & 4WD: 5.0L, Tube Size 1.5", Silver Ceramic Coated, CARB EO #D-115-17
📋
Product Specifications
Air Injection Tubes
No
Automotive Item Grade
Performance
Bolt Size
3/8-16 x 3/4
Bolts Included
Yes
Brand
Flowtech Exhaust
C.a.r.b. Eo #
D-115-17
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
California Proposition 65
Yes
CARB (California) Compliant
Yes
Category
Exhaust
Collector Attachment
2-Bolt Flange
Collector Diameter
2.50
Collector Reducer Included
No
Color
Silver
Design
Shorty
Drive
2WD
Drive
4WD
EGT Port
No
Emission Code
1
Finish
Ceramic Coated
Flange Thickness
0.3125
Flange Thickness
0.375
Flange Thickness
3/8
Flange Thickness
5/16
Gasket Or Seal Included
Yes
Header Series
Shorty Smog
Header Style
Shorty
Material
Mild Steel
Mounting Hardware Included
Yes
Oxygen Sensor Port
No
Part Type
Exhaust Header
Port Shape
Oval
Primary Tubing Diameter
1 1/2
Primary Tubing Diameter
1.50
Product Type
Headers
Prop 65 Yes/No
Yes
Quantity
Sold as a pair
Sub Category
Exhaust Manifolds
Tube Wall Thickness
16
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
1
HS Code
8708925000
📐
Dimensions & Shipping
Product Dimensions
18.5 × 14.6 × 9.9 in
Shipping Dimensions
18.5 × 14.6 × 9.9 in
Weight
7031 g (7.03 kg)
