Classic InstrumentsPart AN341SLC★ Universal fitMade in US
Product Details
⭐
Key Features

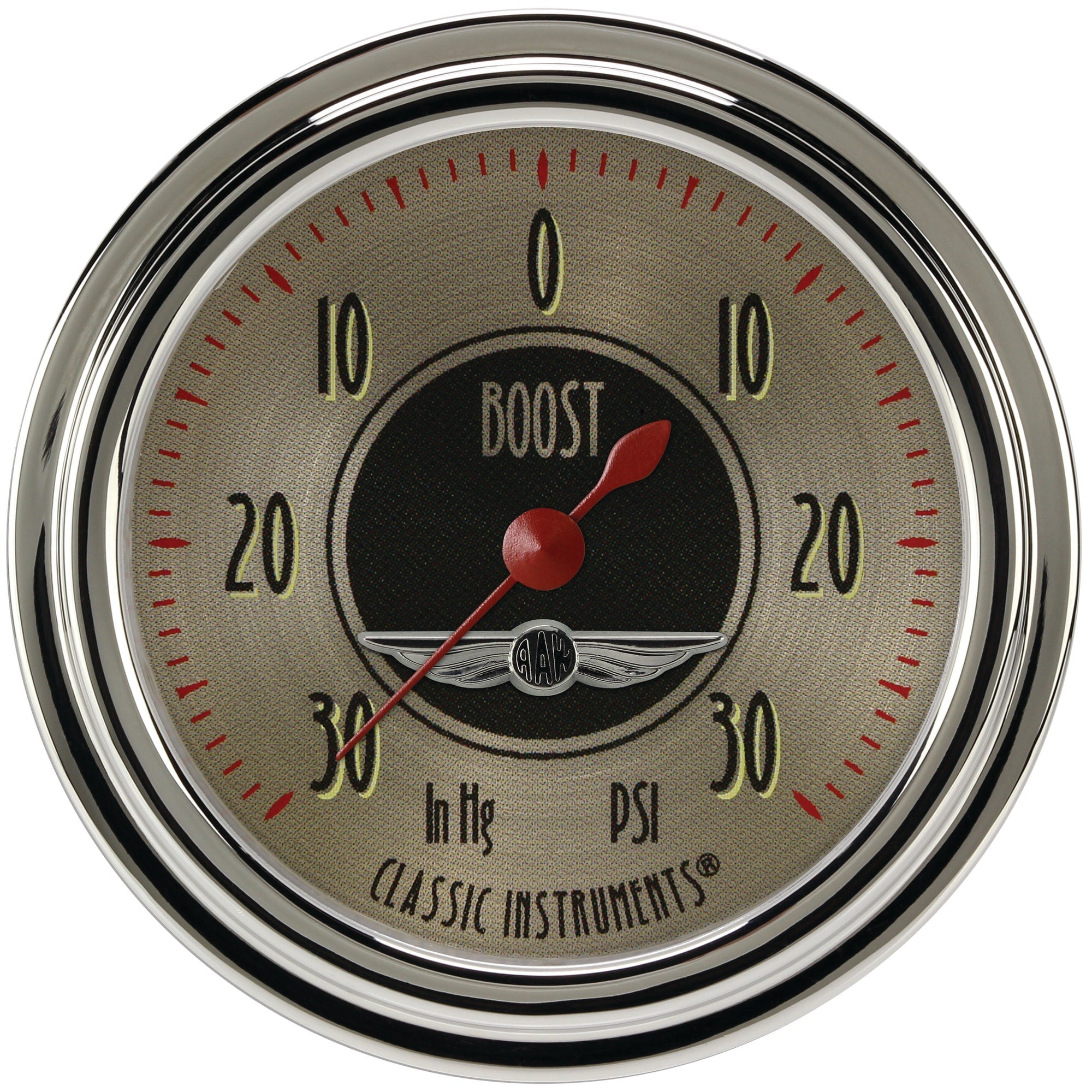

All American Nickel 2 5/8" Full sweep Boost/Vacuum gauge, with standard stainless steel low step bezel and curved glass lens.
All American Nickel 2 5/8" Full sweep Boost/Vacuum gauge, with standard stainless steel low step bezel and curved glass lens. | Features include: - Rugged air core movement combined with microprocessor technology for precision and durability - Full sweep provides increased accuracy - Easy to read 2 5/8" size - Push-button calibration - Integrated red warning light, illuminates entire gauge red when activated - Warning light output for additional warning indicator lights - Analog .5 – 4.5VDC output for data logging systems - LED lighting, choose between Warm White or Cool White - Pressure transducer included - Installation hardware and wiring harness included
All American Nickel 2 5/8" Full sweep Boost/Vacuum gauge, with standard stainless steel low step bezel and curved glass lens.
- Integrated red warning light, illuminates entire gauge red when activated
- Full sweep provides increased accuracy
- Rugged air core movement combined with microprocessor technology for precision and durability
- Analog .5 - 4.5VDC output for data logging systems
- LED lighting, choose between Warm White or Cool White
- Easy to read 2 5/8" size
- Pushbutton calibration
- Pressure transducer included
- Installation hardware included
- Warning light output for additional warning indicator lights
📖
About this product
All American Nickel 2 5/8" Full sweep Boost/Vacuum gauge, with standard stainless steel low step bezel and curved glass lens.
📋
Product Specifications
Automotive Item Grade
Performance
Brand
Classic Instruments
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Body
Display Type
Analog
Emission Code
6
Gauge Diameter
2 5/8"
Illuminated
Yes
Illumination Color
White
Indicator Markings Color
Black
Lens Color
Clear
Liquid Filled
No
Maximum Boost Pressure (psi)
30
Mounting Hardware Included
Yes
Mounting Pod Included
No
Part Type
Boost Gauge
Pi
Build_to_order
Pointer Color
Red
Product Type
Individual Gauge
Prop 65 Yes/No
Yes
Sub Category
Instrument Panel
Sweep
Full Sweep
Universal Or Specific Fit
Universal
Warning
California Proposition 65
Warranty
Manufacturer'S 7 Year Warranty
Weight
2
🛡️
Warranty & Compliance
Warranty
7 months · Manufacturer's 7 year Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
9029908040
📐
Dimensions & Shipping
Product Dimensions
6.0 × 6.0 × 6.0 in
Shipping Dimensions
6.0 × 6.0 × 6.0 in
Weight
454 g (0.45 kg)
