ACCEL
Product Details
🔧
Vehicle Compatibility
Select your vehicle to verify compatibility:
⭐
Key Features
ACCEL Ignition Coil - SuperCoil - GM Vortec engine 1996-2001 5.0/5.7/7.4L
Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, crisper throttle response and more high RPM power. Compatible with late model GM computer controlled remote mount HEI systems. Direct bolt-in, plug-in replacement. Can also work with CD ignition systems. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy transfer and resists corrosion better than aluminum. Comes complete with new mounting hardware. High dielectric strength ACCEL Yellow over molded housing. Output is 48,000 volts with 0.2 ohms resistance.
Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, crisper throttle response and more high RPM power. Compatible with late model GM computer controlled remote mount HEI systems. Direct bolt-in, plug-in replacement. Can also work with CD ignition systems. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy transfer and resists corrosion better than aluminum. Comes complete with new mounting hardware. High dielectric strength ACCEL Yellow over molded housing. Output is 48,000 volts with 0.2 ohms resistance.
📋
Product Specifications
Application
GM
Brand
ACCEL
Category
Ignition Coils
Color
Yellow
Emission Code
2
Maximum Voltage
48
Part Type
Ignition Coil
Peak Increase in Energy vs. OE
11%
Primary Resistance
0.2 Ohms
Product Type
Ignition Coils
Quantity Per Pkg.
1
Quantity
1
Secondary Resistance
6.7 k Ohms
Sub Category
Ignition Coil
Turns Ratio
92:1
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Weight
1.2000
📦
Package Contents

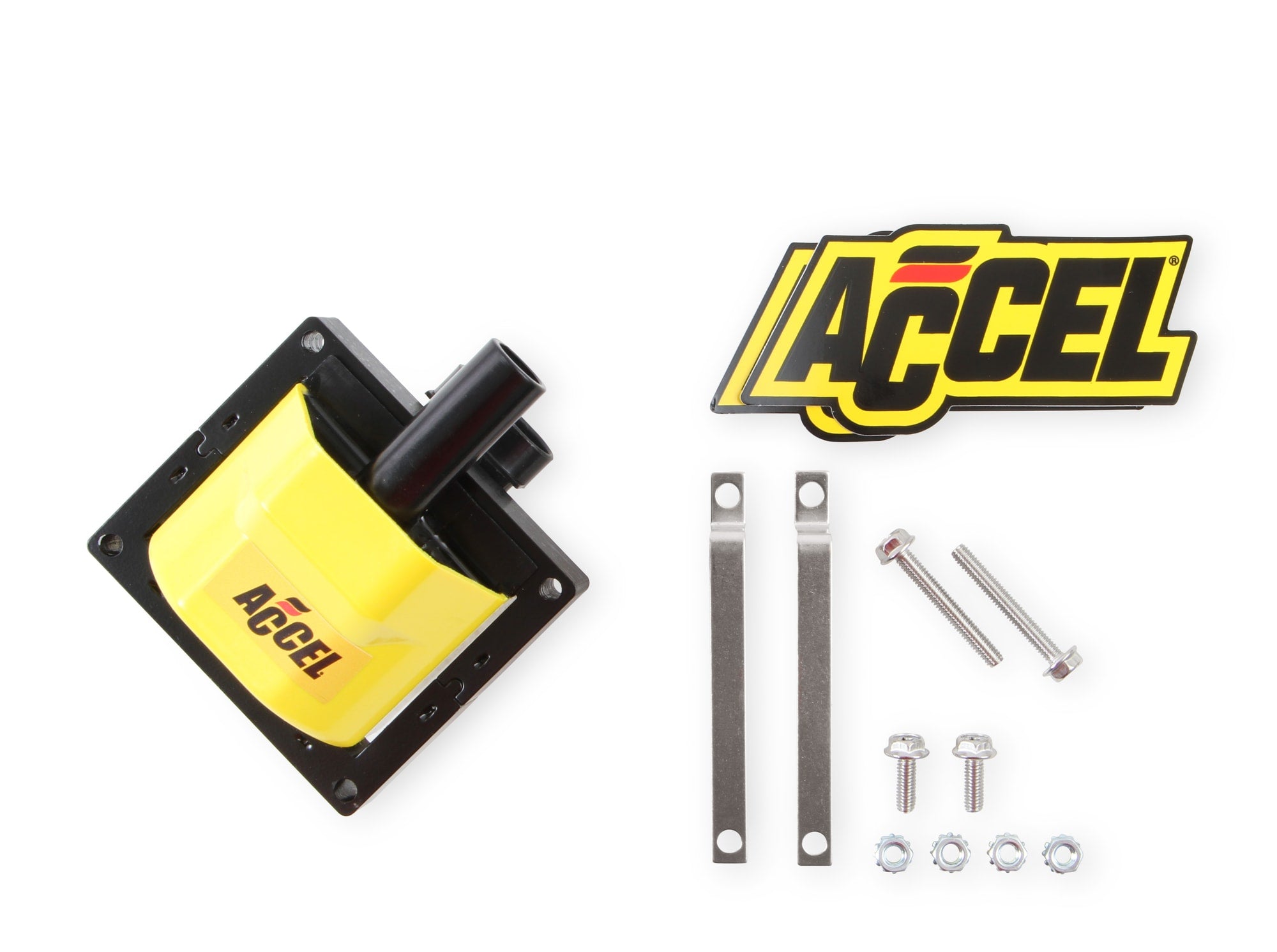

Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
