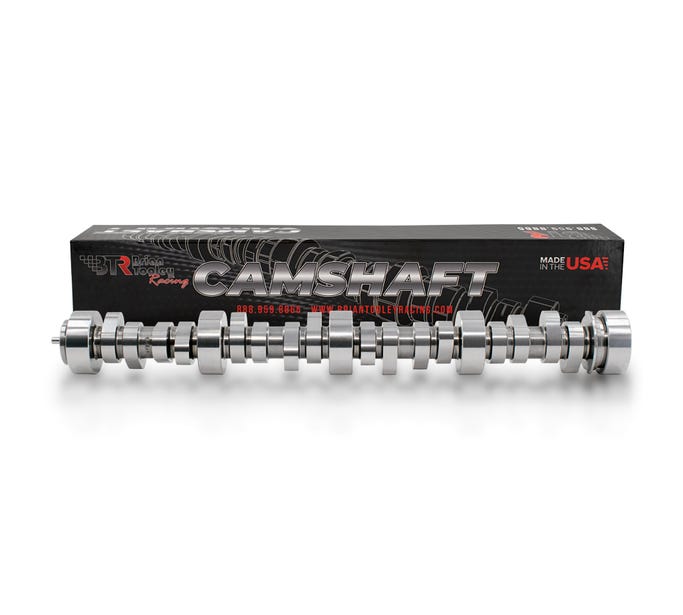

BTR PDS STAGE 2 TORQUE CAMSHAFT
221/24X, .619/.617, 113 LSA
INTAKE LOBE LIFT @ TDC: 0.04730
This new version of our Stage 2 PDS camshaft makes more power and torque everywhere in the curve compared to our legendary PDS cams. Developed in house, we went back to the drawing board and found more power and torque even with the use of less intake duration.These new BTR lobe designs were Spintron and Engine Dyno tested to achieve the highest overall power curve while also maintaining strict valvetrain stability and durability standards.
E85 fuel is highly recommended. The dyno sheet below was with a LS3 short block, GMPP ported LS3 heads, Kong ported LSA supercharger. 17psi boost, E85 fuel. Tested in house on BTR's Superflow dyno.
📋
Product Specifications
Brand
Brian Tooley Racing
Btr Sku
BTR-PDSSTAGE2TQ
Cam Bolt Style
THREE BOLT
Camshaft Style
HYDRAULIC ROLLER
Engine Combination
SUPERCHARGED - ROOTS
Engine Type
Gen III/Gen IV LS
Height
3.000000
Length
24.000000
Part Type
Camshaft
Weight
15.000000
Width
3.000000
