Earl's PerformancePart ct100erlMade in CN
Product Details
⭐
Key Features
Black w/ Billet Filter, Drain Valve, -12 AN O-Ring Port (Inlet) & Mounting Brackets. 1/8" NPT on Drain Valve for Optional Remote Outlet Hose

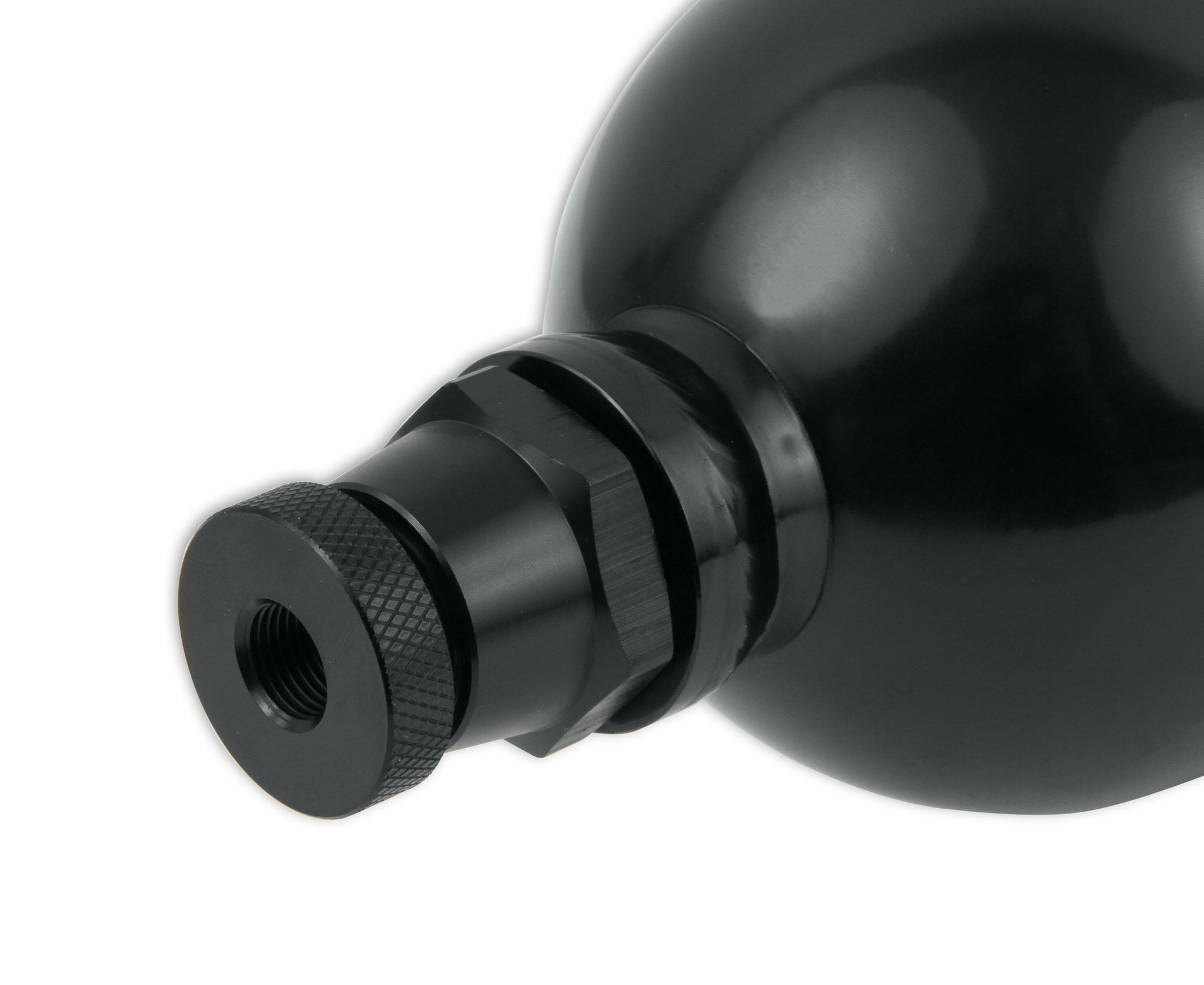

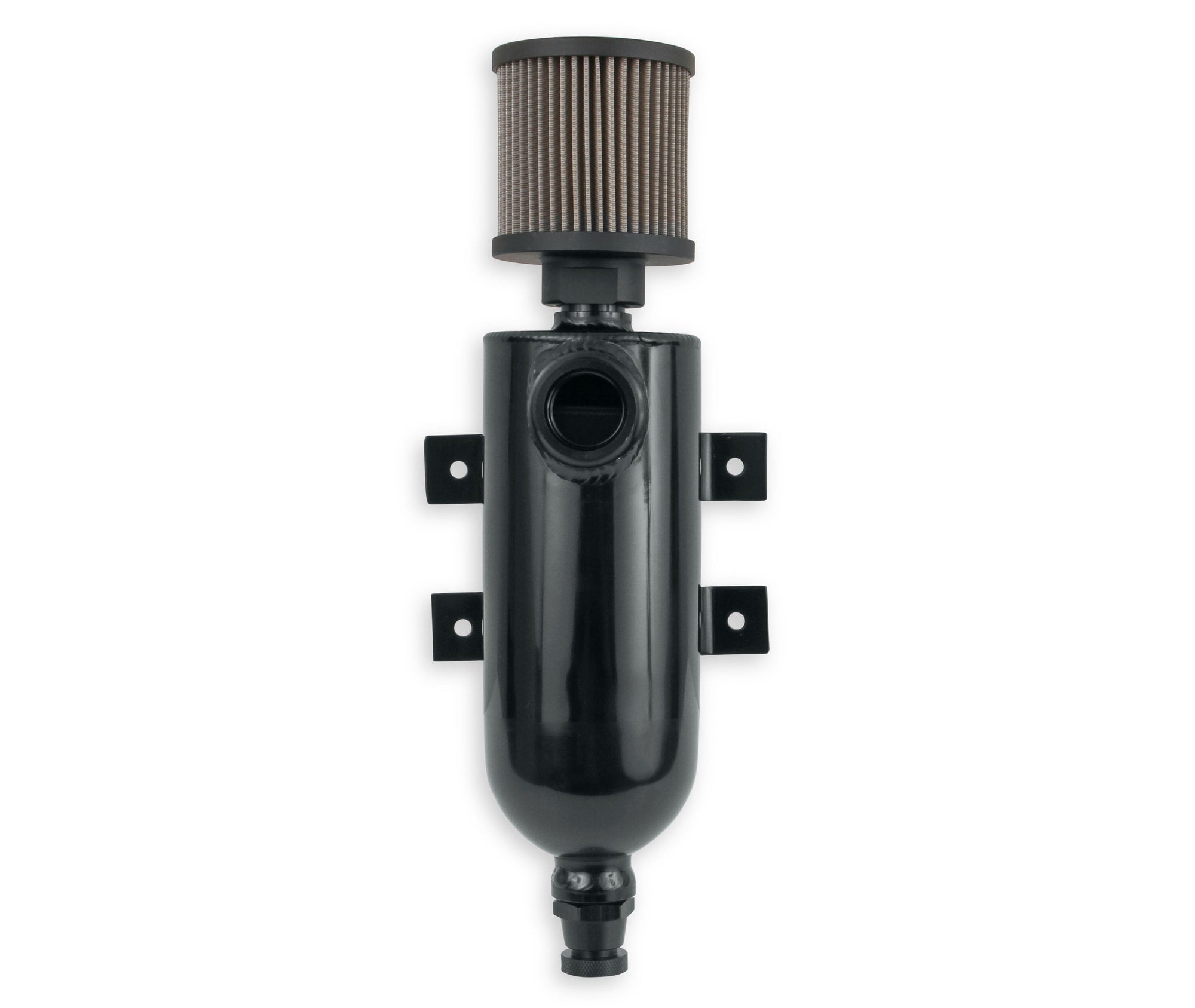

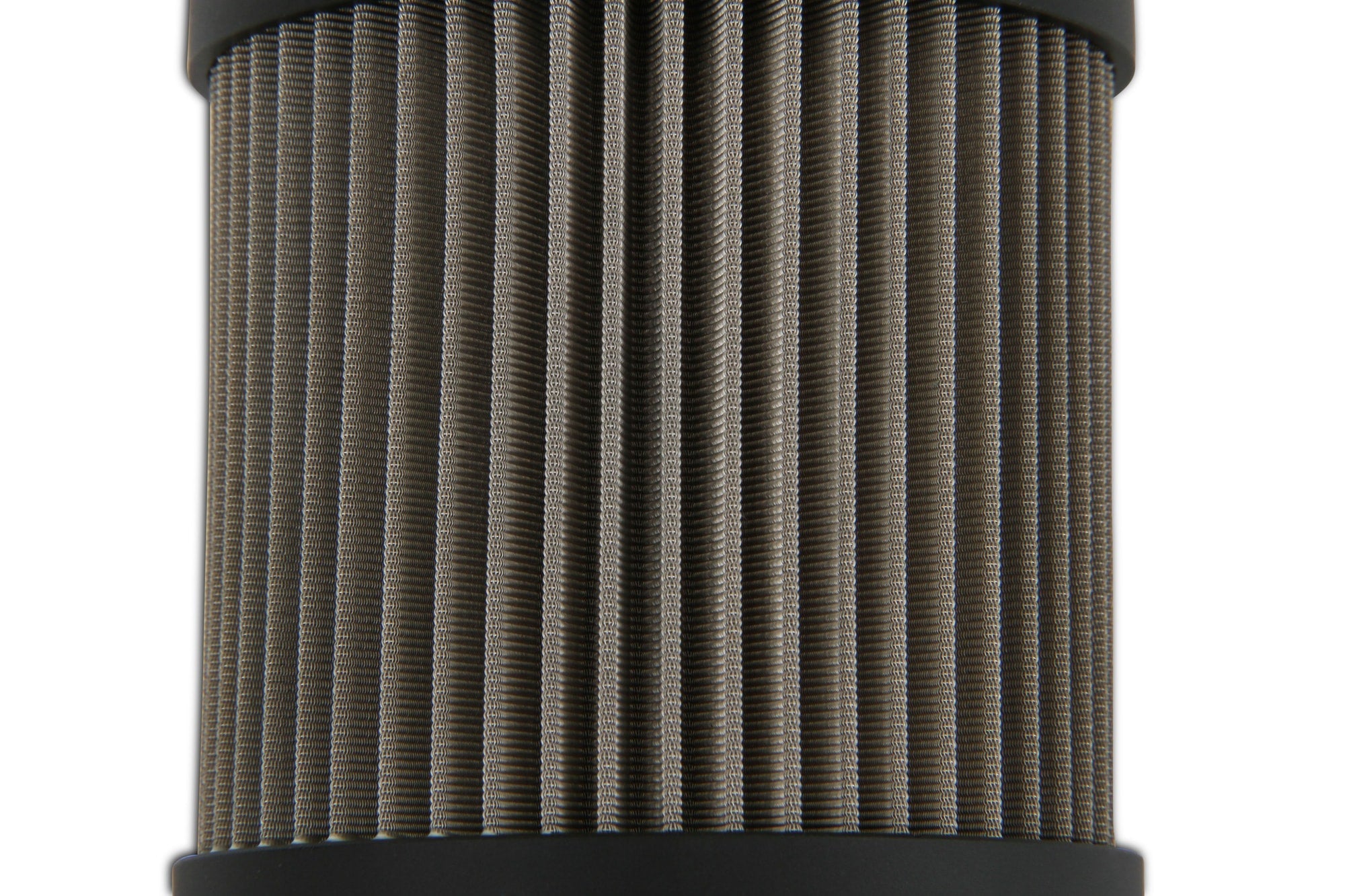

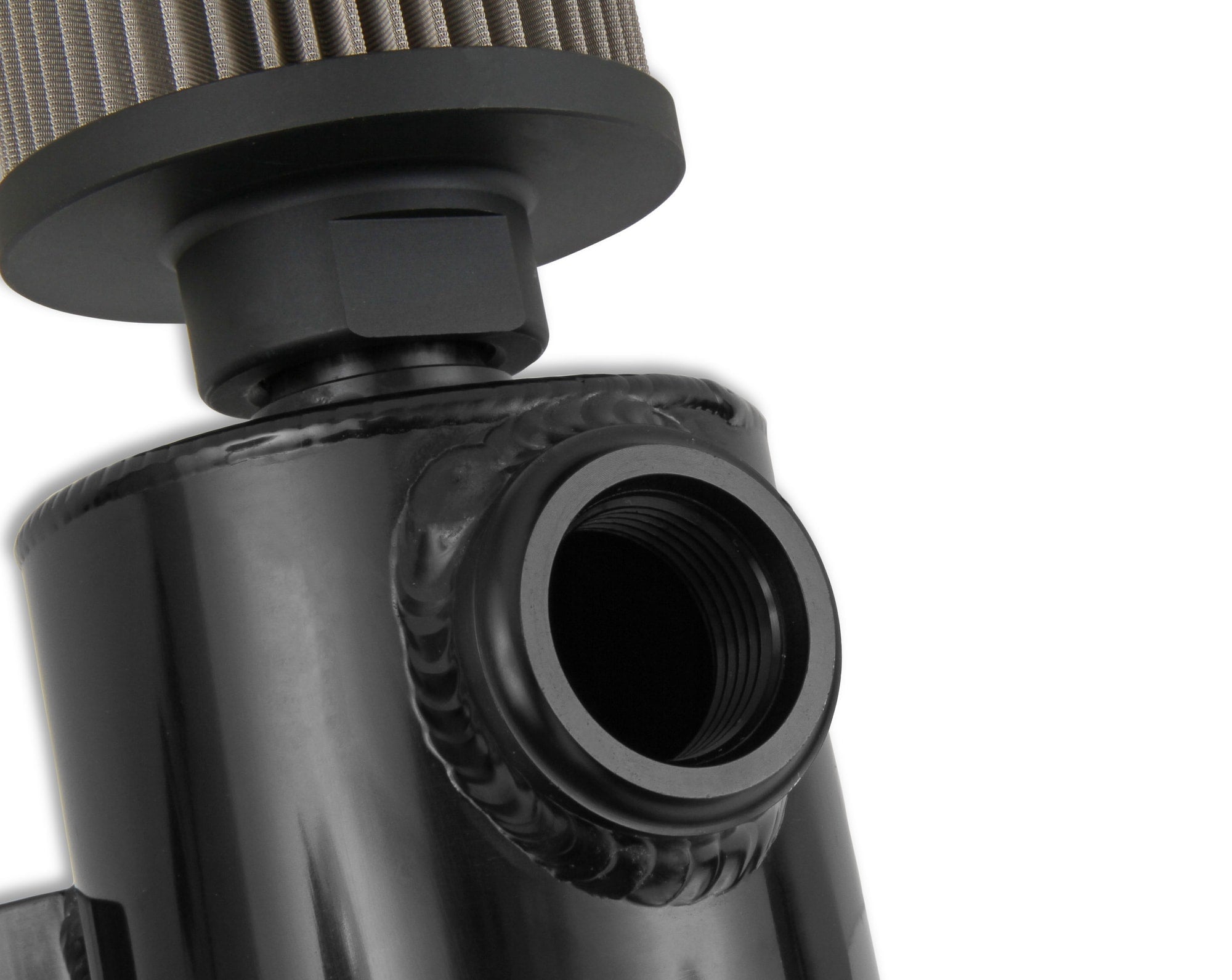

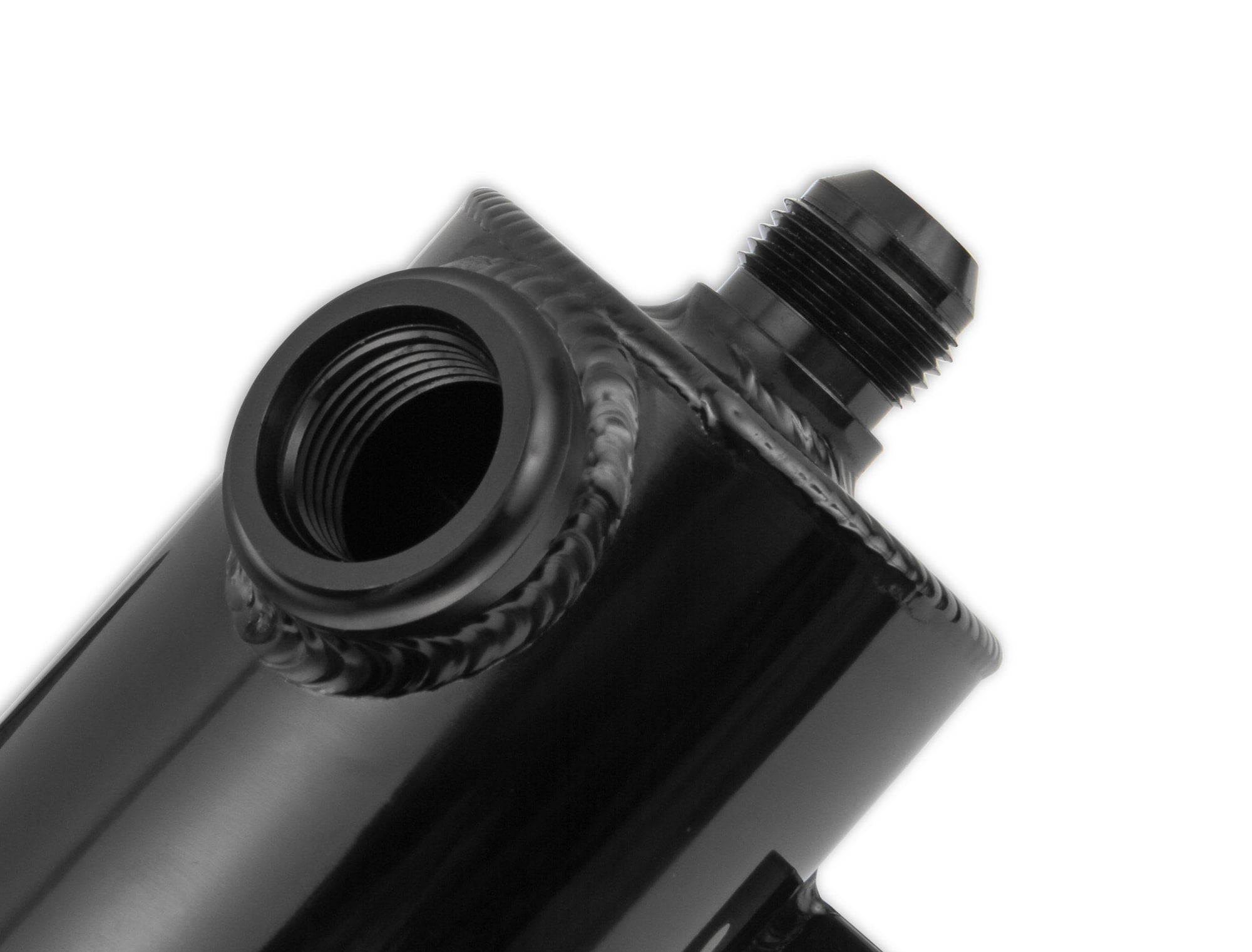

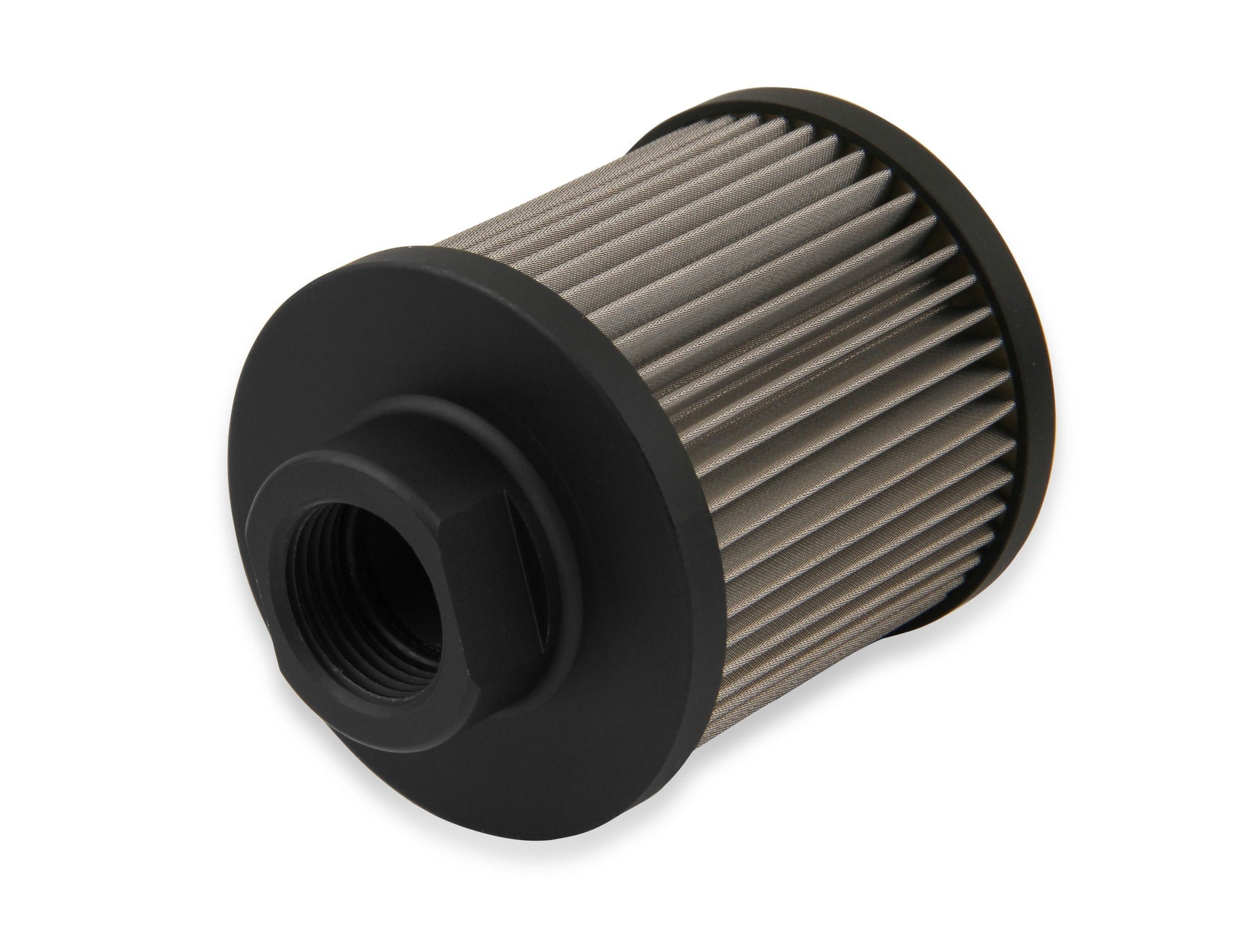

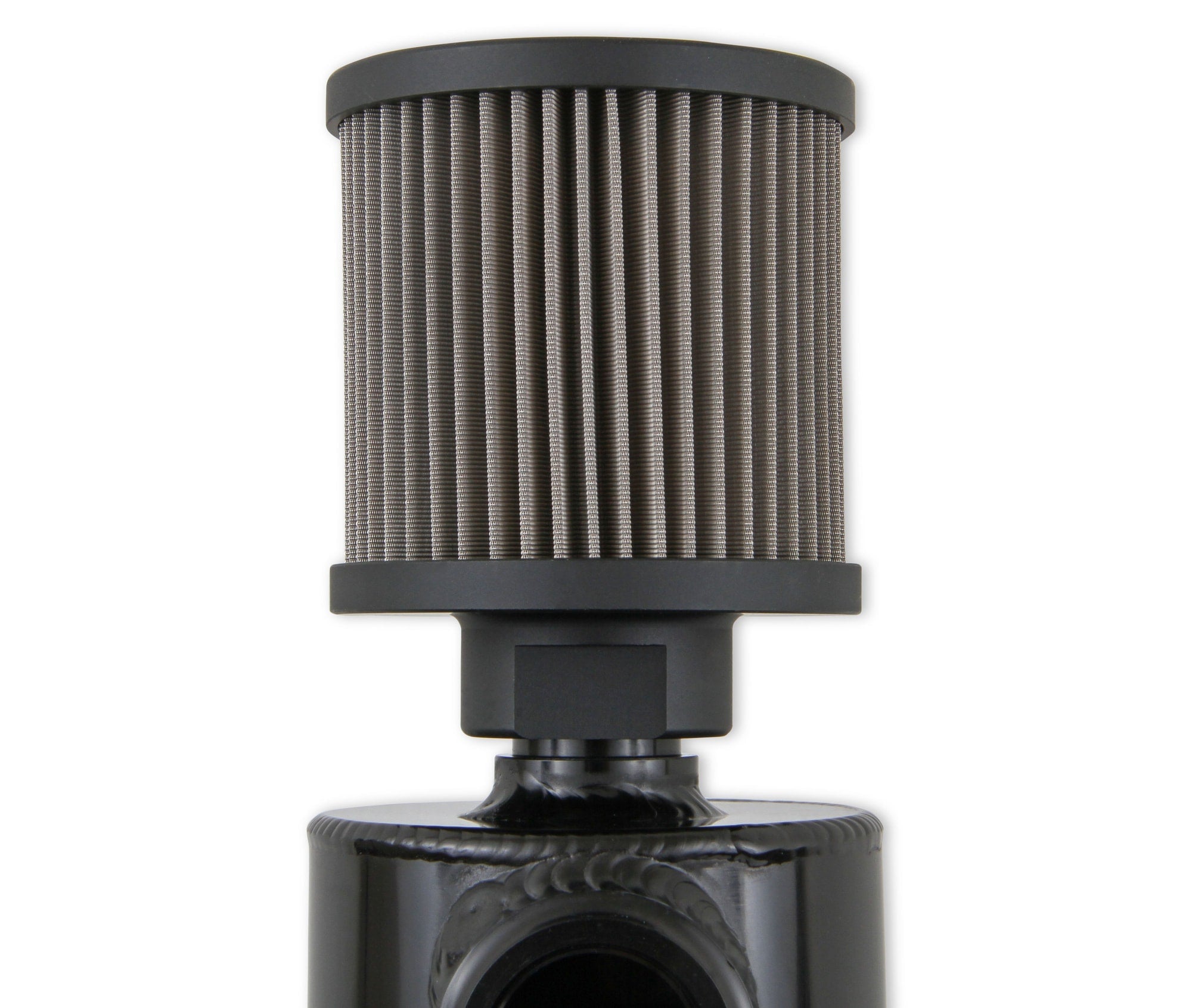

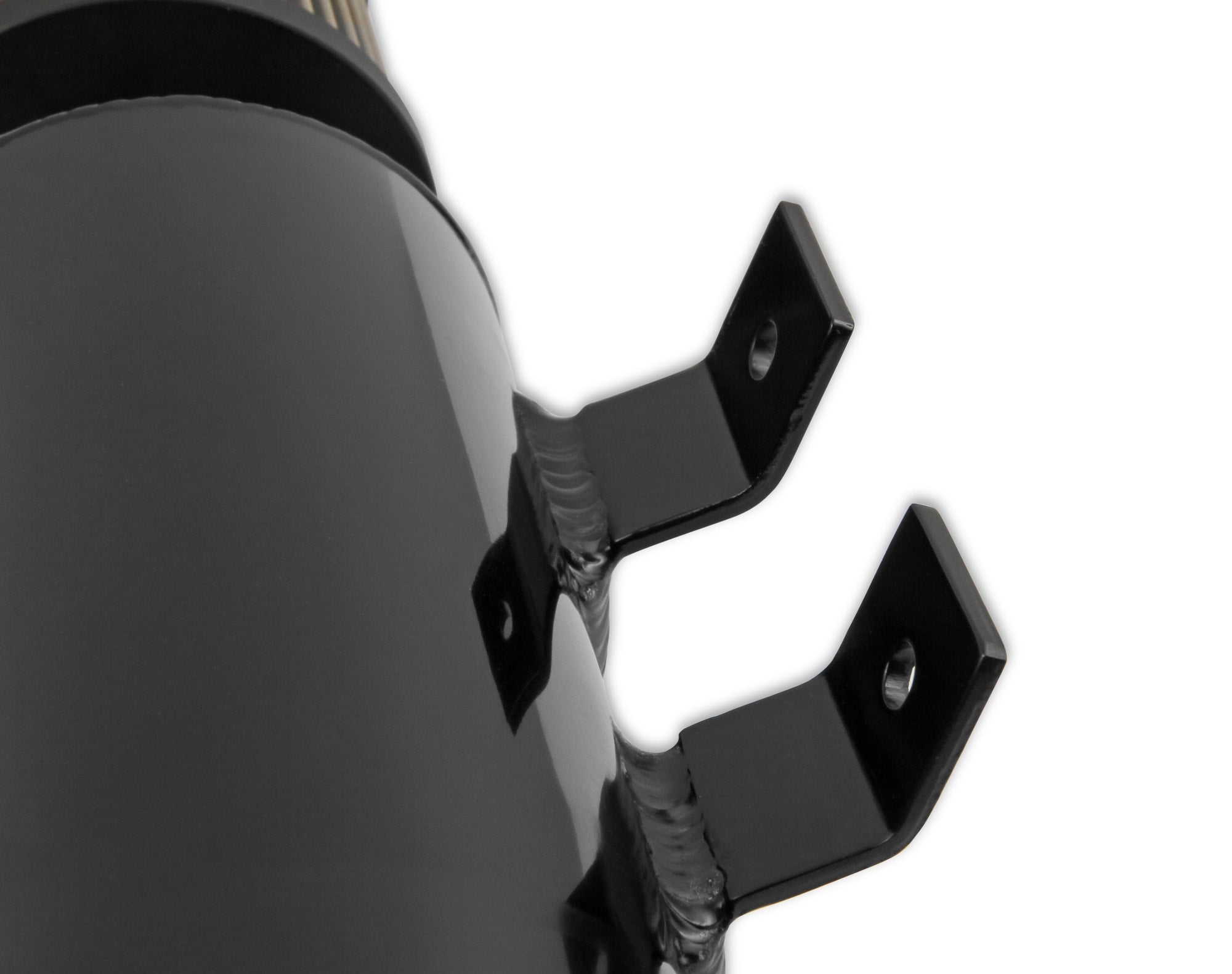

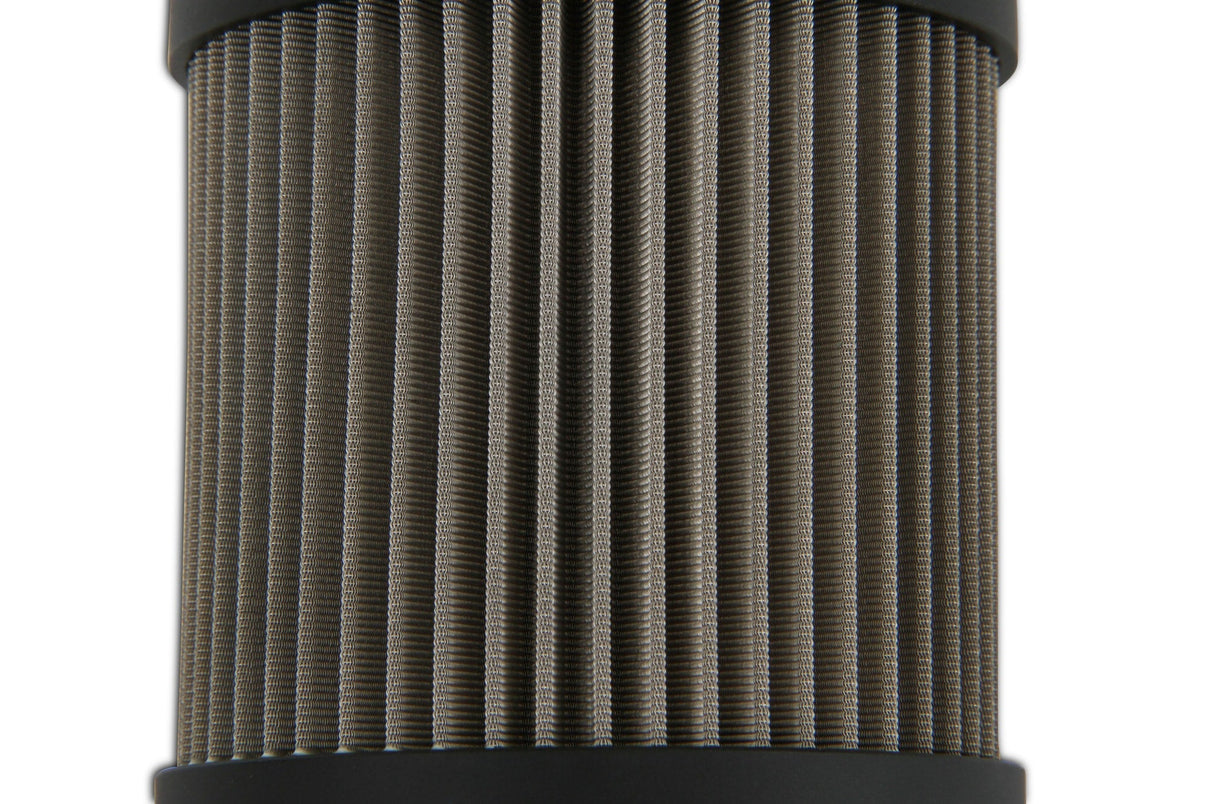

Earl's breather tanks are made from 6061 aluminum and have internal oil baffling. These tanks feature a -12 AN O-ring inlet port, knurled drain valve with an optional 1/8" NPT outlet port for use with a remote drain (or to drain back to the oil pan), w/ 4-bolt mounting brackets. Includes a heavy duty stainless steel mesh filter which has a billet aluminum housing to reduce weight. The filter may be removed to expose a -12AN Male. Ideal for use in all racing applications (i.e. engine PCV, dry sump tanks, transmissions, and rear-end venting). Black anodized finish.
Black w/ Billet Filter, Drain Valve, -12 AN O-Ring Port (Inlet) & Mounting Brackets. 1/8" NPT on Drain Valve for Optional Remote Outlet Hose
- Pressure Tested to 75psi
📖
About this product
Black w/ Billet Filter, Drain Valve, -12 AN O-Ring Port (Inlet) & Mounting Brackets. 1/8" NPT on Drain Valve for Optional Remote Outlet Hose
📋
Product Specifications
Adapter NPT Size ( B )
1/8 NPT MALE
Adapter Port Size (A)
1-1/16-12 (AN 12)
Application
Universal
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Capacity
.75L
Category
Air and Fuel Delivery
Depth
3.20"
Diameter
3.15"
Emission Code
4
Filter Type
Steel Mesh
Finish
Anodized Black
Material
6061 Aluminum
Overall Height
13.25"
Part Type
Fuel Catch Can
Product Type
Catch Tanks
Prop 65 Yes/No
Yes
Sub Category
Fuel Storage
Warning
California Proposition 65
Width
5.07"
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8421390190
📐
Dimensions & Shipping
Product Dimensions
13.1 × 6.2 × 4.7 in
Shipping Dimensions
13.1 × 6.2 × 4.7 in
Weight
748 g (0.75 kg)
